4-11 — FRONT HUB AND DRUM OR ROTOR (#21077) — 22 parça

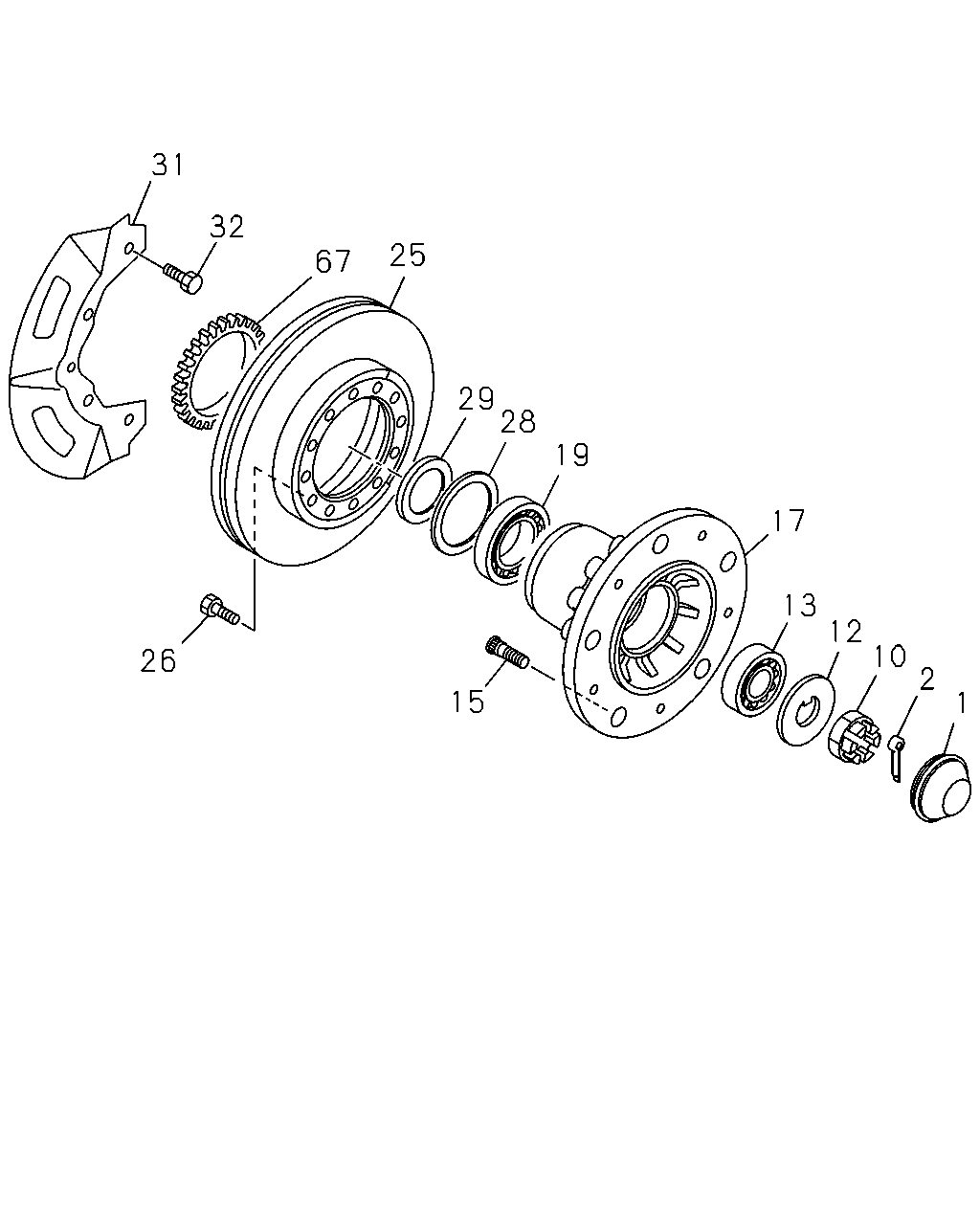

çizim 56148
31 32 25 67 29 28 19 17 13 12 10 2 26 15 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 06.330 CAP; HUB,FRT AXLE 8-97012-619-0 02 1 0608-0611 ● ●
1 06.330 CAP; HUB,FRT AXLE 8-97360-101-0 02 1 0612- ● ●
2 05.812 PIN; SPLIT,HUB TO AXLE SHAFT
OD=4.6 L=40 		0-81125-040-0 02 1 0608- ● ●
10 05.812 NUT; FRT HUB BRG
06.022 		8-94247-357-1 02 1 0608- ● ●
12 06.321 WASHER; LK,FRT HUB BRG 8-94247-356-1 02 1 0608- ● ●
13 06.313 BEARING; HUB OUTER,FRT AXLE
NSK 		9-00093-172-0 02 1 0608- ● ●
15 05.812 PIN; WHEEL,FRT AXLE
M18X46 LH THREAD 		8-98028-533-1 05 1 0608- ● ●
15 05.812 PIN; WHEEL,FRT AXLE
M18X46 RH THREAD 		8-98028-532-1 05 1 0608- ● ●
17 06.307 HUB; FRT AXLE
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97035-160-0 02 1 0608- ● ●
17 06.307 HUB; FRT AXLE
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97017-193-0 02 1 0608- ● ●
19 06.311 BEARING; HUB INNER,FRT AXLE
KOYO 		8-94248-088-2 02 1 0608-1009 ● ●
19 06.311 BEARING; HUB INNER,FRT AXLE
JTEKT 		8-98171-254-0 02 1 1010- ● ●
19 06.311 BEARING; HUB INNER,FRT AXLE
NSK 		9-00093-149-0 02 1 0608-1009 ● ●
25 05.809 ROTOR; DISC BRK,FRT 8-97371-876-0 02 1 0608-0612 ● ●
25 05.809 ROTOR; DISC BRK,FRT 8-97387-229-0 02 1 0701- ● ●
26 05.812 BOLT; BRK,DISC TO HUB 8-94474-923-0 24 1 0608- ● ●
28 06.326 SEAL; OIL,FRT HUB 8-94248-117-1 02 1 0608- ● ●
29 06.326 DISTANCE PIECE; HUB BRKT
NTN 		8-97234-513-0 02 1 0608- ● ●
31 04.665 COVER; DUST,FRT BRAKE 8-97332-209-1 02 1 0608-0703 ● ●
31 04.665 COVER; DUST,FRT BRAKE 8-98037-377-0 02 1 0704- ● ●
32 04.665 BOLT; DUST COVER TO KNUCKLE
02.343 M8X12 FLANGE 		0-28050-812-0 08 1 0608- ● ●
67 05.811 ROTOR; SENSOR
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97206-773-0 02 1 0608- ● ●
