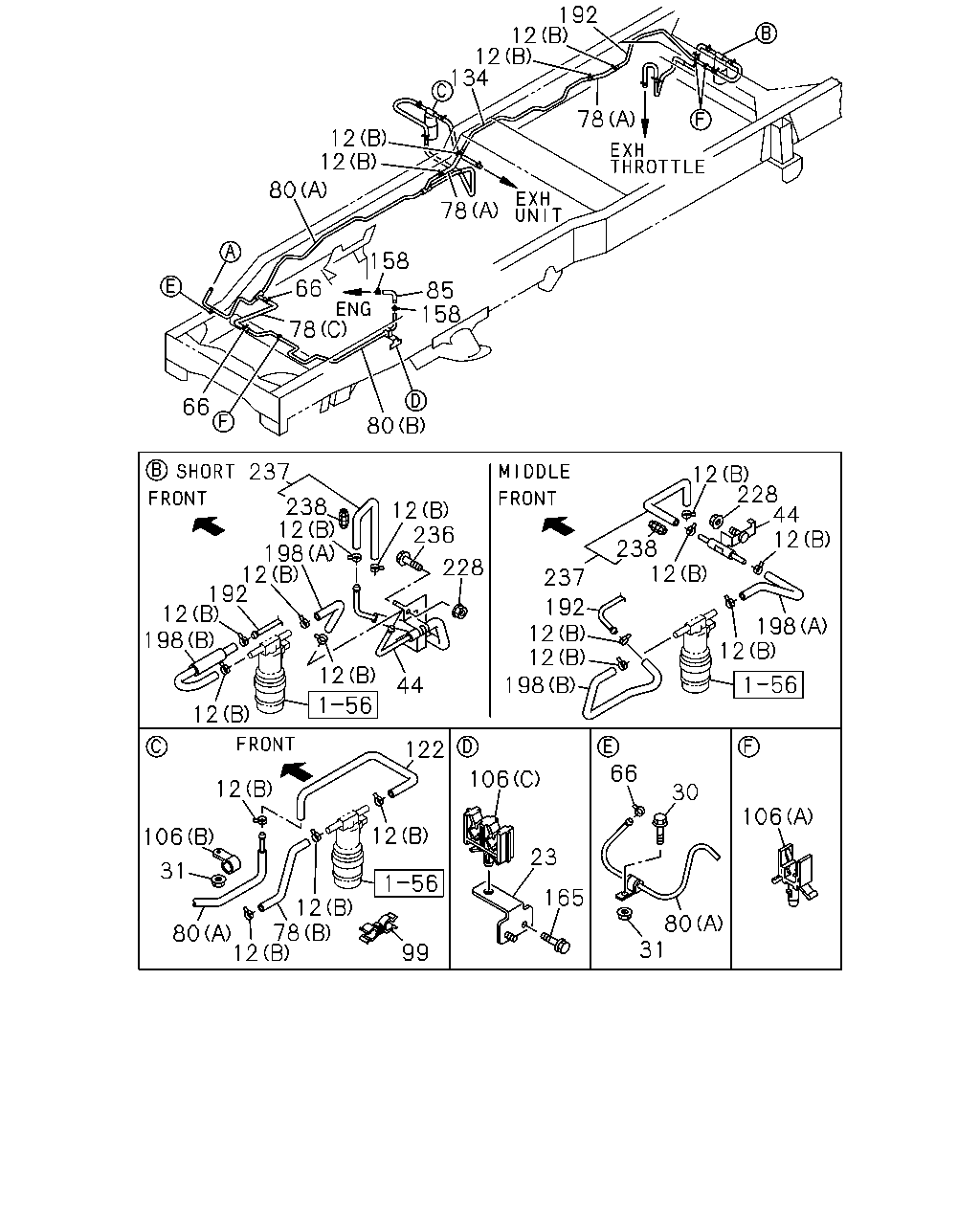

3-60 — BRAKE PIPING; VACUUM (#21074) — 60 parça

192 12 12 134 78 12 12 80 78 158 66 85 158 78 80 66 237 12 228 44 12 238 12 198 12 192 12 198 12 236 238 12 228 237 192 12 12 198 198 12 12 44 12 66 122 106 12 30 106 12 106 23 31 165 12 78 12 80 31 80 99

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
12	04.681 CLIP; HOSE 04.930 (A) ID=14.5	8-94167-480-0	03	1	0608-	●	●
12	04.681 CLIP; HOSE 04.930 (B) ID=16	8-94238-568-0	14	1	0608-0705	●	●
12	04.681 CLIP; HOSE 04.930 (B) ID=16	8-94238-568-0	12	1	0706-0711	●	●
12	04.681 CLIP; HOSE 04.930 (B) ID=16	8-94238-568-0	14	1	0712-0911	●	●
12	04.681 CLIP; HOSE 03.162 (B) ID=16	8-98008-098-0	14	1	0912-	●	●
23	04.686 BRACKET; VAC PIPE	8-98000-460-1	01	1	0608-	●	●
30	04.686 BOLT; CLIP,VAC PIPE 03.162 M6X20 FLANGE	0-28650-620-0	01	1	0608-	●	●
31	04.686 NUT; CLIP,VAC PIPE 01.062 M6 FLANGE	0-91180-106-0	01	1	0608-	●	●
31	04.686 NUT; CLIP,VAC PIPE 01.062 M6 FLANGE	0-91180-106-0	01	1	0608-	●	●
44	04.930 PIPE; VAC,MAG VLV	8-98000-455-2	01	1	0608-	●
44	04.930 PIPE; VAC,MAG VLV	8-98019-530-1	01	1	0608-		●
66	04.930 CLIP; VAC HOSE,M/VAC ID=16	8-94238-568-0	03	1	0608-0911	●	●
66	04.930 CLIP; VAC HOSE,M/VAC 03.162 ID=16	8-98008-098-0	03	1	0912-	●	●
78	04.931 HOSE; VAC,PIPE TO PIPE 03.630 (A) L=140 SERVICED BY L=3000	0-08258-300-0	01	1	0608-	●	●
78	04.931 HOSE; VAC,PIPE TO PIPE 03.630 (A) L=140 SERVICED BY L=3000	0-08258-300-0	01	1	0608-	●	●
78	04.931 HOSE; VAC,PIPE TO PIPE 03.630 (B) L=330 SERVICED BY L=3000	0-08258-300-0	01	1	0608-	●	●
78	04.931 HOSE; VAC,PIPE TO PIPE (C)	8-98000-969-0	01	1	0608-	●	●
80	04.930 PIPE; VAC,ENG SIDE (A)	8-98000-359-1	01	1	0608-	●	●
80	04.930 PIPE; VAC,ENG SIDE (B)	8-98000-617-3	01	1	0608-	●	●
85	04.931 HOSE; VAC,ENG SIDE	8-98000-966-1	01	1	0608-	●	●
99	04.930 CLIP; VAC HOSE TO VAC HOSE 02.559 ID=16.5 & 16.5	8-94473-320-0	01	1	0609-	●	●
106	04.930 CLIP; PIPE (B) ID=13 L=20	0-95235-232-0	01	1	0608-	●	●
106	04.930 CLIP; PIPE (A) ID=10 H=40	8-94462-219-0	01	1	0608-	●	●
106	04.930 CLIP; PIPE (A) ID=10 H=40	8-94462-219-0	01	1	0608-	●	●
106	04.930 CLIP; PIPE (A) ID=10 H=40	8-94462-219-0	01	1	0608-		●
106	04.930 CLIP; PIPE (C) ID=10X2 H=37.5	8-97018-546-0	01	1	0608-	●	●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE	8-98000-967-0	01	1	0608-	●	●
134	04.685 PIPE; VAC,3 WAY TO HOSE	8-98036-784-0	01	1	0608-	●	●
158	04.681 CLIP; HOSE 04.930 ID=16	8-94238-568-0	02	1	0608-0911	●	●
158	04.681 CLIP; HOSE 03.162 ID=16	8-98008-098-0	02	1	0912-	●	●
165	04.686 BOLT; BRKT 02.343 M6X16 FLANGE	0-28650-616-0	02	1	0608-	●	●
165	04.686 BOLT; BRKT 00.685 M6X25 FLANGE	0-28650-625-0	01	1	0608-	●	●
192	04.685 PIPE; VAC,HOSE TO MAG VLV	8-98000-325-2	01	1	0608-	●
192	04.685 PIPE; VAC,HOSE TO MAG VLV	8-98019-526-1	01	1	0608-		●
198	04.931 HOSE; VAC,PIPE TO MAG VLV (B)	8-97373-197-0	01	1	0608-	●
198	04.931 HOSE; VAC,PIPE TO MAG VLV (A)	8-97373-199-0	01	1	0608-	●
198	04.931 HOSE; VAC,PIPE TO MAG VLV (B)	8-98036-849-0	01	1	0608-		●
198	04.931 HOSE; VAC,PIPE TO MAG VLV (A)	8-98036-850-0	01	1	0608-		●
228	04.930 NUT; PIPE 01.062 M8 FLANGE	0-91180-108-0	01	1	0608-	●	●
236	04.930 BOLT; PIPE 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0608-	●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE	8-98000-968-0	01	1	0608-	●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE	8-98036-851-0	01	1	0608-		●
238	04.892 ORIFICE; VACUUM HOSE	8-97377-521-0	01	1	0608-	●	●

12 116 203 12 12 13 39 39 39 184 39 165 39 173 39 162 202

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
12	04.681 CLIP; HOSE 04.930 (A) ID=14.5	8-94167-480-0	03	1	0608-	●	●
12	04.681 CLIP; HOSE 04.930 (B) ID=16	8-94238-568-0	14	1	0608-0705	●	●
12	04.681 CLIP; HOSE 04.930 (B) ID=16	8-94238-568-0	12	1	0706-0711	●	●
12	04.681 CLIP; HOSE 04.930 (B) ID=16	8-94238-568-0	14	1	0712-0911	●	●
12	04.681 CLIP; HOSE 03.162 (B) ID=16	8-98008-098-0	14	1	0912-	●	●
13	04.681 JOINT; HOSE,VAC 04.686 3WAY	8-94441-184-0	01	1	0608-	●	●
39	04.681 CLIP; HOSE,VAC 04.930 (C) ID=16	5-09707-023-2	02	1	0608-	●	●
39	04.681 CLIP; HOSE,VAC 04.930 (B) ID=16	8-94238-568-0	03	1	0608-	●	●
39	04.681 CLIP; HOSE,VAC (A) ID=25.5	8-97077-492-0	01	1	0608-	●	●
116	04.931 HOSE; VAC,M/VAC	8-97314-597-1	01	1	0608-	●	●
162	04.931 HOSE; VAC	8-97102-369-2	01	1	0608-	●	●
165	04.686 BOLT; BRKT 02.343 M6X16 FLANGE	0-28650-616-0	02	1	0608-	●	●
165	04.686 BOLT; BRKT 00.685 M6X25 FLANGE	0-28650-625-0	01	1	0608-	●	●
173	04.931 HOSE; VAC,VAC TANK SIDE	8-97129-875-0	01	1	0608-	●	●
184	04.685 BRACKET; UNION FIX	8-97035-967-3	01	1	0608-	●	●
202	04.686 SEAL 16.165 OD=20 T=0.05 BLACK	5-76777-036-0	01	1	0608-	●	●
203	04.690 VALVE; CHECK	8-94386-540-0	01	1	0608-	●	●
