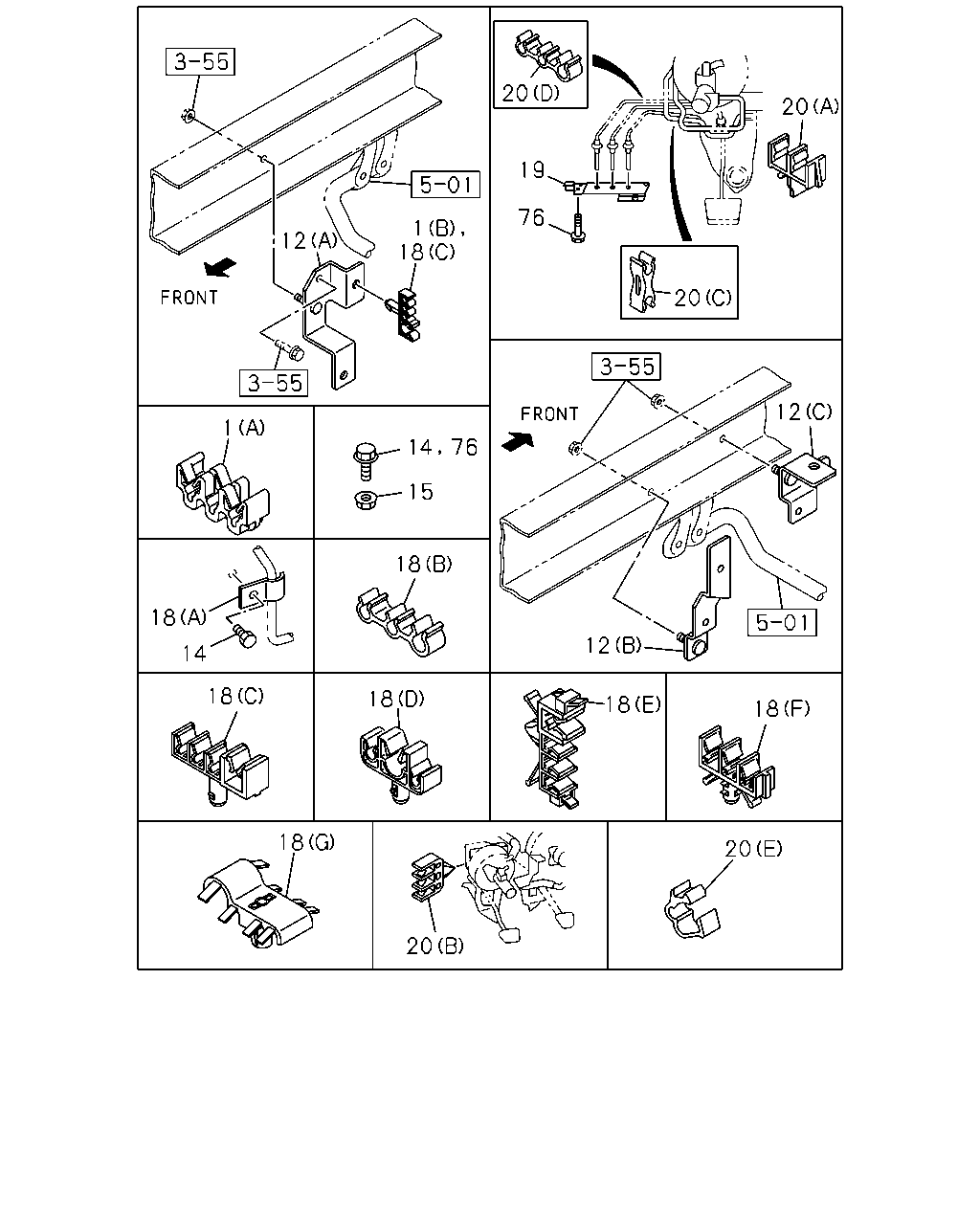

3-58 — FIXING PARTS; OIL PIPING (#21073) — 32 parça

20 20 19 76 1 18 12 20 12 1 15 18 18 12 14 18 18 18 18 18 20 20 14 76

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	04.686 CLIP; OIL PIPE TO BODY 4 WHEEL ANTI LOCK BRAKE<JE5> (A) ID=4.8X3	8-94487-369-0	01	1	0608-	●	●
1	04.686 CLIP; OIL PIPE TO BODY 4 WHEEL ANTI LOCK BRAKE<JE5> (B) ID=10 & 4.76X3	8-97168-819-0	02	1	0608-	●	●
12	04.686 BRACKET; OIL PIPE (A)	8-98000-459-1	01	1	0608-	●	●
12	04.686 BRACKET; OIL PIPE (B)	8-98000-461-2	01	1	0608-	●	●
12	04.686 BRACKET; OIL PIPE (C)	8-98000-462-2	01	1	0608-	●	●
14	04.686 BOLT; CLIP,OIL PIPE 01.531 M8X20 FLANGE	0-28650-820-0	02	1	0608-	●	●
15	04.686 NUT; CLIP,OIL PIPE 01.062 M8 FLANGE	0-91180-108-0	02	1	0608-	●	●
18	04.686 CLIP; BRK PIPE (A) B=18 L=20	1-09700-372-0	02	1	0608-	●	●
18	04.686 CLIP; BRK PIPE (B) ID=6.4 & 4.8X2	8-94146-043-0	01	1	0608-	●	●
18	04.686 CLIP; BRK PIPE (G) ID=6.5 & 4.8X2 H=29	8-94249-689-2	01	1	0608-	●	●
18	04.686 CLIP; BRK PIPE 4 WHEEL ANTI LOCK BRAKE<JE5> (G) ID=6.5 & 4.8X2 H=29	8-94249-689-2	01	1	0608-	●	●
18	04.686 CLIP; BRK PIPE 03.162 (F) ID=10 & 6.4 & 4.8	8-97064-484-1	01	1	0608-0608	●	●
18	04.686 CLIP; BRK PIPE 03.162 (F) ID=10 & 6.4 & 4.8	8-97064-484-1	03	1	0609-	●	●
18	04.686 CLIP; BRK PIPE 03.162 (F) ID=10 & 6.4 & 4.8	8-97064-484-1	02	1	0608-0608	●	●
18	04.686 CLIP; BRK PIPE (C) ID=10 & 4.76X3	8-97168-819-0	02	1	0608-	●	●
18	04.686 CLIP; BRK PIPE (C) ID=10 & 4.76X3	8-97168-819-0	02	1	0608-	●	●
18	04.686 CLIP; BRK PIPE 4 WHEEL ANTI LOCK BRAKE<JE5> (C) ID=10 & 4.76X3	8-97168-819-0	02	1	0608-	●	●
18	04.686 CLIP; BRK PIPE (D) ID=12 & 6.35 & 4.76	8-97305-169-1	02	1	0608-	●	●
18	04.686 CLIP; BRK PIPE (E) ID=10 & 4.76X3	8-97326-158-1	01	1	0608-	●	●
18	04.686 CLIP; BRK PIPE EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (E) ID=10 & 4.76X3	8-97326-158-1	01	1	0608-	●	●
18	04.686 CLIP; BRK PIPE (E) ID=10 & 4.76X3	8-97326-158-1	01	1	0608-	●
18	04.686 CLIP; BRK PIPE (E) ID=10 & 4.76X3	8-97326-158-1	05	1	0608-	●	●
18	04.686 CLIP; BRK PIPE 4 WHEEL ANTI LOCK BRAKE<JE5> (E) ID=10 & 4.76X3	8-97326-158-1	02	1	0608-	●	●
18	04.686 CLIP; BRK PIPE 4 WHEEL ANTI LOCK BRAKE<JE5> (E) ID=10 & 4.76X3	8-97326-158-1	02	1	0608-		●
18	04.686 CLIP; BRK PIPE (E) ID=10 & 4.76X3	8-97326-158-1	03	1	0608-		●
19	04.686 BRACKET; OIL PIPE	8-97042-258-4	01	1	0608-	●	●
20	04.686 CLIP; BRK PIPE (E) ID=6.35 & 4.76X2	8-94107-732-1	01	1	0608-	●	●
20	04.686 CLIP; BRK PIPE (A) ID=4.8X2	8-94113-470-0	01	1	0608-	●	●
20	04.686 CLIP; BRK PIPE (D) ID=6.4 & 4.8X2	8-94146-043-0	01	1	0608-	●	●
20	04.686 CLIP; BRK PIPE 04.868 (C) ID=4.6X2	8-94241-454-0	01	1	0608-	●	●
20	04.686 CLIP; BRK PIPE (B) ID=6.35 & 4.76X2	8-94250-923-2	01	1	0608-	●	●
76	04.686 BOLT; BRKT,OIL PIPE 06.216 M8X25 FLANGE	0-28650-825-0	02	1	0608-	●	●
