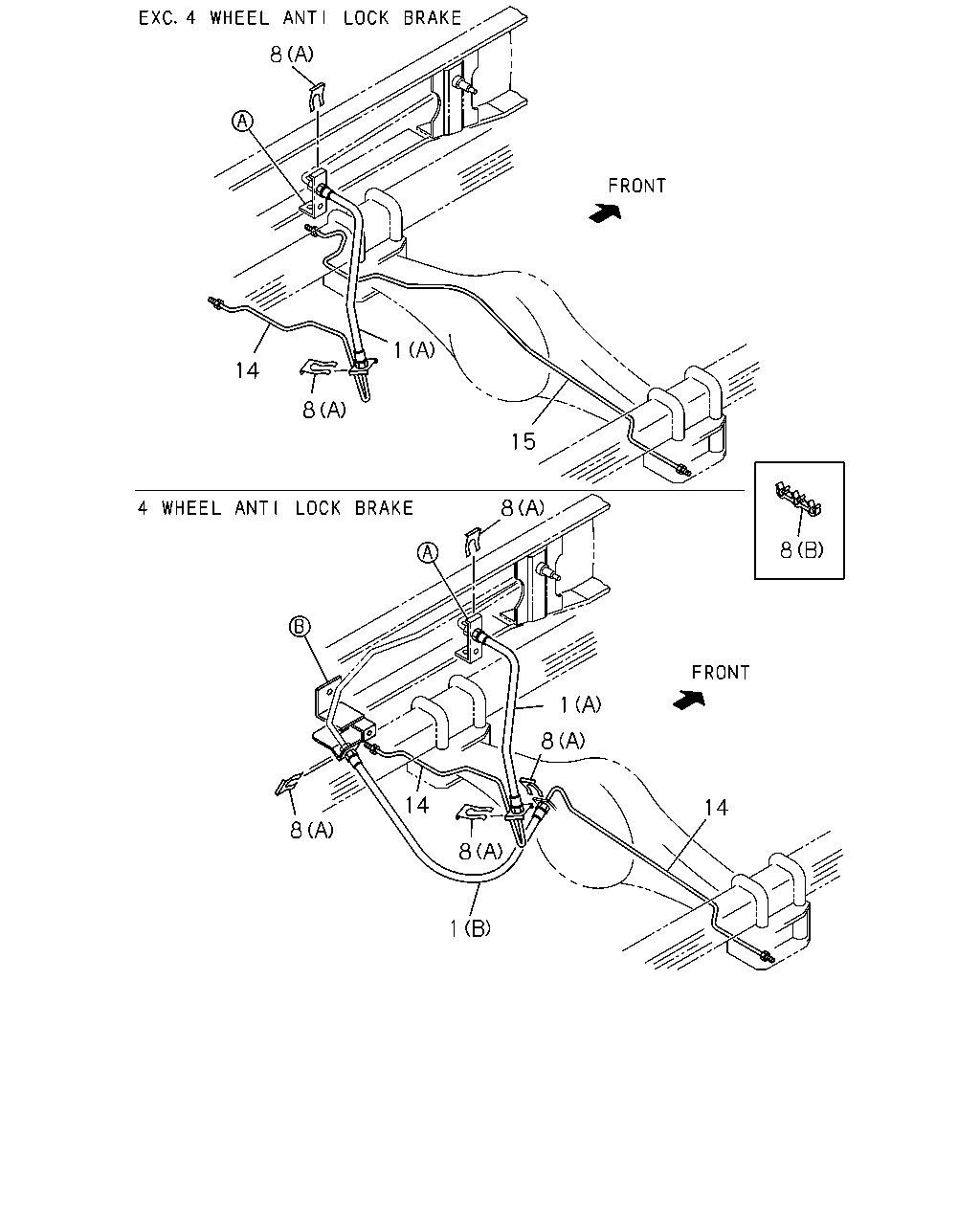

3-55 — BRAKE PIPING; OIL,REAR (#21072) — 25 parça

8 1 14 8 15 8 8 1 8 14 14 8 8 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	04.680 HOSE; FLEX,RR BRK (A) L=370	8-97035-574-0	01	1	0608-	●	●
1	04.680 HOSE; FLEX,RR BRK 4 WHEEL ANTI LOCK BRAKE<JE5> (B) L=430	8-97077-458-0	01	1	0608-	●	●
8	04.686 CLIP; RR BRK (B)	8-97076-471-0	01	1	0608-	●	●
8	04.686 CLIP; RR BRK 4 WHEEL ANTI LOCK BRAKE<JE5> 04.681 (A)	8-94137-662-0	04	1	0608-0610	●	●
8	04.686 CLIP; RR BRK 4 WHEEL ANTI LOCK BRAKE<JE5> (A)	8-97360-054-0	04	1	0611-	●	●
8	04.686 CLIP; RR BRK EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 04.681 (A)	8-94137-662-0	02	1	0608-0610	●	●
8	04.686 CLIP; RR BRK EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (A)	8-97360-054-0	02	1	0611-	●	●
14	04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL REAR WIDE TREAD(V4T) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97070-590-0	01	1	0608-	●
14	04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97070-590-0	01	1	0608-		●
14	04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL 4 WHEEL ANTI LOCK BRAKE<JE5> REAR WIDE TREAD(V4T)	8-97082-923-0	01	1	0608-0610	●
14	04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97082-923-0	01	1	0608-0610		●
14	04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL 4 WHEEL ANTI LOCK BRAKE<JE5> REAR WIDE TREAD(V4T)	8-98021-879-0	01	1	0611-	●
14	04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98021-879-0	01	1	0611-		●
14	04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL 4 WHEEL ANTI LOCK BRAKE<JE5> REAR WIDE TREAD(V4T)	8-97042-077-2	01	1	0608-0610	●
14	04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97042-077-2	01	1	0608-0610		●
14	04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL 4 WHEEL ANTI LOCK BRAKE<JE5> REAR WIDE TREAD(V4T)	8-98021-871-0	01	1	0611-	●
14	04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98021-871-0	01	1	0611-		●
15	04.685 PIPE; BRK,WHEEL CYL TO WHEEL CYL REAR WIDE TREAD(V4T) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97070-591-0	01	1	0608-	●
15	04.685 PIPE; BRK,WHEEL CYL TO WHEEL CYL EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97070-591-0	01	1	0608-		●

5 3 4 4 4 4 5

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B

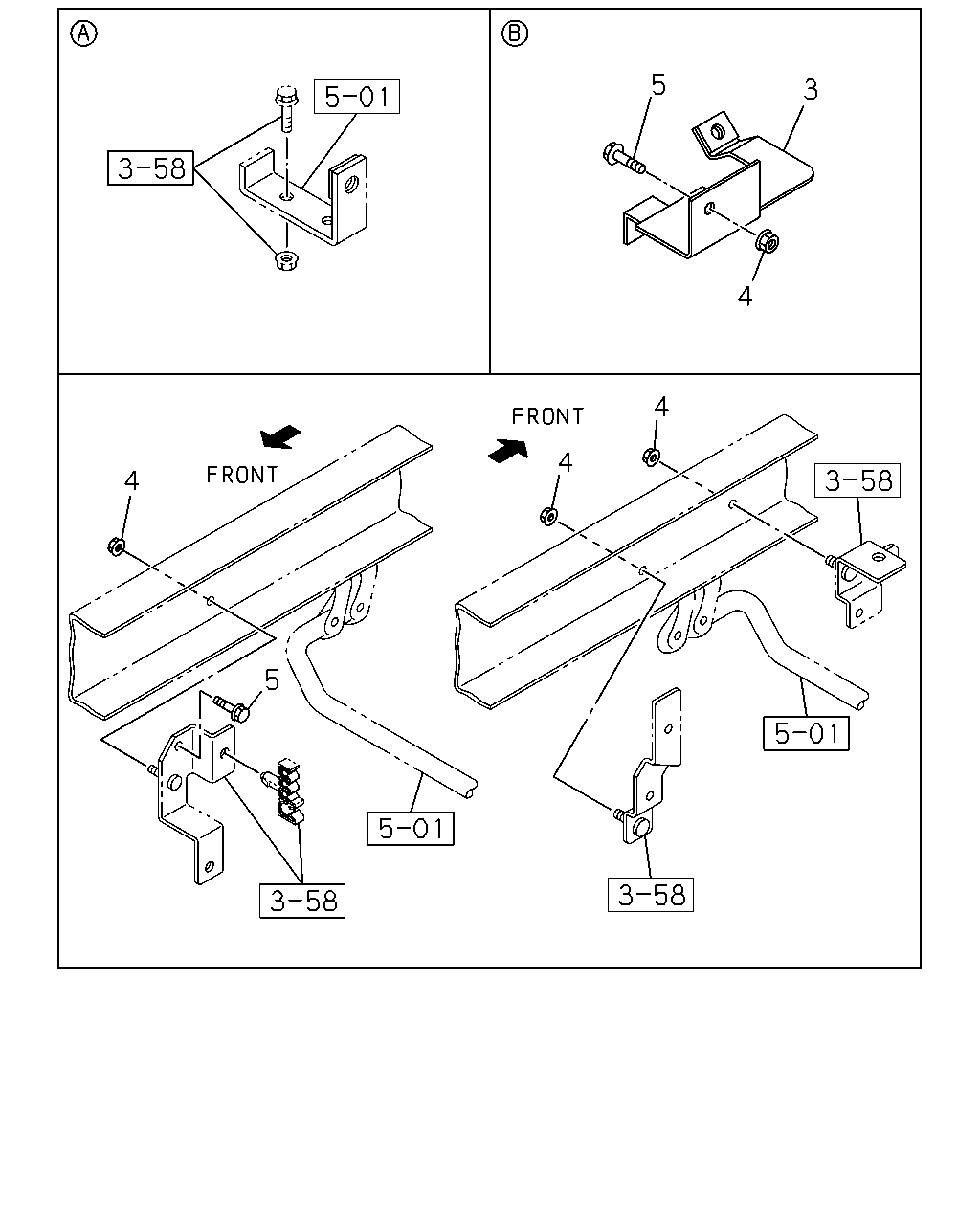

3	04.681 BRACKET; FLEX HOSE,RR BRK 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97046-936-0	01	1	0608-	●	●
4	04.686 NUT; BRKT,FLEX HOSE,RR BRK 01.062 M6 FLANGE	0-91180-106-0	03	1	0608-	●	●
4	04.686 NUT; BRKT,FLEX HOSE,RR BRK 4 WHEEL ANTI LOCK BRAKE<JE5> 03.162 M10 FLANGE	0-91180-110-0	01	1	0608-	●	●
5	04.681 BOLT; BRKT,FLEX HOSE,RR BRK 00.685 M6X25 FLANGE	0-28650-625-0	01	1	0608-	●	●
5	04.681 BOLT; BRKT,FLEX HOSE,RR BRK 4 WHEEL ANTI LOCK BRAKE<JE5> 00.029 M10X30 FLANGE	0-28651-030-0	01	1	0608-0611	●	●
5	04.681 BOLT; BRKT,FLEX HOSE,RR BRK 4 WHEEL ANTI LOCK BRAKE<JE5> 00.029 M10X25 FLANGE	0-28651-025-0	01	1	0612-	●	●
