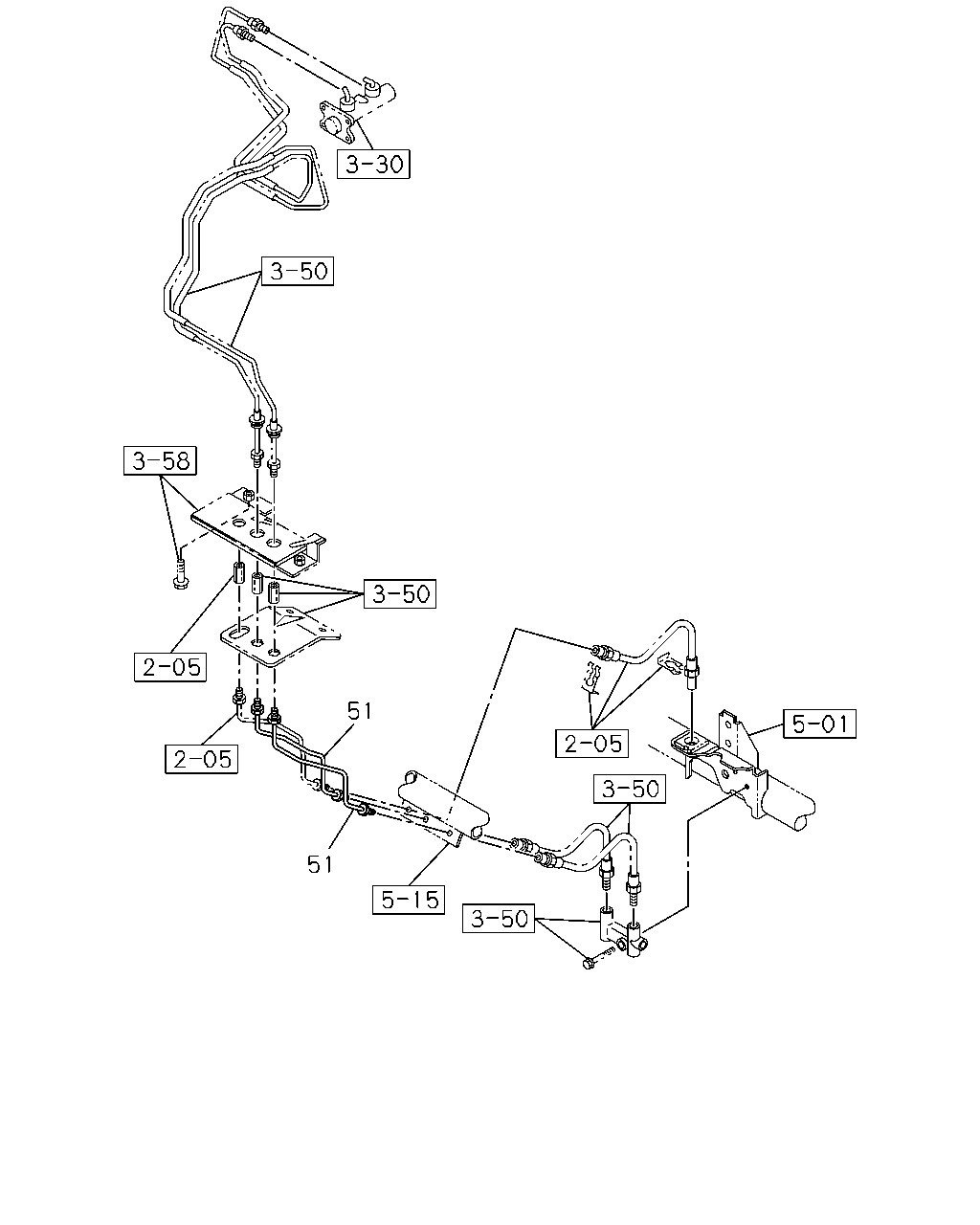

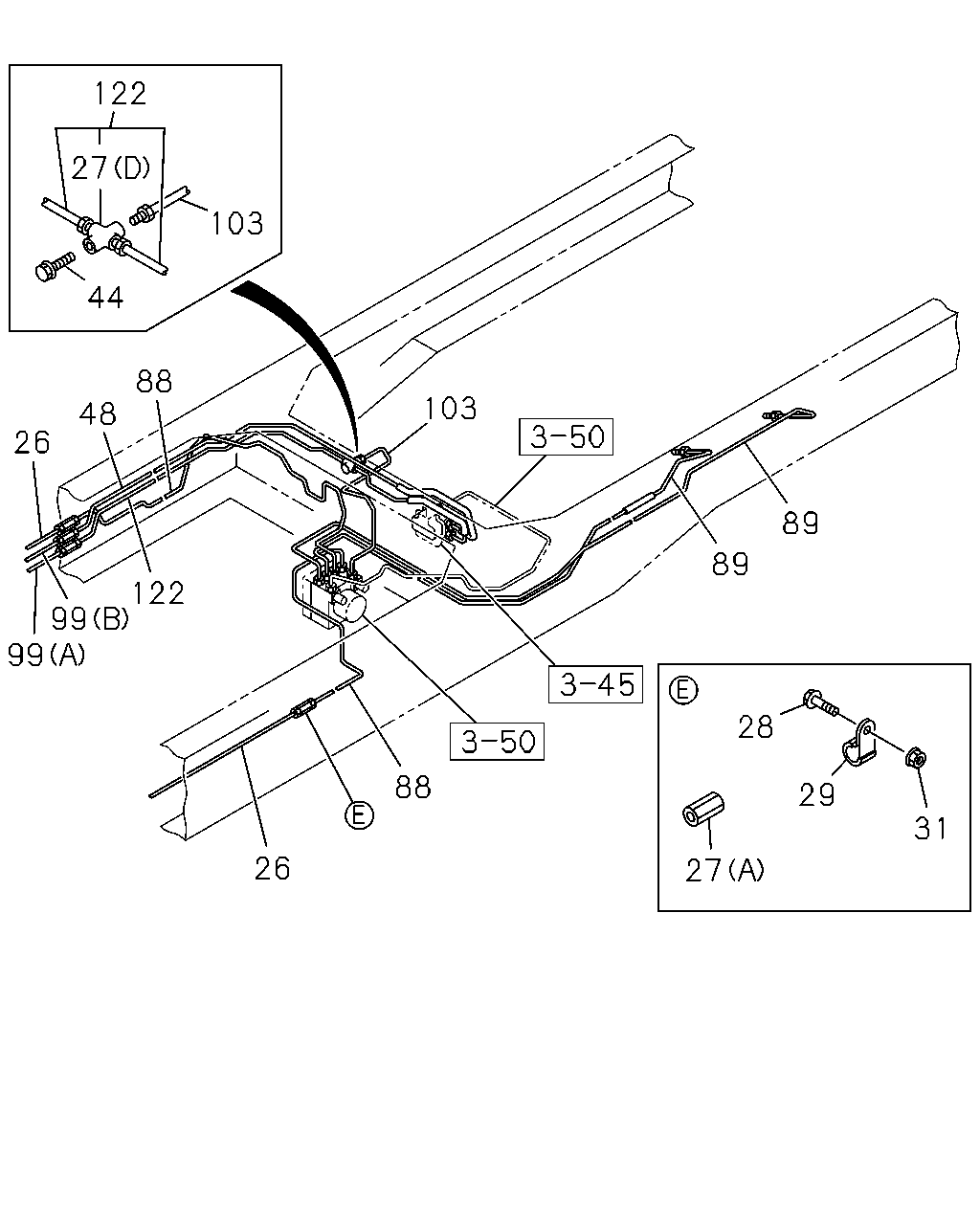

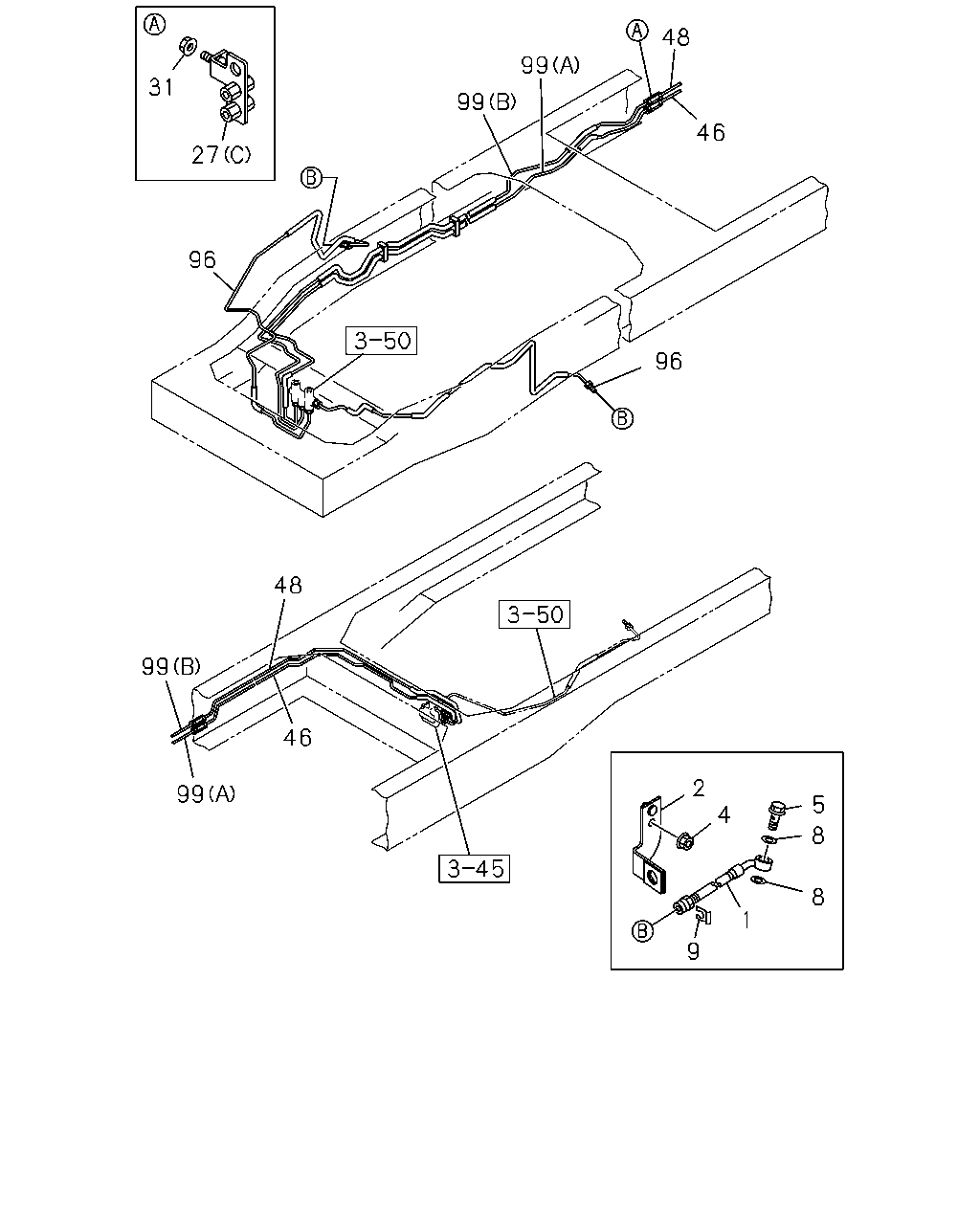

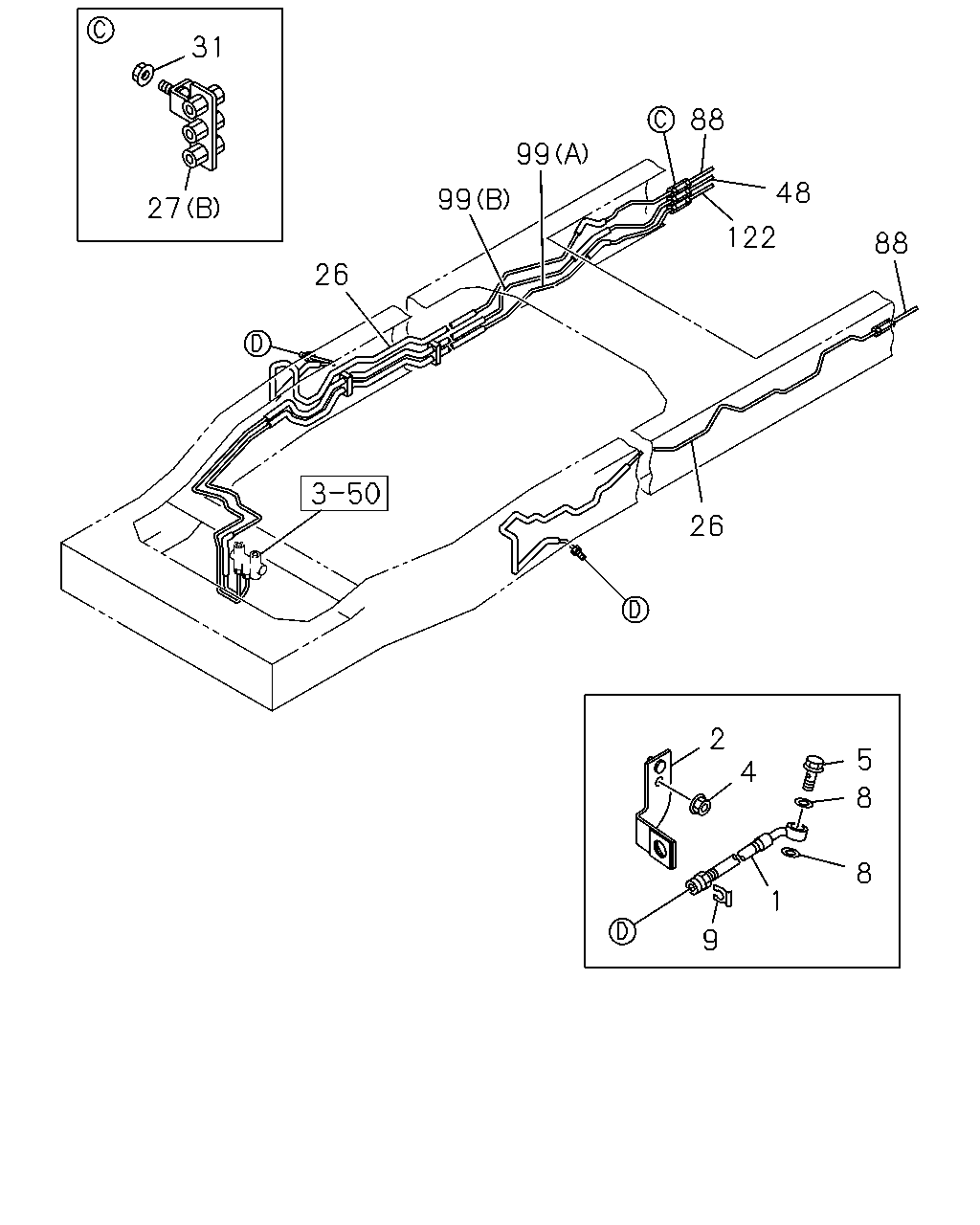

3-52 — BRAKE PIPING; OIL,FRONT (#21071) — 81 parça

51 51

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
	51	04.685 PIPE; BRK	8-97035-978-0	02	1	0608-	●	●

48 99 31 99 46 27 96 96 48 99 46 2 99 5 4 8 8 1 9

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	04.680 HOSE; FLEX,FRT BRK	8-97366-925-0	02	1	0608-	●	●
2	04.681 BRACKET; FLEX HOSE,FRT BRK	8-98002-746-0	01	1	0608-	●	●
2	04.681 BRACKET; FLEX HOSE,FRT BRK	8-98002-747-0	01	1	0608-	●	●
4	04.686 NUT; FLEX HOSE BRKT,FRT BRK 01.062 M8 FLANGE	0-91180-108-0	02	1	0608-	●	●
5	04.681 BOLT; EYE,FLEX HOSE,FRT BRK M10X22	8-97381-454-0	02	1	0608-0610	●	●
5	04.681 BOLT; EYE,FLEX HOSE,FRT BRK M10X22	8-98014-005-0	02	1	0611-	●	●
8	04.681 GASKET; FLEX HOSE,FRT BRK 08.955 ID=10.2 OD=16.0	9-09571-410-0	04	1	0608-	●	●
9	04.686 CLIP; FLEX HOSE,FRT BRK 04.681	8-94137-662-0	02	1	0608-0610	●	●
9	04.686 CLIP; FLEX HOSE,FRT BRK	8-97360-054-0	02	1	0611-	●	●
27	04.686 UNION; BRK PIPE 4 WHEEL ANTI LOCK BRAKE<JE5> (B)	8-97257-650-1	01	1	0608-	●	●
27	04.686 UNION; BRK PIPE 4 WHEEL ANTI LOCK BRAKE<JE5> 08.963 (A) M10 STRAIGHT	9-09227-005-0	01	1	0608-0608	●	●
27	04.686 UNION; BRK PIPE 4 WHEEL ANTI LOCK BRAKE<JE5> (A) M10 STRAIGHT	0-92107-005-0	01	1	0608-	●	●
27	04.686 UNION; BRK PIPE 4 WHEEL ANTI LOCK BRAKE<JE5> (D)	8-97314-636-0	01	1	0610-	●	●
27	04.686 UNION; BRK PIPE EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (C)	8-97259-943-1	01	1	0608-	●	●
31	04.686 NUT; UNION CLIP 4 WHEEL ANTI LOCK BRAKE<JE5> 01.062 M6 FLANGE	0-91180-106-0	01	1	0608-	●	●
31	04.686 NUT; UNION CLIP 01.062 M6 FLANGE	0-91180-106-0	01	1	0608-	●	●
46	04.685 PIPE; BRK,JOINT TO VLV EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> FRONT	8-98037-743-0	01	1	0608-	●
46	04.685 PIPE; BRK,JOINT TO VLV EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> FRONT	8-98037-744-0	01	1	0608-		●
48	04.685 PIPE; BRK,BYPASS VLV TO CONN REAR	8-98030-514-0	01	1	0608-	●
48	04.685 PIPE; BRK,BYPASS VLV TO CONN REAR	8-98037-745-0	01	1	0608-		●
96	04.686 PIPE ASM; 6 WAY EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98002-749-1	01	1	0608-	●	●
96	04.686 PIPE ASM; 6 WAY EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98027-857-3	01	1	0608-	●	●
99	04.686 PIPE ASM; 4/5/6 WAY (A) FRONT	8-97363-950-0	01	1	0608-	●	●
99	04.686 PIPE ASM; 4/5/6 WAY (B) REAR	8-97363-974-0	01	1	0608-	●	●

122 27 103 44 88 103 48 26 89 89 122 99 99 28 88 29 31 26 27

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
26	05.476 PIPE; BRK,JOINT TO 2 WAY 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98000-413-3	01	1	0608-	●	●
26	05.476 PIPE; BRK,JOINT TO 2 WAY 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98020-855-3	01	1	0608-	●	●
27	04.686 UNION; BRK PIPE 4 WHEEL ANTI LOCK BRAKE<JE5> (B)	8-97257-650-1	01	1	0608-	●	●
27	04.686 UNION; BRK PIPE 4 WHEEL ANTI LOCK BRAKE<JE5> 08.963 (A) M10 STRAIGHT	9-09227-005-0	01	1	0608-0608	●	●
27	04.686 UNION; BRK PIPE 4 WHEEL ANTI LOCK BRAKE<JE5> (A) M10 STRAIGHT	0-92107-005-0	01	1	0608-	●	●
27	04.686 UNION; BRK PIPE 4 WHEEL ANTI LOCK BRAKE<JE5> (D)	8-97314-636-0	01	1	0610-	●	●
27	04.686 UNION; BRK PIPE EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (C)	8-97259-943-1	01	1	0608-	●	●
28	04.686 BOLT; UNION CLIP 4 WHEEL ANTI LOCK BRAKE<JE5> 00.685 M6X25 FLANGE	0-28650-625-0	01	1	0608-	●	●
29	04.686 CLIP; UNION 4 WHEEL ANTI LOCK BRAKE<JE5> 03.162 ID=16 H=24 L=20	0-95207-315-0	01	1	0608-	●	●
31	04.686 NUT; UNION CLIP 4 WHEEL ANTI LOCK BRAKE<JE5> 01.062 M6 FLANGE	0-91180-106-0	01	1	0608-	●	●
31	04.686 NUT; UNION CLIP 01.062 M6 FLANGE	0-91180-106-0	01	1	0608-	●	●
44	04.686 BOLT; JOINT 4 WHEEL ANTI LOCK BRAKE<JE5> 02.343 M8X12 FLANGE	0-28050-812-0	01	1	0608-	●	●
48	04.685 PIPE; BRK,BYPASS VLV TO CONN REAR	8-98030-514-0	01	1	0608-	●
48	04.685 PIPE; BRK,BYPASS VLV TO CONN REAR	8-98037-745-0	01	1	0608-		●
88	04.685 PIPE; BRK,HYDRULIC UNIT TO JOINT 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97325-965-0	01	1	0608-	●
88	04.685 PIPE; BRK,HYDRULIC UNIT TO JOINT 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98000-434-0	01	1	0608-	●
88	04.685 PIPE; BRK,HYDRULIC UNIT TO JOINT 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97325-966-0	01	1	0608-		●
88	04.685 PIPE; BRK,HYDRULIC UNIT TO JOINT 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97325-963-0	01	1	0608-		●
89	04.685 PIPE; BRK,HYDRULIC UNIT TO RR BR 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97325-971-0	01	1	0608-	●
89	04.685 PIPE; BRK,HYDRULIC UNIT TO RR BR 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97325-968-0	01	1	0608-	●
89	04.685 PIPE; BRK,HYDRULIC UNIT TO RR BR 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97325-972-0	01	1	0608-		●
89	04.685 PIPE; BRK,HYDRULIC UNIT TO RR BR 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97325-969-0	01	1	0608-		●
99	04.686 PIPE ASM; 4/5/6 WAY (A) FRONT	8-97363-950-0	01	1	0608-	●	●
99	04.686 PIPE ASM; 4/5/6 WAY (B) REAR	8-97363-974-0	01	1	0608-	●	●
103	04.686 PIPE; BRK,3 WAY TO HYDRAULIC UNI 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97325-958-0	01	1	0608-	●
103	04.686 PIPE; BRK,3 WAY TO HYDRAULIC UNI 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97325-959-0	01	1	0608-		●
122	04.685 PIPE ASM; BRK,2 WAY 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98030-513-0	01	1	0608-	●
122	04.685 PIPE ASM; BRK,2 WAY 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98037-746-0	01	1	0608-		●

31 88 99 48 99 27 122 88 26 26 2 5 4 8 8 1 9

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	04.680 HOSE; FLEX,FRT BRK	8-97366-925-0	02	1	0608-	●	●
2	04.681 BRACKET; FLEX HOSE,FRT BRK	8-98002-746-0	01	1	0608-	●	●
2	04.681 BRACKET; FLEX HOSE,FRT BRK	8-98002-747-0	01	1	0608-	●	●
4	04.686 NUT; FLEX HOSE BRKT,FRT BRK 01.062 M8 FLANGE	0-91180-108-0	02	1	0608-	●	●
5	04.681 BOLT; EYE,FLEX HOSE,FRT BRK M10X22	8-97381-454-0	02	1	0608-0610	●	●
5	04.681 BOLT; EYE,FLEX HOSE,FRT BRK M10X22	8-98014-005-0	02	1	0611-	●	●
8	04.681 GASKET; FLEX HOSE,FRT BRK 08.955 ID=10.2 OD=16.0	9-09571-410-0	04	1	0608-	●	●
9	04.686 CLIP; FLEX HOSE,FRT BRK 04.681	8-94137-662-0	02	1	0608-0610	●	●
9	04.686 CLIP; FLEX HOSE,FRT BRK	8-97360-054-0	02	1	0611-	●	●
26	05.476 PIPE; BRK,JOINT TO 2 WAY 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98000-413-3	01	1	0608-	●	●
26	05.476 PIPE; BRK,JOINT TO 2 WAY 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98020-855-3	01	1	0608-	●	●
27	04.686 UNION; BRK PIPE 4 WHEEL ANTI LOCK BRAKE<JE5> (B)	8-97257-650-1	01	1	0608-	●	●
27	04.686 UNION; BRK PIPE 4 WHEEL ANTI LOCK BRAKE<JE5> 08.963 (A) M10 STRAIGHT	9-09227-005-0	01	1	0608-0608	●	●
27	04.686 UNION; BRK PIPE 4 WHEEL ANTI LOCK BRAKE<JE5> (A) M10 STRAIGHT	0-92107-005-0	01	1	0608-	●	●
27	04.686 UNION; BRK PIPE 4 WHEEL ANTI LOCK BRAKE<JE5> (D)	8-97314-636-0	01	1	0610-	●	●
27	04.686 UNION; BRK PIPE EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (C)	8-97259-943-1	01	1	0608-	●	●
31	04.686 NUT; UNION CLIP 4 WHEEL ANTI LOCK BRAKE<JE5> 01.062 M6 FLANGE	0-91180-106-0	01	1	0608-	●	●
31	04.686 NUT; UNION CLIP 01.062 M6 FLANGE	0-91180-106-0	01	1	0608-	●	●
48	04.685 PIPE; BRK,BYPASS VLV TO CONN REAR	8-98030-514-0	01	1	0608-	●
48	04.685 PIPE; BRK,BYPASS VLV TO CONN REAR	8-98037-745-0	01	1	0608-		●
88	04.685 PIPE; BRK,HYDRULIC UNIT TO JOINT 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97325-965-0	01	1	0608-	●
88	04.685 PIPE; BRK,HYDRULIC UNIT TO JOINT 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98000-434-0	01	1	0608-	●
88	04.685 PIPE; BRK,HYDRULIC UNIT TO JOINT 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97325-966-0	01	1	0608-		●
88	04.685 PIPE; BRK,HYDRULIC UNIT TO JOINT 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97325-963-0	01	1	0608-		●
99	04.686 PIPE ASM; 4/5/6 WAY (A) FRONT	8-97363-950-0	01	1	0608-	●	●
99	04.686 PIPE ASM; 4/5/6 WAY (B) REAR	8-97363-974-0	01	1	0608-	●	●
122	04.685 PIPE ASM; BRK,2 WAY 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98030-513-0	01	1	0608-	●
122	04.685 PIPE ASM; BRK,2 WAY 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98037-746-0	01	1	0608-		●
