◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CHR ▶ 10648 - CHR/CJR/CQR ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-11 - FRONT HUB AND DRUM OR ROTOR ▶
4-11 — FRONT HUB AND DRUM OR ROTOR (#2107) — 86 parça

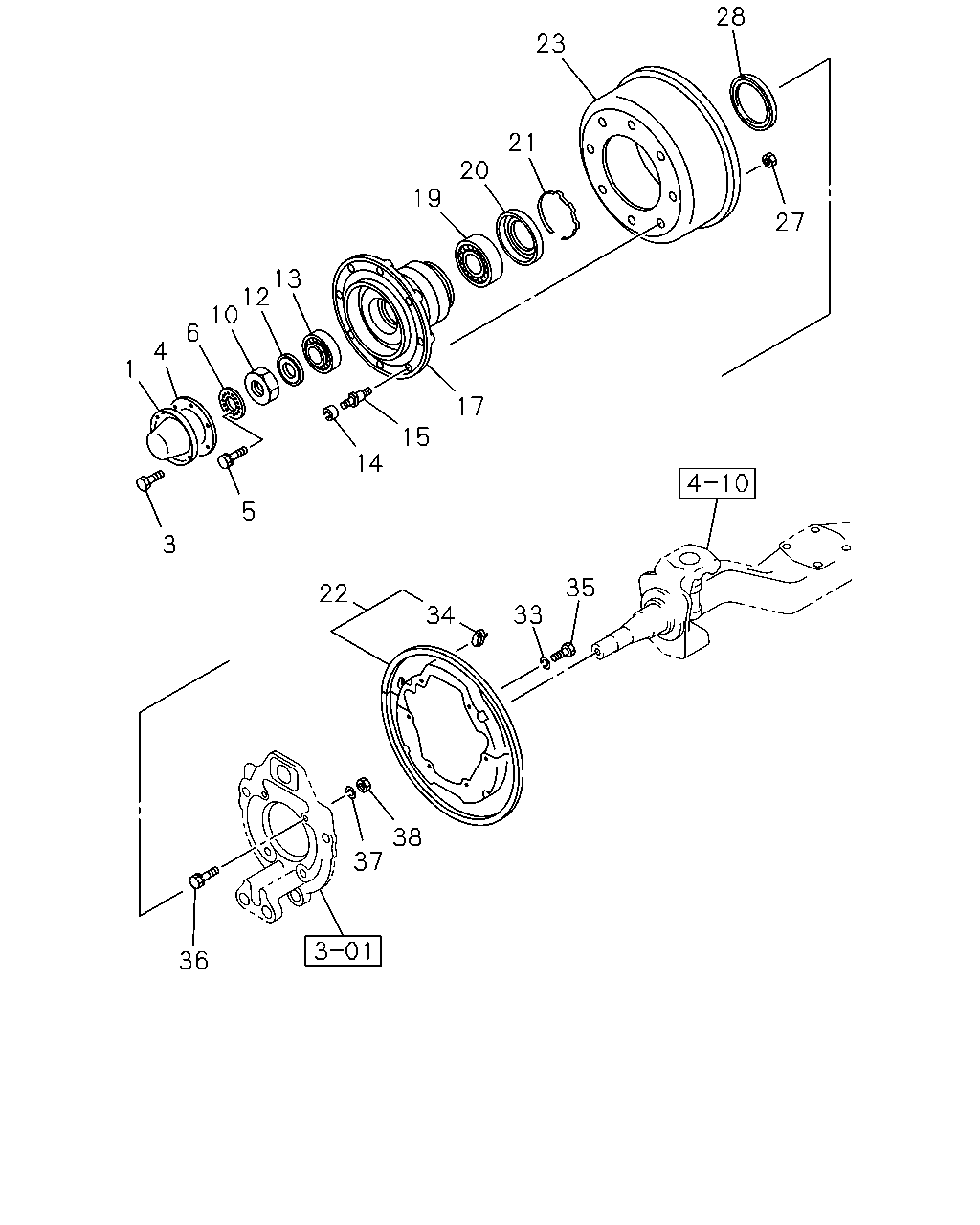

çizim 93596
28 23 21 20 19 27 13 12 10 6 4 1 17 15 14 5 3 35 22 33 34 38 37 36
BalonParca AdiParca NoAdetTipApplied Date A B
1 CAP; HUB,FRT AXLE
OD=156 		9-42313-123-2 02 1 9001- ● ●
3 BOLT; HUB CAP,FRT WHEEL
M8X14 W/LK WASHER 		9-01900-814-0 12 1 9001-9204 ● ●
3 BOLT; HUB CAP,FRT WHEEL
M8X14 W/LK WASHER 		0-50040-814-0 12 1 9205-9509 ● ●
3 BOLT; HUB CAP,FRT WHEEL
M8X12 FLANGE 		0-28080-812-0 12 1 9510- ● ●
4 GASKET; HUB CAP,FRT WHEEL 1-42319-029-0 02 1 9001-9906 ● ●
4 GASKET; HUB CAP,FRT WHEEL 1-42319-185-0 02 1 9907- ● ●
5 BOLT; LK WASHER
M6X16 W/LK WASHER 		9-01910-616-0 06 1 9001-9005 ● ●
5 BOLT; LK WASHER
M6X16 W/LK WASHER 		0-50040-616-0 06 1 9006-9701 ● ●
5 BOLT; LK WASHER
M6X16 FLANGE 		0-28680-616-0 06 1 9702- ● ●
6 WASHER; LK,FRT HUB 9-09854-127-1 02 1 9001-9404 ● ●
6 WASHER; LK,FRT HUB
ID=48 		1-09533-012-1 02 1 9405- ● ●
10 NUT; FRT HUB BRG 9-09843-724-2 02 1 9001-9404 ● ●
10 NUT; FRT HUB BRG
M48 		1-09840-012-3 02 1 9405- ● ●
12 WASHER; LK,FRT HUB BRG 9-09854-126-1 02 1 9001-9404 ● ●
12 WASHER; LK,FRT HUB BRG
ID=48 		1-09533-016-0 02 1 9405- ● ●
13 BEARING; HUB OUTER,FRT AXLE
NSK 		9-00093-177-0 02 1 9001-9404 ● ●
13 BEARING; HUB OUTER,FRT AXLE
NSK 		1-09812-084-0 02 1 9405-9809 ● ●
13 BEARING; HUB OUTER,FRT AXLE
KOYO 		1-09812-234-0 02 1 9810- ● ●
13 BEARING; HUB OUTER,FRT AXLE
KOYO 		9-00093-178-0 02 1 9001-9404 ● ●
13 BEARING; HUB OUTER,FRT AXLE
KOYO 		1-09812-085-0 02 1 9405-9809 ● ●
14 RING; SPR,FRT WHEEL
WHEEL 10STUD 7.00TX20(Q58),WHEEL 10STUD 7.50VX20(Q64) 		1-42339-026-1 10 1 9001-9202 ● ●
14 RING; SPR,FRT WHEEL
WHEEL 10STUD 7.00TX20(Q58),WHEEL 10STUD 7.50VX20(Q64) 		1-42339-025-1 10 1 9001-9202 ● ●
14 RING; SPR,FRT WHEEL
WHEEL 10STUD 8.25X22.5 165-13(QM8),WHEEL 10STUD 7.00TX20(Q58),WHEEL 10STUD 7.50VX20(Q64) 		1-42339-025-1 20 1 9203-9704 ● ●
15 PIN; WHEEL,FRT AXLE
EXC. WHEEL 10STUD 8.25X22.5 165-13(QM8),WHEEL 10STUD 7.00TX20(Q58),WHEEL 10STUD 7.50VX20(Q64) M20X37.5 LH THREAD,M22X55.5 RH THREAD 		1-42332-047-0 08 1 9001- ● ●
15 PIN; WHEEL,FRT AXLE
EXC. WHEEL 10STUD 8.25X22.5 165-13(QM8),WHEEL 10STUD 7.00TX20(Q58),WHEEL 10STUD 7.50VX20(Q64) M20X37.5,M22X55.5 RH THREAD 		1-42331-047-0 08 1 9001- ● ●
15 PIN; WHEEL,FRT AXLE
WHEEL 10STUD 7.00TX20(Q58),WHEEL 10STUD 7.50VX20(Q64) 		1-42332-042-0 10 1 9001-9111 ●
15 PIN; WHEEL,FRT AXLE
WHEEL 10STUD 7.00TX20(Q58),WHEEL 10STUD 7.50VX20(Q64) EXC. COLOMBIA EQUIPMENT(WJ2) 		1-42332-042-0 10 1 9001-9111 ●
15 PIN; WHEEL,FRT AXLE
WHEEL 10STUD 7.00TX20(Q58),WHEEL 10STUD 7.50VX20(Q64) M22X42.8 LH THREAD,M22X55.5 RH THREAD 		1-42332-137-0 10 1 9112-9202 ●
15 PIN; WHEEL,FRT AXLE
WHEEL 10STUD 7.00TX20(Q58),WHEEL 10STUD 7.50VX20(Q64) EXC. COLOMBIA EQUIPMENT(WJ2) M22X42.8 LH THREAD,M22X55.5 RH THREAD 		1-42332-137-0 10 1 9112-9202 ●
15 PIN; WHEEL,FRT AXLE
WHEEL 10STUD 7.00TX20(Q58),WHEEL 10STUD 7.50VX20(Q64) 		1-42331-042-0 10 1 9001-9111 ●
15 PIN; WHEEL,FRT AXLE
WHEEL 10STUD 7.00TX20(Q58),WHEEL 10STUD 7.50VX20(Q64) EXC. COLOMBIA EQUIPMENT(WJ2) 		1-42331-042-0 10 1 9001-9111 ●
15 PIN; WHEEL,FRT AXLE
WHEEL 10STUD 7.00TX20(Q58),WHEEL 10STUD 7.50VX20(Q64) M22X42.8,M22X55.5 RH THREAD 		1-42337-044-0 10 1 9112-9202 ●
15 PIN; WHEEL,FRT AXLE
WHEEL 10STUD 7.00TX20(Q58),WHEEL 10STUD 7.50VX20(Q64) EXC. COLOMBIA EQUIPMENT(WJ2) M22X42.8,M22X55.5 RH THREAD 		1-42337-044-0 10 1 9112-9202 ●
15 PIN; WHEEL,FRT AXLE
WHEEL 10STUD 8.25X22.5 165-13(QM8),WHEEL 10STUD 7.00TX20(Q58),WHEEL 10STUD 7.50VX20(Q64) M22X42.8,M22X55.5 RH THREAD 		1-42337-044-0 20 1 9203- ● ●
15 PIN; WHEEL,FRT AXLE
WHEEL 10STUD 7.00TX20(Q58),WHEEL 10STUD 7.50VX20(Q64) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) COLOMBIA EQUIPMENT(WJ2) 		1-42332-042-0 20 1 9001-9111 ●
15 PIN; WHEEL,FRT AXLE
WHEEL 10STUD 7.00TX20(Q58),WHEEL 10STUD 7.50VX20(Q64) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) COLOMBIA EQUIPMENT(WJ2) M22X42.8 LH THREAD,M22X55.5 RH THREAD 		1-42332-137-0 20 1 9112-9202 ●
15 PIN; WHEEL,FRT AXLE
WHEEL 10STUD 7.00TX20(Q58),WHEEL 10STUD 7.50VX20(Q64) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) COLOMBIA EQUIPMENT(WJ2) 		1-42331-042-0 20 1 9001-9111 ●
15 PIN; WHEEL,FRT AXLE
WHEEL 10STUD 7.00TX20(Q58),WHEEL 10STUD 7.50VX20(Q64) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) COLOMBIA EQUIPMENT(WJ2) M22X42.8,M22X55.5 RH THREAD 		1-42337-044-0 20 1 9112-9202 ●
17 HUB; FRT AXLE
WHEEL 10STUD 7.00TX20(Q58),WHEEL 10STUD 7.50VX20(Q64) 		1-42312-043-0 02 1 9001-9111 ● ●
17 HUB; FRT AXLE
WHEEL 10STUD 8.25X22.5 165-13(QM8),WHEEL 10STUD 7.00TX20(Q58),WHEEL 10STUD 7.50VX20(Q64) 		1-42312-055-0 02 1 9112-9404 ● ●
17 HUB; FRT AXLE
WHEEL 10STUD 8.25X22.5 165-13(QM8),WHEEL 10STUD 7.00TX20(Q58),WHEEL 10STUD 7.50VX20(Q64) 		1-42312-100-0 02 1 9405- ● ●
17 HUB; FRT AXLE
EXC. WHEEL 10STUD 7.00TX20(Q58),WHEEL 10STUD 7.50VX20(Q64) 		1-42312-047-2 02 1 9001-9211 ● ●
17 HUB; FRT AXLE
EXC. WHEEL 10STUD 8.25X22.5 165-13(QM8),WHEEL 10STUD 7.00TX20(Q58),WHEEL 10STUD 7.50VX20(Q64) 		1-42312-111-0 02 1 9212-9404 ● ●
17 HUB; FRT AXLE
EXC. WHEEL 10STUD 8.25X22.5 165-13(QM8),WHEEL 10STUD 7.00TX20(Q58),WHEEL 10STUD 7.50VX20(Q64) 		1-42312-109-0 02 1 9405-9506 ● ●
17 HUB; FRT AXLE
EXC. WHEEL 10STUD 8.25X22.5 165-13(QM8),WHEEL 10STUD 7.00TX20(Q58),WHEEL 10STUD 7.50VX20(Q64) 		1-42312-128-2 02 1 9507- ● ●
17 HUB; FRT AXLE
WHEEL 10STUD 7.00TX20(Q58),WHEEL 10STUD 7.50VX20(Q64) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) COLOMBIA EQUIPMENT(WJ2) 		1-42312-043-0 04 1 9001-9111 ●
17 HUB; FRT AXLE
WHEEL 10STUD 7.00TX20(Q58),WHEEL 10STUD 7.50VX20(Q64) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) COLOMBIA EQUIPMENT(WJ2) 		1-42312-055-0 04 1 9112-9202 ●
19 BEARING; HUB INNER,FRT AXLE
NSK 		1-09812-142-0 02 1 9001-9809 ● ●
19 BEARING; HUB INNER,FRT AXLE
KOYO 		1-09812-231-0 02 1 9810- ● ●
19 BEARING; HUB INNER,FRT AXLE
KOYO 		1-09812-143-0 02 1 9001-9809 ● ●
20 COVER; HUB BRG INNER 1-42319-039-0 02 1 9001- ● ●
21 RING; SNAP,HUB 1-09587-017-0 02 1 9001- ● ●
22 COVER SET; FRT BRK DRUM 1-47151-345-1 02 1 9001-9204 ●
22 COVER SET; FRT BRK DRUM
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-47151-345-1 02 1 9001-9204 ●
22 COVER SET; FRT BRK DRUM 1-47151-345-1 02 1 9205- ● ●
22 COVER SET; FRT BRK DRUM
BRAKE SYSTEM AIR DUAL CIRCUIT(Z04) 		1-47151-320-1 02 1 9001-9204 ●
23 DRUM; BRK,FRT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) WHEEL 10STUD 7.00TX20(Q58),WHEEL 10STUD 7.50VX20(Q64) 		1-42315-135-1 01 1 9001-9204 ● ●
23 DRUM; BRK,FRT
WHEEL 10STUD 8.25X22.5 165-13(QM8),WHEEL 10STUD 7.00TX20(Q58),WHEEL 10STUD 7.50VX20(Q64) 		1-42315-135-1 01 1 9205- ● ●
23 DRUM; BRK,FRT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) WHEEL 10STUD 7.00TX20(Q58),WHEEL 10STUD 7.50VX20(Q64) 		1-42315-134-1 01 1 9001-9204 ● ●
23 DRUM; BRK,FRT
WHEEL 10STUD 8.25X22.5 165-13(QM8),WHEEL 10STUD 7.00TX20(Q58),WHEEL 10STUD 7.50VX20(Q64) 		1-42315-134-1 01 1 9205- ● ●
23 DRUM; BRK,FRT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. WHEEL 10STUD 7.00TX20(Q58),WHEEL 10STUD 7.50VX20(Q64) 		1-42315-155-0 01 1 9001-9204 ● ●
23 DRUM; BRK,FRT
EXC. WHEEL 10STUD 8.25X22.5 165-13(QM8),WHEEL 10STUD 7.00TX20(Q58),WHEEL 10STUD 7.50VX20(Q64) 		1-42315-155-0 01 1 9205- ● ●
23 DRUM; BRK,FRT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. WHEEL 10STUD 7.00TX20(Q58),WHEEL 10STUD 7.50VX20(Q64) 		1-42315-154-0 01 1 9001-9204 ● ●
23 DRUM; BRK,FRT
EXC. WHEEL 10STUD 8.25X22.5 165-13(QM8),WHEEL 10STUD 7.00TX20(Q58),WHEEL 10STUD 7.50VX20(Q64) 		1-42315-154-0 01 1 9205- ● ●
23 DRUM; BRK,FRT
BRAKE SYSTEM AIR DUAL CIRCUIT(Z04) WHEEL 10STUD 7.00TX20(Q58),WHEEL 10STUD 7.50VX20(Q64) 		1-42315-161-1 01 1 9001-9204 ●
23 DRUM; BRK,FRT
BRAKE SYSTEM AIR DUAL CIRCUIT(Z04) WHEEL 10STUD 7.00TX20(Q58),WHEEL 10STUD 7.50VX20(Q64) 		1-42315-160-1 01 1 9001-9204 ●
23 DRUM; BRK,FRT
BRAKE SYSTEM AIR DUAL CIRCUIT(Z04) EXC. WHEEL 10STUD 7.00TX20(Q58),WHEEL 10STUD 7.50VX20(Q64) 		1-42315-146-1 02 1 9001-9204 ●
27 NUT; WHEEL PIN,FRT AXLE
EXC. WHEEL 10STUD 8.25X22.5 165-13(QM8),WHEEL 10STUD 7.00TX20(Q58),WHEEL 10STUD 7.50VX20(Q64) M22 		1-09400-037-0 16 1 9001- ● ●
27 NUT; WHEEL PIN,FRT AXLE
WHEEL 10STUD 7.00TX20(Q58),WHEEL 10STUD 7.50VX20(Q64) M22 		1-09400-037-0 20 1 9001-9111 ● ●
27 NUT; WHEEL PIN,FRT AXLE
WHEEL 10STUD 7.00TX20(Q58),WHEEL 10STUD 7.50VX20(Q64) M22 		1-09400-071-0 20 1 9112-9202 ● ●
27 NUT; WHEEL PIN,FRT AXLE
WHEEL 10STUD 8.25X22.5 165-13(QM8),WHEEL 10STUD 7.00TX20(Q58),WHEEL 10STUD 7.50VX20(Q64) M22 		1-09400-071-0 20 1 9203- ● ●
27 NUT; WHEEL PIN,FRT AXLE
WHEEL 10STUD 7.00TX20(Q58),WHEEL 10STUD 7.50VX20(Q64) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) COLOMBIA EQUIPMENT(WJ2) M22 		1-09400-037-0 40 1 9001-9111 ●
27 NUT; WHEEL PIN,FRT AXLE
WHEEL 10STUD 7.00TX20(Q58),WHEEL 10STUD 7.50VX20(Q64) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) COLOMBIA EQUIPMENT(WJ2) M22 		1-09400-071-0 40 1 9112-9202 ●
28 SEAL; OIL,FRT HUB
OD=140 		1-09625-041-0 02 1 9001- ● ●
33 WASHER; LK,DRUM COVER
ID=10.2 		9-09150-510-0 12 1 9001-9108 ● ●
34 COVER; CHECK HOLE,DRUM COVER 1-09333-045-1 04 1 9001- ● ●
35 BOLT; DRUM COVER
M10X16 		9-02041-016-0 12 1 9001-9108 ● ●
35 BOLT; DRUM COVER
M10X16 W/LK WASHER 		9-01901-016-0 12 1 9109-9204 ● ●
35 BOLT; DRUM COVER
M10X16 W/LK WASHER 		0-50041-016-0 12 1 9410- ● ●
36 BOLT; BACK PLATE
M16X59 FLANGE 		1-09044-002-1 04 1 9001-9204 ●
36 BOLT; BACK PLATE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M16X59 FLANGE 		1-09044-002-1 04 1 9001-9204 ●
36 BOLT; BACK PLATE
M16X59 FLANGE 		1-09044-002-2 04 1 9205- ● ●
36 BOLT; BACK PLATE
BRAKE SYSTEM AIR DUAL CIRCUIT(Z04) M16X52 		1-09044-001-1 04 1 9001-9204 ●
37 WASHER; LK,BACK PLATE
ID=16.2 		9-09150-516-0 04 1 9001-9401 ● ●
37 WASHER; LK,BACK PLATE
ID=16.2 		9-09150-816-0 04 1 9402- ● ●
38 NUT; BACK PLATE
M16 		9-99110-416-0 04 1 9001- ● ●
