3-05 — REAR WHEEL BRAKE (#21061) — 44 parça

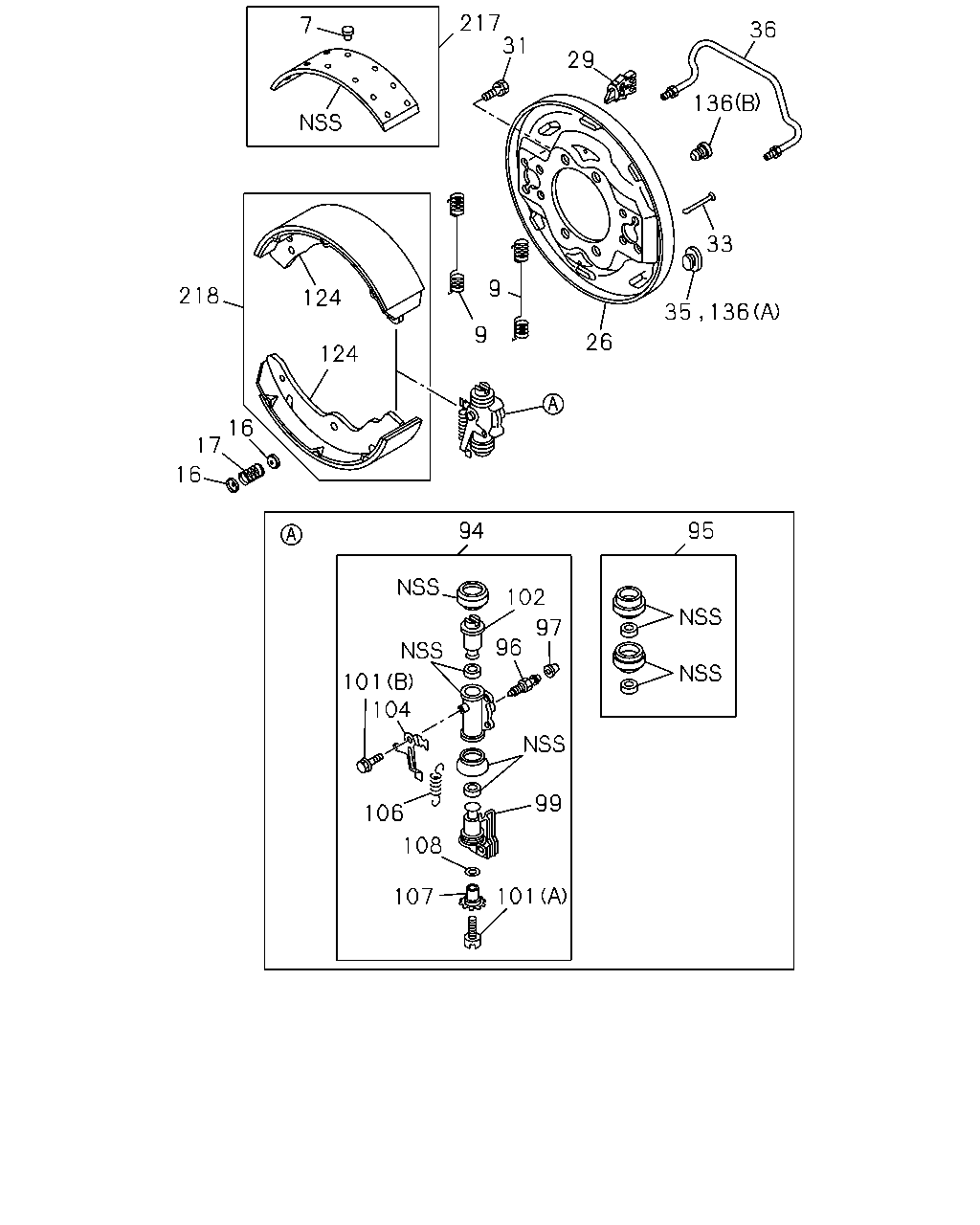

çizim 58793
217 31 7 36 29 136 33 9 218 124 9 26 124 16 17 16 94 95 102 97 96 101 104 99 106 108 101 107 35 136
BalonParca AdiParca NoAdetTipApplied Date A B
7 05.019 RIVET; LINING,RR BRK 1-09732-029-0 40 1 0608- ● ●
9 05.026 SPRING; RETURN,BRK SHOE 5-09583-118-0 04 1 0608- ● ●
16 05.043 CUP; SHOE HOLDING 9-47165-096-0 08 1 0608- ● ●
17 04.043 SPRING; SHOE HOLD DOWN
05.043 		5-09580-101-1 04 1 0608- ● ●
26 05.001 PLATE; BACK,RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97079-855-0 01 1 0608- ● ●
26 05.001 PLATE; BACK,RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97079-854-0 01 1 0608- ● ●
26 05.001 PLATE; BACK,RR BRK
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97079-849-0 01 1 0608- ● ●
26 05.001 PLATE; BACK,RR BRK
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97079-848-0 01 1 0608- ● ●
29 04.685 CLIP; PIPE,BRK 8-94128-306-0 02 1 0608- ● ●
31 04.665 BOLT; RR WHEEL CYL 5-09030-016-1 16 1 0608- ● ●
33 05.043 PIN; SHOE HOLD DOWN 5-47162-001-0 04 1 0608- ● ●
35 05.002 GROMMET; CHECK HOLE 8-94171-287-0 02 1 0608- ● ●
36 04.685 PIPE; OIL,RR BRK 8-94154-916-0 02 1 0608- ● ●
94 04.665 CYLINDER; WHEEL,RR BRK
REAR 		8-97349-690-0 01 1 0608- ● ●
94 04.665 CYLINDER; WHEEL,RR BRK
FRONT 		8-97349-692-0 01 1 0608- ● ●
94 04.665 CYLINDER; WHEEL,RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5> REAR 		8-97349-689-0 01 1 0608- ● ●
94 04.665 CYLINDER; WHEEL,RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5> FRONT 		8-97349-691-0 01 1 0608- ● ●
94 04.665 CYLINDER; WHEEL,RR BRK
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> FRONT,REAR 		8-97349-689-0 02 1 0608- ● ●
95 04.665 CUP SET; RR WHEEL CYL 5-87831-622-0 01 1 0608- ● ●
96 04.666 SCREW; BLEEDER,RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5> 		9-47615-027-0 02 1 0608-0707 ● ●
96 04.666 SCREW; BLEEDER,RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98050-476-0 02 1 0708- ● ●
96 04.666 SCREW; BLEEDER,RR BRK
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		9-47615-027-0 01 1 0608-0707 ● ●
96 04.666 SCREW; BLEEDER,RR BRK
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98050-476-0 01 1 0708- ● ●
97 04.666 CAP; BLEEDER,RR WHEEL CYL
4 WHEEL ANTI LOCK BRAKE<JE5> 		1-47619-009-0 02 1 0608-0707 ● ●
97 04.666 CAP; BLEEDER,RR WHEEL CYL
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98050-479-0 02 1 0708- ● ●
97 04.666 CAP; BLEEDER,RR WHEEL CYL
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		1-47619-009-0 01 1 0608-0707 ● ●
97 04.666 CAP; BLEEDER,RR WHEEL CYL
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98050-479-0 01 1 0708- ● ●
99 04.668 PISTON; RR WHEEL CYL 8-97349-727-0 02 1 0608- ● ●
99 04.668 PISTON; RR WHEEL CYL 8-97349-728-0 02 1 0608- ● ●
101 04.666 SCREW; ADJ,RR WHEEL CYL
(B) 		8-97349-747-0 04 1 0608- ● ●
101 04.666 SCREW; ADJ,RR WHEEL CYL
(A) M12X30.2 LH THREAD 		5-47622-004-1 02 1 0608- ● ●
101 04.666 SCREW; ADJ,RR WHEEL CYL
(A) M12X30.2 RH THREAD 		5-47622-003-1 02 1 0608- ● ●
102 04.668 PISTON; REAR WHEEL CYL
D=25.4 		8-94128-531-1 04 1 0608- ● ●
104 05.103 LEVER; ADJ 8-97349-743-0 02 1 0608- ● ●
104 05.103 LEVER; ADJ 8-97349-744-0 02 1 0608- ● ●
106 05.107 SPRING; ADJ LEVER 8-97349-745-0 04 1 0608- ● ●
107 05.110 GEAR; ADJ,RR W/CYL 8-97349-737-0 02 1 0608- ● ●
107 05.110 GEAR; ADJ,RR W/CYL 8-97349-739-0 02 1 0608- ● ●
108 05.110 WASHER; THRUST,GEAR ADJ 8-97029-304-0 04 1 0608- ● ●
124 05.017 SHOE ASM; BRK,RR 8-97287-778-0 04 1 0608- ● ●
136 05.002 GROMMET
04.670 (B) 		1-47154-008-0 04 1 0608- ● ●
136 05.002 GROMMET
(A) 		8-94171-287-0 04 1 0608- ● ●
217 05.018 LINING KIT; RR BRK 5-87831-801-0 01 1 0608- ● ●
218 05.017 SHOE KIT; BRK,RR 5-87832-047-0 01 1 0608- ● ●
