4-01 — PROPELLER SHAFT (#2105) — 257 parça

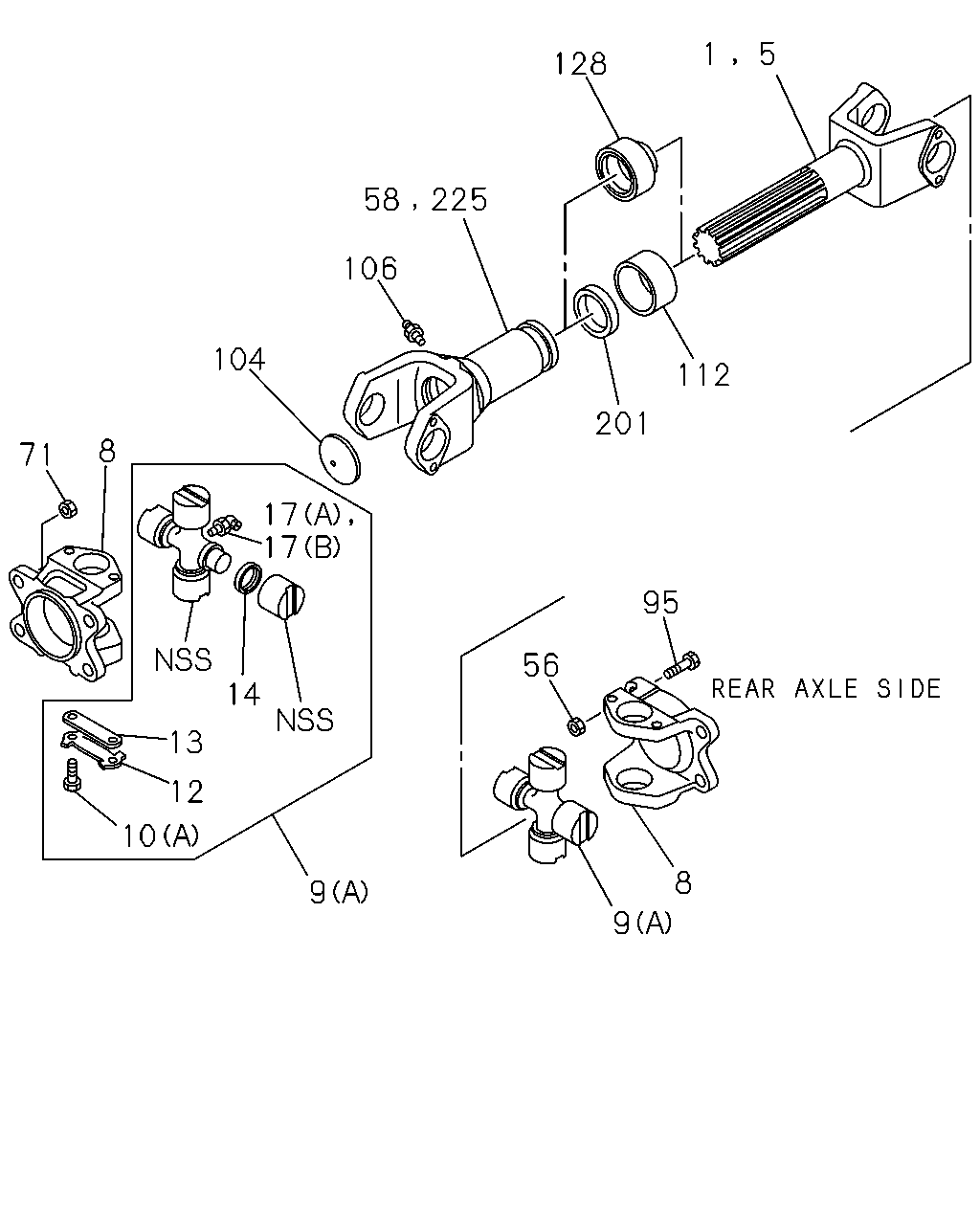

çizim 94119
5 1 128 58 106 104 112 201 8 71 17 17 95 56 14 13 12 10 8 9 9 225
BalonParca AdiParca NoAdetTipApplied Date A B C
1 SHAFT; PROP
6RA1 TC ENG(15L) FINAL GEAR 3.909/5.322 18" SPIRAL 2 SPEED(W2J) L=350 		1-37171-056-0 01 1 9001-9012 ●
1 SHAFT; PROP
P85 PROP SHAFT<B5N> 16"CLUTCH SINGLE PLATE STRAP DRIVE(RF2), 17"CLUTCHSINGLE PLATE STRAP DRIVE(RF3) AXLE RATIO 2 SPEED<W9Y> BUS BODY REAR OVERHANG<YK4> L=350 		1-37171-056-0 01 1 9101- ● ● ●
5 YOKE; STUB,PROP SHAFT
RIGHT HAND DRIVE(LVR5FB) 6QA1 STD ENG(L24) 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3) 		1-37171-068-0 01 1 9001-9012 ●
5 YOKE; STUB,PROP SHAFT
6RA1 STD ENG(14L) AXLE RATIO 2 SPEED<W9Y> 		1-37171-068-0 01 1 9001-9012 ●
5 YOKE; STUB,PROP SHAFT
AXLE RATIO 2 SPEED<W9Y> EXC. 16"CLUTCH SINGLE PLATE STRAP DRIVE(RF2), 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3),BUS BODY REAROVERHANG<YK4> 		1-37171-068-0 01 1 9101- ● ● ●
5 YOKE; STUB,PROP SHAFT
LEFT HAND DRIVE(LVR6FB) 6QA1 STD ENG(L24) 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3) 		1-37171-098-0 01 1 9001-9012 ●
5 YOKE; STUB,PROP SHAFT
SINGLE SPEED-AXLE RATIO<W9Z> 16"CLUTCH SINGLE PLATE STRAP DRIVE(RF2), 17"CLUTCHSINGLE PLATE STRAP DRIVE(RF3) BUS BODY REAR OVERHANG<YK4> EXC. P85 PROP SHAFT<B5N> 		1-37171-098-0 01 1 9101- ● ● ●
5 YOKE; STUB,PROP SHAFT
6QA1 STD ENG(L24),6RA1 STD ENG(14L) SINGLE SPEED-AXLE RATIO<W9Z> EXC. 16"CLUTCH SINGLE PLATE STRAP DRIVE(RF2), 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3) 		1-37171-037-0 01 1 9001-9012 ● ● ●
5 YOKE; STUB,PROP SHAFT
RIGHT HAND DRIVE(LVR5FB) 6QA1 STD ENG(L24) 16"CLUTCH SINGLE PLATE STRAP DRIVE(RF2) 		1-37171-037-0 01 1 9001-9012 ●
5 YOKE; STUB,PROP SHAFT
6RB1 STD ENG(07L) 		1-37171-037-0 01 1 9001-9012 ●
5 YOKE; STUB,PROP SHAFT
SINGLE SPEED-AXLE RATIO<W9Z> EXC. 16"CLUTCH SINGLE PLATE STRAP DRIVE(RF2), 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3),BUS BODY REAROVERHANG<YK4> 		1-37171-037-0 01 1 9101- ● ● ●
5 YOKE; STUB,PROP SHAFT
A/T<X9D> BUS BODY REAR OVERHANG<YK4> 		1-37171-037-0 01 1 9101- ● ●
5 YOKE; STUB,PROP SHAFT
6RA1 STD ENG(14L) 		1-37171-038-0 01 1 9001-9012 ●
5 YOKE; STUB,PROP SHAFT
SINGLE SPEED-AXLE RATIO<W9Z> BUS BODY REAR OVERHANG<YK4> EXC. 16"CLUTCH SINGLE PLATE STRAP DRIVE(RF2), 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3) 		1-37171-038-0 01 1 9101- ● ● ●
8 YOKE; FLANGE,PROP SHAFT
6RB1 STD ENG(07L) P85 PROP SHAFT<B5N> 		1-37211-021-1 01 1 9001-9012 ●
8 YOKE; FLANGE,PROP SHAFT
SINGLE SPEED-AXLE RATIO<W9Z> 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3) P85 PROP SHAFT<B5N> BUS BODY REAR OVERHANG<YK4> 		1-37211-021-1 01 1 9101- ● ● ●
8 YOKE; FLANGE,PROP SHAFT
6RA1 TC ENG(15L) FINAL GEAR 3.909/5.322 18" SPIRAL 2 SPEED(W2J) 		1-37211-021-1 02 1 9001-9012 ●
8 YOKE; FLANGE,PROP SHAFT
P85 PROP SHAFT<B5N> 16"CLUTCH SINGLE PLATE STRAP DRIVE(RF2), 17"CLUTCHSINGLE PLATE STRAP DRIVE(RF3) AXLE RATIO 2 SPEED<W9Y> BUS BODY REAR OVERHANG<YK4> 		1-37211-021-1 02 1 9101- ● ● ●
8 YOKE; FLANGE,PROP SHAFT
6QA1 STD ENG(L24),6RA1 STD ENG(14L) 		1-37211-040-0 02 1 9001-9012 ● ●
8 YOKE; FLANGE,PROP SHAFT
6QA1 STD ENG(L24),6RB1 STD ENG(07L),6RA1 STD ENG(14L) 		1-37211-040-0 02 1 9001-9012 ●
8 YOKE; FLANGE,PROP SHAFT
EXC. 16"CLUTCH SINGLE PLATE STRAP DRIVE(RF2), 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3) 		1-37211-040-0 02 1 9101-9101 ● ● ●
8 YOKE; FLANGE,PROP SHAFT
16"CLUTCH SINGLE PLATE STRAP DRIVE(RF2), 17"CLUTCHSINGLE PLATE STRAP DRIVE(RF3) SINGLE SPEED-AXLE RATIO<W9Z> BUS BODY REAR OVERHANG<YK4> EXC. P85 PROP SHAFT<B5N> 		1-37211-040-0 02 1 9101-9101 ● ● ●
8 YOKE; FLANGE,PROP SHAFT
AXLE RATIO 2 SPEED<W9Y> EXC. 16"CLUTCH SINGLE PLATE STRAP DRIVE(RF2), 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3),BUS BODY REAROVERHANG<YK4> 		1-37211-040-0 02 1 9101-9207 ● ● ●
8 YOKE; FLANGE,PROP SHAFT
SINGLE SPEED-AXLE RATIO<W9Z> 16"CLUTCH SINGLE PLATE STRAP DRIVE(RF2), 17"CLUTCHSINGLE PLATE STRAP DRIVE(RF3) BUS BODY REAR OVERHANG<YK4> EXC. P85 PROP SHAFT<B5N> 		1-37211-040-0 02 1 9101-9207 ● ● ●
8 YOKE; FLANGE,PROP SHAFT
SINGLE SPEED-AXLE RATIO<W9Z> EXC. 16"CLUTCH SINGLE PLATE STRAP DRIVE(RF2), 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3) 		1-37211-040-0 02 1 9101-9207 ● ● ●
8 YOKE; FLANGE,PROP SHAFT
EXC. 16"CLUTCH SINGLE PLATE STRAP DRIVE(RF2), 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3) 		1-37211-040-0 02 1 9208- ● ● ●
8 YOKE; FLANGE,PROP SHAFT
16"CLUTCH SINGLE PLATE STRAP DRIVE(RF2), 17"CLUTCHSINGLE PLATE STRAP DRIVE(RF3) SINGLE SPEED-AXLE RATIO<W9Z> BUS BODY REAR OVERHANG<YK4> EXC. P85 PROP SHAFT<B5N> 		1-37211-040-0 02 1 9208- ● ● ●
8 YOKE; FLANGE,PROP SHAFT
6RB1 STD ENG(07L) EXC. P85 PROP SHAFT<B5N> 		1-37211-040-0 01 1 9001-9012 ● ●
8 YOKE; FLANGE,PROP SHAFT
SINGLE SPEED-AXLE RATIO<W9Z> 16"CLUTCH SINGLE PLATE STRAP DRIVE(RF2), 17"CLUTCHSINGLE PLATE STRAP DRIVE(RF3) EXC. BUS BODY REAR OVERHANG<YK4> 		1-37211-040-0 01 1 9101- ● ● ●
9 JOURNAL ASM; PROP SHAFT
P85 PROP SHAFT<B5N> (A) 		1-37300-065-0 AR 1 9001- ● ● ●
9 JOURNAL ASM; PROP SHAFT
EXC. P85 PROP SHAFT<B5N> (A) 		1-37300-086-0 AR 1 9001- ● ● ●
9 JOURNAL ASM; PROP SHAFT
6RB1 STD ENG(07L) EXC. P85 PROP SHAFT<B5N> (B) 		1-37300-039-1 01 1 9001-9012 ● ●
9 JOURNAL ASM; PROP SHAFT
SINGLE SPEED-AXLE RATIO<W9Z> 16"CLUTCH SINGLE PLATE STRAP DRIVE(RF2), 17"CLUTCHSINGLE PLATE STRAP DRIVE(RF3) EXC. BUS BODY REAR OVERHANG<YK4> (B) 		1-37300-039-1 01 1 9101- ● ● ●
9 JOURNAL ASM; PROP SHAFT
SINGLE SPEED-AXLE RATIO<W9Z> 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3) BUS BODY REAR OVERHANG<YK4> P85 PROP SHAFT<B5N> (B) 		1-37300-039-1 01 1 9101- ● ● ●
10 BOLT; UJT
6QA1 STD ENG(L24),6RA1 STD ENG(14L) (A) M8X20 		9-09802-702-0 16 1 9001-9012 ● ●
10 BOLT; UJT
6QA1 STD ENG(L24),6RB1 STD ENG(07L),6RA1 STD ENG(14L) (A) M8X20 		9-09802-702-0 16 1 9001-9012 ●
10 BOLT; UJT
AXLE RATIO 2 SPEED<W9Y> (A) M8X20 		9-09802-702-0 16 1 9101- ● ● ●
10 BOLT; UJT
SINGLE SPEED-AXLE RATIO<W9Z> EXC. 16"CLUTCH SINGLE PLATE STRAP DRIVE(RF2), 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3) (A) M8X20 		9-09802-702-0 16 1 9101- ● ● ●
10 BOLT; UJT
SINGLE SPEED-AXLE RATIO<W9Z> 16"CLUTCH SINGLE PLATE STRAP DRIVE(RF2), 17"CLUTCHSINGLE PLATE STRAP DRIVE(RF3) BUS BODY REAR OVERHANG<YK4> EXC. P85 PROP SHAFT<B5N> (A) M8X20 		9-09802-702-0 16 1 9101- ● ● ●
10 BOLT; UJT
6RB1 STD ENG(07L) EXC. P85 PROP SHAFT<B5N> (A) M8X20 		9-09802-702-0 08 1 9001-9012 ● ●
10 BOLT; UJT
SINGLE SPEED-AXLE RATIO<W9Z> 16"CLUTCH SINGLE PLATE STRAP DRIVE(RF2), 17"CLUTCHSINGLE PLATE STRAP DRIVE(RF3) EXC. BUS BODY REAR OVERHANG<YK4> (A) M8X20 		9-09802-702-0 08 1 9101- ● ● ●
10 BOLT; UJT
SINGLE SPEED-AXLE RATIO<W9Z> 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3) BUS BODY REAR OVERHANG<YK4> P85 PROP SHAFT<B5N> (A) M8X20 		9-09802-702-0 08 1 9101- ● ● ●
10 BOLT; UJT
6RB1 STD ENG(07L) EXC. P85 PROP SHAFT<B5N> (B) M12X45 		9-91066-245-0 04 1 9001-9012 ● ●
10 BOLT; UJT
SINGLE SPEED-AXLE RATIO<W9Z> 16"CLUTCH SINGLE PLATE STRAP DRIVE(RF2), 17"CLUTCHSINGLE PLATE STRAP DRIVE(RF3) EXC. BUS BODY REAR OVERHANG<YK4> (B) M12X45 		9-91066-245-0 04 1 9101- ● ● ●
10 BOLT; UJT
SINGLE SPEED-AXLE RATIO<W9Z> 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3) BUS BODY REAR OVERHANG<YK4> P85 PROP SHAFT<B5N> (B) M12X45 		9-91066-245-0 04 1 9101- ● ● ●
12 PLATE; LK,FRT UJT,PROP SHAFT
6RB1 STD ENG(07L) FINAL GEAR 39/9 16.5"(W4Q) P85 PROP SHAFT<B5N> 		9-37356-006-1 04 1 9001-9012 ●
12 PLATE; LK,FRT UJT,PROP SHAFT
SINGLE SPEED-AXLE RATIO<W9Z> P85 PROP SHAFT<B5N> 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3) BUS BODY REAR OVERHANG<YK4> 		9-37356-006-1 04 1 9101-9702 ● ● ●
12 PLATE; LK,FRT UJT,PROP SHAFT
P85 PROP SHAFT<B5N> 		9-37356-006-1 04 1 9703- ● ● ●
12 PLATE; LK,FRT UJT,PROP SHAFT
6RA1 TC ENG(15L) FINAL GEAR 3.909/5.322 18" SPIRAL 2 SPEED(W2J) 		9-37356-006-1 08 1 9001-9012 ●
12 PLATE; LK,FRT UJT,PROP SHAFT
AXLE RATIO 2 SPEED<W9Y> P85 PROP SHAFT<B5N> 16"CLUTCH SINGLE PLATE STRAP DRIVE(RF2), 17"CLUTCHSINGLE PLATE STRAP DRIVE(RF3) BUS BODY REAR OVERHANG<YK4> 		9-37356-006-1 08 1 9101- ● ● ●
12 PLATE; LK,FRT UJT,PROP SHAFT
6RB1 STD ENG(07L) EXC. P85 PROP SHAFT<B5N> 		9-37356-007-0 04 1 9001-9012 ● ●
12 PLATE; LK,FRT UJT,PROP SHAFT
SINGLE SPEED-AXLE RATIO<W9Z> 16"CLUTCH SINGLE PLATE STRAP DRIVE(RF2), 17"CLUTCHSINGLE PLATE STRAP DRIVE(RF3) EXC. BUS BODY REAR OVERHANG<YK4> 		9-37356-007-0 04 1 9101- ● ● ●
12 PLATE; LK,FRT UJT,PROP SHAFT
6QA1 STD ENG(L24),6RA1 STD ENG(14L) 		9-37356-007-0 08 1 9001-9012 ● ●
12 PLATE; LK,FRT UJT,PROP SHAFT
6QA1 STD ENG(L24),6RB1 STD ENG(07L),6RA1 STD ENG(14L) 		9-37356-007-0 08 1 9001-9012 ●
12 PLATE; LK,FRT UJT,PROP SHAFT
EXC. 16"CLUTCH SINGLE PLATE STRAP DRIVE(RF2), 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3) 		9-37356-007-0 08 1 9101- ● ● ●
12 PLATE; LK,FRT UJT,PROP SHAFT
16"CLUTCH SINGLE PLATE STRAP DRIVE(RF2), 17"CLUTCHSINGLE PLATE STRAP DRIVE(RF3) SINGLE SPEED-AXLE RATIO<W9Z> BUS BODY REAR OVERHANG<YK4> EXC. P85 PROP SHAFT<B5N> 		9-37356-007-0 08 1 9101- ● ● ●
13 COVER; FRT UJT,PROP SHAFT
6RB1 STD ENG(07L) FINAL GEAR 39/9 16.5"(W4Q) P85 PROP SHAFT<B5N> 		1-37355-003-1 04 1 9001-9012 ●
13 COVER; FRT UJT,PROP SHAFT
SINGLE SPEED-AXLE RATIO<W9Z> P85 PROP SHAFT<B5N> 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3) BUS BODY REAR OVERHANG<YK4> 		1-37355-003-1 04 1 9101- ● ● ●
13 COVER; FRT UJT,PROP SHAFT
6RA1 TC ENG(15L) FINAL GEAR 3.909/5.322 18" SPIRAL 2 SPEED(W2J) 		1-37355-003-1 08 1 9001-9012 ●
13 COVER; FRT UJT,PROP SHAFT
AXLE RATIO 2 SPEED<W9Y> P85 PROP SHAFT<B5N> 16"CLUTCH SINGLE PLATE STRAP DRIVE(RF2), 17"CLUTCHSINGLE PLATE STRAP DRIVE(RF3) BUS BODY REAR OVERHANG<YK4> 		1-37355-003-1 08 1 9101- ● ● ●
13 COVER; FRT UJT,PROP SHAFT
6QA1 STD ENG(L24),6RA1 STD ENG(14L) T=4.5 		1-37355-011-0 08 1 9001-9012 ● ●
13 COVER; FRT UJT,PROP SHAFT
6QA1 STD ENG(L24),6RB1 STD ENG(07L),6RA1 STD ENG(14L) T=4.5 		1-37355-011-0 08 1 9001-9012 ●
13 COVER; FRT UJT,PROP SHAFT
EXC. 16"CLUTCH SINGLE PLATE STRAP DRIVE(RF2), 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3) T=4.5 		1-37355-011-0 08 1 9101- ● ● ●
13 COVER; FRT UJT,PROP SHAFT
16"CLUTCH SINGLE PLATE STRAP DRIVE(RF2), 17"CLUTCHSINGLE PLATE STRAP DRIVE(RF3) SINGLE SPEED-AXLE RATIO<W9Z> BUS BODY REAR OVERHANG<YK4> EXC. P85 PROP SHAFT<B5N> T=4.5 		1-37355-011-0 08 1 9101- ● ● ●
13 COVER; FRT UJT,PROP SHAFT
6RB1 STD ENG(07L) EXC. P85 PROP SHAFT<B5N> T=4.5 		1-37355-011-0 04 1 9001-9012 ● ●
13 COVER; FRT UJT,PROP SHAFT
SINGLE SPEED-AXLE RATIO<W9Z> 16"CLUTCH SINGLE PLATE STRAP DRIVE(RF2), 17"CLUTCHSINGLE PLATE STRAP DRIVE(RF3) EXC. BUS BODY REAR OVERHANG<YK4> T=4.5 		1-37355-011-0 04 1 9101- ● ● ●
14 COVER; DUST,SPIDER
6RB1 STD ENG(07L) EXC. P85 PROP SHAFT<B5N> 		9-37352-023-0 04 1 9001-9012 ● ●
14 COVER; DUST,SPIDER
SINGLE SPEED-AXLE RATIO<W9Z> 16"CLUTCH SINGLE PLATE STRAP DRIVE(RF2), 17"CLUTCHSINGLE PLATE STRAP DRIVE(RF3) EXC. BUS BODY REAR OVERHANG<YK4> 		9-37352-023-0 04 1 9101- ● ● ●
14 COVER; DUST,SPIDER
6QA1 STD ENG(L24),6RA1 STD ENG(14L) 		9-37352-023-0 08 1 9001-9012 ● ●
14 COVER; DUST,SPIDER
6QA1 STD ENG(L24),6RB1 STD ENG(07L),6RA1 STD ENG(14L) 		9-37352-023-0 08 1 9001-9012 ●
14 COVER; DUST,SPIDER
EXC. 16"CLUTCH SINGLE PLATE STRAP DRIVE(RF2), 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3) 		9-37352-023-0 08 1 9101- ● ● ●
14 COVER; DUST,SPIDER
16"CLUTCH SINGLE PLATE STRAP DRIVE(RF2), 17"CLUTCHSINGLE PLATE STRAP DRIVE(RF3) SINGLE SPEED-AXLE RATIO<W9Z> BUS BODY REAR OVERHANG<YK4> EXC. P85 PROP SHAFT<B5N> 		9-37352-023-0 08 1 9101- ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
6RA1 TC ENG(15L) FINAL GEAR 3.909/5.322 18" SPIRAL 2 SPEED(W2J) (A) PT1/8 ELBOW 67.5? 		9-09031-110-0 02 1 9001-9012 ●
17 NIPPLE; GREASE,PROP SHAFT
AXLE RATIO 2 SPEED<W9Y> P85 PROP SHAFT<B5N> 16"CLUTCH SINGLE PLATE STRAP DRIVE(RF2), 17"CLUTCHSINGLE PLATE STRAP DRIVE(RF3) BUS BODY REAR OVERHANG<YK4> (A) PT1/8 ELBOW 67.5? 		9-09031-110-0 02 1 9101-9702 ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
P85 PROP SHAFT<B5N> (A) PT1/8 ELBOW 67.5? 		9-09031-110-0 02 1 9703- ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
6RB1 STD ENG(07L) EXC. P85 PROP SHAFT<B5N> (A) PT1/8 ELBOW 67.5? 		9-09031-110-0 01 1 9001-9012 ● ●
17 NIPPLE; GREASE,PROP SHAFT
SINGLE SPEED-AXLE RATIO<W9Z> 16"CLUTCH SINGLE PLATE STRAP DRIVE(RF2), 17"CLUTCHSINGLE PLATE STRAP DRIVE(RF3) EXC. BUS BODY REAR OVERHANG<YK4> (A) PT1/8 ELBOW 67.5? 		9-09031-110-0 01 1 9101- ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
6RB1 STD ENG(07L) EXC. P85 PROP SHAFT<B5N> (B) PT1/8 ELBOW 		9-09031-210-0 01 1 9001-9012 ● ●
17 NIPPLE; GREASE,PROP SHAFT
SINGLE SPEED-AXLE RATIO<W9Z> 16"CLUTCH SINGLE PLATE STRAP DRIVE(RF2), 17"CLUTCHSINGLE PLATE STRAP DRIVE(RF3) EXC. BUS BODY REAR OVERHANG<YK4> (B) PT1/8 ELBOW 		9-09031-210-0 01 1 9101- ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
6QA1 STD ENG(L24),6RA1 STD ENG(14L) (B) PT1/8 ELBOW 		9-09031-210-0 02 1 9001-9012 ● ●
17 NIPPLE; GREASE,PROP SHAFT
6QA1 STD ENG(L24),6RB1 STD ENG(07L),6RA1 STD ENG(14L) (B) PT1/8 ELBOW 		9-09031-210-0 02 1 9001-9012 ●
17 NIPPLE; GREASE,PROP SHAFT
EXC. 16"CLUTCH SINGLE PLATE STRAP DRIVE(RF2), 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3) (B) PT1/8 ELBOW 		9-09031-210-0 02 1 9101- ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
16"CLUTCH SINGLE PLATE STRAP DRIVE(RF2), 17"CLUTCHSINGLE PLATE STRAP DRIVE(RF3) SINGLE SPEED-AXLE RATIO<W9Z> BUS BODY REAR OVERHANG<YK4> EXC. P85 PROP SHAFT<B5N> (B) PT1/8 ELBOW 		9-09031-210-0 02 1 9101- ● ● ●
56 NUT; YOKE
M16 FLANGE 		1-09449-065-0 04 1 9001- ● ● ●
58 FLANGE; SPLINED
6RB1 STD ENG(07L) P85 PROP SHAFT<B5N> 		1-37241-078-1 01 1 9001-9012 ●
58 FLANGE; SPLINED
SINGLE SPEED-AXLE RATIO<W9Z> P85 PROP SHAFT<B5N> 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3) BUS BODY REAR OVERHANG<YK4> 		1-37241-078-1 01 1 9101- ● ● ●
58 FLANGE; SPLINED
RIGHT HAND DRIVE(LVR5FB) 6QA1 STD ENG(L24) 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3) 		1-37241-059-0 01 1 9001-9012 ●
58 FLANGE; SPLINED
LEFT HAND DRIVE(LVR6FB) 6QA1 STD ENG(L24) 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3) L=220 		1-37241-091-0 01 1 9001-9012 ●
58 FLANGE; SPLINED
SINGLE SPEED-AXLE RATIO<W9Z> 16"CLUTCH SINGLE PLATE STRAP DRIVE(RF2), 17"CLUTCHSINGLE PLATE STRAP DRIVE(RF3) BUS BODY REAR OVERHANG<YK4> EXC. P85 PROP SHAFT<B5N> L=220 		1-37241-091-0 01 1 9101- ● ● ●
58 FLANGE; SPLINED
6RB1 STD ENG(07L) EXC. P85 PROP SHAFT<B5N> L=192 		1-37241-010-0 01 1 9001-9012 ● ● ●
58 FLANGE; SPLINED
6QA1 STD ENG(L24) EXC. 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3) L=192 		1-37241-010-0 01 1 9001-9012 ● ●
58 FLANGE; SPLINED
6RA1 STD ENG(14L) L=192 		1-37241-010-0 01 1 9001-9012 ●
58 FLANGE; SPLINED
LEFT HAND DRIVE(LVR6FB) 6QA1 STD ENG(L24) EXC. 16"CLUTCH SINGLE PLATE STRAP DRIVE(RF2) L=192 		1-37241-010-0 01 1 9001-9012 ●
58 FLANGE; SPLINED
6QA1 STD ENG(L24),6RA1 STD ENG(14L) L=192 		1-37241-010-0 01 1 9001-9012 ●
58 FLANGE; SPLINED
RIGHT HAND DRIVE(LVR5FB) 6RA1 STD ENG(14L) L=192 		1-37241-010-0 01 1 9001-9012 ●
58 FLANGE; SPLINED
LEFT HAND DRIVE(LVR6FB) 6QA1 STD ENG(L24),6RA1 STD ENG(14L) L=192 		1-37241-010-0 01 1 9001-9012 ●
58 FLANGE; SPLINED
EXC. 16"CLUTCH SINGLE PLATE STRAP DRIVE(RF2), 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3) L=192 		1-37241-010-0 01 1 9101- ● ● ●
58 FLANGE; SPLINED
SINGLE SPEED-AXLE RATIO<W9Z> 16"CLUTCH SINGLE PLATE STRAP DRIVE(RF2), 17"CLUTCHSINGLE PLATE STRAP DRIVE(RF3) EXC. BUS BODY REAR OVERHANG<YK4> L=192 		1-37241-010-0 01 1 9101- ● ● ●
71 NUT; YOKE
M16 FLANGE 		1-09449-065-0 04 1 9001- ● ● ●
95 BOLT; YOKE,FINAL
6RB1 STD ENG(07L) M12X45 		9-91066-245-0 04 1 9001-9012 ● ●
95 BOLT; YOKE,FINAL
6RB1 STD ENG(07L) 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3) M12X45 		9-91066-245-0 04 1 9101-9207 ● ● ●
95 BOLT; YOKE,FINAL
16"CLUTCH SINGLE PLATE STRAP DRIVE(RF2), 17"CLUTCHSINGLE PLATE STRAP DRIVE(RF3) EXC. BUS BODY REAR OVERHANG<YK4> M12X45 		9-91066-245-0 04 1 9208-9606 ● ● ●
95 BOLT; YOKE,FINAL
FINAL GEAR 39/9 16.5"(W4Q) 16"CLUTCH SINGLE PLATE STRAP DRIVE(RF2), 17"CLUTCHSINGLE PLATE STRAP DRIVE(RF3) BUS BODY REAR OVERHANG<YK4> M12X45 		9-91066-245-0 04 1 9208-9606 ●
95 BOLT; YOKE,FINAL
16"CLUTCH SINGLE PLATE STRAP DRIVE(RF2), 17"CLUTCHSINGLE PLATE STRAP DRIVE(RF3) EXC. BUS BODY REAR OVERHANG<YK4> M12X45 FLANGE 		0-28091-245-0 04 1 9607-9702 ● ● ●
95 BOLT; YOKE,FINAL
FINAL GEAR 39/9 16.5"(W4Q) 16"CLUTCH SINGLE PLATE STRAP DRIVE(RF2), 17"CLUTCHSINGLE PLATE STRAP DRIVE(RF3) BUS BODY REAR OVERHANG<YK4> M12X45 FLANGE 		0-28091-245-0 04 1 9607-9702 ●
95 BOLT; YOKE,FINAL
16"CLUTCH SINGLE PLATE STRAP DRIVE(RF2), 17"CLUTCHSINGLE PLATE STRAP DRIVE(RF3) EXC. BUS BODY REAR OVERHANG<YK4> M12X45 FLANGE 		0-28091-245-0 04 1 9703- ● ● ●
95 BOLT; YOKE,FINAL
P85 PROP SHAFT<B5N> 16"CLUTCH SINGLE PLATE STRAP DRIVE(RF2), 17"CLUTCHSINGLE PLATE STRAP DRIVE(RF3) BUS BODY REAR OVERHANG<YK4> M12X45 FLANGE 		0-28091-245-0 04 1 9703- ● ● ●
95 BOLT; YOKE,FINAL
RIGHT HAND DRIVE(LVR5FB) 6QA1 STD ENG(L24) M16X48 		1-09000-383-0 04 1 9001-9012 ● ●
95 BOLT; YOKE,FINAL
LEFT HAND DRIVE(LVR6FB) 6QA1 STD ENG(L24),6RA1 STD ENG(14L),6RA1 TC ENG(15L) M16X48 		1-09000-383-0 04 1 9001-9012 ● ●
95 BOLT; YOKE,FINAL
M16X48 		1-09000-383-0 04 1 9001-9012 ●
95 BOLT; YOKE,FINAL
6RB1 STD ENG(07L) EXC. 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3) M16X48 		1-09000-383-0 04 1 9101-9207 ● ● ●
95 BOLT; YOKE,FINAL
RIGHT HAND DRIVE(LVR5FB) 6QA1 STD ENG(L24) M16X48 		1-09000-383-0 04 1 9101-9207 ● ●
95 BOLT; YOKE,FINAL
LEFT HAND DRIVE(LVR6FB) 6QA1 STD ENG(L24),6RA1 STD ENG(14L),6RA1 TC ENG(15L) M16X48 		1-09000-383-0 04 1 9101-9207 ● ●
95 BOLT; YOKE,FINAL
6QA1 STD ENG(L24),6RA1 STD ENG(14L),6RA1 TC ENG(15L) M16X48 		1-09000-383-0 04 1 9101-9207 ●
95 BOLT; YOKE,FINAL
EXC. 16"CLUTCH SINGLE PLATE STRAP DRIVE(RF2), 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3),BUS BODY REAROVERHANG<YK4> M16X48 		1-09000-383-0 04 1 9208-9702 ● ● ●
95 BOLT; YOKE,FINAL
FINAL GEAR 3.909/5.322 18" SPIRAL 2 SPEED(W2J), FINAL GEAR 3.700/5.040 EATON 18" SPIRAL 2 SPD(W2Q), FINAL GEAR 39/8 16.5"(W3A),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P) BUS BODY REAR OVERHANG<YK4> M16X48 		1-09000-383-0 04 1 9208-9702 ● ● ●
95 BOLT; YOKE,FINAL
M16X48 		1-09000-383-0 04 1 9703- ● ● ●
104 PLUG; SLEEVE YOKE
P85 PROP SHAFT<B5N> 		1-09600-046-1 01 1 9001- ● ● ●
104 PLUG; SLEEVE YOKE
EXC. P85 PROP SHAFT<B5N> 		1-09600-027-0 01 1 9001- ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT 		9-09031-010-0 01 1 9001- ● ● ●
112 RETAINER; FELT RING
6RB1 STD ENG(07L) P85 PROP SHAFT<B5N> 		1-37249-028-0 01 1 9001-9012 ●
112 RETAINER; FELT RING
SINGLE SPEED-AXLE RATIO<W9Z> P85 PROP SHAFT<B5N> 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3) BUS BODY REAR OVERHANG<YK4> 		1-37249-028-0 01 1 9101- ● ● ●
112 RETAINER; FELT RING
EXC. P85 PROP SHAFT<B5N> 		1-37248-001-0 01 1 9001-9012 ● ● ●
112 RETAINER; FELT RING
EXC. 16"CLUTCH SINGLE PLATE STRAP DRIVE(RF2), 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3) 		1-37248-001-0 01 1 9101- ● ● ●
112 RETAINER; FELT RING
16"CLUTCH SINGLE PLATE STRAP DRIVE(RF2), 17"CLUTCHSINGLE PLATE STRAP DRIVE(RF3) SINGLE SPEED-AXLE RATIO<W9Z> BUS BODY REAR OVERHANG<YK4> EXC. P85 PROP SHAFT<B5N> 		1-37248-001-0 01 1 9101- ● ● ●
112 RETAINER; FELT RING
16"CLUTCH SINGLE PLATE STRAP DRIVE(RF2), 17"CLUTCHSINGLE PLATE STRAP DRIVE(RF3) SINGLE SPEED-AXLE RATIO<W9Z> EXC. BUS BODY REAR OVERHANG<YK4> 		1-37248-001-0 01 1 9101- ● ● ●
128 SEAL; SLEEVE
6RA1 TC ENG(15L) FINAL GEAR 3.909/5.322 18" SPIRAL 2 SPEED(W2J) 		1-37247-008-0 01 1 9001-9012 ●
128 SEAL; SLEEVE
AXLE RATIO 2 SPEED<W9Y> P85 PROP SHAFT<B5N> 16"CLUTCH SINGLE PLATE STRAP DRIVE(RF2), 17"CLUTCHSINGLE PLATE STRAP DRIVE(RF3) BUS BODY REAR OVERHANG<YK4> 		1-37247-008-0 01 1 9101- ● ● ●
201 RING; FELT,SLEEVE
6RB1 STD ENG(07L) P85 PROP SHAFT<B5N> 		1-09620-008-0 01 1 9001-9012 ●
201 RING; FELT,SLEEVE
SINGLE SPEED-AXLE RATIO<W9Z> P85 PROP SHAFT<B5N> 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3) BUS BODY REAR OVERHANG<YK4> 		1-09620-008-0 01 1 9101- ● ● ●
201 RING; FELT,SLEEVE
EXC. P85 PROP SHAFT<B5N> 		1-09630-006-0 01 1 9001- ● ● ●
225 YOKE; SLEEVE,PROP SHAFT
6RA1 TC ENG(15L) FINAL GEAR 3.909/5.322 18" SPIRAL 2 SPEED(W2J) 		1-37241-052-2 01 1 9001-9012 ●
225 YOKE; SLEEVE,PROP SHAFT
AXLE RATIO 2 SPEED<W9Y> P85 PROP SHAFT<B5N> 16"CLUTCH SINGLE PLATE STRAP DRIVE(RF2), 17"CLUTCHSINGLE PLATE STRAP DRIVE(RF3) BUS BODY REAR OVERHANG<YK4> 		1-37241-052-2 01 1 9101- ● ● ●
çizim 94899
112 201 58 106 104 71 8 17 17 9 14 13 12 10 46 95 17 57 9 216 10
BalonParca AdiParca NoAdetTipApplied Date A B C
8 YOKE; FLANGE,PROP SHAFT
6RB1 STD ENG(07L) P85 PROP SHAFT<B5N> 		1-37211-021-1 01 1 9001-9012 ●
8 YOKE; FLANGE,PROP SHAFT
SINGLE SPEED-AXLE RATIO<W9Z> 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3) P85 PROP SHAFT<B5N> BUS BODY REAR OVERHANG<YK4> 		1-37211-021-1 01 1 9101- ● ● ●
8 YOKE; FLANGE,PROP SHAFT
6RA1 TC ENG(15L) FINAL GEAR 3.909/5.322 18" SPIRAL 2 SPEED(W2J) 		1-37211-021-1 02 1 9001-9012 ●
8 YOKE; FLANGE,PROP SHAFT
P85 PROP SHAFT<B5N> 16"CLUTCH SINGLE PLATE STRAP DRIVE(RF2), 17"CLUTCHSINGLE PLATE STRAP DRIVE(RF3) AXLE RATIO 2 SPEED<W9Y> BUS BODY REAR OVERHANG<YK4> 		1-37211-021-1 02 1 9101- ● ● ●
8 YOKE; FLANGE,PROP SHAFT
6QA1 STD ENG(L24),6RA1 STD ENG(14L) 		1-37211-040-0 02 1 9001-9012 ● ●
8 YOKE; FLANGE,PROP SHAFT
6QA1 STD ENG(L24),6RB1 STD ENG(07L),6RA1 STD ENG(14L) 		1-37211-040-0 02 1 9001-9012 ●
8 YOKE; FLANGE,PROP SHAFT
EXC. 16"CLUTCH SINGLE PLATE STRAP DRIVE(RF2), 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3) 		1-37211-040-0 02 1 9101-9101 ● ● ●
8 YOKE; FLANGE,PROP SHAFT
16"CLUTCH SINGLE PLATE STRAP DRIVE(RF2), 17"CLUTCHSINGLE PLATE STRAP DRIVE(RF3) SINGLE SPEED-AXLE RATIO<W9Z> BUS BODY REAR OVERHANG<YK4> EXC. P85 PROP SHAFT<B5N> 		1-37211-040-0 02 1 9101-9101 ● ● ●
8 YOKE; FLANGE,PROP SHAFT
AXLE RATIO 2 SPEED<W9Y> EXC. 16"CLUTCH SINGLE PLATE STRAP DRIVE(RF2), 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3),BUS BODY REAROVERHANG<YK4> 		1-37211-040-0 02 1 9101-9207 ● ● ●
8 YOKE; FLANGE,PROP SHAFT
SINGLE SPEED-AXLE RATIO<W9Z> 16"CLUTCH SINGLE PLATE STRAP DRIVE(RF2), 17"CLUTCHSINGLE PLATE STRAP DRIVE(RF3) BUS BODY REAR OVERHANG<YK4> EXC. P85 PROP SHAFT<B5N> 		1-37211-040-0 02 1 9101-9207 ● ● ●
8 YOKE; FLANGE,PROP SHAFT
SINGLE SPEED-AXLE RATIO<W9Z> EXC. 16"CLUTCH SINGLE PLATE STRAP DRIVE(RF2), 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3) 		1-37211-040-0 02 1 9101-9207 ● ● ●
8 YOKE; FLANGE,PROP SHAFT
EXC. 16"CLUTCH SINGLE PLATE STRAP DRIVE(RF2), 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3) 		1-37211-040-0 02 1 9208- ● ● ●
8 YOKE; FLANGE,PROP SHAFT
16"CLUTCH SINGLE PLATE STRAP DRIVE(RF2), 17"CLUTCHSINGLE PLATE STRAP DRIVE(RF3) SINGLE SPEED-AXLE RATIO<W9Z> BUS BODY REAR OVERHANG<YK4> EXC. P85 PROP SHAFT<B5N> 		1-37211-040-0 02 1 9208- ● ● ●
8 YOKE; FLANGE,PROP SHAFT
6RB1 STD ENG(07L) EXC. P85 PROP SHAFT<B5N> 		1-37211-040-0 01 1 9001-9012 ● ●
8 YOKE; FLANGE,PROP SHAFT
SINGLE SPEED-AXLE RATIO<W9Z> 16"CLUTCH SINGLE PLATE STRAP DRIVE(RF2), 17"CLUTCHSINGLE PLATE STRAP DRIVE(RF3) EXC. BUS BODY REAR OVERHANG<YK4> 		1-37211-040-0 01 1 9101- ● ● ●
9 JOURNAL ASM; PROP SHAFT
P85 PROP SHAFT<B5N> (A) 		1-37300-065-0 AR 1 9001- ● ● ●
9 JOURNAL ASM; PROP SHAFT
EXC. P85 PROP SHAFT<B5N> (A) 		1-37300-086-0 AR 1 9001- ● ● ●
9 JOURNAL ASM; PROP SHAFT
6RB1 STD ENG(07L) EXC. P85 PROP SHAFT<B5N> (B) 		1-37300-039-1 01 1 9001-9012 ● ●
9 JOURNAL ASM; PROP SHAFT
SINGLE SPEED-AXLE RATIO<W9Z> 16"CLUTCH SINGLE PLATE STRAP DRIVE(RF2), 17"CLUTCHSINGLE PLATE STRAP DRIVE(RF3) EXC. BUS BODY REAR OVERHANG<YK4> (B) 		1-37300-039-1 01 1 9101- ● ● ●
9 JOURNAL ASM; PROP SHAFT
SINGLE SPEED-AXLE RATIO<W9Z> 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3) BUS BODY REAR OVERHANG<YK4> P85 PROP SHAFT<B5N> (B) 		1-37300-039-1 01 1 9101- ● ● ●
10 BOLT; UJT
6QA1 STD ENG(L24),6RA1 STD ENG(14L) (A) M8X20 		9-09802-702-0 16 1 9001-9012 ● ●
10 BOLT; UJT
6QA1 STD ENG(L24),6RB1 STD ENG(07L),6RA1 STD ENG(14L) (A) M8X20 		9-09802-702-0 16 1 9001-9012 ●
10 BOLT; UJT
AXLE RATIO 2 SPEED<W9Y> (A) M8X20 		9-09802-702-0 16 1 9101- ● ● ●
10 BOLT; UJT
SINGLE SPEED-AXLE RATIO<W9Z> EXC. 16"CLUTCH SINGLE PLATE STRAP DRIVE(RF2), 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3) (A) M8X20 		9-09802-702-0 16 1 9101- ● ● ●
10 BOLT; UJT
SINGLE SPEED-AXLE RATIO<W9Z> 16"CLUTCH SINGLE PLATE STRAP DRIVE(RF2), 17"CLUTCHSINGLE PLATE STRAP DRIVE(RF3) BUS BODY REAR OVERHANG<YK4> EXC. P85 PROP SHAFT<B5N> (A) M8X20 		9-09802-702-0 16 1 9101- ● ● ●
10 BOLT; UJT
6RB1 STD ENG(07L) EXC. P85 PROP SHAFT<B5N> (A) M8X20 		9-09802-702-0 08 1 9001-9012 ● ●
10 BOLT; UJT
SINGLE SPEED-AXLE RATIO<W9Z> 16"CLUTCH SINGLE PLATE STRAP DRIVE(RF2), 17"CLUTCHSINGLE PLATE STRAP DRIVE(RF3) EXC. BUS BODY REAR OVERHANG<YK4> (A) M8X20 		9-09802-702-0 08 1 9101- ● ● ●
10 BOLT; UJT
SINGLE SPEED-AXLE RATIO<W9Z> 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3) BUS BODY REAR OVERHANG<YK4> P85 PROP SHAFT<B5N> (A) M8X20 		9-09802-702-0 08 1 9101- ● ● ●
10 BOLT; UJT
6RB1 STD ENG(07L) EXC. P85 PROP SHAFT<B5N> (B) M12X45 		9-91066-245-0 04 1 9001-9012 ● ●
10 BOLT; UJT
SINGLE SPEED-AXLE RATIO<W9Z> 16"CLUTCH SINGLE PLATE STRAP DRIVE(RF2), 17"CLUTCHSINGLE PLATE STRAP DRIVE(RF3) EXC. BUS BODY REAR OVERHANG<YK4> (B) M12X45 		9-91066-245-0 04 1 9101- ● ● ●
10 BOLT; UJT
SINGLE SPEED-AXLE RATIO<W9Z> 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3) BUS BODY REAR OVERHANG<YK4> P85 PROP SHAFT<B5N> (B) M12X45 		9-91066-245-0 04 1 9101- ● ● ●
12 PLATE; LK,FRT UJT,PROP SHAFT
6RB1 STD ENG(07L) FINAL GEAR 39/9 16.5"(W4Q) P85 PROP SHAFT<B5N> 		9-37356-006-1 04 1 9001-9012 ●
12 PLATE; LK,FRT UJT,PROP SHAFT
SINGLE SPEED-AXLE RATIO<W9Z> P85 PROP SHAFT<B5N> 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3) BUS BODY REAR OVERHANG<YK4> 		9-37356-006-1 04 1 9101-9702 ● ● ●
12 PLATE; LK,FRT UJT,PROP SHAFT
P85 PROP SHAFT<B5N> 		9-37356-006-1 04 1 9703- ● ● ●
12 PLATE; LK,FRT UJT,PROP SHAFT
6RA1 TC ENG(15L) FINAL GEAR 3.909/5.322 18" SPIRAL 2 SPEED(W2J) 		9-37356-006-1 08 1 9001-9012 ●
12 PLATE; LK,FRT UJT,PROP SHAFT
AXLE RATIO 2 SPEED<W9Y> P85 PROP SHAFT<B5N> 16"CLUTCH SINGLE PLATE STRAP DRIVE(RF2), 17"CLUTCHSINGLE PLATE STRAP DRIVE(RF3) BUS BODY REAR OVERHANG<YK4> 		9-37356-006-1 08 1 9101- ● ● ●
12 PLATE; LK,FRT UJT,PROP SHAFT
6RB1 STD ENG(07L) EXC. P85 PROP SHAFT<B5N> 		9-37356-007-0 04 1 9001-9012 ● ●
12 PLATE; LK,FRT UJT,PROP SHAFT
SINGLE SPEED-AXLE RATIO<W9Z> 16"CLUTCH SINGLE PLATE STRAP DRIVE(RF2), 17"CLUTCHSINGLE PLATE STRAP DRIVE(RF3) EXC. BUS BODY REAR OVERHANG<YK4> 		9-37356-007-0 04 1 9101- ● ● ●
12 PLATE; LK,FRT UJT,PROP SHAFT
6QA1 STD ENG(L24),6RA1 STD ENG(14L) 		9-37356-007-0 08 1 9001-9012 ● ●
12 PLATE; LK,FRT UJT,PROP SHAFT
6QA1 STD ENG(L24),6RB1 STD ENG(07L),6RA1 STD ENG(14L) 		9-37356-007-0 08 1 9001-9012 ●
12 PLATE; LK,FRT UJT,PROP SHAFT
EXC. 16"CLUTCH SINGLE PLATE STRAP DRIVE(RF2), 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3) 		9-37356-007-0 08 1 9101- ● ● ●
12 PLATE; LK,FRT UJT,PROP SHAFT
16"CLUTCH SINGLE PLATE STRAP DRIVE(RF2), 17"CLUTCHSINGLE PLATE STRAP DRIVE(RF3) SINGLE SPEED-AXLE RATIO<W9Z> BUS BODY REAR OVERHANG<YK4> EXC. P85 PROP SHAFT<B5N> 		9-37356-007-0 08 1 9101- ● ● ●
13 COVER; FRT UJT,PROP SHAFT
6RB1 STD ENG(07L) FINAL GEAR 39/9 16.5"(W4Q) P85 PROP SHAFT<B5N> 		1-37355-003-1 04 1 9001-9012 ●
13 COVER; FRT UJT,PROP SHAFT
SINGLE SPEED-AXLE RATIO<W9Z> P85 PROP SHAFT<B5N> 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3) BUS BODY REAR OVERHANG<YK4> 		1-37355-003-1 04 1 9101- ● ● ●
13 COVER; FRT UJT,PROP SHAFT
6RA1 TC ENG(15L) FINAL GEAR 3.909/5.322 18" SPIRAL 2 SPEED(W2J) 		1-37355-003-1 08 1 9001-9012 ●
13 COVER; FRT UJT,PROP SHAFT
AXLE RATIO 2 SPEED<W9Y> P85 PROP SHAFT<B5N> 16"CLUTCH SINGLE PLATE STRAP DRIVE(RF2), 17"CLUTCHSINGLE PLATE STRAP DRIVE(RF3) BUS BODY REAR OVERHANG<YK4> 		1-37355-003-1 08 1 9101- ● ● ●
13 COVER; FRT UJT,PROP SHAFT
6QA1 STD ENG(L24),6RA1 STD ENG(14L) T=4.5 		1-37355-011-0 08 1 9001-9012 ● ●
13 COVER; FRT UJT,PROP SHAFT
6QA1 STD ENG(L24),6RB1 STD ENG(07L),6RA1 STD ENG(14L) T=4.5 		1-37355-011-0 08 1 9001-9012 ●
13 COVER; FRT UJT,PROP SHAFT
EXC. 16"CLUTCH SINGLE PLATE STRAP DRIVE(RF2), 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3) T=4.5 		1-37355-011-0 08 1 9101- ● ● ●
13 COVER; FRT UJT,PROP SHAFT
16"CLUTCH SINGLE PLATE STRAP DRIVE(RF2), 17"CLUTCHSINGLE PLATE STRAP DRIVE(RF3) SINGLE SPEED-AXLE RATIO<W9Z> BUS BODY REAR OVERHANG<YK4> EXC. P85 PROP SHAFT<B5N> T=4.5 		1-37355-011-0 08 1 9101- ● ● ●
13 COVER; FRT UJT,PROP SHAFT
6RB1 STD ENG(07L) EXC. P85 PROP SHAFT<B5N> T=4.5 		1-37355-011-0 04 1 9001-9012 ● ●
13 COVER; FRT UJT,PROP SHAFT
SINGLE SPEED-AXLE RATIO<W9Z> 16"CLUTCH SINGLE PLATE STRAP DRIVE(RF2), 17"CLUTCHSINGLE PLATE STRAP DRIVE(RF3) EXC. BUS BODY REAR OVERHANG<YK4> T=4.5 		1-37355-011-0 04 1 9101- ● ● ●
14 COVER; DUST,SPIDER
6RB1 STD ENG(07L) EXC. P85 PROP SHAFT<B5N> 		9-37352-023-0 04 1 9001-9012 ● ●
14 COVER; DUST,SPIDER
SINGLE SPEED-AXLE RATIO<W9Z> 16"CLUTCH SINGLE PLATE STRAP DRIVE(RF2), 17"CLUTCHSINGLE PLATE STRAP DRIVE(RF3) EXC. BUS BODY REAR OVERHANG<YK4> 		9-37352-023-0 04 1 9101- ● ● ●
14 COVER; DUST,SPIDER
6QA1 STD ENG(L24),6RA1 STD ENG(14L) 		9-37352-023-0 08 1 9001-9012 ● ●
14 COVER; DUST,SPIDER
6QA1 STD ENG(L24),6RB1 STD ENG(07L),6RA1 STD ENG(14L) 		9-37352-023-0 08 1 9001-9012 ●
14 COVER; DUST,SPIDER
EXC. 16"CLUTCH SINGLE PLATE STRAP DRIVE(RF2), 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3) 		9-37352-023-0 08 1 9101- ● ● ●
14 COVER; DUST,SPIDER
16"CLUTCH SINGLE PLATE STRAP DRIVE(RF2), 17"CLUTCHSINGLE PLATE STRAP DRIVE(RF3) SINGLE SPEED-AXLE RATIO<W9Z> BUS BODY REAR OVERHANG<YK4> EXC. P85 PROP SHAFT<B5N> 		9-37352-023-0 08 1 9101- ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
6RA1 TC ENG(15L) FINAL GEAR 3.909/5.322 18" SPIRAL 2 SPEED(W2J) (A) PT1/8 ELBOW 67.5? 		9-09031-110-0 02 1 9001-9012 ●
17 NIPPLE; GREASE,PROP SHAFT
AXLE RATIO 2 SPEED<W9Y> P85 PROP SHAFT<B5N> 16"CLUTCH SINGLE PLATE STRAP DRIVE(RF2), 17"CLUTCHSINGLE PLATE STRAP DRIVE(RF3) BUS BODY REAR OVERHANG<YK4> (A) PT1/8 ELBOW 67.5? 		9-09031-110-0 02 1 9101-9702 ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
P85 PROP SHAFT<B5N> (A) PT1/8 ELBOW 67.5? 		9-09031-110-0 02 1 9703- ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
6RB1 STD ENG(07L) EXC. P85 PROP SHAFT<B5N> (A) PT1/8 ELBOW 67.5? 		9-09031-110-0 01 1 9001-9012 ● ●
17 NIPPLE; GREASE,PROP SHAFT
SINGLE SPEED-AXLE RATIO<W9Z> 16"CLUTCH SINGLE PLATE STRAP DRIVE(RF2), 17"CLUTCHSINGLE PLATE STRAP DRIVE(RF3) EXC. BUS BODY REAR OVERHANG<YK4> (A) PT1/8 ELBOW 67.5? 		9-09031-110-0 01 1 9101- ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
6RB1 STD ENG(07L) EXC. P85 PROP SHAFT<B5N> (B) PT1/8 ELBOW 		9-09031-210-0 01 1 9001-9012 ● ●
17 NIPPLE; GREASE,PROP SHAFT
SINGLE SPEED-AXLE RATIO<W9Z> 16"CLUTCH SINGLE PLATE STRAP DRIVE(RF2), 17"CLUTCHSINGLE PLATE STRAP DRIVE(RF3) EXC. BUS BODY REAR OVERHANG<YK4> (B) PT1/8 ELBOW 		9-09031-210-0 01 1 9101- ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
6QA1 STD ENG(L24),6RA1 STD ENG(14L) (B) PT1/8 ELBOW 		9-09031-210-0 02 1 9001-9012 ● ●
17 NIPPLE; GREASE,PROP SHAFT
6QA1 STD ENG(L24),6RB1 STD ENG(07L),6RA1 STD ENG(14L) (B) PT1/8 ELBOW 		9-09031-210-0 02 1 9001-9012 ●
17 NIPPLE; GREASE,PROP SHAFT
EXC. 16"CLUTCH SINGLE PLATE STRAP DRIVE(RF2), 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3) (B) PT1/8 ELBOW 		9-09031-210-0 02 1 9101- ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
16"CLUTCH SINGLE PLATE STRAP DRIVE(RF2), 17"CLUTCHSINGLE PLATE STRAP DRIVE(RF3) SINGLE SPEED-AXLE RATIO<W9Z> BUS BODY REAR OVERHANG<YK4> EXC. P85 PROP SHAFT<B5N> (B) PT1/8 ELBOW 		9-09031-210-0 02 1 9101- ● ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
6RB1 STD ENG(07L) P85 PROP SHAFT<B5N> 		1-37243-192-0 01 1 9001-9012 ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
SINGLE SPEED-AXLE RATIO<W9Z> P85 PROP SHAFT<B5N> 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3) BUS BODY REAR OVERHANG<YK4> 		1-37243-192-0 01 1 9101- ● ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
6RB1 STD ENG(07L) EXC. P85 PROP SHAFT<B5N> 		1-37243-117-0 01 1 9001-9012 ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
SINGLE SPEED-AXLE RATIO<W9Z> 16"CLUTCH SINGLE PLATE STRAP DRIVE(RF2), 17"CLUTCHSINGLE PLATE STRAP DRIVE(RF3) EXC. BUS BODY REAR OVERHANG<YK4> 		1-37243-117-0 01 1 9101- ● ● ●
57 WASHER; LK,YOKE
6RB1 STD ENG(07L) ID=12.2 		9-09150-512-0 04 1 9001-9012 ● ●
57 WASHER; LK,YOKE
SINGLE SPEED-AXLE RATIO<W9Z> 16"CLUTCH SINGLE PLATE STRAP DRIVE(RF2), 17"CLUTCHSINGLE PLATE STRAP DRIVE(RF3) EXC. BUS BODY REAR OVERHANG<YK4> ID=12.2 		9-09150-512-0 04 1 9101-9606 ● ● ●
57 WASHER; LK,YOKE
SINGLE SPEED-AXLE RATIO<W9Z> 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3) BUS BODY REAR OVERHANG<YK4> P85 PROP SHAFT<B5N> ID=12.2 		9-09150-512-0 04 1 9101-9606 ● ● ●
58 FLANGE; SPLINED
6RB1 STD ENG(07L) P85 PROP SHAFT<B5N> 		1-37241-078-1 01 1 9001-9012 ●
58 FLANGE; SPLINED
SINGLE SPEED-AXLE RATIO<W9Z> P85 PROP SHAFT<B5N> 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3) BUS BODY REAR OVERHANG<YK4> 		1-37241-078-1 01 1 9101- ● ● ●
58 FLANGE; SPLINED
RIGHT HAND DRIVE(LVR5FB) 6QA1 STD ENG(L24) 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3) 		1-37241-059-0 01 1 9001-9012 ●
58 FLANGE; SPLINED
LEFT HAND DRIVE(LVR6FB) 6QA1 STD ENG(L24) 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3) L=220 		1-37241-091-0 01 1 9001-9012 ●
58 FLANGE; SPLINED
SINGLE SPEED-AXLE RATIO<W9Z> 16"CLUTCH SINGLE PLATE STRAP DRIVE(RF2), 17"CLUTCHSINGLE PLATE STRAP DRIVE(RF3) BUS BODY REAR OVERHANG<YK4> EXC. P85 PROP SHAFT<B5N> L=220 		1-37241-091-0 01 1 9101- ● ● ●
58 FLANGE; SPLINED
6RB1 STD ENG(07L) EXC. P85 PROP SHAFT<B5N> L=192 		1-37241-010-0 01 1 9001-9012 ● ● ●
58 FLANGE; SPLINED
6QA1 STD ENG(L24) EXC. 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3) L=192 		1-37241-010-0 01 1 9001-9012 ● ●
58 FLANGE; SPLINED
6RA1 STD ENG(14L) L=192 		1-37241-010-0 01 1 9001-9012 ●
58 FLANGE; SPLINED
LEFT HAND DRIVE(LVR6FB) 6QA1 STD ENG(L24) EXC. 16"CLUTCH SINGLE PLATE STRAP DRIVE(RF2) L=192 		1-37241-010-0 01 1 9001-9012 ●
58 FLANGE; SPLINED
6QA1 STD ENG(L24),6RA1 STD ENG(14L) L=192 		1-37241-010-0 01 1 9001-9012 ●
58 FLANGE; SPLINED
RIGHT HAND DRIVE(LVR5FB) 6RA1 STD ENG(14L) L=192 		1-37241-010-0 01 1 9001-9012 ●
58 FLANGE; SPLINED
LEFT HAND DRIVE(LVR6FB) 6QA1 STD ENG(L24),6RA1 STD ENG(14L) L=192 		1-37241-010-0 01 1 9001-9012 ●
58 FLANGE; SPLINED
EXC. 16"CLUTCH SINGLE PLATE STRAP DRIVE(RF2), 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3) L=192 		1-37241-010-0 01 1 9101- ● ● ●
58 FLANGE; SPLINED
SINGLE SPEED-AXLE RATIO<W9Z> 16"CLUTCH SINGLE PLATE STRAP DRIVE(RF2), 17"CLUTCHSINGLE PLATE STRAP DRIVE(RF3) EXC. BUS BODY REAR OVERHANG<YK4> L=192 		1-37241-010-0 01 1 9101- ● ● ●
71 NUT; YOKE
M16 FLANGE 		1-09449-065-0 04 1 9001- ● ● ●
95 BOLT; YOKE,FINAL
6RB1 STD ENG(07L) M12X45 		9-91066-245-0 04 1 9001-9012 ● ●
95 BOLT; YOKE,FINAL
6RB1 STD ENG(07L) 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3) M12X45 		9-91066-245-0 04 1 9101-9207 ● ● ●
95 BOLT; YOKE,FINAL
16"CLUTCH SINGLE PLATE STRAP DRIVE(RF2), 17"CLUTCHSINGLE PLATE STRAP DRIVE(RF3) EXC. BUS BODY REAR OVERHANG<YK4> M12X45 		9-91066-245-0 04 1 9208-9606 ● ● ●
95 BOLT; YOKE,FINAL
FINAL GEAR 39/9 16.5"(W4Q) 16"CLUTCH SINGLE PLATE STRAP DRIVE(RF2), 17"CLUTCHSINGLE PLATE STRAP DRIVE(RF3) BUS BODY REAR OVERHANG<YK4> M12X45 		9-91066-245-0 04 1 9208-9606 ●
95 BOLT; YOKE,FINAL
16"CLUTCH SINGLE PLATE STRAP DRIVE(RF2), 17"CLUTCHSINGLE PLATE STRAP DRIVE(RF3) EXC. BUS BODY REAR OVERHANG<YK4> M12X45 FLANGE 		0-28091-245-0 04 1 9607-9702 ● ● ●
95 BOLT; YOKE,FINAL
FINAL GEAR 39/9 16.5"(W4Q) 16"CLUTCH SINGLE PLATE STRAP DRIVE(RF2), 17"CLUTCHSINGLE PLATE STRAP DRIVE(RF3) BUS BODY REAR OVERHANG<YK4> M12X45 FLANGE 		0-28091-245-0 04 1 9607-9702 ●
95 BOLT; YOKE,FINAL
16"CLUTCH SINGLE PLATE STRAP DRIVE(RF2), 17"CLUTCHSINGLE PLATE STRAP DRIVE(RF3) EXC. BUS BODY REAR OVERHANG<YK4> M12X45 FLANGE 		0-28091-245-0 04 1 9703- ● ● ●
95 BOLT; YOKE,FINAL
P85 PROP SHAFT<B5N> 16"CLUTCH SINGLE PLATE STRAP DRIVE(RF2), 17"CLUTCHSINGLE PLATE STRAP DRIVE(RF3) BUS BODY REAR OVERHANG<YK4> M12X45 FLANGE 		0-28091-245-0 04 1 9703- ● ● ●
95 BOLT; YOKE,FINAL
RIGHT HAND DRIVE(LVR5FB) 6QA1 STD ENG(L24) M16X48 		1-09000-383-0 04 1 9001-9012 ● ●
95 BOLT; YOKE,FINAL
LEFT HAND DRIVE(LVR6FB) 6QA1 STD ENG(L24),6RA1 STD ENG(14L),6RA1 TC ENG(15L) M16X48 		1-09000-383-0 04 1 9001-9012 ● ●
95 BOLT; YOKE,FINAL
M16X48 		1-09000-383-0 04 1 9001-9012 ●
95 BOLT; YOKE,FINAL
6RB1 STD ENG(07L) EXC. 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3) M16X48 		1-09000-383-0 04 1 9101-9207 ● ● ●
95 BOLT; YOKE,FINAL
RIGHT HAND DRIVE(LVR5FB) 6QA1 STD ENG(L24) M16X48 		1-09000-383-0 04 1 9101-9207 ● ●
95 BOLT; YOKE,FINAL
LEFT HAND DRIVE(LVR6FB) 6QA1 STD ENG(L24),6RA1 STD ENG(14L),6RA1 TC ENG(15L) M16X48 		1-09000-383-0 04 1 9101-9207 ● ●
95 BOLT; YOKE,FINAL
6QA1 STD ENG(L24),6RA1 STD ENG(14L),6RA1 TC ENG(15L) M16X48 		1-09000-383-0 04 1 9101-9207 ●
95 BOLT; YOKE,FINAL
EXC. 16"CLUTCH SINGLE PLATE STRAP DRIVE(RF2), 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3),BUS BODY REAROVERHANG<YK4> M16X48 		1-09000-383-0 04 1 9208-9702 ● ● ●
95 BOLT; YOKE,FINAL
FINAL GEAR 3.909/5.322 18" SPIRAL 2 SPEED(W2J), FINAL GEAR 3.700/5.040 EATON 18" SPIRAL 2 SPD(W2Q), FINAL GEAR 39/8 16.5"(W3A),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P) BUS BODY REAR OVERHANG<YK4> M16X48 		1-09000-383-0 04 1 9208-9702 ● ● ●
95 BOLT; YOKE,FINAL
M16X48 		1-09000-383-0 04 1 9703- ● ● ●
104 PLUG; SLEEVE YOKE
P85 PROP SHAFT<B5N> 		1-09600-046-1 01 1 9001- ● ● ●
104 PLUG; SLEEVE YOKE
EXC. P85 PROP SHAFT<B5N> 		1-09600-027-0 01 1 9001- ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT 		9-09031-010-0 01 1 9001- ● ● ●
112 RETAINER; FELT RING
6RB1 STD ENG(07L) P85 PROP SHAFT<B5N> 		1-37249-028-0 01 1 9001-9012 ●
112 RETAINER; FELT RING
SINGLE SPEED-AXLE RATIO<W9Z> P85 PROP SHAFT<B5N> 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3) BUS BODY REAR OVERHANG<YK4> 		1-37249-028-0 01 1 9101- ● ● ●
112 RETAINER; FELT RING
EXC. P85 PROP SHAFT<B5N> 		1-37248-001-0 01 1 9001-9012 ● ● ●
112 RETAINER; FELT RING
EXC. 16"CLUTCH SINGLE PLATE STRAP DRIVE(RF2), 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3) 		1-37248-001-0 01 1 9101- ● ● ●
112 RETAINER; FELT RING
16"CLUTCH SINGLE PLATE STRAP DRIVE(RF2), 17"CLUTCHSINGLE PLATE STRAP DRIVE(RF3) SINGLE SPEED-AXLE RATIO<W9Z> BUS BODY REAR OVERHANG<YK4> EXC. P85 PROP SHAFT<B5N> 		1-37248-001-0 01 1 9101- ● ● ●
112 RETAINER; FELT RING
16"CLUTCH SINGLE PLATE STRAP DRIVE(RF2), 17"CLUTCHSINGLE PLATE STRAP DRIVE(RF3) SINGLE SPEED-AXLE RATIO<W9Z> EXC. BUS BODY REAR OVERHANG<YK4> 		1-37248-001-0 01 1 9101- ● ● ●
201 RING; FELT,SLEEVE
6RB1 STD ENG(07L) P85 PROP SHAFT<B5N> 		1-09620-008-0 01 1 9001-9012 ●
201 RING; FELT,SLEEVE
SINGLE SPEED-AXLE RATIO<W9Z> P85 PROP SHAFT<B5N> 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3) BUS BODY REAR OVERHANG<YK4> 		1-09620-008-0 01 1 9101- ● ● ●
201 RING; FELT,SLEEVE
EXC. P85 PROP SHAFT<B5N> 		1-09630-006-0 01 1 9001- ● ● ●
216 WASHER; LK,UJT
6RB1 STD ENG(07L) EXC. P85 PROP SHAFT<B5N> ID=12.2 		9-09150-612-0 04 1 9001-9012 ● ●
216 WASHER; LK,UJT
SINGLE SPEED-AXLE RATIO<W9Z> 16"CLUTCH SINGLE PLATE STRAP DRIVE(RF2), 17"CLUTCHSINGLE PLATE STRAP DRIVE(RF3) EXC. BUS BODY REAR OVERHANG<YK4> ID=12.2 		9-09150-612-0 04 1 9101- ● ● ●
216 WASHER; LK,UJT
SINGLE SPEED-AXLE RATIO<W9Z> 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3) BUS BODY REAR OVERHANG<YK4> P85 PROP SHAFT<B5N> ID=12.2 		9-09150-612-0 04 1 9101- ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
