1-40 — FUEL TANK (#21040) — 68 parça

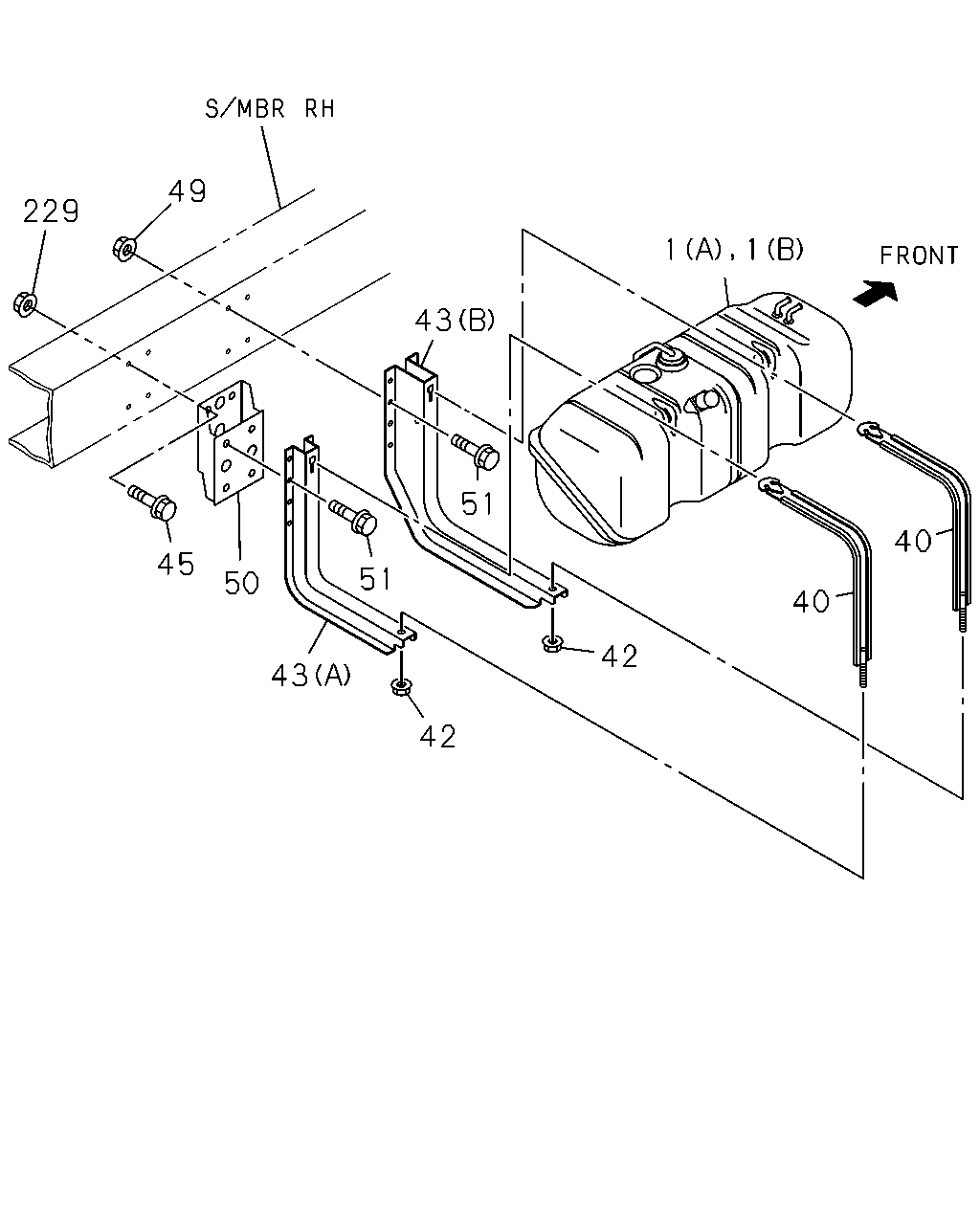

49 229 1 1 43 51 40 45 51 50 40 42 43 42

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	03.001 TANK; FUEL (A) 756X375X375 75L	8-97351-657-5	01	1	0608-	●
1	03.001 TANK; FUEL (B) 1003X375X380 100L	8-97351-658-7	01	1	0608-		●
40	03.022 BELT; SUPPORT,FUEL TANK	8-97169-231-1	02	1	0608-	●	●
42	03.023 NUT; SUPPORT BELT M8 FLANGE	9-09130-408-0	02	1	0608-	●	●
43	03.015 BRACKET; FUEL TANK (B)	8-97181-220-0	01	1	0608-	●	●
43	03.015 BRACKET; FUEL TANK (A)	8-97308-623-1	01	1	0608-	●	●
45	03.023 BOLT; BRKT,FUEL TANK 07.068 M10X30 FLANGE	0-28661-030-0	08	1	0608-	●	●
49	03.023 NUT; BRKT 04.085 M10 FLANGE	0-91180-210-0	08	1	0608-	●	●
50	03.015 BRACKET; SUPPORT,FUEL BRKT	8-97361-274-2	01	1	0608-	●	●
51	03.023 BOLT; BRKT TO FRAME 07.068 M10X30 FLANGE	0-28661-030-0	08	1	0608-	●	●
229	03.023 NUT; BRKT,FUEL TANK 04.085 M10 FLANGE	0-91180-210-0	04	1	0608-	●	●

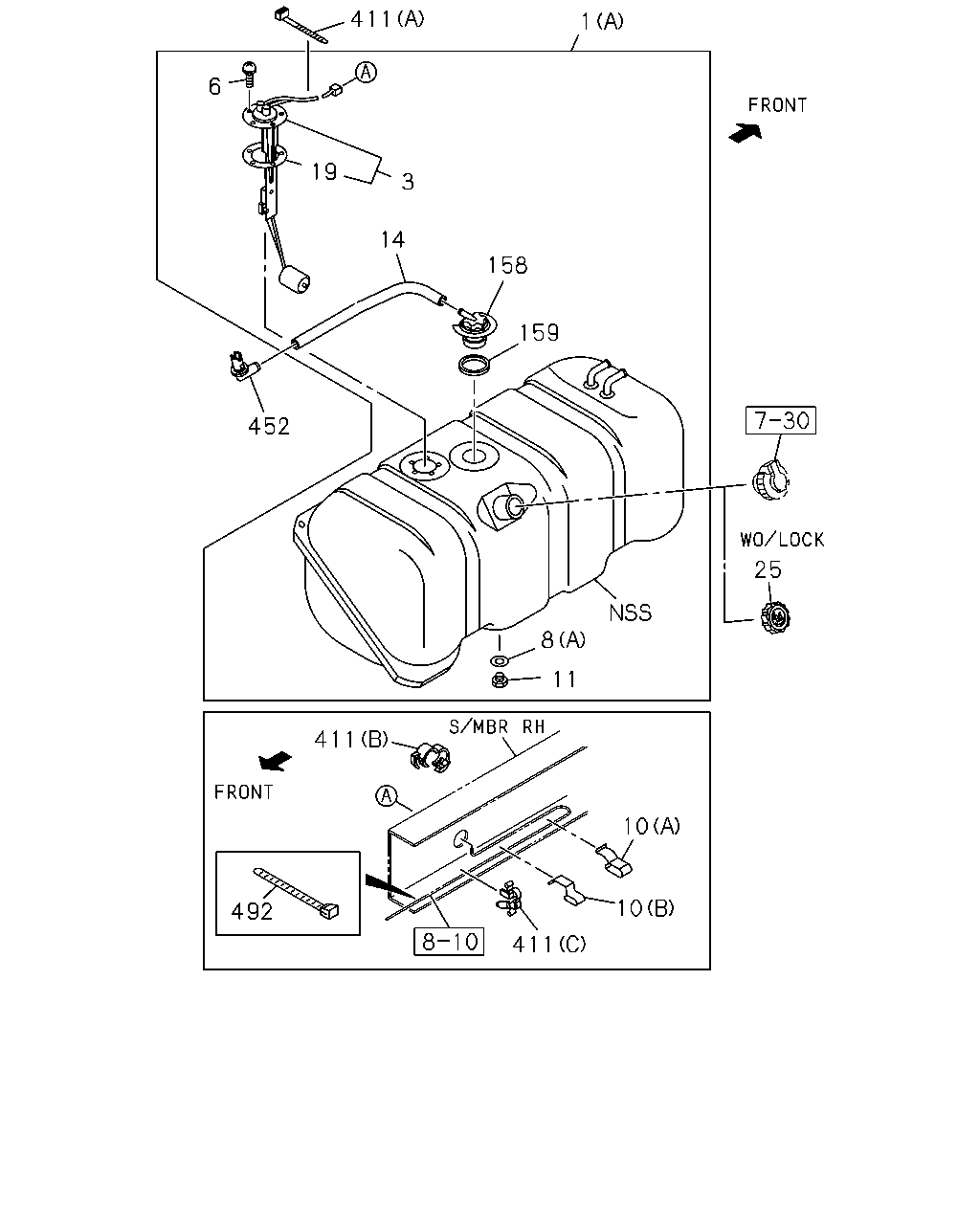

1 411 6 19 3 14 158 159 452 25 8 11 8 181 411 10 10 492

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	03.001 TANK; FUEL (A) 756X375X375 75L	8-97351-657-5	01	1	0608-	●
1	03.001 TANK; FUEL (B) 1003X375X380 100L	8-97351-658-7	01	1	0608-		●
3	03.107 UNIT; FUEL TANK,SUB	8-98005-215-0	01	1	0608-0611	●	●
3	03.107 UNIT; FUEL TANK,SUB	8-98005-215-0	01	1	0612-	●
3	03.107 UNIT; FUEL TANK,SUB	8-98050-491-0	01	1	0612-		●
6	03.115 SCREW; TANK UNIT TO SUB FUEL TAN 02.361 M5X10 W/LK WASHER	0-36220-510-0	05	1	0608-	●	●
8	03.890 GASKET; DRAIN PLUG,FUEL TANK 08.955 (A) ID=8.2 OD=17	9-09572-008-0	01	1	0608-	●	●
8	03.890 GASKET; DRAIN PLUG,FUEL TANK 03.107 (B) ID=14.2 OD=23.0	9-09572-014-0	01	1	0608-		●
10	03.115 CLIP; SPRING,FUEL TANK UNIT CABL 02.559 (A) T=9.2	5-09709-013-0	AR	1	0608-	●	●
10	03.115 CLIP; SPRING,FUEL TANK UNIT CABL 02.525 (B) T=4.5 & 9	5-09709-023-0	AR	1	0608-	●	●
10	03.115 CLIP; SPRING,FUEL TANK UNIT CABL 02.525 (B) T=9.2 & 9	5-09709-025-0	AR	1	0608-	●	●
10	03.115 CLIP; SPRING,FUEL TANK UNIT CABL 01.240 (A) T=5.5	5-09709-047-0	AR	1	0608-	●	●
11	03.890 PLUG; DRAIN,FUEL TANK 02.343 M8X12 FLANGE	0-28050-812-0	01	1	0608-	●	●
14	03.163 HOSE; BREATHER,OUTLET L=320	8-98157-805-0	01	1	0608-	●
14	03.163 HOSE; BREATHER,OUTLET L=420	8-98157-809-0	01	1	0608-		●
19	03.112 GASKET; FUEL TANK UNIT	8-97222-756-0	01	1	0608-	●	●
25	03.028 CAP; FILLER,FUEL TANK EXC. FUEL TANK CAP W/LOCK<N05>	8-94258-609-1	01	1	0608-	●	●
158	03.164 VALVE; ROLL OVER & FLOAT	8-97179-645-0	01	1	0608-	●	●
159	03.015 SEAL; ROLL OVER & FLOAT VALVE	8-97326-488-0	01	1	0608-	●	●
181	03.001 PLUG; CONNECTOR 01.453 M14X14	9-09862-156-0	01	1	0608-		●
411	02.559 CLIP; FUEL TANK UNIT HARNESS EXC. REAR WIDE TREAD(V4T) 06.525 (C) ID=5-12 L=18	1-09709-287-0	01	1	0611-	●
411	02.559 CLIP; FUEL TANK UNIT HARNESS (B) ID=20	8-94241-972-0	01	1	0608-	●	●
411	02.559 CLIP; FUEL TANK UNIT HARNESS 03.162 (A) L=140	5-09707-031-1	03	1	0608-	●	●
452	03.028 BREATHER; FUEL TANK	8-97357-261-0	01	1	0608-	●	●
492	03.028 CLIP; HARNESS TO VAC HOSE 03.162 L=140	5-09707-031-1	02	1	0608-	●	●

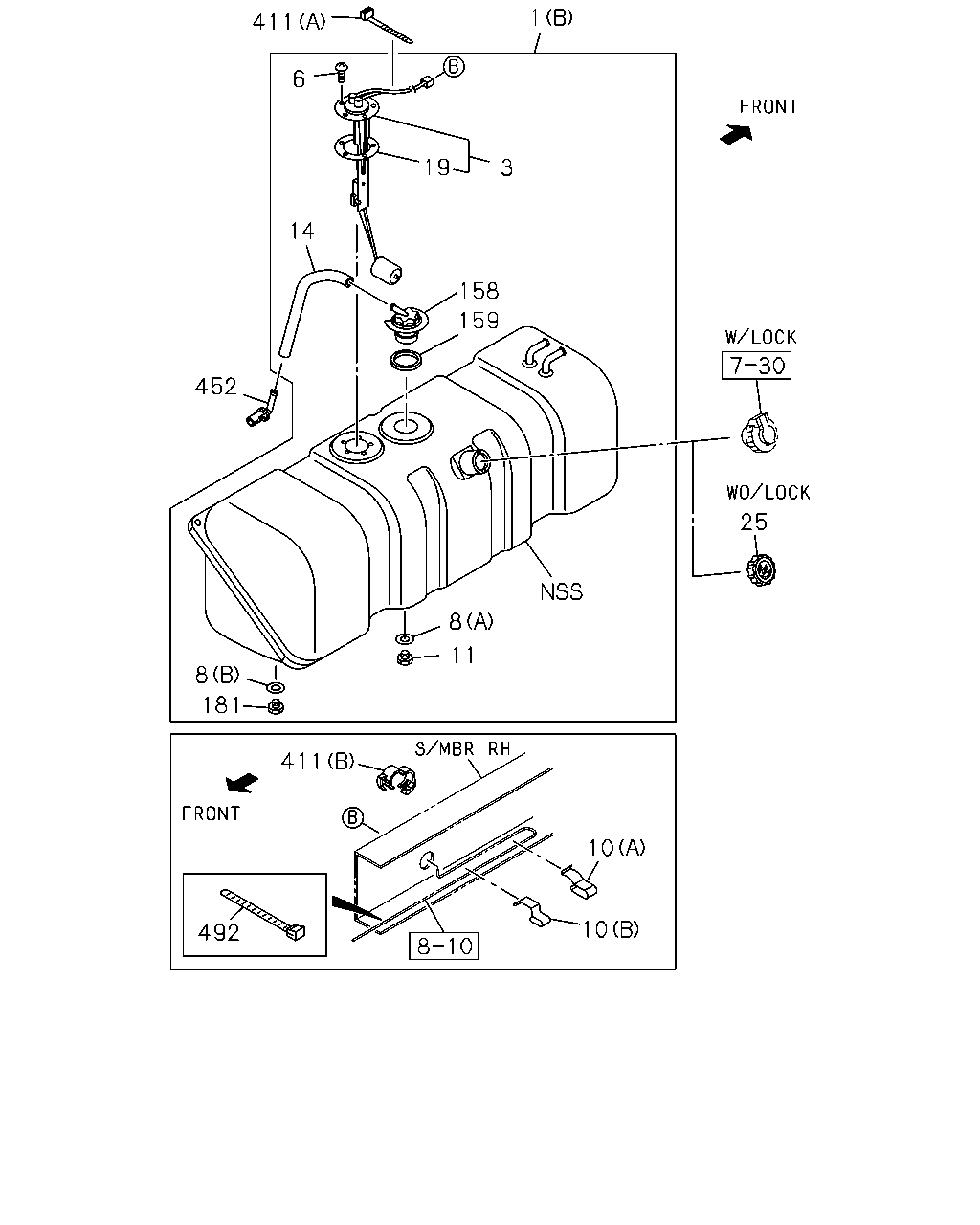

411 1 6 19 3 14 158 19 452 25 8 11 411 10 10 492 411

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	03.001 TANK; FUEL (A) 756X375X375 75L	8-97351-657-5	01	1	0608-	●
1	03.001 TANK; FUEL (B) 1003X375X380 100L	8-97351-658-7	01	1	0608-		●
3	03.107 UNIT; FUEL TANK,SUB	8-98005-215-0	01	1	0608-0611	●	●
3	03.107 UNIT; FUEL TANK,SUB	8-98005-215-0	01	1	0612-	●
3	03.107 UNIT; FUEL TANK,SUB	8-98050-491-0	01	1	0612-		●
6	03.115 SCREW; TANK UNIT TO SUB FUEL TAN 02.361 M5X10 W/LK WASHER	0-36220-510-0	05	1	0608-	●	●
8	03.890 GASKET; DRAIN PLUG,FUEL TANK 08.955 (A) ID=8.2 OD=17	9-09572-008-0	01	1	0608-	●	●
8	03.890 GASKET; DRAIN PLUG,FUEL TANK 03.107 (B) ID=14.2 OD=23.0	9-09572-014-0	01	1	0608-		●
10	03.115 CLIP; SPRING,FUEL TANK UNIT CABL 02.559 (A) T=9.2	5-09709-013-0	AR	1	0608-	●	●
10	03.115 CLIP; SPRING,FUEL TANK UNIT CABL 02.525 (B) T=4.5 & 9	5-09709-023-0	AR	1	0608-	●	●
10	03.115 CLIP; SPRING,FUEL TANK UNIT CABL 02.525 (B) T=9.2 & 9	5-09709-025-0	AR	1	0608-	●	●
10	03.115 CLIP; SPRING,FUEL TANK UNIT CABL 01.240 (A) T=5.5	5-09709-047-0	AR	1	0608-	●	●
11	03.890 PLUG; DRAIN,FUEL TANK 02.343 M8X12 FLANGE	0-28050-812-0	01	1	0608-	●	●
14	03.163 HOSE; BREATHER,OUTLET L=320	8-98157-805-0	01	1	0608-	●
14	03.163 HOSE; BREATHER,OUTLET L=420	8-98157-809-0	01	1	0608-		●
19	03.112 GASKET; FUEL TANK UNIT	8-97222-756-0	01	1	0608-	●	●
25	03.028 CAP; FILLER,FUEL TANK EXC. FUEL TANK CAP W/LOCK<N05>	8-94258-609-1	01	1	0608-	●	●
158	03.164 VALVE; ROLL OVER & FLOAT	8-97179-645-0	01	1	0608-	●	●
411	02.559 CLIP; FUEL TANK UNIT HARNESS EXC. REAR WIDE TREAD(V4T) 06.525 (C) ID=5-12 L=18	1-09709-287-0	01	1	0611-	●
411	02.559 CLIP; FUEL TANK UNIT HARNESS (B) ID=20	8-94241-972-0	01	1	0608-	●	●
411	02.559 CLIP; FUEL TANK UNIT HARNESS 03.162 (A) L=140	5-09707-031-1	03	1	0608-	●	●
452	03.028 BREATHER; FUEL TANK	8-97357-261-0	01	1	0608-	●	●
492	03.028 CLIP; HARNESS TO VAC HOSE 03.162 L=140	5-09707-031-1	02	1	0608-	●	●

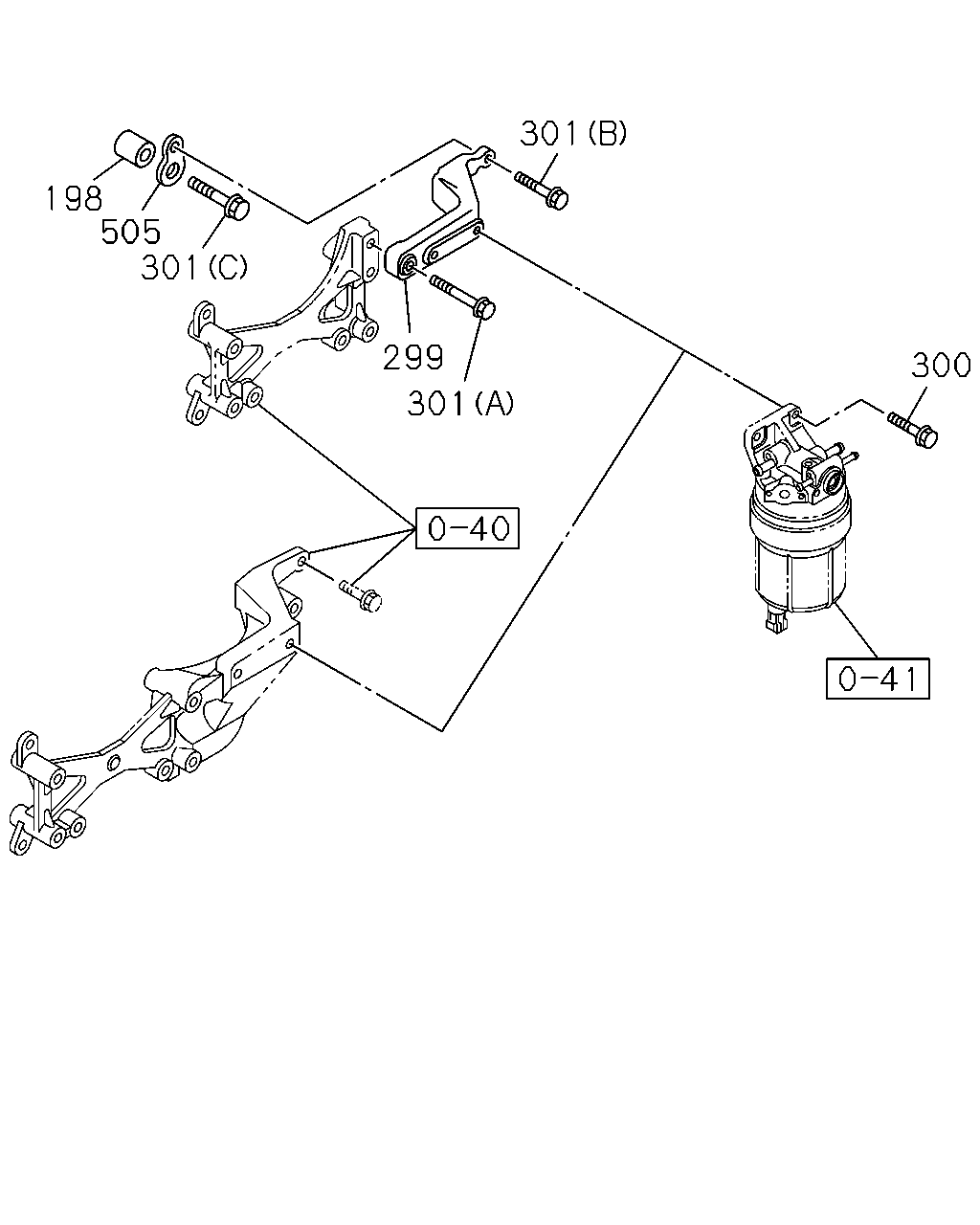

301 198 505 301 299 300 301

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
198	03.107 SPACER	8-98081-509-0	01	1	0704-1001	●	●
299	03.162 BRACKET; FUEL FILTER	8-98009-087-4	01	1	0608-1001	●	●
300	03.162 BOLT; BRKT TO BODY 06.216 M8X25 FLANGE	0-28650-825-0	02	1	0608-	●	●
301	03.162 BOLT; BRKT TO SEDIMENTER (C) M14X58 FLANGE	8-98081-508-0	01	1	0704-1001	●	●
301	03.162 BOLT; BRKT TO SEDIMENTER 02.277 (B) M8X40 FLANGE	0-28050-840-0	01	1	0608-0703	●	●
301	03.162 BOLT; BRKT TO SEDIMENTER (B) M8X40 FLANGE	0-28060-840-0	01	1	0704-1001	●	●
301	03.162 BOLT; BRKT TO SEDIMENTER 04.686 (A) M8X60 FLANGE	0-28050-860-0	01	1	0608-0703	●	●
301	03.162 BOLT; BRKT TO SEDIMENTER (A) M8X66 FLANGE	8-98081-507-0	01	1	0704-1001	●	●
505	03.163 BRACKET	8-98081-486-0	01	1	0704-1001	●	●
