Sayfa 3-78 - Isuzu EPC

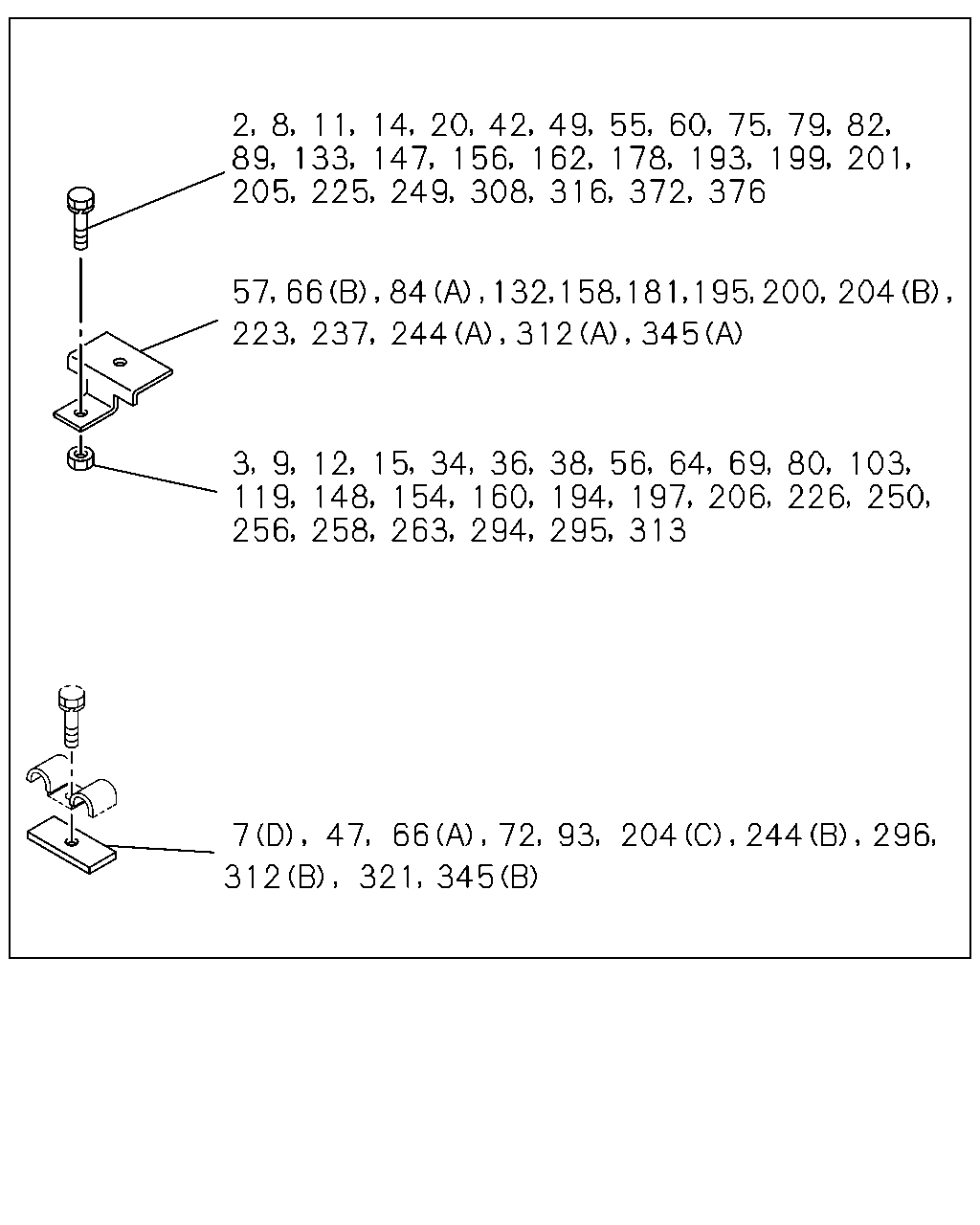

3-78 — FIXING PARTS; AIR PIPING (#2104) — 383 parça

8 82 201 223 237 244 312 345 295 103 226 3 119 256 7 47 66 72 93 321 345 312 2 11 14 20 42 49 55 60 75 79 89 133 147 156 162 178 193 199 205 225 249 308 316 372 376 57 66 84 132 158 181 195 200 204 9 12 15 34 36 38 56 64 69 80 250 206 197 194 160 154 148 258 263 294 313 204 244 296

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	BOLT; CLIP FIX 6RA1 TC ENG(15L) OVERHEAD COOLING SYSTEM(YS9) M8X25 W/LK WASHER	9-01900-825-0	02	1	9001-9012	●
3	NUT; CLIP,AIR PIPE 6RA1 TC ENG(15L) OVERHEAD COOLING SYSTEM(YS9) M8	9-09110-408-0	02	1	9001-9012	●
7	CLIP; AIR PIPE (A) ID=11 & 7 L=15 & 15	1-09700-071-0	01	1	9001-	●	●
7	CLIP; AIR PIPE AXLE RATIO 2 SPEED<W9Y> (A) ID=11 & 11 L=15 & 15	1-09700-063-0	01	1	9001-	●	●
7	CLIP; AIR PIPE AXLE RATIO 2 SPEED<W9Y> (D)	1-47466-005-0	01	1	9001-	●	●
7	CLIP; AIR PIPE AXLE RATIO 2 SPEED<W9Y> (C) ID=11 L=16	9-09525-025-0	01	1	9001-	●	●
7	CLIP; AIR PIPE AXLE RATIO 2 SPEED<W9Y> (C) ID=11 L=28	9-09525-055-0	01	1	9001-	●	●
7	CLIP; AIR PIPE AXLE RATIO 2 SPEED<W9Y> (B) ID=11 H=20 L=20	9-09527-010-0	01	1	9001-	●	●
8	BOLT; PIPE CLIP AXLE RATIO 2 SPEED<W9Y> M6X20 W/LK WASHER	9-01900-620-0	03	1	9001-9204	●	●
8	BOLT; PIPE CLIP AXLE RATIO 2 SPEED<W9Y> M6X20 W/LK WASHER	0-50040-620-0	03	1	9205-9606	●	●
8	BOLT; PIPE CLIP AXLE RATIO 2 SPEED<W9Y> M6X20 FLANGE	0-28680-620-0	03	1	9607-9704	●	●
8	BOLT; PIPE CLIP AXLE RATIO 2 SPEED<W9Y> M6X25 FLANGE	0-28680-625-0	03	1	9705-	●	●
9	NUT; PIPE CLIP AXLE RATIO 2 SPEED<W9Y> M6	9-09110-406-0	02	1	9001-9606	●	●
9	NUT; PIPE CLIP AXLE RATIO 2 SPEED<W9Y> M6 FLANGE	0-91150-106-0	02	1	9607-	●	●
11	BOLT; CLIP BRKT AXLE RATIO 2 SPEED<W9Y> M6X20 W/LK WASHER	9-01900-620-0	02	1	9001-9204	●	●
11	BOLT; CLIP BRKT AXLE RATIO 2 SPEED<W9Y> M6X20 W/LK WASHER	0-50040-620-0	02	1	9205-9606	●	●
11	BOLT; CLIP BRKT AXLE RATIO 2 SPEED<W9Y> M6X20 FLANGE	0-28680-620-0	02	1	9607-9704	●	●
11	BOLT; CLIP BRKT AXLE RATIO 2 SPEED<W9Y> M6X25 FLANGE	0-28680-625-0	02	1	9705-	●	●
12	NUT; CLIP BRKT AXLE RATIO 2 SPEED<W9Y> M6	9-09110-406-0	01	1	9001-9606	●	●
12	NUT; CLIP BRKT AXLE RATIO 2 SPEED<W9Y> M6 FLANGE	0-91150-106-0	01	1	9607-	●	●
14	BOLT; PIPE CLIP M6X20 W/LK WASHER	9-01900-620-0	01	1	9001-9204		●
14	BOLT; PIPE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M6X20 W/LK WASHER	9-01900-620-0	01	1	9001-9204	●
14	BOLT; PIPE CLIP M6X20 W/LK WASHER	0-50040-620-0	01	1	9205-9606	●	●
14	BOLT; PIPE CLIP M6X20 FLANGE	0-28680-620-0	01	1	9607-9704	●	●
14	BOLT; PIPE CLIP M6X25 FLANGE	0-28680-625-0	01	1	9705-	●	●
14	BOLT; PIPE CLIP 6RA1 TC ENG(15L) OVERHEAD COOLING SYSTEM(YS9) M6X20 W/LK WASHER	9-01900-620-0	02	1	9001-9012	●
14	BOLT; PIPE CLIP 6RA1 TC ENG(15L) OVERHEAD COOLING SYSTEM(YS9) M8X20 W/LK WASHER	9-01900-820-0	01	1	9001-9012	●
14	BOLT; PIPE CLIP 6RA1 TC ENG(15L) OVERHEAD COOLING SYSTEM(YS9) M6X16 W/LK WASHER	9-01910-616-0	06	1	9001-9005	●
14	BOLT; PIPE CLIP 6RA1 TC ENG(15L) OVERHEAD COOLING SYSTEM(YS9) M6X16 W/LK WASHER	0-50040-616-0	06	1	9006-9012	●
15	NUT; PIPE CLIP M6	9-09110-406-0	01	1	9001-9606	●	●
15	NUT; PIPE CLIP M6 FLANGE	0-91150-106-0	01	1	9607-	●	●
20	BOLT; CLIP AIR DRYER<PS7> M8X16 W/LK WASHER	0-50040-816-0	01	1	9211-9606	●	●
20	BOLT; CLIP AIR DRYER<PS7> M8X16 FLANGE	0-28080-816-0	01	1	9607-	●	●
34	NUT; BRKT M6	9-09110-406-0	02	1	9001-9606		●
34	NUT; BRKT M6 FLANGE	0-91150-106-0	02	1	9607-		●
34	NUT; BRKT 6QA1 STD ENG(L24),6RB1 STD ENG(07L) M6	9-09110-406-0	01	1	9001-9012		●
34	NUT; BRKT 6QA1 STD ENG(L24),6RB1 STD ENG(07L),6RA1 STD ENG(14L) EXC. OVERHEAD COOLING SYSTEM(YS9) M6	9-09110-406-0	01	1	9001-9012	●
34	NUT; BRKT M6	9-09110-406-0	01	1	9101-9606	●	●
34	NUT; BRKT M6 FLANGE	0-91150-106-0	01	1	9607-	●	●
34	NUT; BRKT M20	9-99111-420-0	01	1	9001-	●	●
36	NUT; CLIP M6	9-09110-406-0	03	1	9001-9606		●
36	NUT; CLIP M6 FLANGE	0-91150-106-0	03	1	9607-		●
36	NUT; CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M6	9-09110-406-0	04	1	9001-9204	●
36	NUT; CLIP M6	9-09110-406-0	04	1	9205-9606	●
36	NUT; CLIP M6 FLANGE	0-91150-106-0	04	1	9607-	●
38	NUT; BRKT BRAKE SYSTEM AIR DUAL CIRCUIT(Z04) M8	9-09110-408-0	01	1	9001-9204	●
42	BOLT; CLIP,AIR PIPE AIR DRYER<PS7> M8X16 W/LK WASHER	0-50040-816-0	01	1	9203-9204		●
42	BOLT; CLIP,AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> M8X16 W/LK WASHER	0-50040-816-0	01	1	9203-9204	●
42	BOLT; CLIP,AIR PIPE AIR DRYER<PS7> M8X16 W/LK WASHER	0-50040-816-0	01	1	9205-9210	●	●
42	BOLT; CLIP,AIR PIPE AIR DRYER<PS7> M8X20 W/LK WASHER	0-50040-820-0	01	1	9203-9204		●
42	BOLT; CLIP,AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> M8X20 W/LK WASHER	0-50040-820-0	01	1	9203-9204	●
42	BOLT; CLIP,AIR PIPE AIR DRYER<PS7> M8X20 W/LK WASHER	0-50040-820-0	01	1	9205-9210	●	●
47	BRACKET; PIPE CLIP SPARE WHEEL CARRIER<SFB> M8 W/NUT	1-47475-729-0	01	1	9001-9012	●
49	BOLT; PIPE CLIP 6QA1 STD ENG(L24),6RB1 STD ENG(07L) M6X20 W/LK WASHER	9-01900-620-0	02	1	9001-9012		●
49	BOLT; PIPE CLIP 6QA1 STD ENG(L24),6RB1 STD ENG(07L),6RA1 STD ENG(14L) EXC. OVERHEAD COOLING SYSTEM(YS9) M6X20 W/LK WASHER	9-01900-620-0	02	1	9001-9012	●
49	BOLT; PIPE CLIP M6X20 W/LK WASHER	9-01900-620-0	02	1	9101-9204	●	●
49	BOLT; PIPE CLIP M6X20 W/LK WASHER	0-50040-620-0	02	1	9205-9606	●	●
49	BOLT; PIPE CLIP M6X20 FLANGE	0-28680-620-0	02	1	9607-9704	●	●
49	BOLT; PIPE CLIP M6X25 FLANGE	0-28680-625-0	02	1	9705-	●	●
49	BOLT; PIPE CLIP 6RA1 TC ENG(15L) OVERHEAD COOLING SYSTEM(YS9) M6X20 W/LK WASHER	9-01900-620-0	04	1	9001-9012	●
49	BOLT; PIPE CLIP 6RA1 TC ENG(15L) OVERHEAD COOLING SYSTEM(YS9) M8X20 W/LK WASHER	9-01900-820-0	01	1	9001-9012	●
49	BOLT; PIPE CLIP 6RA1 TC ENG(15L) WHEEL BASE 5800MM(58W) OVERHEAD COOLING SYSTEM(YS9) M8X20 W/LK WASHER	9-01900-820-0	01	1	9001-9012	●
49	BOLT; PIPE CLIP 6RA1 TC ENG(15L) WHEEL BASE 5800MM(58W) FINAL GEAR 5.429/7.392 18" SPIRAL 2 SPEED(W2E), FINAL GEAR 3.909/5.322 18" SPIRAL 2 SPEED(W2J) M6X20 W/LK WASHER	9-01900-620-0	12	1	9001-9012	●
55	BOLT; PIPE CLIP M6X20 W/LK WASHER	9-01900-620-0	01	1	9001-9204		●
55	BOLT; PIPE CLIP M6X20 W/LK WASHER	0-50040-620-0	01	1	9205-9606		●
55	BOLT; PIPE CLIP M6X20 FLANGE	0-28680-620-0	01	1	9607-9704		●
55	BOLT; PIPE CLIP M6X25 FLANGE	0-28680-625-0	01	1	9705-		●
55	BOLT; PIPE CLIP SPARE WHEEL CARRIER<SFB> M8X20 W/LK WASHER	9-01900-820-0	04	1	9001-9012	●
56	NUT; PIPE CLIP M6	9-09110-406-0	01	1	9001-9606		●
56	NUT; PIPE CLIP M6 FLANGE	0-91150-106-0	01	1	9607-		●
56	NUT; PIPE CLIP SPARE WHEEL CARRIER<SFB> M8	9-09110-408-0	01	1	9001-9012	●
57	BRACKET; PIPE CLIP,AIR 6RA1 TC ENG(15L) OVERHEAD COOLING SYSTEM(YS9)	1-47465-168-1	02	1	9001-9012	●
57	BRACKET; PIPE CLIP,AIR 6RA1 TC ENG(15L) WHEEL BASE 5800MM(58W)	1-47465-168-1	04	1	9001-9012	●
57	BRACKET; PIPE CLIP,AIR 6RA1 TC ENG(15L) WHEEL BASE 5800MM(58W) FINAL GEAR 5.429/7.392 18" SPIRAL 2 SPEED(W2E), FINAL GEAR 3.909/5.322 18" SPIRAL 2 SPEED(W2J)	1-47465-168-1	06	1	9001-9012	●
60	BOLT; CLIP FIX M8X20 W/LK WASHER	9-01900-820-0	06	1	9001-9204		●
60	BOLT; CLIP FIX BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X20 W/LK WASHER	9-01900-820-0	06	1	9001-9204	●
60	BOLT; CLIP FIX M8X20 W/LK WASHER	0-50040-820-0	06	1	9205-9606	●	●
60	BOLT; CLIP FIX M8X20 FLANGE	0-28680-820-0	06	1	9607-	●	●
64	NUT; CLIP WHEEL BASE 5800MM(58W) M6	9-09110-406-0	13	1	9001-9606	●	●
64	NUT; CLIP WHEEL BASE 5800MM(58W) M6 FLANGE	0-91150-106-0	13	1	9607-	●	●
64	NUT; CLIP WHEEL BASE 6600MM(66W),WHEEL BASE 6800MM(68W) M6	9-09110-406-0	15	1	9001-9606	●	●
64	NUT; CLIP WHEEL BASE 6600MM(66W),WHEEL BASE 6800MM(68W) M6 FLANGE	0-91150-106-0	15	1	9607-	●	●
66	BRACKET; CLIP,AIR PIPE AIR DRYER<PS7> (A) L=50	1-47475-299-2	01	1	9203-9204		●
66	BRACKET; CLIP,AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> (A) L=50	1-47475-299-2	01	1	9203-9204	●
66	BRACKET; CLIP,AIR PIPE AIR DRYER<PS7> (A) L=50	1-47475-299-2	01	1	9205-9210	●	●
66	BRACKET; CLIP,AIR PIPE WHEEL BASE 5800MM(58W) (B)	1-47465-168-1	13	1	9001-	●	●
66	BRACKET; CLIP,AIR PIPE WHEEL BASE 6600MM(66W),WHEEL BASE 6800MM(68W) (B)	1-47465-168-1	15	1	9001-	●	●
66	BRACKET; CLIP,AIR PIPE BRAKE SYSTEM AIR DUAL CIRCUIT(Z04) (B)	1-47465-168-1	02	1	9001-9204	●
69	NUT; CLIP,AIR PIPE AIR DRYER<PS7> M8	9-09110-408-0	02	1	9203-9204		●
69	NUT; CLIP,AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> M8	9-09110-408-0	02	1	9203-9204	●
69	NUT; CLIP,AIR PIPE AIR DRYER<PS7> M8	9-09110-408-0	02	1	9205-9210	●	●
72	BRACKET; PIPE CLIP SPARE WHEEL CARRIER<SFB> M8 W/NUT	1-47475-729-0	02	1	9001-9012	●
75	BOLT; CLIP M6X20 W/LK WASHER	9-01900-620-0	06	1	9001-9204		●
75	BOLT; CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M6X20 W/LK WASHER	9-01900-620-0	06	1	9001-9204	●
75	BOLT; CLIP M6X20 W/LK WASHER	0-50040-620-0	06	1	9205-9606	●	●
75	BOLT; CLIP M6X20 FLANGE	0-28680-620-0	06	1	9607-9704	●	●
75	BOLT; CLIP M6X25 FLANGE	0-28680-625-0	06	1	9705-	●	●
79	BOLT; PIPE CLIP BRAKE SYSTEM AIR DUAL CIRCUIT(Z04) M6X16 W/LK WASHER	9-01910-616-0	01	1	9001-9005	●
79	BOLT; PIPE CLIP BRAKE SYSTEM AIR DUAL CIRCUIT(Z04) M6X16 W/LK WASHER	0-50040-616-0	01	1	9006-9204	●
80	NUT; CLIP,AIR PIPE BRAKE SYSTEM AIR DUAL CIRCUIT(Z04) M6	9-09110-406-0	01	1	9001-9204	●
82	BOLT; CLIP BRAKE SYSTEM AIR DUAL CIRCUIT(Z04) M6X16 W/LK WASHER	9-01910-616-0	02	1	9001-9005	●
82	BOLT; CLIP BRAKE SYSTEM AIR DUAL CIRCUIT(Z04) M6X16 W/LK WASHER	0-50040-616-0	02	1	9006-9204	●
84	BRACKET; PIPE CLIP BRAKE SYSTEM AIR DUAL CIRCUIT(Z04) (A)	1-47465-168-1	02	1	9001-9204	●
84	BRACKET; PIPE CLIP BRAKE SYSTEM AIR DUAL CIRCUIT(Z04) (B)	9-47465-152-0	01	1	9001-9204	●
89	BOLT; PIPE CLIP M6X25 W/LK WASHER	9-01900-625-0	01	1	9001-9204	●	●
89	BOLT; PIPE CLIP M6X25 W/LK WASHER	0-50040-625-0	01	1	9205-9606	●	●
89	BOLT; PIPE CLIP M6X25 FLANGE	0-28680-625-0	01	1	9607-	●	●
89	BOLT; PIPE CLIP AIR DRYER<PS7> M8X16 W/LK WASHER	0-50040-816-0	01	1	9211-9606	●	●
89	BOLT; PIPE CLIP AIR DRYER<PS7> M8X16 FLANGE	0-28080-816-0	01	1	9607-	●	●
93	BRACKET; PIPE CLIP SPARE WHEEL CARRIER<SFB> M8 W/NUT	1-47475-729-0	01	1	9001-9012	●
103	NUT; PIPE CLIP SPARE WHEEL CARRIER<SFB> M8	9-09110-408-0	02	1	9001-9012	●
119	NUT; CLIP BRKT M8	9-09110-408-0	06	1	9001-9204		●
119	NUT; CLIP BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8	9-09110-408-0	06	1	9001-9204	●
119	NUT; CLIP BRKT M8	9-09110-408-0	06	1	9205-9606	●	●
119	NUT; CLIP BRKT M8 FLANGE	0-91150-108-0	06	1	9607-	●	●
132	BRACKET; PIPE CLIP	1-47465-168-1	02	1	9001-		●
133	BOLT; BRKT M6X20 W/LK WASHER	9-01900-620-0	04	1	9001-9204		●
133	BOLT; BRKT M6X20 W/LK WASHER	0-50040-620-0	04	1	9205-9606		●
133	BOLT; BRKT M6X20 FLANGE	0-28680-620-0	04	1	9607-9704		●
133	BOLT; BRKT M6X25 FLANGE	0-28680-625-0	04	1	9705-		●
147	BOLT; PIPE CLIP SPARE WHEEL CARRIER<SFB> M8X20 W/LK WASHER	9-01900-820-0	02	1	9001-9012	●
148	NUT; PIPE CLIP SPARE WHEEL CARRIER<SFB> M8	9-09110-408-0	02	1	9001-9012	●
154	NUT; PIPE CLIP AIR DRYER<PS7> M8	9-09110-408-0	01	1	9211-9606	●	●
154	NUT; PIPE CLIP AIR DRYER<PS7> M8 FLANGE	0-91150-108-0	01	1	9607-	●	●
156	BOLT; PIPE CLIP M6X20 W/LK WASHER	9-01900-620-0	02	1	9001-9204		●
156	BOLT; PIPE CLIP M6X20 W/LK WASHER	0-50040-620-0	02	1	9205-9606		●
156	BOLT; PIPE CLIP M6X20 FLANGE	0-28680-620-0	02	1	9607-9704		●
156	BOLT; PIPE CLIP M6X25 FLANGE	0-28680-625-0	02	1	9705-		●
156	BOLT; PIPE CLIP M6X25 W/LK WASHER	9-01900-625-0	01	1	9001-9204	●
156	BOLT; PIPE CLIP M6X25 W/LK WASHER	0-50040-625-0	01	1	9205-9606	●
156	BOLT; PIPE CLIP M6X25 FLANGE	0-28680-625-0	01	1	9607-	●
158	BRACKET; PIPE CLIP	1-47465-168-1	01	1	9001-		●
160	NUT; CLIP BRKT M6	9-09110-406-0	01	1	9001-9606	●	●
160	NUT; CLIP BRKT M6 FLANGE	0-91150-106-0	01	1	9607-	●	●
162	BOLT; PIPE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M6X14 W/LK WASHER	9-01900-614-0	01	1	9001-9204	●
162	BOLT; PIPE CLIP M6X14 W/LK WASHER	0-50040-614-0	01	1	9205-9606	●
162	BOLT; PIPE CLIP M6X12 FLANGE	0-28080-612-0	01	1	9607-	●
162	BOLT; PIPE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X20 W/LK WASHER	9-01900-820-0	01	1	9001-9204	●
162	BOLT; PIPE CLIP M8X20 W/LK WASHER	0-50040-820-0	01	1	9205-9606	●
162	BOLT; PIPE CLIP M8X20 FLANGE	0-28680-820-0	01	1	9607-	●
178	BOLT; PIPE CLIP 6RA1 TC ENG(15L) OVERHEAD COOLING SYSTEM(YS9) M6X20 W/LK WASHER	9-01900-620-0	10	1	9001-9012	●
181	BRACKET; PIPE CLIP 6RA1 TC ENG(15L) OVERHEAD COOLING SYSTEM(YS9)	1-47465-168-1	05	1	9001-9012	●
193	BOLT; PIPE CLIP 6RA1 TC ENG(15L) OVERHEAD COOLING SYSTEM(YS9) M6X20 W/LK WASHER	9-01900-620-0	14	1	9001-9012	●
194	NUT; PIPE CLIP 6RA1 TC ENG(15L) OVERHEAD COOLING SYSTEM(YS9) M6	9-09110-406-0	09	1	9001-9012	●
195	BRACKET; PIPE CLIP WHEEL BASE 5800MM(58W)	1-47465-168-1	12	1	9001-		●
195	BRACKET; PIPE CLIP WHEEL BASE 6800MM(68W)	1-47465-168-1	14	1	9001-		●
195	BRACKET; PIPE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47465-168-1	09	1	9001-9204	●
195	BRACKET; PIPE CLIP	1-47465-168-1	09	1	9205-	●
197	NUT; CLIP BRKT M6	9-09110-406-0	01	1	9001-9606		●
197	NUT; CLIP BRKT M6 FLANGE	0-91150-106-0	01	1	9607-		●
197	NUT; CLIP BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M16	9-99111-416-0	01	1	9001-9204	●
197	NUT; CLIP BRKT M16	9-99111-416-0	01	1	9205-	●
199	BOLT; PIPE CLIP 6RA1 TC ENG(15L) OVERHEAD COOLING SYSTEM(YS9) M6X20 W/LK WASHER	9-01900-620-0	04	1	9001-9012	●
200	BRACKET; PIPE CLIP	1-47465-168-1	01	1	9001-		●
200	BRACKET; PIPE CLIP 6RA1 TC ENG(15L) OVERHEAD COOLING SYSTEM(YS9)	1-47465-168-1	09	1	9001-9012	●
201	BOLT; CLIP BRKT M6X20 W/LK WASHER	9-01900-620-0	02	1	9001-9204		●
201	BOLT; CLIP BRKT M6X20 W/LK WASHER	0-50040-620-0	02	1	9205-9606		●
201	BOLT; CLIP BRKT M6X20 FLANGE	0-28680-620-0	02	1	9607-9704		●
201	BOLT; CLIP BRKT M6X25 FLANGE	0-28680-625-0	02	1	9705-		●
204	CLIP; AIR PIPE (A) ID=11 & 11 L=15 & 15	1-09700-063-0	04	1	9001-9204		●
204	CLIP; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) ID=11 & 11 L=15 & 15	1-09700-063-0	04	1	9001-9204	●
204	CLIP; AIR PIPE (A) ID=11 & 11 L=15 & 15	1-09700-063-0	04	1	9205-	●	●
204	CLIP; AIR PIPE WHEEL BASE 5800MM(58W) (A) ID=11 & 9 L=15 & 15	1-09700-062-0	08	1	9001-		●
204	CLIP; AIR PIPE WHEEL BASE 6800MM(68W) (A) ID=11 & 9 L=15 & 15	1-09700-062-0	10	1	9001-		●
204	CLIP; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) ID=11 & 9 L=15 & 15	1-09700-062-0	09	1	9001-9204	●
204	CLIP; AIR PIPE (A) ID=11 & 9 L=15 & 15	1-09700-062-0	09	1	9205-	●
204	CLIP; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) ID=11 & 9 L=18 & 17	1-09700-068-0	01	1	9001-9204	●
204	CLIP; AIR PIPE (A) ID=11 & 9 L=18 & 17	1-09700-068-0	01	1	9205-	●
204	CLIP; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-47465-168-1	04	1	9001-9204	●
204	CLIP; AIR PIPE (B)	1-47465-168-1	04	1	9205-	●
204	CLIP; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C)	1-47466-005-0	01	1	9001-9204	●
204	CLIP; AIR PIPE (C)	1-47466-005-0	01	1	9205-	●
205	BOLT; PIPE CLIP WHEEL BASE 5800MM(58W) M6X20 W/LK WASHER	9-01900-620-0	24	1	9001-9204		●
205	BOLT; PIPE CLIP WHEEL BASE 5800MM(58W) M6X20 W/LK WASHER	0-50040-620-0	24	1	9205-9606		●
205	BOLT; PIPE CLIP WHEEL BASE 5800MM(58W) M6X20 FLANGE	0-28680-620-0	24	1	9607-9704		●
205	BOLT; PIPE CLIP WHEEL BASE 5800MM(58W) M6X25 FLANGE	0-28680-625-0	24	1	9705-		●
205	BOLT; PIPE CLIP WHEEL BASE 6800MM(68W) M6X20 W/LK WASHER	9-01900-620-0	28	1	9001-9204		●
205	BOLT; PIPE CLIP WHEEL BASE 6800MM(68W) M6X20 W/LK WASHER	0-50040-620-0	28	1	9205-9606		●
205	BOLT; PIPE CLIP WHEEL BASE 6800MM(68W) M6X20 FLANGE	0-28680-620-0	28	1	9607-9704		●
205	BOLT; PIPE CLIP WHEEL BASE 6800MM(68W) M6X25 FLANGE	0-28680-625-0	28	1	9705-		●
205	BOLT; PIPE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M6X20 W/LK WASHER	9-01900-620-0	18	1	9001-9204	●
205	BOLT; PIPE CLIP M6X20 W/LK WASHER	0-50040-620-0	18	1	9205-9606	●
205	BOLT; PIPE CLIP M6X20 FLANGE	0-28680-620-0	18	1	9607-9704	●
205	BOLT; PIPE CLIP M6X25 FLANGE	0-28680-625-0	18	1	9705-	●
205	BOLT; PIPE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M6X16 W/LK WASHER	9-01910-616-0	09	1	9001-9005	●
205	BOLT; PIPE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M6X16 W/LK WASHER	0-50040-616-0	09	1	9006-9204	●
205	BOLT; PIPE CLIP M6X16 W/LK WASHER	0-50040-616-0	09	1	9205-9606	●
205	BOLT; PIPE CLIP M6X16 FLANGE	0-28080-616-0	09	1	9607-	●
206	NUT; PIPE CLIP WHEEL BASE 5800MM(58W) M6	9-09110-406-0	12	1	9001-9606		●
206	NUT; PIPE CLIP WHEEL BASE 5800MM(58W) M6 FLANGE	0-91150-106-0	12	1	9607-		●
206	NUT; PIPE CLIP WHEEL BASE 6800MM(68W) M6	9-09110-406-0	14	1	9001-9606		●
206	NUT; PIPE CLIP WHEEL BASE 6800MM(68W) M6 FLANGE	0-91150-106-0	14	1	9607-		●
206	NUT; PIPE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M6	9-09110-406-0	13	1	9001-9204	●
206	NUT; PIPE CLIP M6	9-09110-406-0	13	1	9205-9606	●
206	NUT; PIPE CLIP M6 FLANGE	0-91150-106-0	13	1	9607-	●
223	BRACKET; PIPE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47465-168-1	07	1	9001-9204	●
223	BRACKET; PIPE CLIP	1-47465-168-1	07	1	9205-	●
225	BOLT; PIPE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M6X16 W/LK WASHER	9-01910-616-0	16	1	9001-9005	●
225	BOLT; PIPE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M6X16 W/LK WASHER	0-50040-616-0	16	1	9006-9204	●
225	BOLT; PIPE CLIP M6X16 W/LK WASHER	0-50040-616-0	16	1	9205-9606	●
225	BOLT; PIPE CLIP M6X16 FLANGE	0-28080-616-0	16	1	9607-	●
226	NUT; PIPE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M6	9-09110-406-0	09	1	9001-9204	●
226	NUT; PIPE CLIP M6	9-09110-406-0	09	1	9205-9606	●
226	NUT; PIPE CLIP M6 FLANGE	0-91150-106-0	09	1	9607-	●
237	BRACKET; PIPE CLIP FRONT STABILIZER SHAFT<F59> WHEEL BASE 5800MM(58W) COLOMBIA EQUIPMENT(WJ2),TAIWAN EQUIPMENT(WW5)	1-47465-168-1	01	1	9001-9012	●
237	BRACKET; PIPE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FRONT STABILIZER SHAFT<F59>	1-47465-168-1	01	1	9101-9204	●
237	BRACKET; PIPE CLIP FRONT STABILIZER SHAFT<F59>	1-47465-168-1	01	1	9205-9509	●
237	BRACKET; PIPE CLIP FRONT STABILIZER SHAFT<F59>	1-47465-168-1	01	1	9510-	●	●
244	BRACKET; CLIP,AIR PIPE 6RA1 TC ENG(15L) OVERHEAD COOLING SYSTEM(YS9) (A)	1-47465-168-1	04	1	9001-9012	●
244	BRACKET; CLIP,AIR PIPE 6RA1 TC ENG(15L) OVERHEAD COOLING SYSTEM(YS9) (B) M8 W/NUT	1-47475-729-0	01	1	9001-9012	●
249	BOLT; PIPE CLIP FRONT STABILIZER SHAFT<F59> WHEEL BASE 5800MM(58W) COLOMBIA EQUIPMENT(WJ2),TAIWAN EQUIPMENT(WW5) M6X16 W/LK WASHER	9-01910-616-0	02	1	9001-9005	●
249	BOLT; PIPE CLIP FRONT STABILIZER SHAFT<F59> WHEEL BASE 5800MM(58W) COLOMBIA EQUIPMENT(WJ2),TAIWAN EQUIPMENT(WW5) M6X16 W/LK WASHER	0-50040-616-0	02	1	9006-9012	●
249	BOLT; PIPE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FRONT STABILIZER SHAFT<F59> M6X16 W/LK WASHER	0-50040-616-0	02	1	9101-9204	●
249	BOLT; PIPE CLIP FRONT STABILIZER SHAFT<F59> M6X16 W/LK WASHER	0-50040-616-0	02	1	9205-9509	●
249	BOLT; PIPE CLIP FRONT STABILIZER SHAFT<F59> M6X16 W/LK WASHER	0-50040-616-0	02	1	9510-9606	●	●
249	BOLT; PIPE CLIP FRONT STABILIZER SHAFT<F59> M6X16 FLANGE	0-28080-616-0	02	1	9607-	●	●
249	BOLT; PIPE CLIP 6RA1 TC ENG(15L) OVERHEAD COOLING SYSTEM(YS9) M8X20 W/LK WASHER	9-01900-820-0	01	1	9001-9012	●
250	NUT; PIPE CLIP FRONT STABILIZER SHAFT<F59> WHEEL BASE 5800MM(58W) COLOMBIA EQUIPMENT(WJ2),TAIWAN EQUIPMENT(WW5) M6	9-09110-406-0	02	1	9001-9012	●
250	NUT; PIPE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FRONT STABILIZER SHAFT<F59> M6	9-09110-406-0	02	1	9101-9204	●	●
250	NUT; PIPE CLIP FRONT STABILIZER SHAFT<F59> M6	9-09110-406-0	02	1	9205-9509	●
250	NUT; PIPE CLIP FRONT STABILIZER SHAFT<F59> M6	9-09110-406-0	02	1	9510-9606	●	●
250	NUT; PIPE CLIP FRONT STABILIZER SHAFT<F59> M6 FLANGE	0-91150-106-0	02	1	9607-	●	●
250	NUT; PIPE CLIP 6RA1 TC ENG(15L) OVERHEAD COOLING SYSTEM(YS9) M8	9-09110-408-0	01	1	9001-9012	●
256	NUT; PIPE CLIP 6RA1 TC ENG(15L) OVERHEAD COOLING SYSTEM(YS9) M6	9-09110-406-0	04	1	9001-9012	●
258	NUT; PIPE CLIP M6	9-09110-406-0	01	1	9001-9204		●
258	NUT; PIPE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M6	9-09110-406-0	01	1	9001-9204	●
258	NUT; PIPE CLIP M6	9-09110-406-0	01	1	9205-9606	●	●
258	NUT; PIPE CLIP M6 FLANGE	0-91150-106-0	01	1	9607-	●	●
263	NUT; PIPE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8	9-09110-408-0	01	1	9001-9204	●
263	NUT; PIPE CLIP M8	9-09110-408-0	01	1	9205-9606	●
263	NUT; PIPE CLIP M8 FLANGE	0-91150-108-0	01	1	9607-	●
294	NUT; CLIP,AIR PIPE AIR DRYER<PS7> M8	9-09110-408-0	01	1	9211-9606	●	●
294	NUT; CLIP,AIR PIPE AIR DRYER<PS7> M8 FLANGE	0-91150-108-0	01	1	9607-	●	●
295	NUT; CLIP,AIR PIPE M8	9-09110-408-0	02	1	9001-9204		●
295	NUT; CLIP,AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8	9-09110-408-0	02	1	9001-9204	●
295	NUT; CLIP,AIR PIPE M8	9-09110-408-0	02	1	9205-9210	●	●
296	BRACKET; CLIP AIR DRYER<PS7> M8 W/NUT	1-47475-729-0	01	1	9211-	●	●
308	BOLT; CLIP,AIR PIPE AIR DRYER<PS7> M8X16 W/LK WASHER	0-50040-816-0	01	1	9211-9606	●	●
308	BOLT; CLIP,AIR PIPE AIR DRYER<PS7> M8X16 FLANGE	0-28080-816-0	01	1	9607-	●	●
312	BRACKET; PIPE CLIP 6QA1 STD ENG(L24),6RB1 STD ENG(07L) (A)	1-47465-168-1	01	1	9001-9012		●
312	BRACKET; PIPE CLIP 6QA1 STD ENG(L24),6RB1 STD ENG(07L),6RA1 STD ENG(14L) EXC. OVERHEAD COOLING SYSTEM(YS9) (A)	1-47465-168-1	01	1	9001-9012	●
312	BRACKET; PIPE CLIP (A)	1-47465-168-1	01	1	9101-	●	●
312	BRACKET; PIPE CLIP 6RA1 TC ENG(15L) OVERHEAD COOLING SYSTEM(YS9) (B) M8 W/NUT	1-47475-729-0	01	1	9001-9012	●
313	NUT; PIPE CLIP 6QA1 STD ENG(L24),6RB1 STD ENG(07L) M6	9-09110-406-0	01	1	9001-9012		●
313	NUT; PIPE CLIP 6QA1 STD ENG(L24),6RB1 STD ENG(07L),6RA1 STD ENG(14L) EXC. OVERHEAD COOLING SYSTEM(YS9) M6	9-09110-406-0	01	1	9001-9012	●
313	NUT; PIPE CLIP M6	9-09110-406-0	01	1	9101-9606	●	●
313	NUT; PIPE CLIP M6 FLANGE	0-91150-106-0	01	1	9607-	●	●
313	NUT; PIPE CLIP 6RA1 TC ENG(15L) OVERHEAD COOLING SYSTEM(YS9) M6	9-09110-406-0	02	1	9001-9012	●
313	NUT; PIPE CLIP 6RA1 TC ENG(15L) OVERHEAD COOLING SYSTEM(YS9) M8	9-09110-408-0	01	1	9001-9012	●
313	NUT; PIPE CLIP 6RA1 TC ENG(15L) WHEEL BASE 5800MM(58W) OVERHEAD COOLING SYSTEM(YS9) M8	9-09110-408-0	01	1	9001-9012	●
313	NUT; PIPE CLIP 6RA1 TC ENG(15L) WHEEL BASE 5800MM(58W) M6	9-09110-406-0	04	1	9001-9012	●
313	NUT; PIPE CLIP 6RA1 TC ENG(15L) WHEEL BASE 5800MM(58W) FINAL GEAR 5.429/7.392 18" SPIRAL 2 SPEED(W2E), FINAL GEAR 3.909/5.322 18" SPIRAL 2 SPEED(W2J) M6	9-09110-406-0	06	1	9001-9012	●
316	BOLT; CLIP AIR DRYER<PS7> M8X16 W/LK WASHER	0-50040-816-0	01	1	9211-9606	●	●
316	BOLT; CLIP AIR DRYER<PS7> M8X16 FLANGE	0-28080-816-0	01	1	9607-	●	●
321	BRACKET; CLIP AIR DRYER<PS7> M8 W/NUT	1-47475-729-0	01	1	9211-	●	●
345	BRACKET; PIPE CLIP (A)	1-47465-168-1	04	1	9001-		●
345	BRACKET; PIPE CLIP (B)	1-47466-005-0	01	1	9001-		●
345	BRACKET; PIPE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-47465-168-1	06	1	9001-9204	●
345	BRACKET; PIPE CLIP (A)	1-47465-168-1	06	1	9205-	●
372	BOLT; CLIP BRKT SPARE WHEEL CARRIER<SFB> M8X20 W/LK WASHER	9-01900-820-0	02	1	9001-9012	●
376	BOLT; BRKT 6QA1 STD ENG(L24),6RB1 STD ENG(07L) M6X20 W/LK WASHER	9-01900-620-0	02	1	9001-9012		●
376	BOLT; BRKT 6QA1 STD ENG(L24),6RB1 STD ENG(07L),6RA1 STD ENG(14L) EXC. OVERHEAD COOLING SYSTEM(YS9) M6X20 W/LK WASHER	9-01900-620-0	02	1	9001-9012	●
376	BOLT; BRKT M6X20 W/LK WASHER	9-01900-620-0	02	1	9101-9204	●	●
376	BOLT; BRKT M6X20 W/LK WASHER	0-50040-620-0	02	1	9205-9606	●	●
376	BOLT; BRKT M6X20 FLANGE	0-28680-620-0	02	1	9607-9704	●	●
376	BOLT; BRKT M6X25 FLANGE	0-28680-625-0	02	1	9705-	●	●
376	BOLT; BRKT 6RA1 TC ENG(15L) OVERHEAD COOLING SYSTEM(YS9) M8X20 W/LK WASHER	9-01900-820-0	01	1	9001-9012	●

1 91 253 32 10 84 122 152 209 370 7 24 33 41 54 62 65 78 91 129 146 155 161 177 192 198 204 224 243 248 292 311 318 353 7 24 41 54 248 224 161 280 369 7 333

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	CLIP; AIR PIPE 6RA1 TC ENG(15L) OVERHEAD COOLING SYSTEM(YS9) ID=8 H=20 L=20	1-09700-604-0	02	1	9001-9012	●
7	CLIP; AIR PIPE (A) ID=11 & 7 L=15 & 15	1-09700-071-0	01	1	9001-	●	●
7	CLIP; AIR PIPE AXLE RATIO 2 SPEED<W9Y> (A) ID=11 & 11 L=15 & 15	1-09700-063-0	01	1	9001-	●	●
7	CLIP; AIR PIPE AXLE RATIO 2 SPEED<W9Y> (D)	1-47466-005-0	01	1	9001-	●	●
7	CLIP; AIR PIPE AXLE RATIO 2 SPEED<W9Y> (C) ID=11 L=16	9-09525-025-0	01	1	9001-	●	●
7	CLIP; AIR PIPE AXLE RATIO 2 SPEED<W9Y> (C) ID=11 L=28	9-09525-055-0	01	1	9001-	●	●
7	CLIP; AIR PIPE AXLE RATIO 2 SPEED<W9Y> (B) ID=11 H=20 L=20	9-09527-010-0	01	1	9001-	●	●
10	BRACKET; PIPE CLIP AXLE RATIO 2 SPEED<W9Y> L=67	1-47465-447-0	01	1	9001-	●	●
24	CLIP; PIPE AIR DRYER<PS7> (B) ID=8 H=20 L=20	1-09700-604-0	01	1	9211-	●	●
24	CLIP; PIPE BRAKE SYSTEM AIR DUAL CIRCUIT(Z04) (A) ID=11 & 11 L=15 & 15	1-09700-063-0	02	1	9001-9204	●
32	CLIP; BAND,RUBBER SLEEVE L=140	5-09707-031-1	01	1	9001-		●
32	CLIP; BAND,RUBBER SLEEVE M/T<X9C> L=140	5-09707-031-1	01	1	9001-	●
33	CLIP; BOLT 6QA1 STD ENG(L24),6RB1 STD ENG(07L) ID=11 & 13 L=15 & 16	1-09700-077-0	01	1	9001-9012		●
33	CLIP; BOLT 6QA1 STD ENG(L24),6RB1 STD ENG(07L),6RA1 STD ENG(14L) EXC. OVERHEAD COOLING SYSTEM(YS9) ID=11 & 13 L=15 & 16	1-09700-077-0	01	1	9001-9012	●
33	CLIP; BOLT ID=11 & 13 L=15 & 16	1-09700-077-0	01	1	9101-	●	●
33	CLIP; BOLT 6RA1 TC ENG(15L) OVERHEAD COOLING SYSTEM(YS9) ID=11 & 13 L=17 & 18	1-09700-748-0	01	1	9001-9012	●
41	CLIP; AIR PIPE AIR DRYER<PS7> (B) ID=6 H=20 L=20	1-09700-603-0	01	1	9203-9204		●
41	CLIP; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> (B) ID=6 H=20 L=20	1-09700-603-0	01	1	9203-9204	●
41	CLIP; AIR PIPE AIR DRYER<PS7> (B) ID=6 H=20 L=20	1-09700-603-0	01	1	9205-9210	●	●
41	CLIP; AIR PIPE AIR DRYER<PS7> (A) ID=11 & 7 L=17.5 & 17.5	1-09700-740-0	01	1	9203-9204		●
41	CLIP; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> (A) ID=11 & 7 L=17.5 & 17.5	1-09700-740-0	01	1	9203-9204	●
41	CLIP; AIR PIPE AIR DRYER<PS7> (A) ID=11 & 7 L=17.5 & 17.5	1-09700-740-0	01	1	9205-9210	●	●
54	CLIP; AIR PIPE (B) ID=11 H=20 L=20	9-09527-010-0	01	1	9001-9012		●
54	CLIP; AIR PIPE SPARE WHEEL CARRIER<SFB> (B) ID=11 H=20 L=20	9-09527-010-0	01	1	9001-9012	●
54	CLIP; AIR PIPE (B) ID=11 H=20 L=20	9-09527-010-0	01	1	9101-		●
54	CLIP; AIR PIPE 6QA1 STD ENG(L24),6RB1 STD ENG(07L) (A) ID=11 & 11 L=15 & 15	1-09700-063-0	01	1	9001-9012		●
54	CLIP; AIR PIPE 6QA1 STD ENG(L24),6RB1 STD ENG(07L),6RA1 STD ENG(14L) EXC. OVERHEAD COOLING SYSTEM(YS9) (A) ID=11 & 11 L=15 & 15	1-09700-063-0	01	1	9001-9012	●
54	CLIP; AIR PIPE (A) ID=11 & 11 L=15 & 15	1-09700-063-0	01	1	9101-	●	●
54	CLIP; AIR PIPE SPARE WHEEL CARRIER<SFB> (A) ID=11 & 11 L=17.5 & 17.5	1-09700-739-0	01	1	9001-9012	●
54	CLIP; AIR PIPE 6RA1 TC ENG(15L) OVERHEAD COOLING SYSTEM(YS9) (A) ID=11 & 11 L=15 & 15	1-09700-063-0	02	1	9001-9012	●
54	CLIP; AIR PIPE 6RA1 TC ENG(15L) OVERHEAD COOLING SYSTEM(YS9) (A) ID=11 & 7 L=17.5 & 17.5	1-09700-740-0	01	1	9001-9012	●
54	CLIP; AIR PIPE 6RA1 TC ENG(15L) WHEEL BASE 5800MM(58W) (A) ID=11 & 11 L=15 & 15	1-09700-063-0	04	1	9001-9012	●
54	CLIP; AIR PIPE 6RA1 TC ENG(15L) WHEEL BASE 5800MM(58W) FINAL GEAR 5.429/7.392 18" SPIRAL 2 SPEED(W2E), FINAL GEAR 3.909/5.322 18" SPIRAL 2 SPEED(W2J) (A) ID=11 & 11 L=15 & 15	1-09700-063-0	06	1	9001-9012	●
54	CLIP; AIR PIPE 6RA1 TC ENG(15L) WHEEL BASE 5800MM(58W) OVERHEAD COOLING SYSTEM(YS9) (B) ID=11 H=20 L=20	5-09700-351-0	01	1	9001-9012	●
62	CLIP; AIR PIPE SPARE WHEEL CARRIER<SFB> ID=11 & 11 L=17.5 & 17.5	1-09700-739-0	02	1	9001-9012	●
65	CLIP; AIR PIPE WHEEL BASE 5800MM(58W) ID=11 & 11 L=15 & 15	1-09700-063-0	13	1	9001-9112	●	●
65	CLIP; AIR PIPE M/T<X9C> WHEEL BASE 5800MM(58W) ID=11 & 11 L=15 & 15	1-09700-063-0	13	1	9201-	●	●
65	CLIP; AIR PIPE A/T<X9D> WHEEL BASE 6600MM(66W) ID=11 & 11 L=15 & 15	1-09700-063-0	13	1	9201-	●
65	CLIP; AIR PIPE WHEEL BASE 6600MM(66W),WHEEL BASE 6800MM(68W) ID=11 & 11 L=15 & 15	1-09700-063-0	15	1	9001-9112	●	●
65	CLIP; AIR PIPE M/T<X9C> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) WHEEL BASE 6600MM(66W),WHEEL BASE 6800MM(68W) ID=11 & 11 L=15 & 15	1-09700-063-0	15	1	9201-9204	●	●
65	CLIP; AIR PIPE M/T<X9C> WHEEL BASE 6600MM(66W),WHEEL BASE 6800MM(68W) ID=11 & 11 L=15 & 15	1-09700-063-0	15	1	9205-	●	●
65	CLIP; AIR PIPE A/T<X9D> ID=11 & 13 L=15 & 16	1-09700-077-0	02	1	9201-	●
65	CLIP; AIR PIPE WHEEL BASE 5800MM(58W) A/T<X9D> ID=11 & 11 L=15 & 15	1-09700-063-0	11	1	9201-	●
78	CLIP; AIR PIPE BRAKE SYSTEM AIR DUAL CIRCUIT(Z04) ID=13 & 7 L=16 & 14	1-09700-070-0	01	1	9001-9204	●
84	BRACKET; PIPE CLIP BRAKE SYSTEM AIR DUAL CIRCUIT(Z04) (A)	1-47465-168-1	02	1	9001-9204	●
84	BRACKET; PIPE CLIP BRAKE SYSTEM AIR DUAL CIRCUIT(Z04) (B)	9-47465-152-0	01	1	9001-9204	●
91	CLIP; AIR PIPE SPARE WHEEL CARRIER<SFB> (A) ID=11 & 11 L=17.5 & 17.5	1-09700-739-0	01	1	9001-9012	●
91	CLIP; AIR PIPE SPARE WHEEL CARRIER<SFB> (B) ID=11 H=20 L=20	9-09527-010-0	01	1	9001-9012	●
122	BRACKET; PIPE CLIP	1-47465-880-0	02	1	9001-9204		●
122	BRACKET; PIPE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47465-880-0	02	1	9001-9204	●
122	BRACKET; PIPE CLIP	1-47465-880-0	02	1	9205-	●	●
129	CLIP; AIR PIPE ID=11 & 7 L=15 & 15	1-09700-071-0	02	1	9001-		●
146	CLIP; AIR PIPE SPARE WHEEL CARRIER<SFB>	1-09700-073-0	01	1	9001-9012	●
152	BRACKET; PIPE CLIP SPARE WHEEL CARRIER<SFB>	1-47465-052-0	01	1	9001-9012	●
155	CLIP; AIR PIPE	1-09700-073-0	01	1	9001-		●
161	CLIP; AIR PIPE (B) ID=11 H=20 L=20	9-09527-010-0	01	1	9001-	●
161	CLIP; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-09700-073-0	01	1	9001-9204	●
161	CLIP; AIR PIPE (A)	1-09700-073-0	01	1	9205-	●
177	CLIP; AIR PIPE 6RA1 TC ENG(15L) OVERHEAD COOLING SYSTEM(YS9) ID=11 & 9 L=15 & 15	1-09700-062-0	04	1	9001-9012	●
177	CLIP; AIR PIPE 6RA1 TC ENG(15L) OVERHEAD COOLING SYSTEM(YS9) ID=11 & 11 L=15 & 15	1-09700-063-0	01	1	9001-9012	●
192	CLIP; AIR PIPE 6RA1 TC ENG(15L) OVERHEAD COOLING SYSTEM(YS9) ID=11 & 9 L=15 & 15	1-09700-062-0	04	1	9001-9012	●
192	CLIP; AIR PIPE 6RA1 TC ENG(15L) OVERHEAD COOLING SYSTEM(YS9) ID=11 & 11 L=15 & 15	1-09700-063-0	03	1	9001-9012	●
198	CLIP; AIR PIPE	1-09700-073-0	01	1	9001-		●
198	CLIP; AIR PIPE 6RA1 TC ENG(15L) OVERHEAD COOLING SYSTEM(YS9) ID=11 & 11 L=15 & 15	1-09700-063-0	02	1	9001-9012	●
204	CLIP; AIR PIPE (A) ID=11 & 11 L=15 & 15	1-09700-063-0	04	1	9001-9204		●
204	CLIP; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) ID=11 & 11 L=15 & 15	1-09700-063-0	04	1	9001-9204	●
204	CLIP; AIR PIPE (A) ID=11 & 11 L=15 & 15	1-09700-063-0	04	1	9205-	●	●
204	CLIP; AIR PIPE WHEEL BASE 5800MM(58W) (A) ID=11 & 9 L=15 & 15	1-09700-062-0	08	1	9001-		●
204	CLIP; AIR PIPE WHEEL BASE 6800MM(68W) (A) ID=11 & 9 L=15 & 15	1-09700-062-0	10	1	9001-		●
204	CLIP; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) ID=11 & 9 L=15 & 15	1-09700-062-0	09	1	9001-9204	●
204	CLIP; AIR PIPE (A) ID=11 & 9 L=15 & 15	1-09700-062-0	09	1	9205-	●
204	CLIP; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) ID=11 & 9 L=18 & 17	1-09700-068-0	01	1	9001-9204	●
204	CLIP; AIR PIPE (A) ID=11 & 9 L=18 & 17	1-09700-068-0	01	1	9205-	●
204	CLIP; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-47465-168-1	04	1	9001-9204	●
204	CLIP; AIR PIPE (B)	1-47465-168-1	04	1	9205-	●
204	CLIP; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C)	1-47466-005-0	01	1	9001-9204	●
204	CLIP; AIR PIPE (C)	1-47466-005-0	01	1	9205-	●
209	WASHER; LK,CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=6.4	9-09160-506-0	02	1	9001-9204	●
209	WASHER; LK,CLIP ID=6.4	9-09160-506-0	02	1	9205-9606	●
224	CLIP; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) ID=11 & 11 L=15 & 15	1-09700-063-0	07	1	9001-9204	●
224	CLIP; AIR PIPE (A) ID=11 & 11 L=15 & 15	1-09700-063-0	07	1	9205-	●
224	CLIP; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) ID=11 H=20 L=20	9-09527-010-0	02	1	9001-9204	●
224	CLIP; AIR PIPE (B) ID=11 H=20 L=20	9-09527-010-0	02	1	9205-	●
243	CLIP; AIR,PIPE 6RA1 TC ENG(15L) OVERHEAD COOLING SYSTEM(YS9) ID=11 & 9 L=15 & 15	1-09700-062-0	04	1	9001-9012	●
243	CLIP; AIR,PIPE 6RA1 TC ENG(15L) OVERHEAD COOLING SYSTEM(YS9) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	01	1	9001-9012	●
248	CLIP; AIR PIPE FRONT STABILIZER SHAFT<F59> WHEEL BASE 5800MM(58W) COLOMBIA EQUIPMENT(WJ2),TAIWAN EQUIPMENT(WW5) (A) ID=11 & 9 L=15 & 15	1-09700-062-0	01	1	9001-9012	●
248	CLIP; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FRONT STABILIZER SHAFT<F59> (A) ID=11 & 9 L=15 & 15	1-09700-062-0	01	1	9101-9204	●
248	CLIP; AIR PIPE FRONT STABILIZER SHAFT<F59> (A) ID=11 & 9 L=15 & 15	1-09700-062-0	01	1	9205-9509	●
248	CLIP; AIR PIPE FRONT STABILIZER SHAFT<F59> (A) ID=11 & 9 L=15 & 15	1-09700-062-0	01	1	9510-	●	●
248	CLIP; AIR PIPE 6RA1 TC ENG(15L) OVERHEAD COOLING SYSTEM(YS9) (B) ID=11 H=20 L=20	9-09527-010-0	01	1	9001-9012	●
253	CLIP; AIR PIPE ID=9 H=20 L=20	9-09527-008-0	01	1	9001-9204		●
253	CLIP; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=9 H=20 L=20	9-09527-008-0	01	1	9001-9204	●
253	CLIP; AIR PIPE ID=9 H=20 L=20	9-09527-008-0	01	1	9205-	●	●
280	CLIP; AIR PIPE ID=7 H=20 L=20	9-09527-006-0	01	1	9001-	●	●
280	CLIP; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=9 H=20 L=20	9-09527-008-0	02	1	9001-9204	●
280	CLIP; AIR PIPE ID=9 H=20 L=20	9-09527-008-0	02	1	9205-	●
292	CLIP; AIR PIPE AIR DRYER<PS7> ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	01	1	9211-	●	●
311	CLIP; AIR PIPE ID=13 & 7 L=16 & 14	1-09700-070-0	01	1	9001-		●
311	CLIP; AIR PIPE ID=11 & 7 L=15 & 15	1-09700-071-0	02	1	9001-		●
311	CLIP; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=9 & 7 L=15 & 15	1-09700-060-0	02	1	9001-9204	●
311	CLIP; AIR PIPE ID=9 & 7 L=15 & 15	1-09700-060-0	02	1	9205-	●
318	CLIP; AIR PIPE AIR DRYER<PS7> ID=13 & 9 L=18 & 17	1-09700-667-0	01	1	9211-	●	●
333	BRACKET; BRK AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47465-052-0	01	1	9001-9204	●
333	BRACKET; BRK AIR PIPE	1-47465-052-0	01	1	9205-	●
353	CLIP; AIR PIPE ID=11 & 9 L=15 & 15	1-09700-062-0	05	1	9001-		●
353	CLIP; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=11 & 9 L=15 & 15	1-09700-062-0	06	1	9001-9204	●
353	CLIP; AIR PIPE ID=11 & 9 L=15 & 15	1-09700-062-0	06	1	9205-	●
369	CLIP; AIR PIPE AIR DRYER<PS7> ID=9 L=20	9-09524-835-0	01	1	9211-	●	●
370	BRACKET; PIPE CLIP	1-47465-692-0	01	1	9001-9202		●
370	BRACKET; PIPE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47465-692-0	01	1	9001-9202	●
370	BRACKET; PIPE CLIP EXC. AIR DRYER<PS7>	1-47465-692-0	01	1	9203-9204		●
370	BRACKET; PIPE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7>	1-47465-692-0	01	1	9203-9204	●
370	BRACKET; PIPE CLIP EXC. AIR DRYER<PS7>	1-47465-692-0	01	1	9205-9210	●	●
370	BRACKET; PIPE CLIP AIR DRYER<PS7>	1-47476-900-0	01	1	9203-9204		●
370	BRACKET; PIPE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7>	1-47476-900-0	01	1	9203-9204	●
370	BRACKET; PIPE CLIP AIR DRYER<PS7>	1-47476-900-0	01	1	9205-9210	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
