2-35 — MANUAL TRANSMISSION SHIFT CONTROL LEVER (#21037) — 24 parça

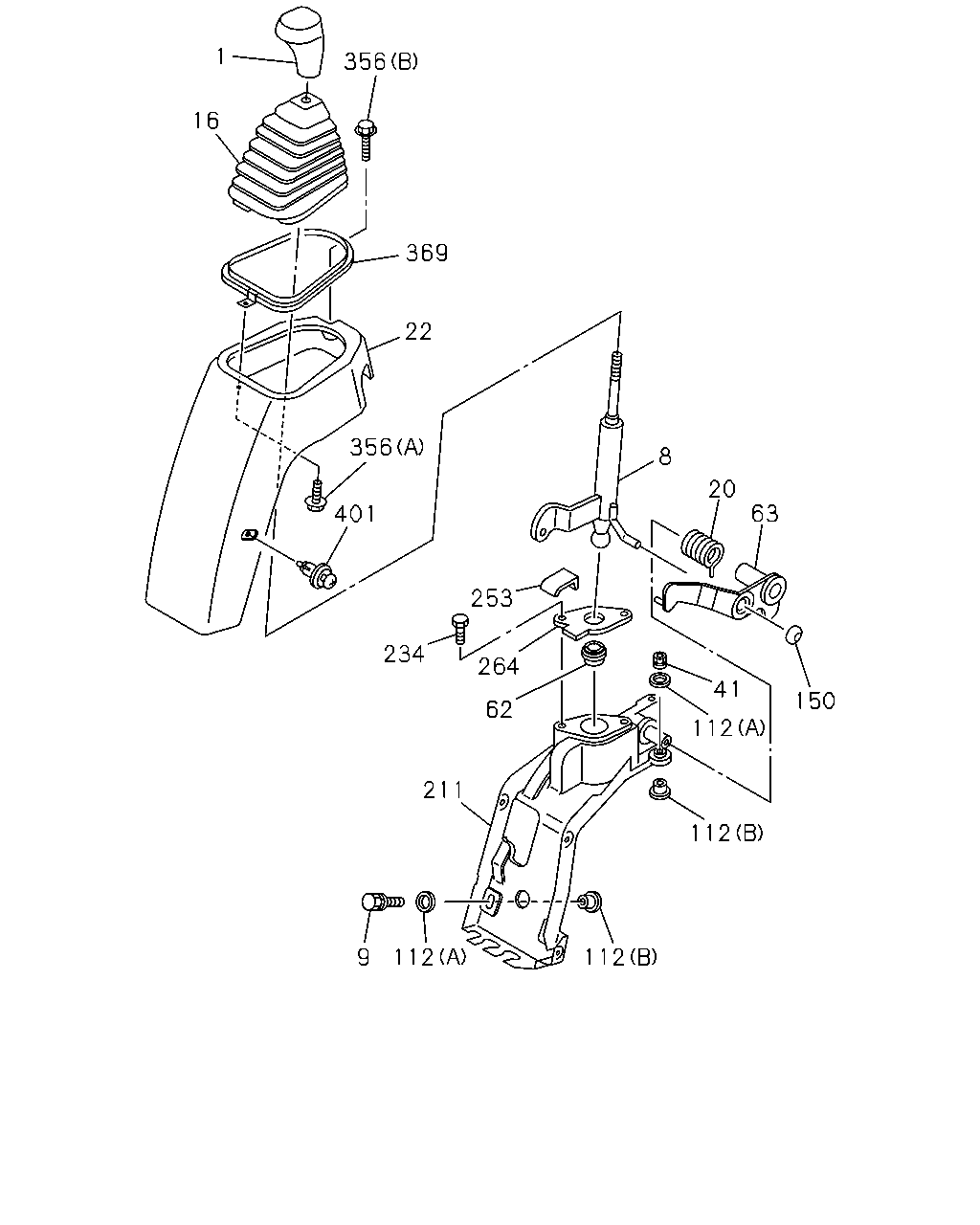

çizim 49050
1 356 16 369 22 356 8 20 63 401 253 234 264 41 150 62 112 211 112 112 9 112
BalonParca AdiParca NoAdetTipApplied Date A B C
1 KNOB; CHANGE LEVER
THA 		8-97916-541-0 01 1 0009- ● ●
1 KNOB; CHANGE LEVER
THA 		8-97916-545-0 01 1 0009- ●
8 LEVER; CHANGE 8-97204-506-0 01 1 0009- ● ● ●
9 BOLT; CHANGE LEVER
M8X28 W/LK&PL WASHER 		8-94438-324-1 02 1 0009- ● ● ●
16 BOOT; CHANGE LEVER 8-97066-287-1 01 1 0009- ● ● ●
20 SPRING; CHANGE LEVER 8-97204-514-1 01 1 0009- ● ● ●
22 COVER; DUST,CHANGE LEVER
DARK GRAY 		8-94351-595-1 01 1 0009- ● ● ●
41 NUT; CHANGE LEVER
M8 W/LK WASHER 		8-97065-435-0 02 1 0009-0110 ● ● ●
41 NUT; CHANGE LEVER
M8 FLANGE 		8-97046-127-0 02 1 0111- ● ● ●
62 SEAT; BALL,CHANGE LEVER 8-97011-895-1 01 1 0009- ● ● ●
63 LEVER; RELAY,SELECT 8-97143-199-0 01 1 0009- ● ● ●
78 RING; SNAP,CHANGE LEVER
ID=10 		9-09185-410-0 01 1 0209- ● ● ●
112 RUBBER; CUSHION
(A) 		8-97091-426-0 04 1 0009- ● ● ●
112 RUBBER; CUSHION
(B) 		8-97091-427-0 04 1 0009- ● ● ●
150 BALL; DETENT,CONT LEVER 8-97049-147-0 01 1 0009- ● ● ●
211 BRACKET; CHANGE LEVER 8-97204-505-1 01 1 0009- ● ● ●
234 BOLT; BRKT 8-97204-512-0 02 1 0009-0309 ● ● ●
234 BOLT; BRKT
M6X12 FLANGE 		1-33739-842-0 02 1 0310- ● ● ●
253 STOPPER; CHANGE LEVER 8-97204-510-0 01 1 0009- ● ● ●
264 PLATE; COVER 8-97204-511-0 01 1 0009- ● ● ●
356 SCREW; COVER
(A) M5X14 TAPPING W/PL WASHER 		0-74100-514-0 01 1 0009- ● ● ●
356 SCREW; COVER
(B) M6X12 		8-97094-854-0 01 1 0009- ● ● ●
369 RETAINER; REINF 8-97066-288-0 01 1 0009- ● ● ●
401 CLIP; COVER
DARK GRAY 		8-97098-523-0 03 1 0009- ● ● ●
