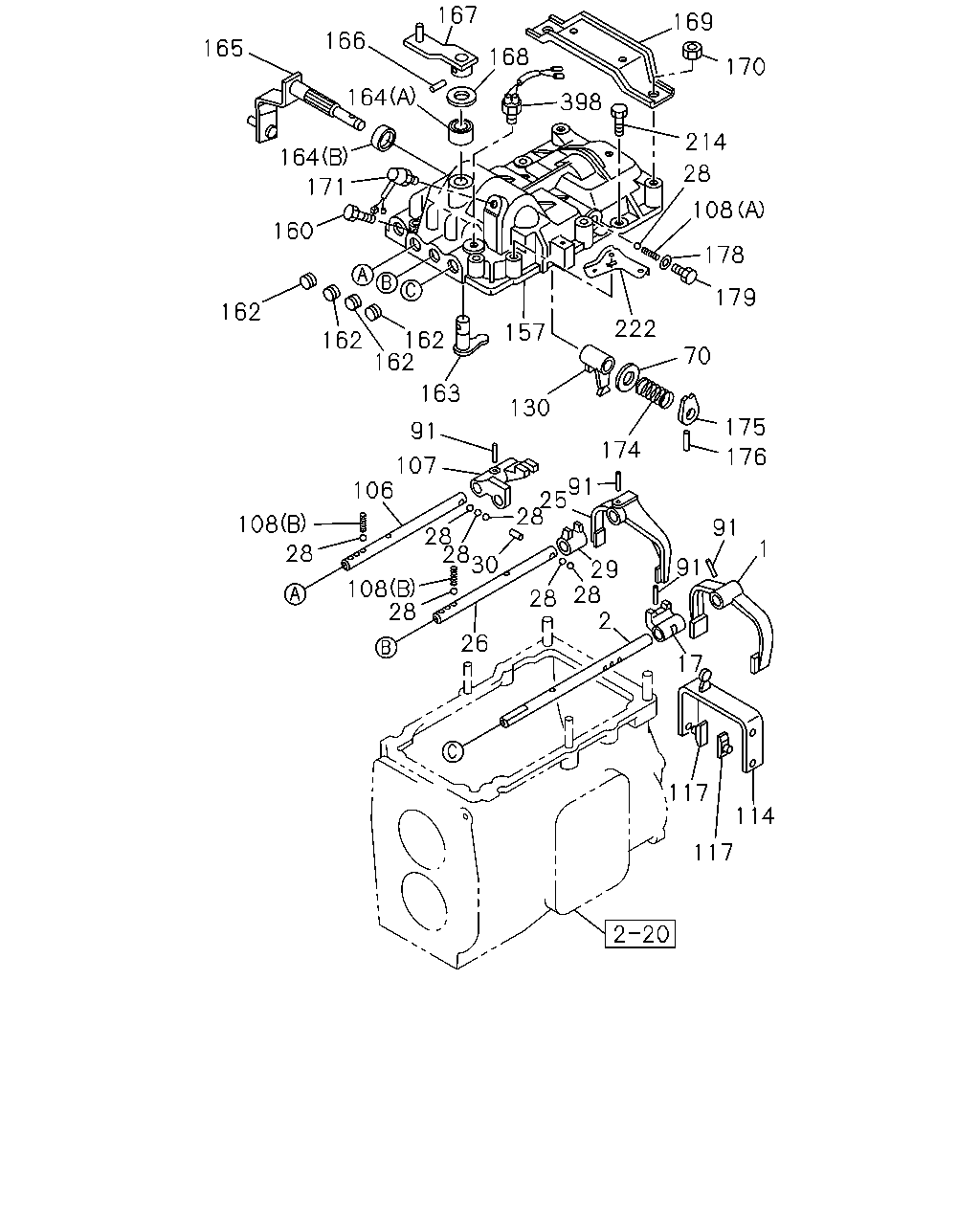

2-30 — GEAR SHIFTER AND QUADRANT BOX (#21036) — 113 parça

167 169 166 165 168 170 164 398 214 164 28 171 108 160 178 179 162 222 157 162 162 162 70 163 130 175 91 174 176 107 106 91 25 28 108 91 28 28 30 1 28 91 29 28 2 108 28 28 26 17 117 114 117

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	ARM; SHIFT,1ST & REV	8-97034-825-1	01	1	0009-	●
2	ROD; SHIFT,1ST & REV	8-97034-820-0	01	1	0009-	●
17	BLOCK; SHIFT,1ST & REV	8-97034-829-1	01	1	0009-	●
25	ARM; SHIFT,2ND & 3RD	8-97034-826-2	01	1	0009-	●
26	ROD; SHIFT,2ND & 3RD	8-97129-493-0	01	1	0009-	●
28	BALL; INTER LK	9-00097-010-0	07	1	0009-	●	●	●
29	BLOCK; SHIFT,2ND & 3RD	8-97034-830-0	01	1	0009-	●
30	PIN; INTER LK	5-33534-001-0	01	1	0009-		●	●
30	PIN; INTER LK	8-97035-041-0	01	1	0009-	●
70	WASHER; PL,SHIFT LEVER	8-94461-345-0	01	1	0009-	●
91	PIN; SPR,SHIFT ARM L=25 OD=5	8-94135-771-0	06	1	0009-		●	●
91	PIN; SPR,SHIFT ARM L=25 OD=5	8-94135-771-0	03	1	0009-	●
91	PIN; SPR,SHIFT ARM L=32	8-97011-596-2	02	1	0009-	●
106	ROD; SHIFT,OD TO TOP	8-97166-578-0	01	1	0009-	●
107	BLOCK; SHIFT,OD TO TOP	8-97034-832-0	01	1	0009-	●
108	SPRING; LOCK BALL (B) OD=6.8 L=31.6	9-09740-114-0	03	1	0009-	●	●	●
108	SPRING; LOCK BALL (A)	8-97035-053-0	01	1	0009-	●
114	ARM; SHIFT,OD TO TOP	8-97034-827-1	01	1	0009-	●
117	PIECE; SHIFT,OD TO TOP	8-94316-996-0	02	1	0009-	●
130	LEVER; SHIFT,INTERNAL	8-94105-141-2	01	1	0009-		●	●
130	LEVER; SHIFT,INTERNAL	8-94340-131-2	01	1	0009-	●
157	BOX; QUAD,TRANS EXHAUST BRAKE<NF8>	8-94340-145-0	01	1	0009-		●	●
157	BOX; QUAD,TRANS EXC. EXHAUST BRAKE<NF8>	8-94340-146-0	01	1	0009-		●	●
157	BOX; QUAD,TRANS	8-97249-547-0	01	1	0009-	●
160	PLUG; BLIND EXC. EXHAUST BRAKE<NF8> M14X9	9-99202-314-0	01	1	0009-	●
162	COVER; SHIFT ROD,QUAD BOX	8-94101-319-0	04	1	0009-	●
163	LEVER; SELECT,INTERNAL	8-94159-268-1	01	1	0009-		●	●
163	LEVER; SELECT,INTERNAL	8-97034-886-0	01	1	0009-	●
164	SEAL; OIL,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). (A) OD=27	8-94128-784-0	02	1	0009-0011		●	●
164	SEAL; OIL,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). OD=27	8-97304-068-0	02	1	0012-		●	●
164	SEAL; OIL,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). (A) OD=27	8-94128-784-0	01	1	0009-0011	●
164	SEAL; OIL,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). OD=27	8-97304-068-0	01	1	0012-	●
164	SEAL; OIL,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). (B) OD=32	8-94462-019-0	01	1	0009-0011	●
164	SEAL; OIL,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). OD=32	8-97304-066-0	01	1	0012-	●
165	LEVER; SHIFT EXHAUST BRAKE<NF8>	8-97036-221-0	01	1	0009-		●	●
165	LEVER; SHIFT EXC. EXHAUST BRAKE<NF8>	8-97035-557-0	01	1	0009-		●	●
165	LEVER; SHIFT	8-97034-816-0	01	1	0009-	●
166	PIN; SPR,SELECT LEVER L=25 OD=5	8-94135-771-0	01	1	0009-	●	●	●
167	LEVER; SELECT,EXTERNAL	8-97035-560-1	01	1	0009-		●	●
167	LEVER; SELECT,EXTERNAL	8-97035-558-1	01	1	0009-	●
168	WASHER; LK,SELECT LEVER	8-94249-250-1	01	1	0009-	●	●	●
169	BRACKET; ENG MTG TO TRANS	8-94112-892-2	02	1	0009-	●
170	NUT; CONT BOX M12 FLANGE	8-94249-242-0	04	1	0009-	●
171	SWITCH; NEUTRAL EXHAUST BRAKE<NF8>	8-97165-946-1	01	1	0009-	●	●	●
174	SPRING; REV	8-97031-927-0	01	1	0009-		●	●
174	SPRING; REV	8-97035-052-0	01	1	0009-	●
175	RING; STOPPER,SHIFT LEVER EXHAUST BRAKE<NF8>	8-94249-048-2	01	1	0009-		●	●
175	RING; STOPPER,SHIFT LEVER	8-97034-819-0	01	1	0009-	●
176	PIN; SPR,STOPPER	9-09678-549-0	02	1	0009-	●		●
176	PIN; SPR,STOPPER EXHAUST BRAKE<NF8>	9-09678-549-0	02	1	0009-		●
176	PIN; SPR,STOPPER EXC. EXHAUST BRAKE<NF8>	9-09678-549-0	01	1	0009-		●
178	GASKET; PLUG ALSO INCLUDED IN GASKET SET(M/T).	9-09571-612-0	01	1	0009-	●
179	PLUG; LOCK BALL	8-97031-668-0	01	1	0009-	●
214	BOLT; CONT BOX,SUB TRANS M8X25	8-94128-786-0	04	1	0009-	●
214	BOLT; CONT BOX,SUB TRANS M8X45	8-94132-164-0	06	1	0009-	●
222	BRACKET; CLIP	8-97061-051-0	01	1	0009-	●
398	SWITCH; REV LAMP	8-97165-947-1	01	1	0009-	●	●	●

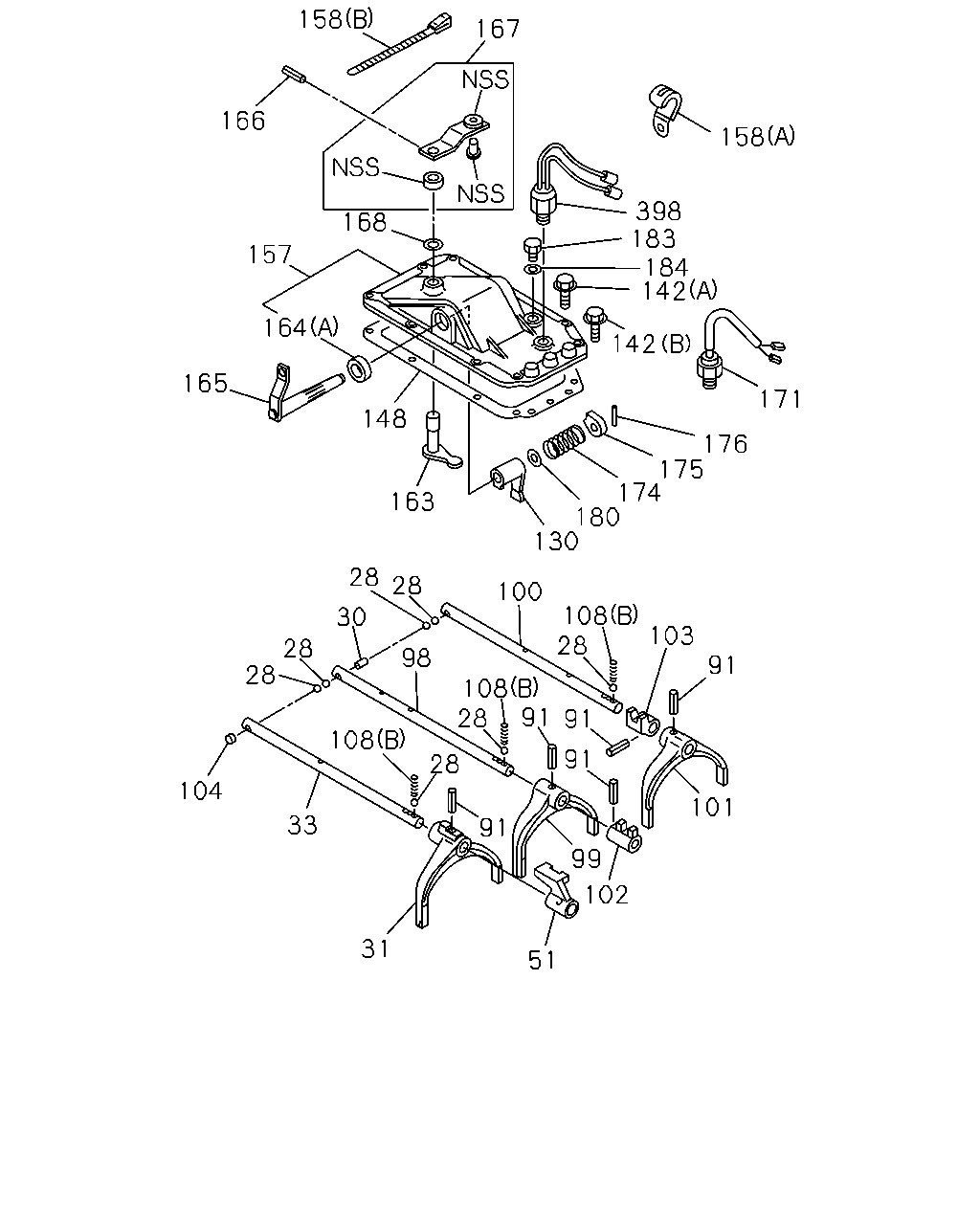

158 167 166 158 398 183 184 142 168 157 164 142 165 171 148 176 175 174 180 130 163 28 28 100 108 28 30 103 28 28 98 91 108 91 108 91 28 104 101 33 91 99 102 31 51 28 91

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
28	BALL; INTER LK	9-00097-010-0	07	1	0009-	●	●	●
30	PIN; INTER LK	5-33534-001-0	01	1	0009-		●	●
30	PIN; INTER LK	8-97035-041-0	01	1	0009-	●
31	ARM; SHIFT,LOW & 2ND	8-97011-365-1	01	1	0009-		●	●
33	ROD; SHIFT,LOW & 2ND	8-97011-370-1	01	1	0009-		●	●
51	BLOCK; SHIFT,1ST & 2ND	8-97022-837-2	01	1	0009-		●	●
91	PIN; SPR,SHIFT ARM L=25 OD=5	8-94135-771-0	06	1	0009-		●	●
91	PIN; SPR,SHIFT ARM L=25 OD=5	8-94135-771-0	03	1	0009-	●
91	PIN; SPR,SHIFT ARM L=32	8-97011-596-2	02	1	0009-	●
98	ROD; SHIFT,TOP & 3RD	8-97011-371-1	01	1	0009-		●	●
99	ARM; SHIFT,4TH & 3RD	8-97011-366-1	01	1	0009-		●	●
100	ROD; SHIFT,REV & 5TH	8-94316-923-0	01	1	0009-		●	●
101	ARM; SHIFT,REV & 5TH	8-97107-545-0	01	1	0009-		●	●
102	BLOCK; SHIFT,3RD & 4TH	8-97017-573-1	01	1	0009-		●	●
103	BLOCK; SHIFT,REV TO OD	8-94135-719-4	01	1	0009-		●	●
104	PLUG; PLATE OD=16	9-09201-316-0	01	1	0009-			●
104	PLUG; PLATE EXC. EXHAUST BRAKE<NF8> OD=16	9-09201-316-0	01	1	0009-		●
108	SPRING; LOCK BALL (B) OD=6.8 L=31.6	9-09740-114-0	03	1	0009-	●	●	●
108	SPRING; LOCK BALL (A)	8-97035-053-0	01	1	0009-	●
130	LEVER; SHIFT,INTERNAL	8-94105-141-2	01	1	0009-		●	●
130	LEVER; SHIFT,INTERNAL	8-94340-131-2	01	1	0009-	●
142	BOLT; QUAD BOX (A) M8X25	8-94128-786-0	08	1	0009-		●	●
142	BOLT; QUAD BOX (B) M8X30	8-97029-705-0	02	1	0009-		●	●
148	GASKET; QUAD BOX ALSO INCLUDED IN GASKET SET(M/T).	8-94257-162-0	01	1	0009-		●	●
157	BOX; QUAD,TRANS EXHAUST BRAKE<NF8>	8-94340-145-0	01	1	0009-		●	●
157	BOX; QUAD,TRANS EXC. EXHAUST BRAKE<NF8>	8-94340-146-0	01	1	0009-		●	●
157	BOX; QUAD,TRANS	8-97249-547-0	01	1	0009-	●
158	CLIP; HARNESS EXHAUST BRAKE<NF8> (B) L=140	5-09707-031-1	01	1	0009-		●	●
158	CLIP; HARNESS (A) ID=8.5 THA	5-09700-275-0	01	1	0009-		●	●
163	LEVER; SELECT,INTERNAL	8-94159-268-1	01	1	0009-		●	●
163	LEVER; SELECT,INTERNAL	8-97034-886-0	01	1	0009-	●
164	SEAL; OIL,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). (A) OD=27	8-94128-784-0	02	1	0009-0011		●	●
164	SEAL; OIL,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). OD=27	8-97304-068-0	02	1	0012-		●	●
164	SEAL; OIL,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). (A) OD=27	8-94128-784-0	01	1	0009-0011	●
164	SEAL; OIL,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). OD=27	8-97304-068-0	01	1	0012-	●
164	SEAL; OIL,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). (B) OD=32	8-94462-019-0	01	1	0009-0011	●
164	SEAL; OIL,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). OD=32	8-97304-066-0	01	1	0012-	●
165	LEVER; SHIFT EXHAUST BRAKE<NF8>	8-97036-221-0	01	1	0009-		●	●
165	LEVER; SHIFT EXC. EXHAUST BRAKE<NF8>	8-97035-557-0	01	1	0009-		●	●
165	LEVER; SHIFT	8-97034-816-0	01	1	0009-	●
166	PIN; SPR,SELECT LEVER L=25 OD=5	8-94135-771-0	01	1	0009-	●	●	●
167	LEVER; SELECT,EXTERNAL	8-97035-560-1	01	1	0009-		●	●
167	LEVER; SELECT,EXTERNAL	8-97035-558-1	01	1	0009-	●
168	WASHER; LK,SELECT LEVER	8-94249-250-1	01	1	0009-	●	●	●
171	SWITCH; NEUTRAL EXHAUST BRAKE<NF8>	8-97165-946-1	01	1	0009-	●	●	●
174	SPRING; REV	8-97031-927-0	01	1	0009-		●	●
174	SPRING; REV	8-97035-052-0	01	1	0009-	●
175	RING; STOPPER,SHIFT LEVER EXHAUST BRAKE<NF8>	8-94249-048-2	01	1	0009-		●	●
175	RING; STOPPER,SHIFT LEVER	8-97034-819-0	01	1	0009-	●
176	PIN; SPR,STOPPER	9-09678-549-0	02	1	0009-	●		●
176	PIN; SPR,STOPPER EXHAUST BRAKE<NF8>	9-09678-549-0	02	1	0009-		●
176	PIN; SPR,STOPPER EXC. EXHAUST BRAKE<NF8>	9-09678-549-0	01	1	0009-		●
180	WASHER; REV STOP SPRING	8-94249-244-0	01	1	0009-		●	●
183	PLUG; SCREW,OIL FILTER M18	8-94337-946-1	01	1	0009-		●	●
184	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=15.3	8-94336-511-0	01	1	0009-		●	●
398	SWITCH; REV LAMP	8-97165-947-1	01	1	0009-	●	●	●
