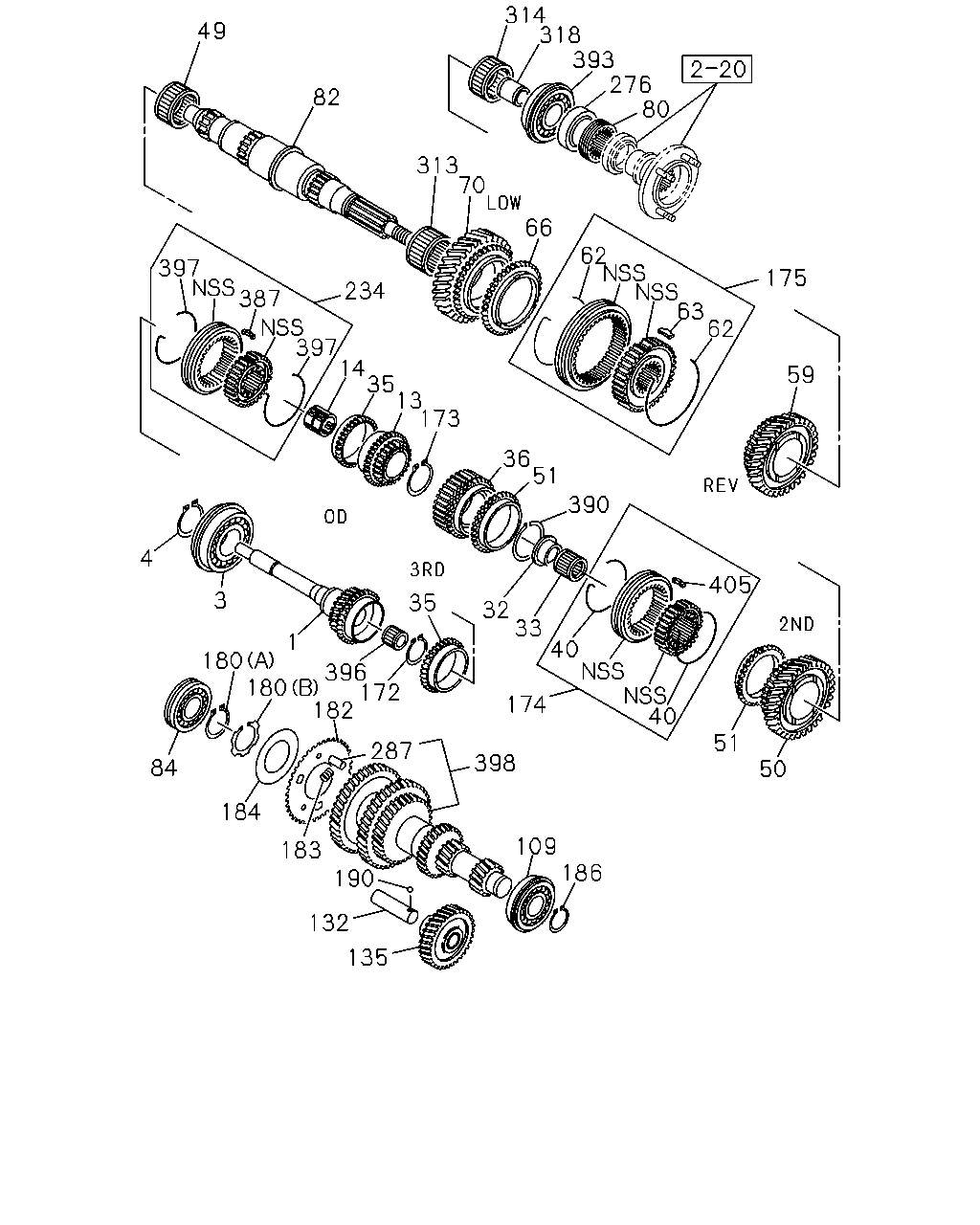

2-26 — MANUAL TRANSMISSION GEAR (#21035) — 207 parça

314 318 393 276 80 49 82 313 70 66 62 63 62 397 387 175 234 397 14 35 13 173 59 36 51 390 4 405 3 35 32 33 40 40 1 180 396 180 172 182 174 51 287 398 84 50 184 109 186 183 190 132 135

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	SHAFT; TOP GEAR,TRANS Z=30	8-97103-632-0	01	1	0009-	●
1	SHAFT; TOP GEAR,TRANS Z=28	8-97091-558-1	01	1	0009-		●
1	SHAFT; TOP GEAR,TRANS Z=29	8-97168-980-0	01	1	0009-			●
3	BEARING; TOP GEAR SHAFT NSK	8-94178-732-1	01	1	0009-	●	●
3	BEARING; TOP GEAR SHAFT KOYO	8-94462-615-0	01	1	0009-	●	●
3	BEARING; TOP GEAR SHAFT	8-97035-047-0	01	1	0009-			●
4	RING; SNAP,BRG TO TOP GEAR SHAFT ID=37.0	9-09180-040-0	01	1	0009-	●	●
4	RING; SNAP,BRG TO TOP GEAR SHAFT	8-97035-040-0	01	1	0009-			●
13	GEAR; 5TH,MAINSHAFT Z=25	8-97206-015-0	01	1	0009-	●
13	GEAR; 5TH,MAINSHAFT Z=24	8-97206-007-0	01	1	0009-		●
13	GEAR; 5TH,MAINSHAFT Z=23	8-97034-856-0	01	1	0009-			●
14	BEARING; NEEDLE,5TH	8-97147-572-0	01	1	0009-			●
32	COLLAR; 3RD GEAR	8-94178-500-2	01	1	0009-			●
33	BEARING; NEEDLE,3RD GEAR	8-94317-158-0	01	1	0009-	●	●
33	BEARING; NEEDLE,3RD GEAR NTN	8-97201-005-0	01	1	0009-			●
33	BEARING; NEEDLE,3RD GEAR NSK	9-00096-638-0	01	1	0009-			●
35	RING; BLOCK,4TH & 3RD Z=36	8-94128-775-2	02	1	0009-	●	●	●
36	GEAR; 3RD,MAINSHAFT Z=33	8-94316-761-2	01	1	0009-0203	●
36	GEAR; 3RD,MAINSHAFT Z=33	8-97324-853-0	01	1	0204-	●
36	GEAR; 3RD,MAINSHAFT Z=31	8-94316-760-2	01	1	0009-		●
36	GEAR; 3RD,MAINSHAFT Z=38	8-97208-021-0	01	1	0009-			●
40	SPRING; INSERT,LOW & 2ND	8-97023-708-0	02	1	0009-	●	●	●
49	BEARING; NEEDLE,2ND GEAR NSK	5-09811-014-0	01	1	0009-	●	●
49	BEARING; NEEDLE,2ND GEAR NTN	8-97201-005-0	01	1	0009-			●
49	BEARING; NEEDLE,2ND GEAR NSK	9-00096-638-0	01	1	0009-			●
50	GEAR; 2ND,MAINSHAFT Z=36	8-94316-766-3	01	1	0009-	●
50	GEAR; 2ND,MAINSHAFT Z=34	8-94316-764-3	01	1	0009-		●
50	GEAR; 2ND,MAINSHAFT Z=37	8-97209-747-0	01	1	0009-			●
51	RING; BLOCK,LOW & 2ND Z=30	8-97074-619-3	02	1	0009-	●	●	●
59	GEAR; REV MAINSHAFT Z=41	8-97206-006-0	01	1	0009-	●	●
59	GEAR; REV MAINSHAFT Z=40	8-94317-146-2	01	1	0009-			●
62	SPRING; INSERT,REV & 5TH	8-97023-710-0	02	1	0009-	●	●
62	SPRING; INSERT,REV & 5TH	8-97023-709-0	02	1	0009-			●
63	INSERT; SYN,REV & 5TH	9-33263-613-0	03	1	0009-	●	●	●
66	RING; BLOCK,SYN Z=36	8-94128-775-2	01	1	0009-	●	●
66	RING; BLOCK,SYN Z=45	8-97061-752-0	01	1	0009-			●
70	GEAR; 1ST,MAINSHAFT Z=43	8-97014-033-3	01	1	0009-	●
70	GEAR; 1ST,MAINSHAFT Z=43	8-94316-768-4	01	1	0009-		●
70	GEAR; 1ST,MAINSHAFT Z=44	8-97209-749-0	01	1	0009-			●
80	GEAR; SPD DRIVE Z=4	8-97207-146-0	01	1	0009-	●	●
80	GEAR; SPD DRIVE Z=4	8-97011-348-0	01	1	0009-			●
82	SHAFT; MAIN,TRANS Z=27-40-37-27	8-97207-119-0	01	1	0009-	●	●
82	SHAFT; MAIN,TRANS Z=27-40-40-28	8-97034-847-2	01	1	0009-			●
84	BEARING; COUNTER SHAFT,FRT NSK	5-09800-062-1	01	1	0009-	●	●
84	BEARING; COUNTER SHAFT,FRT NSK	8-97035-048-0	01	1	0009-			●
109	BEARING; COUNTER SHAFT,RR	8-97095-913-0	01	1	0009-	●	●
109	BEARING; COUNTER SHAFT,RR	8-97035-049-0	01	1	0009-			●
132	SHAFT; REV	9-33351-604-1	01	1	0009-	●	●
132	SHAFT; REV	8-94415-162-1	01	1	0009-			●
135	GEAR; REV IDLER Z=29	8-97081-539-3	01	1	0009-	●	●
135	GEAR; REV IDLER Z=27	5-33361-042-2	01	1	0009-			●
172	RING; SNAP,CLU HUB T=1.75	8-94402-405-0	01	1	0009-	●	●	●
172	RING; SNAP,CLU HUB T=1.80	8-94402-406-0	01	1	0009-	●	●	●
172	RING; SNAP,CLU HUB T=1.85	8-94402-407-0	01	1	0009-	●	●	●
173	RING; SNAP,OVERDRIVE GEAR T=1.85	8-94151-522-0	01	1	0009-	●	●	●
173	RING; SNAP,OVERDRIVE GEAR T=1.90	8-94151-523-0	01	1	0009-	●	●	●
173	RING; SNAP,OVERDRIVE GEAR T=1.95	8-94151-524-0	01	1	0009-	●	●	●
173	RING; SNAP,OVERDRIVE GEAR T=2.00	8-94157-747-0	01	1	0009-	●	●	●
174	SYNCHRONIZER ASM; 2ND-3RD	8-97190-992-0	01	1	0009-			●
175	SYNCHRONIZER; LOW-REV	8-97091-434-0	01	1	0009-			●
180	RING; SNAP,CLUSTER GEAR (B) ID=38.5	8-94146-483-0	01	1	0009-	●	●
180	RING; SNAP,CLUSTER GEAR (A) ID=32.2	9-09180-035-0	01	1	0009-	●	●	●
180	RING; SNAP,CLUSTER GEAR (B) ID=44.5	5-09589-010-0	01	1	0009-			●
182	PLATE; CLUSTER GEAR	8-97095-984-0	01	1	0009-	●
182	PLATE; CLUSTER GEAR	8-94129-632-1	01	1	0009-		●
182	PLATE; CLUSTER GEAR	8-94131-924-1	01	1	0009-			●
183	SPRING; PLATE,CLUSTER GEAR	8-94132-168-0	03	1	0009-	●	●
183	SPRING; PLATE,CLUSTER GEAR	8-94148-196-0	03	1	0009-			●
184	SPRING; CLUSTER GEAR	8-94128-790-1	01	1	0009-	●	●
184	SPRING; CLUSTER GEAR	8-94101-320-0	01	1	0009-			●
186	RING; SNAP,CLUSTER GEAR ID=29.6	9-09180-032-0	01	1	0009-	●	●
186	RING; SNAP,CLUSTER GEAR ID=32.2	9-09180-035-0	01	1	0009-			●
190	BALL; LK,REV SHAFT	9-00097-509-0	01	1	0009-			●
234	SYNCHRONIZER ASM; 4TH TO 5TH	8-97034-841-1	01	1	0009-			●
276	SPACER; BRG TO DRIVE GEAR	8-97207-175-0	01	1	0009-	●	●
276	SPACER; BRG TO DRIVE GEAR	8-97034-876-0	01	1	0009-			●
287	PIN; COUNTER GEAR	8-94402-462-0	01	1	0009-	●	●
287	PIN; COUNTER GEAR	8-94402-462-0	03	1	0009-			●
313	BEARING; NEEDLE,LOW GEAR NSK	8-94317-161-0	01	1	0009-	●	●
313	BEARING; NEEDLE,LOW GEAR KOYO	8-97010-547-0	01	1	0009-	●	●
313	BEARING; NEEDLE,LOW GEAR NTN	8-97201-005-0	01	1	0009-			●
313	BEARING; NEEDLE,LOW GEAR NSK	9-00096-638-0	01	1	0009-			●
314	BEARING; NEEDLE,REV GEAR NTN	8-97207-174-0	01	1	0009-	●	●
314	BEARING; NEEDLE,REV GEAR NTN	8-97201-005-0	01	1	0009-			●
314	BEARING; NEEDLE,REV GEAR NSK	9-00096-638-0	01	1	0009-			●
318	COLLAR; DIST,REV GEAR	8-97076-908-0	01	1	0009-			●
387	INSERT; SYN,4TH & 3RD	5-33263-001-0	03	1	0009-	●	●	●
390	RING; SNAP,CLU HUB T=1.75	8-94151-520-0	01	1	0009-	●	●
390	RING; SNAP,CLU HUB T=1.80	8-94151-521-0	01	1	0009-	●	●
390	RING; SNAP,CLU HUB T=1.85	8-94151-522-0	01	1	0009-	●	●
393	BEARING; MAINSHAFT END	8-97207-512-0	01	1	0009-	●	●
393	BEARING; MAINSHAFT END	8-94178-731-0	01	1	0009-			●
396	BEARING; NEEDLE,MAINSHAFT	8-97161-658-0	01	1	0009-	●	●
396	BEARING; NEEDLE,MAINSHAFT	8-97228-274-0	01	1	0009-			●
397	SPRING; INSERT,4TH & 3RD	8-97023-710-0	02	1	0009-	●	●	●
398	GEAR; COUNTER EXC. EXHAUST BRAKE<NF8> Z=49-34-22-14	8-97324-857-0	01	1	0204-	●
398	GEAR; COUNTER Z=49-34-22-14	8-97191-207-0	01	1	0009-0203	●
398	GEAR; COUNTER EXHAUST BRAKE<NF8> Z=49-34-22-14	8-97333-915-0	01	1	0204-	●
398	GEAR; COUNTER Z=51-34-22-14	8-97029-335-0	01	1	0009-		●
398	GEAR; COUNTER Z=45-49-35-19-13-13	8-97209-744-0	01	1	0009-			●
405	INSERT; SYN,LOW & 2ND	5-33263-001-0	03	1	0009-	●	●	●

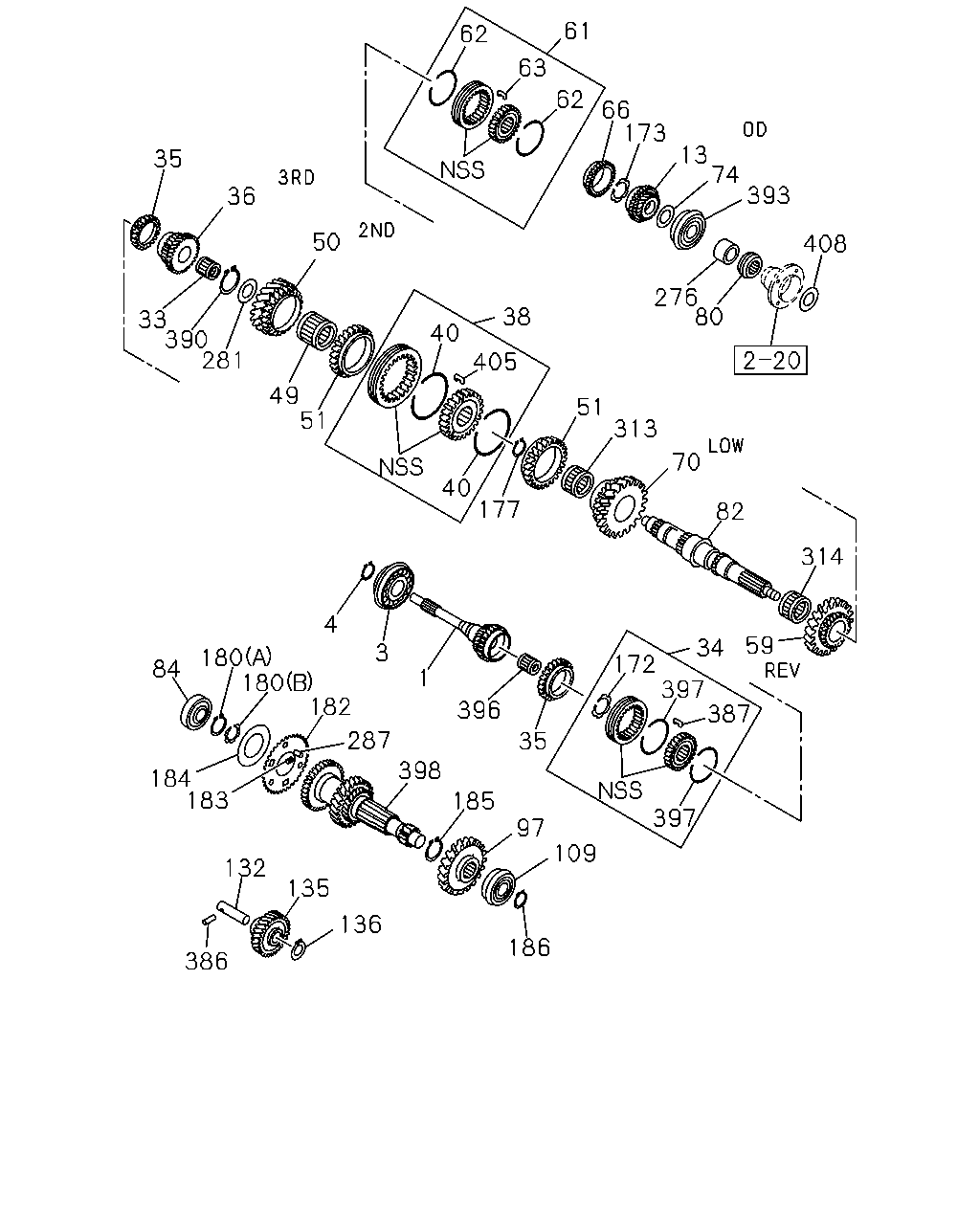

61 62 63 62 66 173 13 74 393 35 36 50 408 276 80 38 33 390 281 40 405 49 51 51 313 70 40 177 82 314 4 59 34 3 180 180 182 172 397 387 84 1 396 287 35 398 184 183 397 185 97 109 132 135 136 186 386

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	SHAFT; TOP GEAR,TRANS Z=30	8-97103-632-0	01	1	0009-	●
1	SHAFT; TOP GEAR,TRANS Z=28	8-97091-558-1	01	1	0009-		●
1	SHAFT; TOP GEAR,TRANS Z=29	8-97168-980-0	01	1	0009-			●
3	BEARING; TOP GEAR SHAFT NSK	8-94178-732-1	01	1	0009-	●	●
3	BEARING; TOP GEAR SHAFT KOYO	8-94462-615-0	01	1	0009-	●	●
3	BEARING; TOP GEAR SHAFT	8-97035-047-0	01	1	0009-			●
4	RING; SNAP,BRG TO TOP GEAR SHAFT ID=37.0	9-09180-040-0	01	1	0009-	●	●
4	RING; SNAP,BRG TO TOP GEAR SHAFT	8-97035-040-0	01	1	0009-			●
13	GEAR; 5TH,MAINSHAFT Z=25	8-97206-015-0	01	1	0009-	●
13	GEAR; 5TH,MAINSHAFT Z=24	8-97206-007-0	01	1	0009-		●
13	GEAR; 5TH,MAINSHAFT Z=23	8-97034-856-0	01	1	0009-			●
33	BEARING; NEEDLE,3RD GEAR	8-94317-158-0	01	1	0009-	●	●
33	BEARING; NEEDLE,3RD GEAR NTN	8-97201-005-0	01	1	0009-			●
33	BEARING; NEEDLE,3RD GEAR NSK	9-00096-638-0	01	1	0009-			●
34	SYNCHRONIZER; 4TH & 3RD	8-97048-745-2	01	1	0009-	●	●
35	RING; BLOCK,4TH & 3RD Z=36	8-94128-775-2	02	1	0009-	●	●	●
36	GEAR; 3RD,MAINSHAFT Z=33	8-94316-761-2	01	1	0009-0203	●
36	GEAR; 3RD,MAINSHAFT Z=33	8-97324-853-0	01	1	0204-	●
36	GEAR; 3RD,MAINSHAFT Z=31	8-94316-760-2	01	1	0009-		●
36	GEAR; 3RD,MAINSHAFT Z=38	8-97208-021-0	01	1	0009-			●
38	SYNCHRONIZER; LOW & 2ND	8-97048-748-0	01	1	0009-	●	●
40	SPRING; INSERT,LOW & 2ND	8-97023-708-0	02	1	0009-	●	●	●
49	BEARING; NEEDLE,2ND GEAR NSK	5-09811-014-0	01	1	0009-	●	●
49	BEARING; NEEDLE,2ND GEAR NTN	8-97201-005-0	01	1	0009-			●
49	BEARING; NEEDLE,2ND GEAR NSK	9-00096-638-0	01	1	0009-			●
50	GEAR; 2ND,MAINSHAFT Z=36	8-94316-766-3	01	1	0009-	●
50	GEAR; 2ND,MAINSHAFT Z=34	8-94316-764-3	01	1	0009-		●
50	GEAR; 2ND,MAINSHAFT Z=37	8-97209-747-0	01	1	0009-			●
51	RING; BLOCK,LOW & 2ND Z=30	8-97074-619-3	02	1	0009-	●	●	●
59	GEAR; REV MAINSHAFT Z=41	8-97206-006-0	01	1	0009-	●	●
59	GEAR; REV MAINSHAFT Z=40	8-94317-146-2	01	1	0009-			●
61	SYNCHRONIZER; REV & 5TH	8-97206-010-0	01	1	0009-	●	●
62	SPRING; INSERT,REV & 5TH	8-97023-710-0	02	1	0009-	●	●
62	SPRING; INSERT,REV & 5TH	8-97023-709-0	02	1	0009-			●
63	INSERT; SYN,REV & 5TH	9-33263-613-0	03	1	0009-	●	●	●
66	RING; BLOCK,SYN Z=36	8-94128-775-2	01	1	0009-	●	●
66	RING; BLOCK,SYN Z=45	8-97061-752-0	01	1	0009-			●
70	GEAR; 1ST,MAINSHAFT Z=43	8-97014-033-3	01	1	0009-	●
70	GEAR; 1ST,MAINSHAFT Z=43	8-94316-768-4	01	1	0009-		●
70	GEAR; 1ST,MAINSHAFT Z=44	8-97209-749-0	01	1	0009-			●
74	WASHER; THRUST,REV GEAR	8-97207-176-0	01	1	0009-	●	●
80	GEAR; SPD DRIVE Z=4	8-97207-146-0	01	1	0009-	●	●
80	GEAR; SPD DRIVE Z=4	8-97011-348-0	01	1	0009-			●
82	SHAFT; MAIN,TRANS Z=27-40-37-27	8-97207-119-0	01	1	0009-	●	●
82	SHAFT; MAIN,TRANS Z=27-40-40-28	8-97034-847-2	01	1	0009-			●
84	BEARING; COUNTER SHAFT,FRT NSK	5-09800-062-1	01	1	0009-	●	●
84	BEARING; COUNTER SHAFT,FRT NSK	8-97035-048-0	01	1	0009-			●
97	GEAR; 5TH,COUNTER Z=53	8-97077-341-1	01	1	0009-	●
97	GEAR; 5TH,COUNTER Z=55	8-94316-786-1	01	1	0009-		●
109	BEARING; COUNTER SHAFT,RR	8-97095-913-0	01	1	0009-	●	●
109	BEARING; COUNTER SHAFT,RR	8-97035-049-0	01	1	0009-			●
132	SHAFT; REV	9-33351-604-1	01	1	0009-	●	●
132	SHAFT; REV	8-94415-162-1	01	1	0009-			●
135	GEAR; REV IDLER Z=29	8-97081-539-3	01	1	0009-	●	●
135	GEAR; REV IDLER Z=27	5-33361-042-2	01	1	0009-			●
136	WASHER; THRUST,REV IDLE,RR	8-97081-579-2	01	1	0009-	●	●
172	RING; SNAP,CLU HUB T=1.75	8-94402-405-0	01	1	0009-	●	●	●
172	RING; SNAP,CLU HUB T=1.80	8-94402-406-0	01	1	0009-	●	●	●
172	RING; SNAP,CLU HUB T=1.85	8-94402-407-0	01	1	0009-	●	●	●
173	RING; SNAP,OVERDRIVE GEAR T=1.85	8-94151-522-0	01	1	0009-	●	●	●
173	RING; SNAP,OVERDRIVE GEAR T=1.90	8-94151-523-0	01	1	0009-	●	●	●
173	RING; SNAP,OVERDRIVE GEAR T=1.95	8-94151-524-0	01	1	0009-	●	●	●
173	RING; SNAP,OVERDRIVE GEAR T=2.00	8-94157-747-0	01	1	0009-	●	●	●
177	RING; SNAP,CLU HUB ID=44.5	5-09589-010-0	01	1	0009-	●	●
180	RING; SNAP,CLUSTER GEAR (B) ID=38.5	8-94146-483-0	01	1	0009-	●	●
180	RING; SNAP,CLUSTER GEAR (A) ID=32.2	9-09180-035-0	01	1	0009-	●	●	●
180	RING; SNAP,CLUSTER GEAR (B) ID=44.5	5-09589-010-0	01	1	0009-			●
182	PLATE; CLUSTER GEAR	8-97095-984-0	01	1	0009-	●
182	PLATE; CLUSTER GEAR	8-94129-632-1	01	1	0009-		●
182	PLATE; CLUSTER GEAR	8-94131-924-1	01	1	0009-			●
183	SPRING; PLATE,CLUSTER GEAR	8-94132-168-0	03	1	0009-	●	●
183	SPRING; PLATE,CLUSTER GEAR	8-94148-196-0	03	1	0009-			●
184	SPRING; CLUSTER GEAR	8-94128-790-1	01	1	0009-	●	●
184	SPRING; CLUSTER GEAR	8-94101-320-0	01	1	0009-			●
185	RING; SNAP,CLUSTER GEAR ID=41.5	9-09180-045-0	01	1	0009-	●	●
186	RING; SNAP,CLUSTER GEAR ID=29.6	9-09180-032-0	01	1	0009-	●	●
186	RING; SNAP,CLUSTER GEAR ID=32.2	9-09180-035-0	01	1	0009-			●
276	SPACER; BRG TO DRIVE GEAR	8-97207-175-0	01	1	0009-	●	●
276	SPACER; BRG TO DRIVE GEAR	8-97034-876-0	01	1	0009-			●
281	WASHER; THRUST,MAINSHAFT	5-33271-007-0	01	1	0009-	●	●
287	PIN; COUNTER GEAR	8-94402-462-0	01	1	0009-	●	●
287	PIN; COUNTER GEAR	8-94402-462-0	03	1	0009-			●
313	BEARING; NEEDLE,LOW GEAR NSK	8-94317-161-0	01	1	0009-	●	●
313	BEARING; NEEDLE,LOW GEAR KOYO	8-97010-547-0	01	1	0009-	●	●
313	BEARING; NEEDLE,LOW GEAR NTN	8-97201-005-0	01	1	0009-			●
313	BEARING; NEEDLE,LOW GEAR NSK	9-00096-638-0	01	1	0009-			●
314	BEARING; NEEDLE,REV GEAR NTN	8-97207-174-0	01	1	0009-	●	●
314	BEARING; NEEDLE,REV GEAR NTN	8-97201-005-0	01	1	0009-			●
314	BEARING; NEEDLE,REV GEAR NSK	9-00096-638-0	01	1	0009-			●
386	PIN; REV SHAFT	8-94128-794-0	01	1	0009-	●	●
387	INSERT; SYN,4TH & 3RD	5-33263-001-0	03	1	0009-	●	●	●
390	RING; SNAP,CLU HUB T=1.75	8-94151-520-0	01	1	0009-	●	●
390	RING; SNAP,CLU HUB T=1.80	8-94151-521-0	01	1	0009-	●	●
390	RING; SNAP,CLU HUB T=1.85	8-94151-522-0	01	1	0009-	●	●
393	BEARING; MAINSHAFT END	8-97207-512-0	01	1	0009-	●	●
393	BEARING; MAINSHAFT END	8-94178-731-0	01	1	0009-			●
396	BEARING; NEEDLE,MAINSHAFT	8-97161-658-0	01	1	0009-	●	●
396	BEARING; NEEDLE,MAINSHAFT	8-97228-274-0	01	1	0009-			●
397	SPRING; INSERT,4TH & 3RD	8-97023-710-0	02	1	0009-	●	●	●
398	GEAR; COUNTER EXC. EXHAUST BRAKE<NF8> Z=49-34-22-14	8-97324-857-0	01	1	0204-	●
398	GEAR; COUNTER Z=49-34-22-14	8-97191-207-0	01	1	0009-0203	●
398	GEAR; COUNTER EXHAUST BRAKE<NF8> Z=49-34-22-14	8-97333-915-0	01	1	0204-	●
398	GEAR; COUNTER Z=51-34-22-14	8-97029-335-0	01	1	0009-		●
398	GEAR; COUNTER Z=45-49-35-19-13-13	8-97209-744-0	01	1	0009-			●
405	INSERT; SYN,LOW & 2ND	5-33263-001-0	03	1	0009-	●	●	●
408	SPRING	8-97081-577-0	01	1	0009-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.

Isuzu EPC — test · veri: yerel (eski sürüm)
