◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NKR ▶ 50814 - NKR(THAILAND) ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-20 - MANUAL TRANSMISSION ASM AND CASE ▶
2-20 — MANUAL TRANSMISSION ASM AND CASE (#21033) — 71 parça

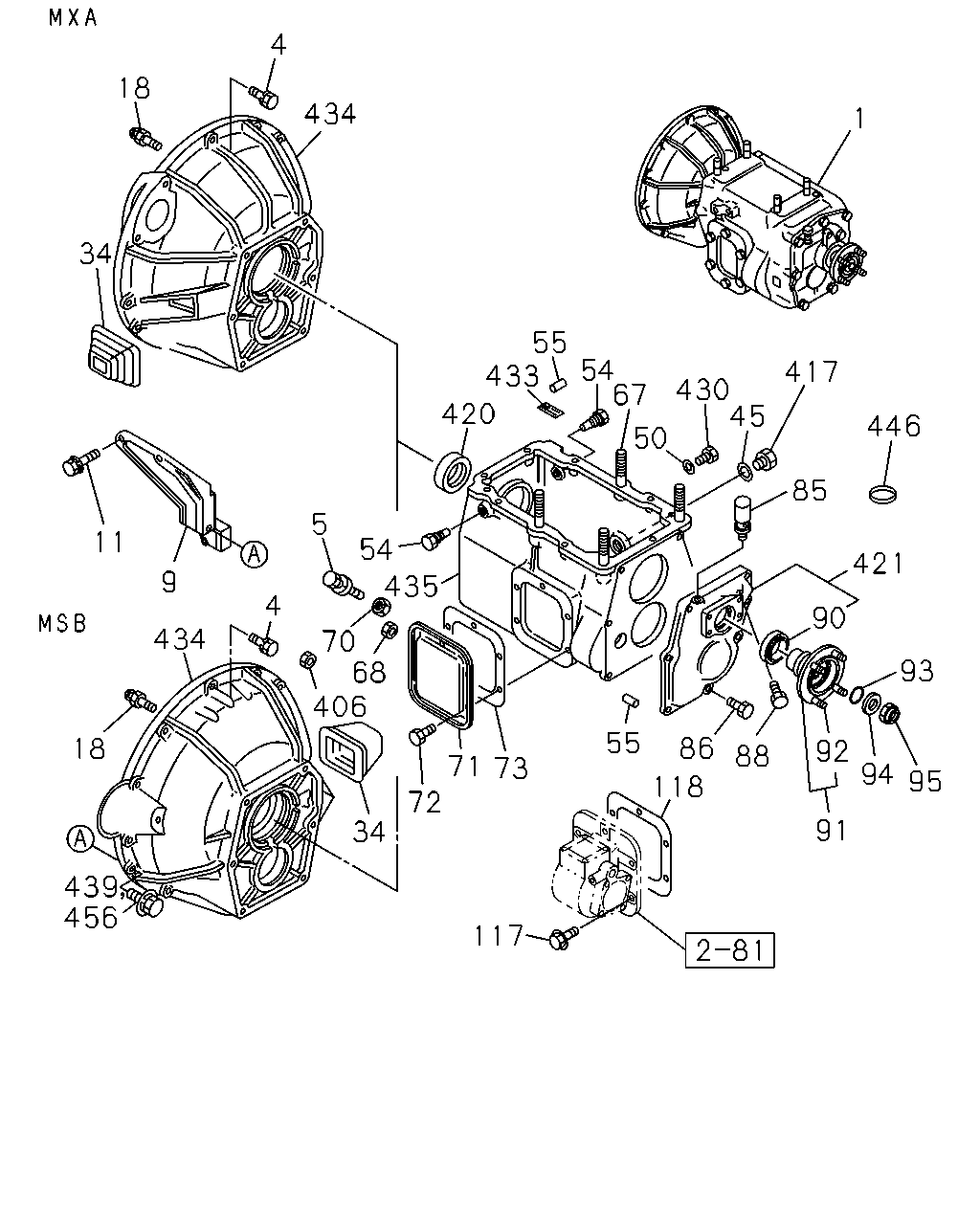

çizim 11052
4 18 434 1 34 55 433 54 67 417 430 45 420 446 50 85 5 11 54 421 9 435 4 90 434 70 68 406 93 55 86 18 92 88 71 72 73 94 95 118 91 34 439 456 117
BalonParca AdiParca NoAdetTipApplied Date A B C
1 TRANSMISSION ASM; MANUAL
EXHAUST BRAKE<NF8> 		8-97204-444-1 01 1 0009- ●
1 TRANSMISSION ASM; MANUAL
EXC. EXHAUST BRAKE<NF8> 		8-97186-635-2 01 1 0009- ●
1 TRANSMISSION ASM; MANUAL
EXHAUST BRAKE<NF8> 		8-97161-660-1 01 1 0009- ●
1 TRANSMISSION ASM; MANUAL
EXC. EXHAUST BRAKE<NF8> 		8-97161-672-1 01 1 0009- ●
1 TRANSMISSION ASM; MANUAL
EXHAUST BRAKE<NF8> 		8-97209-739-1 01 1 0009- ●
1 TRANSMISSION ASM; MANUAL
EXC. EXHAUST BRAKE<NF8> 		8-97209-741-1 01 1 0009- ●
4 BOLT; FLYWHEEL HSG
M10X35 FLANGE 		0-28081-035-0 02 1 0009- ● ●
4 BOLT; FLYWHEEL HSG
M10X40 FLANGE 		0-28081-040-0 01 1 0009- ● ●
4 BOLT; FLYWHEEL HSG
PTO TRANSMISSION SIDE<V66> M10X35 FLANGE 		0-28181-035-0 02 1 0009- ●
4 BOLT; FLYWHEEL HSG
M10X35 FLANGE 		0-28181-035-0 03 1 0009- ●
4 BOLT; FLYWHEEL HSG
M10X50 FLANGE 		0-28181-050-0 02 1 0009- ●
4 BOLT; FLYWHEEL HSG
PTO TRANSMISSION SIDE<V66> M10X30 FLANGE 		0-28181-030-0 02 1 0009- ●
4 BOLT; FLYWHEEL HSG
M10X30 FLANGE 		0-28181-030-0 02 1 0009- ●
5 BOLT; REAR PLATE
M10X35 FLANGE 		0-28081-035-0 01 1 0009- ● ●
9 STIFFENER; C/BL 8-97074-108-3 01 1 0009- ● ●
9 STIFFENER; C/BL 8-97084-390-2 01 1 0009- ● ●
11 BOLT; BRKT
M8X12 FLANGE 		0-28080-812-0 02 1 0009- ● ●
18 SUPPORT; DRAW LEVER
L=47.5 		8-97225-469-1 01 1 0009- ● ● ●
34 COVER; DUST,SHIFT FORK 8-97034-880-0 01 1 0009- ● ●
34 COVER; DUST,SHIFT FORK 8-97017-333-0 01 1 0009- ●
45 GASKET; FILLER PLUG
ALSO INCLUDED IN GASKET SET(M/T). ID=15.3 		8-94336-511-0 01 1 0009- ●
50 GASKET; DRAIN PLUG
ALSO INCLUDED IN GASKET SET(M/T). ID=15.3 		8-94336-511-0 01 1 0009- ● ● ●
54 BOLT; FULCRUM 8-97171-503-0 02 1 0009- ●
55 PIN; KNOCK,CASE,TRANS 9-08161-016-0 02 1 0009- ●
67 STUD; CASE TRANS 9-09631-004-0 06 1 0009- ● ●
67 STUD; CASE TRANS 5-09302-011-0 04 1 0009- ●
68 NUT; REAR PLATE
M10 FLANGE 		0-91150-110-0 01 1 0009- ● ●
70 NUT; REAMER BOLT
M10 FLANGE 		0-91150-110-0 01 1 0009- ● ●
71 COVER; SIDE,TRANS CASE 9-33141-601-2 01 1 0009- ● ● ●
72 BOLT; SIDE COVER
EXHAUST BRAKE<NF8> M10X20 FLANGE 		0-28081-020-0 06 1 0009- ●
72 BOLT; SIDE COVER
M10X12 FLANGE 		8-94128-791-0 06 1 0009- ● ●
72 BOLT; SIDE COVER
EXC. EXHAUST BRAKE<NF8> M10X12 FLANGE 		8-94128-791-0 06 1 0009- ●
73 GASKET; SIDE COVER TO TRANS CASE
ALSO INCLUDED IN GASKET SET(M/T). 		9-33142-601-0 01 1 0009- ● ● ●
85 BREATHER; RR COVER 8-97165-939-0 01 1 0009- ● ● ●
86 BOLT; RR COVER
M8X25 		8-94128-786-0 07 1 0009- ● ●
86 BOLT; RR COVER
M10X50 		8-94318-782-0 01 1 0009- ●
86 BOLT; RR COVER
M10X30 FLANGE 		8-94482-338-0 06 1 0009- ●
88 SCREW; SPEEDOMETER BUSHING
M8X12 		8-94128-785-0 01 1 0009- ● ● ●
90 SEAL; OIL,RR COVER
ALSO INCLUDED IN GASKET SET(M/T). NOK 		8-97074-651-0 01 1 0009-0009 ● ● ●
90 SEAL; OIL,RR COVER
ALSO INCLUDED IN GASKET SET(M/T). NOK 		8-97257-296-0 01 1 0009- ● ● ●
91 DRIVER; COUPLING 8-97212-108-0 01 1 0009- ●
91 DRIVER; COUPLING 8-97207-215-0 01 1 0009- ● ●
92 BOLT; COUPLING DRIVER
M10X33 		8-97109-696-1 04 1 0009- ● ●
92 BOLT; COUPLING DRIVER 8-97109-697-1 04 1 0009- ●
93 GASKET; COUPLING DRIVER
ALSO INCLUDED IN GASKET SET(M/T). 		8-94178-725-0 01 1 0009- ● ● ●
94 WASHER; COUPLING DRIVER 8-94249-240-0 01 1 0009- ● ● ●
95 NUT; MAINSHAFT
M24 FLANGE 		8-97087-750-0 01 1 0009- ● ● ●
117 BOLT; PTO FIX
PTO TRANSMISSION SIDE<V66> M10X30 FLANGE 		0-28081-030-0 02 1 0009-0302 ● ●
117 BOLT; PTO FIX
PTO TRANSMISSION SIDE<V66> M10X30 W/LK WASHER 		0-50041-030-0 02 1 0303- ● ●
117 BOLT; PTO FIX
PTO TRANSMISSION SIDE<V66> M10X25 W/LK WASHER 		0-50041-025-0 04 1 0009- ● ●
118 GASKET; PTO TO TRANS
ALSO INCLUDED IN GASKET SET(M/T). PTO TRANSMISSION SIDE<V66> 		9-38113-603-0 01 1 0009- ● ●
406 NUT; BRKT
PTO TRANSMISSION SIDE<V66> M8 FLANGE 		0-91150-108-0 01 1 0009- ● ●
417 PLUG; OIL FILLER,TRANS
M18 		8-94337-946-1 01 1 0009- ●
420 SEAL; OIL,FRT COVER,T/M
ALSO INCLUDED IN GASKET SET(M/T). NOK 		8-94326-441-0 01 1 0009- ● ●
420 SEAL; OIL,FRT COVER,T/M
ALSO INCLUDED IN GASKET SET(M/T). NOK 		8-97017-350-0 01 1 0009- ●
421 COVER; RR,TRANS 8-97112-986-2 01 1 0009- ● ●
421 COVER; RR,TRANS 8-97034-809-0 01 1 0009-0009 ●
421 COVER; RR,TRANS 8-97249-001-1 01 1 0009- ●
430 PLUG; OIL DRAIN 8-94336-512-1 01 1 0009- ● ● ●
433 LABEL; TRANS 8-97076-909-0 01 1 0009- ●
433 LABEL; TRANS 8-97084-051-0 01 1 0009- ●
434 HOUSING; CLU 8-97034-879-2 01 1 0009- ● ●
434 HOUSING; CLU 8-97034-801-2 01 1 0009- ●
435 CASE; TRANS 8-97206-005-0 01 1 0009-0110 ● ●
435 CASE; TRANS 8-97240-847-0 01 1 0111- ● ●
435 CASE; TRANS 8-97204-132-1 01 1 0009- ●
439 BOLT; BRKT
PTO TRANSMISSION SIDE<V66> M8X35 FLANGE 		0-28680-835-0 01 1 0009- ● ●
446 PLUG; CASE,TRANS
EXHAUST BRAKE<NF8> OD=16 		9-09201-316-0 01 1 0009- ●
456 BOLT; STIFFENER
PTO TRANSMISSION SIDE<V66> M12X35 FLANGE 		0-28081-235-0 03 1 0009- ● ●
456 BOLT; STIFFENER
PTO TRANSMISSION SIDE<V66> M12X40 FLANGE 		0-28081-240-0 01 1 0009- ● ●
456 BOLT; STIFFENER
EXC. PTO TRANSMISSION SIDE<V66> M12X35 FLANGE 		0-28081-235-0 04 1 0009- ● ●
