Sayfa 3-77 - Isuzu EPC

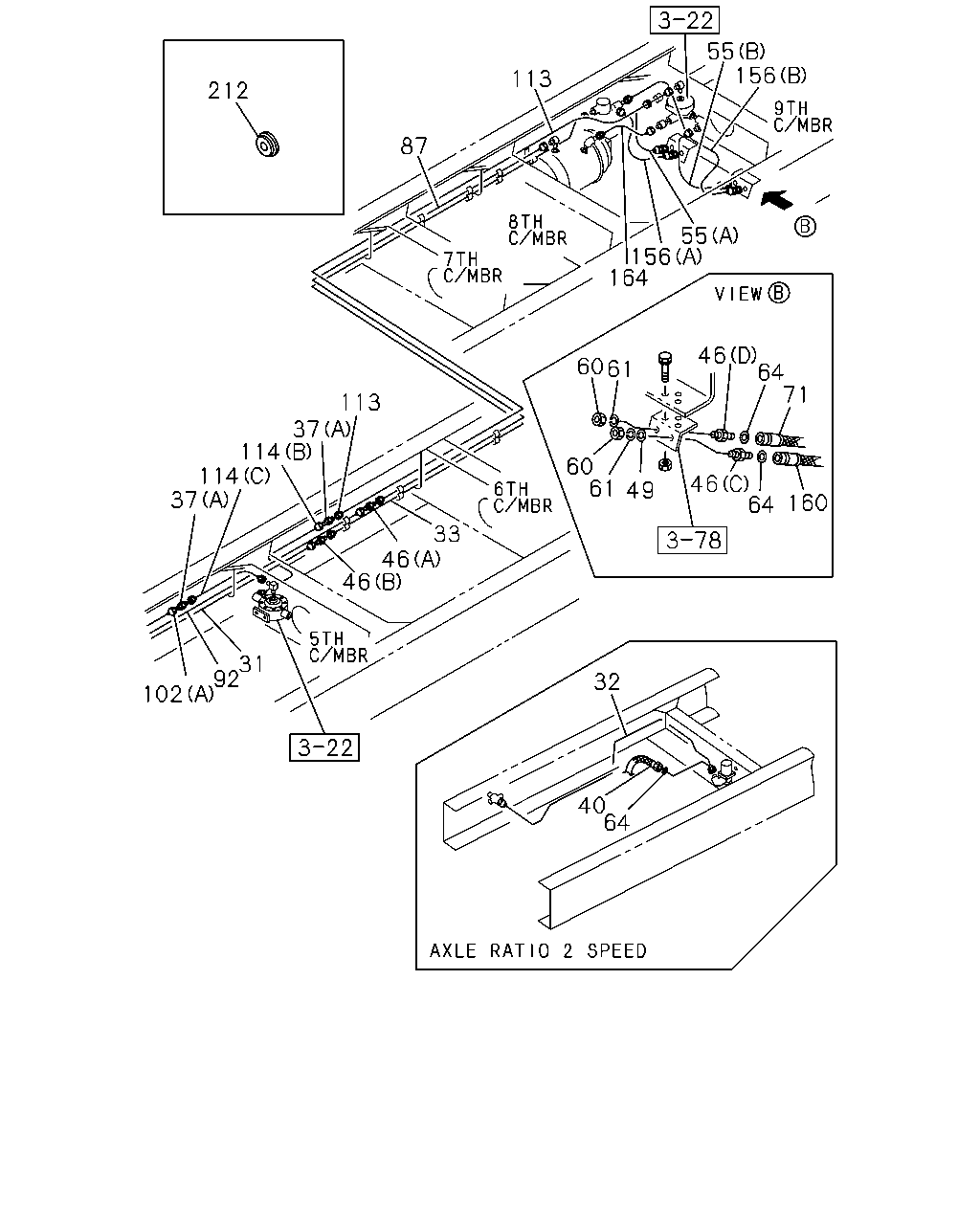

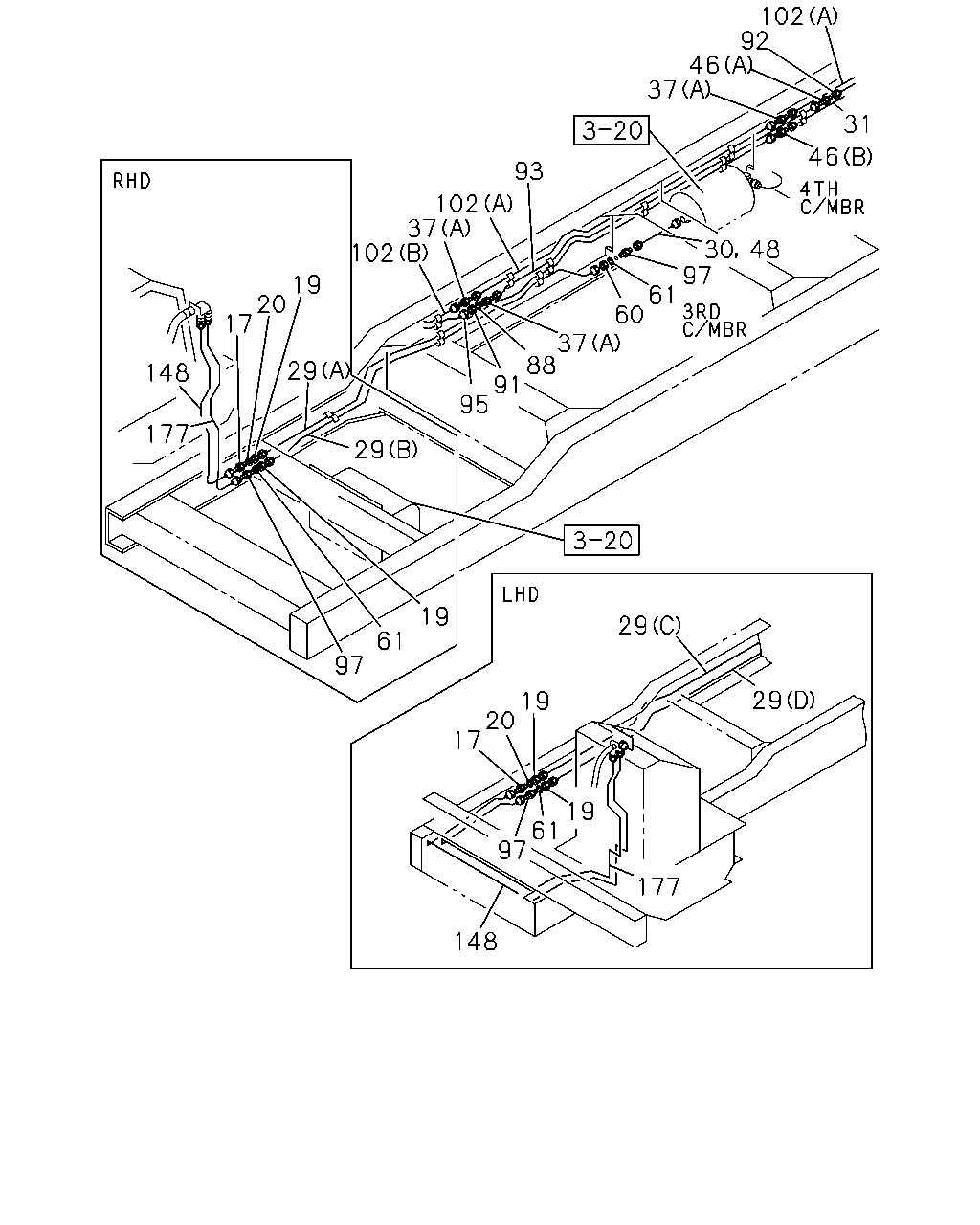

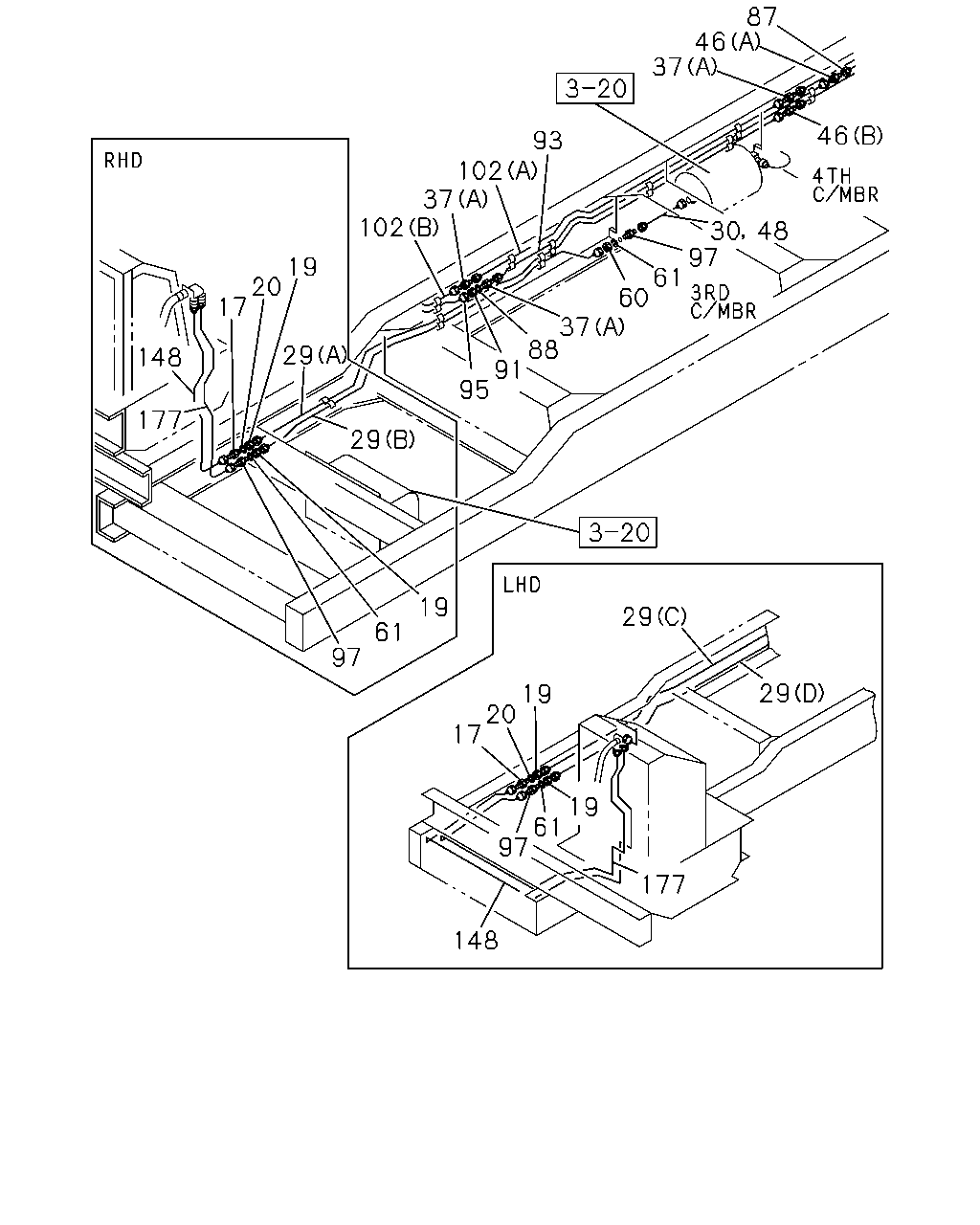

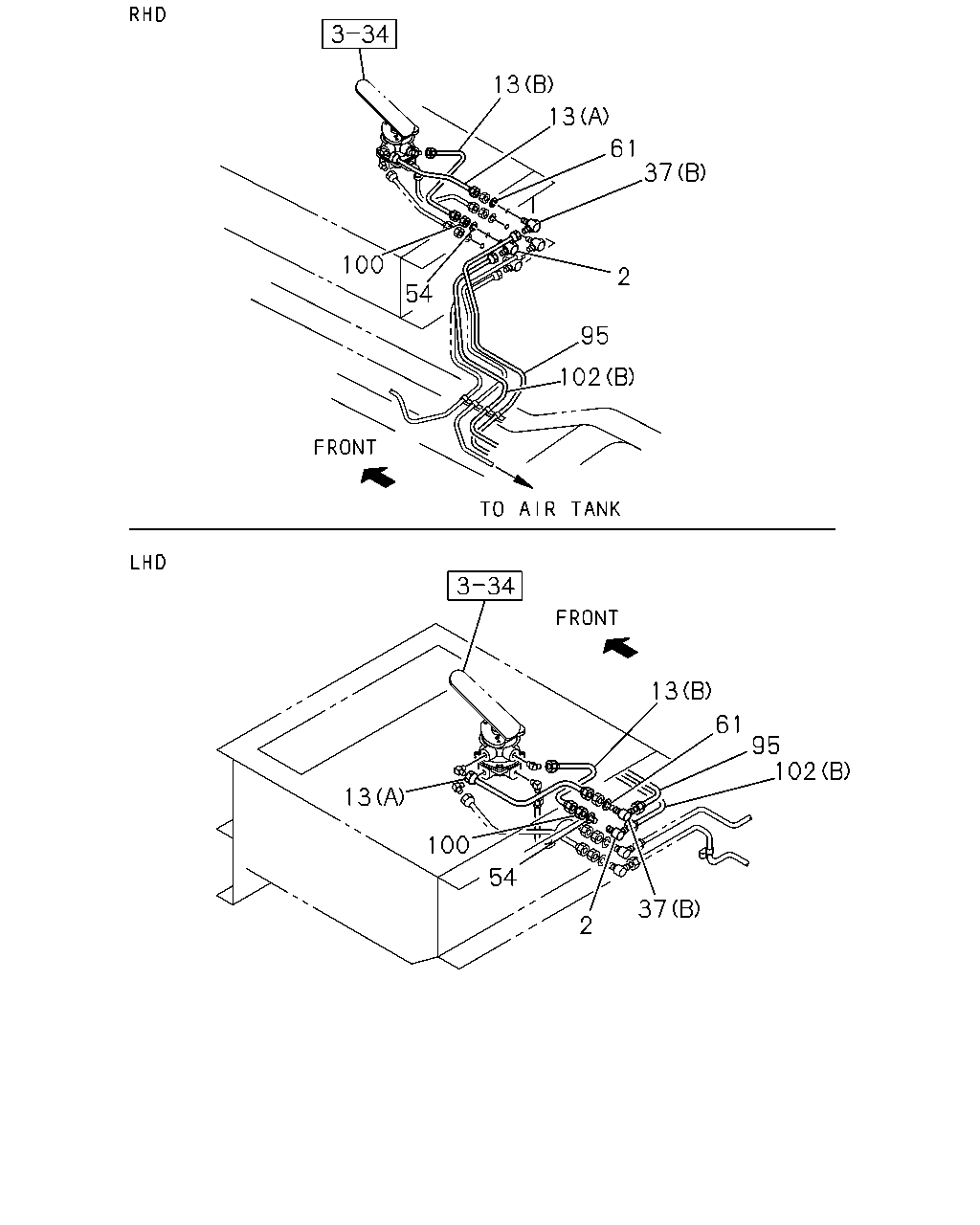

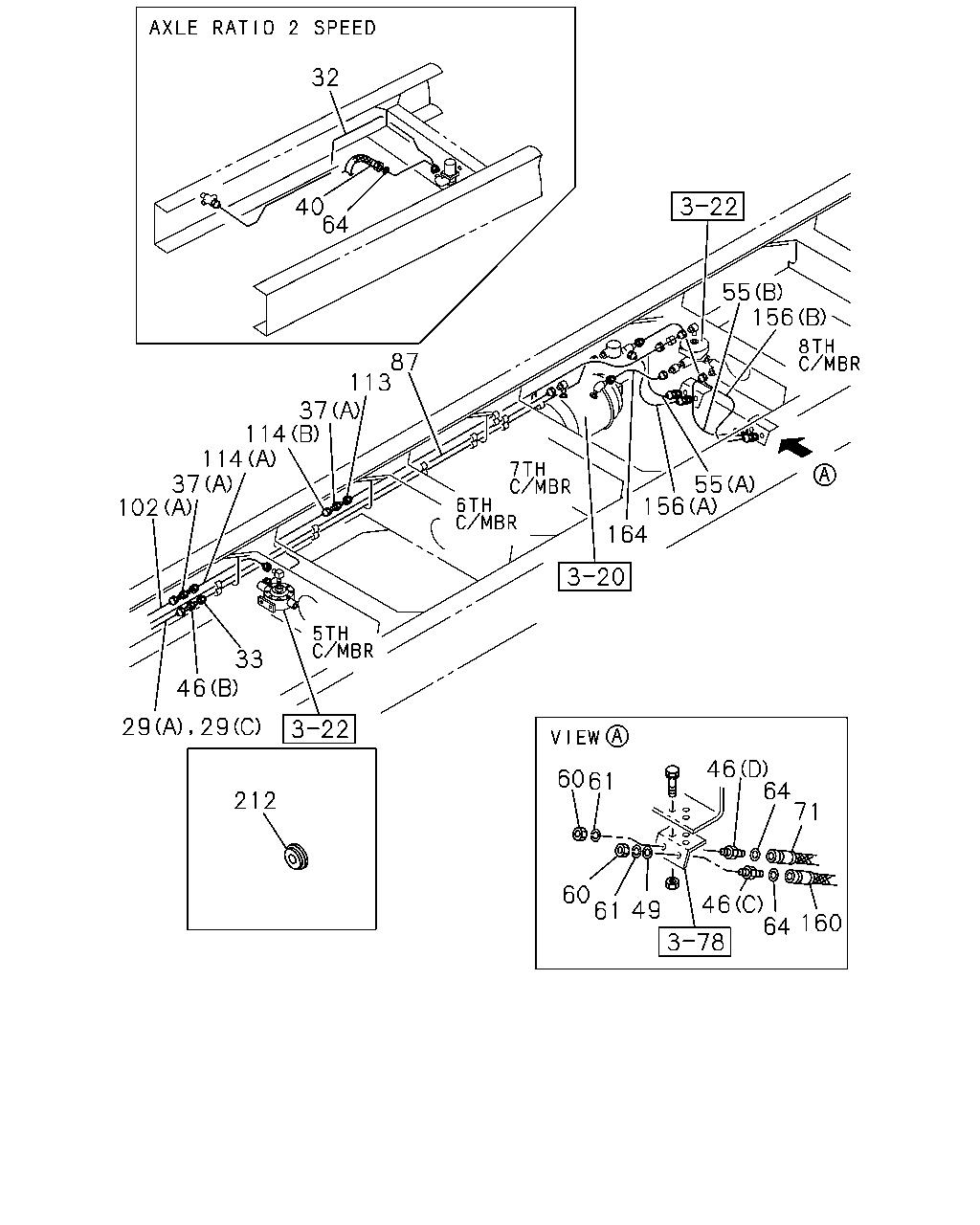

3-77 — BRAKE PIPING; AIR,REAR (#2103) — 538 parça

87 46 37 46 93 102 37 102 30 97 61 60 48 19 20 17 37 88 91 95 29 148 177 29 19 29 61 97 29 19 20 17 19 61 97 177 148

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
17	UNION; AIR PIPE M14	9-09223-208-0	01	1	9001-9204	●
17	UNION; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M14	9-09223-208-0	01	1	9001-9204		●
17	UNION; AIR PIPE M14	9-09223-208-1	01	1	9205-	●	●
19	NUT; PIPE UNION M14	9-99111-414-0	01	1	9001-9204	●
19	NUT; PIPE UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M14	9-99111-414-0	01	1	9001-9204		●
19	NUT; PIPE UNION M14	9-99111-414-0	01	1	9205-	●	●
19	NUT; PIPE UNION M16	9-99111-416-0	01	1	9001-9204	●
19	NUT; PIPE UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M16	9-99111-416-0	01	1	9001-9204		●
19	NUT; PIPE UNION M16	9-99111-416-0	01	1	9205-	●	●
20	WASHER; LK,PIPE UNION ID=14.2	9-09150-514-0	01	1	9001-9204	●
20	WASHER; LK,PIPE UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=14.2	9-09150-514-0	01	1	9001-9204		●
20	WASHER; LK,PIPE UNION ID=14.2	9-09150-514-0	01	1	9205-9312	●	●
29	PIPE; AIR,UNION TO UNION (A) L=3207 SERVICED BY L=3700	1-47434-480-0	01	1	9001-9212	●
29	PIPE; AIR,UNION TO UNION (A) L=3207 SERVICED BY L=2100	1-47426-422-0	01	1	9301-	●
29	PIPE; AIR,UNION TO UNION (B) L=1990 SERVICED BY L=2100	1-47437-972-1	01	1	9001-9212	●
29	PIPE; AIR,UNION TO UNION (B) L=1990 SERVICED BY L=3700	1-47426-427-0	01	1	9301-9509	●
29	PIPE; AIR,UNION TO UNION EXC. FRONT STABILIZER SHAFT<F59> (B) L=1990 SERVICED BY L=3700	1-47426-427-0	01	1	9510-	●
29	PIPE; AIR,UNION TO UNION FRONT STABILIZER SHAFT<F59> (B) L=2304 SERVICED BY L=2500	1-47426-423-0	01	1	9510-	●
29	PIPE; AIR,UNION TO UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) L=3400 SERVICED BY L=3500	1-47434-417-0	01	1	9001-9204		●
29	PIPE; AIR,UNION TO UNION (C) L=3400 SERVICED BY L=3500	1-47434-417-0	01	1	9205-9212		●
29	PIPE; AIR,UNION TO UNION (C) L=3400 SERVICED BY L=3500	1-47426-399-0	01	1	9301-		●
29	PIPE; AIR,UNION TO UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FRONT STABILIZER SHAFT<F59> (D) L=2363 SERVICED BY L=2600	1-47437-973-0	01	1	9001-9204		●
29	PIPE; AIR,UNION TO UNION FRONT STABILIZER SHAFT<F59> (D) L=2363 SERVICED BY L=2600	1-47437-973-0	01	1	9205-9212		●
29	PIPE; AIR,UNION TO UNION FRONT STABILIZER SHAFT<F59> (D) L=2363 SERVICED BY L=2600	1-47426-424-0	01	1	9301-		●
29	PIPE; AIR,UNION TO UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. FRONT STABILIZER SHAFT<F59> (D) L=2500 SERVICED BY L=2600	1-47437-973-0	01	1	9001-9204		●
29	PIPE; AIR,UNION TO UNION EXC. FRONT STABILIZER SHAFT<F59> (D) L=2500 SERVICED BY L=2600	1-47437-973-0	01	1	9205-9212		●
29	PIPE; AIR,UNION TO UNION EXC. FRONT STABILIZER SHAFT<F59> (D) L=2500 SERVICED BY L=2600	1-47426-424-0	01	1	9301-		●
30	PIPE; AIR,AIR TANK TO JOINT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FRONT STABILIZER SHAFT<F59>	1-47449-350-0	01	1	9001-9204	●	●
30	PIPE; AIR,AIR TANK TO JOINT FRONT STABILIZER SHAFT<F59>	1-47449-350-0	01	1	9205-9212		●
30	PIPE; AIR,AIR TANK TO JOINT FRONT STABILIZER SHAFT<F59>	1-47496-461-0	01	1	9301-9509		●
30	PIPE; AIR,AIR TANK TO JOINT FRONT STABILIZER SHAFT<F59>	1-47496-461-0	01	1	9510-	●	●
37	UNION; AIR PIPE (A) M16 L=42	9-09233-010-0	03	1	9001-9204	●
37	UNION; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) M16 L=42	9-09233-010-0	03	1	9001-9204		●
37	UNION; AIR PIPE (A) M16 L=42	9-09233-010-1	03	1	9205-	●	●
37	UNION; AIR PIPE (A) M16 L=42	9-09233-010-1	02	1	9001-	●
37	UNION; AIR PIPE (B) M16 ELBOW	9-09235-110-0	01	1	9001-9204	●
37	UNION; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) M16 ELBOW	9-09235-110-0	01	1	9001-9204		●
37	UNION; AIR PIPE (B) M16 ELBOW	9-09235-110-1	01	1	9205-	●	●
37	UNION; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) M16 L=70 STRAIGHT	9-09233-210-0	02	1	9001-9204		●
37	UNION; AIR PIPE (A) M16 L=70 STRAIGHT	9-09233-210-1	02	1	9205-		●
46	NIPPLE; AIR PIPE (A) M16 L=42	9-09233-010-0	01	1	9001-9204	●
46	NIPPLE; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) M16 L=42	9-09233-010-0	01	1	9001-9204		●
46	NIPPLE; AIR PIPE (A) M16 L=42	9-09233-010-1	01	1	9205-	●	●
46	NIPPLE; AIR PIPE (C)	9-09902-609-0	02	1	9001-9204	●
46	NIPPLE; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C)	9-09902-609-0	02	1	9001-9204		●
46	NIPPLE; AIR PIPE (C)	9-09902-609-1	02	1	9205-	●	●
46	NIPPLE; AIR PIPE (D)	9-09902-610-0	02	1	9001-9204	●
46	NIPPLE; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (D)	9-09902-610-0	02	1	9001-9204		●
46	NIPPLE; AIR PIPE (D)	9-09902-610-1	02	1	9205-	●	●
46	NIPPLE; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) M14 STRAIGHT	9-09223-008-0	01	1	9001-9204	●	●
46	NIPPLE; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) WHEEL BASE 6600MM(66W),WHEEL BASE 6800MM(68W) (B) M14 STRAIGHT	9-09223-008-0	01	1	9001-9204	●	●
46	NIPPLE; AIR PIPE (B) M14 STRAIGHT	9-09223-008-1	01	1	9205-	●	●
46	NIPPLE; AIR PIPE WHEEL BASE 6600MM(66W),WHEEL BASE 6800MM(68W) (B) M14 STRAIGHT	9-09223-008-1	01	1	9205-	●	●
48	PIPE; AIR,AIR TANK TO UNION	1-47437-273-1	01	1	9001-9204	●
48	PIPE; AIR,AIR TANK TO UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. FRONT STABILIZER SHAFT<F59>	1-47437-273-1	01	1	9001-9204		●
48	PIPE; AIR,AIR TANK TO UNION	1-47437-273-1	01	1	9205-9212	●
48	PIPE; AIR,AIR TANK TO UNION EXC. FRONT STABILIZER SHAFT<F59>	1-47437-273-1	01	1	9205-9212		●
48	PIPE; AIR,AIR TANK TO UNION	1-47496-462-0	01	1	9301-9509	●
48	PIPE; AIR,AIR TANK TO UNION EXC. FRONT STABILIZER SHAFT<F59>	1-47496-462-0	01	1	9301-9509		●
48	PIPE; AIR,AIR TANK TO UNION EXC. FRONT STABILIZER SHAFT<F59>	1-47496-462-0	01	1	9510-	●	●
60	NUT; NIPPLE,AIR PIPE M14	9-99111-414-0	02	1	9001-9204	●
60	NUT; NIPPLE,AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M14	9-99111-414-0	02	1	9001-9204		●
60	NUT; NIPPLE,AIR PIPE M14	9-99111-414-0	02	1	9205-	●	●
60	NUT; NIPPLE,AIR PIPE M16	9-99111-416-0	03	1	9001-9204	●
60	NUT; NIPPLE,AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M16	9-99111-416-0	03	1	9001-9204		●
60	NUT; NIPPLE,AIR PIPE M16	9-99111-416-0	03	1	9205-	●	●
61	WASHER; LK,NIPPLE ID=14.2	9-09150-514-0	02	1	9001-9204	●
61	WASHER; LK,NIPPLE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=14.2	9-09150-514-0	02	1	9001-9204		●
61	WASHER; LK,NIPPLE ID=14.2	9-09150-514-0	02	1	9205-9312	●	●
61	WASHER; LK,NIPPLE ID=16.2	9-09150-516-0	05	1	9001-9204	●
61	WASHER; LK,NIPPLE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=16.2	9-09150-516-0	05	1	9001-9204		●
61	WASHER; LK,NIPPLE ID=16.2	9-09150-516-0	05	1	9205-9312	●	●
87	PIPE; AIR,AIR TANK TO UNION L=2400 SERVICED BY L=2600	1-47437-973-0	01	1	9001-9204	●
87	PIPE; AIR,AIR TANK TO UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=2400 SERVICED BY L=2600	1-47437-973-0	01	1	9001-9204		●
87	PIPE; AIR,AIR TANK TO UNION L=2400 SERVICED BY L=2600	1-47437-973-0	01	1	9205-9212	●	●
87	PIPE; AIR,AIR TANK TO UNION L=2400 SERVICED BY L=2600	1-47426-424-0	01	1	9301-	●	●
88	WASHER; LK,PIPE UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=16.2	9-09150-516-0	02	1	9001-9204		●
88	WASHER; LK,PIPE UNION ID=16.2	9-09150-516-0	02	1	9205-9312		●
91	NUT; PIPE UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M16	9-99111-416-0	02	1	9001-9204		●
91	NUT; PIPE UNION M16	9-99111-416-0	02	1	9205-		●
93	PIPE; AIR,UNION TO UNION L=2276 SERVICED BY L=2500	1-47434-479-0	01	1	9001-9212	●
93	PIPE; AIR,UNION TO UNION L=2276 SERVICED BY L=2500	1-47426-423-0	01	1	9301-	●
93	PIPE; AIR,UNION TO UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=3434 SERVICED BY L=3700	1-47434-480-0	01	1	9001-9204		●
93	PIPE; AIR,UNION TO UNION L=3434 SERVICED BY L=3700	1-47434-480-0	01	1	9205-9212		●
93	PIPE; AIR,UNION TO UNION L=3434 SERVICED BY L=3700	1-47426-427-0	01	1	9301-		●
95	PIPE; AIR,UNION TO UNION L=1728 SERVICED BY L=1900	1-47437-971-0	01	1	9001-9212	●
95	PIPE; AIR,UNION TO UNION L=1728 SERVICED BY L=1900	1-47426-421-0	01	1	9301-	●
95	PIPE; AIR,UNION TO UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=1833 SERVICED BY L=1900	1-47437-971-0	01	1	9001-9204		●
95	PIPE; AIR,UNION TO UNION L=1833 SERVICED BY L=1900	1-47437-971-0	01	1	9205-9212		●
95	PIPE; AIR,UNION TO UNION L=1833 SERVICED BY L=1900	1-47426-421-0	01	1	9301-		●
97	UNION; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M16 L=70 STRAIGHT	9-09233-210-0	01	1	9001-9204	●	●
97	UNION; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. FRONT STABILIZER SHAFT<F59> M16 L=70 STRAIGHT	9-09233-210-0	01	1	9001-9204	●	●
97	UNION; AIR PIPE M16 L=70 STRAIGHT	9-09233-210-1	01	1	9205-9509	●	●
97	UNION; AIR PIPE M16 L=70 STRAIGHT	9-09233-210-1	01	1	9205-9509	●
97	UNION; AIR PIPE EXC. FRONT STABILIZER SHAFT<F59> M16 L=70 STRAIGHT	9-09233-210-1	01	1	9205-9509		●
97	UNION; AIR PIPE M16 L=70 STRAIGHT	9-09233-210-1	01	1	9510-	●	●
97	UNION; AIR PIPE EXC. FRONT STABILIZER SHAFT<F59> M16 L=70 STRAIGHT	9-09233-210-1	01	1	9510-	●	●
97	UNION; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FRONT STABILIZER SHAFT<F59> M16 ELBOW	9-09235-110-0	01	1	9001-9204		●
97	UNION; AIR PIPE FRONT STABILIZER SHAFT<F59> M16 ELBOW	9-09235-110-1	01	1	9205-9509		●
97	UNION; AIR PIPE FRONT STABILIZER SHAFT<F59> M16 ELBOW	9-09235-110-1	01	1	9510-	●	●
102	PIPE; AIR,UNION TO UNION (B) L=1469 SERVICED BY L=1700	1-47434-478-0	01	1	9001-9212	●
102	PIPE; AIR,UNION TO UNION (B) L=1469 SERVICED BY L=1700	1-47426-420-0	01	1	9301-	●
102	PIPE; AIR,UNION TO UNION (A) L=2250 SERVICED BY L=2500	1-47434-479-0	01	1	9001-9212	●
102	PIPE; AIR,UNION TO UNION (A) L=2250 SERVICED BY L=2500	1-47426-423-0	01	1	9301-	●
102	PIPE; AIR,UNION TO UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) L=3200 SERVICED BY L=3300	1-47437-975-0	01	1	9001-9204		●
102	PIPE; AIR,UNION TO UNION (A) L=3200 SERVICED BY L=3300	1-47437-975-0	01	1	9205-9212		●
102	PIPE; AIR,UNION TO UNION (A) L=3200 SERVICED BY L=3300	1-47426-426-0	01	1	9301-		●
102	PIPE; AIR,UNION TO UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) L=1997	1-47443-582-0	01	1	9001-9204		●
102	PIPE; AIR,UNION TO UNION (B) L=1997	1-47443-582-0	01	1	9205-9212		●
102	PIPE; AIR,UNION TO UNION (B) L=1997 SERVICED BY L=2100	1-47426-422-0	01	1	9301-		●
148	PIPE; AIR,SPR BRK TO UNION L=1321 SERVICED BY L=1550	1-47437-957-0	01	1	9001-9212	●
148	PIPE; AIR,SPR BRK TO UNION L=1321 SERVICED BY L=1550	1-47426-390-0	01	1	9301-	●
148	PIPE; AIR,SPR BRK TO UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=2120	1-47442-087-0	01	1	9001-9204		●
148	PIPE; AIR,SPR BRK TO UNION L=2120	1-47442-087-0	01	1	9205-9212		●
148	PIPE; AIR,SPR BRK TO UNION L=2120 SERVICED BY L=2150	1-47426-394-0	01	1	9301-		●
177	PIPE; AIR,UNION TO SPR CHAMBER L=1224 SERVICED BY L=1550	1-47437-970-0	01	1	9001-9212	●
177	PIPE; AIR,UNION TO SPR CHAMBER L=1224 SERVICED BY L=1550	1-47426-419-0	01	1	9301-	●
177	PIPE; AIR,UNION TO SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=2105 SERVICED BY L=2500	1-47434-479-0	01	1	9001-9204		●
177	PIPE; AIR,UNION TO SPR CHAMBER L=2105 SERVICED BY L=2500	1-47434-479-0	01	1	9205-9212		●
177	PIPE; AIR,UNION TO SPR CHAMBER L=2105 SERVICED BY L=2500	1-47426-423-0	01	1	9301-		●

102 92 46 37 31 46 93 102 37 102 30 97 61 60 48 19 20 17 37 88 91 95 29 148 177 29 19 29 61 97 29 19 20 17 19 61 97 177 148

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
17	UNION; AIR PIPE M14	9-09223-208-0	01	1	9001-9204	●
17	UNION; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M14	9-09223-208-0	01	1	9001-9204		●
17	UNION; AIR PIPE M14	9-09223-208-1	01	1	9205-	●	●
19	NUT; PIPE UNION M14	9-99111-414-0	01	1	9001-9204	●
19	NUT; PIPE UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M14	9-99111-414-0	01	1	9001-9204		●
19	NUT; PIPE UNION M14	9-99111-414-0	01	1	9205-	●	●
19	NUT; PIPE UNION M16	9-99111-416-0	01	1	9001-9204	●
19	NUT; PIPE UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M16	9-99111-416-0	01	1	9001-9204		●
19	NUT; PIPE UNION M16	9-99111-416-0	01	1	9205-	●	●
20	WASHER; LK,PIPE UNION ID=14.2	9-09150-514-0	01	1	9001-9204	●
20	WASHER; LK,PIPE UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=14.2	9-09150-514-0	01	1	9001-9204		●
20	WASHER; LK,PIPE UNION ID=14.2	9-09150-514-0	01	1	9205-9312	●	●
29	PIPE; AIR,UNION TO UNION (A) L=3207 SERVICED BY L=3700	1-47434-480-0	01	1	9001-9212	●
29	PIPE; AIR,UNION TO UNION (A) L=3207 SERVICED BY L=2100	1-47426-422-0	01	1	9301-	●
29	PIPE; AIR,UNION TO UNION (B) L=1990 SERVICED BY L=2100	1-47437-972-1	01	1	9001-9212	●
29	PIPE; AIR,UNION TO UNION (B) L=1990 SERVICED BY L=3700	1-47426-427-0	01	1	9301-9509	●
29	PIPE; AIR,UNION TO UNION EXC. FRONT STABILIZER SHAFT<F59> (B) L=1990 SERVICED BY L=3700	1-47426-427-0	01	1	9510-	●
29	PIPE; AIR,UNION TO UNION FRONT STABILIZER SHAFT<F59> (B) L=2304 SERVICED BY L=2500	1-47426-423-0	01	1	9510-	●
29	PIPE; AIR,UNION TO UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) L=3400 SERVICED BY L=3500	1-47434-417-0	01	1	9001-9204		●
29	PIPE; AIR,UNION TO UNION (C) L=3400 SERVICED BY L=3500	1-47434-417-0	01	1	9205-9212		●
29	PIPE; AIR,UNION TO UNION (C) L=3400 SERVICED BY L=3500	1-47426-399-0	01	1	9301-		●
29	PIPE; AIR,UNION TO UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FRONT STABILIZER SHAFT<F59> (D) L=2363 SERVICED BY L=2600	1-47437-973-0	01	1	9001-9204		●
29	PIPE; AIR,UNION TO UNION FRONT STABILIZER SHAFT<F59> (D) L=2363 SERVICED BY L=2600	1-47437-973-0	01	1	9205-9212		●
29	PIPE; AIR,UNION TO UNION FRONT STABILIZER SHAFT<F59> (D) L=2363 SERVICED BY L=2600	1-47426-424-0	01	1	9301-		●
29	PIPE; AIR,UNION TO UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. FRONT STABILIZER SHAFT<F59> (D) L=2500 SERVICED BY L=2600	1-47437-973-0	01	1	9001-9204		●
29	PIPE; AIR,UNION TO UNION EXC. FRONT STABILIZER SHAFT<F59> (D) L=2500 SERVICED BY L=2600	1-47437-973-0	01	1	9205-9212		●
29	PIPE; AIR,UNION TO UNION EXC. FRONT STABILIZER SHAFT<F59> (D) L=2500 SERVICED BY L=2600	1-47426-424-0	01	1	9301-		●
30	PIPE; AIR,AIR TANK TO JOINT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FRONT STABILIZER SHAFT<F59>	1-47449-350-0	01	1	9001-9204	●	●
30	PIPE; AIR,AIR TANK TO JOINT FRONT STABILIZER SHAFT<F59>	1-47449-350-0	01	1	9205-9212		●
30	PIPE; AIR,AIR TANK TO JOINT FRONT STABILIZER SHAFT<F59>	1-47496-461-0	01	1	9301-9509		●
30	PIPE; AIR,AIR TANK TO JOINT FRONT STABILIZER SHAFT<F59>	1-47496-461-0	01	1	9510-	●	●
31	PIPE; AIR,UNION TO UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) WHEEL BASE 6800MM(68W) L=960 SERVICED BY L=1000	1-47437-956-0	01	1	9001-9204	●	●
31	PIPE; AIR,UNION TO UNION WHEEL BASE 6800MM(68W) L=960 SERVICED BY L=1000	1-47437-956-0	01	1	9205-9212	●	●
31	PIPE; AIR,UNION TO UNION WHEEL BASE 6800MM(68W) L=960 SERVICED BY L=1000	1-47426-386-0	01	1	9301-	●	●
31	PIPE; AIR,UNION TO UNION WHEEL BASE 6600MM(66W) L=810 SERVICED BY L=900	1-47434-407-0	01	1	9001-9212		●
31	PIPE; AIR,UNION TO UNION WHEEL BASE 6600MM(66W) L=810 SERVICED BY L=900	1-47426-384-0	01	1	9301-		●
37	UNION; AIR PIPE (A) M16 L=42	9-09233-010-0	03	1	9001-9204	●
37	UNION; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) M16 L=42	9-09233-010-0	03	1	9001-9204		●
37	UNION; AIR PIPE (A) M16 L=42	9-09233-010-1	03	1	9205-	●	●
37	UNION; AIR PIPE (A) M16 L=42	9-09233-010-1	02	1	9001-	●
37	UNION; AIR PIPE (B) M16 ELBOW	9-09235-110-0	01	1	9001-9204	●
37	UNION; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) M16 ELBOW	9-09235-110-0	01	1	9001-9204		●
37	UNION; AIR PIPE (B) M16 ELBOW	9-09235-110-1	01	1	9205-	●	●
37	UNION; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) M16 L=70 STRAIGHT	9-09233-210-0	02	1	9001-9204		●
37	UNION; AIR PIPE (A) M16 L=70 STRAIGHT	9-09233-210-1	02	1	9205-		●
46	NIPPLE; AIR PIPE (A) M16 L=42	9-09233-010-0	01	1	9001-9204	●
46	NIPPLE; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) M16 L=42	9-09233-010-0	01	1	9001-9204		●
46	NIPPLE; AIR PIPE (A) M16 L=42	9-09233-010-1	01	1	9205-	●	●
46	NIPPLE; AIR PIPE (C)	9-09902-609-0	02	1	9001-9204	●
46	NIPPLE; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C)	9-09902-609-0	02	1	9001-9204		●
46	NIPPLE; AIR PIPE (C)	9-09902-609-1	02	1	9205-	●	●
46	NIPPLE; AIR PIPE (D)	9-09902-610-0	02	1	9001-9204	●
46	NIPPLE; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (D)	9-09902-610-0	02	1	9001-9204		●
46	NIPPLE; AIR PIPE (D)	9-09902-610-1	02	1	9205-	●	●
46	NIPPLE; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) M14 STRAIGHT	9-09223-008-0	01	1	9001-9204	●	●
46	NIPPLE; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) WHEEL BASE 6600MM(66W),WHEEL BASE 6800MM(68W) (B) M14 STRAIGHT	9-09223-008-0	01	1	9001-9204	●	●
46	NIPPLE; AIR PIPE (B) M14 STRAIGHT	9-09223-008-1	01	1	9205-	●	●
46	NIPPLE; AIR PIPE WHEEL BASE 6600MM(66W),WHEEL BASE 6800MM(68W) (B) M14 STRAIGHT	9-09223-008-1	01	1	9205-	●	●
48	PIPE; AIR,AIR TANK TO UNION	1-47437-273-1	01	1	9001-9204	●
48	PIPE; AIR,AIR TANK TO UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. FRONT STABILIZER SHAFT<F59>	1-47437-273-1	01	1	9001-9204		●
48	PIPE; AIR,AIR TANK TO UNION	1-47437-273-1	01	1	9205-9212	●
48	PIPE; AIR,AIR TANK TO UNION EXC. FRONT STABILIZER SHAFT<F59>	1-47437-273-1	01	1	9205-9212		●
48	PIPE; AIR,AIR TANK TO UNION	1-47496-462-0	01	1	9301-9509	●
48	PIPE; AIR,AIR TANK TO UNION EXC. FRONT STABILIZER SHAFT<F59>	1-47496-462-0	01	1	9301-9509		●
48	PIPE; AIR,AIR TANK TO UNION EXC. FRONT STABILIZER SHAFT<F59>	1-47496-462-0	01	1	9510-	●	●
60	NUT; NIPPLE,AIR PIPE M14	9-99111-414-0	02	1	9001-9204	●
60	NUT; NIPPLE,AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M14	9-99111-414-0	02	1	9001-9204		●
60	NUT; NIPPLE,AIR PIPE M14	9-99111-414-0	02	1	9205-	●	●
60	NUT; NIPPLE,AIR PIPE M16	9-99111-416-0	03	1	9001-9204	●
60	NUT; NIPPLE,AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M16	9-99111-416-0	03	1	9001-9204		●
60	NUT; NIPPLE,AIR PIPE M16	9-99111-416-0	03	1	9205-	●	●
61	WASHER; LK,NIPPLE ID=14.2	9-09150-514-0	02	1	9001-9204	●
61	WASHER; LK,NIPPLE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=14.2	9-09150-514-0	02	1	9001-9204		●
61	WASHER; LK,NIPPLE ID=14.2	9-09150-514-0	02	1	9205-9312	●	●
61	WASHER; LK,NIPPLE ID=16.2	9-09150-516-0	05	1	9001-9204	●
61	WASHER; LK,NIPPLE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=16.2	9-09150-516-0	05	1	9001-9204		●
61	WASHER; LK,NIPPLE ID=16.2	9-09150-516-0	05	1	9205-9312	●	●
88	WASHER; LK,PIPE UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=16.2	9-09150-516-0	02	1	9001-9204		●
88	WASHER; LK,PIPE UNION ID=16.2	9-09150-516-0	02	1	9205-9312		●
91	NUT; PIPE UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M16	9-99111-416-0	02	1	9001-9204		●
91	NUT; PIPE UNION M16	9-99111-416-0	02	1	9205-		●
92	PIPE; AIR,UNION TO UNION WHEEL BASE 6800MM(68W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=960 SERVICED BY L=1000	1-47434-476-0	01	1	9001-9204	●	●
92	PIPE; AIR,UNION TO UNION WHEEL BASE 6800MM(68W) L=960 SERVICED BY L=1000	1-47434-476-0	01	1	9205-9212	●	●
92	PIPE; AIR,UNION TO UNION WHEEL BASE 6800MM(68W) L=960 SERVICED BY L=1000	1-47426-414-0	01	1	9301-	●	●
92	PIPE; AIR,UNION TO UNION WHEEL BASE 6600MM(66W) L=808 SERVICED BY L=900	1-47437-966-0	01	1	9001-9212		●
92	PIPE; AIR,UNION TO UNION WHEEL BASE 6600MM(66W) L=808 SERVICED BY L=900	1-47426-413-0	01	1	9301-		●
93	PIPE; AIR,UNION TO UNION L=2276 SERVICED BY L=2500	1-47434-479-0	01	1	9001-9212	●
93	PIPE; AIR,UNION TO UNION L=2276 SERVICED BY L=2500	1-47426-423-0	01	1	9301-	●
93	PIPE; AIR,UNION TO UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=3434 SERVICED BY L=3700	1-47434-480-0	01	1	9001-9204		●
93	PIPE; AIR,UNION TO UNION L=3434 SERVICED BY L=3700	1-47434-480-0	01	1	9205-9212		●
93	PIPE; AIR,UNION TO UNION L=3434 SERVICED BY L=3700	1-47426-427-0	01	1	9301-		●
95	PIPE; AIR,UNION TO UNION L=1728 SERVICED BY L=1900	1-47437-971-0	01	1	9001-9212	●
95	PIPE; AIR,UNION TO UNION L=1728 SERVICED BY L=1900	1-47426-421-0	01	1	9301-	●
95	PIPE; AIR,UNION TO UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=1833 SERVICED BY L=1900	1-47437-971-0	01	1	9001-9204		●
95	PIPE; AIR,UNION TO UNION L=1833 SERVICED BY L=1900	1-47437-971-0	01	1	9205-9212		●
95	PIPE; AIR,UNION TO UNION L=1833 SERVICED BY L=1900	1-47426-421-0	01	1	9301-		●
97	UNION; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M16 L=70 STRAIGHT	9-09233-210-0	01	1	9001-9204	●	●
97	UNION; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. FRONT STABILIZER SHAFT<F59> M16 L=70 STRAIGHT	9-09233-210-0	01	1	9001-9204	●	●
97	UNION; AIR PIPE M16 L=70 STRAIGHT	9-09233-210-1	01	1	9205-9509	●	●
97	UNION; AIR PIPE M16 L=70 STRAIGHT	9-09233-210-1	01	1	9205-9509	●
97	UNION; AIR PIPE EXC. FRONT STABILIZER SHAFT<F59> M16 L=70 STRAIGHT	9-09233-210-1	01	1	9205-9509		●
97	UNION; AIR PIPE M16 L=70 STRAIGHT	9-09233-210-1	01	1	9510-	●	●
97	UNION; AIR PIPE EXC. FRONT STABILIZER SHAFT<F59> M16 L=70 STRAIGHT	9-09233-210-1	01	1	9510-	●	●
97	UNION; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FRONT STABILIZER SHAFT<F59> M16 ELBOW	9-09235-110-0	01	1	9001-9204		●
97	UNION; AIR PIPE FRONT STABILIZER SHAFT<F59> M16 ELBOW	9-09235-110-1	01	1	9205-9509		●
97	UNION; AIR PIPE FRONT STABILIZER SHAFT<F59> M16 ELBOW	9-09235-110-1	01	1	9510-	●	●
102	PIPE; AIR,UNION TO UNION (B) L=1469 SERVICED BY L=1700	1-47434-478-0	01	1	9001-9212	●
102	PIPE; AIR,UNION TO UNION (B) L=1469 SERVICED BY L=1700	1-47426-420-0	01	1	9301-	●
102	PIPE; AIR,UNION TO UNION (A) L=2250 SERVICED BY L=2500	1-47434-479-0	01	1	9001-9212	●
102	PIPE; AIR,UNION TO UNION (A) L=2250 SERVICED BY L=2500	1-47426-423-0	01	1	9301-	●
102	PIPE; AIR,UNION TO UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) L=3200 SERVICED BY L=3300	1-47437-975-0	01	1	9001-9204		●
102	PIPE; AIR,UNION TO UNION (A) L=3200 SERVICED BY L=3300	1-47437-975-0	01	1	9205-9212		●
102	PIPE; AIR,UNION TO UNION (A) L=3200 SERVICED BY L=3300	1-47426-426-0	01	1	9301-		●
102	PIPE; AIR,UNION TO UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) L=1997	1-47443-582-0	01	1	9001-9204		●
102	PIPE; AIR,UNION TO UNION (B) L=1997	1-47443-582-0	01	1	9205-9212		●
102	PIPE; AIR,UNION TO UNION (B) L=1997 SERVICED BY L=2100	1-47426-422-0	01	1	9301-		●
148	PIPE; AIR,SPR BRK TO UNION L=1321 SERVICED BY L=1550	1-47437-957-0	01	1	9001-9212	●
148	PIPE; AIR,SPR BRK TO UNION L=1321 SERVICED BY L=1550	1-47426-390-0	01	1	9301-	●
148	PIPE; AIR,SPR BRK TO UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=2120	1-47442-087-0	01	1	9001-9204		●
148	PIPE; AIR,SPR BRK TO UNION L=2120	1-47442-087-0	01	1	9205-9212		●
148	PIPE; AIR,SPR BRK TO UNION L=2120 SERVICED BY L=2150	1-47426-394-0	01	1	9301-		●
177	PIPE; AIR,UNION TO SPR CHAMBER L=1224 SERVICED BY L=1550	1-47437-970-0	01	1	9001-9212	●
177	PIPE; AIR,UNION TO SPR CHAMBER L=1224 SERVICED BY L=1550	1-47426-419-0	01	1	9301-	●
177	PIPE; AIR,UNION TO SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=2105 SERVICED BY L=2500	1-47434-479-0	01	1	9001-9204		●
177	PIPE; AIR,UNION TO SPR CHAMBER L=2105 SERVICED BY L=2500	1-47434-479-0	01	1	9205-9212		●
177	PIPE; AIR,UNION TO SPR CHAMBER L=2105 SERVICED BY L=2500	1-47426-423-0	01	1	9301-		●

55 156 113 212 87 55 156 164 46 64 71 60 61 113 37 114 114 37 60 61 46 64 49 160 33 46 46 31 92 32 102 40 64

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
31	PIPE; AIR,UNION TO UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) WHEEL BASE 6800MM(68W) L=960 SERVICED BY L=1000	1-47437-956-0	01	1	9001-9204	●	●
31	PIPE; AIR,UNION TO UNION WHEEL BASE 6800MM(68W) L=960 SERVICED BY L=1000	1-47437-956-0	01	1	9205-9212	●	●
31	PIPE; AIR,UNION TO UNION WHEEL BASE 6800MM(68W) L=960 SERVICED BY L=1000	1-47426-386-0	01	1	9301-	●	●
31	PIPE; AIR,UNION TO UNION WHEEL BASE 6600MM(66W) L=810 SERVICED BY L=900	1-47434-407-0	01	1	9001-9212		●
31	PIPE; AIR,UNION TO UNION WHEEL BASE 6600MM(66W) L=810 SERVICED BY L=900	1-47426-384-0	01	1	9301-		●
32	PIPE; AIR,UNION TO MAG VLV,DIFF LOCK AXLE RATIO 2 SPEED<W9Y> L=1502	1-47449-230-0	01	1	9001-9212	●	●
32	PIPE; AIR,UNION TO MAG VLV,DIFF LOCK AXLE RATIO 2 SPEED<W9Y> L=1502 SERVICED BY L=1550	1-47426-419-0	01	1	9301-	●	●
33	PIPE; AIR,UNION TO CONT VLV	1-47437-279-1	01	1	9001-9204	●
33	PIPE; AIR,UNION TO CONT VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47437-279-1	01	1	9001-9204		●
33	PIPE; AIR,UNION TO CONT VLV	1-47437-279-1	01	1	9205-9212	●	●
33	PIPE; AIR,UNION TO CONT VLV	1-47496-863-0	01	1	9301-	●	●
37	UNION; AIR PIPE (A) M16 L=42	9-09233-010-0	03	1	9001-9204	●
37	UNION; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) M16 L=42	9-09233-010-0	03	1	9001-9204		●
37	UNION; AIR PIPE (A) M16 L=42	9-09233-010-1	03	1	9205-	●	●
37	UNION; AIR PIPE (A) M16 L=42	9-09233-010-1	02	1	9001-	●
37	UNION; AIR PIPE (B) M16 ELBOW	9-09235-110-0	01	1	9001-9204	●
37	UNION; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) M16 ELBOW	9-09235-110-0	01	1	9001-9204		●
37	UNION; AIR PIPE (B) M16 ELBOW	9-09235-110-1	01	1	9205-	●	●
37	UNION; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) M16 L=70 STRAIGHT	9-09233-210-0	02	1	9001-9204		●
37	UNION; AIR PIPE (A) M16 L=70 STRAIGHT	9-09233-210-1	02	1	9205-		●
40	HOSE; FLEX,2 SPEED AXLE RATIO 2 SPEED<W9Y> L=580	0-07847-580-1	01	1	9001-	●	●
46	NIPPLE; AIR PIPE (A) M16 L=42	9-09233-010-0	01	1	9001-9204	●
46	NIPPLE; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) M16 L=42	9-09233-010-0	01	1	9001-9204		●
46	NIPPLE; AIR PIPE (A) M16 L=42	9-09233-010-1	01	1	9205-	●	●
46	NIPPLE; AIR PIPE (C)	9-09902-609-0	02	1	9001-9204	●
46	NIPPLE; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C)	9-09902-609-0	02	1	9001-9204		●
46	NIPPLE; AIR PIPE (C)	9-09902-609-1	02	1	9205-	●	●
46	NIPPLE; AIR PIPE (D)	9-09902-610-0	02	1	9001-9204	●
46	NIPPLE; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (D)	9-09902-610-0	02	1	9001-9204		●
46	NIPPLE; AIR PIPE (D)	9-09902-610-1	02	1	9205-	●	●
46	NIPPLE; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) M14 STRAIGHT	9-09223-008-0	01	1	9001-9204	●	●
46	NIPPLE; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) WHEEL BASE 6600MM(66W),WHEEL BASE 6800MM(68W) (B) M14 STRAIGHT	9-09223-008-0	01	1	9001-9204	●	●
46	NIPPLE; AIR PIPE (B) M14 STRAIGHT	9-09223-008-1	01	1	9205-	●	●
46	NIPPLE; AIR PIPE WHEEL BASE 6600MM(66W),WHEEL BASE 6800MM(68W) (B) M14 STRAIGHT	9-09223-008-1	01	1	9205-	●	●
49	WASHER; LK,PIPE UNION ID=6.4	9-09160-506-0	01	1	9001-9204	●
49	WASHER; LK,PIPE UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=6.4	9-09160-506-0	01	1	9001-9204		●
49	WASHER; LK,PIPE UNION ID=6.4	9-09160-506-0	01	1	9205-	●	●
55	PIPE; AIR,RELAY VLV TO FLEX HOSE (A)	1-47439-473-1	01	1	9001-9204	●
55	PIPE; AIR,RELAY VLV TO FLEX HOSE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-47439-473-1	01	1	9001-9204		●
55	PIPE; AIR,RELAY VLV TO FLEX HOSE (A)	1-47439-473-1	01	1	9205-9212	●	●
55	PIPE; AIR,RELAY VLV TO FLEX HOSE (A)	1-47496-434-0	01	1	9301-	●	●
55	PIPE; AIR,RELAY VLV TO FLEX HOSE (B)	1-47439-474-2	01	1	9001-9204	●
55	PIPE; AIR,RELAY VLV TO FLEX HOSE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-47439-474-2	01	1	9001-9204		●
55	PIPE; AIR,RELAY VLV TO FLEX HOSE (B)	1-47439-474-2	01	1	9205-9212	●	●
55	PIPE; AIR,RELAY VLV TO FLEX HOSE (B)	1-47496-487-0	01	1	9301-	●	●
60	NUT; NIPPLE,AIR PIPE M14	9-99111-414-0	02	1	9001-9204	●
60	NUT; NIPPLE,AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M14	9-99111-414-0	02	1	9001-9204		●
60	NUT; NIPPLE,AIR PIPE M14	9-99111-414-0	02	1	9205-	●	●
60	NUT; NIPPLE,AIR PIPE M16	9-99111-416-0	03	1	9001-9204	●
60	NUT; NIPPLE,AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M16	9-99111-416-0	03	1	9001-9204		●
60	NUT; NIPPLE,AIR PIPE M16	9-99111-416-0	03	1	9205-	●	●
61	WASHER; LK,NIPPLE ID=14.2	9-09150-514-0	02	1	9001-9204	●
61	WASHER; LK,NIPPLE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=14.2	9-09150-514-0	02	1	9001-9204		●
61	WASHER; LK,NIPPLE ID=14.2	9-09150-514-0	02	1	9205-9312	●	●
61	WASHER; LK,NIPPLE ID=16.2	9-09150-516-0	05	1	9001-9204	●
61	WASHER; LK,NIPPLE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=16.2	9-09150-516-0	05	1	9001-9204		●
61	WASHER; LK,NIPPLE ID=16.2	9-09150-516-0	05	1	9205-9312	●	●
64	GASKET; FLEX HOSE ID=11 OD=18	9-09572-510-0	08	1	9001-9204	●
64	GASKET; FLEX HOSE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=11 OD=18	9-09572-510-0	08	1	9001-9204		●
64	GASKET; FLEX HOSE ID=11 OD=18	9-09572-510-0	08	1	9205-	●	●
64	GASKET; FLEX HOSE AXLE RATIO 2 SPEED<W9Y> ID=11 OD=18	9-09572-510-0	02	1	9001-	●	●
71	HOSE; FLEX,RWD RR L=530	0-07847-530-1	02	1	9001-9204	●
71	HOSE; FLEX,RWD RR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=530	0-07847-530-1	02	1	9001-9204		●
71	HOSE; FLEX,RWD RR L=530	0-07847-530-1	02	1	9205-	●	●
87	PIPE; AIR,AIR TANK TO UNION L=2400 SERVICED BY L=2600	1-47437-973-0	01	1	9001-9204	●
87	PIPE; AIR,AIR TANK TO UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=2400 SERVICED BY L=2600	1-47437-973-0	01	1	9001-9204		●
87	PIPE; AIR,AIR TANK TO UNION L=2400 SERVICED BY L=2600	1-47437-973-0	01	1	9205-9212	●	●
87	PIPE; AIR,AIR TANK TO UNION L=2400 SERVICED BY L=2600	1-47426-424-0	01	1	9301-	●	●
92	PIPE; AIR,UNION TO UNION WHEEL BASE 6800MM(68W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=960 SERVICED BY L=1000	1-47434-476-0	01	1	9001-9204	●	●
92	PIPE; AIR,UNION TO UNION WHEEL BASE 6800MM(68W) L=960 SERVICED BY L=1000	1-47434-476-0	01	1	9205-9212	●	●
92	PIPE; AIR,UNION TO UNION WHEEL BASE 6800MM(68W) L=960 SERVICED BY L=1000	1-47426-414-0	01	1	9301-	●	●
92	PIPE; AIR,UNION TO UNION WHEEL BASE 6600MM(66W) L=808 SERVICED BY L=900	1-47437-966-0	01	1	9001-9212		●
92	PIPE; AIR,UNION TO UNION WHEEL BASE 6600MM(66W) L=808 SERVICED BY L=900	1-47426-413-0	01	1	9301-		●
102	PIPE; AIR,UNION TO UNION (B) L=1469 SERVICED BY L=1700	1-47434-478-0	01	1	9001-9212	●
102	PIPE; AIR,UNION TO UNION (B) L=1469 SERVICED BY L=1700	1-47426-420-0	01	1	9301-	●
102	PIPE; AIR,UNION TO UNION (A) L=2250 SERVICED BY L=2500	1-47434-479-0	01	1	9001-9212	●
102	PIPE; AIR,UNION TO UNION (A) L=2250 SERVICED BY L=2500	1-47426-423-0	01	1	9301-	●
102	PIPE; AIR,UNION TO UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) L=3200 SERVICED BY L=3300	1-47437-975-0	01	1	9001-9204		●
102	PIPE; AIR,UNION TO UNION (A) L=3200 SERVICED BY L=3300	1-47437-975-0	01	1	9205-9212		●
102	PIPE; AIR,UNION TO UNION (A) L=3200 SERVICED BY L=3300	1-47426-426-0	01	1	9301-		●
102	PIPE; AIR,UNION TO UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) L=1997	1-47443-582-0	01	1	9001-9204		●
102	PIPE; AIR,UNION TO UNION (B) L=1997	1-47443-582-0	01	1	9205-9212		●
102	PIPE; AIR,UNION TO UNION (B) L=1997 SERVICED BY L=2100	1-47426-422-0	01	1	9301-		●
113	PIPE; AIR,UNION TO RELAY VLV WHEEL BASE 5800MM(58W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=2008 SERVICED BY L=2100	1-47437-972-0	01	1	9001-9204	●	●
113	PIPE; AIR,UNION TO RELAY VLV WHEEL BASE 5800MM(58W) L=2008 SERVICED BY L=2100	1-47437-972-0	01	1	9205-9212	●	●
113	PIPE; AIR,UNION TO RELAY VLV WHEEL BASE 5800MM(58W) L=2008 SERVICED BY L=2100	1-47426-422-0	01	1	9301-	●	●
113	PIPE; AIR,UNION TO RELAY VLV WHEEL BASE 6800MM(68W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=2808 SERVICED BY L=2900	1-47437-974-0	01	1	9001-9204	●	●
113	PIPE; AIR,UNION TO RELAY VLV WHEEL BASE 6800MM(68W) L=2808 SERVICED BY L=2900	1-47437-974-0	01	1	9205-9212	●	●
113	PIPE; AIR,UNION TO RELAY VLV WHEEL BASE 6800MM(68W) L=2808 SERVICED BY L=2900	1-47426-425-0	01	1	9301-	●	●
113	PIPE; AIR,UNION TO RELAY VLV WHEEL BASE 6600MM(66W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=2658 SERVICED BY L=2900	1-47437-974-0	01	1	9001-9204		●
113	PIPE; AIR,UNION TO RELAY VLV WHEEL BASE 6600MM(66W) L=2658 SERVICED BY L=2900	1-47437-974-0	01	1	9205-9212		●
113	PIPE; AIR,UNION TO RELAY VLV WHEEL BASE 6600MM(66W) L=2658 SERVICED BY L=2900	1-47426-425-0	01	1	9301-		●
114	PIPE; AIR,QUICK RELEASE VLV (B)	1-47487-583-0	01	1	9001-9204	●
114	PIPE; AIR,QUICK RELEASE VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-47487-583-0	01	1	9001-9204		●
114	PIPE; AIR,QUICK RELEASE VLV (B)	1-47487-583-0	01	1	9205-9212	●	●
114	PIPE; AIR,QUICK RELEASE VLV (B)	1-47496-457-0	01	1	9301-	●	●
114	PIPE; AIR,QUICK RELEASE VLV WHEEL BASE 5800MM(58W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) L=709 SERVICED BY L=730	1-47437-965-0	01	1	9001-9204	●	●
114	PIPE; AIR,QUICK RELEASE VLV WHEEL BASE 5800MM(58W) (A) L=709 SERVICED BY L=730	1-47437-965-0	01	1	9205-9212	●	●
114	PIPE; AIR,QUICK RELEASE VLV WHEEL BASE 5800MM(58W) (A) L=709 SERVICED BY L=730	1-47426-411-0	01	1	9301-	●	●
114	PIPE; AIR,QUICK RELEASE VLV WHEEL BASE 6600MM(66W),WHEEL BASE 6800MM(68W) (C) L=909 SERVICED BY L=1000	1-47434-476-0	01	1	9001-9212	●	●
114	PIPE; AIR,QUICK RELEASE VLV WHEEL BASE 6600MM(66W),WHEEL BASE 6800MM(68W) (C) L=909 SERVICED BY L=1000	1-47426-414-0	01	1	9301-	●	●
156	PIPE; AIR,UNION TO CONT VLV (B) L=950	1-47439-476-0	01	1	9001-9204	●
156	PIPE; AIR,UNION TO CONT VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) L=950	1-47439-476-0	01	1	9001-9204		●
156	PIPE; AIR,UNION TO CONT VLV (B) L=950	1-47439-476-0	01	1	9205-9212	●	●
156	PIPE; AIR,UNION TO CONT VLV (B)	1-47496-865-0	01	1	9301-	●	●
156	PIPE; AIR,UNION TO CONT VLV (A) SERVICED BY L=450	1-47426-464-0	01	1	9001-9204	●
156	PIPE; AIR,UNION TO CONT VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) SERVICED BY L=450	1-47426-464-0	01	1	9001-9204		●
156	PIPE; AIR,UNION TO CONT VLV (A) SERVICED BY L=450	1-47426-464-0	01	1	9205-	●	●
160	HOSE; FLEX,SPR CHAMBER L=530	0-07847-530-1	02	1	9001-9204	●
160	HOSE; FLEX,SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=530	0-07847-530-1	02	1	9001-9204		●
160	HOSE; FLEX,SPR CHAMBER L=530	0-07847-530-1	02	1	9205-	●	●
164	PIPE; AIR,AIR TANK TO RELAY VLV	1-47437-269-2	01	1	9001-9204	●
164	PIPE; AIR,AIR TANK TO RELAY VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47437-269-2	01	1	9001-9204		●
164	PIPE; AIR,AIR TANK TO RELAY VLV	1-47437-269-2	01	1	9205-	●	●
212	GROMMET; AIR PIPE ID=10 OD=35 T=5	1-09983-020-0	01	1	9001-9204	●
212	GROMMET; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=10 OD=35 T=5	1-09983-020-0	01	1	9001-9204		●
212	GROMMET; AIR PIPE ID=10 OD=35 T=5	1-09983-020-0	01	1	9205-	●	●
212	GROMMET; AIR PIPE OD=40	9-09956-120-0	01	1	9001-9204	●
212	GROMMET; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) OD=40	9-09956-120-0	01	1	9001-9204		●
212	GROMMET; AIR PIPE OD=40	9-09956-120-0	01	1	9205-	●	●

32 40 64 55 156 87 113 37 114 114 37 102 55 156 164 33 46 29 29 46 64 71 60 61 212 60 61 46 64 49 160

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
29	PIPE; AIR,UNION TO UNION (A) L=3207 SERVICED BY L=3700	1-47434-480-0	01	1	9001-9212	●
29	PIPE; AIR,UNION TO UNION (A) L=3207 SERVICED BY L=2100	1-47426-422-0	01	1	9301-	●
29	PIPE; AIR,UNION TO UNION (B) L=1990 SERVICED BY L=2100	1-47437-972-1	01	1	9001-9212	●
29	PIPE; AIR,UNION TO UNION (B) L=1990 SERVICED BY L=3700	1-47426-427-0	01	1	9301-9509	●
29	PIPE; AIR,UNION TO UNION EXC. FRONT STABILIZER SHAFT<F59> (B) L=1990 SERVICED BY L=3700	1-47426-427-0	01	1	9510-	●
29	PIPE; AIR,UNION TO UNION FRONT STABILIZER SHAFT<F59> (B) L=2304 SERVICED BY L=2500	1-47426-423-0	01	1	9510-	●
29	PIPE; AIR,UNION TO UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) L=3400 SERVICED BY L=3500	1-47434-417-0	01	1	9001-9204		●
29	PIPE; AIR,UNION TO UNION (C) L=3400 SERVICED BY L=3500	1-47434-417-0	01	1	9205-9212		●
29	PIPE; AIR,UNION TO UNION (C) L=3400 SERVICED BY L=3500	1-47426-399-0	01	1	9301-		●
29	PIPE; AIR,UNION TO UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FRONT STABILIZER SHAFT<F59> (D) L=2363 SERVICED BY L=2600	1-47437-973-0	01	1	9001-9204		●
29	PIPE; AIR,UNION TO UNION FRONT STABILIZER SHAFT<F59> (D) L=2363 SERVICED BY L=2600	1-47437-973-0	01	1	9205-9212		●
29	PIPE; AIR,UNION TO UNION FRONT STABILIZER SHAFT<F59> (D) L=2363 SERVICED BY L=2600	1-47426-424-0	01	1	9301-		●
29	PIPE; AIR,UNION TO UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. FRONT STABILIZER SHAFT<F59> (D) L=2500 SERVICED BY L=2600	1-47437-973-0	01	1	9001-9204		●
29	PIPE; AIR,UNION TO UNION EXC. FRONT STABILIZER SHAFT<F59> (D) L=2500 SERVICED BY L=2600	1-47437-973-0	01	1	9205-9212		●
29	PIPE; AIR,UNION TO UNION EXC. FRONT STABILIZER SHAFT<F59> (D) L=2500 SERVICED BY L=2600	1-47426-424-0	01	1	9301-		●
32	PIPE; AIR,UNION TO MAG VLV,DIFF LOCK AXLE RATIO 2 SPEED<W9Y> L=1502	1-47449-230-0	01	1	9001-9212	●	●
32	PIPE; AIR,UNION TO MAG VLV,DIFF LOCK AXLE RATIO 2 SPEED<W9Y> L=1502 SERVICED BY L=1550	1-47426-419-0	01	1	9301-	●	●
33	PIPE; AIR,UNION TO CONT VLV	1-47437-279-1	01	1	9001-9204	●
33	PIPE; AIR,UNION TO CONT VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47437-279-1	01	1	9001-9204		●
33	PIPE; AIR,UNION TO CONT VLV	1-47437-279-1	01	1	9205-9212	●	●
33	PIPE; AIR,UNION TO CONT VLV	1-47496-863-0	01	1	9301-	●	●
37	UNION; AIR PIPE (A) M16 L=42	9-09233-010-0	03	1	9001-9204	●
37	UNION; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) M16 L=42	9-09233-010-0	03	1	9001-9204		●
37	UNION; AIR PIPE (A) M16 L=42	9-09233-010-1	03	1	9205-	●	●
37	UNION; AIR PIPE (A) M16 L=42	9-09233-010-1	02	1	9001-	●
37	UNION; AIR PIPE (B) M16 ELBOW	9-09235-110-0	01	1	9001-9204	●
37	UNION; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) M16 ELBOW	9-09235-110-0	01	1	9001-9204		●
37	UNION; AIR PIPE (B) M16 ELBOW	9-09235-110-1	01	1	9205-	●	●
37	UNION; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) M16 L=70 STRAIGHT	9-09233-210-0	02	1	9001-9204		●
37	UNION; AIR PIPE (A) M16 L=70 STRAIGHT	9-09233-210-1	02	1	9205-		●
40	HOSE; FLEX,2 SPEED AXLE RATIO 2 SPEED<W9Y> L=580	0-07847-580-1	01	1	9001-	●	●
46	NIPPLE; AIR PIPE (A) M16 L=42	9-09233-010-0	01	1	9001-9204	●
46	NIPPLE; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) M16 L=42	9-09233-010-0	01	1	9001-9204		●
46	NIPPLE; AIR PIPE (A) M16 L=42	9-09233-010-1	01	1	9205-	●	●
46	NIPPLE; AIR PIPE (C)	9-09902-609-0	02	1	9001-9204	●
46	NIPPLE; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C)	9-09902-609-0	02	1	9001-9204		●
46	NIPPLE; AIR PIPE (C)	9-09902-609-1	02	1	9205-	●	●
46	NIPPLE; AIR PIPE (D)	9-09902-610-0	02	1	9001-9204	●
46	NIPPLE; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (D)	9-09902-610-0	02	1	9001-9204		●
46	NIPPLE; AIR PIPE (D)	9-09902-610-1	02	1	9205-	●	●
46	NIPPLE; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) M14 STRAIGHT	9-09223-008-0	01	1	9001-9204	●	●
46	NIPPLE; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) WHEEL BASE 6600MM(66W),WHEEL BASE 6800MM(68W) (B) M14 STRAIGHT	9-09223-008-0	01	1	9001-9204	●	●
46	NIPPLE; AIR PIPE (B) M14 STRAIGHT	9-09223-008-1	01	1	9205-	●	●
46	NIPPLE; AIR PIPE WHEEL BASE 6600MM(66W),WHEEL BASE 6800MM(68W) (B) M14 STRAIGHT	9-09223-008-1	01	1	9205-	●	●
49	WASHER; LK,PIPE UNION ID=6.4	9-09160-506-0	01	1	9001-9204	●
49	WASHER; LK,PIPE UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=6.4	9-09160-506-0	01	1	9001-9204		●
49	WASHER; LK,PIPE UNION ID=6.4	9-09160-506-0	01	1	9205-	●	●
55	PIPE; AIR,RELAY VLV TO FLEX HOSE (A)	1-47439-473-1	01	1	9001-9204	●
55	PIPE; AIR,RELAY VLV TO FLEX HOSE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-47439-473-1	01	1	9001-9204		●
55	PIPE; AIR,RELAY VLV TO FLEX HOSE (A)	1-47439-473-1	01	1	9205-9212	●	●
55	PIPE; AIR,RELAY VLV TO FLEX HOSE (A)	1-47496-434-0	01	1	9301-	●	●
55	PIPE; AIR,RELAY VLV TO FLEX HOSE (B)	1-47439-474-2	01	1	9001-9204	●
55	PIPE; AIR,RELAY VLV TO FLEX HOSE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-47439-474-2	01	1	9001-9204		●
55	PIPE; AIR,RELAY VLV TO FLEX HOSE (B)	1-47439-474-2	01	1	9205-9212	●	●
55	PIPE; AIR,RELAY VLV TO FLEX HOSE (B)	1-47496-487-0	01	1	9301-	●	●
60	NUT; NIPPLE,AIR PIPE M14	9-99111-414-0	02	1	9001-9204	●
60	NUT; NIPPLE,AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M14	9-99111-414-0	02	1	9001-9204		●
60	NUT; NIPPLE,AIR PIPE M14	9-99111-414-0	02	1	9205-	●	●
60	NUT; NIPPLE,AIR PIPE M16	9-99111-416-0	03	1	9001-9204	●
60	NUT; NIPPLE,AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M16	9-99111-416-0	03	1	9001-9204		●
60	NUT; NIPPLE,AIR PIPE M16	9-99111-416-0	03	1	9205-	●	●
61	WASHER; LK,NIPPLE ID=14.2	9-09150-514-0	02	1	9001-9204	●
61	WASHER; LK,NIPPLE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=14.2	9-09150-514-0	02	1	9001-9204		●
61	WASHER; LK,NIPPLE ID=14.2	9-09150-514-0	02	1	9205-9312	●	●
61	WASHER; LK,NIPPLE ID=16.2	9-09150-516-0	05	1	9001-9204	●
61	WASHER; LK,NIPPLE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=16.2	9-09150-516-0	05	1	9001-9204		●
61	WASHER; LK,NIPPLE ID=16.2	9-09150-516-0	05	1	9205-9312	●	●
64	GASKET; FLEX HOSE ID=11 OD=18	9-09572-510-0	08	1	9001-9204	●
64	GASKET; FLEX HOSE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=11 OD=18	9-09572-510-0	08	1	9001-9204		●
64	GASKET; FLEX HOSE ID=11 OD=18	9-09572-510-0	08	1	9205-	●	●
64	GASKET; FLEX HOSE AXLE RATIO 2 SPEED<W9Y> ID=11 OD=18	9-09572-510-0	02	1	9001-	●	●
71	HOSE; FLEX,RWD RR L=530	0-07847-530-1	02	1	9001-9204	●
71	HOSE; FLEX,RWD RR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=530	0-07847-530-1	02	1	9001-9204		●
71	HOSE; FLEX,RWD RR L=530	0-07847-530-1	02	1	9205-	●	●
87	PIPE; AIR,AIR TANK TO UNION L=2400 SERVICED BY L=2600	1-47437-973-0	01	1	9001-9204	●
87	PIPE; AIR,AIR TANK TO UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=2400 SERVICED BY L=2600	1-47437-973-0	01	1	9001-9204		●
87	PIPE; AIR,AIR TANK TO UNION L=2400 SERVICED BY L=2600	1-47437-973-0	01	1	9205-9212	●	●
87	PIPE; AIR,AIR TANK TO UNION L=2400 SERVICED BY L=2600	1-47426-424-0	01	1	9301-	●	●
102	PIPE; AIR,UNION TO UNION (B) L=1469 SERVICED BY L=1700	1-47434-478-0	01	1	9001-9212	●
102	PIPE; AIR,UNION TO UNION (B) L=1469 SERVICED BY L=1700	1-47426-420-0	01	1	9301-	●
102	PIPE; AIR,UNION TO UNION (A) L=2250 SERVICED BY L=2500	1-47434-479-0	01	1	9001-9212	●
102	PIPE; AIR,UNION TO UNION (A) L=2250 SERVICED BY L=2500	1-47426-423-0	01	1	9301-	●
102	PIPE; AIR,UNION TO UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) L=3200 SERVICED BY L=3300	1-47437-975-0	01	1	9001-9204		●
102	PIPE; AIR,UNION TO UNION (A) L=3200 SERVICED BY L=3300	1-47437-975-0	01	1	9205-9212		●
102	PIPE; AIR,UNION TO UNION (A) L=3200 SERVICED BY L=3300	1-47426-426-0	01	1	9301-		●
102	PIPE; AIR,UNION TO UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) L=1997	1-47443-582-0	01	1	9001-9204		●
102	PIPE; AIR,UNION TO UNION (B) L=1997	1-47443-582-0	01	1	9205-9212		●
102	PIPE; AIR,UNION TO UNION (B) L=1997 SERVICED BY L=2100	1-47426-422-0	01	1	9301-		●
113	PIPE; AIR,UNION TO RELAY VLV WHEEL BASE 5800MM(58W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=2008 SERVICED BY L=2100	1-47437-972-0	01	1	9001-9204	●	●
113	PIPE; AIR,UNION TO RELAY VLV WHEEL BASE 5800MM(58W) L=2008 SERVICED BY L=2100	1-47437-972-0	01	1	9205-9212	●	●
113	PIPE; AIR,UNION TO RELAY VLV WHEEL BASE 5800MM(58W) L=2008 SERVICED BY L=2100	1-47426-422-0	01	1	9301-	●	●
113	PIPE; AIR,UNION TO RELAY VLV WHEEL BASE 6800MM(68W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=2808 SERVICED BY L=2900	1-47437-974-0	01	1	9001-9204	●	●
113	PIPE; AIR,UNION TO RELAY VLV WHEEL BASE 6800MM(68W) L=2808 SERVICED BY L=2900	1-47437-974-0	01	1	9205-9212	●	●
113	PIPE; AIR,UNION TO RELAY VLV WHEEL BASE 6800MM(68W) L=2808 SERVICED BY L=2900	1-47426-425-0	01	1	9301-	●	●
113	PIPE; AIR,UNION TO RELAY VLV WHEEL BASE 6600MM(66W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=2658 SERVICED BY L=2900	1-47437-974-0	01	1	9001-9204		●
113	PIPE; AIR,UNION TO RELAY VLV WHEEL BASE 6600MM(66W) L=2658 SERVICED BY L=2900	1-47437-974-0	01	1	9205-9212		●
113	PIPE; AIR,UNION TO RELAY VLV WHEEL BASE 6600MM(66W) L=2658 SERVICED BY L=2900	1-47426-425-0	01	1	9301-		●
114	PIPE; AIR,QUICK RELEASE VLV (B)	1-47487-583-0	01	1	9001-9204	●
114	PIPE; AIR,QUICK RELEASE VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-47487-583-0	01	1	9001-9204		●
114	PIPE; AIR,QUICK RELEASE VLV (B)	1-47487-583-0	01	1	9205-9212	●	●
114	PIPE; AIR,QUICK RELEASE VLV (B)	1-47496-457-0	01	1	9301-	●	●
114	PIPE; AIR,QUICK RELEASE VLV WHEEL BASE 5800MM(58W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) L=709 SERVICED BY L=730	1-47437-965-0	01	1	9001-9204	●	●
114	PIPE; AIR,QUICK RELEASE VLV WHEEL BASE 5800MM(58W) (A) L=709 SERVICED BY L=730	1-47437-965-0	01	1	9205-9212	●	●
114	PIPE; AIR,QUICK RELEASE VLV WHEEL BASE 5800MM(58W) (A) L=709 SERVICED BY L=730	1-47426-411-0	01	1	9301-	●	●
114	PIPE; AIR,QUICK RELEASE VLV WHEEL BASE 6600MM(66W),WHEEL BASE 6800MM(68W) (C) L=909 SERVICED BY L=1000	1-47434-476-0	01	1	9001-9212	●	●
114	PIPE; AIR,QUICK RELEASE VLV WHEEL BASE 6600MM(66W),WHEEL BASE 6800MM(68W) (C) L=909 SERVICED BY L=1000	1-47426-414-0	01	1	9301-	●	●
156	PIPE; AIR,UNION TO CONT VLV (B) L=950	1-47439-476-0	01	1	9001-9204	●
156	PIPE; AIR,UNION TO CONT VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) L=950	1-47439-476-0	01	1	9001-9204		●
156	PIPE; AIR,UNION TO CONT VLV (B) L=950	1-47439-476-0	01	1	9205-9212	●	●
156	PIPE; AIR,UNION TO CONT VLV (B)	1-47496-865-0	01	1	9301-	●	●
156	PIPE; AIR,UNION TO CONT VLV (A) SERVICED BY L=450	1-47426-464-0	01	1	9001-9204	●
156	PIPE; AIR,UNION TO CONT VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) SERVICED BY L=450	1-47426-464-0	01	1	9001-9204		●
156	PIPE; AIR,UNION TO CONT VLV (A) SERVICED BY L=450	1-47426-464-0	01	1	9205-	●	●
160	HOSE; FLEX,SPR CHAMBER L=530	0-07847-530-1	02	1	9001-9204	●
160	HOSE; FLEX,SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=530	0-07847-530-1	02	1	9001-9204		●
160	HOSE; FLEX,SPR CHAMBER L=530	0-07847-530-1	02	1	9205-	●	●
164	PIPE; AIR,AIR TANK TO RELAY VLV	1-47437-269-2	01	1	9001-9204	●
164	PIPE; AIR,AIR TANK TO RELAY VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47437-269-2	01	1	9001-9204		●
164	PIPE; AIR,AIR TANK TO RELAY VLV	1-47437-269-2	01	1	9205-	●	●
212	GROMMET; AIR PIPE ID=10 OD=35 T=5	1-09983-020-0	01	1	9001-9204	●
212	GROMMET; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=10 OD=35 T=5	1-09983-020-0	01	1	9001-9204		●
212	GROMMET; AIR PIPE ID=10 OD=35 T=5	1-09983-020-0	01	1	9205-	●	●
212	GROMMET; AIR PIPE OD=40	9-09956-120-0	01	1	9001-9204	●
212	GROMMET; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) OD=40	9-09956-120-0	01	1	9001-9204		●
212	GROMMET; AIR PIPE OD=40	9-09956-120-0	01	1	9205-	●	●

13 13 61 37 100 2 54 95 102 13 61 95 102 13 100 54 37 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	UNION; AIR PIPE M16 ELBOW	9-09235-110-0	01	1	9001-9204	●
2	UNION; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M16 ELBOW	9-09235-110-0	01	1	9001-9204		●
2	UNION; AIR PIPE M16 ELBOW	9-09235-110-1	01	1	9205-	●	●
13	PIPE; AIR,BRK VLV TO UNION (B)	1-47441-458-1	01	1	9001-9204	●
13	PIPE; AIR,BRK VLV TO UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-47441-458-1	01	1	9001-9204		●
13	PIPE; AIR,BRK VLV TO UNION (B)	1-47441-458-1	01	1	9205-9212	●	●
13	PIPE; AIR,BRK VLV TO UNION (B)	1-47496-450-0	01	1	9301-	●	●
13	PIPE; AIR,BRK VLV TO UNION (A)	1-47442-100-1	01	1	9001-9204	●
13	PIPE; AIR,BRK VLV TO UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-47442-100-1	01	1	9001-9204		●
13	PIPE; AIR,BRK VLV TO UNION (A)	1-47442-100-1	01	1	9205-9212	●	●
13	PIPE; AIR,BRK VLV TO UNION (A)	1-47496-449-0	01	1	9301-	●	●
37	UNION; AIR PIPE (A) M16 L=42	9-09233-010-0	03	1	9001-9204	●
37	UNION; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) M16 L=42	9-09233-010-0	03	1	9001-9204		●
37	UNION; AIR PIPE (A) M16 L=42	9-09233-010-1	03	1	9205-	●	●
37	UNION; AIR PIPE (A) M16 L=42	9-09233-010-1	02	1	9001-	●
37	UNION; AIR PIPE (B) M16 ELBOW	9-09235-110-0	01	1	9001-9204	●
37	UNION; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) M16 ELBOW	9-09235-110-0	01	1	9001-9204		●
37	UNION; AIR PIPE (B) M16 ELBOW	9-09235-110-1	01	1	9205-	●	●
37	UNION; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) M16 L=70 STRAIGHT	9-09233-210-0	02	1	9001-9204		●
37	UNION; AIR PIPE (A) M16 L=70 STRAIGHT	9-09233-210-1	02	1	9205-		●
54	WASHER; LK,UNION ID=16.2	9-09150-516-0	01	1	9001-9204	●
54	WASHER; LK,UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=16.2	9-09150-516-0	01	1	9001-9204		●
54	WASHER; LK,UNION ID=16.2	9-09150-516-0	01	1	9205-9312	●	●
61	WASHER; LK,NIPPLE ID=14.2	9-09150-514-0	02	1	9001-9204	●
61	WASHER; LK,NIPPLE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=14.2	9-09150-514-0	02	1	9001-9204		●
61	WASHER; LK,NIPPLE ID=14.2	9-09150-514-0	02	1	9205-9312	●	●
61	WASHER; LK,NIPPLE ID=16.2	9-09150-516-0	05	1	9001-9204	●
61	WASHER; LK,NIPPLE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=16.2	9-09150-516-0	05	1	9001-9204		●
61	WASHER; LK,NIPPLE ID=16.2	9-09150-516-0	05	1	9205-9312	●	●
95	PIPE; AIR,UNION TO UNION L=1728 SERVICED BY L=1900	1-47437-971-0	01	1	9001-9212	●
95	PIPE; AIR,UNION TO UNION L=1728 SERVICED BY L=1900	1-47426-421-0	01	1	9301-	●
95	PIPE; AIR,UNION TO UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=1833 SERVICED BY L=1900	1-47437-971-0	01	1	9001-9204		●
95	PIPE; AIR,UNION TO UNION L=1833 SERVICED BY L=1900	1-47437-971-0	01	1	9205-9212		●
95	PIPE; AIR,UNION TO UNION L=1833 SERVICED BY L=1900	1-47426-421-0	01	1	9301-		●
100	NUT; UNION M16	9-99111-416-0	01	1	9001-9204	●
100	NUT; UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M16	9-99111-416-0	01	1	9001-9204		●
100	NUT; UNION M16	9-99111-416-0	01	1	9205-	●	●
102	PIPE; AIR,UNION TO UNION (B) L=1469 SERVICED BY L=1700	1-47434-478-0	01	1	9001-9212	●
102	PIPE; AIR,UNION TO UNION (B) L=1469 SERVICED BY L=1700	1-47426-420-0	01	1	9301-	●
102	PIPE; AIR,UNION TO UNION (A) L=2250 SERVICED BY L=2500	1-47434-479-0	01	1	9001-9212	●
102	PIPE; AIR,UNION TO UNION (A) L=2250 SERVICED BY L=2500	1-47426-423-0	01	1	9301-	●
102	PIPE; AIR,UNION TO UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) L=3200 SERVICED BY L=3300	1-47437-975-0	01	1	9001-9204		●
102	PIPE; AIR,UNION TO UNION (A) L=3200 SERVICED BY L=3300	1-47437-975-0	01	1	9205-9212		●
102	PIPE; AIR,UNION TO UNION (A) L=3200 SERVICED BY L=3300	1-47426-426-0	01	1	9301-		●
102	PIPE; AIR,UNION TO UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) L=1997	1-47443-582-0	01	1	9001-9204		●
102	PIPE; AIR,UNION TO UNION (B) L=1997	1-47443-582-0	01	1	9205-9212		●
102	PIPE; AIR,UNION TO UNION (B) L=1997 SERVICED BY L=2100	1-47426-422-0	01	1	9301-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
