2-05 — CLUTCH PIPING (#21028) — 51 parça

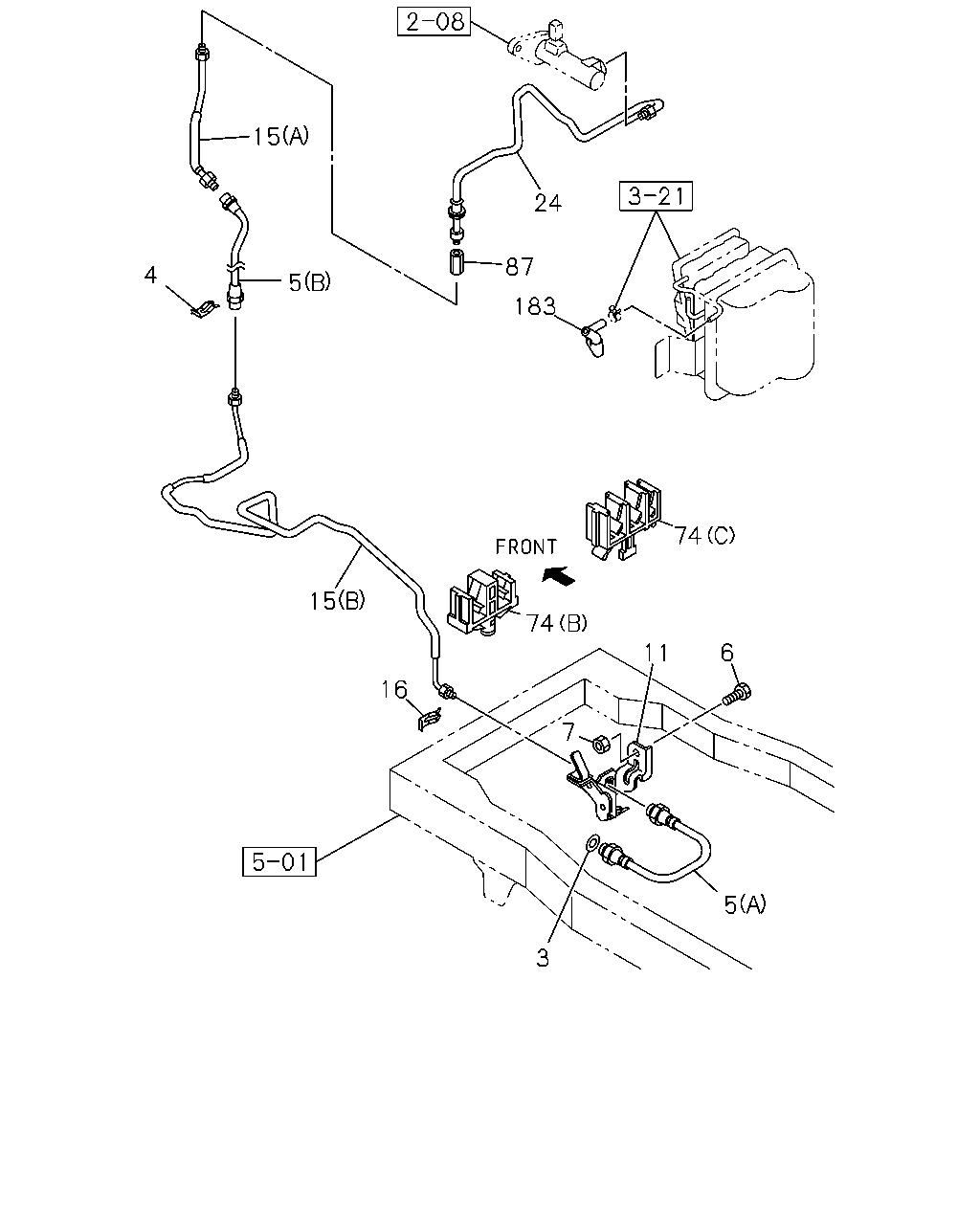

çizim 47163
15 24 87 4 5 183 74 15 74 11 6 16 7 5 3
BalonParca AdiParca NoAdetTipApplied Date A B C
3 GASKET; FLEX HOSE,CLU 9-09920-873-1 01 1 0009- ●
4 CLIP; FLEX HOSE,CLU CONT 8-94167-006-0 02 1 0009- ● ● ●
5 HOSE; FLEX,CLU PIPE
(A) 		8-94374-552-1 01 1 0009- ● ●
5 HOSE; FLEX,CLU PIPE
(B) 		8-94248-702-2 01 1 0009- ● ● ●
5 HOSE; FLEX,CLU PIPE
(A) 		8-94482-265-1 01 1 0009- ●
6 BOLT; BRKT,FLEX HOSE
M8X20 FLANGE 		0-28680-820-0 01 1 0009- ● ●
6 BOLT; BRKT,FLEX HOSE
M8X25 FLANGE 		0-28680-825-0 01 1 0009- ●
7 NUT; FLEX HOSE,CLU CONT
M8 FLANGE 		0-91150-108-0 01 1 0009- ● ● ●
11 BRACKET; FLEX HOSE,CLU 8-97091-929-0 01 1 0009- ● ●
11 BRACKET; FLEX HOSE,CLU 8-97063-755-0 01 1 0009- ●
15 PIPE; CLU,FLEX HOSE
(B) THA 		8-97921-243-0 01 1 0009-0009 ●
15 PIPE; CLU,FLEX HOSE
(B) THA 		8-97921-707-0 01 1 0009- ●
15 PIPE; CLU,FLEX HOSE
(B) THA 		8-97917-010-1 01 1 0009- ● ●
15 PIPE; CLU,FLEX HOSE
(A) THA 		8-97916-848-0 01 1 0009- ● ● ●
16 CLIP; FLEX HOSE 8-94167-006-0 02 1 0009- ● ●
16 CLIP; FLEX HOSE 8-94167-006-0 01 1 0009- ●
24 PIPE ASM; CLU,M/CYL TO UNION
POWER ASSIST CLUTCH<S2T> 		8-97035-973-0 01 1 0009- ●
24 PIPE ASM; CLU,M/CYL TO UNION
THA 		8-97916-852-0 02 1 0009- ● ●
24 PIPE ASM; CLU,M/CYL TO UNION
EXC. POWER ASSIST CLUTCH<S2T> THA 		8-97916-852-0 02 1 0009- ●
74 CLIP; CLU OIL PIPE
(A) H=28.5 		8-94486-808-0 02 1 0009- ● ●
74 CLIP; CLU OIL PIPE
(C) ID=5 & 6.5 & 8.2 		8-94128-316-1 01 1 0009- ●
74 CLIP; CLU OIL PIPE
(B) ID=6.5 & 4.8X2 H=29 		8-94249-689-2 01 1 0009- ●
87 UNION; OIL PIPE
M12 STRAIGHT 		9-99227-006-0 01 1 0009- ● ● ●
183 HOSE; VAC,VAC TANK SIDE
POWER ASSIST CLUTCH<S2T> 		8-97129-874-0 01 1 0009- ●

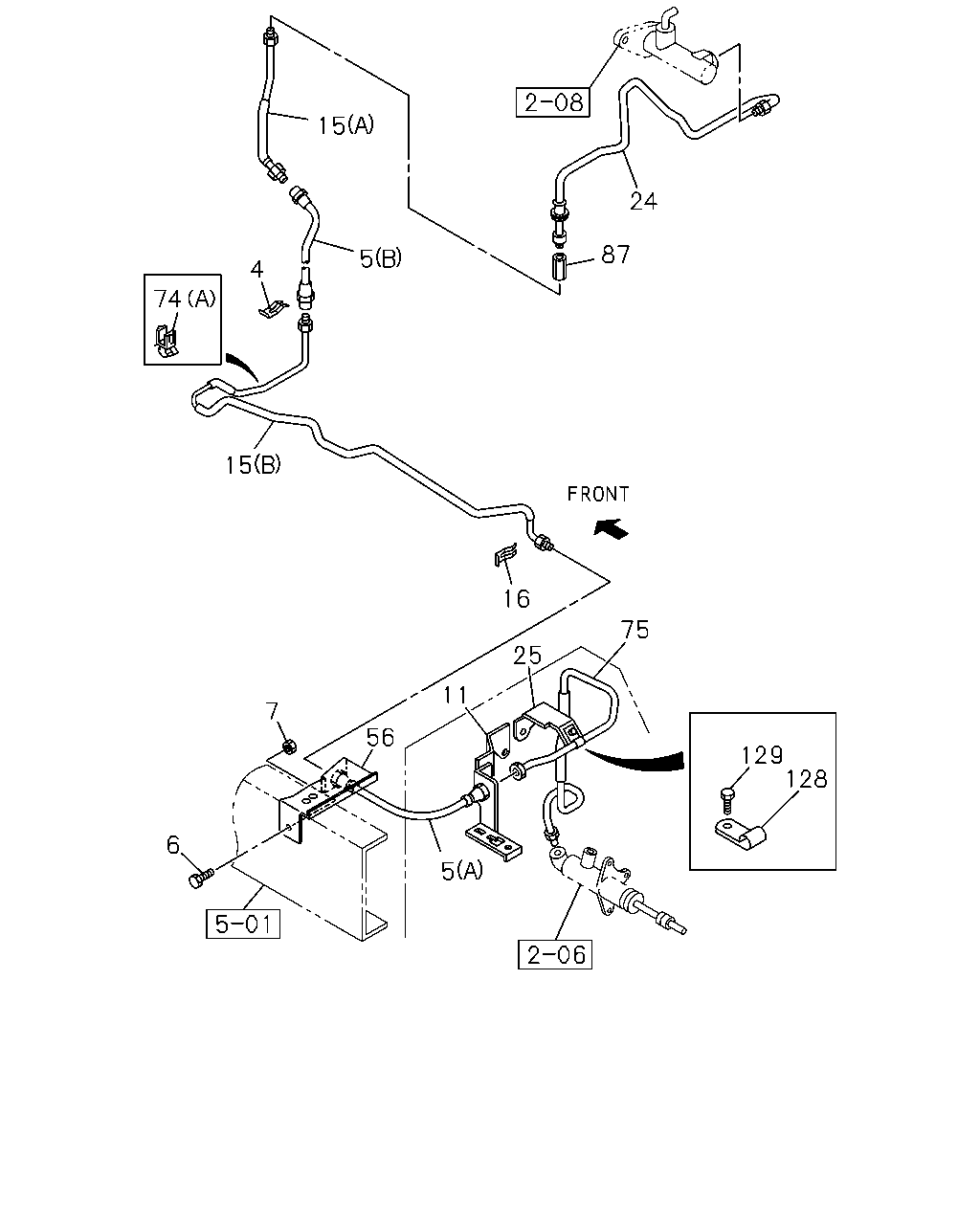

çizim 47647
15 24 87 5 4 74 15 16 75 25 11 7 56 129 128 6 5
BalonParca AdiParca NoAdetTipApplied Date A B C
4 CLIP; FLEX HOSE,CLU CONT 8-94167-006-0 02 1 0009- ● ● ●
5 HOSE; FLEX,CLU PIPE
(A) 		8-94374-552-1 01 1 0009- ● ●
5 HOSE; FLEX,CLU PIPE
(B) 		8-94248-702-2 01 1 0009- ● ● ●
5 HOSE; FLEX,CLU PIPE
(A) 		8-94482-265-1 01 1 0009- ●
6 BOLT; BRKT,FLEX HOSE
M8X20 FLANGE 		0-28680-820-0 01 1 0009- ● ●
6 BOLT; BRKT,FLEX HOSE
M8X25 FLANGE 		0-28680-825-0 01 1 0009- ●
7 NUT; FLEX HOSE,CLU CONT
M8 FLANGE 		0-91150-108-0 01 1 0009- ● ● ●
11 BRACKET; FLEX HOSE,CLU 8-97091-929-0 01 1 0009- ● ●
11 BRACKET; FLEX HOSE,CLU 8-97063-755-0 01 1 0009- ●
15 PIPE; CLU,FLEX HOSE
(B) THA 		8-97921-243-0 01 1 0009-0009 ●
15 PIPE; CLU,FLEX HOSE
(B) THA 		8-97921-707-0 01 1 0009- ●
15 PIPE; CLU,FLEX HOSE
(B) THA 		8-97917-010-1 01 1 0009- ● ●
15 PIPE; CLU,FLEX HOSE
(A) THA 		8-97916-848-0 01 1 0009- ● ● ●
16 CLIP; FLEX HOSE 8-94167-006-0 02 1 0009- ● ●
16 CLIP; FLEX HOSE 8-94167-006-0 01 1 0009- ●
24 PIPE ASM; CLU,M/CYL TO UNION
POWER ASSIST CLUTCH<S2T> 		8-97035-973-0 01 1 0009- ●
24 PIPE ASM; CLU,M/CYL TO UNION
THA 		8-97916-852-0 02 1 0009- ● ●
24 PIPE ASM; CLU,M/CYL TO UNION
EXC. POWER ASSIST CLUTCH<S2T> THA 		8-97916-852-0 02 1 0009- ●
25 BRACKET; OIL PIPE 8-97013-211-1 01 1 0009- ● ●
56 BRACKET; FLEX HOSE 8-97090-299-0 01 1 0009- ● ●
74 CLIP; CLU OIL PIPE
(A) H=28.5 		8-94486-808-0 02 1 0009- ● ●
74 CLIP; CLU OIL PIPE
(C) ID=5 & 6.5 & 8.2 		8-94128-316-1 01 1 0009- ●
74 CLIP; CLU OIL PIPE
(B) ID=6.5 & 4.8X2 H=29 		8-94249-689-2 01 1 0009- ●
75 PIPE ASM; CLU,HSG
THA 		8-97917-497-0 01 1 0009- ● ●
87 UNION; OIL PIPE
M12 STRAIGHT 		9-99227-006-0 01 1 0009- ● ● ●
128 CLIP; AIR PIPE
ID=7 L=16 		9-09524-622-0 02 1 0009- ● ●
129 BOLT; PIPE CLIP
M6X12 FLANGE 		0-28080-612-0 02 1 0009- ● ●
