2-03 — CLUTCH PEDAL AND CONTROL (#21027) — 34 parça

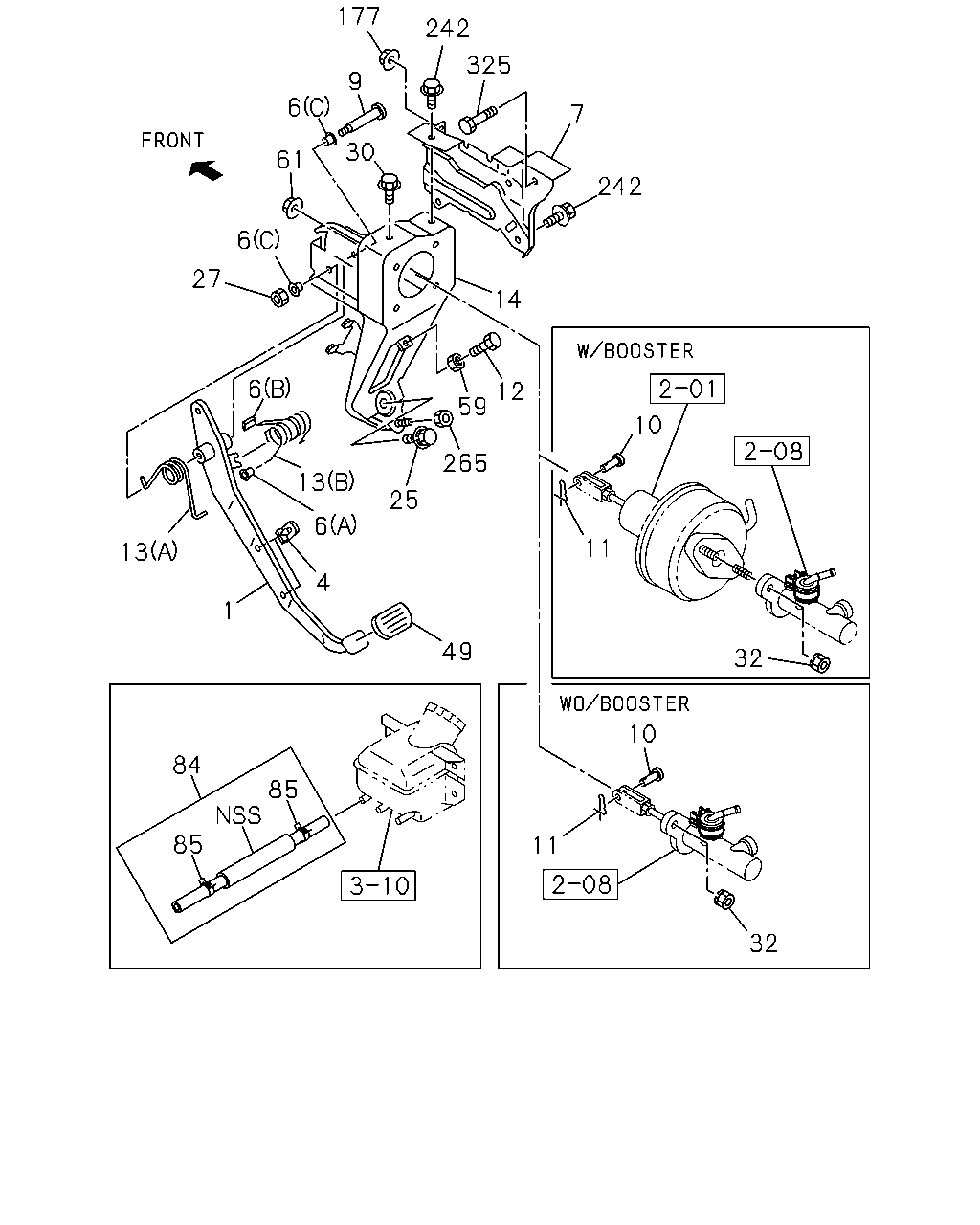

çizim 47430
177 242 325 9 6 7 30 61 242 6 27 14 6 12 59 10 265 13 25 6 11 13 4 1 49 32 10 84 85 85 11 32
BalonParca AdiParca NoAdetTipApplied Date A B C
1 PEDAL; CLU
POWER ASSIST CLUTCH<S2T> 		8-97853-220-2 01 1 0009- ●
1 PEDAL; CLU
THA 		8-97916-303-0 01 1 0009- ● ●
1 PEDAL; CLU
EXC. POWER ASSIST CLUTCH<S2T> THA 		8-97916-303-0 01 1 0009- ●
4 STOPPER; CLU PEDAL
THA 		8-97853-534-1 02 1 0009- ● ● ●
6 BUSHING; CLU PEDAL
(C) 		8-94238-596-0 02 1 0009- ● ● ●
6 BUSHING; CLU PEDAL
(A) THA 		8-97853-619-0 02 1 0009- ● ●
6 BUSHING; CLU PEDAL
EXC. POWER ASSIST CLUTCH<S2T> (A) THA 		8-97853-619-0 02 1 0009- ●
6 BUSHING; CLU PEDAL
(B) THA 		8-97853-620-0 01 1 0009- ● ●
6 BUSHING; CLU PEDAL
EXC. POWER ASSIST CLUTCH<S2T> (B) THA 		8-97853-620-0 01 1 0009- ●
7 BRACKET; CLU PEDAL 8-97853-522-4 01 1 0009- ● ● ●
9 PIN; CLU PEDAL 8-97866-667-0 01 1 0009- ● ● ●
10 PIN; CLU PEDAL 8-94410-276-0 01 1 0009- ● ● ●
11 PIN; SNAP,PUSH ROD TO PEDAL 8-94279-912-0 01 1 0009- ● ● ●
12 BOLT; CLU PEDAL ADJ
EXC. EXHAUST BRAKE<NF8> M10X35 		0-20801-035-0 01 1 0009- ● ● ●
13 SPRING; ASSIST,CLU PEDAL
(B) 		8-97853-221-1 01 1 0009- ● ●
13 SPRING; ASSIST,CLU PEDAL
EXC. POWER ASSIST CLUTCH<S2T> (B) 		8-97853-221-1 01 1 0009- ●
13 SPRING; ASSIST,CLU PEDAL
POWER ASSIST CLUTCH<S2T> (A) 		8-97853-535-1 01 1 0009- ●
14 BRACKET ASM; CLU PEDAL MTG 8-97892-848-2 01 1 0009- ● ●
14 BRACKET ASM; CLU PEDAL MTG
EXC. POWER ASSIST CLUTCH<S2T> 		8-97892-848-2 01 1 0009- ●
14 BRACKET ASM; CLU PEDAL MTG
POWER ASSIST CLUTCH<S2T> 		8-97892-849-2 01 1 0009- ●
25 BOLT; PEDAL
M10X22 W/WASHER 		8-94279-099-0 01 1 0009-0110 ● ● ●
25 BOLT; PEDAL
M10X22 W/PL WASHER 		8-97313-188-0 01 1 0111- ● ● ●
27 NUT; FULCRUM PIN
M10 FLANGE 		1-09440-022-0 01 1 0009- ● ● ●
30 BOLT; CLU MTG BRKT
M10X25 FLANGE 		0-28691-025-0 01 1 0009- ● ● ●
32 NUT; BRKT TO CLU M/CYL
M8 W/LK WASHER 		8-94279-050-0 02 1 0009- ● ● ●
49 RUBBER; PAD,CLU PEDAL 8-97853-413-2 01 1 0009- ● ● ●
59 NUT; CLU PEDAL ADJ
EXC. EXHAUST BRAKE<NF8> M10 		9-09110-410-0 01 1 0009- ● ● ●
61 NUT; BOOSTER TO BRKT
POWER ASSIST CLUTCH<S2T> M8 W/LK WASHER 		8-94279-050-0 04 1 0009- ●
84 HOSE; RUBBER,CLU LINE 8-97135-024-0 01 1 0009- ● ● ●
85 CLIP; HOSE TO M/CYL 8-97130-480-0 02 1 0009- ● ● ●
177 NUT; BRKT
M8 W/LK WASHER 		8-94279-050-0 02 1 0009- ● ● ●
242 BOLT; BRKT,CLUTCH
M8X16 FLANGE 		0-28480-816-0 02 1 0009- ● ● ●
265 NUT; BRKT,COLUMN SUPT TO C.PDL
M8 FLANGE 		8-97046-127-0 01 1 0009- ● ● ●
325 BOLT; BRKT,STRG SUPPORT
M8X20 FLANGE 		0-28680-820-0 01 1 0009- ● ● ●
