2-01 — CLUTCH (#21026) — 25 parça

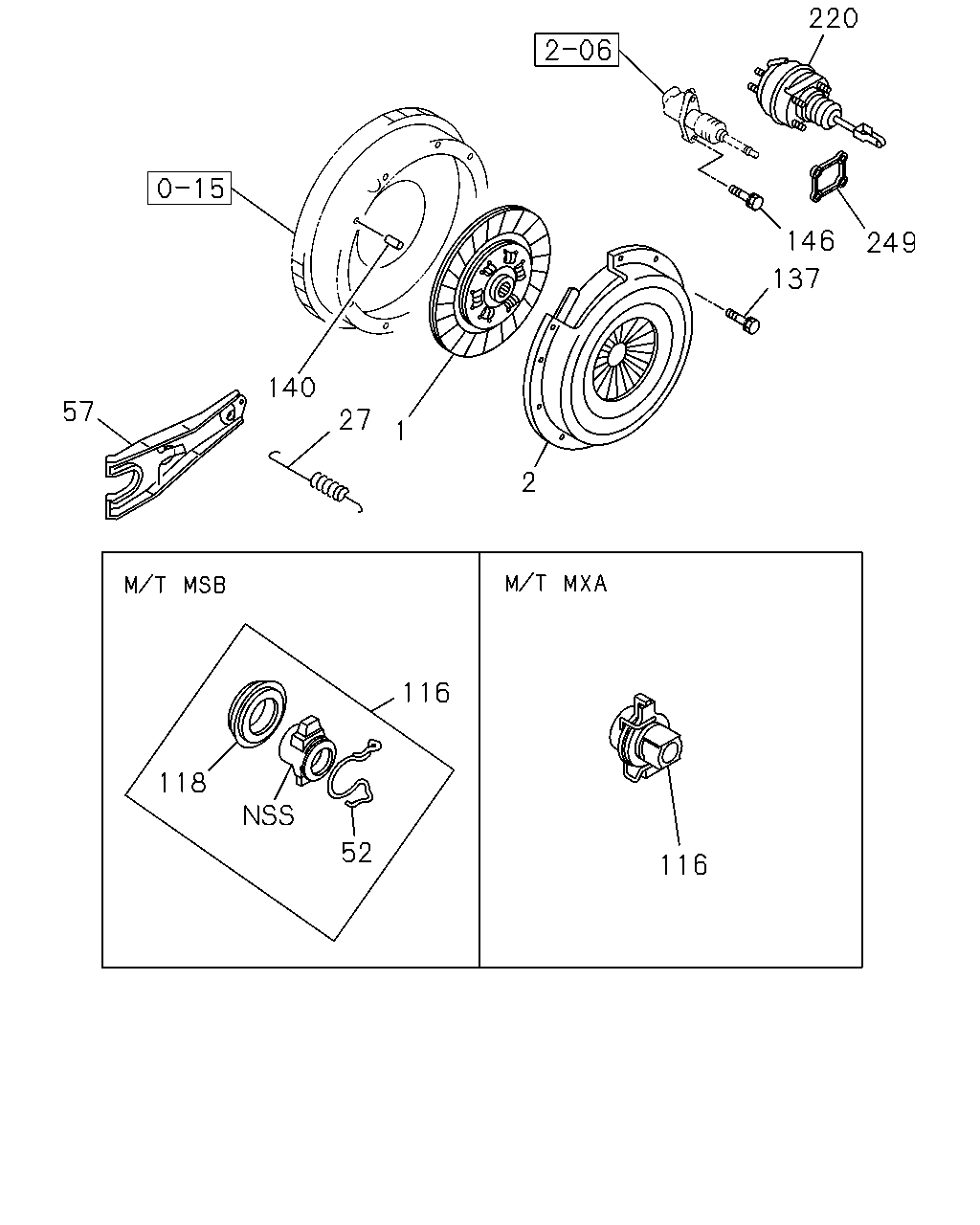

çizim 45847
220 146 249 137 140 57 27 1 2 116 118 52 116
BalonParca AdiParca NoAdetTipApplied Date A B C
1 DISC; CLUTCH
THA 		8-97940-674-1 01 1 0009-0009 ● ●
1 DISC; CLUTCH
THA 		8-97941-951-0 01 1 0009- ● ●
1 DISC; CLUTCH
THA 		8-97940-396-0 01 1 0009- ●
2 PLATE ASM; PRESSURE,CLU 8-97109-246-0 01 1 0009- ● ●
2 PLATE ASM; PRESSURE,CLU 8-97031-757-2 01 1 0009-0103 ●
2 PLATE ASM; PRESSURE,CLU 8-97310-796-0 01 1 0104-0302 ●
2 PLATE ASM; PRESSURE,CLU 8-97351-833-0 01 1 0303- ●
27 SPRING; RETURN,SHIFT FORK 8-97184-358-0 01 1 0009- ● ●
27 SPRING; RETURN,SHIFT FORK 8-97184-359-0 01 1 0009- ●
52 SPRING; SHIFT BLOCK TO FORK 8-97017-094-0 01 1 0009-0201 ● ●
57 FORK; SHIFT,CLU 8-97033-701-0 01 1 0009- ● ●
57 FORK; SHIFT,CLU 8-97187-936-0 01 1 0009- ●
116 BLOCK; SHIFT,CLU 8-97033-699-0 01 1 0009-0201 ● ●
116 BLOCK; SHIFT,CLU 8-97316-602-0 01 1 0202- ● ●
116 BLOCK; SHIFT,CLU 8-97089-652-0 01 1 0009- ●
118 BEARING; CLU RELEASE
KOYO THA 		8-94379-499-0 01 1 0009-0201 ● ●
137 BOLT; CLU COVER
M8X16 FLANGE 		0-28080-816-0 06 1 0009- ● ●
137 BOLT; CLU COVER
M10X16 FLANGE 		0-28081-016-0 10 1 0009- ●
137 BOLT; CLU COVER
EXC. TACHOMETER<U16> M8X16 FLANGE 		0-28080-816-0 12 1 0308-0308 ● ●
137 BOLT; CLU COVER
EXC. TACHOMETER<U16> M8X16 FLANGE 		0-28080-816-0 18 1 0308- ● ●
140 PIN; STRAIGHT
OD=6 L=24 		9-09878-532-0 02 1 0009- ● ●
140 PIN; STRAIGHT
L=25 		8-94410-361-0 02 1 0009- ●
146 BOLT; SLAVE CYL TO TRANS CASE
M8X30 FLANGE 		0-28680-830-0 02 1 0009- ● ● ●
220 BOOSTER ASM; CLU
SEE FIG-NO 2-07 FOR COMPONENT. POWER ASSIST CLUTCH<S2T> 		8-97162-962-1 01 1 0009- ●
249 SPACER; CLU BOOSTER
POWER ASSIST CLUTCH<S2T> 		8-97167-489-0 01 1 0009- ●
