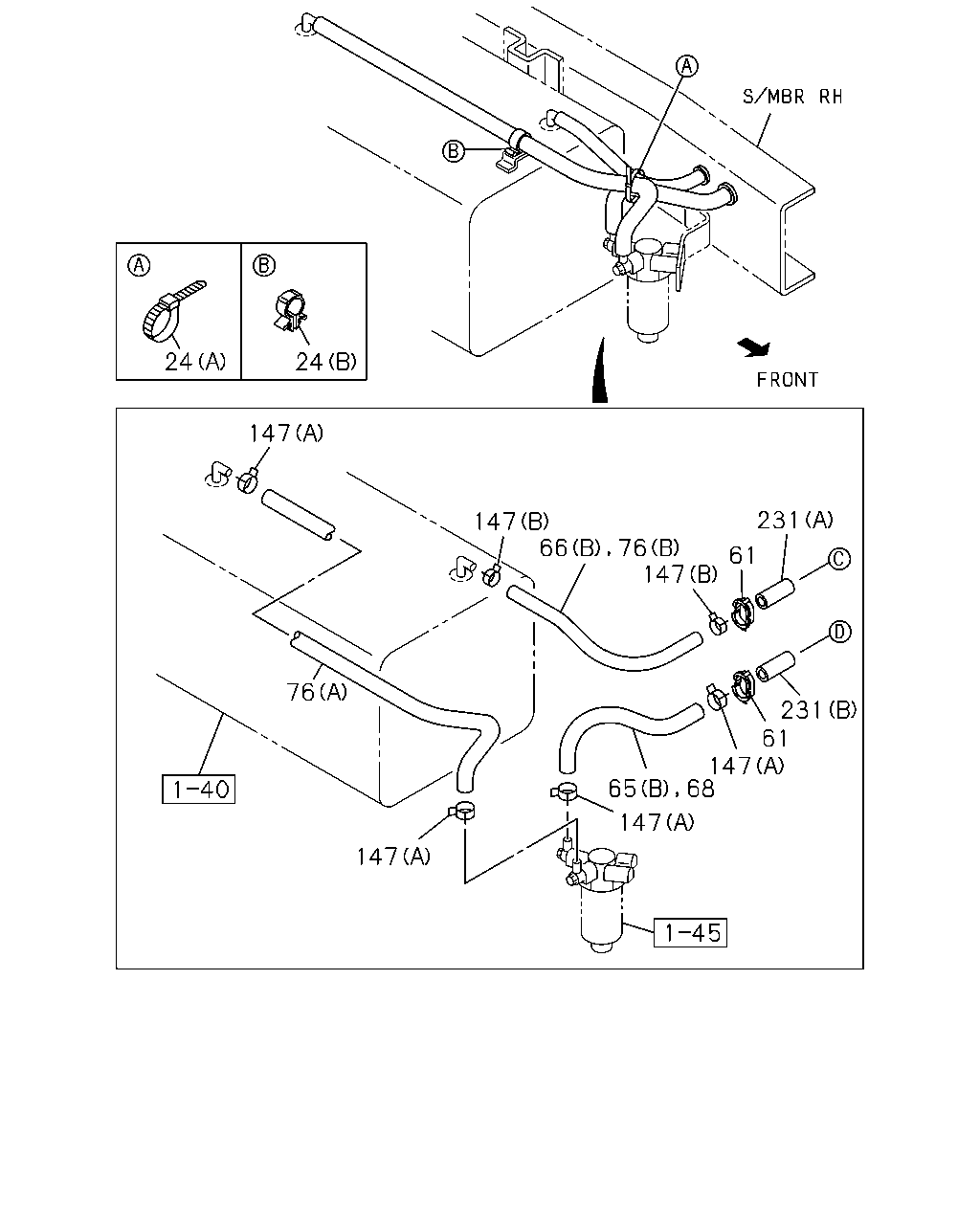

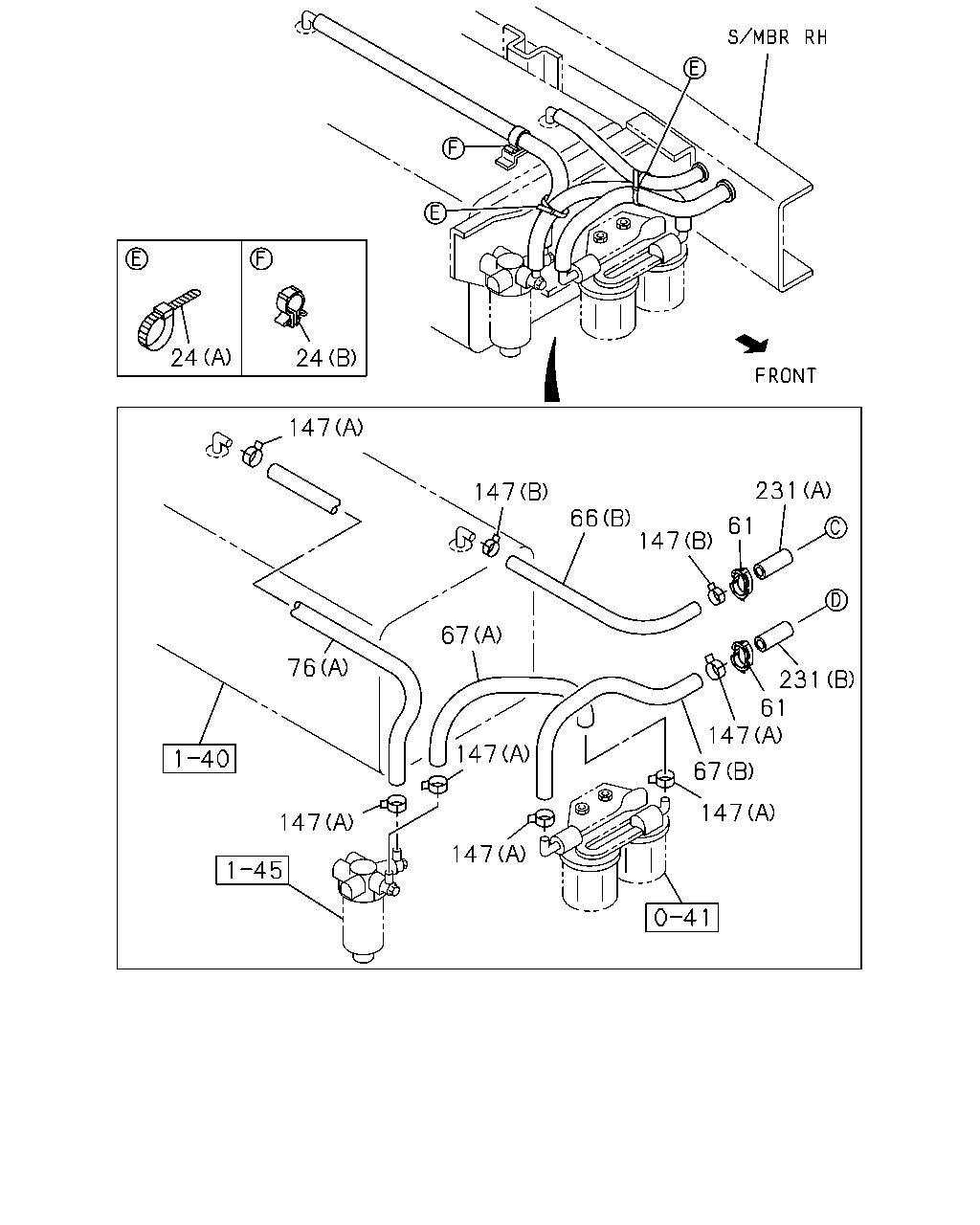

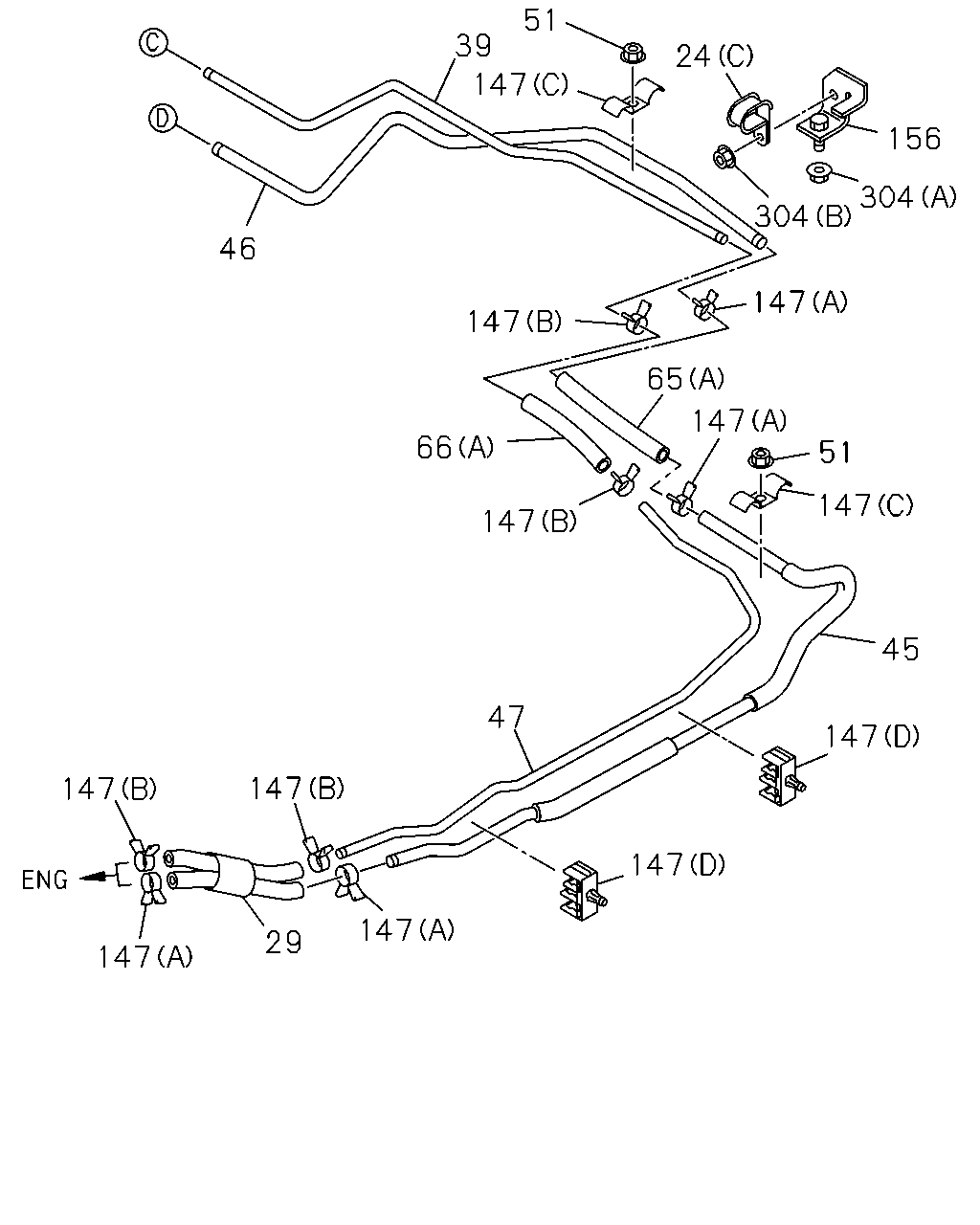

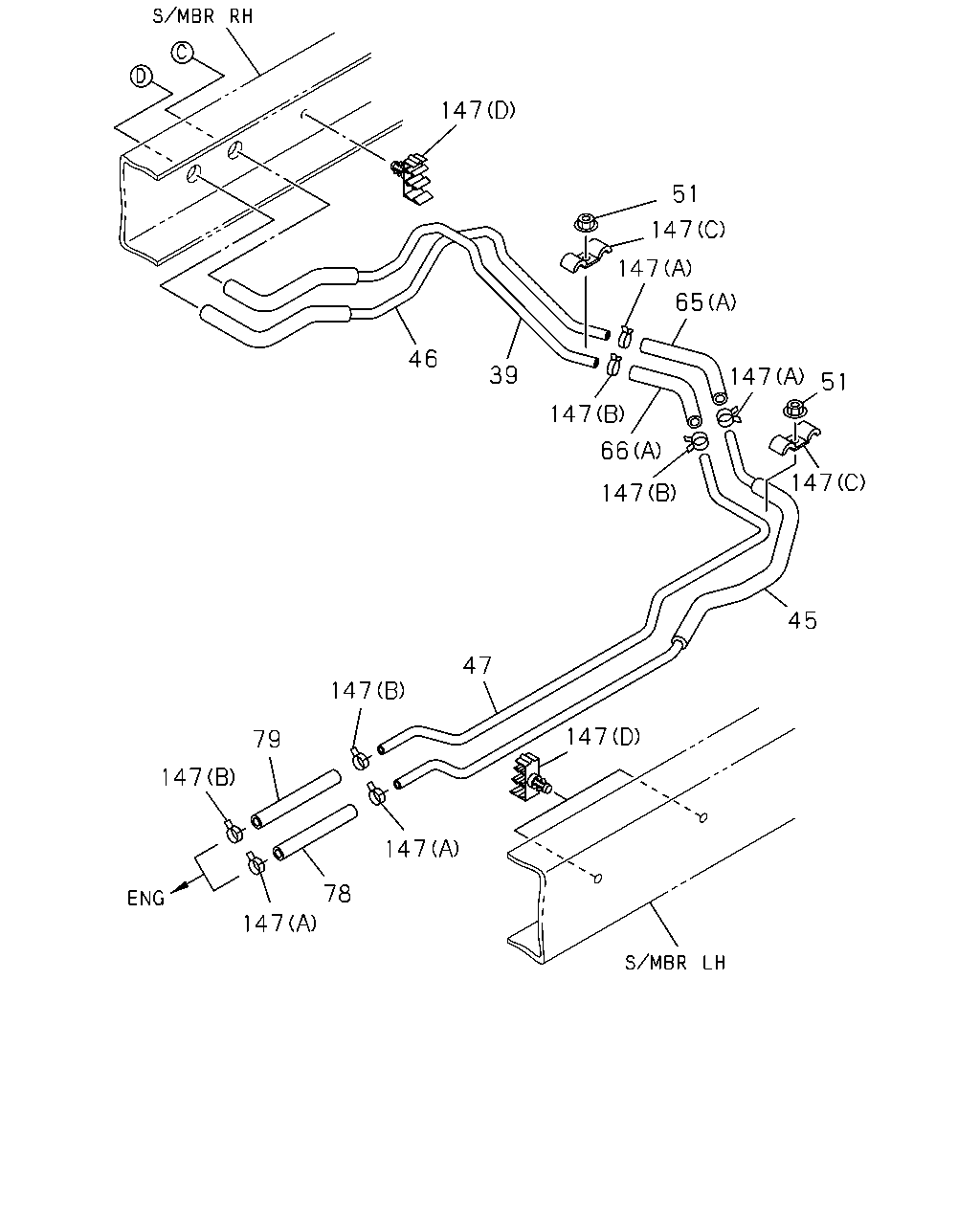

1-41 — FUEL PIPING; CHASSIS (#21021) — 118 parça

24 24 147 231 147 66 147 61 67 76 231 61 147 147 67 147 147 147

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
24	CLIP; FUEL HOSE FUEL FILTER DUAL<S6B> (A) L=140	5-09707-031-1	01	1	0009-	●	●	●
24	CLIP; FUEL HOSE FUEL FILTER DUAL<S6B> (A) L=250 THA	5-09707-030-1	01	1	0009-	●	●
24	CLIP; FUEL HOSE (A) L=250 THA	5-09707-030-1	01	1	0009-			●
24	CLIP; FUEL HOSE EXC. FUEL FILTER DUAL<S6B> (A) L=140	5-09707-031-1	02	1	0009-	●	●
24	CLIP; FUEL HOSE (C)	9-09916-239-1	01	1	0009-			●
24	CLIP; FUEL HOSE (B) THA	8-97917-012-0	01	1	0009-	●	●	●
61	GROMMET; PIPE TO FRAME ID=17	8-94128-319-2	02	1	0009-	●	●	●
66	HOSE; FUEL,RETURN PIPE (A) L=140 SERVICED BY L=3000	0-01256-300-0	01	1	0009-	●	●	●
66	HOSE; FUEL,RETURN PIPE (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	0009-		●
66	HOSE; FUEL,RETURN PIPE (B) L=320 SERVICED BY L=3000	0-01256-300-0	01	1	0009-			●
67	HOSE; FUEL,DELIVERY FUEL FILTER DUAL<S6B> (A) L=380 SERVICED BY L=3000	0-01259-300-0	01	1	0009-	●	●	●
67	HOSE; FUEL,DELIVERY FUEL FILTER DUAL<S6B> (B) L=450 SERVICED BY L=3000	0-01259-300-0	01	1	0009-	●	●	●
76	HOSE; FUEL,TANK (A) L=500 SERVICED BY L=3000	0-01259-300-0	01	1	0009-	●
76	HOSE; FUEL,TANK EXC. FUEL FILTER DUAL<S6B> (B) L=380 SERVICED BY L=3000	0-01259-300-0	01	1	0009-	●	●
76	HOSE; FUEL,TANK (A) L=470 SERVICED BY L=3000	0-01259-300-0	01	1	0009-		●
76	HOSE; FUEL,TANK FUEL FILTER DUAL<S6B> (A) L=470 SERVICED BY L=3000	0-01259-300-0	01	1	0009-			●
76	HOSE; FUEL,TANK EXC. FUEL FILTER DUAL<S6B> (A)	0-01209-410-0	01	1	0009-			●
147	CLIP; FUEL PIPE TO HOSE (A) ID=16	8-94238-568-0	10	1	0009-	●	●
147	CLIP; FUEL PIPE TO HOSE (D) ID=10 & 6.4 & 4.8	8-97064-484-1	01	1	0009-	●	●
147	CLIP; FUEL PIPE TO HOSE (C) ID=11 & 7 L=15 & 15	1-09700-071-0	03	1	0009-	●	●	●
147	CLIP; FUEL PIPE TO HOSE (B) ID=13	8-94238-571-0	06	1	0009-	●	●	●
147	CLIP; FUEL PIPE TO HOSE (D) ID=10 & 6.4 & 4.8	8-97064-484-1	02	1	0009-	●	●	●
147	CLIP; FUEL PIPE TO HOSE FUEL FILTER DUAL<S6B> (A) ID=16	8-94238-568-0	02	1	0009-			●
147	CLIP; FUEL PIPE TO HOSE (A) ID=16	8-94238-568-0	08	1	0009-			●
231	RUBBER; SUPPORT,FUEL PIPE (A) OD=17 L=50	8-94157-054-1	01	1	0009-	●	●	●
231	RUBBER; SUPPORT,FUEL PIPE (B) OD=15 L=50	8-97077-629-0	01	1	0009-	●	●	●

147 51 147 147 65 46 39 147 51 147 66 147 147 45 47 147 147 79 147 147 78 147

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
39	PIPE; FUEL THA	8-97916-822-0	01	1	0009-	●
39	PIPE; FUEL THA	8-97916-829-0	01	1	0009-		●
39	PIPE; FUEL THA	8-97910-160-0	01	1	0009-			●
45	PIPE; FUEL,DELIVERY THA	8-97916-808-0	01	1	0009-	●
45	PIPE; FUEL,DELIVERY THA	8-97916-831-0	01	1	0009-		●
45	PIPE; FUEL,DELIVERY THA	8-97910-159-0	01	1	0009-			●
46	PIPE; FUEL,TANK SIDE THA	8-97916-806-0	02	1	0009-		●
46	PIPE; FUEL,TANK SIDE THA	8-97910-158-0	01	1	0009-			●
46	PIPE; FUEL,TANK SIDE THA	8-97916-854-2	01	1	0009-	●
47	PIPE; FUEL,RETURN THA	8-97922-408-0	01	1	0212-		●
47	PIPE; FUEL,RETURN THA	8-97916-830-0	01	1	0009-	●
47	PIPE; FUEL,RETURN THA	8-97916-818-0	01	1	0009-		●
47	PIPE; FUEL,RETURN THA	8-97910-161-0	01	1	0009-			●
51	NUT; CLIP,PIPE M6 FLANGE	0-91150-106-0	03	1	0009-	●	●	●
65	HOSE; FUEL,DELIVERY PIPE (A) L=140 SERVICED BY L=3000	0-01259-300-0	01	1	0009-	●	●	●
65	HOSE; FUEL,DELIVERY PIPE EXC. FUEL FILTER DUAL<S6B> (B) L=240 SERVICED BY L=3000	0-01259-300-0	01	1	0009-			●
66	HOSE; FUEL,RETURN PIPE (A) L=140 SERVICED BY L=3000	0-01256-300-0	01	1	0009-	●	●	●
66	HOSE; FUEL,RETURN PIPE (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	0009-		●
66	HOSE; FUEL,RETURN PIPE (B) L=320 SERVICED BY L=3000	0-01256-300-0	01	1	0009-			●
78	HOSE; FUEL,PUMP TO PIPE L=200 SERVICED BY L=3000	0-01259-300-0	01	1	0009-	●	●
79	HOSE; FUEL,PUMP TO PIPE,RETURN L=150 SERVICED BY L=3000	0-01256-300-0	01	1	0009-	●	●
147	CLIP; FUEL PIPE TO HOSE (A) ID=16	8-94238-568-0	10	1	0009-	●	●
147	CLIP; FUEL PIPE TO HOSE (D) ID=10 & 6.4 & 4.8	8-97064-484-1	01	1	0009-	●	●
147	CLIP; FUEL PIPE TO HOSE (C) ID=11 & 7 L=15 & 15	1-09700-071-0	03	1	0009-	●	●	●
147	CLIP; FUEL PIPE TO HOSE (B) ID=13	8-94238-571-0	06	1	0009-	●	●	●
147	CLIP; FUEL PIPE TO HOSE (D) ID=10 & 6.4 & 4.8	8-97064-484-1	02	1	0009-	●	●	●
147	CLIP; FUEL PIPE TO HOSE FUEL FILTER DUAL<S6B> (A) ID=16	8-94238-568-0	02	1	0009-			●
147	CLIP; FUEL PIPE TO HOSE (A) ID=16	8-94238-568-0	08	1	0009-			●

24 24 147 231 147 147 61 76 231 61 147 147 147 66 76 65 68

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
24	CLIP; FUEL HOSE FUEL FILTER DUAL<S6B> (A) L=140	5-09707-031-1	01	1	0009-	●	●	●
24	CLIP; FUEL HOSE FUEL FILTER DUAL<S6B> (A) L=250 THA	5-09707-030-1	01	1	0009-	●	●
24	CLIP; FUEL HOSE (A) L=250 THA	5-09707-030-1	01	1	0009-			●
24	CLIP; FUEL HOSE EXC. FUEL FILTER DUAL<S6B> (A) L=140	5-09707-031-1	02	1	0009-	●	●
24	CLIP; FUEL HOSE (C)	9-09916-239-1	01	1	0009-			●
24	CLIP; FUEL HOSE (B) THA	8-97917-012-0	01	1	0009-	●	●	●
61	GROMMET; PIPE TO FRAME ID=17	8-94128-319-2	02	1	0009-	●	●	●
65	HOSE; FUEL,DELIVERY PIPE (A) L=140 SERVICED BY L=3000	0-01259-300-0	01	1	0009-	●	●	●
65	HOSE; FUEL,DELIVERY PIPE EXC. FUEL FILTER DUAL<S6B> (B) L=240 SERVICED BY L=3000	0-01259-300-0	01	1	0009-			●
66	HOSE; FUEL,RETURN PIPE (A) L=140 SERVICED BY L=3000	0-01256-300-0	01	1	0009-	●	●	●
66	HOSE; FUEL,RETURN PIPE (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	0009-		●
66	HOSE; FUEL,RETURN PIPE (B) L=320 SERVICED BY L=3000	0-01256-300-0	01	1	0009-			●
68	HOSE; FUEL,FILTER TO PIPE EXC. FUEL FILTER DUAL<S6B> THA	8-97916-769-0	01	1	0009-	●
68	HOSE; FUEL,FILTER TO PIPE EXC. FUEL FILTER DUAL<S6B> L=200 SERVICED BY L=3000	0-01259-300-0	01	1	0009-		●
76	HOSE; FUEL,TANK (A) L=500 SERVICED BY L=3000	0-01259-300-0	01	1	0009-	●
76	HOSE; FUEL,TANK EXC. FUEL FILTER DUAL<S6B> (B) L=380 SERVICED BY L=3000	0-01259-300-0	01	1	0009-	●	●
76	HOSE; FUEL,TANK (A) L=470 SERVICED BY L=3000	0-01259-300-0	01	1	0009-		●
76	HOSE; FUEL,TANK FUEL FILTER DUAL<S6B> (A) L=470 SERVICED BY L=3000	0-01259-300-0	01	1	0009-			●
76	HOSE; FUEL,TANK EXC. FUEL FILTER DUAL<S6B> (A)	0-01209-410-0	01	1	0009-			●
147	CLIP; FUEL PIPE TO HOSE (A) ID=16	8-94238-568-0	10	1	0009-	●	●
147	CLIP; FUEL PIPE TO HOSE (D) ID=10 & 6.4 & 4.8	8-97064-484-1	01	1	0009-	●	●
147	CLIP; FUEL PIPE TO HOSE (C) ID=11 & 7 L=15 & 15	1-09700-071-0	03	1	0009-	●	●	●
147	CLIP; FUEL PIPE TO HOSE (B) ID=13	8-94238-571-0	06	1	0009-	●	●	●
147	CLIP; FUEL PIPE TO HOSE (D) ID=10 & 6.4 & 4.8	8-97064-484-1	02	1	0009-	●	●	●
147	CLIP; FUEL PIPE TO HOSE FUEL FILTER DUAL<S6B> (A) ID=16	8-94238-568-0	02	1	0009-			●
147	CLIP; FUEL PIPE TO HOSE (A) ID=16	8-94238-568-0	08	1	0009-			●
231	RUBBER; SUPPORT,FUEL PIPE (A) OD=17 L=50	8-94157-054-1	01	1	0009-	●	●	●
231	RUBBER; SUPPORT,FUEL PIPE (B) OD=15 L=50	8-97077-629-0	01	1	0009-	●	●	●

51 39 24 147 156 304 304 46 147 147 65 147 66 51 147 147 45 47 147 147 147 147 147 29 147

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
24	CLIP; FUEL HOSE FUEL FILTER DUAL<S6B> (A) L=140	5-09707-031-1	01	1	0009-	●	●	●
24	CLIP; FUEL HOSE FUEL FILTER DUAL<S6B> (A) L=250 THA	5-09707-030-1	01	1	0009-	●	●
24	CLIP; FUEL HOSE (A) L=250 THA	5-09707-030-1	01	1	0009-			●
24	CLIP; FUEL HOSE EXC. FUEL FILTER DUAL<S6B> (A) L=140	5-09707-031-1	02	1	0009-	●	●
24	CLIP; FUEL HOSE (C)	9-09916-239-1	01	1	0009-			●
24	CLIP; FUEL HOSE (B) THA	8-97917-012-0	01	1	0009-	●	●	●
29	HOSE; FUEL THA	8-97914-141-1	01	1	0009-			●
39	PIPE; FUEL THA	8-97916-822-0	01	1	0009-	●
39	PIPE; FUEL THA	8-97916-829-0	01	1	0009-		●
39	PIPE; FUEL THA	8-97910-160-0	01	1	0009-			●
45	PIPE; FUEL,DELIVERY THA	8-97916-808-0	01	1	0009-	●
45	PIPE; FUEL,DELIVERY THA	8-97916-831-0	01	1	0009-		●
45	PIPE; FUEL,DELIVERY THA	8-97910-159-0	01	1	0009-			●
46	PIPE; FUEL,TANK SIDE THA	8-97916-806-0	02	1	0009-		●
46	PIPE; FUEL,TANK SIDE THA	8-97910-158-0	01	1	0009-			●
46	PIPE; FUEL,TANK SIDE THA	8-97916-854-2	01	1	0009-	●
47	PIPE; FUEL,RETURN THA	8-97922-408-0	01	1	0212-		●
47	PIPE; FUEL,RETURN THA	8-97916-830-0	01	1	0009-	●
47	PIPE; FUEL,RETURN THA	8-97916-818-0	01	1	0009-		●
47	PIPE; FUEL,RETURN THA	8-97910-161-0	01	1	0009-			●
51	NUT; CLIP,PIPE M6 FLANGE	0-91150-106-0	03	1	0009-	●	●	●
65	HOSE; FUEL,DELIVERY PIPE (A) L=140 SERVICED BY L=3000	0-01259-300-0	01	1	0009-	●	●	●
65	HOSE; FUEL,DELIVERY PIPE EXC. FUEL FILTER DUAL<S6B> (B) L=240 SERVICED BY L=3000	0-01259-300-0	01	1	0009-			●
66	HOSE; FUEL,RETURN PIPE (A) L=140 SERVICED BY L=3000	0-01256-300-0	01	1	0009-	●	●	●
66	HOSE; FUEL,RETURN PIPE (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	0009-		●
66	HOSE; FUEL,RETURN PIPE (B) L=320 SERVICED BY L=3000	0-01256-300-0	01	1	0009-			●
147	CLIP; FUEL PIPE TO HOSE (A) ID=16	8-94238-568-0	10	1	0009-	●	●
147	CLIP; FUEL PIPE TO HOSE (D) ID=10 & 6.4 & 4.8	8-97064-484-1	01	1	0009-	●	●
147	CLIP; FUEL PIPE TO HOSE (C) ID=11 & 7 L=15 & 15	1-09700-071-0	03	1	0009-	●	●	●
147	CLIP; FUEL PIPE TO HOSE (B) ID=13	8-94238-571-0	06	1	0009-	●	●	●
147	CLIP; FUEL PIPE TO HOSE (D) ID=10 & 6.4 & 4.8	8-97064-484-1	02	1	0009-	●	●	●
147	CLIP; FUEL PIPE TO HOSE FUEL FILTER DUAL<S6B> (A) ID=16	8-94238-568-0	02	1	0009-			●
147	CLIP; FUEL PIPE TO HOSE (A) ID=16	8-94238-568-0	08	1	0009-			●
156	BRACKET; FUEL HOSE	8-97087-834-3	01	1	0009-			●
304	NUT; BRKT (A) M6 FLANGE	0-91150-106-0	01	1	0009-			●
304	NUT; BRKT (B) M10 FLANGE	0-91150-210-0	01	1	0009-			●
