◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CHR ▶ 10648 - CHR/CJR/CQR ▶ 3 - Brakes, Brake System ▶ 3-75 - BRAKE PIPING; AIR,FRONT ▶

3-75 — BRAKE PIPING; AIR,FRONT (#2102) — 94 parça

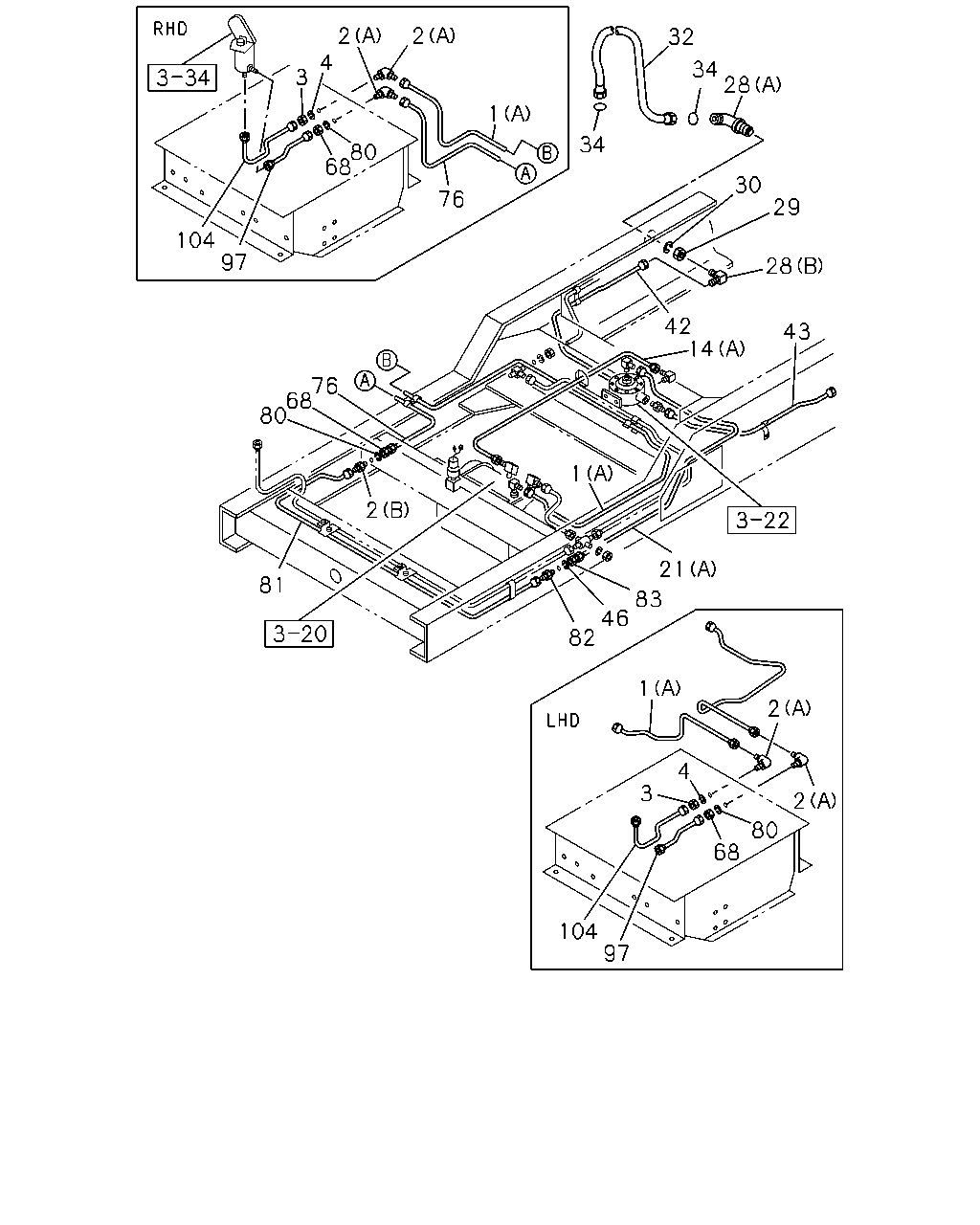

2 4 2 32 34 28 3 1 34 80 68 30 76 29 104 97 28 42 14 43 76 68 80 1 2 21 81 83 46 82 1 2 4 3 2 80 68 104 97

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	PIPE; AIR,AIR TANK TO UNION (A) L=2292 SERVICED BY L=2500	1-47434-479-1	01	1	9001-9212	●
1	PIPE; AIR,AIR TANK TO UNION (A) L=2292 SERVICED BY L=2500	1-47426-423-0	01	1	9301-	●
1	PIPE; AIR,AIR TANK TO UNION (A)	1-47443-585-0	01	1	9001-9212		●
1	PIPE; AIR,AIR TANK TO UNION (A)	1-47496-435-0	01	1	9301-		●
1	PIPE; AIR,AIR TANK TO UNION SPARE WHEEL CARRIER<SFB> (B)	1-47484-468-0	01	1	9001-9012		●
2	UNION; AIR PIPE (B) M16 L=70 STRAIGHT	9-09233-210-1	01	1	9001-	●
2	UNION; AIR PIPE (A) M16 ELBOW	9-09235-110-0	02	1	9001-9204	●
2	UNION; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) M16 ELBOW	9-09235-110-0	02	1	9001-9204		●
2	UNION; AIR PIPE (A) M16 ELBOW	9-09235-110-1	02	1	9205-	●	●
2	UNION; AIR PIPE SPARE WHEEL CARRIER<SFB> (C) M16 ELBOW	9-09235-110-0	01	1	9001-9012		●
3	NUT; PIPE UNION M16	9-99111-416-0	01	1	9001-9204	●
3	NUT; PIPE UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M16	9-99111-416-0	01	1	9001-9204		●
3	NUT; PIPE UNION M16	9-99111-416-0	01	1	9205-	●	●
4	WASHER; LK,PIPE UNION ID=16.2	9-09150-516-0	01	1	9001-9204	●
4	WASHER; LK,PIPE UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=16.2	9-09150-516-0	01	1	9001-9204		●
4	WASHER; LK,PIPE UNION ID=16.2	9-09150-516-0	01	1	9205-9312	●	●
14	PIPE; AIR,AIR TANK TO RELAY VLV (A)	1-47442-053-1	01	1	9001-	●	●
14	PIPE; AIR,AIR TANK TO RELAY VLV SPARE WHEEL CARRIER<SFB> (B)	1-47484-465-0	01	1	9001-9012		●
21	PIPE; AIR,UNION TO RELAY VLV (A) L=1161 SERVICED BY L=1400	1-47437-969-0	01	1	9001-9212	●
21	PIPE; AIR,UNION TO RELAY VLV (A) L=1161 SERVICED BY L=1400	1-47426-418-0	01	1	9301-	●
21	PIPE; AIR,UNION TO RELAY VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) L=1566 SERVICED BY L=1700	1-47434-478-0	01	1	9001-9204		●
21	PIPE; AIR,UNION TO RELAY VLV (A) L=1566 SERVICED BY L=1700	1-47434-478-0	01	1	9205-9212		●
21	PIPE; AIR,UNION TO RELAY VLV (A) L=1566 SERVICED BY L=1700	1-47426-420-0	01	1	9301-		●
21	PIPE; AIR,UNION TO RELAY VLV SPARE WHEEL CARRIER<SFB> (B) L=1248 SERVICED BY L=1400	1-47437-969-0	01	1	9001-9012		●
28	NIPPLE; AIR PIPE (A) M20 & PT1/4 ELBOW	1-09650-081-0	02	1	9001-9204	●
28	NIPPLE; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) M20 & PT1/4 ELBOW	1-09650-081-0	02	1	9001-9204		●
28	NIPPLE; AIR PIPE (A) M20 & PT1/4 ELBOW	1-09650-081-1	02	1	9205-	●	●
28	NIPPLE; AIR PIPE (B) M16 & PT1/4 ELBOW	9-09234-310-0	02	1	9001-9204	●
28	NIPPLE; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) M16 & PT1/4 ELBOW	9-09234-310-0	02	1	9001-9204		●
28	NIPPLE; AIR PIPE (B) M16 & PT1/4 ELBOW	9-09234-310-1	02	1	9205-9302	●	●
28	NIPPLE; AIR PIPE (B) M16 & PT1/4 ELBOW	1-09650-434-0	02	1	9303-	●	●
29	NUT; NIPPLE M22	9-09111-422-0	02	1	9001-9204	●
29	NUT; NIPPLE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M22	9-09111-422-0	02	1	9001-9204		●
29	NUT; NIPPLE M22	9-09111-422-0	02	1	9205-	●	●
30	WASHER; LK,NIPPLE ID=22.5	9-09150-522-0	02	1	9001-9204	●
30	WASHER; LK,NIPPLE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=22.5	9-09150-522-0	02	1	9001-9204		●
30	WASHER; LK,NIPPLE ID=22.5	9-09150-522-0	02	1	9205-9312	●	●
32	HOSE; FLEX,FRT L=630	0-07847-630-1	02	1	9001-9204	●
32	HOSE; FLEX,FRT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=630	0-07847-630-1	02	1	9001-9204		●
32	HOSE; FLEX,FRT L=630	0-07847-630-1	02	1	9205-	●	●
34	GASKET; FLEX HOSE ID=11 OD=18	9-09572-510-0	04	1	9001-9204	●
34	GASKET; FLEX HOSE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=11 OD=18	9-09572-510-0	04	1	9001-9204		●
34	GASKET; FLEX HOSE ID=11 OD=18	9-09572-510-0	04	1	9205-	●	●
42	PIPE; AIR,QUICK RELAY VALVE TO UNION L=950 SERVICED BY L=1000	1-47434-476-0	01	1	9001-9212	●	●
42	PIPE; AIR,QUICK RELAY VALVE TO UNION L=950 SERVICED BY L=1000	1-47426-414-0	01	1	9301-	●	●
43	PIPE; AIR,RELAY VLV TO FLEX HOSE L=930 SERVICED BY L=1000	1-47434-476-0	01	1	9001-9204	●
43	PIPE; AIR,RELAY VLV TO FLEX HOSE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=930 SERVICED BY L=1000	1-47434-476-0	01	1	9001-9204		●
43	PIPE; AIR,RELAY VLV TO FLEX HOSE L=930 SERVICED BY L=1000	1-47434-476-0	01	1	9205-9212	●	●
43	PIPE; AIR,RELAY VLV TO FLEX HOSE L=930 SERVICED BY L=1000	1-47426-414-0	01	1	9301-	●	●
46	WASHER; LK,PIPE UNION ID=16.2	9-09150-516-0	01	1	9001-9312	●
68	NUT; UNION M16	9-99111-416-0	01	1	9001-9204	●
68	NUT; UNION M16	9-99111-416-0	01	1	9001-9204	●
68	NUT; UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M16	9-99111-416-0	01	1	9001-9204		●
68	NUT; UNION M16	9-99111-416-0	01	1	9205-	●	●
68	NUT; UNION M16	9-99111-416-0	01	1	9205-	●
76	PIPE; AIR,UNION TO UNION L=1044 SERVICED BY L=1100	1-47437-967-0	01	1	9001-9212	●
76	PIPE; AIR,UNION TO UNION L=1044 SERVICED BY L=1100	1-47426-415-0	01	1	9301-	●
80	WASHER; LK,UNION ID=16.2	9-09150-516-0	01	1	9001-9204	●
80	WASHER; LK,UNION ID=16.2	9-09150-516-0	01	1	9001-9204	●
80	WASHER; LK,UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=16.2	9-09150-516-0	01	1	9001-9204		●
80	WASHER; LK,UNION ID=16.2	9-09150-516-0	01	1	9205-9312	●	●
80	WASHER; LK,UNION ID=16.2	9-09150-516-0	01	1	9205-9312	●
81	PIPE; AIR,UNION TO UNION L=1638 SERVICED BY L=1700	1-47434-478-0	01	1	9001-9212	●
81	PIPE; AIR,UNION TO UNION L=1638 SERVICED BY L=1700	1-47426-420-0	01	1	9301-	●
82	UNION; AIR PIPE M16 L=70 STRAIGHT	9-09233-210-1	01	1	9001-	●
83	NUT; PIPE UNION M16	9-99111-416-0	01	1	9001-	●
97	PIPE; AIR,BRK VLV TO UNION	1-47442-437-1	01	1	9001-9204	●
97	PIPE; AIR,BRK VLV TO UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47442-437-1	01	1	9001-9204		●
97	PIPE; AIR,BRK VLV TO UNION	1-47442-437-1	01	1	9205-9212	●	●
97	PIPE; AIR,BRK VLV TO UNION	1-47496-438-0	01	1	9301-9710	●	●
97	PIPE; AIR,BRK VLV TO UNION	1-49118-860-0	01	1	9711-	●	●
104	PIPE; AIR,UNION TO BRK VLV	1-47442-091-1	01	1	9001-9204	●
104	PIPE; AIR,UNION TO BRK VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47442-091-1	01	1	9001-9204		●
104	PIPE; AIR,UNION TO BRK VLV	1-47442-091-1	01	1	9205-9212	●	●
104	PIPE; AIR,UNION TO BRK VLV	1-47496-437-0	01	1	9301-	●	●

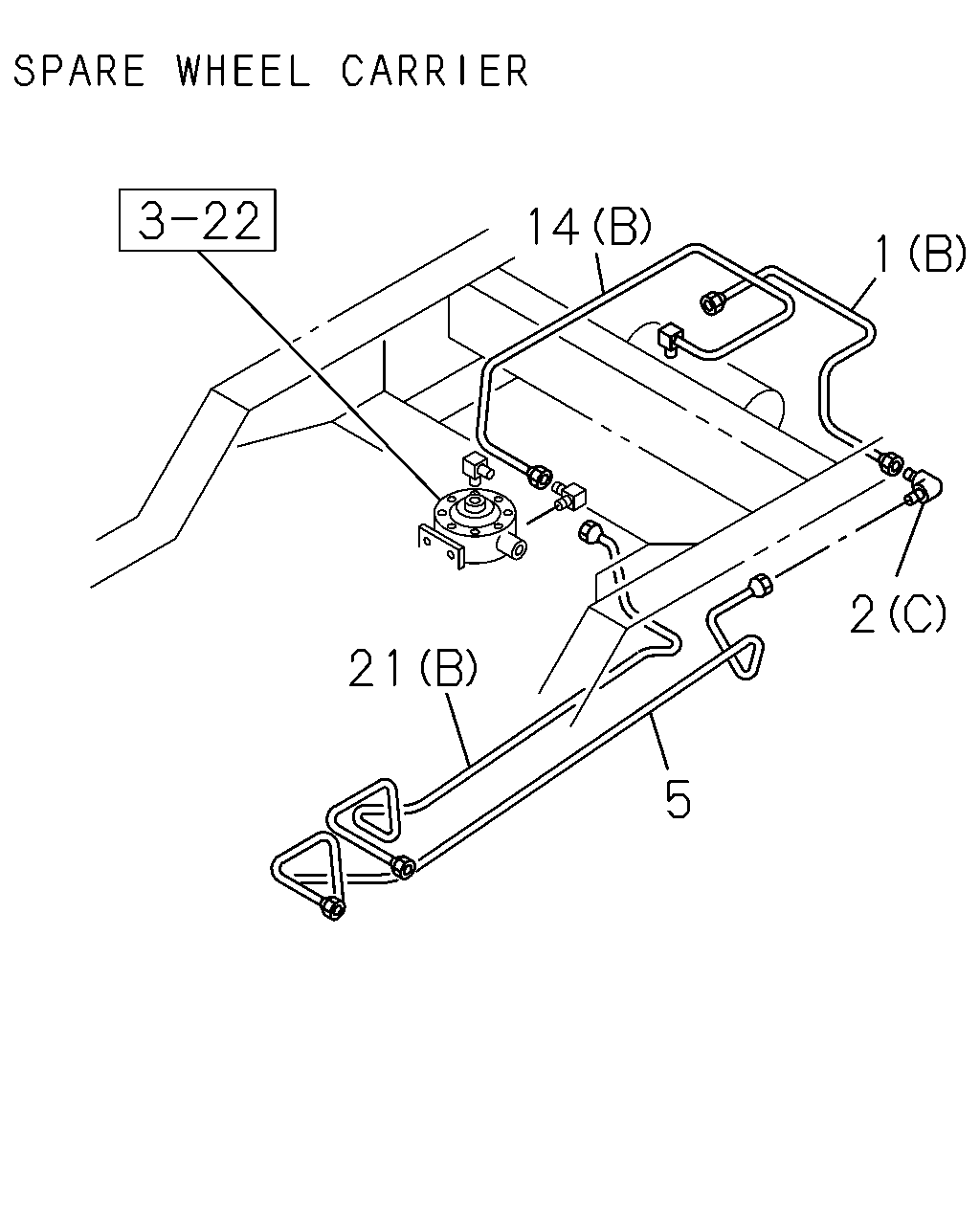

14 1 2 21 5

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	PIPE; AIR,AIR TANK TO UNION (A) L=2292 SERVICED BY L=2500	1-47434-479-1	01	1	9001-9212	●
1	PIPE; AIR,AIR TANK TO UNION (A) L=2292 SERVICED BY L=2500	1-47426-423-0	01	1	9301-	●
1	PIPE; AIR,AIR TANK TO UNION (A)	1-47443-585-0	01	1	9001-9212		●
1	PIPE; AIR,AIR TANK TO UNION (A)	1-47496-435-0	01	1	9301-		●
1	PIPE; AIR,AIR TANK TO UNION SPARE WHEEL CARRIER<SFB> (B)	1-47484-468-0	01	1	9001-9012		●
2	UNION; AIR PIPE (B) M16 L=70 STRAIGHT	9-09233-210-1	01	1	9001-	●
2	UNION; AIR PIPE (A) M16 ELBOW	9-09235-110-0	02	1	9001-9204	●
2	UNION; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) M16 ELBOW	9-09235-110-0	02	1	9001-9204		●
2	UNION; AIR PIPE (A) M16 ELBOW	9-09235-110-1	02	1	9205-	●	●
2	UNION; AIR PIPE SPARE WHEEL CARRIER<SFB> (C) M16 ELBOW	9-09235-110-0	01	1	9001-9012		●
5	PIPE; AIR,UNION TO UNION SPARE WHEEL CARRIER<SFB>	1-47484-464-0	01	1	9001-9012		●
14	PIPE; AIR,AIR TANK TO RELAY VLV (A)	1-47442-053-1	01	1	9001-	●	●
14	PIPE; AIR,AIR TANK TO RELAY VLV SPARE WHEEL CARRIER<SFB> (B)	1-47484-465-0	01	1	9001-9012		●
21	PIPE; AIR,UNION TO RELAY VLV (A) L=1161 SERVICED BY L=1400	1-47437-969-0	01	1	9001-9212	●
21	PIPE; AIR,UNION TO RELAY VLV (A) L=1161 SERVICED BY L=1400	1-47426-418-0	01	1	9301-	●
21	PIPE; AIR,UNION TO RELAY VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) L=1566 SERVICED BY L=1700	1-47434-478-0	01	1	9001-9204		●
21	PIPE; AIR,UNION TO RELAY VLV (A) L=1566 SERVICED BY L=1700	1-47434-478-0	01	1	9205-9212		●
21	PIPE; AIR,UNION TO RELAY VLV (A) L=1566 SERVICED BY L=1700	1-47426-420-0	01	1	9301-		●
21	PIPE; AIR,UNION TO RELAY VLV SPARE WHEEL CARRIER<SFB> (B) L=1248 SERVICED BY L=1400	1-47437-969-0	01	1	9001-9012		●
