1-10 — RADIATOR (#21015) — 70 parça

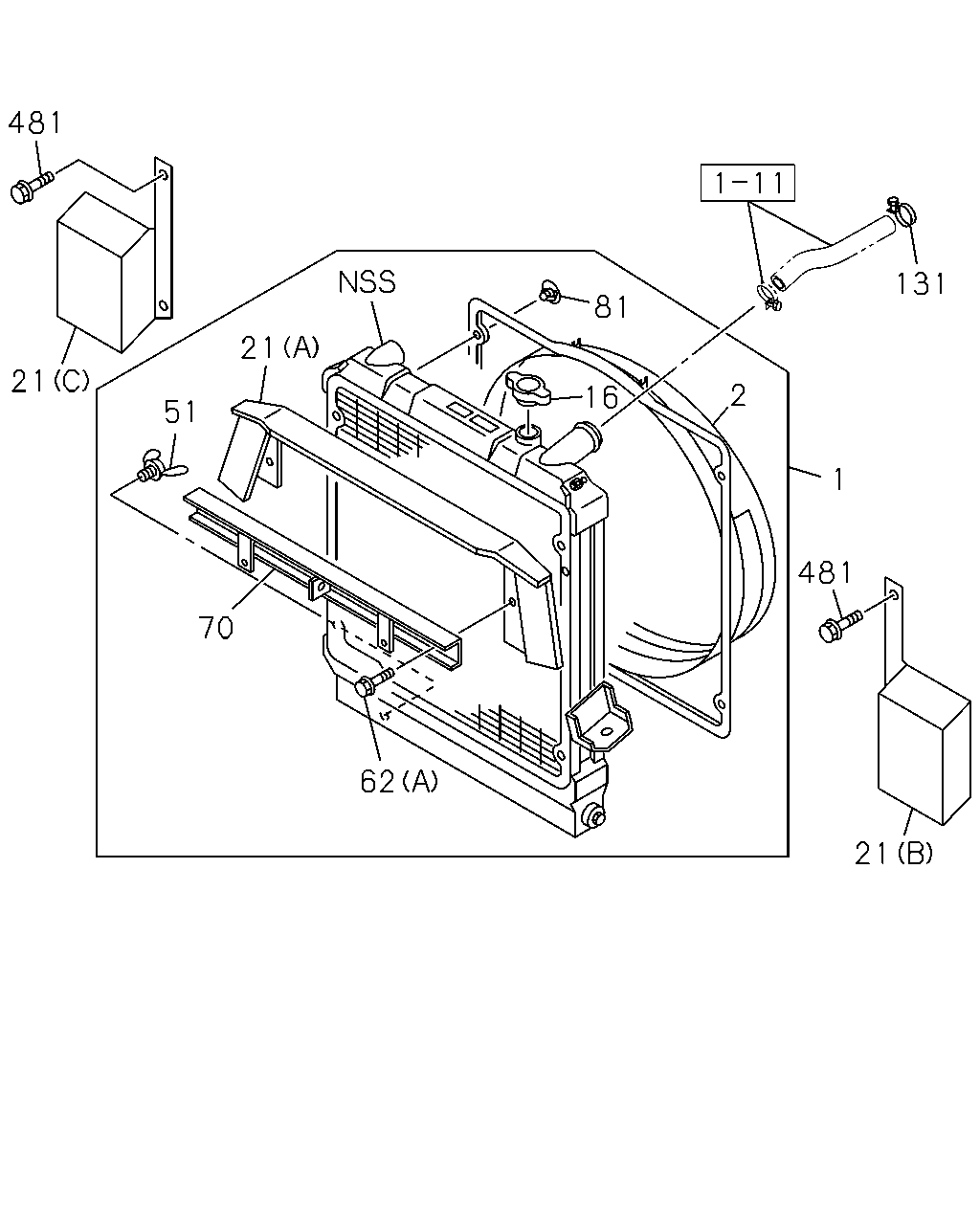

çizim 47370
481 131 81 21 21 2 16 51 1 481 70 62 21
BalonParca AdiParca NoAdetTipApplied Date A B C
1 RADIATOR ASM
THA 		8-97940-552-3 01 1 0009- ● ●
1 RADIATOR ASM
THA 		8-97940-294-2 01 1 0009-0009 ●
1 RADIATOR ASM
THA 		8-97942-210-0 01 1 0010- ●
2 GUIDE; FAN
THA 		8-97940-553-0 01 1 0009- ● ●
2 GUIDE; FAN
THA 		8-97940-656-0 01 1 0009- ●
16 CAP; RAD
THA 		8-97940-668-0 01 1 0009- ● ● ●
21 SEAL; RAD
(A) THA 		8-97940-661-0 01 1 0009- ● ●
21 SEAL; RAD
(B) THA 		8-97940-662-0 02 1 0009- ● ●
21 SEAL; RAD
(C) 		8-97239-615-0 01 1 0009-0009 ●
21 SEAL; RAD
(C) 		8-97289-767-1 01 1 0009- ●
21 SEAL; RAD
(B) 		8-97239-616-0 01 1 0009-0009 ●
21 SEAL; RAD
(B) 		8-97289-768-1 01 1 0009- ●
21 SEAL; RAD
(A) THA 		8-97940-905-0 01 1 0009-0009 ●
21 SEAL; RAD
(A) THA 		8-97942-211-0 01 1 0010- ●
51 PLUG; DRAIN
THA 		8-97940-673-0 01 1 0009- ● ● ●
62 BOLT; STAY
(A) M8X12 FLANGE 		0-28080-812-0 02 1 0009- ● ● ●
62 BOLT; STAY
(B) M8X45 		8-94401-350-0 01 1 0009- ● ● ●
70 STAY; RAD
THA 		8-97940-659-0 01 1 0009- ● ● ●
80 BOLT; FAN GUIDE
M6X12 FLANGE 		0-28080-612-0 04 1 0010- ●
81 SCREW; FAN GUIDE,RAD
THA 		8-97940-658-0 04 1 0009-0009 ● ● ●
81 SCREW; FAN GUIDE,RAD
THA 		8-97940-658-0 04 1 0010- ● ●
131 CLIP; ENG SIDE TOP
ID=42 		5-09704-047-1 01 1 0009- ● ●
131 CLIP; ENG SIDE TOP
ID=40 		8-97245-216-0 01 1 0009- ●
481 BOLT; SEAL FIX
M6X12 FLANGE 		0-28080-612-0 04 1 0009- ●

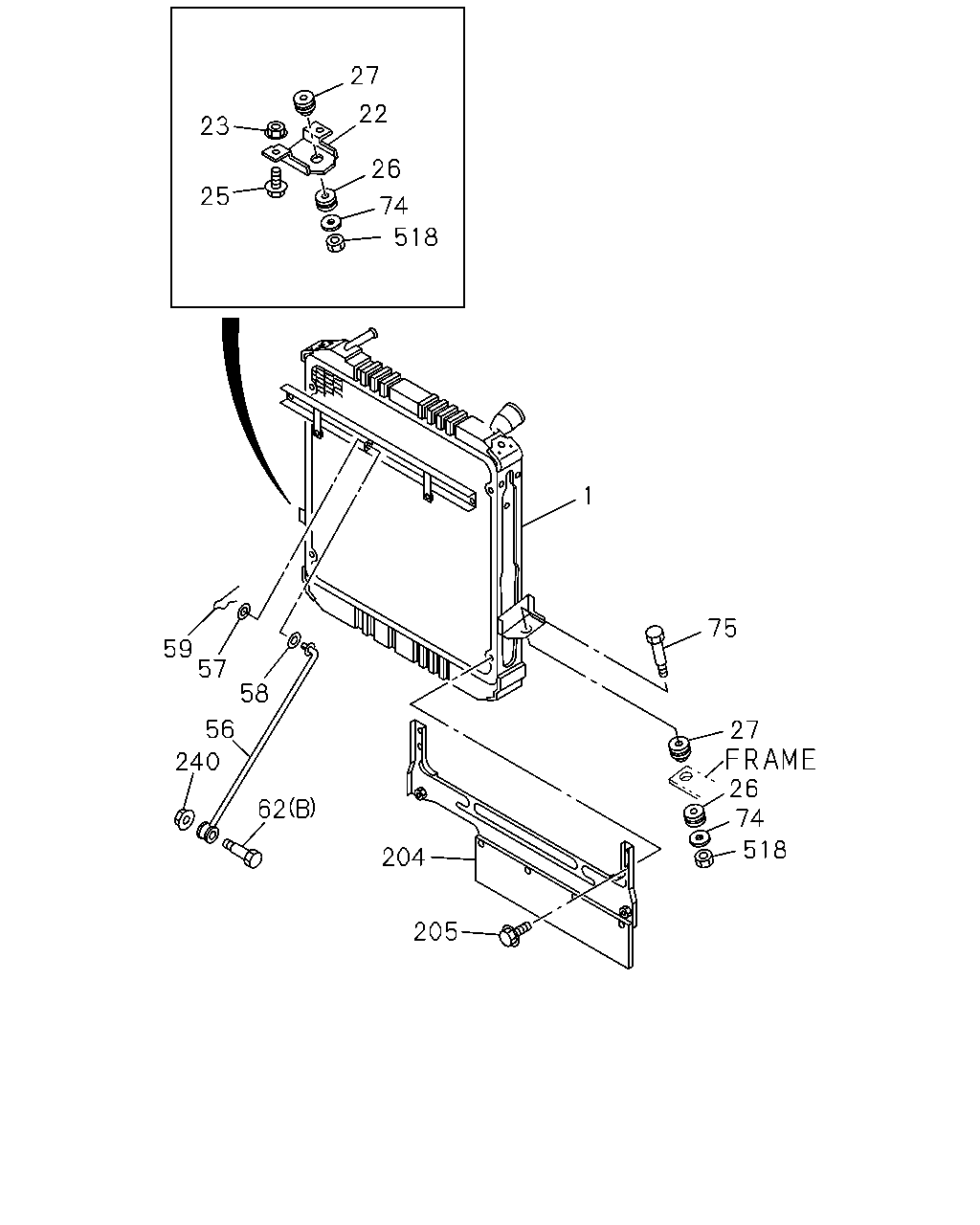

çizim 49029
27 22 23 26 25 74 518 1 75 59 57 58 56 27 240 26 74 62 518 204 205
BalonParca AdiParca NoAdetTipApplied Date A B C
1 RADIATOR ASM
THA 		8-97940-552-3 01 1 0009- ● ●
1 RADIATOR ASM
THA 		8-97940-294-2 01 1 0009-0009 ●
1 RADIATOR ASM
THA 		8-97942-210-0 01 1 0010- ●
22 BRACKET; RAD MTG
THA 		8-97916-772-0 01 1 0009- ● ● ●
23 NUT; RAD MTG
M10 FLANGE 		5-09440-006-0 02 1 0009- ● ● ●
25 BOLT; BRKT
M10X30 FLANGE 		0-28681-030-0 02 1 0009- ● ● ●
26 BUFFER; RAD,LWR
THA 		8-97916-760-0 02 1 0009- ● ● ●
27 BUFFER; RAD,UPR
THA 		8-97916-770-0 02 1 0009- ● ● ●
56 STAY; RAD 8-97032-798-2 01 1 0009- ● ●
56 STAY; RAD 8-97032-801-2 01 1 0009- ●
57 WASHER; PL,STAY
ID=10.5 OD=18 		9-09160-510-0 01 1 0009- ● ● ●
58 WASHER; CURVED,STAY
ID=12 		8-97011-676-0 01 1 0009- ● ● ●
59 PIN; SNAP,STAY
L=27.7 		8-94202-777-0 01 1 0009- ● ● ●
62 BOLT; STAY
(A) M8X12 FLANGE 		0-28080-812-0 02 1 0009- ● ● ●
62 BOLT; STAY
(B) M8X45 		8-94401-350-0 01 1 0009- ● ● ●
74 WASHER; PL,CUSHION RUBBER
ID=8.5 OD=36 		8-94221-082-0 02 1 0009- ● ● ●
74 WASHER; PL,CUSHION RUBBER
ID=10.5 OD=26 		9-09160-710-0 01 1 0009- ● ● ●
75 BOLT; CUSHION RUBBER,RAD MTG
M8X63 		8-94249-446-0 01 1 0009- ● ● ●
80 BOLT; FAN GUIDE
M6X12 FLANGE 		0-28080-612-0 04 1 0010- ●
204 GUIDE ASM; AIR
AIR CONDITIONER MANUAL CONT<C60> 		8-97035-512-3 01 1 0009- ● ● ●
205 BOLT; AIR GUIDE
AIR CONDITIONER MANUAL CONT<C60> M6X10 FLANGE 		0-28080-610-0 04 1 0009- ● ● ●
240 NUT; STAY
M8 FLANGE 		8-94178-701-0 01 1 0009- ● ● ●
518 NUT
M8 FLANGE THA 		5-09440-005-0 02 1 0009- ● ● ●

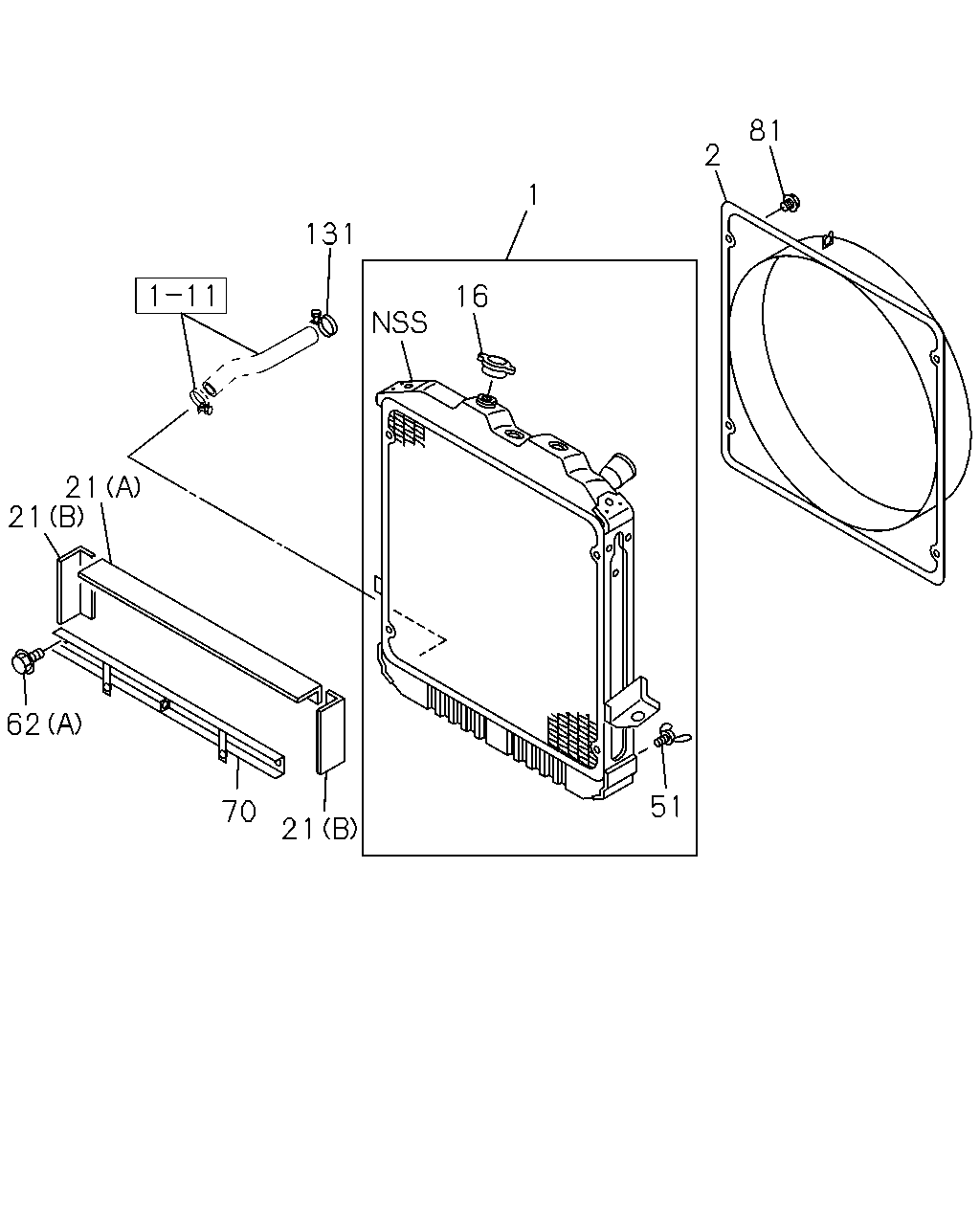

çizim 49031
81 2 1 131 16 21 21 62 51 70 21
BalonParca AdiParca NoAdetTipApplied Date A B C
1 RADIATOR ASM
THA 		8-97940-552-3 01 1 0009- ● ●
1 RADIATOR ASM
THA 		8-97940-294-2 01 1 0009-0009 ●
1 RADIATOR ASM
THA 		8-97942-210-0 01 1 0010- ●
2 GUIDE; FAN
THA 		8-97940-553-0 01 1 0009- ● ●
2 GUIDE; FAN
THA 		8-97940-656-0 01 1 0009- ●
16 CAP; RAD
THA 		8-97940-668-0 01 1 0009- ● ● ●
21 SEAL; RAD
(A) THA 		8-97940-661-0 01 1 0009- ● ●
21 SEAL; RAD
(B) THA 		8-97940-662-0 02 1 0009- ● ●
21 SEAL; RAD
(C) 		8-97239-615-0 01 1 0009-0009 ●
21 SEAL; RAD
(C) 		8-97289-767-1 01 1 0009- ●
21 SEAL; RAD
(B) 		8-97239-616-0 01 1 0009-0009 ●
21 SEAL; RAD
(B) 		8-97289-768-1 01 1 0009- ●
21 SEAL; RAD
(A) THA 		8-97940-905-0 01 1 0009-0009 ●
21 SEAL; RAD
(A) THA 		8-97942-211-0 01 1 0010- ●
51 PLUG; DRAIN
THA 		8-97940-673-0 01 1 0009- ● ● ●
62 BOLT; STAY
(A) M8X12 FLANGE 		0-28080-812-0 02 1 0009- ● ● ●
62 BOLT; STAY
(B) M8X45 		8-94401-350-0 01 1 0009- ● ● ●
70 STAY; RAD
THA 		8-97940-659-0 01 1 0009- ● ● ●
80 BOLT; FAN GUIDE
M6X12 FLANGE 		0-28080-612-0 04 1 0010- ●
81 SCREW; FAN GUIDE,RAD
THA 		8-97940-658-0 04 1 0009-0009 ● ● ●
81 SCREW; FAN GUIDE,RAD
THA 		8-97940-658-0 04 1 0010- ● ●
131 CLIP; ENG SIDE TOP
ID=42 		5-09704-047-1 01 1 0009- ● ●
131 CLIP; ENG SIDE TOP
ID=40 		8-97245-216-0 01 1 0009- ●
