8-21 — METER ASM (#21014) — 172 parça

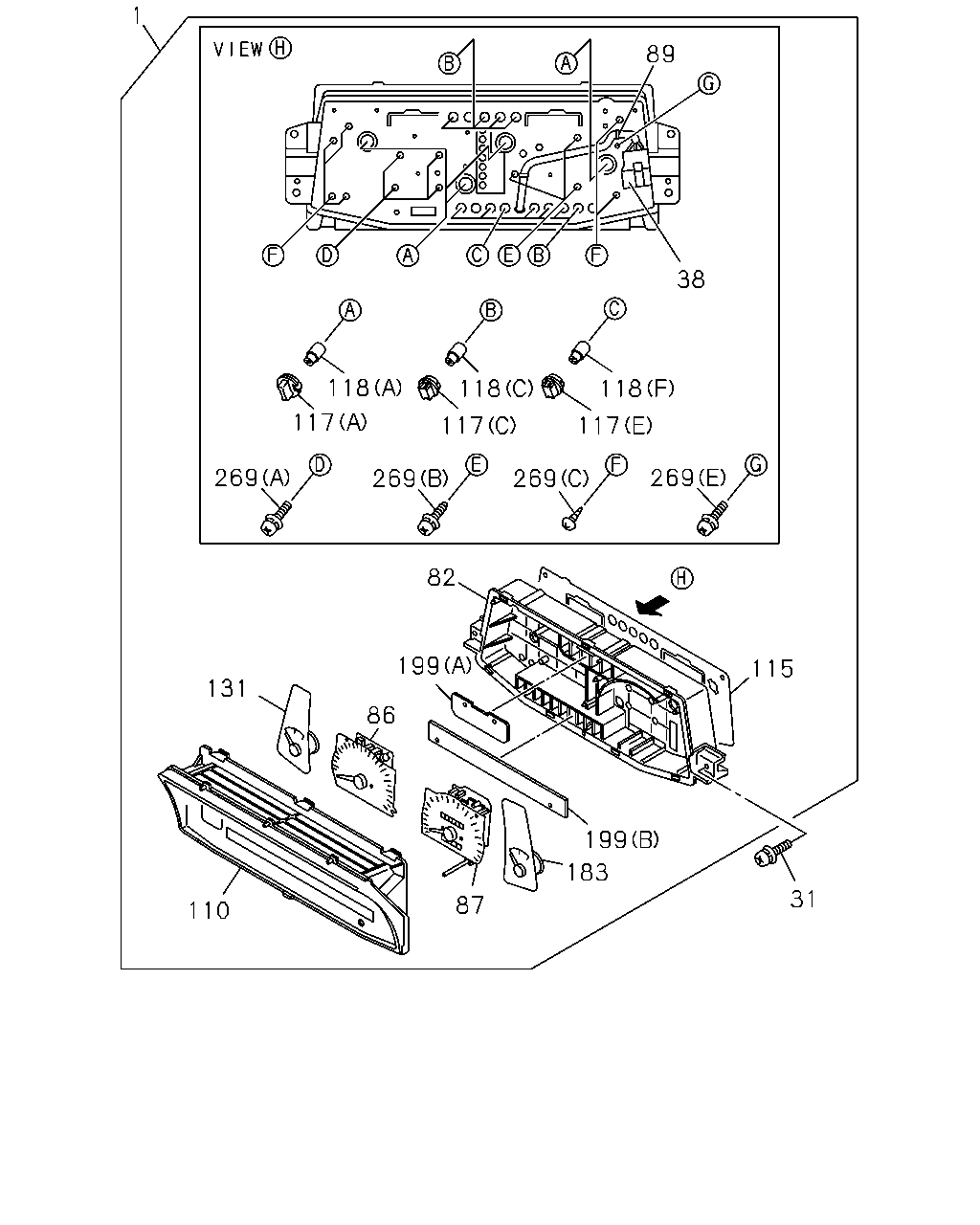

çizim 51581
1 89 38 118 118 118 117 117 117 269 269 269 269 82 199 115 131 86 199 183 31 87 110
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 09.735 METER COMPL; CLUSTER
4JG2 ENG(RJC) AIR BAG DRIVER(AJ3) TACHOMETER<U16> SPEEDOMETER KILO&MILES<U19> 		8-97260-958-1 01 1 0108-0304 ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4JG2 ENG(RJC) AIR BAG DRIVER(AJ3) TACHOMETER<U16> SPEEDOMETER KILO&MILES<U19> 		8-97370-161-0 01 1 0305- ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4JG2 ENG(RJC) AIR BAG DRIVER(AJ3) TACHOMETER<U16> EXC. SPEEDOMETER KILO&MILES<U19> 		8-97260-960-1 01 1 0108-0209 ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4JG2 ENG(RJC) TACHOMETER<U16> EXC. SPEEDOMETER KILO&MILES<U19> 		8-97260-960-1 01 1 0210-0304 ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4JG2 ENG(RJC) TACHOMETER<U16> EXC. SPEEDOMETER KILO&MILES<U19> 		8-97370-162-0 01 1 0305- ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4JG2 ENG(RJC) EXC. AIR BAG DRIVER(AJ3), TACHOMETER<U16>,SPEEDOMETER KILO&MILES<U19> 		8-97260-951-2 01 1 0108-0304 ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4JG2 ENG(RJC) EXC. AIR BAG DRIVER(AJ3), TACHOMETER<U16>,SPEEDOMETER KILO&MILES<U19> 		8-97370-160-0 01 1 0305- ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4JG2 ENG(RJC) SPEEDOMETER KILO&MILES<U19> EXC. AIR BAG DRIVER(AJ3), TACHOMETER<U16> 		8-97260-950-2 01 1 0108- ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4JG2 ENG(RJC) TACHOMETER<U16> EXC. AIR BAG DRIVER(AJ3),SPEEDOMETER KILO&MILES<U19> 		8-97260-961-1 01 1 0108-0209 ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4JG2 ENG(RJC) TACHOMETER<U16> SPEEDOMETER KILO&MILES<U19> EXC. AIR BAG DRIVER(AJ3) 		8-97260-959-0 01 1 0108- ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4JA1 ENG(RLE) AIR BAG DRIVER(AJ3) TACHOMETER<U16> SPEEDOMETER KILO&MILES<U19> 		8-97301-118-2 01 1 0108-0209 ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4JA1 ENG(RLE) TACHOMETER<U16> SPEEDOMETER KILO&MILES<U19> 		8-97301-118-2 01 1 0210-0304 ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4JA1 ENG(RLE) TACHOMETER<U16> SPEEDOMETER KILO&MILES<U19> 		8-97370-163-0 01 1 0305- ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4JA1 ENG(RLE) AIR BAG DRIVER(AJ3) TACHOMETER<U16> EXC. SPEEDOMETER KILO&MILES<U19> 		8-97301-120-2 01 1 0108-0209 ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4JA1 ENG(RLE) TACHOMETER<U16> EXC. SPEEDOMETER KILO&MILES<U19> 		8-97301-120-2 01 1 0210-0304 ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4JA1 ENG(RLE) TACHOMETER<U16> EXC. SPEEDOMETER KILO&MILES<U19> 		8-97370-164-0 01 1 0305- ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4JA1 ENG(RLE) EXC. AIR BAG DRIVER(AJ3), TACHOMETER<U16>,SPEEDOMETER KILO&MILES<U19> 		8-97308-605-2 01 1 0108- ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4JA1 ENG(RLE) SPEEDOMETER KILO&MILES<U19> EXC. AIR BAG DRIVER(AJ3), TACHOMETER<U16> 		8-97308-604-2 01 1 0108- ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4JA1 ENG(RLE) TACHOMETER<U16> EXC. AIR BAG DRIVER(AJ3),SPEEDOMETER KILO&MILES<U19> 		8-97301-121-2 01 1 0108-0209 ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4JA1 ENG(RLE) TACHOMETER<U16> SPEEDOMETER KILO&MILES<U19> EXC. AIR BAG DRIVER(AJ3) 		8-97301-119-2 01 1 0108-0209 ● ● ● ●
31 09.761 SCREW; METER,INST PANEL
02.726 M5X16 TAPPING W/PL WASHER 		0-74300-516-0 04 1 0108- ● ● ● ● ●
38 02.480 HARNESS; METER
AIR BAG DRIVER(AJ3) TACHOMETER<U16> 		8-97119-926-0 01 1 0108- ● ● ● ● ●
82 09.743 CASE ASM; CLUSTER METER
EXC. AIR BAG DRIVER(AJ3), TACHOMETER<U16> 		8-97118-775-0 01 1 0108- ● ● ● ● ●
82 09.743 CASE ASM; CLUSTER METER
TACHOMETER<U16> 		8-97104-695-0 01 1 0108- ● ● ● ● ●
86 09.750 TACHOMETER; CLUSTER METER
4JG2 ENG(RJC) TACHOMETER<U16> 		8-97135-890-2 01 1 0108- ● ● ● ● ●
86 09.750 TACHOMETER; CLUSTER METER
4JA1 ENG(RLE) TACHOMETER<U16> 		8-97302-825-0 01 1 0108- ● ● ● ●
87 09.761 SPEEDOMETER
4JG2 ENG(RJC) EXC. AIR BAG DRIVER(AJ3), TACHOMETER<U16>,SPEEDOMETER KILO&MILES<U19> 		8-97132-255-2 01 1 0108- ● ● ● ● ●
87 09.761 SPEEDOMETER
4JG2 ENG(RJC) SPEEDOMETER KILO&MILES<U19> EXC. AIR BAG DRIVER(AJ3), TACHOMETER<U16> 		8-97132-253-3 01 1 0108- ● ● ● ● ●
87 09.761 SPEEDOMETER
4JG2 ENG(RJC) TACHOMETER<U16> SPEEDOMETER KILO&MILES<U19> 		8-97132-258-3 01 1 0108- ● ● ● ● ●
87 09.761 SPEEDOMETER
4JG2 ENG(RJC) TACHOMETER<U16> EXC. SPEEDOMETER KILO&MILES<U19> 		8-97132-260-3 01 1 0108- ● ● ● ● ●
87 09.761 SPEEDOMETER
4JA1 ENG(RLE) EXC. AIR BAG DRIVER(AJ3), TACHOMETER<U16>,SPEEDOMETER KILO&MILES<U19> 		8-97132-254-2 01 1 0108- ● ● ● ●
87 09.761 SPEEDOMETER
4JA1 ENG(RLE) SPEEDOMETER KILO&MILES<U19> EXC. AIR BAG DRIVER(AJ3), TACHOMETER<U16> 		8-97309-073-0 01 1 0108- ● ● ● ●
87 09.761 SPEEDOMETER
4JA1 ENG(RLE) TACHOMETER<U16> SPEEDOMETER KILO&MILES<U19> 		8-97309-072-0 01 1 0108- ● ● ● ●
87 09.761 SPEEDOMETER
4JA1 ENG(RLE) TACHOMETER<U16> EXC. SPEEDOMETER KILO&MILES<U19> 		8-97132-259-3 01 1 0108- ● ● ● ●
89 09.761 CLIP; HARNESS
AIR BAG DRIVER(AJ3) TACHOMETER<U16> 		8-97104-698-0 01 1 0108- ● ● ● ● ●
110 09.748 GLASS; CLUSTER METER
EXC. AIR BAG DRIVER(AJ3), TACHOMETER<U16> 		8-97171-067-0 01 1 0108- ● ● ● ● ●
110 09.748 GLASS; CLUSTER METER
TACHOMETER<U16> 		8-97080-609-0 01 1 0108- ● ● ● ● ●
115 09.744 CIRCUIT; PRINTED,CLUSTER METER
4JG2 ENG(RJC) EXC. AIR BAG DRIVER(AJ3), TACHOMETER<U16> 		8-97262-868-0 01 1 0108- ● ● ● ● ●
115 09.744 CIRCUIT; PRINTED,CLUSTER METER
4JG2 ENG(RJC) TACHOMETER<U16> 		8-97262-867-0 01 1 0108- ● ● ● ● ●
115 09.744 CIRCUIT; PRINTED,CLUSTER METER
4JA1 ENG(RLE) EXC. AIR BAG DRIVER(AJ3), TACHOMETER<U16> 		8-97309-380-0 01 1 0108- ● ● ● ●
115 09.744 CIRCUIT; PRINTED,CLUSTER METER
4JA1 ENG(RLE) TACHOMETER<U16> 		8-97309-379-0 01 1 0108- ● ● ● ●
117 09.744 SOCKET; BULB,GAUGE & CLOCK
09.765 (A) 12V 3.4W 		5-82188-001-0 AR 1 0108- ● ● ● ● ●
117 09.744 SOCKET; BULB,GAUGE & CLOCK
02.892 (C) 12V 1.4W BLACK 		8-94114-138-0 AR 1 0108- ● ● ● ● ●
117 09.744 SOCKET; BULB,GAUGE & CLOCK
(E) 12V 2W GRAY 		8-97031-180-0 AR 1 0108- ● ● ● ● ●
117 09.744 SOCKET; BULB,GAUGE & CLOCK
(D) 24V 3W GREEN 		8-97045-599-0 AR 1 0108- ● ● ● ● ●
117 09.744 SOCKET; BULB,GAUGE & CLOCK
09.765 (B) 14V 3W 		8-97104-703-0 AR 1 0108- ● ● ● ● ●
117 09.744 SOCKET; BULB,GAUGE & CLOCK
4JG2 ENG(RJC) TACHOMETER<U16> 02.892 12V 1.4W BLACK 		8-94114-138-0 13 1 0305- ● ● ● ● ●
117 09.744 SOCKET; BULB,GAUGE & CLOCK
AIR BAG DRIVER(AJ3) TACHOMETER<U16> 02.892 12V 1.4W BLACK 		8-94114-138-0 01 1 0210-0304 ● ● ● ● ●
117 09.744 SOCKET; BULB,GAUGE & CLOCK
4JA1 ENG(RLE) TACHOMETER<U16> 02.892 12V 1.4W BLACK 		8-94114-138-0 12 1 0305- ● ● ● ●
118 08.991 BULB; CLUSTER METER
(A) 14V 3.4W W/CAP 		5-82194-024-0 AR 1 0108- ● ● ● ● ●
118 08.991 BULB; CLUSTER METER
AIR BAG DRIVER(AJ3) TACHOMETER<U16> 12V 2W 		8-97031-178-0 01 1 0210-0304 ● ● ● ● ●
118 08.991 BULB; CLUSTER METER
AIR BAG DRIVER(AJ3) TACHOMETER<U16> 12V 2W 		8-97031-178-0 02 1 0305- ● ● ● ● ●
118 08.991 BULB; CLUSTER METER
(C) 12V 1.4W 		8-94152-313-0 AR 1 0108- ● ● ● ● ●
118 08.991 BULB; CLUSTER METER
(F) 12V 2W 		8-97031-178-0 AR 1 0108- ● ● ● ● ●
118 08.991 BULB; CLUSTER METER
09.765 (B) 14V 3W 		8-97104-702-0 AR 1 0108- ● ● ● ● ●
118 08.991 BULB; CLUSTER METER
(E) 14V 3.4W W/CAP 		8-97171-066-0 AR 1 0108- ● ● ● ● ●
118 08.991 BULB; CLUSTER METER
(D) 12V 3.4W 		9-82691-397-0 AR 1 0108- ● ● ● ● ●
118 08.991 BULB; CLUSTER METER
4JG2 ENG(RJC) TACHOMETER<U16> 12V 1.4W 		8-94152-313-0 13 1 0305- ● ● ● ● ●
118 08.991 BULB; CLUSTER METER
AIR BAG DRIVER(AJ3) TACHOMETER<U16> 12V 1.4W 		8-94152-313-0 01 1 0210-0304 ● ● ● ● ●
118 08.991 BULB; CLUSTER METER
4JA1 ENG(RLE) TACHOMETER<U16> 12V 1.4W 		8-94152-313-0 12 1 0305- ● ● ● ●
131 01.148 GAUGE; TEMP,CLUSTER METER
EXC. AIR BAG DRIVER(AJ3), TACHOMETER<U16> 		8-97109-304-2 01 1 0108- ● ● ● ● ●
131 01.148 GAUGE; TEMP,CLUSTER METER
TACHOMETER<U16> 		8-97139-580-1 01 1 0108- ● ● ● ● ●
183 03.107 GAUGE; FUEL
EXC. AIR BAG DRIVER(AJ3), TACHOMETER<U16> 		8-97109-306-5 01 1 0108- ● ● ● ● ●
183 03.107 GAUGE; FUEL
TACHOMETER<U16> 		8-97139-581-1 01 1 0108- ● ● ● ● ●
199 09.772 LENS; WARNING LAMP
EXC. AIR BAG DRIVER(AJ3), TACHOMETER<U16> (A) 		8-97132-283-1 01 1 0108- ● ● ● ● ●
199 09.772 LENS; WARNING LAMP
EXC. AIR BAG DRIVER(AJ3), TACHOMETER<U16> (B) 		8-97262-869-0 01 1 0108- ● ● ● ● ●
199 09.772 LENS; WARNING LAMP
TACHOMETER<U16> (B) 		8-97139-582-2 01 1 0108- ● ● ● ● ●
199 09.772 LENS; WARNING LAMP
TACHOMETER<U16> (A) 		8-97287-763-0 01 1 0108- ● ● ● ● ●
269 09.743 SCREW; METER CLUSTER
4JA1 ENG(RLE) TACHOMETER<U16> 09.744 		8-97069-348-0 06 1 0111- ● ● ● ●
269 09.743 SCREW; METER CLUSTER
16.085 (E) M5X16 TAPPING 		9-09829-323-1 03 1 0108- ● ● ● ● ●
269 09.743 SCREW; METER CLUSTER
AIR BAG DRIVER(AJ3) TACHOMETER<U16> 08.977 (E) M4 TAPPING 		8-94325-271-0 01 1 0108- ● ● ● ● ●
269 09.743 SCREW; METER CLUSTER
EXC. AIR BAG DRIVER(AJ3), TACHOMETER<U16> 09.744 (D) M3X31 		8-94326-740-0 06 1 0108- ● ● ● ● ●
269 09.743 SCREW; METER CLUSTER
EXC. AIR BAG DRIVER(AJ3), TACHOMETER<U16> 09.744 (A) 		8-97045-595-0 04 1 0108- ● ● ● ● ●
269 09.743 SCREW; METER CLUSTER
TACHOMETER<U16> 09.744 (A) 		8-97045-595-0 04 1 0108- ● ● ● ● ●
269 09.743 SCREW; METER CLUSTER
EXC. AIR BAG DRIVER(AJ3), TACHOMETER<U16> 09.744 (C) 		8-97069-348-0 02 1 0108-0110 ● ● ● ● ●
269 09.743 SCREW; METER CLUSTER
4JG2 ENG(RJC) EXC. AIR BAG DRIVER(AJ3), TACHOMETER<U16> 09.744 		8-97069-348-0 02 1 0111- ● ● ● ● ●
269 09.743 SCREW; METER CLUSTER
TACHOMETER<U16> 09.744 (B) 		8-97069-347-0 03 1 0108- ● ● ● ● ●
269 09.743 SCREW; METER CLUSTER
TACHOMETER<U16> 09.744 (C) 		8-97069-348-0 08 1 0108-0110 ● ● ● ● ●
269 09.743 SCREW; METER CLUSTER
4JG2 ENG(RJC) TACHOMETER<U16> 09.744 		8-97069-348-0 08 1 0111- ● ● ● ● ●

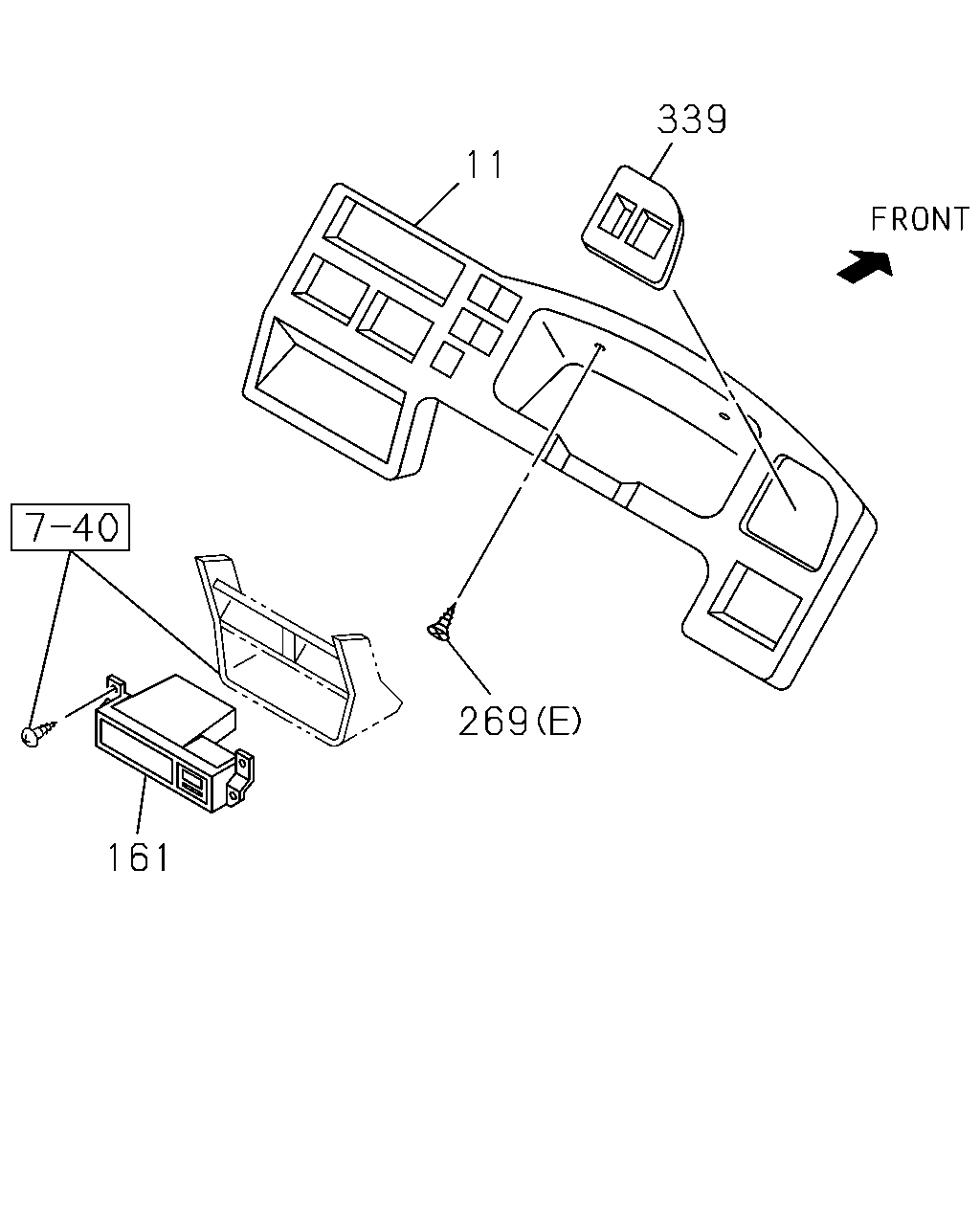

çizim 51758
339 11 269 161
BalonParca AdiParca NoAdetTipApplied Date A B C D E
11 09.743 CLUSTER ASM; METER
INST PANEL FOR DIN E SIZE AUDIO(7QL) BLACK 		8-97153-717-5 01 1 0108- ● ● ● ● ●
11 09.743 CLUSTER ASM; METER
EXC. INST PANEL FOR DIN E SIZE AUDIO(7QL) BLACK 		8-97152-773-7 01 1 0108- ● ● ● ● ●
161 09.772 CLOCK; CLUSTER METER
DIGITAL CLOCK<UE8> 		8-97122-058-1 01 1 0108- ● ● ● ● ●
269 09.743 SCREW; METER CLUSTER
4JA1 ENG(RLE) TACHOMETER<U16> 09.744 		8-97069-348-0 06 1 0111- ● ● ● ●
269 09.743 SCREW; METER CLUSTER
16.085 (E) M5X16 TAPPING 		9-09829-323-1 03 1 0108- ● ● ● ● ●
269 09.743 SCREW; METER CLUSTER
AIR BAG DRIVER(AJ3) TACHOMETER<U16> 08.977 (E) M4 TAPPING 		8-94325-271-0 01 1 0108- ● ● ● ● ●
269 09.743 SCREW; METER CLUSTER
EXC. AIR BAG DRIVER(AJ3), TACHOMETER<U16> 09.744 (D) M3X31 		8-94326-740-0 06 1 0108- ● ● ● ● ●
269 09.743 SCREW; METER CLUSTER
EXC. AIR BAG DRIVER(AJ3), TACHOMETER<U16> 09.744 (A) 		8-97045-595-0 04 1 0108- ● ● ● ● ●
269 09.743 SCREW; METER CLUSTER
TACHOMETER<U16> 09.744 (A) 		8-97045-595-0 04 1 0108- ● ● ● ● ●
269 09.743 SCREW; METER CLUSTER
EXC. AIR BAG DRIVER(AJ3), TACHOMETER<U16> 09.744 (C) 		8-97069-348-0 02 1 0108-0110 ● ● ● ● ●
269 09.743 SCREW; METER CLUSTER
4JG2 ENG(RJC) EXC. AIR BAG DRIVER(AJ3), TACHOMETER<U16> 09.744 		8-97069-348-0 02 1 0111- ● ● ● ● ●
269 09.743 SCREW; METER CLUSTER
TACHOMETER<U16> 09.744 (B) 		8-97069-347-0 03 1 0108- ● ● ● ● ●
269 09.743 SCREW; METER CLUSTER
TACHOMETER<U16> 09.744 (C) 		8-97069-348-0 08 1 0108-0110 ● ● ● ● ●
269 09.743 SCREW; METER CLUSTER
4JG2 ENG(RJC) TACHOMETER<U16> 09.744 		8-97069-348-0 08 1 0111- ● ● ● ● ●
339 09.743 BEZEL; SW,CLUSTER METER 8-97115-518-0 01 1 0108- ● ● ● ● ●

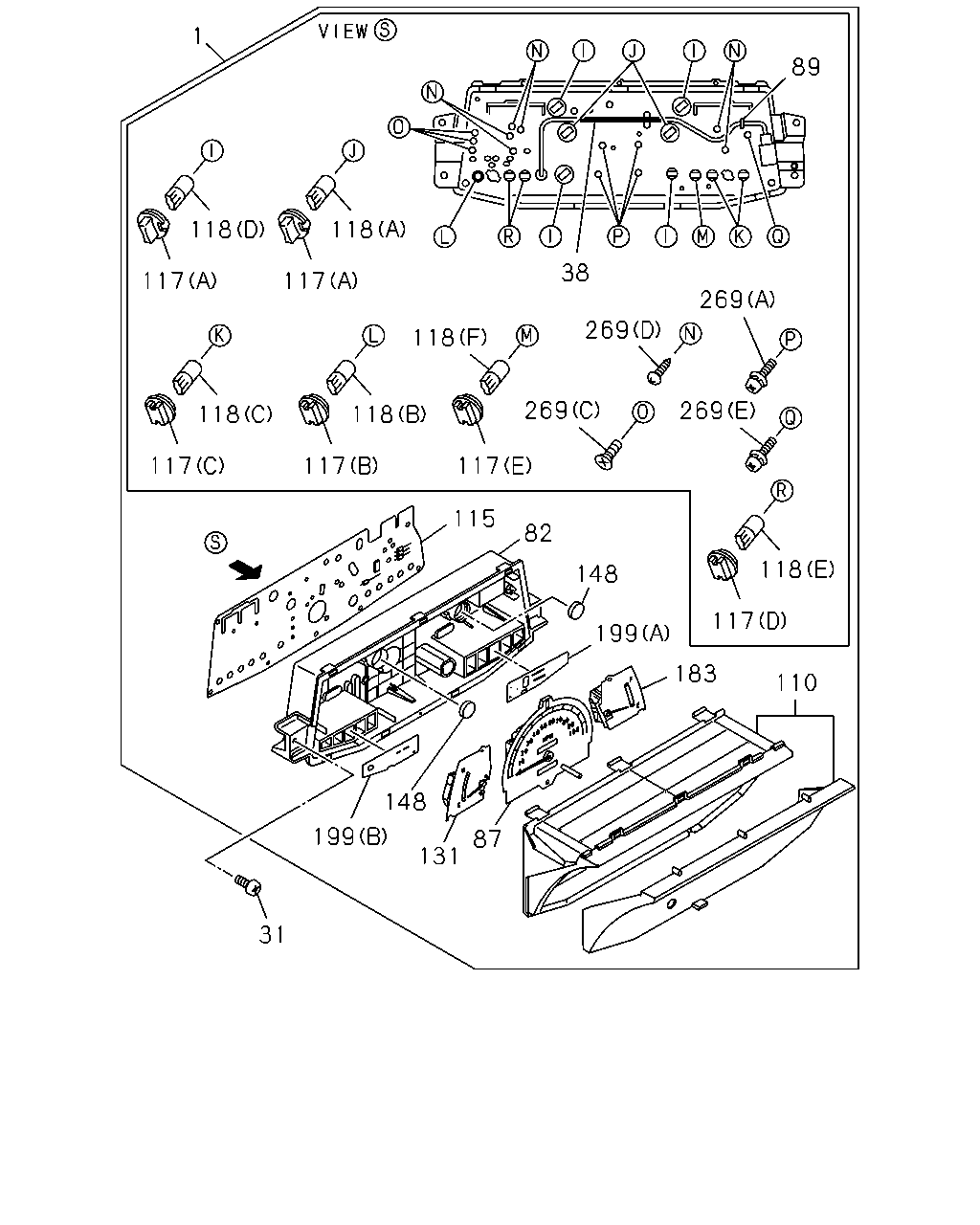

çizim 51791
1 89 118 118 38 117 117 269 269 118 269 269 118 118 117 117 117 115 82 118 148 117 199 183 110 148 199 87 131 31
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 09.735 METER COMPL; CLUSTER
4JG2 ENG(RJC) AIR BAG DRIVER(AJ3) TACHOMETER<U16> SPEEDOMETER KILO&MILES<U19> 		8-97260-958-1 01 1 0108-0304 ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4JG2 ENG(RJC) AIR BAG DRIVER(AJ3) TACHOMETER<U16> SPEEDOMETER KILO&MILES<U19> 		8-97370-161-0 01 1 0305- ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4JG2 ENG(RJC) AIR BAG DRIVER(AJ3) TACHOMETER<U16> EXC. SPEEDOMETER KILO&MILES<U19> 		8-97260-960-1 01 1 0108-0209 ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4JG2 ENG(RJC) TACHOMETER<U16> EXC. SPEEDOMETER KILO&MILES<U19> 		8-97260-960-1 01 1 0210-0304 ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4JG2 ENG(RJC) TACHOMETER<U16> EXC. SPEEDOMETER KILO&MILES<U19> 		8-97370-162-0 01 1 0305- ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4JG2 ENG(RJC) EXC. AIR BAG DRIVER(AJ3), TACHOMETER<U16>,SPEEDOMETER KILO&MILES<U19> 		8-97260-951-2 01 1 0108-0304 ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4JG2 ENG(RJC) EXC. AIR BAG DRIVER(AJ3), TACHOMETER<U16>,SPEEDOMETER KILO&MILES<U19> 		8-97370-160-0 01 1 0305- ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4JG2 ENG(RJC) SPEEDOMETER KILO&MILES<U19> EXC. AIR BAG DRIVER(AJ3), TACHOMETER<U16> 		8-97260-950-2 01 1 0108- ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4JG2 ENG(RJC) TACHOMETER<U16> EXC. AIR BAG DRIVER(AJ3),SPEEDOMETER KILO&MILES<U19> 		8-97260-961-1 01 1 0108-0209 ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4JG2 ENG(RJC) TACHOMETER<U16> SPEEDOMETER KILO&MILES<U19> EXC. AIR BAG DRIVER(AJ3) 		8-97260-959-0 01 1 0108- ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4JA1 ENG(RLE) AIR BAG DRIVER(AJ3) TACHOMETER<U16> SPEEDOMETER KILO&MILES<U19> 		8-97301-118-2 01 1 0108-0209 ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4JA1 ENG(RLE) TACHOMETER<U16> SPEEDOMETER KILO&MILES<U19> 		8-97301-118-2 01 1 0210-0304 ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4JA1 ENG(RLE) TACHOMETER<U16> SPEEDOMETER KILO&MILES<U19> 		8-97370-163-0 01 1 0305- ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4JA1 ENG(RLE) AIR BAG DRIVER(AJ3) TACHOMETER<U16> EXC. SPEEDOMETER KILO&MILES<U19> 		8-97301-120-2 01 1 0108-0209 ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4JA1 ENG(RLE) TACHOMETER<U16> EXC. SPEEDOMETER KILO&MILES<U19> 		8-97301-120-2 01 1 0210-0304 ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4JA1 ENG(RLE) TACHOMETER<U16> EXC. SPEEDOMETER KILO&MILES<U19> 		8-97370-164-0 01 1 0305- ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4JA1 ENG(RLE) EXC. AIR BAG DRIVER(AJ3), TACHOMETER<U16>,SPEEDOMETER KILO&MILES<U19> 		8-97308-605-2 01 1 0108- ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4JA1 ENG(RLE) SPEEDOMETER KILO&MILES<U19> EXC. AIR BAG DRIVER(AJ3), TACHOMETER<U16> 		8-97308-604-2 01 1 0108- ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4JA1 ENG(RLE) TACHOMETER<U16> EXC. AIR BAG DRIVER(AJ3),SPEEDOMETER KILO&MILES<U19> 		8-97301-121-2 01 1 0108-0209 ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4JA1 ENG(RLE) TACHOMETER<U16> SPEEDOMETER KILO&MILES<U19> EXC. AIR BAG DRIVER(AJ3) 		8-97301-119-2 01 1 0108-0209 ● ● ● ●
31 09.761 SCREW; METER,INST PANEL
02.726 M5X16 TAPPING W/PL WASHER 		0-74300-516-0 04 1 0108- ● ● ● ● ●
38 02.480 HARNESS; METER
AIR BAG DRIVER(AJ3) TACHOMETER<U16> 		8-97119-926-0 01 1 0108- ● ● ● ● ●
82 09.743 CASE ASM; CLUSTER METER
EXC. AIR BAG DRIVER(AJ3), TACHOMETER<U16> 		8-97118-775-0 01 1 0108- ● ● ● ● ●
82 09.743 CASE ASM; CLUSTER METER
TACHOMETER<U16> 		8-97104-695-0 01 1 0108- ● ● ● ● ●
87 09.761 SPEEDOMETER
4JG2 ENG(RJC) EXC. AIR BAG DRIVER(AJ3), TACHOMETER<U16>,SPEEDOMETER KILO&MILES<U19> 		8-97132-255-2 01 1 0108- ● ● ● ● ●
87 09.761 SPEEDOMETER
4JG2 ENG(RJC) SPEEDOMETER KILO&MILES<U19> EXC. AIR BAG DRIVER(AJ3), TACHOMETER<U16> 		8-97132-253-3 01 1 0108- ● ● ● ● ●
87 09.761 SPEEDOMETER
4JG2 ENG(RJC) TACHOMETER<U16> SPEEDOMETER KILO&MILES<U19> 		8-97132-258-3 01 1 0108- ● ● ● ● ●
87 09.761 SPEEDOMETER
4JG2 ENG(RJC) TACHOMETER<U16> EXC. SPEEDOMETER KILO&MILES<U19> 		8-97132-260-3 01 1 0108- ● ● ● ● ●
87 09.761 SPEEDOMETER
4JA1 ENG(RLE) EXC. AIR BAG DRIVER(AJ3), TACHOMETER<U16>,SPEEDOMETER KILO&MILES<U19> 		8-97132-254-2 01 1 0108- ● ● ● ●
87 09.761 SPEEDOMETER
4JA1 ENG(RLE) SPEEDOMETER KILO&MILES<U19> EXC. AIR BAG DRIVER(AJ3), TACHOMETER<U16> 		8-97309-073-0 01 1 0108- ● ● ● ●
87 09.761 SPEEDOMETER
4JA1 ENG(RLE) TACHOMETER<U16> SPEEDOMETER KILO&MILES<U19> 		8-97309-072-0 01 1 0108- ● ● ● ●
87 09.761 SPEEDOMETER
4JA1 ENG(RLE) TACHOMETER<U16> EXC. SPEEDOMETER KILO&MILES<U19> 		8-97132-259-3 01 1 0108- ● ● ● ●
89 09.761 CLIP; HARNESS
AIR BAG DRIVER(AJ3) TACHOMETER<U16> 		8-97104-698-0 01 1 0108- ● ● ● ● ●
110 09.748 GLASS; CLUSTER METER
EXC. AIR BAG DRIVER(AJ3), TACHOMETER<U16> 		8-97171-067-0 01 1 0108- ● ● ● ● ●
110 09.748 GLASS; CLUSTER METER
TACHOMETER<U16> 		8-97080-609-0 01 1 0108- ● ● ● ● ●
115 09.744 CIRCUIT; PRINTED,CLUSTER METER
4JG2 ENG(RJC) EXC. AIR BAG DRIVER(AJ3), TACHOMETER<U16> 		8-97262-868-0 01 1 0108- ● ● ● ● ●
115 09.744 CIRCUIT; PRINTED,CLUSTER METER
4JG2 ENG(RJC) TACHOMETER<U16> 		8-97262-867-0 01 1 0108- ● ● ● ● ●
115 09.744 CIRCUIT; PRINTED,CLUSTER METER
4JA1 ENG(RLE) EXC. AIR BAG DRIVER(AJ3), TACHOMETER<U16> 		8-97309-380-0 01 1 0108- ● ● ● ●
115 09.744 CIRCUIT; PRINTED,CLUSTER METER
4JA1 ENG(RLE) TACHOMETER<U16> 		8-97309-379-0 01 1 0108- ● ● ● ●
117 09.744 SOCKET; BULB,GAUGE & CLOCK
09.765 (A) 12V 3.4W 		5-82188-001-0 AR 1 0108- ● ● ● ● ●
117 09.744 SOCKET; BULB,GAUGE & CLOCK
02.892 (C) 12V 1.4W BLACK 		8-94114-138-0 AR 1 0108- ● ● ● ● ●
117 09.744 SOCKET; BULB,GAUGE & CLOCK
(E) 12V 2W GRAY 		8-97031-180-0 AR 1 0108- ● ● ● ● ●
117 09.744 SOCKET; BULB,GAUGE & CLOCK
(D) 24V 3W GREEN 		8-97045-599-0 AR 1 0108- ● ● ● ● ●
117 09.744 SOCKET; BULB,GAUGE & CLOCK
09.765 (B) 14V 3W 		8-97104-703-0 AR 1 0108- ● ● ● ● ●
117 09.744 SOCKET; BULB,GAUGE & CLOCK
4JG2 ENG(RJC) TACHOMETER<U16> 02.892 12V 1.4W BLACK 		8-94114-138-0 13 1 0305- ● ● ● ● ●
117 09.744 SOCKET; BULB,GAUGE & CLOCK
AIR BAG DRIVER(AJ3) TACHOMETER<U16> 02.892 12V 1.4W BLACK 		8-94114-138-0 01 1 0210-0304 ● ● ● ● ●
117 09.744 SOCKET; BULB,GAUGE & CLOCK
4JA1 ENG(RLE) TACHOMETER<U16> 02.892 12V 1.4W BLACK 		8-94114-138-0 12 1 0305- ● ● ● ●
118 08.991 BULB; CLUSTER METER
(A) 14V 3.4W W/CAP 		5-82194-024-0 AR 1 0108- ● ● ● ● ●
118 08.991 BULB; CLUSTER METER
AIR BAG DRIVER(AJ3) TACHOMETER<U16> 12V 2W 		8-97031-178-0 01 1 0210-0304 ● ● ● ● ●
118 08.991 BULB; CLUSTER METER
AIR BAG DRIVER(AJ3) TACHOMETER<U16> 12V 2W 		8-97031-178-0 02 1 0305- ● ● ● ● ●
118 08.991 BULB; CLUSTER METER
(C) 12V 1.4W 		8-94152-313-0 AR 1 0108- ● ● ● ● ●
118 08.991 BULB; CLUSTER METER
(F) 12V 2W 		8-97031-178-0 AR 1 0108- ● ● ● ● ●
118 08.991 BULB; CLUSTER METER
09.765 (B) 14V 3W 		8-97104-702-0 AR 1 0108- ● ● ● ● ●
118 08.991 BULB; CLUSTER METER
(E) 14V 3.4W W/CAP 		8-97171-066-0 AR 1 0108- ● ● ● ● ●
118 08.991 BULB; CLUSTER METER
(D) 12V 3.4W 		9-82691-397-0 AR 1 0108- ● ● ● ● ●
118 08.991 BULB; CLUSTER METER
4JG2 ENG(RJC) TACHOMETER<U16> 12V 1.4W 		8-94152-313-0 13 1 0305- ● ● ● ● ●
118 08.991 BULB; CLUSTER METER
AIR BAG DRIVER(AJ3) TACHOMETER<U16> 12V 1.4W 		8-94152-313-0 01 1 0210-0304 ● ● ● ● ●
118 08.991 BULB; CLUSTER METER
4JA1 ENG(RLE) TACHOMETER<U16> 12V 1.4W 		8-94152-313-0 12 1 0305- ● ● ● ●
131 01.148 GAUGE; TEMP,CLUSTER METER
EXC. AIR BAG DRIVER(AJ3), TACHOMETER<U16> 		8-97109-304-2 01 1 0108- ● ● ● ● ●
131 01.148 GAUGE; TEMP,CLUSTER METER
TACHOMETER<U16> 		8-97139-580-1 01 1 0108- ● ● ● ● ●
148 09.748 LENS; PILOT,TURN SIGNAL,CLUSTER
EXC. AIR BAG DRIVER(AJ3), TACHOMETER<U16> 		8-94325-264-0 02 1 0108- ● ● ● ● ●
183 03.107 GAUGE; FUEL
EXC. AIR BAG DRIVER(AJ3), TACHOMETER<U16> 		8-97109-306-5 01 1 0108- ● ● ● ● ●
183 03.107 GAUGE; FUEL
TACHOMETER<U16> 		8-97139-581-1 01 1 0108- ● ● ● ● ●
199 09.772 LENS; WARNING LAMP
EXC. AIR BAG DRIVER(AJ3), TACHOMETER<U16> (A) 		8-97132-283-1 01 1 0108- ● ● ● ● ●
199 09.772 LENS; WARNING LAMP
EXC. AIR BAG DRIVER(AJ3), TACHOMETER<U16> (B) 		8-97262-869-0 01 1 0108- ● ● ● ● ●
199 09.772 LENS; WARNING LAMP
TACHOMETER<U16> (B) 		8-97139-582-2 01 1 0108- ● ● ● ● ●
199 09.772 LENS; WARNING LAMP
TACHOMETER<U16> (A) 		8-97287-763-0 01 1 0108- ● ● ● ● ●
269 09.743 SCREW; METER CLUSTER
4JA1 ENG(RLE) TACHOMETER<U16> 09.744 		8-97069-348-0 06 1 0111- ● ● ● ●
269 09.743 SCREW; METER CLUSTER
16.085 (E) M5X16 TAPPING 		9-09829-323-1 03 1 0108- ● ● ● ● ●
269 09.743 SCREW; METER CLUSTER
AIR BAG DRIVER(AJ3) TACHOMETER<U16> 08.977 (E) M4 TAPPING 		8-94325-271-0 01 1 0108- ● ● ● ● ●
269 09.743 SCREW; METER CLUSTER
EXC. AIR BAG DRIVER(AJ3), TACHOMETER<U16> 09.744 (D) M3X31 		8-94326-740-0 06 1 0108- ● ● ● ● ●
269 09.743 SCREW; METER CLUSTER
EXC. AIR BAG DRIVER(AJ3), TACHOMETER<U16> 09.744 (A) 		8-97045-595-0 04 1 0108- ● ● ● ● ●
269 09.743 SCREW; METER CLUSTER
TACHOMETER<U16> 09.744 (A) 		8-97045-595-0 04 1 0108- ● ● ● ● ●
269 09.743 SCREW; METER CLUSTER
EXC. AIR BAG DRIVER(AJ3), TACHOMETER<U16> 09.744 (C) 		8-97069-348-0 02 1 0108-0110 ● ● ● ● ●
269 09.743 SCREW; METER CLUSTER
4JG2 ENG(RJC) EXC. AIR BAG DRIVER(AJ3), TACHOMETER<U16> 09.744 		8-97069-348-0 02 1 0111- ● ● ● ● ●
269 09.743 SCREW; METER CLUSTER
TACHOMETER<U16> 09.744 (B) 		8-97069-347-0 03 1 0108- ● ● ● ● ●
269 09.743 SCREW; METER CLUSTER
TACHOMETER<U16> 09.744 (C) 		8-97069-348-0 08 1 0108-0110 ● ● ● ● ●
269 09.743 SCREW; METER CLUSTER
4JG2 ENG(RJC) TACHOMETER<U16> 09.744 		8-97069-348-0 08 1 0111- ● ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
