◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50920 - TFR/TFS(EUROPE)-RHD ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-15 - FIXING PARTS; WIRING HARNESS ▶
8-15 — FIXING PARTS; WIRING HARNESS (#21012) — 166 parça
çizim 10440
27 104 16 206 102 408 128 74 74 74 74 74 74 74 74 74 74 523 16 183 81 115 16 16 90 90 16 523 16 16 74 90 115 183 74 74 81
BalonParca AdiParca NoAdetTipApplied Date A B C D E
16 02.559 CLIP; HARNESS
4JA1 ENG(RLE) 01.152 (D) ID=8.5 		5-09700-275-0 02 1 0108- ● ●
16 02.559 CLIP; HARNESS
03.162 (B) L=140 		5-09707-031-1 01 1 0108- ● ● ● ● ●
16 02.559 CLIP; HARNESS
(C) 		8-94318-781-0 01 1 0108- ● ● ● ● ●
16 02.559 CLIP; HARNESS
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.152 (G) ID=18 L=44 		8-94225-185-0 03 1 0108-0302 ● ● ● ● ●
16 02.559 CLIP; HARNESS
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 02.313 (G) ID=18 L=44 		8-97367-985-0 03 1 0303- ● ● ● ● ●
16 02.559 CLIP; HARNESS
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (E) L=135 		8-94473-399-0 01 1 0108- ● ● ● ● ●
16 02.559 CLIP; HARNESS
POWER WINDOW<A30> (A) L=60 		8-94449-752-0 04 1 0108- ● ● ● ● ●
16 02.559 CLIP; HARNESS
POWER WINDOW<A30> (F) L=60 		8-94457-053-0 04 1 0108- ● ● ● ● ●
16 02.559 CLIP; HARNESS
EXC. POWER WINDOW<A30> (F) L=60 		8-94457-053-0 02 1 0108- ● ● ● ● ●
27 02.559 PROTECTOR; EDGE
16.550 (A) L=250 SERVICED BY L=2040 		1-71997-513-1 02 1 0108- ● ● ● ● ●
27 02.559 PROTECTOR; EDGE
02.530 (B) L=65 		8-94235-856-0 01 1 0108-0207 ● ● ● ● ●
27 02.559 PROTECTOR; EDGE
4JG2 ENG(RJC) 03.885 (D) L=50 		8-94270-377-1 01 1 0108- ● ● ● ● ●
27 02.559 PROTECTOR; EDGE
4JA1 ENG(RLE) (E) 		1-76679-007-0 02 1 0108-0202 ● ● ● ●
27 02.559 PROTECTOR; EDGE
(E) 		1-76679-007-0 02 1 0203- ● ● ● ● ●
27 02.559 PROTECTOR; EDGE
4JG2 ENG(RJC) 04.785 (C) L=200 		8-97096-423-0 01 1 0108- ● ● ● ●
27 02.559 PROTECTOR; EDGE
04.785 (C) L=200 		8-97096-423-0 01 1 0108- ●
74 02.480 CLIP; ROOM LAMP HARNESS
MAP LAMP<UF3> 		8-94138-987-0 08 1 0108- ● ●
74 02.480 CLIP; ROOM LAMP HARNESS
EXC. MAP LAMP<UF3> 		8-94138-987-0 06 1 0108- ● ●
74 02.480 CLIP; ROOM LAMP HARNESS
REAR DEFOGGER<C49> EXC. MAP LAMP<UF3> 		8-94138-987-0 17 1 0108- ● ●
74 02.480 CLIP; ROOM LAMP HARNESS
MAP LAMP<UF3> 		8-94138-987-0 17 1 0108- ● ●
74 02.480 CLIP; ROOM LAMP HARNESS
EXC. REAR DEFOGGER<C49>,MAP LAMP<UF3> 		8-94138-987-0 15 1 0108- ● ●
74 02.480 CLIP; ROOM LAMP HARNESS
REAR DEFOGGER<C49> MAP LAMP<UF3> 		8-94138-987-0 13 1 0108- ●
74 02.480 CLIP; ROOM LAMP HARNESS
REAR DEFOGGER<C49> EXC. MAP LAMP<UF3> 		8-94138-987-0 11 1 0108- ●
74 02.480 CLIP; ROOM LAMP HARNESS
MAP LAMP<UF3> EXC. REAR DEFOGGER<C49> 		8-94138-987-0 11 1 0108- ●
74 02.480 CLIP; ROOM LAMP HARNESS
EXC. REAR DEFOGGER<C49>,MAP LAMP<UF3> 		8-94138-987-0 09 1 0108- ●
81 02.483 CLIP; HARNESS
02.480 (A) 		8-94138-987-0 02 1 0108- ● ● ● ● ●
81 02.483 CLIP; HARNESS
(B) ID=21 & 21 		8-97136-392-0 01 1 0108- ● ● ● ● ●
81 02.483 CLIP; HARNESS
00.446 (C) ID=12 		5-09700-350-0 01 1 0108- ● ● ●
90 02.559 CLIP; HARNESS,DOOR LOCK
AUTO DOOR LOCK<AU4> 13.090 (A) ID=9 		8-94177-914-0 04 1 0108- ● ● ● ● ●
90 02.559 CLIP; HARNESS,DOOR LOCK
AUTO DOOR LOCK<AU4> (B) ID=12 		8-94423-045-0 02 1 0108- ● ●
102 02.559 CLIP; BAND
INST PANEL FOR DIN E SIZE AUDIO(7QL) 03.162 L=140 		5-09707-031-1 01 1 0108- ● ● ● ● ●
104 02.559 CLIP; HEADLAMP HARNESS
02.587 L=172 		8-94232-620-0 02 1 0108- ● ● ● ● ●
115 02.559 CLIP; DOOR HARNESS
POWER WINDOW<A30> ID=12 		8-94423-045-0 02 1 0108- ● ● ● ● ●
128 02.559 CLIP; COMB SW HARNESS,STRG COLUM
EXC. RR BODY DBL WALL CTR PULL(6MW) L=250 		5-09707-030-1 01 1 0108- ● ● ● ●
183 02.559 CLIP; CONNECTOR
POWER WINDOW<A30> L=15 		8-94315-436-1 02 1 0108- ● ● ● ● ●
206 02.559 CLIP; FUEL TANK HARNESS
03.162 L=140 		5-09707-031-1 01 1 0108- ● ● ● ● ●
408 02.559 CLIP; TRANS HARNESS
00.446 ID=12 		5-09700-350-0 04 1 0108- ● ● ● ● ●
523 02.559 CLIP; HARNESS,WINDOW REG
POWER WINDOW<A30> EXC. DOOR MIRROR ELECTRIC CONT BRIGHT<7HX> 13.090 ID=9 		8-94177-914-0 02 1 0108- ● ● ● ● ●
523 02.559 CLIP; HARNESS,WINDOW REG
DOOR MIRROR ELECTRIC CONT BRIGHT<7HX> 13.090 ID=9 		8-94177-914-0 02 1 0108- ● ● ● ● ●

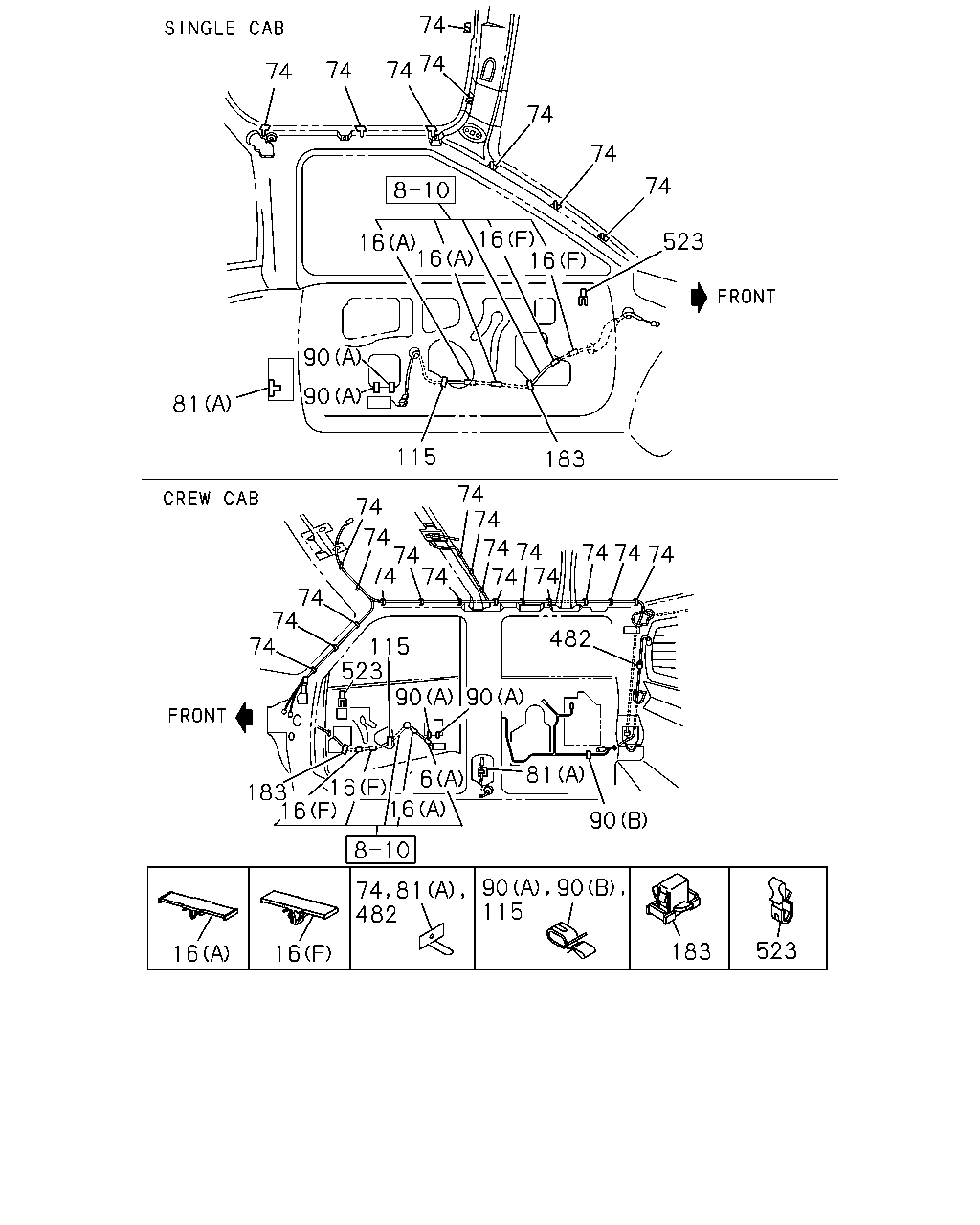

çizim 11542
74 74 74 74 74 74 74 74 16 16 523 16 16 90 90 81 115 183 74 74 74 74 74 74 74 74 74 74 74 74 482 115 523 90 90 16 183 16 16 16 81 90 90 90 115 74 482 523 183 16 16 81 74 74 74 74 74
BalonParca AdiParca NoAdetTipApplied Date A B C D E
16 02.559 CLIP; HARNESS
4JA1 ENG(RLE) 01.152 (D) ID=8.5 		5-09700-275-0 02 1 0108- ● ●
16 02.559 CLIP; HARNESS
03.162 (B) L=140 		5-09707-031-1 01 1 0108- ● ● ● ● ●
16 02.559 CLIP; HARNESS
(C) 		8-94318-781-0 01 1 0108- ● ● ● ● ●
16 02.559 CLIP; HARNESS
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.152 (G) ID=18 L=44 		8-94225-185-0 03 1 0108-0302 ● ● ● ● ●
16 02.559 CLIP; HARNESS
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 02.313 (G) ID=18 L=44 		8-97367-985-0 03 1 0303- ● ● ● ● ●
16 02.559 CLIP; HARNESS
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (E) L=135 		8-94473-399-0 01 1 0108- ● ● ● ● ●
16 02.559 CLIP; HARNESS
POWER WINDOW<A30> (A) L=60 		8-94449-752-0 04 1 0108- ● ● ● ● ●
16 02.559 CLIP; HARNESS
POWER WINDOW<A30> (F) L=60 		8-94457-053-0 04 1 0108- ● ● ● ● ●
16 02.559 CLIP; HARNESS
EXC. POWER WINDOW<A30> (F) L=60 		8-94457-053-0 02 1 0108- ● ● ● ● ●
74 02.480 CLIP; ROOM LAMP HARNESS
MAP LAMP<UF3> 		8-94138-987-0 08 1 0108- ● ●
74 02.480 CLIP; ROOM LAMP HARNESS
EXC. MAP LAMP<UF3> 		8-94138-987-0 06 1 0108- ● ●
74 02.480 CLIP; ROOM LAMP HARNESS
REAR DEFOGGER<C49> EXC. MAP LAMP<UF3> 		8-94138-987-0 17 1 0108- ● ●
74 02.480 CLIP; ROOM LAMP HARNESS
MAP LAMP<UF3> 		8-94138-987-0 17 1 0108- ● ●
74 02.480 CLIP; ROOM LAMP HARNESS
EXC. REAR DEFOGGER<C49>,MAP LAMP<UF3> 		8-94138-987-0 15 1 0108- ● ●
74 02.480 CLIP; ROOM LAMP HARNESS
REAR DEFOGGER<C49> MAP LAMP<UF3> 		8-94138-987-0 13 1 0108- ●
74 02.480 CLIP; ROOM LAMP HARNESS
REAR DEFOGGER<C49> EXC. MAP LAMP<UF3> 		8-94138-987-0 11 1 0108- ●
74 02.480 CLIP; ROOM LAMP HARNESS
MAP LAMP<UF3> EXC. REAR DEFOGGER<C49> 		8-94138-987-0 11 1 0108- ●
74 02.480 CLIP; ROOM LAMP HARNESS
EXC. REAR DEFOGGER<C49>,MAP LAMP<UF3> 		8-94138-987-0 09 1 0108- ●
81 02.483 CLIP; HARNESS
02.480 (A) 		8-94138-987-0 02 1 0108- ● ● ● ● ●
81 02.483 CLIP; HARNESS
(B) ID=21 & 21 		8-97136-392-0 01 1 0108- ● ● ● ● ●
81 02.483 CLIP; HARNESS
00.446 (C) ID=12 		5-09700-350-0 01 1 0108- ● ● ●
90 02.559 CLIP; HARNESS,DOOR LOCK
AUTO DOOR LOCK<AU4> 13.090 (A) ID=9 		8-94177-914-0 04 1 0108- ● ● ● ● ●
90 02.559 CLIP; HARNESS,DOOR LOCK
AUTO DOOR LOCK<AU4> (B) ID=12 		8-94423-045-0 02 1 0108- ● ●
115 02.559 CLIP; DOOR HARNESS
POWER WINDOW<A30> ID=12 		8-94423-045-0 02 1 0108- ● ● ● ● ●
183 02.559 CLIP; CONNECTOR
POWER WINDOW<A30> L=15 		8-94315-436-1 02 1 0108- ● ● ● ● ●
482 02.559 CLIP; RR DEFOGGER HARNESS
REAR DEFOGGER<C49> 02.480 		8-94138-987-0 02 1 0108- ● ●
523 02.559 CLIP; HARNESS,WINDOW REG
POWER WINDOW<A30> EXC. DOOR MIRROR ELECTRIC CONT BRIGHT<7HX> 13.090 ID=9 		8-94177-914-0 02 1 0108- ● ● ● ● ●
523 02.559 CLIP; HARNESS,WINDOW REG
DOOR MIRROR ELECTRIC CONT BRIGHT<7HX> 13.090 ID=9 		8-94177-914-0 02 1 0108- ● ● ● ● ●

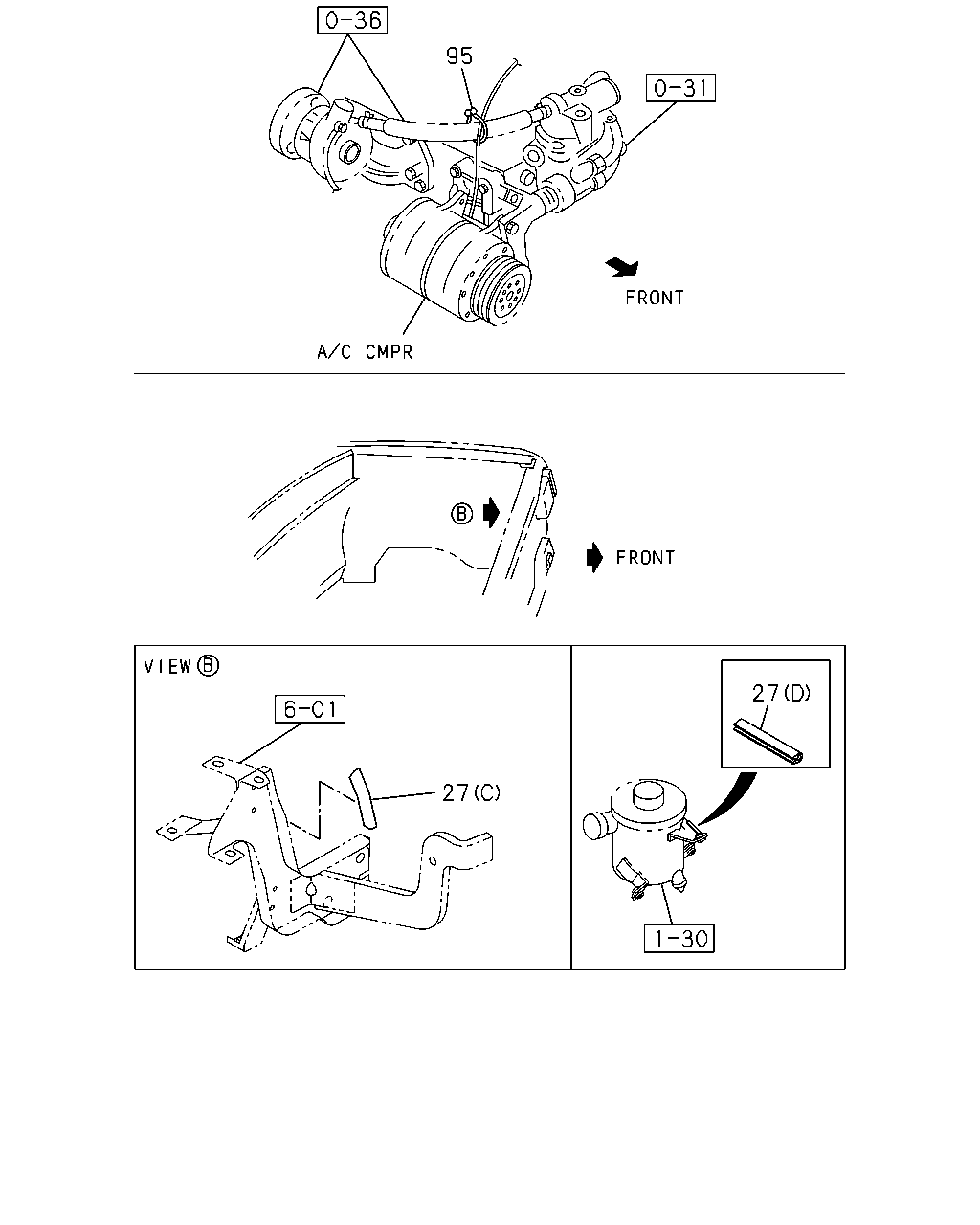

çizim 11543
95 27 27
BalonParca AdiParca NoAdetTipApplied Date A B C D E
27 02.559 PROTECTOR; EDGE
16.550 (A) L=250 SERVICED BY L=2040 		1-71997-513-1 02 1 0108- ● ● ● ● ●
27 02.559 PROTECTOR; EDGE
02.530 (B) L=65 		8-94235-856-0 01 1 0108-0207 ● ● ● ● ●
27 02.559 PROTECTOR; EDGE
4JG2 ENG(RJC) 03.885 (D) L=50 		8-94270-377-1 01 1 0108- ● ● ● ● ●
27 02.559 PROTECTOR; EDGE
4JA1 ENG(RLE) (E) 		1-76679-007-0 02 1 0108-0202 ● ● ● ●
27 02.559 PROTECTOR; EDGE
(E) 		1-76679-007-0 02 1 0203- ● ● ● ● ●
27 02.559 PROTECTOR; EDGE
4JG2 ENG(RJC) 04.785 (C) L=200 		8-97096-423-0 01 1 0108- ● ● ● ●
27 02.559 PROTECTOR; EDGE
04.785 (C) L=200 		8-97096-423-0 01 1 0108- ●
95 02.559 CLIP; CABLE
4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60) 02.480 ID=25 		8-94120-831-0 01 1 0108- ● ● ● ● ●

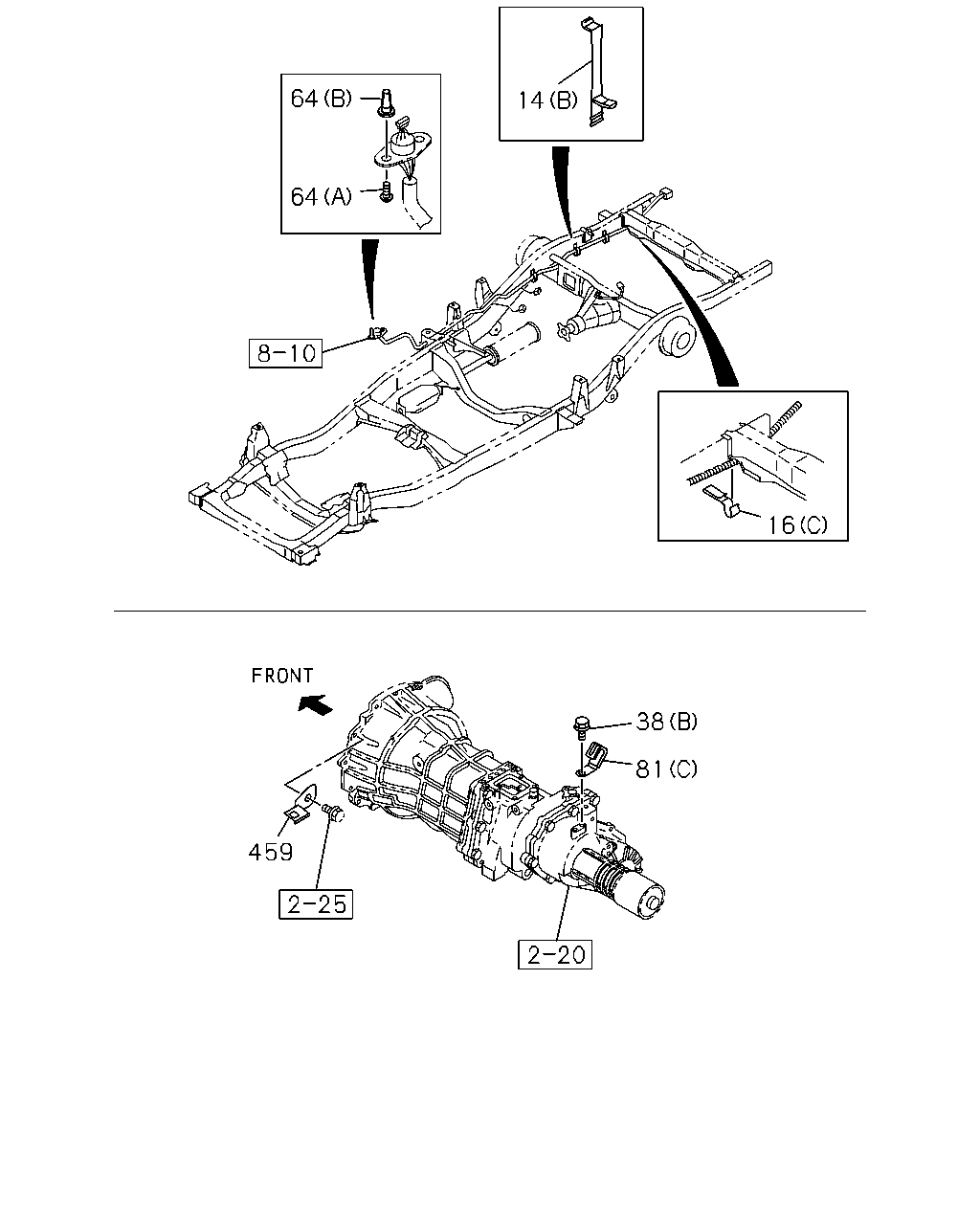

çizim 49702
64 14 64 16 38 81 459
BalonParca AdiParca NoAdetTipApplied Date A B C D E
14 02.559 CLIP; BAND,HARNESS
03.483 (A) ID=20.2 & 6 		8-94472-577-0 01 1 0108- ● ● ● ● ●
14 02.559 CLIP; BAND,HARNESS
(B) L=55 		8-94473-398-0 10 1 0108- ● ●
14 02.559 CLIP; BAND,HARNESS
(B) L=55 		8-94473-398-0 11 1 0108- ● ● ●
16 02.559 CLIP; HARNESS
4JA1 ENG(RLE) 01.152 (D) ID=8.5 		5-09700-275-0 02 1 0108- ● ●
16 02.559 CLIP; HARNESS
03.162 (B) L=140 		5-09707-031-1 01 1 0108- ● ● ● ● ●
16 02.559 CLIP; HARNESS
(C) 		8-94318-781-0 01 1 0108- ● ● ● ● ●
16 02.559 CLIP; HARNESS
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.152 (G) ID=18 L=44 		8-94225-185-0 03 1 0108-0302 ● ● ● ● ●
16 02.559 CLIP; HARNESS
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 02.313 (G) ID=18 L=44 		8-97367-985-0 03 1 0303- ● ● ● ● ●
16 02.559 CLIP; HARNESS
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (E) L=135 		8-94473-399-0 01 1 0108- ● ● ● ● ●
16 02.559 CLIP; HARNESS
POWER WINDOW<A30> (A) L=60 		8-94449-752-0 04 1 0108- ● ● ● ● ●
16 02.559 CLIP; HARNESS
POWER WINDOW<A30> (F) L=60 		8-94457-053-0 04 1 0108- ● ● ● ● ●
16 02.559 CLIP; HARNESS
EXC. POWER WINDOW<A30> (F) L=60 		8-94457-053-0 02 1 0108- ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
01.428 (A) M6X12 FLANGE 		0-28080-612-0 01 1 0108- ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
10.240 (C) M5X14 		8-94120-095-0 01 1 0108- ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
03.885 (D) M6X20 		8-94412-422-0 02 1 0108- ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.900 (E) M8X12 FLANGE 		0-28080-812-0 03 1 0108- ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
08.900 (B) M8X12 FLANGE 		0-28080-812-0 01 1 0108- ● ● ●
64 02.559 SCREW; CLIP
10.240 (A) M5X14 		8-94120-095-0 02 1 0108- ● ● ● ● ●
64 02.559 SCREW; CLIP
02.679 (B) D=7.9X7.9 L=20 M5 		8-94441-539-0 02 1 0108- ● ● ● ● ●
81 02.483 CLIP; HARNESS
02.480 (A) 		8-94138-987-0 02 1 0108- ● ● ● ● ●
81 02.483 CLIP; HARNESS
(B) ID=21 & 21 		8-97136-392-0 01 1 0108- ● ● ● ● ●
81 02.483 CLIP; HARNESS
00.446 (C) ID=12 		5-09700-350-0 01 1 0108- ● ● ●
459 02.483 BRACKET; SUPPORT,HARNESS
TURBOCHARGER<K51> 		8-94315-284-0 01 1 0108- ● ● ● ●
459 02.483 BRACKET; SUPPORT,HARNESS 8-94315-284-0 01 1 0108- ●

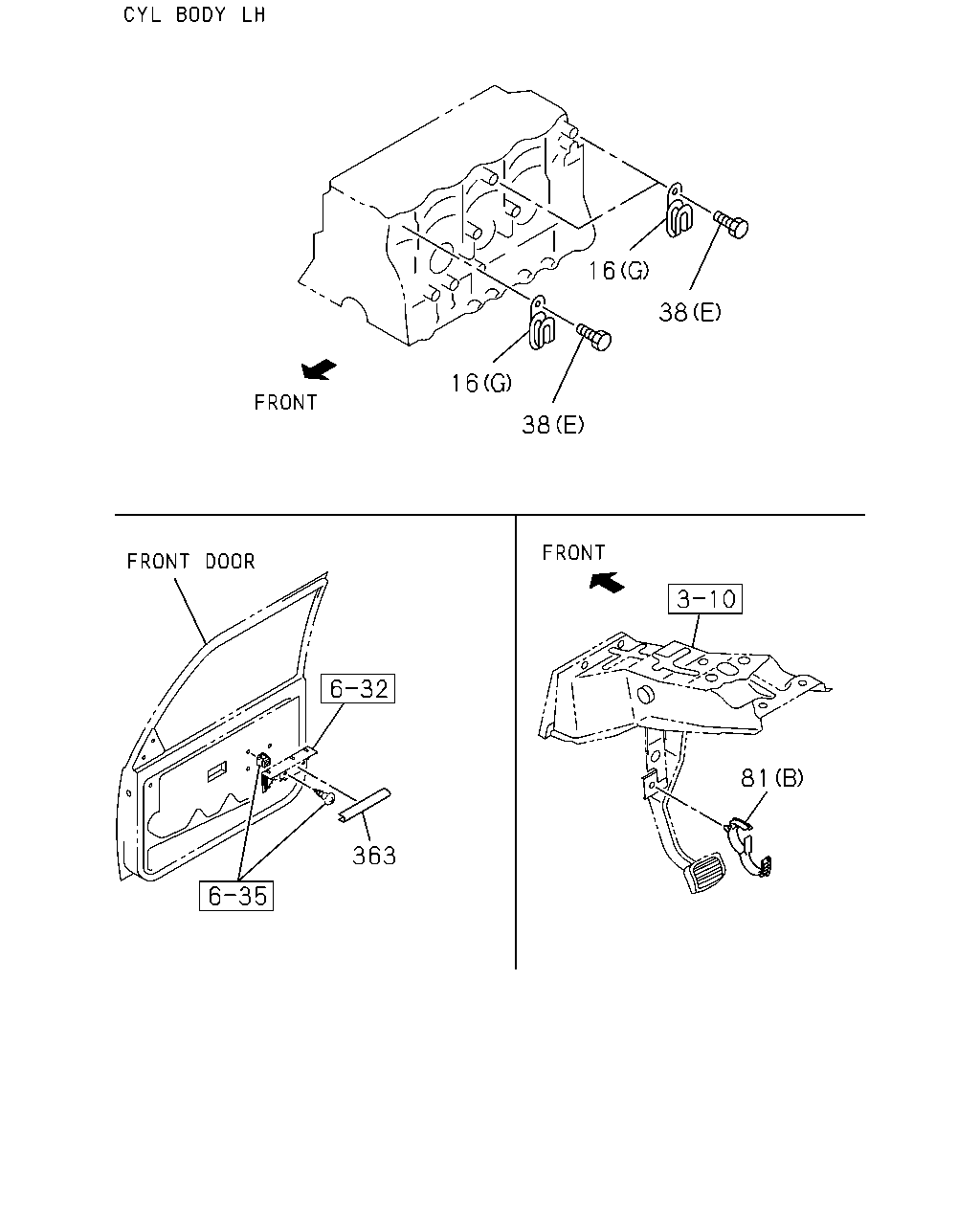

çizim 50360
16 38 16 38 81 363
BalonParca AdiParca NoAdetTipApplied Date A B C D E
16 02.559 CLIP; HARNESS
4JA1 ENG(RLE) 01.152 (D) ID=8.5 		5-09700-275-0 02 1 0108- ● ●
16 02.559 CLIP; HARNESS
03.162 (B) L=140 		5-09707-031-1 01 1 0108- ● ● ● ● ●
16 02.559 CLIP; HARNESS
(C) 		8-94318-781-0 01 1 0108- ● ● ● ● ●
16 02.559 CLIP; HARNESS
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.152 (G) ID=18 L=44 		8-94225-185-0 03 1 0108-0302 ● ● ● ● ●
16 02.559 CLIP; HARNESS
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 02.313 (G) ID=18 L=44 		8-97367-985-0 03 1 0303- ● ● ● ● ●
16 02.559 CLIP; HARNESS
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (E) L=135 		8-94473-399-0 01 1 0108- ● ● ● ● ●
16 02.559 CLIP; HARNESS
POWER WINDOW<A30> (A) L=60 		8-94449-752-0 04 1 0108- ● ● ● ● ●
16 02.559 CLIP; HARNESS
POWER WINDOW<A30> (F) L=60 		8-94457-053-0 04 1 0108- ● ● ● ● ●
16 02.559 CLIP; HARNESS
EXC. POWER WINDOW<A30> (F) L=60 		8-94457-053-0 02 1 0108- ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
01.428 (A) M6X12 FLANGE 		0-28080-612-0 01 1 0108- ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
10.240 (C) M5X14 		8-94120-095-0 01 1 0108- ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
03.885 (D) M6X20 		8-94412-422-0 02 1 0108- ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.900 (E) M8X12 FLANGE 		0-28080-812-0 03 1 0108- ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
08.900 (B) M8X12 FLANGE 		0-28080-812-0 01 1 0108- ● ● ●
81 02.483 CLIP; HARNESS
02.480 (A) 		8-94138-987-0 02 1 0108- ● ● ● ● ●
81 02.483 CLIP; HARNESS
(B) ID=21 & 21 		8-97136-392-0 01 1 0108- ● ● ● ● ●
81 02.483 CLIP; HARNESS
00.446 (C) ID=12 		5-09700-350-0 01 1 0108- ● ● ●
363 16.085 FINISHER; PROTECTOR
POWER WINDOW<A30> 16.570 SERVICED BY L=190 		1-71998-300-0 02 1 0108- ● ● ● ● ●

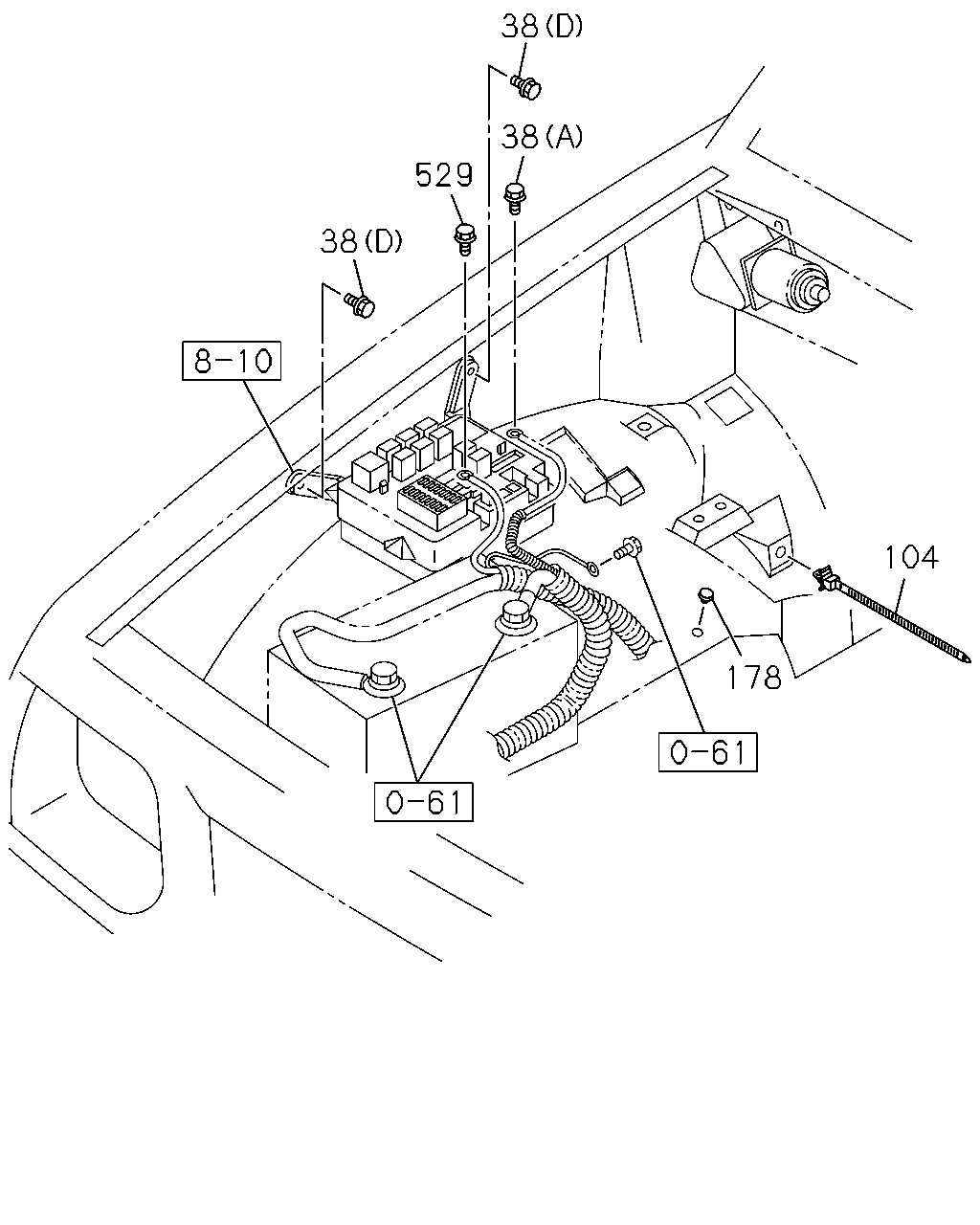

çizim 51200
38 38 529 38 104 178
BalonParca AdiParca NoAdetTipApplied Date A B C D E
38 02.559 BOLT; CLIP,HARNESS
01.428 (A) M6X12 FLANGE 		0-28080-612-0 01 1 0108- ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
10.240 (C) M5X14 		8-94120-095-0 01 1 0108- ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
03.885 (D) M6X20 		8-94412-422-0 02 1 0108- ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.900 (E) M8X12 FLANGE 		0-28080-812-0 03 1 0108- ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
08.900 (B) M8X12 FLANGE 		0-28080-812-0 01 1 0108- ● ● ●
104 02.559 CLIP; HEADLAMP HARNESS
02.587 L=172 		8-94232-620-0 02 1 0108- ● ● ● ● ●
178 02.559 GROMMET; HARNESS
16.550 OD=12 		9-09956-122-0 01 1 0108- ● ● ● ● ●
529 02.559 BOLT; RELAY BOX
01.428 M6X12 FLANGE 		0-28080-612-0 01 1 0108- ● ● ● ● ●

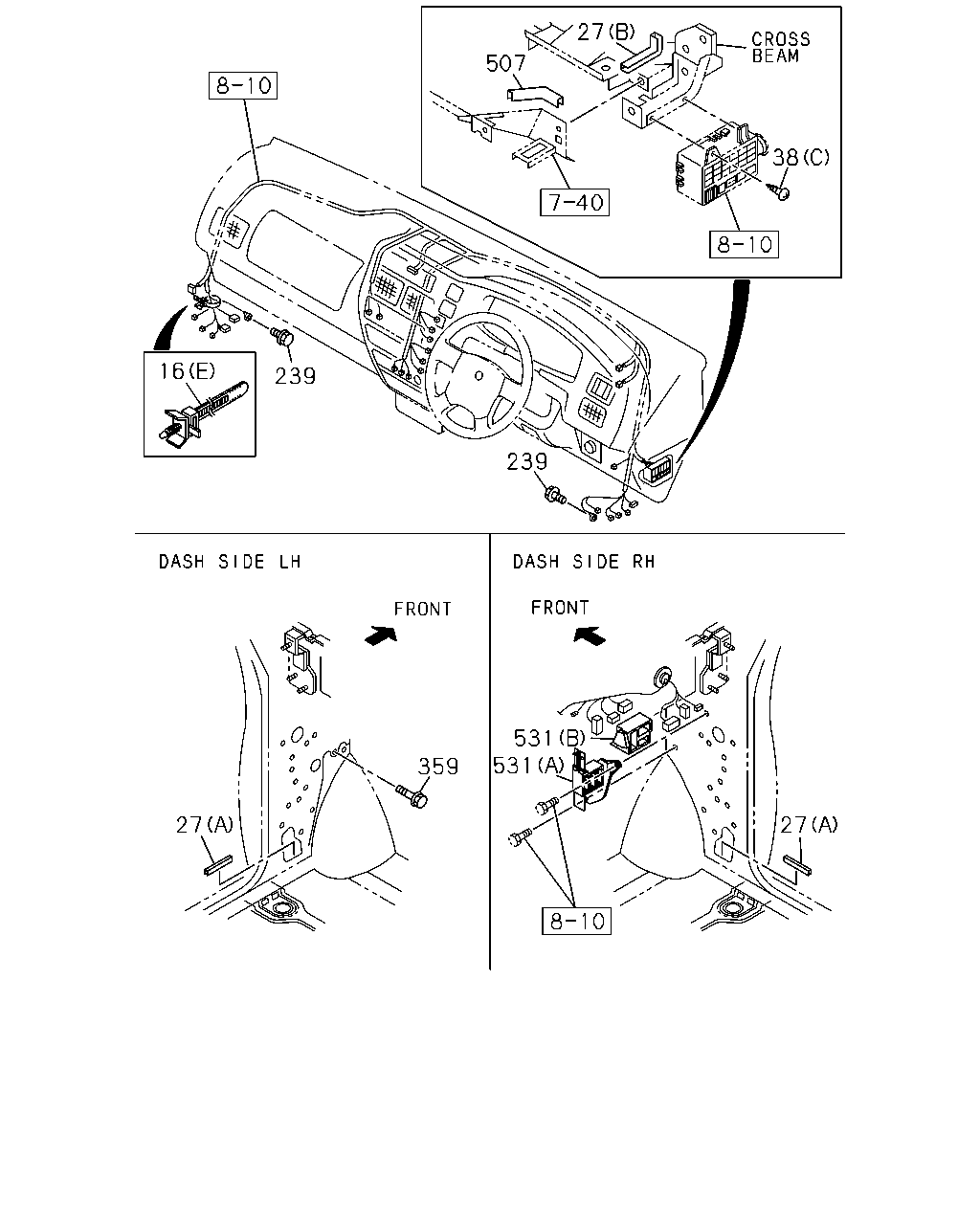

çizim 51520
27 507 38 16 239 239 531 531 359 27 27
BalonParca AdiParca NoAdetTipApplied Date A B C D E
16 02.559 CLIP; HARNESS
4JA1 ENG(RLE) 01.152 (D) ID=8.5 		5-09700-275-0 02 1 0108- ● ●
16 02.559 CLIP; HARNESS
03.162 (B) L=140 		5-09707-031-1 01 1 0108- ● ● ● ● ●
16 02.559 CLIP; HARNESS
(C) 		8-94318-781-0 01 1 0108- ● ● ● ● ●
16 02.559 CLIP; HARNESS
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.152 (G) ID=18 L=44 		8-94225-185-0 03 1 0108-0302 ● ● ● ● ●
16 02.559 CLIP; HARNESS
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 02.313 (G) ID=18 L=44 		8-97367-985-0 03 1 0303- ● ● ● ● ●
16 02.559 CLIP; HARNESS
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (E) L=135 		8-94473-399-0 01 1 0108- ● ● ● ● ●
16 02.559 CLIP; HARNESS
POWER WINDOW<A30> (A) L=60 		8-94449-752-0 04 1 0108- ● ● ● ● ●
16 02.559 CLIP; HARNESS
POWER WINDOW<A30> (F) L=60 		8-94457-053-0 04 1 0108- ● ● ● ● ●
16 02.559 CLIP; HARNESS
EXC. POWER WINDOW<A30> (F) L=60 		8-94457-053-0 02 1 0108- ● ● ● ● ●
27 02.559 PROTECTOR; EDGE
16.550 (A) L=250 SERVICED BY L=2040 		1-71997-513-1 02 1 0108- ● ● ● ● ●
27 02.559 PROTECTOR; EDGE
02.530 (B) L=65 		8-94235-856-0 01 1 0108-0207 ● ● ● ● ●
27 02.559 PROTECTOR; EDGE
4JG2 ENG(RJC) 03.885 (D) L=50 		8-94270-377-1 01 1 0108- ● ● ● ● ●
27 02.559 PROTECTOR; EDGE
4JA1 ENG(RLE) (E) 		1-76679-007-0 02 1 0108-0202 ● ● ● ●
27 02.559 PROTECTOR; EDGE
(E) 		1-76679-007-0 02 1 0203- ● ● ● ● ●
27 02.559 PROTECTOR; EDGE
4JG2 ENG(RJC) 04.785 (C) L=200 		8-97096-423-0 01 1 0108- ● ● ● ●
27 02.559 PROTECTOR; EDGE
04.785 (C) L=200 		8-97096-423-0 01 1 0108- ●
38 02.559 BOLT; CLIP,HARNESS
01.428 (A) M6X12 FLANGE 		0-28080-612-0 01 1 0108- ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
10.240 (C) M5X14 		8-94120-095-0 01 1 0108- ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
03.885 (D) M6X20 		8-94412-422-0 02 1 0108- ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.900 (E) M8X12 FLANGE 		0-28080-812-0 03 1 0108- ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
08.900 (B) M8X12 FLANGE 		0-28080-812-0 01 1 0108- ● ● ●
239 02.559 BOLT; GRAND
M6X14 W/LK&PL WASHER 		8-97086-822-0 05 1 0108- ● ● ● ● ●
359 02.559 BOLT; HOLDER
03.342 M6X16 		8-97012-496-0 01 1 0108- ● ● ● ● ●
507 02.559 FINISHER
L=80 		5-71997-133-0 02 1 0108- ● ● ● ● ●
531 02.559 HOLDER
(A) 		8-97110-110-1 01 1 0108- ● ● ● ● ●
531 02.559 HOLDER
(B) 		8-97132-324-1 01 1 0108- ● ● ● ● ●

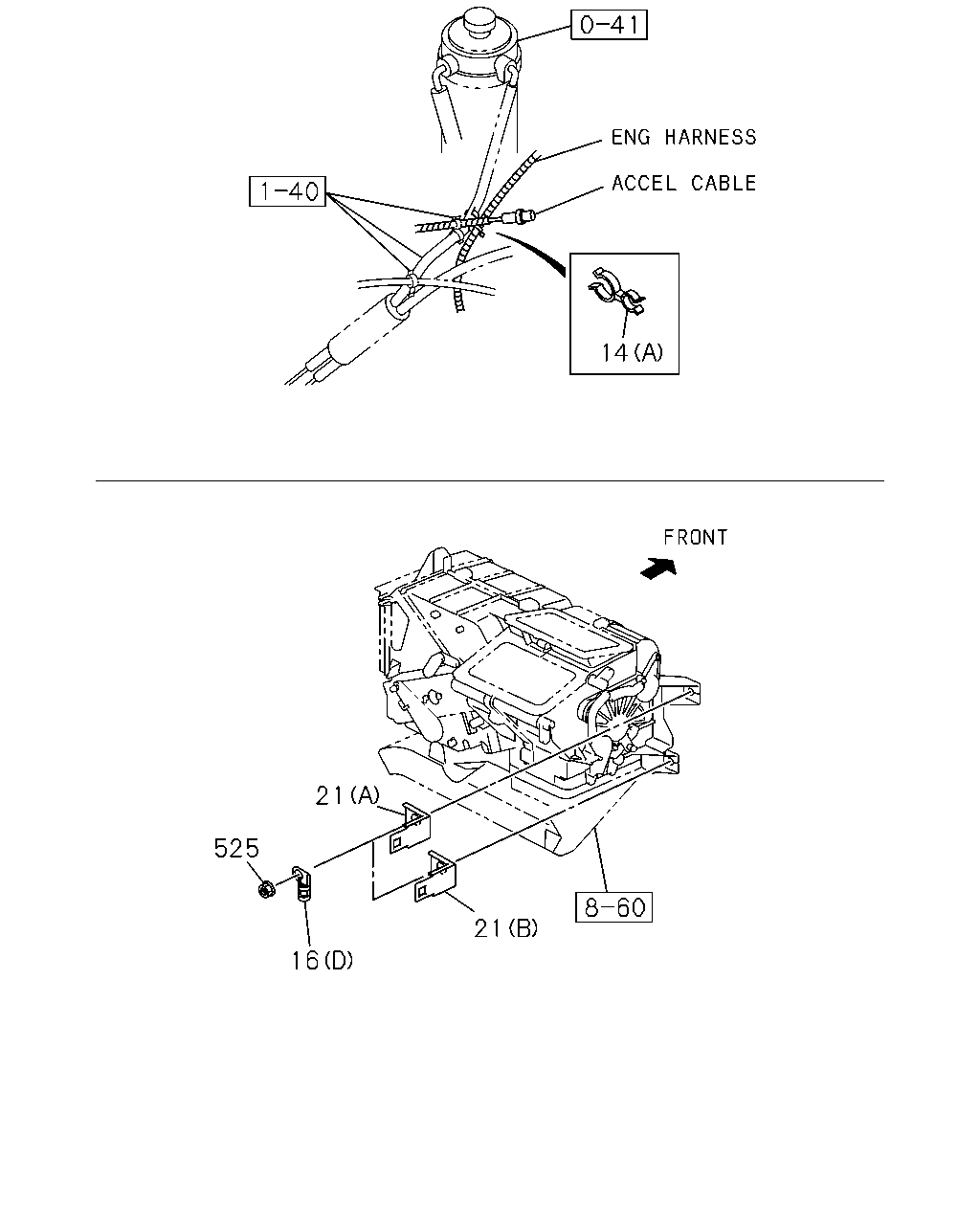

çizim 53577
14 21 525 21 16
BalonParca AdiParca NoAdetTipApplied Date A B C D E
14 02.559 CLIP; BAND,HARNESS
03.483 (A) ID=20.2 & 6 		8-94472-577-0 01 1 0108- ● ● ● ● ●
14 02.559 CLIP; BAND,HARNESS
(B) L=55 		8-94473-398-0 10 1 0108- ● ●
14 02.559 CLIP; BAND,HARNESS
(B) L=55 		8-94473-398-0 11 1 0108- ● ● ●
16 02.559 CLIP; HARNESS
4JA1 ENG(RLE) 01.152 (D) ID=8.5 		5-09700-275-0 02 1 0108- ● ●
16 02.559 CLIP; HARNESS
03.162 (B) L=140 		5-09707-031-1 01 1 0108- ● ● ● ● ●
16 02.559 CLIP; HARNESS
(C) 		8-94318-781-0 01 1 0108- ● ● ● ● ●
16 02.559 CLIP; HARNESS
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.152 (G) ID=18 L=44 		8-94225-185-0 03 1 0108-0302 ● ● ● ● ●
16 02.559 CLIP; HARNESS
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 02.313 (G) ID=18 L=44 		8-97367-985-0 03 1 0303- ● ● ● ● ●
16 02.559 CLIP; HARNESS
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (E) L=135 		8-94473-399-0 01 1 0108- ● ● ● ● ●
16 02.559 CLIP; HARNESS
POWER WINDOW<A30> (A) L=60 		8-94449-752-0 04 1 0108- ● ● ● ● ●
16 02.559 CLIP; HARNESS
POWER WINDOW<A30> (F) L=60 		8-94457-053-0 04 1 0108- ● ● ● ● ●
16 02.559 CLIP; HARNESS
EXC. POWER WINDOW<A30> (F) L=60 		8-94457-053-0 02 1 0108- ● ● ● ● ●
21 02.483 BRACKET; ENG HARNESS
4JA1 ENG(RLE) (A) 		8-97127-268-0 01 1 0108- ● ● ● ●
21 02.483 BRACKET; ENG HARNESS
4JA1 ENG(RLE) (B) 		8-97313-463-1 01 1 0108- ● ● ● ●
525 02.559 NUT; CLIP
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 07.833 M6 FLANGE 		8-97063-399-0 02 1 0108- ● ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
