8-10 — WIRING HARNESS AND FUSE (#21011) — 93 parça

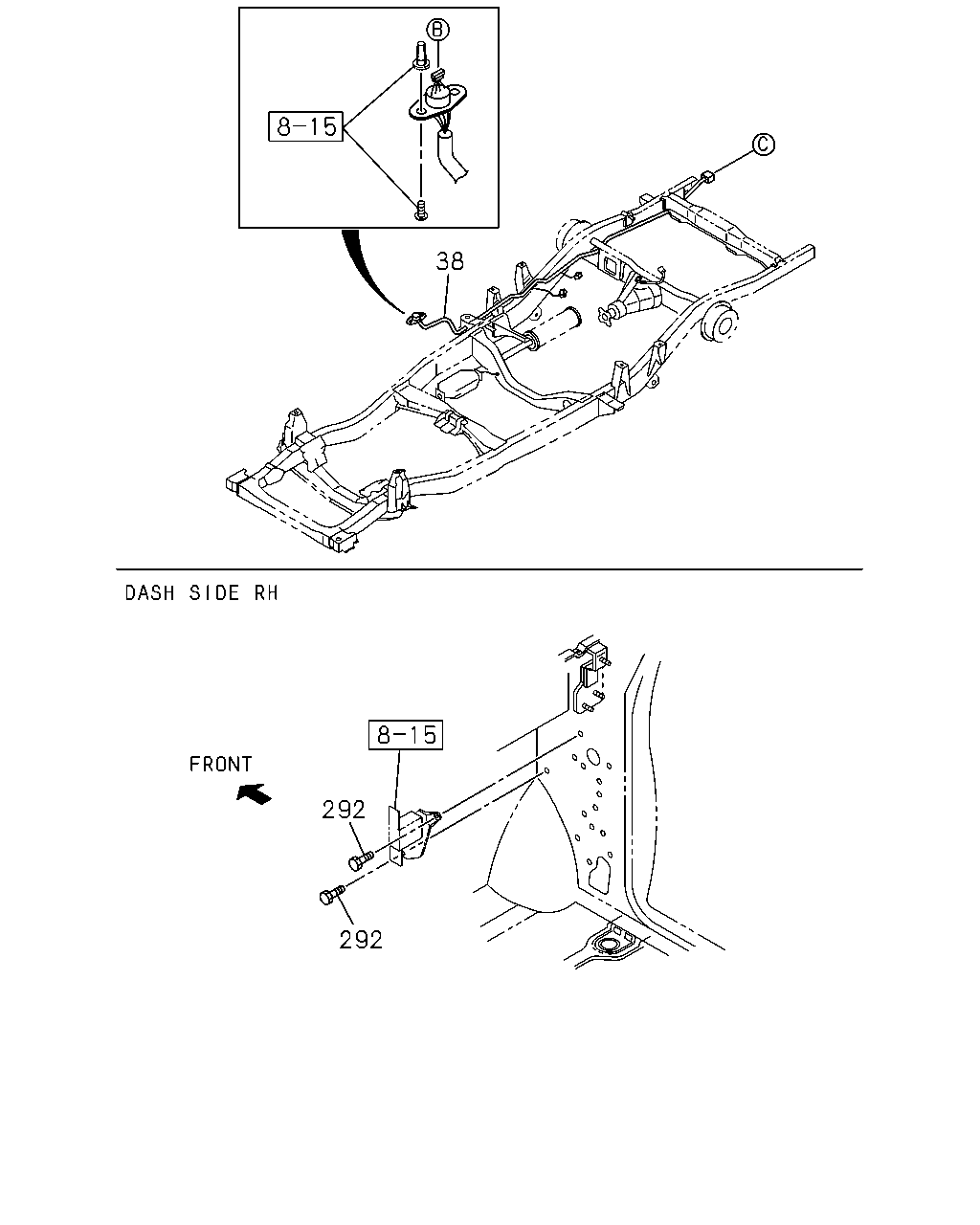

çizim 11162
38 292 292
BalonParca AdiParca NoAdetTipApplied Date A B C D E
38 02.480 HARNESS; CHAS
RR FOG LAMP<T79> 		8-97217-408-0 01 1 0108- ● ● ● ● ●
38 02.480 HARNESS; CHAS
EXC. RR FOG LAMP<T79> 		8-97217-407-0 01 1 0108- ● ● ● ● ●
292 02.483 BOLT; BOX
09.190 M6X30 FLANGE 		0-28680-630-0 02 1 0108- ● ● ● ● ●

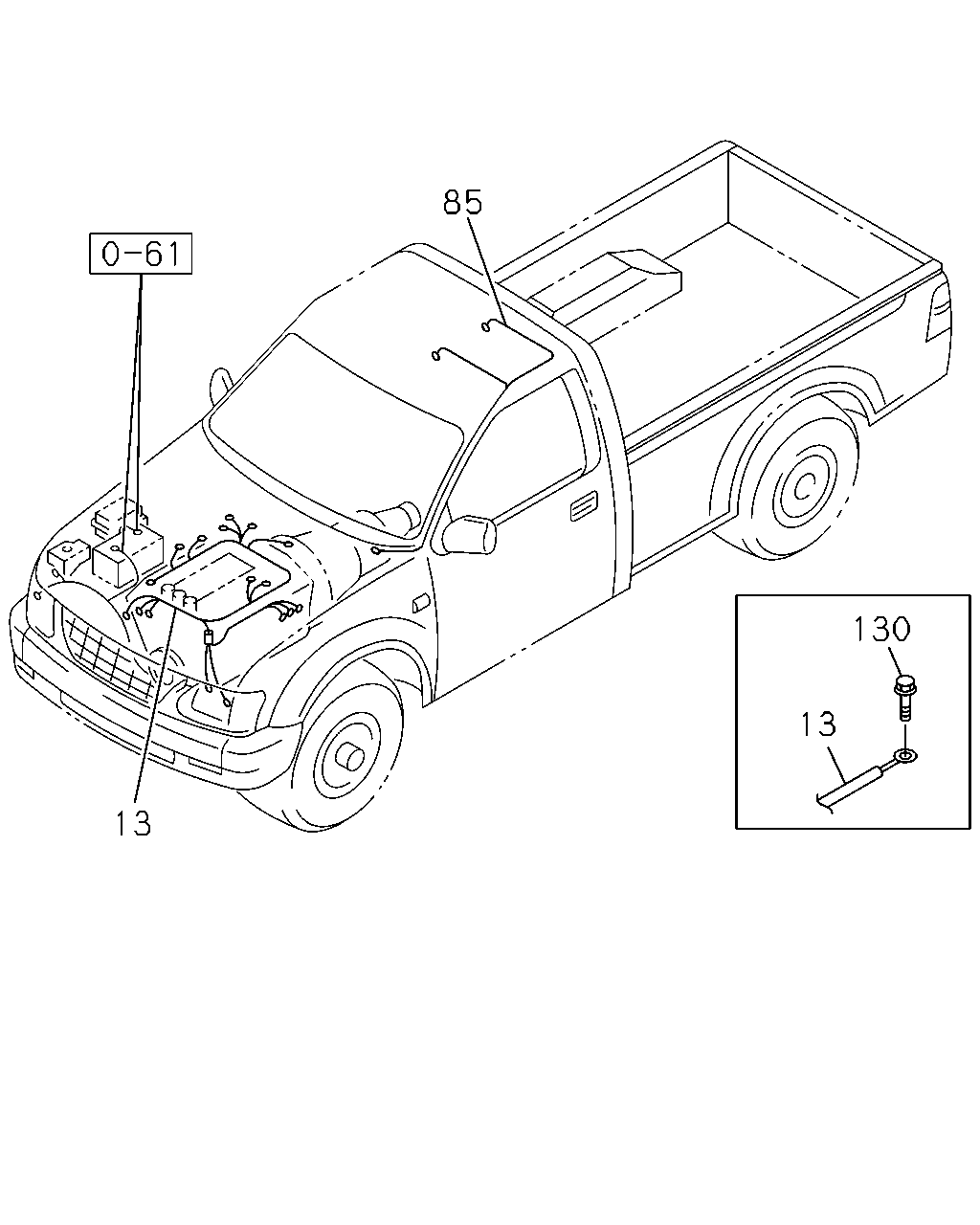

çizim 11541
85 130 13 13
BalonParca AdiParca NoAdetTipApplied Date A B C D E
13 02.525 HARNESS; ENG
4JA1 ENG(RLE) 		8-97249-213-5 01 1 0108- ● ● ● ●
13 02.525 HARNESS; ENG
4JG2 ENG(RJC) SINGAPORE EQUIPMENT(S9Y) 		8-97160-415-2 01 1 0108- ● ● ● ●
13 02.525 HARNESS; ENG
4JG2 ENG(RJC) EXC. SINGAPORE EQUIPMENT(S9Y) 		8-97261-551-1 01 1 0108- ● ● ● ●
13 02.525 HARNESS; ENG 8-97261-551-1 01 1 0108- ●
85 06.495 HARNESS; ROOM LAMP
MAP LAMP<UF3> 		8-97132-558-1 01 1 0108- ● ●
85 06.495 HARNESS; ROOM LAMP
MAP LAMP<UF3> EXC. REAR DEFOGGER<C49> 		8-97132-558-1 01 1 0108- ●
85 06.495 HARNESS; ROOM LAMP
EXC. MAP LAMP<UF3> 		8-97912-648-1 01 1 0108- ● ●
85 06.495 HARNESS; ROOM LAMP
MAP LAMP<UF3> EXC. REAR DEFOGGER<C49> 		8-97160-428-1 01 1 0108- ● ●
85 06.495 HARNESS; ROOM LAMP
REAR DEFOGGER<C49> 		8-97160-429-2 01 1 0108- ● ●
85 06.495 HARNESS; ROOM LAMP
EXC. REAR DEFOGGER<C49>,MAP LAMP<UF3> 		8-97139-705-1 01 1 0108- ● ●
85 06.495 HARNESS; ROOM LAMP
REAR DEFOGGER<C49> MAP LAMP<UF3> 		8-97132-560-1 01 1 0108- ●
85 06.495 HARNESS; ROOM LAMP
REAR DEFOGGER<C49> EXC. MAP LAMP<UF3> 		8-97132-559-1 01 1 0108- ●
85 06.495 HARNESS; ROOM LAMP
EXC. REAR DEFOGGER<C49>,MAP LAMP<UF3> 		8-97132-666-1 01 1 0108- ●
130 02.559 BOLT; HARNESS EARTH
4JA1 ENG(RLE) 00.662 M8X14 FLANGE 		0-28080-814-0 01 1 0108- ● ● ● ●

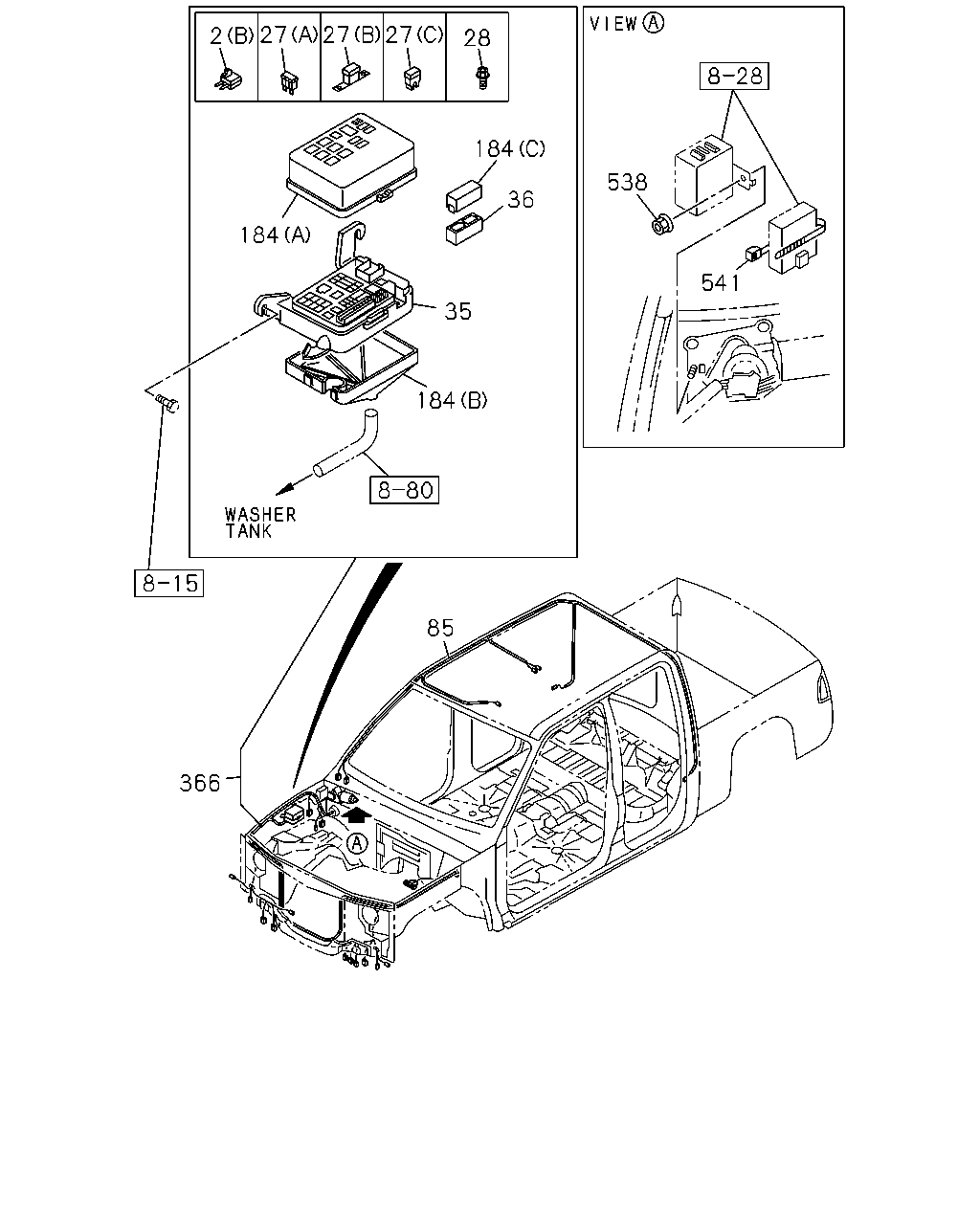

çizim 51847
28 184 538 36 184 541 35 184 85 366 2 27 27 27
BalonParca AdiParca NoAdetTipApplied Date A B C D E
2 02.483 DIODE; CABLE HARNESS
(B) BLACK 2P-1.5A 		8-94422-639-1 AR 1 0108- ● ● ● ● ●
2 02.483 DIODE; CABLE HARNESS
(A) BLACK 2P-2.0A 		8-97138-524-0 AR 1 0108- ● ● ● ● ●
27 08.965 FUSE UNIT
(B) 30A PINK 		8-94388-300-0 AR 1 0108- ● ● ● ● ●
27 08.965 FUSE UNIT
(B) 100A BLUE 		8-94388-306-0 AR 1 0108- ● ● ● ● ●
27 08.965 FUSE UNIT
(A) 10A MINI RED 		8-97062-022-0 AR 1 0108- ● ● ● ● ●
27 08.965 FUSE UNIT
(A) 15A MINI BLUE 		8-97062-023-0 AR 1 0108- ● ● ● ● ●
27 08.965 FUSE UNIT
(A) 20A MINI YELLOW 		8-97062-024-0 AR 1 0108- ● ● ● ● ●
27 08.965 FUSE UNIT
(C) 40A GREEN 		8-97183-644-0 AR 1 0108- ● ● ● ● ●
27 08.965 FUSE UNIT
(C) 50A RED 		8-97183-645-0 AR 1 0108- ● ● ● ● ●
27 08.965 FUSE UNIT
(C) 60A YELLOW 		8-97219-407-0 AR 1 0108- ● ● ● ● ●
28 02.483 SCREW; FUSE BOX 8-97249-192-0 04 1 0108- ● ● ● ● ●
35 02.530 BOX; RELAY & FUSE 8-97940-316-1 01 1 0108- ● ● ● ● ●
36 02.530 BOX; RELAY 8-97104-122-1 01 1 0108- ● ● ● ● ●
85 06.495 HARNESS; ROOM LAMP
MAP LAMP<UF3> 		8-97132-558-1 01 1 0108- ● ●
85 06.495 HARNESS; ROOM LAMP
MAP LAMP<UF3> EXC. REAR DEFOGGER<C49> 		8-97132-558-1 01 1 0108- ●
85 06.495 HARNESS; ROOM LAMP
EXC. MAP LAMP<UF3> 		8-97912-648-1 01 1 0108- ● ●
85 06.495 HARNESS; ROOM LAMP
MAP LAMP<UF3> EXC. REAR DEFOGGER<C49> 		8-97160-428-1 01 1 0108- ● ●
85 06.495 HARNESS; ROOM LAMP
REAR DEFOGGER<C49> 		8-97160-429-2 01 1 0108- ● ●
85 06.495 HARNESS; ROOM LAMP
EXC. REAR DEFOGGER<C49>,MAP LAMP<UF3> 		8-97139-705-1 01 1 0108- ● ●
85 06.495 HARNESS; ROOM LAMP
REAR DEFOGGER<C49> MAP LAMP<UF3> 		8-97132-560-1 01 1 0108- ●
85 06.495 HARNESS; ROOM LAMP
REAR DEFOGGER<C49> EXC. MAP LAMP<UF3> 		8-97132-559-1 01 1 0108- ●
85 06.495 HARNESS; ROOM LAMP
EXC. REAR DEFOGGER<C49>,MAP LAMP<UF3> 		8-97132-666-1 01 1 0108- ●
184 02.559 COVER; RELAY & FUSE BOX
(B) 		8-97104-115-1 01 1 0108- ● ● ● ● ●
184 02.559 COVER; RELAY & FUSE BOX
(C) 		8-97104-131-0 01 1 0108- ● ● ● ● ●
184 02.559 COVER; RELAY & FUSE BOX
4JA1 ENG(RLE) (A) 		8-97300-903-1 01 1 0108- ● ● ● ●
184 02.559 COVER; RELAY & FUSE BOX
4JG2 ENG(RJC) IMMOBILIZER SYSTEM<7KC> EXC. HALOGEN HEAD LAMPS MULTI REFLECTO R<7YW> (A) 		8-97261-555-1 01 1 0108-0305 ● ● ● ●
184 02.559 COVER; RELAY & FUSE BOX
4JG2 ENG(RJC) (A) 		8-97261-555-1 01 1 0108-0305 ●
184 02.559 COVER; RELAY & FUSE BOX
4JG2 ENG(RJC) IMMOBILIZER SYSTEM<7KC> 		8-97261-555-1 01 1 0306- ● ● ● ●
184 02.559 COVER; RELAY & FUSE BOX 8-97261-555-1 01 1 0306- ●
184 02.559 COVER; RELAY & FUSE BOX
4JG2 ENG(RJC) EXC. IMMOBILIZER SYSTEM<7KC> (A) 		8-97222-255-0 01 1 0108- ● ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JA1 ENG(RLE) ENG QUICK WARM UP SYSTEM<6JZ> EXC. SHIFT ON THE FLY(7EX) 		8-97300-710-3 01 1 0108- ● ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JA1 ENG(RLE) EXC. ENG QUICK WARM UP SYSTEM<6JZ>, SHIFT ON THE FLY(7EX) 		8-97311-400-2 01 1 0108- ● ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JG2 ENG(RJC) IMMOBILIZER SYSTEM<7KC> EXC. HALOGEN HEAD LAMPS MULTI REFLECTO R<7YW> 		8-97319-564-0 01 1 0108-0305 ● ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JG2 ENG(RJC) 		8-97319-564-0 01 1 0108-0305 ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JG2 ENG(RJC) IMMOBILIZER SYSTEM<7KC> 		8-97319-564-3 01 1 0306- ● ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM 8-97319-564-3 01 1 0306- ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JG2 ENG(RJC) EXC. IMMOBILIZER SYSTEM<7KC> 		8-97319-559-3 01 1 0108- ● ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JA1 ENG(RLE) ENG QUICK WARM UP SYSTEM<6JZ> SHIFT ON THE FLY(7EX) 		8-97300-711-3 01 1 0108- ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JA1 ENG(RLE) SHIFT ON THE FLY(7EX) EXC. ENG QUICK WARM UP SYSTEM<6JZ> 		8-97311-401-2 01 1 0108- ● ●
538 02.483 NUT
INTERMITTENT WIPER<C13> 10.147 M6 W/DISHED WASHER 		8-94423-325-0 01 1 0108- ● ● ● ● ●
541 02.483 CLIP
EXC. INTERMITTENT WIPER<C13> 02.559 L=219.5 		1-09987-136-0 01 1 0108- ● ● ● ● ●

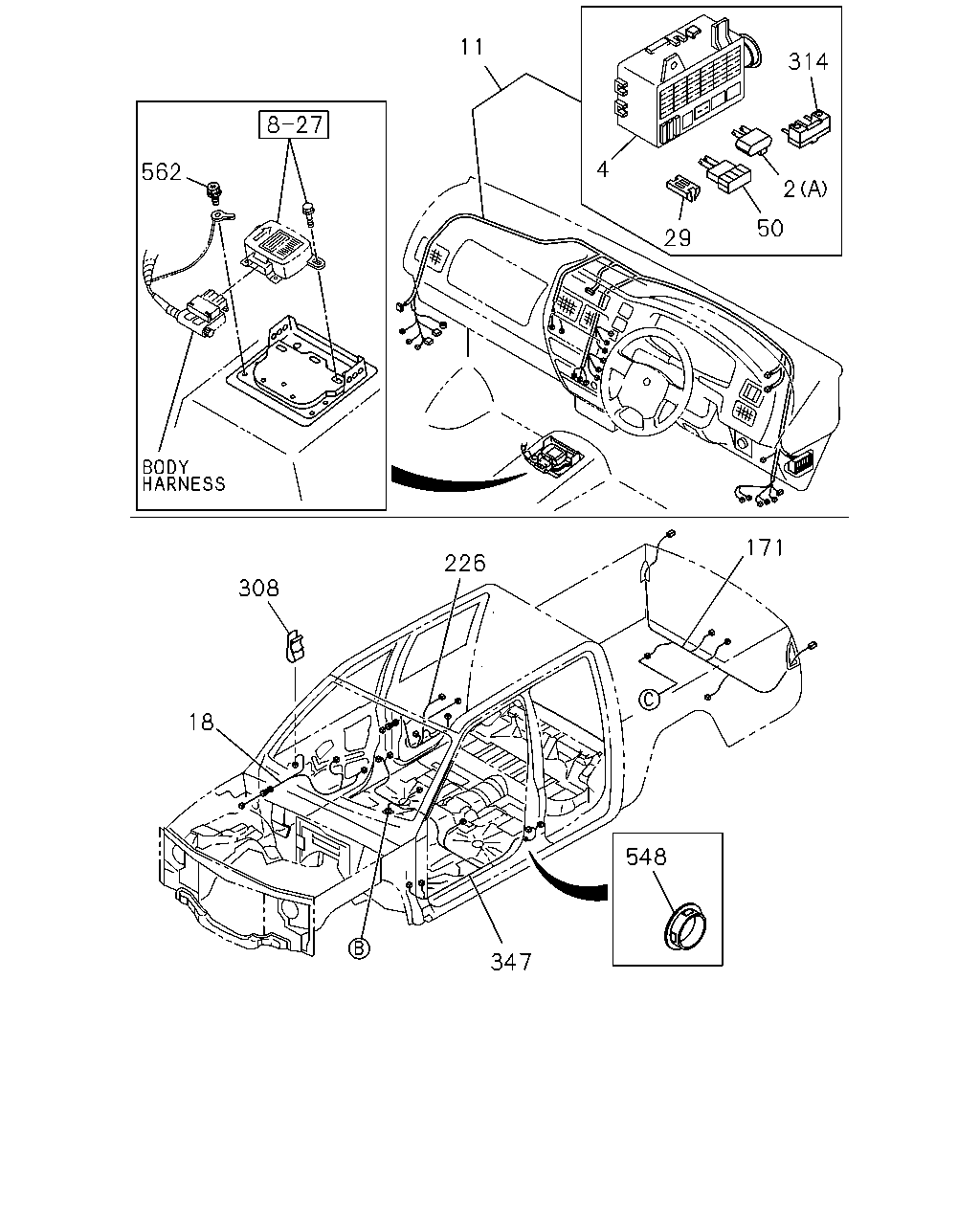

çizim 51929
11 314 4 562 2 50 29 171 226 308 18 548 347
BalonParca AdiParca NoAdetTipApplied Date A B C D E
2 02.483 DIODE; CABLE HARNESS
(B) BLACK 2P-1.5A 		8-94422-639-1 AR 1 0108- ● ● ● ● ●
2 02.483 DIODE; CABLE HARNESS
(A) BLACK 2P-2.0A 		8-97138-524-0 AR 1 0108- ● ● ● ● ●
4 02.483 BOX ASM; FUSE,HARNESS
AIR BAG DRIVER(AJ3) TACHOMETER<U16> EXC. POWER WINDOW<A30>,AIR BAG PASSENGER(7FA) 		8-97110-111-3 01 1 0108- ● ● ● ● ●
4 02.483 BOX ASM; FUSE,HARNESS
EXC. AIR BAG DRIVER(AJ3),POWER WINDOW<A30>,AIR BAG PASSENGER(7FA) 		8-97110-111-3 01 1 0108- ● ● ● ● ●
4 02.483 BOX ASM; FUSE,HARNESS
POWER WINDOW<A30> 		8-97110-111-3 01 1 0108- ● ● ● ● ●
11 02.480 HARNESS; BODY
AIR BAG DRIVER(AJ3) POWER WINDOW<A30> AIR BAG PASSENGER(7FA) 		8-97260-828-1 01 1 0108- ● ● ● ● ●
11 02.480 HARNESS; BODY
AIR BAG DRIVER(AJ3) POWER WINDOW<A30> EXC. AIR BAG PASSENGER(7FA) 		8-97260-829-1 01 1 0108- ● ● ● ● ●
11 02.480 HARNESS; BODY
AIR BAG DRIVER(AJ3) TACHOMETER<U16> EXC. POWER WINDOW<A30>,AIR BAG PASSENGER(7FA) 		8-97260-823-1 01 1 0108- ● ● ● ● ●
11 02.480 HARNESS; BODY
EXC. AIR BAG DRIVER(AJ3),POWER WINDOW<A30>,TACHOMETER<U16>,AIR BAG PASSENGER(7FA) 		8-97260-824-1 01 1 0108- ● ● ● ● ●
11 02.480 HARNESS; BODY
POWER WINDOW<A30> EXC. AIR BAG DRIVER(AJ3), TACHOMETER<U16> 		8-97260-826-1 01 1 0108-0203 ● ● ● ● ●
11 02.480 HARNESS; BODY
POWER WINDOW<A30> EXC. AIR BAG DRIVER(AJ3), TACHOMETER<U16> 		8-97351-696-0 01 1 0204- ● ● ● ● ●
11 02.480 HARNESS; BODY
POWER WINDOW<A30> TACHOMETER<U16> EXC. AIR BAG DRIVER(AJ3) 		8-97260-827-1 01 1 0108- ● ● ● ● ●
11 02.480 HARNESS; BODY
TACHOMETER<U16> EXC. AIR BAG DRIVER(AJ3),POWER WINDOW<A30>,AIR BAG PASSENGER(7FA) 		8-97260-825-1 01 1 0108- ● ● ● ● ●
18 02.480 HARNESS; DOOR
AUTO DOOR LOCK<AU4> POWER WINDOW<A30> 		8-97132-569-3 01 1 0108- ● ● ● ● ●
18 02.480 HARNESS; DOOR
AUTO DOOR LOCK<AU4> POWER WINDOW<A30> 		8-97166-696-2 01 1 0108- ● ● ● ● ●
18 02.480 HARNESS; DOOR
POWER WINDOW<A30> EXC. AUTO DOOR LOCK<AU4> 		8-97149-915-2 01 1 0108- ● ● ● ● ●
18 02.480 HARNESS; DOOR
POWER WINDOW<A30> EXC. AUTO DOOR LOCK<AU4> 		8-97149-916-2 01 1 0108- ● ● ● ● ●
18 02.480 HARNESS; DOOR
EXC. POWER WINDOW<A30> 		8-97181-137-1 02 1 0108- ● ● ● ● ●
29 02.483 COVER; FUSE BOX
AIR BAG DRIVER(AJ3) TACHOMETER<U16> EXC. POWER WINDOW<A30>,AIR BAG PASSENGER(7FA) 		8-97103-389-1 01 1 0108- ● ● ● ● ●
29 02.483 COVER; FUSE BOX
AIR BAG DRIVER(AJ3) POWER WINDOW<A30> 		8-97103-389-1 01 1 0108- ● ● ● ● ●
50 08.965 FUSE; BODY HARNESS
10A MINI RED 		8-97062-022-0 AR 1 0108- ● ● ● ● ●
50 08.965 FUSE; BODY HARNESS
15A MINI BLUE 		8-97062-023-0 AR 1 0108- ● ● ● ● ●
50 08.965 FUSE; BODY HARNESS
20A MINI YELLOW 		8-97062-024-0 AR 1 0108- ● ● ● ● ●
171 02.596 HARNESS; CABLE,TAIL LAMP
RR COMB LAMP VERTICAL<T98> 		8-97147-711-0 01 1 0108- ● ● ● ●
171 02.596 HARNESS; CABLE,TAIL LAMP 8-97147-711-0 01 1 0108- ●
171 02.596 HARNESS; CABLE,TAIL LAMP
EXC. RR COMB LAMP VERTICAL<T98> 		8-97147-712-0 01 1 0108- ● ● ● ●
226 02.480 HARNESS; RR DOOR
POWER WINDOW<A30> 		8-97188-858-1 02 1 0108- ● ●
308 02.559 BRACKET; CONNECTOR
POWER WINDOW<A30> 		8-97102-552-0 02 1 0108- ● ● ● ● ●
314 02.510 RESISTOR; HARNESS
AIR BAG DRIVER(AJ3) POWER WINDOW<A30> EXC. AIR BAG PASSENGER(7FA) 		8-97133-042-0 01 1 0108- ● ● ● ● ●
314 02.510 RESISTOR; HARNESS
AIR BAG DRIVER(AJ3) TACHOMETER<U16> EXC. POWER WINDOW<A30>,AIR BAG PASSENGER(7FA) 		8-97133-042-0 01 1 0108- ● ● ● ● ●
347 02.480 HARNESS; CABLE,RR BODY
EXC. POWER WINDOW<A30> 		8-97217-424-2 01 1 0108- ● ● ● ● ●
347 02.480 HARNESS; CABLE,RR BODY
POWER WINDOW<A30> 		8-97217-472-1 01 1 0108- ● ● ●
347 02.480 HARNESS; CABLE,RR BODY
POWER WINDOW<A30> 		8-97231-009-1 01 1 0108- ● ●
548 02.483 GROMMET
EXC. POWER WINDOW<A30> 04.785 		8-94126-868-0 02 1 0108- ● ●
562 02.559 BOLT; GRAND,SRS
AIR BAG DRIVER(AJ3) M6X14 W/LK&PL WASHER 		8-97119-479-0 01 1 0108- ● ● ● ● ●
