Sayfa 3-70 - Isuzu EPC

3-70 — BRAKE PIPING; AIR,AIR MASTER (#2101) — 369 parça

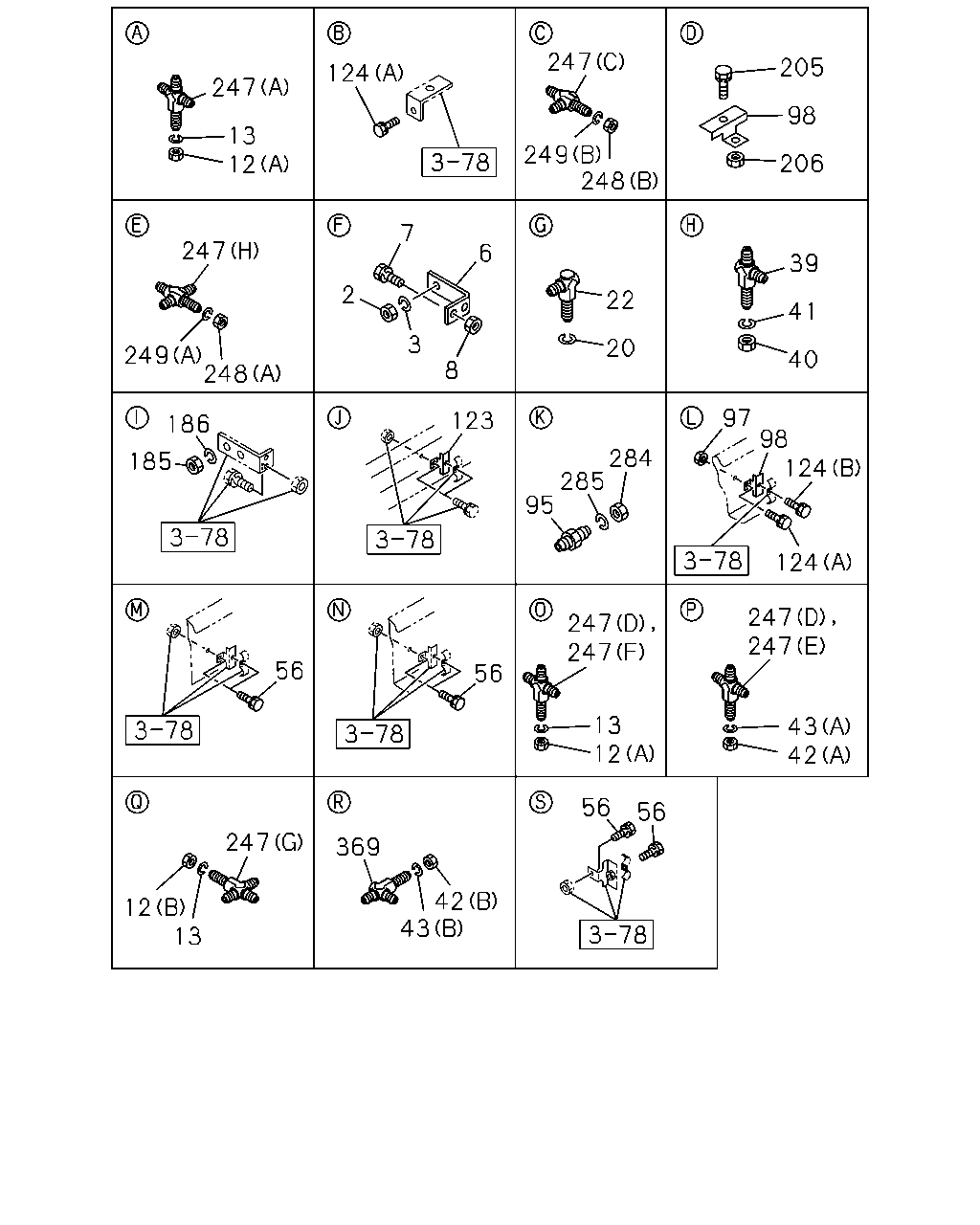

247 205 124 247 98 13 12 249 248 206 7 247 6 39 2 22 41 3 20 249 248 40 8 97 98 124 123 186 284 285 95 185 124 247 247 247 247 56 56 13 12 43 42 56 56 247 369 42 43 12 13

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	NUT; FLEX HOSE,AIR TANK M20	9-99111-420-0	01	1	9001-	●	●
3	WASHER; LK,FLEX HOSE,AIR TANK ID=20.2	9-09150-520-0	01	1	9001-	●	●
6	BRACKET; FLEX HOSE,AIR TANK	1-47476-370-0	01	1	9001-	●	●
7	BOLT; BRKT,FLEX HOSE,AIR TANK M8X25 W/LK WASHER	9-01910-825-0	02	1	9001-9005	●	●
7	BOLT; BRKT,FLEX HOSE,AIR TANK M8X25 W/LK WASHER	0-50040-825-0	02	1	9006-9606	●	●
7	BOLT; BRKT,FLEX HOSE,AIR TANK M8X25 FLANGE	0-28680-825-0	02	1	9607-	●	●
8	NUT; BRKT,FLEX HOSE,AIR TANK M8	9-09110-408-0	02	1	9001-9606	●	●
8	NUT; BRKT,FLEX HOSE,AIR TANK M8 FLANGE	0-91150-108-0	02	1	9607-	●	●
12	NUT; UNION (A) M12	9-99111-412-0	01	1	9001-9204	●	●
12	NUT; UNION (A) M12	9-99111-412-0	01	1	9001-9204	●
12	NUT; UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) M12	9-99111-412-0	01	1	9001-9204		●
12	NUT; UNION (A) M12	9-99111-412-0	02	1	9205-9606	●	●
12	NUT; UNION (A) M12 FLANGE	0-91150-212-0	02	1	9607-9701	●	●
12	NUT; UNION (A) M12	9-99111-412-0	02	1	9702-	●	●
12	NUT; UNION AXLE RATIO 2 SPEED<W9Y> (B) M12	9-99110-412-0	01	1	9001-9307	●	●
12	NUT; UNION AXLE RATIO 2 SPEED<W9Y> (B) M12	9-99110-512-0	01	1	9308-9606	●	●
12	NUT; UNION AXLE RATIO 2 SPEED<W9Y> (B) M12 FLANGE	0-91150-212-0	01	1	9607-	●	●
13	WASHER; LK,UNION ID=12.2	9-09150-512-0	01	1	9001-9204	●	●
13	WASHER; LK,UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=12.2	9-09150-512-0	01	1	9001-9204	●	●
13	WASHER; LK,UNION AXLE RATIO 2 SPEED<W9Y> ID=12.2	9-09150-512-0	01	1	9001-9204	●	●
13	WASHER; LK,UNION ID=12.2	9-09150-512-0	02	1	9205-9312	●	●
13	WASHER; LK,UNION AXLE RATIO 2 SPEED<W9Y> ID=12.2	9-09150-512-0	01	1	9205-9312	●	●
20	WASHER; LK,UNION BRKT ID=20.2	9-09150-520-0	01	1	9001-	●	●
22	NIPPLE; AIR PIPE M20	9-09235-212-1	01	1	9001-	●	●
39	UNION; AIR PIPE M14 & M16X2 3WAY	1-09656-157-1	01	1	9001-	●	●
40	NUT; PIPE UNION M16	9-99111-416-0	01	1	9001-	●	●
41	WASHER; LK,PIPE UNION ID=16.2	9-09150-616-0	01	1	9001-	●	●
42	NUT; PIPE UNION (A) M12	9-99111-412-0	01	1	9001-9606	●	●
42	NUT; PIPE UNION (A) M12 FLANGE	0-91150-212-0	01	1	9607-9701	●	●
42	NUT; PIPE UNION (A) M12	9-99111-412-0	01	1	9702-	●	●
42	NUT; PIPE UNION (B) M16	9-99111-416-0	01	1	9001-	●	●
43	WASHER; LK,UNION,PIPE (A) ID=12.2	9-09150-512-0	01	1	9001-9312	●	●
43	WASHER; LK,UNION,PIPE (B) ID=16.2	9-09150-516-0	01	1	9001-9312	●	●
56	BOLT; CLIP,BRKT WHEEL BASE 5800MM(58W) M6X20 W/LK WASHER	9-01900-620-0	26	1	9001-9204	●	●
56	BOLT; CLIP,BRKT WHEEL BASE 5800MM(58W) M6X20 W/LK WASHER	0-50040-620-0	26	1	9205-9606	●	●
56	BOLT; CLIP,BRKT WHEEL BASE 5800MM(58W) M6X20 FLANGE	0-28680-620-0	26	1	9607-9704	●	●
56	BOLT; CLIP,BRKT WHEEL BASE 5800MM(58W) M6X25 FLANGE	0-28680-625-0	26	1	9705-	●	●
56	BOLT; CLIP,BRKT WHEEL BASE 6600MM(66W),WHEEL BASE 6800MM(68W) M6X20 W/LK WASHER	9-01900-620-0	30	1	9001-9204	●	●
56	BOLT; CLIP,BRKT WHEEL BASE 6600MM(66W),WHEEL BASE 6800MM(68W) M6X20 W/LK WASHER	0-50040-620-0	30	1	9205-9606	●	●
56	BOLT; CLIP,BRKT WHEEL BASE 6600MM(66W),WHEEL BASE 6800MM(68W) M6X20 FLANGE	0-28680-620-0	30	1	9607-9704	●	●
56	BOLT; CLIP,BRKT WHEEL BASE 6600MM(66W),WHEEL BASE 6800MM(68W) M6X25 FLANGE	0-28680-625-0	30	1	9705-	●	●
95	UNION; AIR PIPE BRAKE SYSTEM AIR DUAL CIRCUIT(Z04) M16 L=74	9-09233-310-0	01	1	9001-9204		●
97	NUT; BRKT BRAKE SYSTEM AIR DUAL CIRCUIT(Z04) M6	9-09110-406-0	02	1	9001-9204		●
98	BRACKET; AIR PIPE	1-47465-168-1	03	1	9001-	●
98	BRACKET; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47465-168-1	02	1	9001-9204		●
98	BRACKET; AIR PIPE	1-47465-168-1	02	1	9205-		●
123	BRACKET; UNION	1-47465-168-1	01	1	9001-	●	●
124	BOLT; BRKT BRAKE SYSTEM AIR DUAL CIRCUIT(Z04) (A) M6X20 W/LK WASHER	9-01900-620-0	02	1	9001-9204		●
124	BOLT; BRKT BRAKE SYSTEM AIR DUAL CIRCUIT(Z04) (B) M8X22	9-01900-822-0	01	1	9001-9204		●
185	NUT; FLEX HOSE,AIR GOV M14	9-99111-414-0	01	1	9001-9202	●
185	NUT; FLEX HOSE,AIR GOV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M14	9-99111-414-0	01	1	9001-9202		●
185	NUT; FLEX HOSE,AIR GOV EXC. AIR DRYER<PS7> M14	9-99111-414-0	01	1	9203-9204	●
185	NUT; FLEX HOSE,AIR GOV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> M14	9-99111-414-0	01	1	9203-9204		●
185	NUT; FLEX HOSE,AIR GOV EXC. AIR DRYER<PS7> M14	9-99111-414-0	01	1	9205-9210	●	●
185	NUT; FLEX HOSE,AIR GOV M14	9-99111-414-0	01	1	9211-	●	●
186	WASHER; LK,FLEX HOSE,AIR GOV ID=14.2	9-09150-514-0	01	1	9001-9204	●
186	WASHER; LK,FLEX HOSE,AIR GOV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=14.2	9-09150-514-0	01	1	9001-9204		●
186	WASHER; LK,FLEX HOSE,AIR GOV ID=14.2	9-09150-514-0	01	1	9205-9312	●	●
205	BOLT; BRKT,OIL PIPE BRAKE SYSTEM AIR DUAL CIRCUIT(Z04) M6X20 W/LK WASHER	9-01900-620-0	02	1	9001-9204		●
206	NUT; BRKT,OIL PIPE BRAKE SYSTEM AIR DUAL CIRCUIT(Z04) M6	9-09110-406-0	02	1	9001-9204		●
247	UNION; AIR PIPE (H)	1-09656-074-2	01	1	9001-	●
247	UNION; AIR PIPE M/T<X9C> (H)	1-09656-074-2	01	1	9001-		●
247	UNION; AIR PIPE (D) M16	9-09238-310-0	02	1	9001-9204	●
247	UNION; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (D) M16	9-09238-310-0	02	1	9001-9204		●
247	UNION; AIR PIPE (D) M16	9-09238-310-1	02	1	9205-	●	●
247	UNION; AIR PIPE (A)	1-09656-284-1	01	1	9001-	●	●
247	UNION; AIR PIPE AIR HORN(WB8) (C)	1-09659-016-1	01	1	9001-	●	●
247	UNION; AIR PIPE EXC. AIR HORN(WB8) (C) M16 ELBOW	9-09235-110-1	01	1	9001-	●	●
247	UNION; AIR PIPE AXLE RATIO 2 SPEED<W9Y> (G)	9-09228-210-1	01	1	9001-	●	●
247	UNION; AIR PIPE A/T<X9D> (H)	1-09654-070-1	01	1	9001-9305		●
247	UNION; AIR PIPE A/T<X9D> (H) M16	1-09654-148-1	01	1	9306-		●
247	UNION; AIR PIPE BRAKE SYSTEM AIR DUAL CIRCUIT(Z04) (E) M16	1-09654-148-0	01	1	9001-9204		●
247	UNION; AIR PIPE BRAKE SYSTEM AIR DUAL CIRCUIT(Z04) (F)	9-09233-110-0	01	1	9001-9204		●
247	UNION; AIR PIPE WHEEL BASE 6600MM(66W) (B) M16 L=42	9-09233-010-1	01	1	9001-		●
248	NUT; PIPE UNION (A) M12	9-99111-412-0	01	1	9001-9606	●	●
248	NUT; PIPE UNION (A) M12 FLANGE	0-91150-212-0	01	1	9607-9701	●	●
248	NUT; PIPE UNION (A) M12	9-99111-412-0	01	1	9702-	●	●
248	NUT; PIPE UNION (B) M16	9-99111-416-0	01	1	9001-	●	●
249	WASHER; LK,PIPE UNION (A) ID=12.2	9-09150-512-0	01	1	9001-9312	●	●
249	WASHER; LK,PIPE UNION (B) ID=16.2	9-09150-516-0	01	1	9001-9312	●	●
284	NUT; UNION BRAKE SYSTEM AIR DUAL CIRCUIT(Z04) M16	9-99111-416-0	01	1	9001-9204		●
285	WASHER; LK,UNION BRAKE SYSTEM AIR DUAL CIRCUIT(Z04) ID=16.2	9-09150-516-0	01	1	9001-9204		●
369	UNION; AIR PIPE	1-09656-157-1	01	1	9001-	●	●

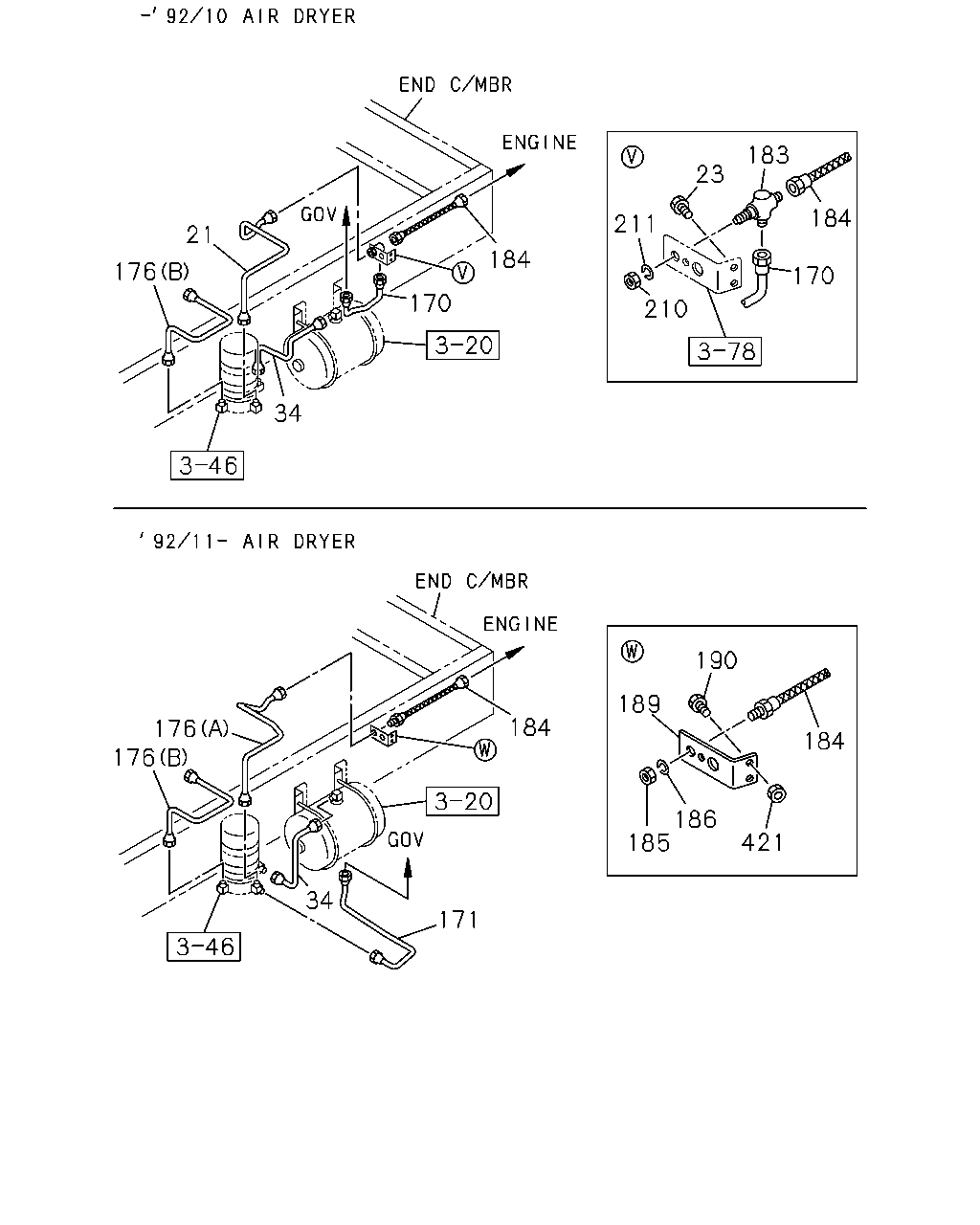

183 23 184 211 21 184 176 170 170 210 34 190 189 184 176 176 184 186 185 421 34 171

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
21	PIPE; AIR,UNION TO AIR DRYER AIR DRYER<PS7> L=310 SERVICED BY L=1200	1-47434-388-0	01	1	9203-9210	●	●
23	BOLT; BRKT,AIR PIPE M8X20 W/LK WASHER	9-01900-820-0	02	1	9001-9204	●
23	BOLT; BRKT,AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X20 W/LK WASHER	9-01900-820-0	02	1	9001-9204		●
23	BOLT; BRKT,AIR PIPE M8X20 W/LK WASHER	0-50040-820-0	02	1	9205-9210	●	●
34	PIPE; AIR AIR DRYER<PS7>	1-47494-580-0	01	1	9203-9209	●	●
34	PIPE; AIR AIR DRYER<PS7>	1-47497-973-0	01	1	9210-9212	●	●
34	PIPE; AIR AIR DRYER<PS7>	1-47497-976-0	01	1	9301-	●	●
170	PIPE; AIR,AIR GOV TO FLEX HOSE	1-47442-981-0	01	1	9001-9204	●
170	PIPE; AIR,AIR GOV TO FLEX HOSE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47442-981-0	01	1	9001-9204		●
170	PIPE; AIR,AIR GOV TO FLEX HOSE EXC. AIR DRYER<PS7>	1-47442-981-0	01	1	9205-9212	●	●
170	PIPE; AIR,AIR GOV TO FLEX HOSE EXC. AIR DRYER<PS7>	1-47496-867-0	01	1	9301-	●	●
170	PIPE; AIR,AIR GOV TO FLEX HOSE AIR DRYER<PS7>	1-47494-584-1	01	1	9203-9210	●	●
171	PIPE; AIR,GOV TO AIR DRYER AIR DRYER<PS7>	1-47497-972-0	01	1	9211-9212	●	●
171	PIPE; AIR,GOV TO AIR DRYER AIR DRYER<PS7> L=731 SERVICED BY L=800	1-47426-383-0	01	1	9301-	●	●
176	PIPE; AIR,AIR DRYER TO UNION AIR DRYER<PS7> (B)	1-47494-579-0	01	1	9203-9210	●	●
176	PIPE; AIR,AIR DRYER TO UNION AIR DRYER<PS7> (B)	1-47497-971-0	01	1	9211-9212	●	●
176	PIPE; AIR,AIR DRYER TO UNION AIR DRYER<PS7> (B)	1-47497-974-0	01	1	9301-	●	●
176	PIPE; AIR,AIR DRYER TO UNION AIR DRYER<PS7> (A) L=953 SERVICED BY L=1100	1-47434-409-0	01	1	9211-9212	●	●
176	PIPE; AIR,AIR DRYER TO UNION AIR DRYER<PS7> (A) L=953 SERVICED BY L=970	1-47426-385-0	01	1	9301-	●	●
183	UNION; FLEX HOSE,GOV AIR DRYER<PS7>	1-09656-457-1	01	1	9203-9204	●
183	UNION; FLEX HOSE,GOV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7>	1-09656-457-1	01	1	9203-9204		●
183	UNION; FLEX HOSE,GOV AIR DRYER<PS7>	1-09656-457-2	01	1	9205-9210	●	●
184	HOSE; FLEX,AIR GOV L=350	0-07432-350-0	01	1	9001-9202	●
184	HOSE; FLEX,AIR GOV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=350	0-07432-350-0	01	1	9001-9202		●
184	HOSE; FLEX,AIR GOV EXC. AIR DRYER<PS7> L=350	0-07432-350-0	01	1	9203-9204	●
184	HOSE; FLEX,AIR GOV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> L=350	0-07432-350-0	01	1	9203-9204		●
184	HOSE; FLEX,AIR GOV EXC. AIR DRYER<PS7> L=350	0-07432-350-0	01	1	9205-9210	●	●
184	HOSE; FLEX,AIR GOV L=350	0-07432-350-0	01	1	9211-	●	●
184	HOSE; FLEX,AIR GOV AIR DRYER<PS7>	0-07482-310-1	01	1	9203-9204	●
184	HOSE; FLEX,AIR GOV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7>	0-07482-310-1	01	1	9203-9204		●
184	HOSE; FLEX,AIR GOV AIR DRYER<PS7>	0-07482-310-1	01	1	9205-9210	●	●
185	NUT; FLEX HOSE,AIR GOV M14	9-99111-414-0	01	1	9001-9202	●
185	NUT; FLEX HOSE,AIR GOV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M14	9-99111-414-0	01	1	9001-9202		●
185	NUT; FLEX HOSE,AIR GOV EXC. AIR DRYER<PS7> M14	9-99111-414-0	01	1	9203-9204	●
185	NUT; FLEX HOSE,AIR GOV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> M14	9-99111-414-0	01	1	9203-9204		●
185	NUT; FLEX HOSE,AIR GOV EXC. AIR DRYER<PS7> M14	9-99111-414-0	01	1	9205-9210	●	●
185	NUT; FLEX HOSE,AIR GOV M14	9-99111-414-0	01	1	9211-	●	●
186	WASHER; LK,FLEX HOSE,AIR GOV ID=14.2	9-09150-514-0	01	1	9001-9204	●
186	WASHER; LK,FLEX HOSE,AIR GOV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=14.2	9-09150-514-0	01	1	9001-9204		●
186	WASHER; LK,FLEX HOSE,AIR GOV ID=14.2	9-09150-514-0	01	1	9205-9312	●	●
189	BRACKET; FLEX HOSE	1-47465-692-0	01	1	9211-	●	●
190	BOLT; FLEX HOSE M8X20 W/LK WASHER	0-50040-820-0	02	1	9211-9606	●	●
190	BOLT; FLEX HOSE M8X16 FLANGE	0-28080-816-0	02	1	9607-	●	●
210	NUT; UNION AIR DRYER<PS7> M12	9-09840-280-0	01	1	9203-9204	●
210	NUT; UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> M12	9-09840-280-0	01	1	9203-9204		●
210	NUT; UNION AIR DRYER<PS7> M12	9-09840-280-0	01	1	9205-9210	●	●
211	WASHER; LK,UNION AIR DRYER<PS7> ID=12.2	9-09150-512-0	01	1	9203-9204	●
211	WASHER; LK,UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> ID=12.2	9-09150-512-0	01	1	9203-9204		●
211	WASHER; LK,UNION AIR DRYER<PS7> ID=12.2	9-09150-512-0	01	1	9205-9210	●	●
421	NUT; BRKT M8	9-09110-408-0	02	1	9211-9606	●	●
421	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	9607-	●	●

75 73 74 71 72 246

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
71	PIPE; AIR SPARE WHEEL CARRIER<SFB> L=670 SERVICED BY L=730	1-47437-965-0	01	1	9001-9012		●
72	UNION; AIR PIPE SPARE WHEEL CARRIER<SFB> M16 ELBOW	9-09235-110-0	01	1	9001-9012		●
73	NUT; PIPE UNION SPARE WHEEL CARRIER<SFB> M16	9-99111-416-0	01	1	9001-9012		●
74	WASHER; LK,UNION,PIPE SPARE WHEEL CARRIER<SFB> ID=16.2	9-09150-516-0	01	1	9001-9012		●
75	PIPE; AIR,JOINT TO SUB AIR TANK SPARE WHEEL CARRIER<SFB>	1-47484-470-0	01	1	9001-9012		●
246	PIPE; AIR,UNION TO UNION MAF6T M/T(X3X) WHEEL BASE 5800MM(58W) (F) L=1210 SERVICED BY L=1250	1-47437-968-0	01	1	9001-9012	●
246	PIPE; AIR,UNION TO UNION MAF6T M/T(X3X),MAF6Z M/T(X7U) WHEEL BASE 5800MM(58W) (F) L=1210 SERVICED BY L=1250	1-47437-968-0	01	1	9001-9012		●
246	PIPE; AIR,UNION TO UNION WHEEL BASE 6600MM(66W) (F) L=1210 SERVICED BY L=1250	1-47437-968-0	01	1	9001-9012		●
246	PIPE; AIR,UNION TO UNION BUS BODY REAR OVERHANG<YK4> (F) L=1210 SERVICED BY L=1250	1-47437-968-0	01	1	9101-9212	●	●
246	PIPE; AIR,UNION TO UNION BUS BODY REAR OVERHANG<YK4> (F) L=1210 SERVICED BY L=1250	1-47426-416-0	01	1	9301-	●	●
246	PIPE; AIR,UNION TO UNION (G) L=850 SERVICED BY L=900	1-47437-966-0	01	1	9001-9012	●	●
246	PIPE; AIR,UNION TO UNION (G) L=804 SERVICED BY L=900	1-47428-788-0	01	1	9101-9202	●	●
246	PIPE; AIR,UNION TO UNION (G) L=819 SERVICED BY L=900	1-47437-966-0	01	1	9203-9205	●	●
246	PIPE; AIR,UNION TO UNION (G) L=803 SERVICED BY L=900	1-47437-966-0	01	1	9206-9212	●	●
246	PIPE; AIR,UNION TO UNION (G) L=803 SERVICED BY L=900	1-47426-413-0	01	1	9301-	●	●
246	PIPE; AIR,UNION TO UNION (A) L=1350 SERVICED BY L=1400	1-47437-969-0	01	1	9001-9212	●	●
246	PIPE; AIR,UNION TO UNION (A) L=1350 SERVICED BY L=1400	1-47426-418-0	01	1	9301-	●	●
246	PIPE; AIR,UNION TO UNION (B) L=2320 SERVICED BY L=3300	1-47437-975-0	01	1	9001-9212	●	●
246	PIPE; AIR,UNION TO UNION (B) L=2320 SERVICED BY L=2500	1-47426-423-0	01	1	9301-	●	●
246	PIPE; AIR,UNION TO UNION MAB5D M/T(X1N),MAB5R M/T(X3K),MAF5P M/T(X4X), MAF5LM/T(X7F) WHEEL BASE 5800MM(58W),WHEEL BASE 6800MM(68W) (F) L=980 SERVICED BY L=1000	1-47434-476-0	01	1	9001-9012	●	●
246	PIPE; AIR,UNION TO UNION EXC. BUS BODY REAR OVERHANG<YK4> (F) L=980 SERVICED BY L=1000	1-47434-476-0	01	1	9101-9212	●	●
246	PIPE; AIR,UNION TO UNION EXC. BUS BODY REAR OVERHANG<YK4> (F) L=980 SERVICED BY L=1550	1-47426-419-0	01	1	9301-	●	●
246	PIPE; AIR,UNION TO UNION SINGLE SPEED-AXLE RATIO<W9Z> (E) L=2360 SERVICED BY L=2600	1-47437-973-0	01	1	9001-9212	●	●
246	PIPE; AIR,UNION TO UNION SINGLE SPEED-AXLE RATIO<W9Z> (E) L=2360 SERVICED BY L=2600	1-47426-424-0	01	1	9301-	●	●
246	PIPE; AIR,UNION TO UNION WHEEL BASE 5800MM(58W) (D) L=2573 SERVICED BY L=2600	1-47437-973-0	01	1	9001-9212	●	●
246	PIPE; AIR,UNION TO UNION WHEEL BASE 5800MM(58W) (D) L=2573 SERVICED BY L=2600	1-47426-424-0	01	1	9301-	●	●
246	PIPE; AIR,UNION TO UNION WHEEL BASE 6800MM(68W) (D) L=3573 SERVICED BY L=3700	1-47434-480-0	01	1	9001-9212	●	●
246	PIPE; AIR,UNION TO UNION WHEEL BASE 6800MM(68W) (D) L=3573 SERVICED BY L=3700	1-47426-427-0	01	1	9301-	●	●
246	PIPE; AIR,UNION TO UNION SPARE WHEEL CARRIER<SFB> (H) L=1391 SERVICED BY L=1400	1-47437-969-0	01	1	9001-9012		●
246	PIPE; AIR,UNION TO UNION WHEEL BASE 6600MM(66W) (C) L=808 SERVICED BY L=900	1-47437-966-0	01	1	9001-9212		●
246	PIPE; AIR,UNION TO UNION WHEEL BASE 6600MM(66W) (C) L=808 SERVICED BY L=900	1-47426-413-0	01	1	9301-		●
246	PIPE; AIR,UNION TO UNION WHEEL BASE 6600MM(66W) (D) L=2576 SERVICED BY L=2600	1-47437-973-0	01	1	9001-9212		●
246	PIPE; AIR,UNION TO UNION WHEEL BASE 6600MM(66W) (D) L=2576 SERVICED BY L=2600	1-47426-424-0	01	1	9301-		●
246	PIPE; AIR,UNION TO UNION 6RA1 STD ENG(14L) WHEEL BASE 5800MM(58W) FINAL GEAR 5.429/7.392 18" SPIRAL 2 SPEED(W2E), FINAL GEAR 3.909/5.322 18" SPIRAL 2 SPEED(W2J) (E) L=1363 SERVICED BY L=1400	1-47437-969-0	01	1	9001-9012		●
246	PIPE; AIR,UNION TO UNION AXLE RATIO 2 SPEED<W9Y> (E) L=1363 SERVICED BY L=1400	1-47437-969-0	01	1	9101-9212	●	●
246	PIPE; AIR,UNION TO UNION AXLE RATIO 2 SPEED<W9Y> (E) L=1363 SERVICED BY L=1400	1-47426-418-0	01	1	9301-	●	●
246	PIPE; AIR,UNION TO UNION 6RA1 STD ENG(14L),6RA1 TC ENG(15L) WHEEL BASE 5800MM(58W) FINAL GEAR 5.429/7.392 18" SPIRAL 2 SPEED(W2E), FINAL GEAR 3.909/5.322 18" SPIRAL 2 SPEED(W2J) (D) L=943 SERVICED BY L=1000	1-47434-476-0	01	1	9001-9012		●
246	PIPE; AIR,UNION TO UNION AXLE RATIO 2 SPEED<W9Y> (D) L=943 SERVICED BY L=1000	1-47434-476-0	01	1	9101-9212	●	●
246	PIPE; AIR,UNION TO UNION AXLE RATIO 2 SPEED<W9Y> (D) L=943 SERVICED BY L=1000	1-47426-414-0	01	1	9301-	●	●

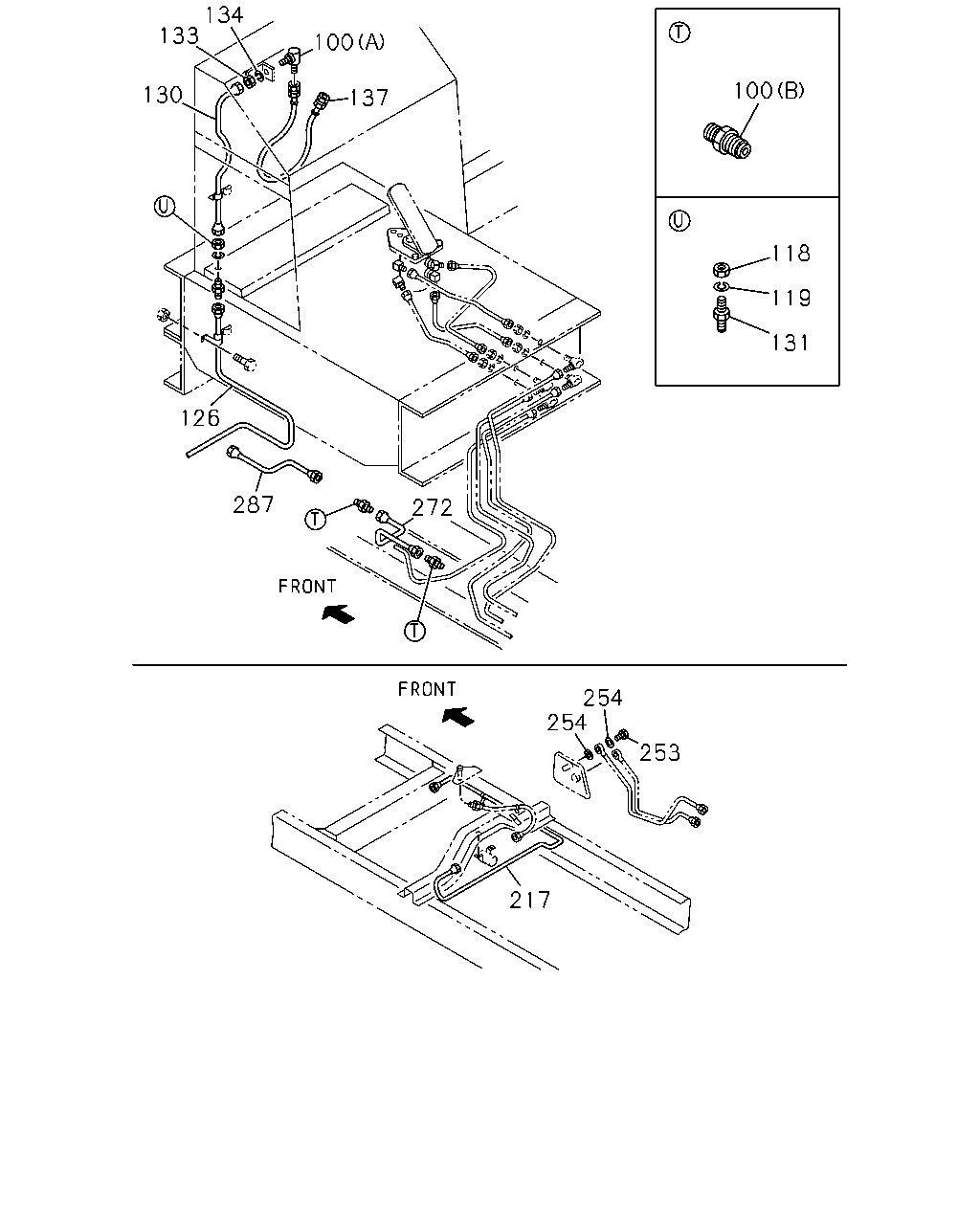

134 133 100 100 130 137 118 119 131 126 287 272 254 254 253 217

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
100	CONNECTOR; AIR PIPE (A) M10 & M12	1-09654-111-0	01	1	9001-9204	●
100	CONNECTOR; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) M10 & M12	1-09654-111-0	01	1	9001-9204		●
100	CONNECTOR; AIR PIPE (A) M10 & M12	1-09654-111-1	01	1	9205-	●	●
100	CONNECTOR; AIR PIPE AIR HORN(WB8) (B) M14 & PT1/4	1-09650-031-0	01	1	9001-9103	●	●
100	CONNECTOR; AIR PIPE AIR HORN(WB8) (B) M14 & PT1/4	1-09650-332-1	01	1	9104-	●	●
100	CONNECTOR; AIR PIPE AIR HORN(WB8) (B) M12 & PT1/4	1-09650-074-1	02	1	9001-	●	●
118	NUT; UNION M12	9-09840-280-0	01	1	9001-9204	●
118	NUT; UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M12	9-09840-280-0	01	1	9001-9204		●
118	NUT; UNION M12	9-09840-280-0	01	1	9205-	●	●
119	WASHER; LK,UNION ID=12.2	9-09150-512-0	01	1	9001-9204	●
119	WASHER; LK,UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=12.2	9-09150-512-0	01	1	9001-9204		●
119	WASHER; LK,UNION ID=12.2	9-09150-512-0	01	1	9205-9312	●	●
126	PIPE; AIR,UNION TO UNION L=1937 SERVICED BY L=2000	1-47434-395-0	01	1	9001-	●
126	PIPE; AIR,UNION TO UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=1687 SERVICED BY L=1820	1-47434-394-0	01	1	9001-9204		●
126	PIPE; AIR,UNION TO UNION L=1687 SERVICED BY L=1820	1-47434-394-0	01	1	9205-		●
130	PIPE; AIR,UNION TO UNION L=582 SERVICED BY L=650	9-47415-353-0	01	1	9001-9204	●
130	PIPE; AIR,UNION TO UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=582 SERVICED BY L=650	9-47415-353-0	01	1	9001-9204		●
130	PIPE; AIR,UNION TO UNION L=582 SERVICED BY L=650	9-47415-353-0	01	1	9205-	●	●
131	UNION; AIR PIPE M12 L=62.5	9-09223-206-0	01	1	9001-9204	●
131	UNION; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M12 L=62.5	9-09223-206-0	01	1	9001-9204		●
131	UNION; AIR PIPE M12 L=62.5	9-09223-206-1	01	1	9205-	●	●
133	NUT; UNION M12	9-09840-280-0	01	1	9001-9204	●
133	NUT; UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M12	9-09840-280-0	01	1	9001-9204		●
133	NUT; UNION M12	9-09840-280-0	01	1	9205-	●	●
134	WASHER; LK,UNION ID=12.2	9-09150-512-0	01	1	9001-9204	●
134	WASHER; LK,UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=12.2	9-09150-512-0	01	1	9001-9204		●
134	WASHER; LK,UNION ID=12.2	9-09150-512-0	01	1	9205-9312	●	●
137	HOSE; FLEX,AIR PRESSURE GAGE L=440	0-07210-440-0	01	1	9001-9204	●
137	HOSE; FLEX,AIR PRESSURE GAGE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=440	0-07210-440-0	01	1	9001-9204		●
137	HOSE; FLEX,AIR PRESSURE GAGE L=440	0-07210-440-0	01	1	9205-	●	●
217	PIPE; VAC,UNION TO MAG VLV MAF6T M/T(X3X) WHEEL BASE 5800MM(58W) L=1225 SERVICED BY L=1250	1-47434-410-0	01	1	9001-9012	●
217	PIPE; VAC,UNION TO MAG VLV MAF6T M/T(X3X),MAF6Z M/T(X7U) WHEEL BASE 5800MM(58W) L=1225 SERVICED BY L=1250	1-47434-410-0	01	1	9001-9012		●
217	PIPE; VAC,UNION TO MAG VLV WHEEL BASE 6600MM(66W) L=1225 SERVICED BY L=1250	1-47434-410-0	01	1	9001-9012		●
217	PIPE; VAC,UNION TO MAG VLV BUS BODY REAR OVERHANG<YK4> L=1225 SERVICED BY L=1250	1-47434-410-0	01	1	9101-9212	●	●
217	PIPE; VAC,UNION TO MAG VLV BUS BODY REAR OVERHANG<YK4> L=1225 SERVICED BY L=1250	1-47426-388-0	01	1	9301-	●	●
217	PIPE; VAC,UNION TO MAG VLV 6QA1 STD ENG(L24),6RB1 STD ENG(07L) MAB5D M/T(X1N),MAB5R M/T(X3K) WHEEL BASE 5800MM(58W),WHEEL BASE 6800MM(68W) L=1075 SERVICED BY L=1100	1-47434-409-0	01	1	9001-9012	●
217	PIPE; VAC,UNION TO MAG VLV 6QA1 STD ENG(L24),6RB1 STD ENG(07L),6RA1 STD ENG(14L) MAB5D M/T(X1N),MAB5R M/T(X3K),MAF5P M/T(X4X), MAF5LM/T(X7F) WHEEL BASE 5800MM(58W),WHEEL BASE 6800MM(68W) EXC. OVERHEAD COOLING SYSTEM(YS9) L=1075 SERVICED BY L=1100	1-47434-409-0	01	1	9001-9012		●
217	PIPE; VAC,UNION TO MAG VLV EXC. BUS BODY REAR OVERHANG<YK4> L=1075 SERVICED BY L=1100	1-47434-409-0	01	1	9101-9212	●	●
217	PIPE; VAC,UNION TO MAG VLV EXC. BUS BODY REAR OVERHANG<YK4> L=1075 SERVICED BY L=1100	1-47426-387-0	01	1	9301-	●	●
217	PIPE; VAC,UNION TO MAG VLV 6RA1 STD ENG(14L),6RA1 TC ENG(15L) WHEEL BASE 5800MM(58W) FINAL GEAR 5.429/7.392 18" SPIRAL 2 SPEED(W2E), FINAL GEAR 3.909/5.322 18" SPIRAL 2 SPEED(W2J) L=1502	1-47449-230-0	01	1	9001-9012		●
253	BOLT; EYE,AIR PIPE M14X27 FLANGE	1-09675-086-0	01	1	9001-	●
253	BOLT; EYE,AIR PIPE M/T<X9C> M14X27 FLANGE	1-09675-086-0	01	1	9001-		●
254	GASKET; AIR PIPE ID=14.2 OD=19.2	1-09630-085-0	02	1	9001-	●
254	GASKET; AIR PIPE M/T<X9C> ID=14.2 OD=19.2	1-09630-085-0	02	1	9001-		●
272	PIPE; AIR,MAG VLV TO UNION AIR HORN(WB8)	1-47439-262-0	01	1	9001-9212	●	●
272	PIPE; AIR,MAG VLV TO UNION AIR HORN(WB8)	1-47496-872-0	01	1	9301-	●	●
287	PIPE; AIR,MAG VLV AIR HORN(WB8)	1-47486-337-0	01	1	9001-	●	●

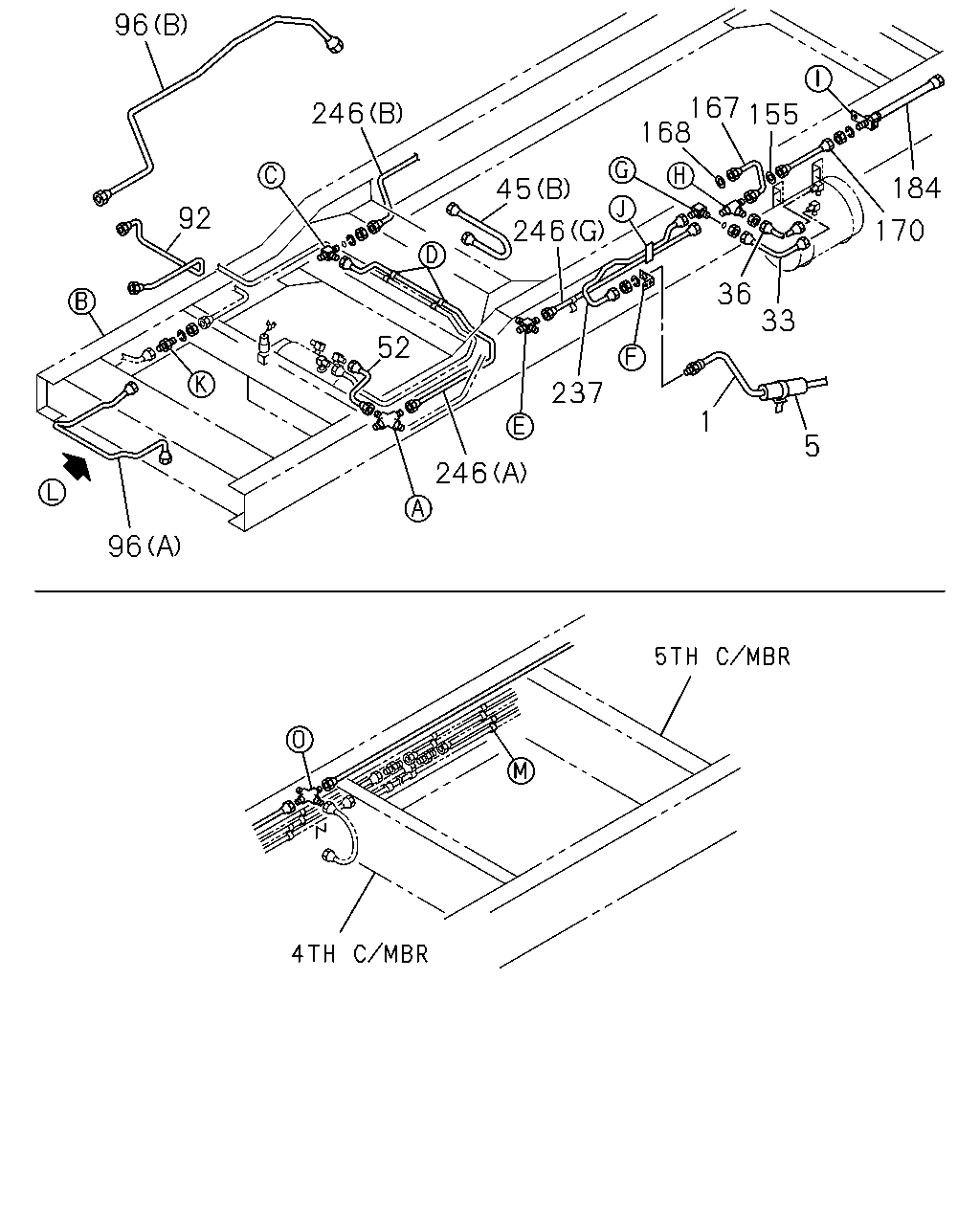

96 167 155 168 246 45 184 246 92 170 36 33 52 237 1 5 246 96

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	HOSE; FLEX,AIR TANK	0-07736-480-0	01	1	9001-9012	●	●
1	HOSE; FLEX,AIR TANK	1-09363-513-0	01	1	9101-	●	●
5	SLEEVE; FLEX HOSE ID=17 OD=21 L=40	1-09337-012-0	01	1	9001-	●
5	SLEEVE; FLEX HOSE M/T<X9C> ID=17 OD=21 L=40	1-09337-012-0	01	1	9001-		●
33	PIPE; AIR,UNION TO AIR TANK	1-47442-436-1	01	1	9001-9012	●	●
33	PIPE; AIR,UNION TO AIR TANK	1-47492-171-0	01	1	9101-9202	●	●
33	PIPE; AIR,UNION TO AIR TANK L=1012	1-47494-586-0	01	1	9203-9208	●	●
33	PIPE; AIR,UNION TO AIR TANK EXC. AIR DRYER<PS7> L=1012	1-47494-586-0	01	1	9209-9212	●	●
33	PIPE; AIR,UNION TO AIR TANK EXC. AIR DRYER<PS7>	1-47496-410-0	01	1	9301-	●	●
36	PIPE; AIR,AIR TANK TO UNION	1-47442-428-1	01	1	9001-9202	●	●
36	PIPE; AIR,AIR TANK TO UNION	1-47494-581-0	01	1	9203-9212	●	●
36	PIPE; AIR,AIR TANK TO UNION	1-47496-413-0	01	1	9301-	●	●
45	PIPE; AIR,UNION TO AIR TANK (A)	1-47437-251-1	01	1	9001-9204	●
45	PIPE; AIR,UNION TO AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-47437-251-1	01	1	9001-9204		●
45	PIPE; AIR,UNION TO AIR TANK (A)	1-47437-251-1	01	1	9205-9212	●	●
45	PIPE; AIR,UNION TO AIR TANK (A)	1-47496-424-0	01	1	9301-	●	●
45	PIPE; AIR,UNION TO AIR TANK (B)	1-47437-253-2	01	1	9001-9204	●
45	PIPE; AIR,UNION TO AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-47437-253-2	01	1	9001-9204		●
45	PIPE; AIR,UNION TO AIR TANK (B)	1-47437-253-2	01	1	9205-9212	●	●
45	PIPE; AIR,UNION TO AIR TANK (B)	1-47496-425-0	01	1	9301-	●	●
52	PIPE; AIR,UNION TO AIR TANK	1-47441-857-1	01	1	9001-9212	●	●
52	PIPE; AIR,UNION TO AIR TANK	1-47496-428-0	01	1	9301-	●	●
92	PIPE; AIR,AIR TANK TO AIR MASTER BRAKE SYSTEM AIR DUAL CIRCUIT(Z04)	1-47441-858-1	01	1	9001-9204		●
96	PIPE; AIR,UNION TO AIR MASTER BRAKE SYSTEM AIR DUAL CIRCUIT(Z04) (B) L=1034 SERVICED BY L=1400	1-47437-969-0	01	1	9001-9204		●
96	PIPE; AIR,UNION TO AIR MASTER BRAKE SYSTEM AIR DUAL CIRCUIT(Z04) (A) L=1495 SERVICED BY L=1550	1-47437-970-0	01	1	9001-9204		●
155	GASKET; AIR PIPE ID=11 OD=18	9-09572-510-0	01	1	9001-9204	●
155	GASKET; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=11 OD=18	9-09572-510-0	01	1	9001-9204		●
155	GASKET; AIR PIPE ID=11 OD=18	9-09572-510-0	01	1	9205-	●	●
167	PIPE; AIR,CONN TO GOV	1-47482-012-0	01	1	9001-9012	●
167	PIPE; AIR,CONN TO GOV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47482-012-0	01	1	9001-9012		●
167	PIPE; AIR,CONN TO GOV	1-47492-173-0	01	1	9101-9202	●
167	PIPE; AIR,CONN TO GOV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47492-173-0	01	1	9101-9202		●
167	PIPE; AIR,CONN TO GOV	1-47494-583-0	01	1	9203-9204	●
167	PIPE; AIR,CONN TO GOV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47494-583-0	01	1	9203-9204		●
167	PIPE; AIR,CONN TO GOV	1-47494-583-1	01	1	9205-9212	●	●
167	PIPE; AIR,CONN TO GOV	1-47496-866-0	01	1	9301-	●	●
168	GASKET; AIR PIPE,GOV ID=11 OD=18	9-09572-510-0	01	1	9001-9204	●
168	GASKET; AIR PIPE,GOV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=11 OD=18	9-09572-510-0	01	1	9001-9204		●
168	GASKET; AIR PIPE,GOV ID=11 OD=18	9-09572-510-0	01	1	9205-	●	●
170	PIPE; AIR,AIR GOV TO FLEX HOSE	1-47442-981-0	01	1	9001-9204	●
170	PIPE; AIR,AIR GOV TO FLEX HOSE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47442-981-0	01	1	9001-9204		●
170	PIPE; AIR,AIR GOV TO FLEX HOSE EXC. AIR DRYER<PS7>	1-47442-981-0	01	1	9205-9212	●	●
170	PIPE; AIR,AIR GOV TO FLEX HOSE EXC. AIR DRYER<PS7>	1-47496-867-0	01	1	9301-	●	●
170	PIPE; AIR,AIR GOV TO FLEX HOSE AIR DRYER<PS7>	1-47494-584-1	01	1	9203-9210	●	●
184	HOSE; FLEX,AIR GOV L=350	0-07432-350-0	01	1	9001-9202	●
184	HOSE; FLEX,AIR GOV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=350	0-07432-350-0	01	1	9001-9202		●
184	HOSE; FLEX,AIR GOV EXC. AIR DRYER<PS7> L=350	0-07432-350-0	01	1	9203-9204	●
184	HOSE; FLEX,AIR GOV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> L=350	0-07432-350-0	01	1	9203-9204		●
184	HOSE; FLEX,AIR GOV EXC. AIR DRYER<PS7> L=350	0-07432-350-0	01	1	9205-9210	●	●
184	HOSE; FLEX,AIR GOV L=350	0-07432-350-0	01	1	9211-	●	●
184	HOSE; FLEX,AIR GOV AIR DRYER<PS7>	0-07482-310-1	01	1	9203-9204	●
184	HOSE; FLEX,AIR GOV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7>	0-07482-310-1	01	1	9203-9204		●
184	HOSE; FLEX,AIR GOV AIR DRYER<PS7>	0-07482-310-1	01	1	9205-9210	●	●
237	PIPE; AIR,FLEX HOSE TO UNION L=1250 SERVICED BY L=1300	1-47434-486-0	01	1	9001-9012	●	●
237	PIPE; AIR,FLEX HOSE TO UNION L=1093 SERVICED BY L=1100	1-47437-982-0	01	1	9101-9202	●	●
237	PIPE; AIR,FLEX HOSE TO UNION L=1108 SERVICED BY L=1250	1-47437-968-0	01	1	9203-9212	●	●
237	PIPE; AIR,FLEX HOSE TO UNION L=1108 SERVICED BY L=1250	1-47426-416-0	01	1	9301-	●	●
246	PIPE; AIR,UNION TO UNION MAF6T M/T(X3X) WHEEL BASE 5800MM(58W) (F) L=1210 SERVICED BY L=1250	1-47437-968-0	01	1	9001-9012	●
246	PIPE; AIR,UNION TO UNION MAF6T M/T(X3X),MAF6Z M/T(X7U) WHEEL BASE 5800MM(58W) (F) L=1210 SERVICED BY L=1250	1-47437-968-0	01	1	9001-9012		●
246	PIPE; AIR,UNION TO UNION WHEEL BASE 6600MM(66W) (F) L=1210 SERVICED BY L=1250	1-47437-968-0	01	1	9001-9012		●
246	PIPE; AIR,UNION TO UNION BUS BODY REAR OVERHANG<YK4> (F) L=1210 SERVICED BY L=1250	1-47437-968-0	01	1	9101-9212	●	●
246	PIPE; AIR,UNION TO UNION BUS BODY REAR OVERHANG<YK4> (F) L=1210 SERVICED BY L=1250	1-47426-416-0	01	1	9301-	●	●
246	PIPE; AIR,UNION TO UNION (G) L=850 SERVICED BY L=900	1-47437-966-0	01	1	9001-9012	●	●
246	PIPE; AIR,UNION TO UNION (G) L=804 SERVICED BY L=900	1-47428-788-0	01	1	9101-9202	●	●
246	PIPE; AIR,UNION TO UNION (G) L=819 SERVICED BY L=900	1-47437-966-0	01	1	9203-9205	●	●
246	PIPE; AIR,UNION TO UNION (G) L=803 SERVICED BY L=900	1-47437-966-0	01	1	9206-9212	●	●
246	PIPE; AIR,UNION TO UNION (G) L=803 SERVICED BY L=900	1-47426-413-0	01	1	9301-	●	●
246	PIPE; AIR,UNION TO UNION (A) L=1350 SERVICED BY L=1400	1-47437-969-0	01	1	9001-9212	●	●
246	PIPE; AIR,UNION TO UNION (A) L=1350 SERVICED BY L=1400	1-47426-418-0	01	1	9301-	●	●
246	PIPE; AIR,UNION TO UNION (B) L=2320 SERVICED BY L=3300	1-47437-975-0	01	1	9001-9212	●	●
246	PIPE; AIR,UNION TO UNION (B) L=2320 SERVICED BY L=2500	1-47426-423-0	01	1	9301-	●	●
246	PIPE; AIR,UNION TO UNION MAB5D M/T(X1N),MAB5R M/T(X3K),MAF5P M/T(X4X), MAF5LM/T(X7F) WHEEL BASE 5800MM(58W),WHEEL BASE 6800MM(68W) (F) L=980 SERVICED BY L=1000	1-47434-476-0	01	1	9001-9012	●	●
246	PIPE; AIR,UNION TO UNION EXC. BUS BODY REAR OVERHANG<YK4> (F) L=980 SERVICED BY L=1000	1-47434-476-0	01	1	9101-9212	●	●
246	PIPE; AIR,UNION TO UNION EXC. BUS BODY REAR OVERHANG<YK4> (F) L=980 SERVICED BY L=1550	1-47426-419-0	01	1	9301-	●	●
246	PIPE; AIR,UNION TO UNION SINGLE SPEED-AXLE RATIO<W9Z> (E) L=2360 SERVICED BY L=2600	1-47437-973-0	01	1	9001-9212	●	●
246	PIPE; AIR,UNION TO UNION SINGLE SPEED-AXLE RATIO<W9Z> (E) L=2360 SERVICED BY L=2600	1-47426-424-0	01	1	9301-	●	●
246	PIPE; AIR,UNION TO UNION WHEEL BASE 5800MM(58W) (D) L=2573 SERVICED BY L=2600	1-47437-973-0	01	1	9001-9212	●	●
246	PIPE; AIR,UNION TO UNION WHEEL BASE 5800MM(58W) (D) L=2573 SERVICED BY L=2600	1-47426-424-0	01	1	9301-	●	●
246	PIPE; AIR,UNION TO UNION WHEEL BASE 6800MM(68W) (D) L=3573 SERVICED BY L=3700	1-47434-480-0	01	1	9001-9212	●	●
246	PIPE; AIR,UNION TO UNION WHEEL BASE 6800MM(68W) (D) L=3573 SERVICED BY L=3700	1-47426-427-0	01	1	9301-	●	●
246	PIPE; AIR,UNION TO UNION SPARE WHEEL CARRIER<SFB> (H) L=1391 SERVICED BY L=1400	1-47437-969-0	01	1	9001-9012		●
246	PIPE; AIR,UNION TO UNION WHEEL BASE 6600MM(66W) (C) L=808 SERVICED BY L=900	1-47437-966-0	01	1	9001-9212		●
246	PIPE; AIR,UNION TO UNION WHEEL BASE 6600MM(66W) (C) L=808 SERVICED BY L=900	1-47426-413-0	01	1	9301-		●
246	PIPE; AIR,UNION TO UNION WHEEL BASE 6600MM(66W) (D) L=2576 SERVICED BY L=2600	1-47437-973-0	01	1	9001-9212		●
246	PIPE; AIR,UNION TO UNION WHEEL BASE 6600MM(66W) (D) L=2576 SERVICED BY L=2600	1-47426-424-0	01	1	9301-		●
246	PIPE; AIR,UNION TO UNION 6RA1 STD ENG(14L) WHEEL BASE 5800MM(58W) FINAL GEAR 5.429/7.392 18" SPIRAL 2 SPEED(W2E), FINAL GEAR 3.909/5.322 18" SPIRAL 2 SPEED(W2J) (E) L=1363 SERVICED BY L=1400	1-47437-969-0	01	1	9001-9012		●
246	PIPE; AIR,UNION TO UNION AXLE RATIO 2 SPEED<W9Y> (E) L=1363 SERVICED BY L=1400	1-47437-969-0	01	1	9101-9212	●	●
246	PIPE; AIR,UNION TO UNION AXLE RATIO 2 SPEED<W9Y> (E) L=1363 SERVICED BY L=1400	1-47426-418-0	01	1	9301-	●	●
246	PIPE; AIR,UNION TO UNION 6RA1 STD ENG(14L),6RA1 TC ENG(15L) WHEEL BASE 5800MM(58W) FINAL GEAR 5.429/7.392 18" SPIRAL 2 SPEED(W2E), FINAL GEAR 3.909/5.322 18" SPIRAL 2 SPEED(W2J) (D) L=943 SERVICED BY L=1000	1-47434-476-0	01	1	9001-9012		●
246	PIPE; AIR,UNION TO UNION AXLE RATIO 2 SPEED<W9Y> (D) L=943 SERVICED BY L=1000	1-47434-476-0	01	1	9101-9212	●	●
246	PIPE; AIR,UNION TO UNION AXLE RATIO 2 SPEED<W9Y> (D) L=943 SERVICED BY L=1000	1-47426-414-0	01	1	9301-	●	●

246 246 45 246 8 246 246 246 246 246 247

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
8	NUT; BRKT,FLEX HOSE,AIR TANK M8	9-09110-408-0	02	1	9001-9606	●	●
8	NUT; BRKT,FLEX HOSE,AIR TANK M8 FLANGE	0-91150-108-0	02	1	9607-	●	●
45	PIPE; AIR,UNION TO AIR TANK (A)	1-47437-251-1	01	1	9001-9204	●
45	PIPE; AIR,UNION TO AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-47437-251-1	01	1	9001-9204		●
45	PIPE; AIR,UNION TO AIR TANK (A)	1-47437-251-1	01	1	9205-9212	●	●
45	PIPE; AIR,UNION TO AIR TANK (A)	1-47496-424-0	01	1	9301-	●	●
45	PIPE; AIR,UNION TO AIR TANK (B)	1-47437-253-2	01	1	9001-9204	●
45	PIPE; AIR,UNION TO AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-47437-253-2	01	1	9001-9204		●
45	PIPE; AIR,UNION TO AIR TANK (B)	1-47437-253-2	01	1	9205-9212	●	●
45	PIPE; AIR,UNION TO AIR TANK (B)	1-47496-425-0	01	1	9301-	●	●
246	PIPE; AIR,UNION TO UNION MAF6T M/T(X3X) WHEEL BASE 5800MM(58W) (F) L=1210 SERVICED BY L=1250	1-47437-968-0	01	1	9001-9012	●
246	PIPE; AIR,UNION TO UNION MAF6T M/T(X3X),MAF6Z M/T(X7U) WHEEL BASE 5800MM(58W) (F) L=1210 SERVICED BY L=1250	1-47437-968-0	01	1	9001-9012		●
246	PIPE; AIR,UNION TO UNION WHEEL BASE 6600MM(66W) (F) L=1210 SERVICED BY L=1250	1-47437-968-0	01	1	9001-9012		●
246	PIPE; AIR,UNION TO UNION BUS BODY REAR OVERHANG<YK4> (F) L=1210 SERVICED BY L=1250	1-47437-968-0	01	1	9101-9212	●	●
246	PIPE; AIR,UNION TO UNION BUS BODY REAR OVERHANG<YK4> (F) L=1210 SERVICED BY L=1250	1-47426-416-0	01	1	9301-	●	●
246	PIPE; AIR,UNION TO UNION (G) L=850 SERVICED BY L=900	1-47437-966-0	01	1	9001-9012	●	●
246	PIPE; AIR,UNION TO UNION (G) L=804 SERVICED BY L=900	1-47428-788-0	01	1	9101-9202	●	●
246	PIPE; AIR,UNION TO UNION (G) L=819 SERVICED BY L=900	1-47437-966-0	01	1	9203-9205	●	●
246	PIPE; AIR,UNION TO UNION (G) L=803 SERVICED BY L=900	1-47437-966-0	01	1	9206-9212	●	●
246	PIPE; AIR,UNION TO UNION (G) L=803 SERVICED BY L=900	1-47426-413-0	01	1	9301-	●	●
246	PIPE; AIR,UNION TO UNION (A) L=1350 SERVICED BY L=1400	1-47437-969-0	01	1	9001-9212	●	●
246	PIPE; AIR,UNION TO UNION (A) L=1350 SERVICED BY L=1400	1-47426-418-0	01	1	9301-	●	●
246	PIPE; AIR,UNION TO UNION (B) L=2320 SERVICED BY L=3300	1-47437-975-0	01	1	9001-9212	●	●
246	PIPE; AIR,UNION TO UNION (B) L=2320 SERVICED BY L=2500	1-47426-423-0	01	1	9301-	●	●
246	PIPE; AIR,UNION TO UNION MAB5D M/T(X1N),MAB5R M/T(X3K),MAF5P M/T(X4X), MAF5LM/T(X7F) WHEEL BASE 5800MM(58W),WHEEL BASE 6800MM(68W) (F) L=980 SERVICED BY L=1000	1-47434-476-0	01	1	9001-9012	●	●
246	PIPE; AIR,UNION TO UNION EXC. BUS BODY REAR OVERHANG<YK4> (F) L=980 SERVICED BY L=1000	1-47434-476-0	01	1	9101-9212	●	●
246	PIPE; AIR,UNION TO UNION EXC. BUS BODY REAR OVERHANG<YK4> (F) L=980 SERVICED BY L=1550	1-47426-419-0	01	1	9301-	●	●
246	PIPE; AIR,UNION TO UNION SINGLE SPEED-AXLE RATIO<W9Z> (E) L=2360 SERVICED BY L=2600	1-47437-973-0	01	1	9001-9212	●	●
246	PIPE; AIR,UNION TO UNION SINGLE SPEED-AXLE RATIO<W9Z> (E) L=2360 SERVICED BY L=2600	1-47426-424-0	01	1	9301-	●	●
246	PIPE; AIR,UNION TO UNION WHEEL BASE 5800MM(58W) (D) L=2573 SERVICED BY L=2600	1-47437-973-0	01	1	9001-9212	●	●
246	PIPE; AIR,UNION TO UNION WHEEL BASE 5800MM(58W) (D) L=2573 SERVICED BY L=2600	1-47426-424-0	01	1	9301-	●	●
246	PIPE; AIR,UNION TO UNION WHEEL BASE 6800MM(68W) (D) L=3573 SERVICED BY L=3700	1-47434-480-0	01	1	9001-9212	●	●
246	PIPE; AIR,UNION TO UNION WHEEL BASE 6800MM(68W) (D) L=3573 SERVICED BY L=3700	1-47426-427-0	01	1	9301-	●	●
246	PIPE; AIR,UNION TO UNION SPARE WHEEL CARRIER<SFB> (H) L=1391 SERVICED BY L=1400	1-47437-969-0	01	1	9001-9012		●
246	PIPE; AIR,UNION TO UNION WHEEL BASE 6600MM(66W) (C) L=808 SERVICED BY L=900	1-47437-966-0	01	1	9001-9212		●
246	PIPE; AIR,UNION TO UNION WHEEL BASE 6600MM(66W) (C) L=808 SERVICED BY L=900	1-47426-413-0	01	1	9301-		●
246	PIPE; AIR,UNION TO UNION WHEEL BASE 6600MM(66W) (D) L=2576 SERVICED BY L=2600	1-47437-973-0	01	1	9001-9212		●
246	PIPE; AIR,UNION TO UNION WHEEL BASE 6600MM(66W) (D) L=2576 SERVICED BY L=2600	1-47426-424-0	01	1	9301-		●
246	PIPE; AIR,UNION TO UNION 6RA1 STD ENG(14L) WHEEL BASE 5800MM(58W) FINAL GEAR 5.429/7.392 18" SPIRAL 2 SPEED(W2E), FINAL GEAR 3.909/5.322 18" SPIRAL 2 SPEED(W2J) (E) L=1363 SERVICED BY L=1400	1-47437-969-0	01	1	9001-9012		●
246	PIPE; AIR,UNION TO UNION AXLE RATIO 2 SPEED<W9Y> (E) L=1363 SERVICED BY L=1400	1-47437-969-0	01	1	9101-9212	●	●
246	PIPE; AIR,UNION TO UNION AXLE RATIO 2 SPEED<W9Y> (E) L=1363 SERVICED BY L=1400	1-47426-418-0	01	1	9301-	●	●
246	PIPE; AIR,UNION TO UNION 6RA1 STD ENG(14L),6RA1 TC ENG(15L) WHEEL BASE 5800MM(58W) FINAL GEAR 5.429/7.392 18" SPIRAL 2 SPEED(W2E), FINAL GEAR 3.909/5.322 18" SPIRAL 2 SPEED(W2J) (D) L=943 SERVICED BY L=1000	1-47434-476-0	01	1	9001-9012		●
246	PIPE; AIR,UNION TO UNION AXLE RATIO 2 SPEED<W9Y> (D) L=943 SERVICED BY L=1000	1-47434-476-0	01	1	9101-9212	●	●
246	PIPE; AIR,UNION TO UNION AXLE RATIO 2 SPEED<W9Y> (D) L=943 SERVICED BY L=1000	1-47426-414-0	01	1	9301-	●	●
247	UNION; AIR PIPE (H)	1-09656-074-2	01	1	9001-	●
247	UNION; AIR PIPE M/T<X9C> (H)	1-09656-074-2	01	1	9001-		●
247	UNION; AIR PIPE (D) M16	9-09238-310-0	02	1	9001-9204	●
247	UNION; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (D) M16	9-09238-310-0	02	1	9001-9204		●
247	UNION; AIR PIPE (D) M16	9-09238-310-1	02	1	9205-	●	●
247	UNION; AIR PIPE (A)	1-09656-284-1	01	1	9001-	●	●
247	UNION; AIR PIPE AIR HORN(WB8) (C)	1-09659-016-1	01	1	9001-	●	●
247	UNION; AIR PIPE EXC. AIR HORN(WB8) (C) M16 ELBOW	9-09235-110-1	01	1	9001-	●	●
247	UNION; AIR PIPE AXLE RATIO 2 SPEED<W9Y> (G)	9-09228-210-1	01	1	9001-	●	●
247	UNION; AIR PIPE A/T<X9D> (H)	1-09654-070-1	01	1	9001-9305		●
247	UNION; AIR PIPE A/T<X9D> (H) M16	1-09654-148-1	01	1	9306-		●
247	UNION; AIR PIPE BRAKE SYSTEM AIR DUAL CIRCUIT(Z04) (E) M16	1-09654-148-0	01	1	9001-9204		●
247	UNION; AIR PIPE BRAKE SYSTEM AIR DUAL CIRCUIT(Z04) (F)	9-09233-110-0	01	1	9001-9204		●
247	UNION; AIR PIPE WHEEL BASE 6600MM(66W) (B) M16 L=42	9-09233-010-1	01	1	9001-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
