◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50920 - TFR/TFS(EUROPE)-RHD ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-01 - LAMP; FRONT AND FRONT SIDE ▶
8-01 — LAMP; FRONT AND FRONT SIDE (#21008) — 115 parça

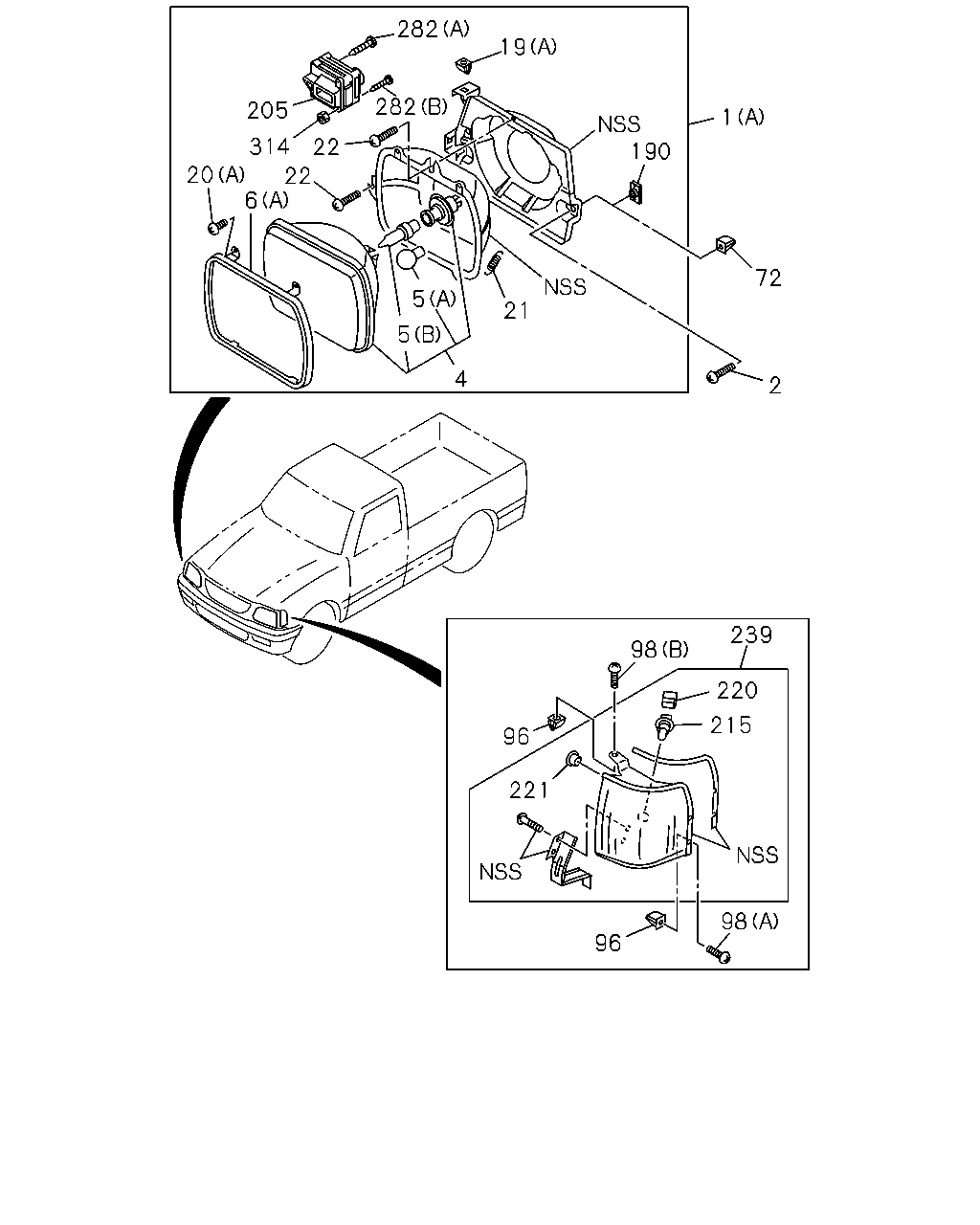

çizim 47457
282 19 282 205 1 190 314 22 20 6 22 72 5 21 5 4 2 239 98 220 215 96 221 98 96
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 02.725 LAMP ASM; HEAD
HALOGEN HEAD LAMP<TT5> (A) 		8-97149-116-0 01 1 0108- ● ● ● ● ●
1 02.725 LAMP ASM; HEAD
HALOGEN HEAD LAMP<TT5> (A) 		8-97149-115-0 01 1 0108- ● ● ● ● ●
1 02.725 LAMP ASM; HEAD
EXC. HALOGEN HEAD LAMP<TT5>,HALOGEN HEAD LAMPS MULTI REFLECTOR<7YW> (A) 		8-97039-809-2 01 1 0108- ● ● ● ● ●
1 02.725 LAMP ASM; HEAD
EXC. HALOGEN HEAD LAMP<TT5>,HALOGEN HEAD LAMPS MULTI REFLECTOR<7YW> (A) 		8-97039-808-3 01 1 0108- ● ● ● ● ●
1 02.725 LAMP ASM; HEAD
HALOGEN HEAD LAMPS MULTI REFLECTOR<7YW> (B) 		8-97246-505-1 01 1 0108-0108 ● ● ● ●
1 02.725 LAMP ASM; HEAD
HALOGEN HEAD LAMPS MULTI REFLECTOR<7YW> (B) 		8-97310-998-1 01 1 0109- ● ● ● ●
1 02.725 LAMP ASM; HEAD
HALOGEN HEAD LAMPS MULTI REFLECTOR<7YW> (B) 		8-97246-504-1 01 1 0108-0108 ● ● ● ●
1 02.725 LAMP ASM; HEAD
HALOGEN HEAD LAMPS MULTI REFLECTOR<7YW> (B) 		8-97310-999-1 01 1 0109- ● ● ● ●
2 02.726 SCREW; BRKT,HEADLAMP
EXC. HALOGEN HEAD LAMPS MULTI REFLECTO R<7YW> 03.890 M5X16 TAPPING 		9-07076-516-0 08 1 0108- ● ● ● ●
2 02.726 SCREW; BRKT,HEADLAMP
03.890 M5X16 TAPPING 		9-07076-516-0 08 1 0108- ●
4 02.727 HEADLAMP UNIT
HALOGEN HEAD LAMP<TT5> 		8-94334-631-1 02 1 0108- ● ● ● ● ●
4 02.727 HEADLAMP UNIT
EXC. HALOGEN HEAD LAMP<TT5>,HALOGEN HEAD LAMPS MULTI REFLECTOR<7YW> 		8-94334-629-1 02 1 0108- ● ● ● ● ●
5 02.727 BULB; HEADLAMP
HALOGEN HEAD LAMP<TT5>,HALOGEN HEAD LAMPS MULTI REFLECTOR<7YW> (B) 12V 60/55W 		8-94217-817-0 02 1 0108- ● ● ● ● ●
5 02.727 BULB; HEADLAMP
EXC. HALOGEN HEAD LAMP<TT5>,HALOGEN HEAD LAMPS MULTI REFLECTOR<7YW> 08.991 (A) 12V 45/50W 		5-82193-001-0 02 1 0108- ● ● ● ● ●
6 02.728 RIM; HEADLAMP
HALOGEN HEAD LAMPS MULTI REFLECTOR<7YW> (B) 		8-97178-340-0 01 1 0108- ● ● ● ●
6 02.728 RIM; HEADLAMP
HALOGEN HEAD LAMPS MULTI REFLECTOR<7YW> (B) 		8-97178-339-0 01 1 0108- ● ● ● ●
6 02.728 RIM; HEADLAMP
EXC. HALOGEN HEAD LAMPS MULTI REFLECTO R<7YW> 02.731 (A) 		8-94228-905-0 02 1 0108- ● ● ● ●
6 02.728 RIM; HEADLAMP
02.731 (A) 		8-94228-905-0 02 1 0108- ●
19 02.726 NUT; HEADLAMP
COLOR KEYED BUMPER(S4H) 02.343 (C) M5 FLANGE 		8-97068-819-0 04 1 0108- ● ● ● ● ●
19 02.726 NUT; HEADLAMP
HALOGEN HEAD LAMPS MULTI REFLECTOR<7YW> 04.594 (B) M6 FLANGE 		0-91150-106-0 01 1 0108- ● ● ● ●
19 02.726 NUT; HEADLAMP
EXC. HALOGEN HEAD LAMPS MULTI REFLECTO R<7YW> (A) 		8-94324-115-0 02 1 0108- ● ● ● ●
19 02.726 NUT; HEADLAMP
(A) 		8-94324-115-0 02 1 0108- ●
20 02.736 SCREW; HEADLAMP
HALOGEN HEAD LAMPS MULTI REFLECTOR<7YW> (B) 		8-97178-336-0 10 1 0108-0202 ● ● ● ●
20 02.736 SCREW; HEADLAMP
HALOGEN HEAD LAMPS MULTI REFLECTOR<7YW> 		8-97178-336-0 08 1 0203- ● ● ● ●
20 02.736 SCREW; HEADLAMP
EXC. HALOGEN HEAD LAMPS MULTI REFLECTO R<7YW> 02.737 (A) 		8-94324-114-0 12 1 0108- ● ● ● ●
20 02.736 SCREW; HEADLAMP
02.737 (A) 		8-94324-114-0 12 1 0108- ●
21 02.737 SPRING; ADJ HEADLAMP
EXC. HALOGEN HEAD LAMPS MULTI REFLECTO R<7YW> 		8-97042-577-0 04 1 0108- ● ● ● ●
21 02.737 SPRING; ADJ HEADLAMP 8-97042-577-0 04 1 0108- ●
22 02.726 SCREW; ADJ,HEADLAMP
EXC. HALOGEN HEAD LAMPS MULTI REFLECTO R<7YW> 02.737 		8-97042-612-0 04 1 0108- ● ● ● ●
22 02.726 SCREW; ADJ,HEADLAMP
02.737 		8-97042-612-0 04 1 0108- ●
72 02.726 GROMMET; SCREW,HEADLAMP
EXC. HALOGEN HEAD LAMPS MULTI REFLECTO R<7YW> 		8-94291-927-0 08 1 0108- ● ● ● ●
72 02.726 GROMMET; SCREW,HEADLAMP 8-94291-927-0 08 1 0108- ●
96 02.575 GROMMET; SCREW,SIDE COMB LAMP
02.708 M4 		5-09470-002-0 04 1 0108- ● ● ● ● ●
98 02.895 SCREW; SIDE COMB LAMP
(A) M4X25 		8-97165-952-0 04 1 0108- ● ● ● ● ●
98 02.895 SCREW; SIDE COMB LAMP
02.587 (B) M4X16 W/WASHER 		8-97809-122-0 02 1 0108- ● ● ● ● ●
190 02.727 RETAINER; HEADLAMP
EXC. HALOGEN HEAD LAMPS MULTI REFLECTO R<7YW> 		8-97042-578-0 02 1 0108- ● ● ● ●
190 02.727 RETAINER; HEADLAMP 8-97042-578-0 02 1 0108- ●
205 02.727 ACTUATOR; HEADLAMP
EXC. HALOGEN HEAD LAMPS MULTI REFLECTO R<7YW> 		8-97113-326-0 02 1 0108- ● ● ● ●
205 02.727 ACTUATOR; HEADLAMP 8-97113-326-0 02 1 0108- ●
215 08.991 BULB; FRT CLEARANCE LAMP
12V 5W 		8-94124-595-0 02 1 0108- ● ● ● ● ●
220 02.586 SOCKET; CLEARANCE LAMP 8-97167-687-0 02 1 0108- ● ● ● ● ●
221 02.586 TUBE; COVER,CLEARANCE LAMP
02.689 		8-97166-174-0 02 1 0108- ● ● ● ● ●
239 02.575 LAMP; FRT,CLEARANCE & PARKING
HALOGEN HEAD LAMPS MULTI REFLECTOR<7YW> 		8-97249-039-0 01 1 0108- ● ● ● ●
239 02.575 LAMP; FRT,CLEARANCE & PARKING
HALOGEN HEAD LAMPS MULTI REFLECTOR<7YW> 		8-97249-038-0 01 1 0108- ● ● ● ●
239 02.575 LAMP; FRT,CLEARANCE & PARKING
EXC. HALOGEN HEAD LAMPS MULTI REFLECTO R<7YW> 02.585 		8-97111-855-0 01 1 0108- ● ● ● ●
239 02.575 LAMP; FRT,CLEARANCE & PARKING
02.585 		8-97111-855-0 01 1 0108- ●
239 02.575 LAMP; FRT,CLEARANCE & PARKING
EXC. HALOGEN HEAD LAMPS MULTI REFLECTO R<7YW> 02.585 		8-97111-854-0 01 1 0108- ● ● ● ●
239 02.575 LAMP; FRT,CLEARANCE & PARKING
02.585 		8-97111-854-0 01 1 0108- ●
282 02.726 SCREW; ACTUATOR
EXC. HALOGEN HEAD LAMPS MULTI REFLECTO R<7YW> (A) 		8-97015-555-0 02 1 0108- ● ● ● ●
282 02.726 SCREW; ACTUATOR
(A) 		8-97015-555-0 02 1 0108- ●
282 02.726 SCREW; ACTUATOR
EXC. HALOGEN HEAD LAMPS MULTI REFLECTO R<7YW> (B) M4X35 		8-97042-611-0 04 1 0108- ● ● ● ●
282 02.726 SCREW; ACTUATOR
(B) M4X35 		8-97042-611-0 04 1 0108- ●
314 02.727 NUT; ACTUATOR
EXC. HALOGEN HEAD LAMPS MULTI REFLECTO R<7YW> 09.262 M4 		9-99111-404-0 04 1 0108- ● ● ● ●
314 02.727 NUT; ACTUATOR
09.262 M4 		9-99111-404-0 04 1 0108- ●

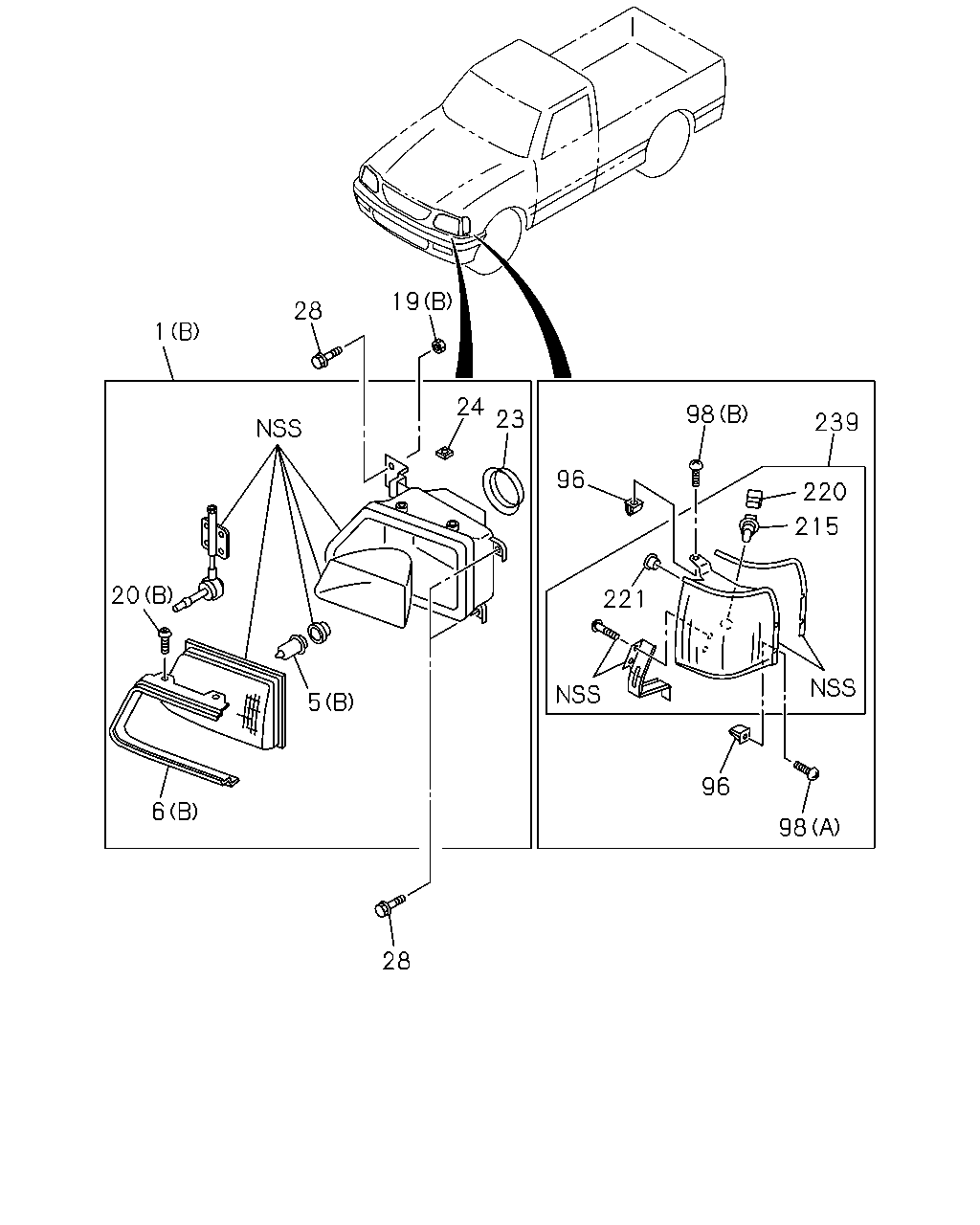

çizim 49898
19 28 1 24 98 23 239 96 220 215 20 221 5 96 6 98 28
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 02.725 LAMP ASM; HEAD
HALOGEN HEAD LAMP<TT5> (A) 		8-97149-116-0 01 1 0108- ● ● ● ● ●
1 02.725 LAMP ASM; HEAD
HALOGEN HEAD LAMP<TT5> (A) 		8-97149-115-0 01 1 0108- ● ● ● ● ●
1 02.725 LAMP ASM; HEAD
EXC. HALOGEN HEAD LAMP<TT5>,HALOGEN HEAD LAMPS MULTI REFLECTOR<7YW> (A) 		8-97039-809-2 01 1 0108- ● ● ● ● ●
1 02.725 LAMP ASM; HEAD
EXC. HALOGEN HEAD LAMP<TT5>,HALOGEN HEAD LAMPS MULTI REFLECTOR<7YW> (A) 		8-97039-808-3 01 1 0108- ● ● ● ● ●
1 02.725 LAMP ASM; HEAD
HALOGEN HEAD LAMPS MULTI REFLECTOR<7YW> (B) 		8-97246-505-1 01 1 0108-0108 ● ● ● ●
1 02.725 LAMP ASM; HEAD
HALOGEN HEAD LAMPS MULTI REFLECTOR<7YW> (B) 		8-97310-998-1 01 1 0109- ● ● ● ●
1 02.725 LAMP ASM; HEAD
HALOGEN HEAD LAMPS MULTI REFLECTOR<7YW> (B) 		8-97246-504-1 01 1 0108-0108 ● ● ● ●
1 02.725 LAMP ASM; HEAD
HALOGEN HEAD LAMPS MULTI REFLECTOR<7YW> (B) 		8-97310-999-1 01 1 0109- ● ● ● ●
5 02.727 BULB; HEADLAMP
HALOGEN HEAD LAMP<TT5>,HALOGEN HEAD LAMPS MULTI REFLECTOR<7YW> (B) 12V 60/55W 		8-94217-817-0 02 1 0108- ● ● ● ● ●
5 02.727 BULB; HEADLAMP
EXC. HALOGEN HEAD LAMP<TT5>,HALOGEN HEAD LAMPS MULTI REFLECTOR<7YW> 08.991 (A) 12V 45/50W 		5-82193-001-0 02 1 0108- ● ● ● ● ●
6 02.728 RIM; HEADLAMP
HALOGEN HEAD LAMPS MULTI REFLECTOR<7YW> (B) 		8-97178-340-0 01 1 0108- ● ● ● ●
6 02.728 RIM; HEADLAMP
HALOGEN HEAD LAMPS MULTI REFLECTOR<7YW> (B) 		8-97178-339-0 01 1 0108- ● ● ● ●
6 02.728 RIM; HEADLAMP
EXC. HALOGEN HEAD LAMPS MULTI REFLECTO R<7YW> 02.731 (A) 		8-94228-905-0 02 1 0108- ● ● ● ●
6 02.728 RIM; HEADLAMP
02.731 (A) 		8-94228-905-0 02 1 0108- ●
19 02.726 NUT; HEADLAMP
COLOR KEYED BUMPER(S4H) 02.343 (C) M5 FLANGE 		8-97068-819-0 04 1 0108- ● ● ● ● ●
19 02.726 NUT; HEADLAMP
HALOGEN HEAD LAMPS MULTI REFLECTOR<7YW> 04.594 (B) M6 FLANGE 		0-91150-106-0 01 1 0108- ● ● ● ●
19 02.726 NUT; HEADLAMP
EXC. HALOGEN HEAD LAMPS MULTI REFLECTO R<7YW> (A) 		8-94324-115-0 02 1 0108- ● ● ● ●
19 02.726 NUT; HEADLAMP
(A) 		8-94324-115-0 02 1 0108- ●
20 02.736 SCREW; HEADLAMP
HALOGEN HEAD LAMPS MULTI REFLECTOR<7YW> (B) 		8-97178-336-0 10 1 0108-0202 ● ● ● ●
20 02.736 SCREW; HEADLAMP
HALOGEN HEAD LAMPS MULTI REFLECTOR<7YW> 		8-97178-336-0 08 1 0203- ● ● ● ●
20 02.736 SCREW; HEADLAMP
EXC. HALOGEN HEAD LAMPS MULTI REFLECTO R<7YW> 02.737 (A) 		8-94324-114-0 12 1 0108- ● ● ● ●
20 02.736 SCREW; HEADLAMP
02.737 (A) 		8-94324-114-0 12 1 0108- ●
23 02.727 COVER; BULB,HEADLAMP
HALOGEN HEAD LAMPS MULTI REFLECTOR<7YW> 		8-97178-335-0 02 1 0108- ● ● ● ●
24 02.737 MOUNTING; ADJ SCREW HD LAMP
HALOGEN HEAD LAMPS MULTI REFLECTOR<7YW> 		8-97178-491-0 02 1 0108- ● ● ● ●
28 02.762 BOLT; HEADLAMP
HALOGEN HEAD LAMPS MULTI REFLECTOR<7YW> M6X20 W/LK&PL WASHER 		8-94279-203-0 01 1 0108- ● ● ● ●
28 02.762 BOLT; HEADLAMP
HALOGEN HEAD LAMPS MULTI REFLECTOR<7YW> 02.726 M6X18 TAPPING W/LK&PL WASHER 		8-94372-359-0 07 1 0108- ● ● ● ●
96 02.575 GROMMET; SCREW,SIDE COMB LAMP
02.708 M4 		5-09470-002-0 04 1 0108- ● ● ● ● ●
98 02.895 SCREW; SIDE COMB LAMP
(A) M4X25 		8-97165-952-0 04 1 0108- ● ● ● ● ●
98 02.895 SCREW; SIDE COMB LAMP
02.587 (B) M4X16 W/WASHER 		8-97809-122-0 02 1 0108- ● ● ● ● ●
215 08.991 BULB; FRT CLEARANCE LAMP
12V 5W 		8-94124-595-0 02 1 0108- ● ● ● ● ●
220 02.586 SOCKET; CLEARANCE LAMP 8-97167-687-0 02 1 0108- ● ● ● ● ●
221 02.586 TUBE; COVER,CLEARANCE LAMP
02.689 		8-97166-174-0 02 1 0108- ● ● ● ● ●
239 02.575 LAMP; FRT,CLEARANCE & PARKING
HALOGEN HEAD LAMPS MULTI REFLECTOR<7YW> 		8-97249-039-0 01 1 0108- ● ● ● ●
239 02.575 LAMP; FRT,CLEARANCE & PARKING
HALOGEN HEAD LAMPS MULTI REFLECTOR<7YW> 		8-97249-038-0 01 1 0108- ● ● ● ●
239 02.575 LAMP; FRT,CLEARANCE & PARKING
EXC. HALOGEN HEAD LAMPS MULTI REFLECTO R<7YW> 02.585 		8-97111-855-0 01 1 0108- ● ● ● ●
239 02.575 LAMP; FRT,CLEARANCE & PARKING
02.585 		8-97111-855-0 01 1 0108- ●
239 02.575 LAMP; FRT,CLEARANCE & PARKING
EXC. HALOGEN HEAD LAMPS MULTI REFLECTO R<7YW> 02.585 		8-97111-854-0 01 1 0108- ● ● ● ●
239 02.575 LAMP; FRT,CLEARANCE & PARKING
02.585 		8-97111-854-0 01 1 0108- ●
çizim 53391
60 60 68 315 68 67 76 75 19 305 97 99 104 286 224 91 106
BalonParca AdiParca NoAdetTipApplied Date A B C D E
19 02.726 NUT; HEADLAMP
COLOR KEYED BUMPER(S4H) 02.343 (C) M5 FLANGE 		8-97068-819-0 04 1 0108- ● ● ● ● ●
19 02.726 NUT; HEADLAMP
HALOGEN HEAD LAMPS MULTI REFLECTOR<7YW> 04.594 (B) M6 FLANGE 		0-91150-106-0 01 1 0108- ● ● ● ●
19 02.726 NUT; HEADLAMP
EXC. HALOGEN HEAD LAMPS MULTI REFLECTO R<7YW> (A) 		8-94324-115-0 02 1 0108- ● ● ● ●
19 02.726 NUT; HEADLAMP
(A) 		8-94324-115-0 02 1 0108- ●
60 02.585 LAMP ASM; FRT COMB
COLOR KEYED BUMPER(S4H) (B) 		8-97228-271-0 01 1 0108- ● ● ● ● ●
60 02.585 LAMP ASM; FRT COMB
COLOR KEYED BUMPER(S4H) (B) 		8-97228-270-0 01 1 0108- ● ● ● ● ●
60 02.585 LAMP ASM; FRT COMB
EXC. COLOR KEYED BUMPER(S4H) (A) 		8-97228-267-0 01 1 0108- ● ● ● ● ●
60 02.585 LAMP ASM; FRT COMB
EXC. COLOR KEYED BUMPER(S4H) (A) 		8-97228-266-0 01 1 0108- ● ● ● ● ●
67 02.590 GASKET; FRT COMB LAMP
EXC. COLOR KEYED BUMPER(S4H) 		8-94334-881-0 02 1 0108- ● ● ● ● ●
68 08.991 BULB; FRT COMB LAMP
12V 21W 		8-97304-590-0 02 1 0108- ● ● ● ● ●
75 02.587 SCREW; FRT COMB LAMP
EXC. COLOR KEYED BUMPER(S4H) 08.977 		0-91190-435-0 04 1 0108- ● ● ● ● ●
76 02.589 LENS; FRT COMB LAMP
EXC. COLOR KEYED BUMPER(S4H) 		8-97304-592-0 01 1 0108- ● ● ● ● ●
76 02.589 LENS; FRT COMB LAMP
EXC. COLOR KEYED BUMPER(S4H) 		8-97304-591-0 01 1 0108- ● ● ● ● ●
91 08.991 BULB; SIDE TURN SIGNAL
12V 5W 		8-94124-595-0 02 1 0108- ● ● ● ● ●
97 02.895 LAMP UNIT; COMB
COLOR KEYED BUMPER(S4H) 		8-97304-594-0 01 1 0108- ● ● ● ● ●
97 02.895 LAMP UNIT; COMB
COLOR KEYED BUMPER(S4H) 		8-97304-593-0 01 1 0108- ● ● ● ● ●
99 02.585 LAMP; SIDE FLASHER 8-97228-275-0 02 1 0108- ● ● ● ● ●
104 02.587 SCREW; SIDE TURN SIGNAL
06.514 M3X10 TAPPING 		9-07076-310-0 02 1 0108- ● ● ● ● ●
106 02.590 GASKET; SIDE TURN SIGNAL 8-97032-884-0 02 1 0108- ● ● ● ● ●
224 02.575 SOCKET; SIDE FLASHER LAMP 8-97162-068-0 02 1 0108- ● ● ● ● ●
286 02.587 CLIP; SIDE TURN SIGNAL 8-97032-883-0 02 1 0108- ● ● ● ● ●
305 02.596 COVER; FRT COMB LAMP
COLOR KEYED BUMPER(S4H) 		8-97201-881-0 02 1 0108- ● ● ● ● ●
315 02.596 HARNESS; FRT COMB LAMP
COLOR KEYED BUMPER(S4H) 		8-97304-595-0 02 1 0108- ● ● ● ● ●
