◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50920 - TFR/TFS(EUROPE)-RHD ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-60 - SEAT BELT ▶
7-60 — SEAT BELT (#21007) — 76 parça

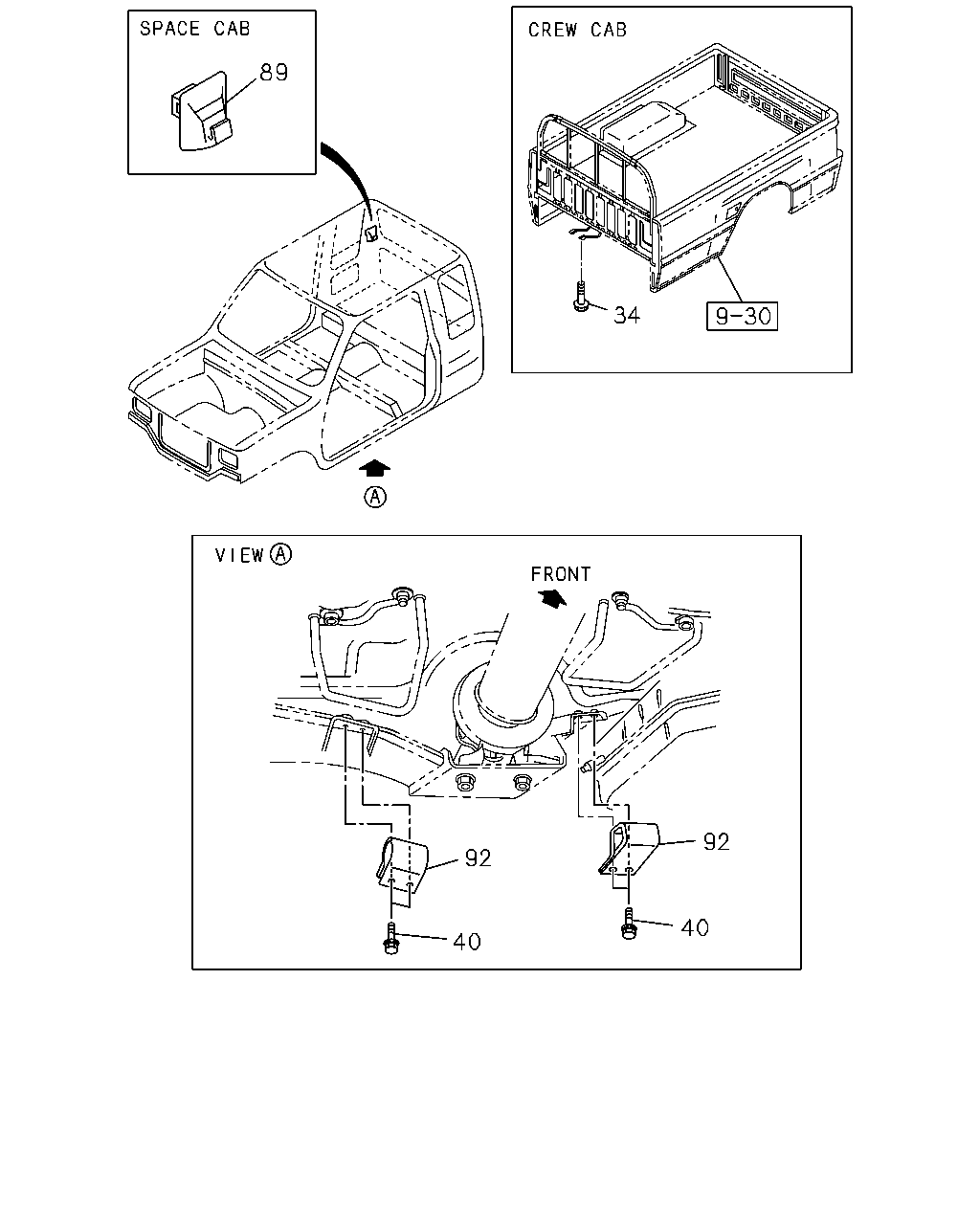

çizim 10438
89 34 92 92 40 40
BalonParca AdiParca NoAdetTipApplied Date A B C D E
34 16.714 BOLT; SEAT BELT ROD
RR BODY DBL WALL CTR PULL(6MW) 		8-94198-549-0 04 1 0108- ● ●
40 16.545 BOLT; BRKT,ANCHOR
M8X30 W/LK&PL WASHER 		8-94320-540-1 04 1 0108-0201 ● ● ● ● ●
40 16.545 BOLT; BRKT,ANCHOR
01.531 M8X25 FLANGE 		0-28080-825-0 04 1 0202- ● ● ● ● ●
89 16.714 HOOK; LATCH PLATE,SEAT BELT
GRAY 		8-97154-708-2 02 1 0108- ●
92 16.714 BRACKET; SEAT BELT ANCHOR 8-94473-965-3 02 1 0108- ● ● ●
92 16.714 BRACKET; SEAT BELT ANCHOR 8-97146-231-0 02 1 0108- ● ●

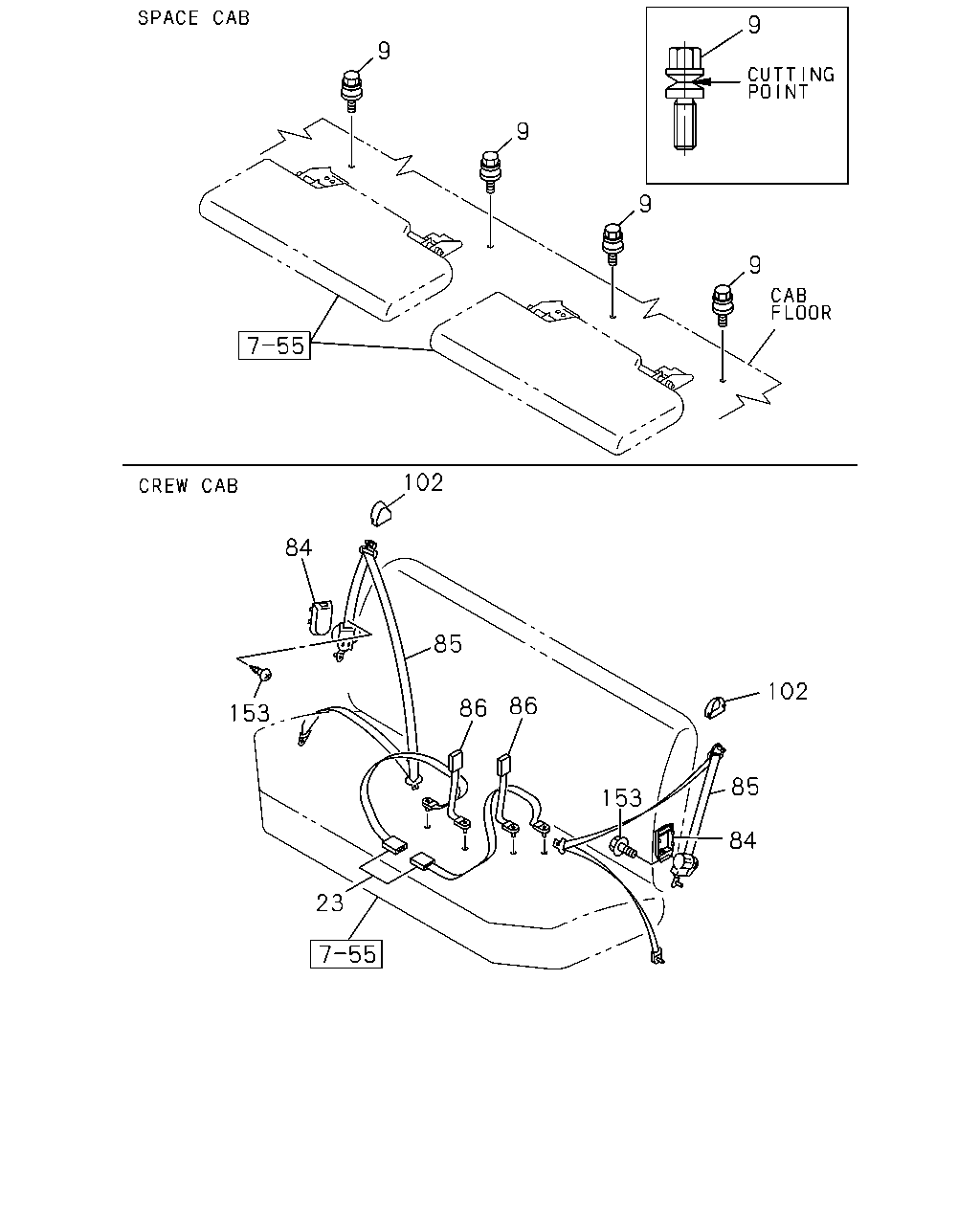

çizim 47488
9 9 9 9 9 102 84 85 102 86 86 153 85 153 84 23
BalonParca AdiParca NoAdetTipApplied Date A B C D E
9 16.714 BOLT; SEAT BELT ANCHOR
EXC. PARKING BRAKE FLOOR<7XW> 		8-97039-649-0 02 1 0108- ● ●
9 16.714 BOLT; SEAT BELT ANCHOR 8-97039-649-0 04 1 0108- ●
23 16.714 BELT; SEAT,CENTER
DARK GRAY 		8-97295-954-0 01 1 0108- ● ●
84 16.714 COVER; RETRACTOR,RR SEAT BELT
GRAY 		8-97153-655-6 02 1 0108- ● ●
85 16.714 BELT; SEAT,RR OUTER
DARK GRAY 		8-97156-089-4 02 1 0108- ● ●
86 16.714 BELT; SEAT,RR INNER
GRAY 		8-97156-090-0 02 1 0108- ● ●
102 16.714 COVER; SHOULDER ANCHOR
GRAY 		8-97154-700-0 02 1 0108- ● ●
153 16.714 SCREW; RETRACTOR
M8X10 		9-03800-810-0 02 1 0108- ● ●

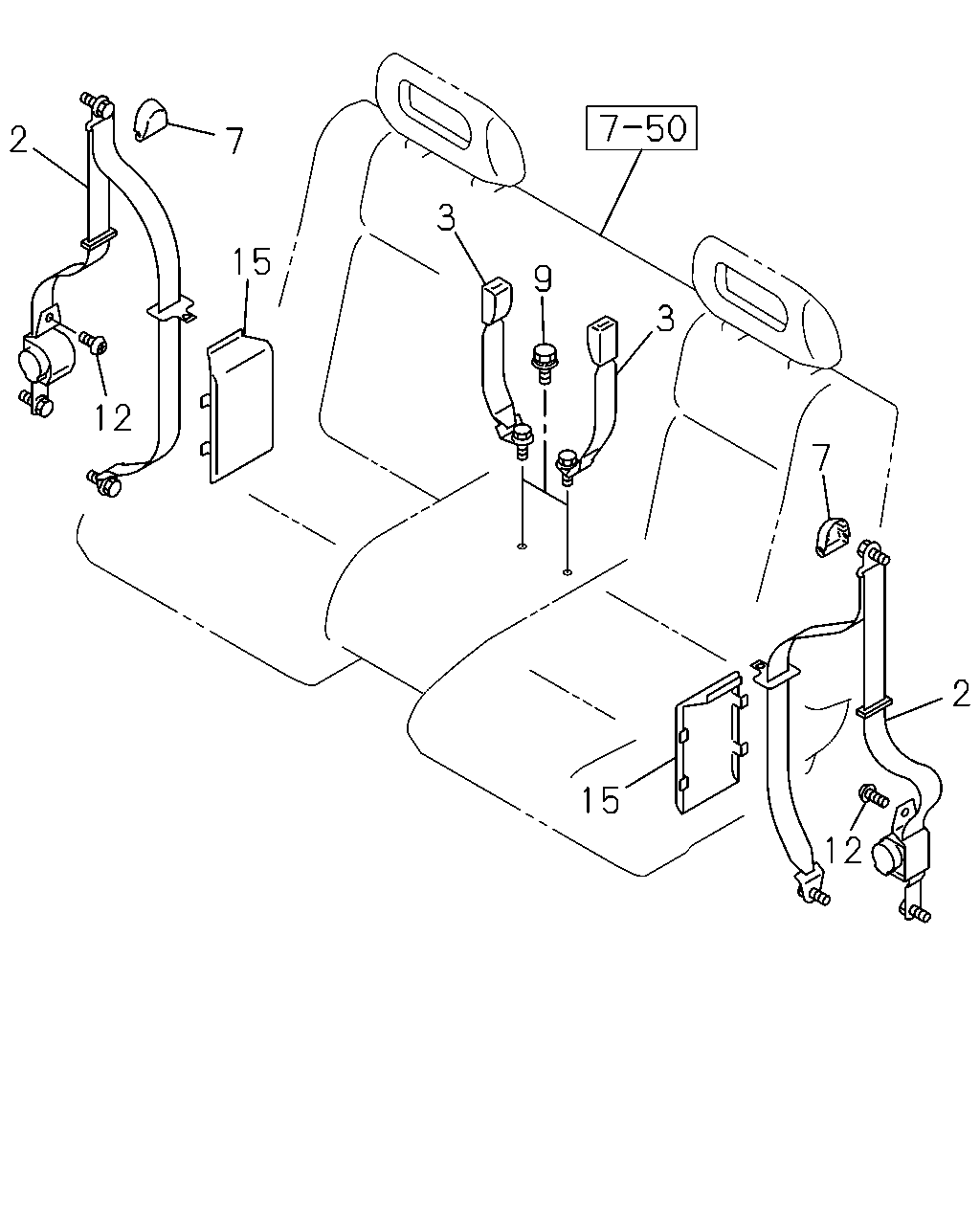

çizim 49978
2 7 3 15 9 3 12 7 2 15 12
BalonParca AdiParca NoAdetTipApplied Date A B C D E
2 16.714 BELT; SEAT,TONGUE SIDE
EXC. BUCKET SEAT W/RECLINING(S3B) DARK GRAY 		8-97156-078-3 02 1 0108- ●
2 16.714 BELT; SEAT,TONGUE SIDE
AIR BAG DRIVER(AJ3) AIR BAG PASSENGER(7FA) DARK GRAY 		8-97199-790-1 02 1 0108- ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
AIR BAG DRIVER(AJ3) EXC. AIR BAG PASSENGER(7FA) DARK GRAY 		8-97199-790-1 01 1 0108- ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
AIR BAG DRIVER(AJ3) EXC. AIR BAG PASSENGER(7FA) DARK GRAY 		8-97156-070-3 01 1 0108- ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
BUCKET SEAT W/RECLINING(S3B) EXC. AIR BAG DRIVER(AJ3) DARK GRAY 		8-97156-070-3 02 1 0108- ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
EXC. BUCKET SEAT W/RECLINING(S3B) DARK GRAY 		8-97156-077-3 02 1 0108- ●
2 16.714 BELT; SEAT,TONGUE SIDE
AIR BAG DRIVER(AJ3) AIR BAG PASSENGER(7FA) DARK GRAY 		8-97199-789-1 02 1 0108- ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
AIR BAG DRIVER(AJ3) EXC. AIR BAG PASSENGER(7FA) DARK GRAY 		8-97199-789-1 01 1 0108- ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
AIR BAG DRIVER(AJ3) EXC. AIR BAG PASSENGER(7FA) DARK GRAY 		8-97156-069-3 01 1 0108- ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
BUCKET SEAT W/RECLINING(S3B) EXC. AIR BAG DRIVER(AJ3) DARK GRAY 		8-97156-069-3 02 1 0108- ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
AIR BAG DRIVER(AJ3) AIR BAG PASSENGER(7FA) DARK GRAY 		8-97199-791-1 02 1 0108- ●
2 16.714 BELT; SEAT,TONGUE SIDE
AIR BAG DRIVER(AJ3) EXC. AIR BAG PASSENGER(7FA) DARK GRAY 		8-97199-791-1 01 1 0108- ●
2 16.714 BELT; SEAT,TONGUE SIDE
AIR BAG DRIVER(AJ3) EXC. AIR BAG PASSENGER(7FA) DARK GRAY 		8-97156-071-4 01 1 0108- ●
2 16.714 BELT; SEAT,TONGUE SIDE
EXC. AIR BAG DRIVER(AJ3) DARK GRAY 		8-97156-071-4 02 1 0108- ●
3 16.714 BELT; SEAT,BUCKLE SIDE
EXC. BUCKET SEAT W/RECLINING(S3B) GRAY 		8-97156-085-1 01 1 0108- ●
3 16.714 BELT; SEAT,BUCKLE SIDE
EXC. BUCKET SEAT W/RECLINING(S3B) GRAY 		8-97156-079-1 01 1 0108- ●
3 16.714 BELT; SEAT,BUCKLE SIDE
AIR BAG DRIVER(AJ3) BUCKET SEAT W/RECLINING(S3B) FLOOR CONSOLE SEPARATE TYPE<7WF>, FLOORCONSOLE ONE PIECE TYPE<7WG> GRAY 		8-97199-878-0 01 1 0108- ● ● ● ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
BUCKET SEAT W/RECLINING(S3B) EXC. AIR BAG DRIVER(AJ3),FLOOR CONSOLESEPARATE TYPE<7WF>,FLOOR CONSOLE ONE PIECE TYPE<7WG> GRAY 		8-97156-081-1 01 1 0108- ● ● ● ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
BUCKET SEAT W/RECLINING(S3B) FLOOR CONSOLE SEPARATE TYPE<7WF>, FLOORCONSOLE ONE PIECE TYPE<7WG> EXC. AIR BAG DRIVER(AJ3) GRAY 		8-97157-996-0 01 1 0108- ● ● ● ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
BUCKET SEAT W/RECLINING(S3B) FLOOR CONSOLE SEPARATE TYPE<7WF>, FLOORCONSOLE ONE PIECE TYPE<7WG> GRAY 		8-97157-997-0 01 1 0108- ● ● ● ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
BUCKET SEAT W/RECLINING(S3B) EXC. FLOOR CONSOLE SEPARATE TYPE<7WF>, FLOOR CONSOLE ONE PIECE TYPE<7WG> GRAY 		8-97156-086-1 01 1 0108- ● ● ● ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
EXC. BUCKET SEAT W/RECLINING(S3B) GRAY 		8-97156-084-1 01 1 0108- ●
3 16.714 BELT; SEAT,BUCKLE SIDE
EXC. BUCKET SEAT W/RECLINING(S3B) GRAY 		8-97156-083-1 01 1 0108- ●
7 16.714 COVER; SHOULDER ANCHOR,FRT SEAT
AIR BAG DRIVER(AJ3) AIR BAG PASSENGER(7FA) GRAY 		8-97152-754-1 02 1 0108- ● ● ● ● ●
7 16.714 COVER; SHOULDER ANCHOR,FRT SEAT
AIR BAG DRIVER(AJ3) EXC. AIR BAG PASSENGER(7FA) GRAY 		8-97152-754-1 01 1 0108- ● ● ● ● ●
7 16.714 COVER; SHOULDER ANCHOR,FRT SEAT
AIR BAG DRIVER(AJ3) EXC. AIR BAG PASSENGER(7FA) GRAY 		8-97154-700-0 01 1 0108- ● ● ● ● ●
7 16.714 COVER; SHOULDER ANCHOR,FRT SEAT
EXC. AIR BAG DRIVER(AJ3) GRAY 		8-97154-700-0 02 1 0108- ● ● ● ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
EXC. PARKING BRAKE FLOOR<7XW> 		8-97039-649-0 02 1 0108- ● ●
9 16.714 BOLT; SEAT BELT ANCHOR 8-97039-649-0 04 1 0108- ●
12 16.714 SCREW; RETRACTOR COVER,SEAT BELT
M8X10 		9-03800-810-0 02 1 0108- ● ● ● ● ●
15 16.714 COVER; DUST,FRT SEAT BELT RETRAC
GRADE S(RBA) GRAY 		8-97154-701-4 02 1 0108- ● ●

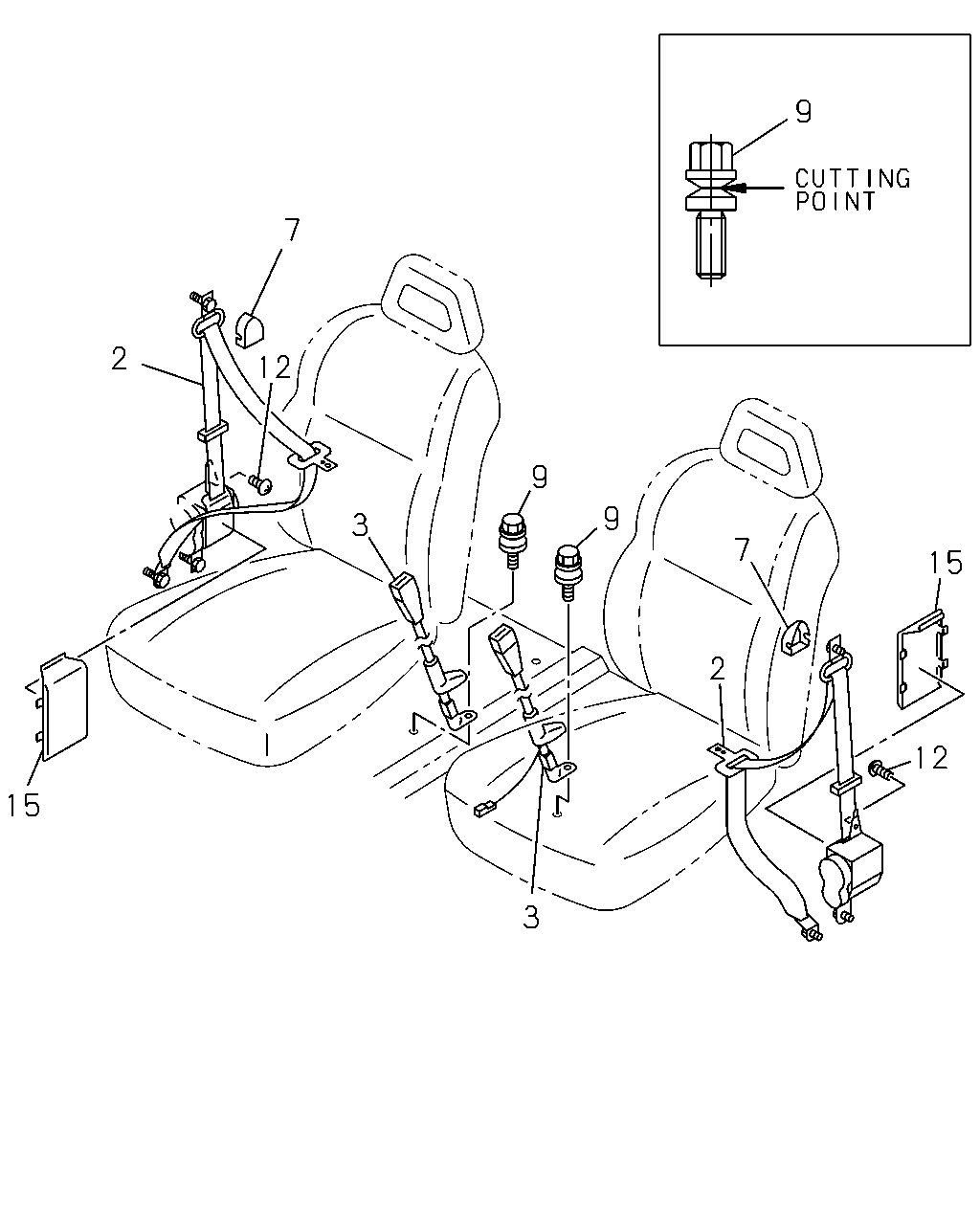

çizim 53413
9 7 2 12 9 9 3 7 15 2 12 15 3
BalonParca AdiParca NoAdetTipApplied Date A B C D E
2 16.714 BELT; SEAT,TONGUE SIDE
EXC. BUCKET SEAT W/RECLINING(S3B) DARK GRAY 		8-97156-078-3 02 1 0108- ●
2 16.714 BELT; SEAT,TONGUE SIDE
AIR BAG DRIVER(AJ3) AIR BAG PASSENGER(7FA) DARK GRAY 		8-97199-790-1 02 1 0108- ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
AIR BAG DRIVER(AJ3) EXC. AIR BAG PASSENGER(7FA) DARK GRAY 		8-97199-790-1 01 1 0108- ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
AIR BAG DRIVER(AJ3) EXC. AIR BAG PASSENGER(7FA) DARK GRAY 		8-97156-070-3 01 1 0108- ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
BUCKET SEAT W/RECLINING(S3B) EXC. AIR BAG DRIVER(AJ3) DARK GRAY 		8-97156-070-3 02 1 0108- ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
EXC. BUCKET SEAT W/RECLINING(S3B) DARK GRAY 		8-97156-077-3 02 1 0108- ●
2 16.714 BELT; SEAT,TONGUE SIDE
AIR BAG DRIVER(AJ3) AIR BAG PASSENGER(7FA) DARK GRAY 		8-97199-789-1 02 1 0108- ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
AIR BAG DRIVER(AJ3) EXC. AIR BAG PASSENGER(7FA) DARK GRAY 		8-97199-789-1 01 1 0108- ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
AIR BAG DRIVER(AJ3) EXC. AIR BAG PASSENGER(7FA) DARK GRAY 		8-97156-069-3 01 1 0108- ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
BUCKET SEAT W/RECLINING(S3B) EXC. AIR BAG DRIVER(AJ3) DARK GRAY 		8-97156-069-3 02 1 0108- ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
AIR BAG DRIVER(AJ3) AIR BAG PASSENGER(7FA) DARK GRAY 		8-97199-791-1 02 1 0108- ●
2 16.714 BELT; SEAT,TONGUE SIDE
AIR BAG DRIVER(AJ3) EXC. AIR BAG PASSENGER(7FA) DARK GRAY 		8-97199-791-1 01 1 0108- ●
2 16.714 BELT; SEAT,TONGUE SIDE
AIR BAG DRIVER(AJ3) EXC. AIR BAG PASSENGER(7FA) DARK GRAY 		8-97156-071-4 01 1 0108- ●
2 16.714 BELT; SEAT,TONGUE SIDE
EXC. AIR BAG DRIVER(AJ3) DARK GRAY 		8-97156-071-4 02 1 0108- ●
3 16.714 BELT; SEAT,BUCKLE SIDE
EXC. BUCKET SEAT W/RECLINING(S3B) GRAY 		8-97156-085-1 01 1 0108- ●
3 16.714 BELT; SEAT,BUCKLE SIDE
EXC. BUCKET SEAT W/RECLINING(S3B) GRAY 		8-97156-079-1 01 1 0108- ●
3 16.714 BELT; SEAT,BUCKLE SIDE
AIR BAG DRIVER(AJ3) BUCKET SEAT W/RECLINING(S3B) FLOOR CONSOLE SEPARATE TYPE<7WF>, FLOORCONSOLE ONE PIECE TYPE<7WG> GRAY 		8-97199-878-0 01 1 0108- ● ● ● ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
BUCKET SEAT W/RECLINING(S3B) EXC. AIR BAG DRIVER(AJ3),FLOOR CONSOLESEPARATE TYPE<7WF>,FLOOR CONSOLE ONE PIECE TYPE<7WG> GRAY 		8-97156-081-1 01 1 0108- ● ● ● ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
BUCKET SEAT W/RECLINING(S3B) FLOOR CONSOLE SEPARATE TYPE<7WF>, FLOORCONSOLE ONE PIECE TYPE<7WG> EXC. AIR BAG DRIVER(AJ3) GRAY 		8-97157-996-0 01 1 0108- ● ● ● ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
BUCKET SEAT W/RECLINING(S3B) FLOOR CONSOLE SEPARATE TYPE<7WF>, FLOORCONSOLE ONE PIECE TYPE<7WG> GRAY 		8-97157-997-0 01 1 0108- ● ● ● ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
BUCKET SEAT W/RECLINING(S3B) EXC. FLOOR CONSOLE SEPARATE TYPE<7WF>, FLOOR CONSOLE ONE PIECE TYPE<7WG> GRAY 		8-97156-086-1 01 1 0108- ● ● ● ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
EXC. BUCKET SEAT W/RECLINING(S3B) GRAY 		8-97156-084-1 01 1 0108- ●
3 16.714 BELT; SEAT,BUCKLE SIDE
EXC. BUCKET SEAT W/RECLINING(S3B) GRAY 		8-97156-083-1 01 1 0108- ●
7 16.714 COVER; SHOULDER ANCHOR,FRT SEAT
AIR BAG DRIVER(AJ3) AIR BAG PASSENGER(7FA) GRAY 		8-97152-754-1 02 1 0108- ● ● ● ● ●
7 16.714 COVER; SHOULDER ANCHOR,FRT SEAT
AIR BAG DRIVER(AJ3) EXC. AIR BAG PASSENGER(7FA) GRAY 		8-97152-754-1 01 1 0108- ● ● ● ● ●
7 16.714 COVER; SHOULDER ANCHOR,FRT SEAT
AIR BAG DRIVER(AJ3) EXC. AIR BAG PASSENGER(7FA) GRAY 		8-97154-700-0 01 1 0108- ● ● ● ● ●
7 16.714 COVER; SHOULDER ANCHOR,FRT SEAT
EXC. AIR BAG DRIVER(AJ3) GRAY 		8-97154-700-0 02 1 0108- ● ● ● ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
EXC. PARKING BRAKE FLOOR<7XW> 		8-97039-649-0 02 1 0108- ● ●
9 16.714 BOLT; SEAT BELT ANCHOR 8-97039-649-0 04 1 0108- ●
12 16.714 SCREW; RETRACTOR COVER,SEAT BELT
M8X10 		9-03800-810-0 02 1 0108- ● ● ● ● ●
15 16.714 COVER; DUST,FRT SEAT BELT RETRAC
GRADE S(RBA) GRAY 		8-97154-701-4 02 1 0108- ● ●
