7-55 — REAR SEAT (#21006) — 28 parça

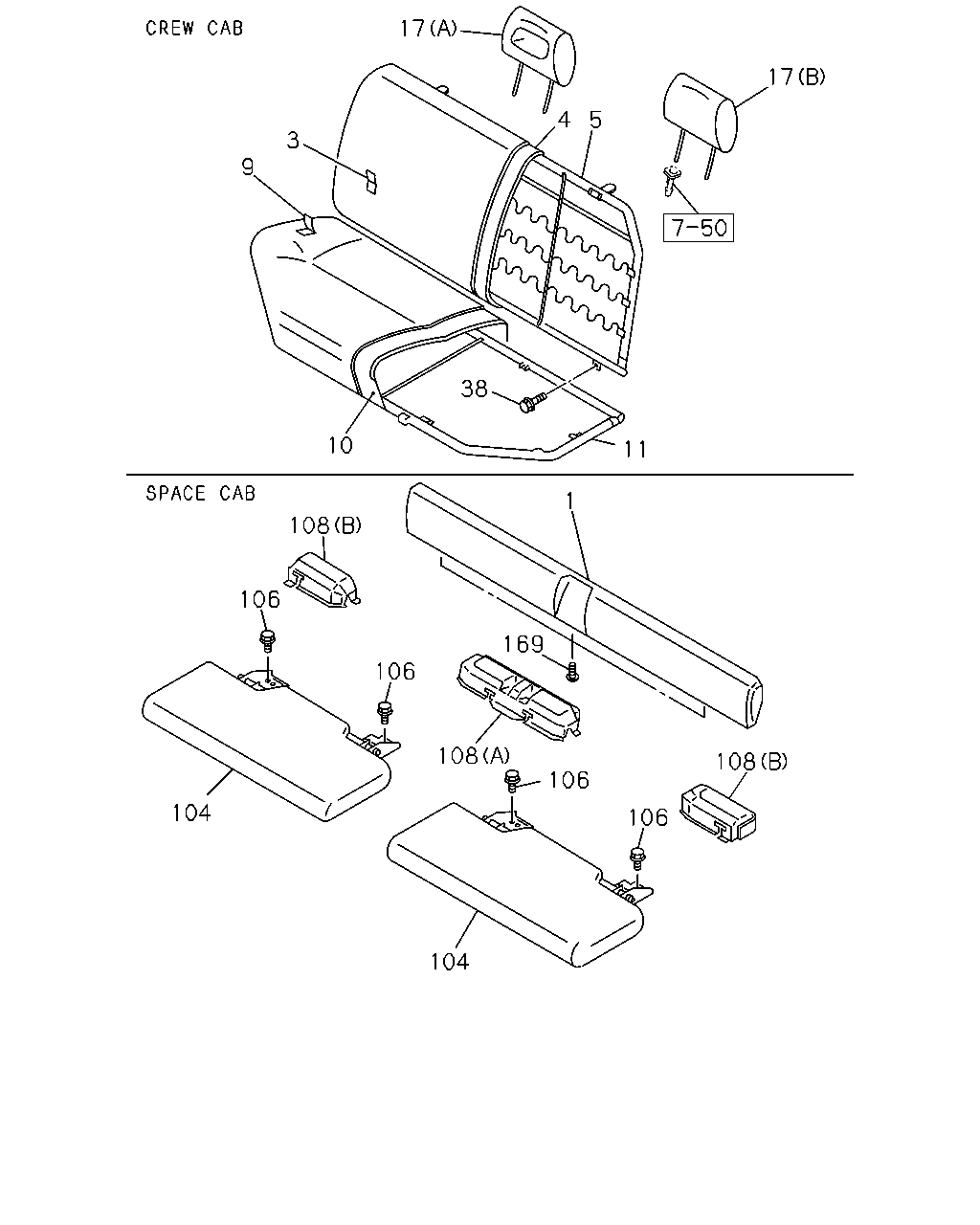

çizim 53524
17 17 4 5 3 9 38 10 11 1 108 106 169 106 108 108 106 104 106 104
BalonParca AdiParca NoAdetTipApplied Date A B
1 16.720 BACK ASM; RR SEAT
SPACE CAB(TF**C*) JUMP SEAT<AJ2> GRAY 		8-97159-993-0 01 1 0108- ● ●
3 16.714 COVER; TRIM,RR SEAT BACK
4X2 CREW CAB(TFB*W*) BUCKET SEAT W/RECLINING(S3B),BENCH SEAT W/HEAD REST MOQUETTE FABRIC(6SC) GRAY 		8-97297-125-1 01 1 0108- ●
3 16.714 COVER; TRIM,RR SEAT BACK
4X4 CREW CAB(TFS*W*) BUCKET SEAT W/RECLINING(S3B) GRAY 		8-97297-125-1 01 1 0108- ●
3 16.714 COVER; TRIM,RR SEAT BACK
CREW CAB(TF**W*) BUCKET SEAT W/RECLINING(S3B) GRAY 		8-97297-125-1 01 1 0108- ●
4 16.720 PAD; RR,SEAT BACK
4X2 CREW CAB(TFB*W*) BUCKET SEAT W/RECLINING(S3B),BENCH SEAT W/HEAD REST MOQUETTE FABRIC(6SC) 		8-94473-477-3 01 1 0108- ●
4 16.720 PAD; RR,SEAT BACK
4X4 CREW CAB(TFS*W*) BUCKET SEAT W/RECLINING(S3B) 		8-94473-477-3 01 1 0108- ●
4 16.720 PAD; RR,SEAT BACK
CREW CAB(TF**W*) BUCKET SEAT W/RECLINING(S3B) 		8-94473-477-3 01 1 0108- ●
5 16.720 FRAME ASM; RR SEAT BACK
4X2 CREW CAB(TFB*W*) BUCKET SEAT W/RECLINING(S3B),BENCH SEAT W/HEAD REST MOQUETTE FABRIC(6SC) 		8-97137-928-1 01 1 0108- ●
5 16.720 FRAME ASM; RR SEAT BACK
4X4 CREW CAB(TFS*W*) BUCKET SEAT W/RECLINING(S3B) 		8-97137-928-1 01 1 0108- ●
5 16.720 FRAME ASM; RR SEAT BACK
CREW CAB(TF**W*) BUCKET SEAT W/RECLINING(S3B) 		8-97137-928-1 01 1 0108- ●
9 16.717 COVER ASM; TRIM,RR,CUSHION
4X2 CREW CAB(TFB*W*) BUCKET SEAT W/RECLINING(S3B),BENCH SEAT W/HEAD REST MOQUETTE FABRIC(6SC) GRAY 		8-97297-121-1 01 1 0108- ●
9 16.717 COVER ASM; TRIM,RR,CUSHION
4X4 CREW CAB(TFS*W*) BUCKET SEAT W/RECLINING(S3B) GRAY 		8-97297-121-1 01 1 0108- ●
9 16.717 COVER ASM; TRIM,RR,CUSHION
CREW CAB(TF**W*) BUCKET SEAT W/RECLINING(S3B) GRAY 		8-97297-121-1 01 1 0108- ●
10 16.716 PAD; CUSHION,RR SEAT
4X2 CREW CAB(TFB*W*) BUCKET SEAT W/RECLINING(S3B),BENCH SEAT W/HEAD REST MOQUETTE FABRIC(6SC) 		8-94473-481-1 01 1 0108- ●
10 16.716 PAD; CUSHION,RR SEAT
4X4 CREW CAB(TFS*W*) BUCKET SEAT W/RECLINING(S3B) 		8-94473-481-1 01 1 0108- ●
10 16.716 PAD; CUSHION,RR SEAT
CREW CAB(TF**W*) BUCKET SEAT W/RECLINING(S3B) 		8-94473-481-1 01 1 0108- ●
11 16.716 FRAME ASM; CUSHION,RR SEAT
4X2 CREW CAB(TFB*W*) BUCKET SEAT W/RECLINING(S3B),BENCH SEAT W/HEAD REST MOQUETTE FABRIC(6SC) 		8-94473-480-1 01 1 0108- ●
11 16.716 FRAME ASM; CUSHION,RR SEAT
4X4 CREW CAB(TFS*W*) BUCKET SEAT W/RECLINING(S3B) 		8-94473-480-1 01 1 0108- ●
11 16.716 FRAME ASM; CUSHION,RR SEAT
CREW CAB(TF**W*) BUCKET SEAT W/RECLINING(S3B) 		8-94473-480-1 01 1 0108- ●
17 16.718 REST; HD,RR SEAT
CREW CAB(TF**W*) BUCKET SEAT W/RECLINING(S3B) (A) GRAY 		8-97156-536-1 02 1 0108- ● ●
17 16.718 REST; HD,RR SEAT
4X2 CREW CAB(TFB*W*) BENCH SEAT W/HEAD REST MOQUETTE FABRIC(6SC) (B) GRAY 		8-97156-535-0 02 1 0108- ● ●
38 16.679 BOLT; SEAT TO FLOOR
CREW CAB(TF**W*) 16.682 M10X25 		8-97178-440-2 04 1 0108- ● ●
104 16.714 SEAT ASM; JUMP
SPACE CAB(TF**C*) JUMP SEAT<AJ2> GRAY 		8-97195-343-0 02 1 0108- ● ●
106 16.682 BOLT; JUMP SEAT
SPACE CAB(TF**C*) M8X25 W/PL WASHER 		8-94175-938-1 08 1 0108- ● ●
108 16.714 COVER; HINGE BRKT
SPACE CAB(TF**C*) JUMP SEAT<AJ2> (A) GRAY 		8-97154-713-3 01 1 0108- ● ●
108 16.714 COVER; HINGE BRKT
SPACE CAB(TF**C*) JUMP SEAT<AJ2> (B) GRAY 		8-97154-712-3 01 1 0108- ● ●
108 16.714 COVER; HINGE BRKT
SPACE CAB(TF**C*) JUMP SEAT<AJ2> (B) GRAY 		8-97154-711-3 01 1 0108- ● ●
169 16.720 SCREW; SEAT BACK
SPACE CAB(TF**C*) JUMP SEAT<AJ2> 16.100 M4X12 TAPPING OVAL-HEAD 		9-09829-312-1 03 1 0108- ● ●
