◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50920 - TFR/TFS(EUROPE)-RHD ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-50 - FRONT SEAT ▶
7-50 — FRONT SEAT (#21005) — 173 parça
çizim 10188
28 28 67 67
BalonParca AdiParca NoAdetTipApplied Date A B
28 16.718 HOLDER; GUIDE,HD REST
4X2 CREW CAB(TFB*W*) BUCKET SEAT W/RECLINING(S3B),BENCH SEAT W/HEAD REST MOQUETTE FABRIC(6SC) (A) GRAY 		8-97152-906-1 04 1 0108- ●
28 16.718 HOLDER; GUIDE,HD REST
4X4 CREW CAB(TFS*W*) BUCKET SEAT W/RECLINING(S3B) (A) GRAY 		8-97152-906-1 04 1 0108- ●
28 16.718 HOLDER; GUIDE,HD REST
CREW CAB(TF**W*) BUCKET SEAT W/RECLINING(S3B) (A) GRAY 		8-97152-906-1 04 1 0108- ●
28 16.718 HOLDER; GUIDE,HD REST
4X2 CREW CAB(TFB*W*) BUCKET SEAT W/RECLINING(S3B),BENCH SEAT W/HEAD REST MOQUETTE FABRIC(6SC) (B) GRAY 		8-97152-907-1 04 1 0108- ●
28 16.718 HOLDER; GUIDE,HD REST
4X4 CREW CAB(TFS*W*) BUCKET SEAT W/RECLINING(S3B) (B) GRAY 		8-97152-907-1 04 1 0108- ●
28 16.718 HOLDER; GUIDE,HD REST
CREW CAB(TF**W*) BUCKET SEAT W/RECLINING(S3B) (B) GRAY 		8-97152-907-1 04 1 0108- ●
28 16.718 HOLDER; GUIDE,HD REST
4X2 SINGLE CAB(TFB*S*) BUCKET SEAT W/RECLINING(S3B),BENCH SEAT W/HEAD REST MOQUETTE FABRIC(6SC) (A) GRAY 		8-97152-906-1 02 1 0108-0208 ● ●
28 16.718 HOLDER; GUIDE,HD REST
4X4 SPACE CAB(TFS5CF) 4X4 SINGLE CAB LONG(TFS5SF) (A) GRAY 		8-97152-906-1 02 1 0108-0208 ● ●
28 16.718 HOLDER; GUIDE,HD REST
4X2 SINGLE CAB(TFB*S*) BENCH SEAT W/HEAD REST MOQUETTE FABRIC(6SC) (A) GRAY 		8-97152-906-1 02 1 0108-0208 ●
28 16.718 HOLDER; GUIDE,HD REST
4X2 SINGLE CAB(TFB*S*) BUCKET SEAT W/RECLINING(S3B),BENCH SEAT W/HEAD REST MOQUETTE FABRIC(6SC) GRAY 		8-97152-906-1 02 1 0209- ● ●
28 16.718 HOLDER; GUIDE,HD REST
4X4 SPACE CAB(TFS5CF) 4X4 SINGLE CAB LONG(TFS5SF) GRAY 		8-97152-906-1 02 1 0209- ● ●
28 16.718 HOLDER; GUIDE,HD REST
4X2 SINGLE CAB(TFB*S*) BUCKET SEAT W/RECLINING(S3B),BENCH SEAT W/HEAD REST MOQUETTE FABRIC(6SC) (B) GRAY 		8-97152-907-1 02 1 0108-0208 ● ●
28 16.718 HOLDER; GUIDE,HD REST
4X4 SPACE CAB(TFS5CF) 4X4 SINGLE CAB LONG(TFS5SF) (B) GRAY 		8-97152-907-1 02 1 0108-0208 ● ●
28 16.718 HOLDER; GUIDE,HD REST
4X2 SINGLE CAB(TFB*S*) BENCH SEAT W/HEAD REST MOQUETTE FABRIC(6SC) (B) GRAY 		8-97152-907-1 02 1 0108-0208 ●
28 16.718 HOLDER; GUIDE,HD REST
4X2 SINGLE CAB(TFB*S*) BUCKET SEAT W/RECLINING(S3B),BENCH SEAT W/HEAD REST MOQUETTE FABRIC(6SC) GRAY 		8-97152-907-1 02 1 0209- ● ●
28 16.718 HOLDER; GUIDE,HD REST
4X4 SPACE CAB(TFS5CF) 4X4 SINGLE CAB LONG(TFS5SF) GRAY 		8-97152-907-1 02 1 0209- ● ●
67 16.682 BOLT; FRT SEAT TO BODY
BUCKET SEAT W/RECLINING(S3B) M10X19 		8-94427-095-2 08 1 0108- ● ●
67 16.682 BOLT; FRT SEAT TO BODY
4X2(TFB***) EXC. BUCKET SEAT W/RECLINING(S3B) M10X19 		8-94427-095-2 04 1 0108- ● ●

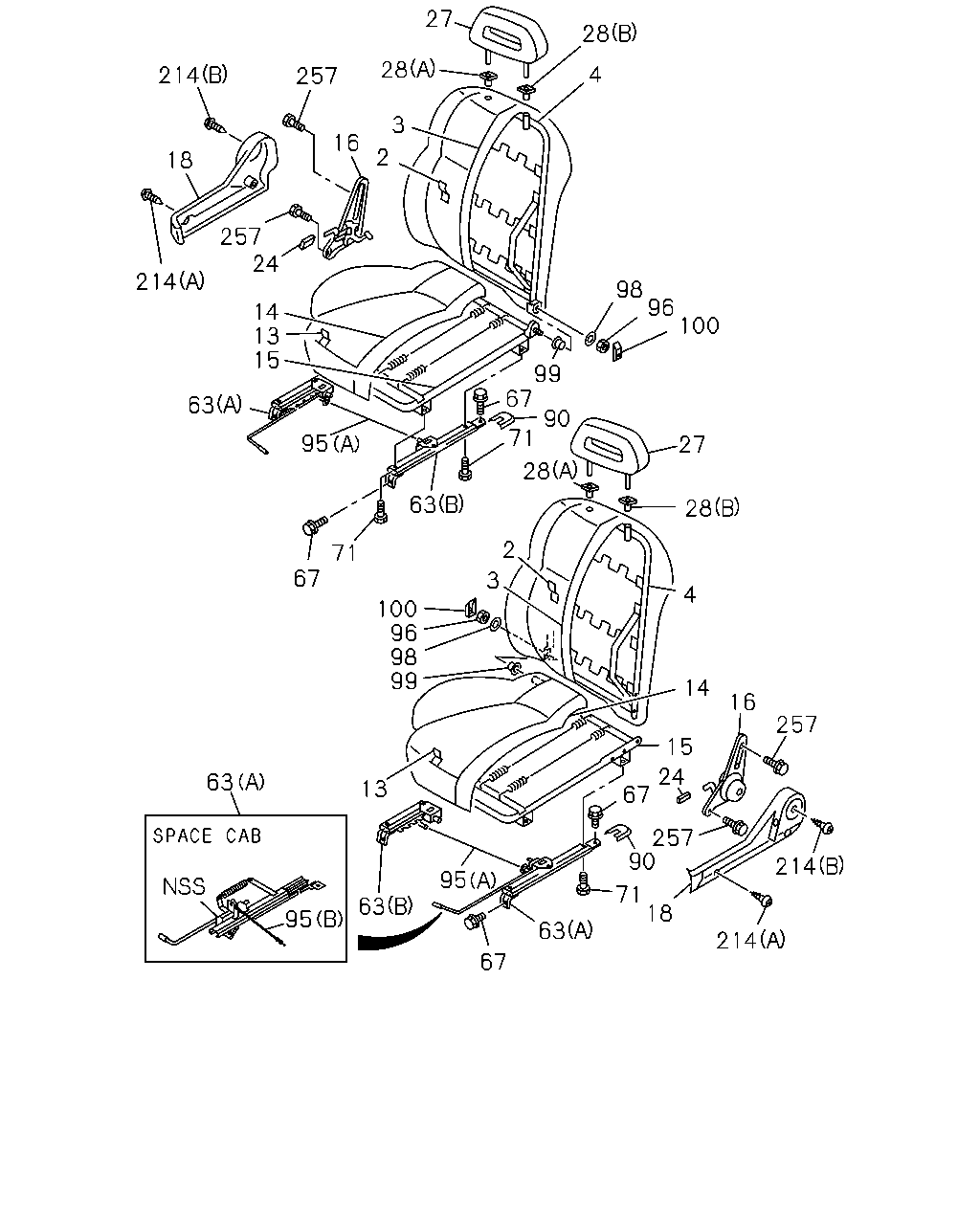

çizim 10190
27 28 28 4 214 257 3 16 2 18 257 24 214 98 96 100 14 13 15 99 67 63 90 71 27 28 63 28 2 71 67 3 4 100 96 98 99 14 16 257 15 24 67 63 13 257 90 214 71 63 18 95 63 214 67 95 95
BalonParca AdiParca NoAdetTipApplied Date A B
2 16.724 COVER; TRIM,FRT SEAT,BACK
BUCKET SEAT W/RECLINING(S3B) GRAY 		8-97297-095-2 01 1 0108- ● ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
CREW CAB(TF**W*) BUCKET SEAT W/RECLINING(S3B) GRAY 		8-97297-096-2 01 1 0108- ● ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
4X2 SINGLE CAB(TFB*S*) BENCH SEAT W/HEAD REST MOQUETTE FABRIC(6SC) GRAY 		8-97297-093-1 01 1 0108- ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
4X2 CREW CAB(TFB*W*) BENCH SEAT W/HEAD REST MOQUETTE FABRIC(6SC) GRAY 		8-97297-099-1 01 1 0108- ● ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
4X2 SINGLE CAB LONG(TFB5SF) 4X4 SPACE CAB(TFS5CF) 4X4 SINGLE CAB LONG(TFS5SF) BUCKET SEAT W/RECLINING(S3B) GRAY 		8-97297-094-2 01 1 0108- ● ●
3 16.720 PAD; FRT SEAT BACK
BUCKET SEAT W/RECLINING(S3B) 		8-94328-161-2 02 1 0108- ● ●
4 16.720 FRAME ASM; FRT SEAT
BUCKET SEAT W/RECLINING(S3B) 		8-94317-775-1 01 1 0108- ● ●
4 16.720 FRAME ASM; FRT SEAT
BUCKET SEAT W/RECLINING(S3B) 		8-94317-774-1 01 1 0108- ● ●
4 16.720 FRAME ASM; FRT SEAT
4X2 SINGLE CAB(TFB*S*) BENCH SEAT W/HEAD REST MOQUETTE FABRIC(6SC) 		8-94441-860-5 01 1 0108- ●
4 16.720 FRAME ASM; FRT SEAT
4X2 CREW CAB(TFB*W*) BENCH SEAT W/HEAD REST MOQUETTE FABRIC(6SC) 		8-97137-726-1 01 1 0108- ● ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
BUCKET SEAT W/RECLINING(S3B) GRAY 		8-97297-087-1 01 1 0108- ● ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
BUCKET SEAT W/RECLINING(S3B) GRAY 		8-97297-086-1 01 1 0108- ● ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
4X2 SINGLE CAB(TFB*S*) BENCH SEAT W/HEAD REST MOQUETTE FABRIC(6SC) GRAY 		8-97297-084-1 01 1 0108- ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
4X2 CREW CAB(TFB*W*) BENCH SEAT W/HEAD REST MOQUETTE FABRIC(6SC) GRAY 		8-97297-090-1 01 1 0108- ● ●
14 16.716 PAD; FRT SEAT CUSHION
BUCKET SEAT W/RECLINING(S3B) 		8-94473-493-4 02 1 0108- ● ●
14 16.716 PAD; FRT SEAT CUSHION
4X2(TFB***) BENCH SEAT W/HEAD REST MOQUETTE FABRIC(6SC) 		8-97137-927-0 01 1 0108- ●
15 16.716 FRAME; CUSHION,FRT SEAT
BUCKET SEAT W/RECLINING(S3B) 		8-94441-871-2 01 1 0108- ● ●
15 16.716 FRAME; CUSHION,FRT SEAT
BUCKET SEAT W/RECLINING(S3B) 		8-94441-872-2 01 1 0108- ● ●
15 16.716 FRAME; CUSHION,FRT SEAT
4X2 SINGLE CAB(TFB*S*) BENCH SEAT W/HEAD REST MOQUETTE FABRIC(6SC) 		8-97039-159-1 01 1 0108- ●
15 16.716 FRAME; CUSHION,FRT SEAT
4X2 CREW CAB(TFB*W*) BENCH SEAT W/HEAD REST MOQUETTE FABRIC(6SC) 		8-97039-162-1 01 1 0108- ● ●
16 16.682 ADJUSTER ASM; RECLINING
SPACE CAB(TF**C*) 		8-94473-670-3 01 1 0108- ● ●
16 16.682 ADJUSTER ASM; RECLINING
SPACE CAB(TF**C*) 		8-94327-319-2 01 1 0108- ● ●
16 16.682 ADJUSTER ASM; RECLINING
4X2 SINGLE CAB LONG(TFB5SF) 4X2 CREW CAB(TFB5WF) 4X4 SINGLE CAB LONG(TFS5SF) 4X4 CREW CAB(TFS5WF) BUCKET SEAT W/RECLINING(S3B) 		8-94473-669-2 01 1 0108- ● ●
16 16.682 ADJUSTER ASM; RECLINING
4X2 SINGLE CAB LONG(TFB5SF) 4X2 CREW CAB(TFB5WF) 4X4 SINGLE CAB LONG(TFS5SF) 4X4 CREW CAB(TFS5WF) BUCKET SEAT W/RECLINING(S3B) 		8-94473-497-2 01 1 0108- ● ●
18 16.682 COVER; RECLINING
BUCKET SEAT W/RECLINING(S3B) GRAY 		8-97152-921-4 01 1 0108- ● ●
18 16.682 COVER; RECLINING
BUCKET SEAT W/RECLINING(S3B) GRAY 		8-97152-913-4 01 1 0108- ● ●
24 16.682 KNOB; RECLINING,FRT,SEAT
BUCKET SEAT W/RECLINING(S3B) GRAY 		8-97152-920-0 01 1 0108- ● ●
24 16.682 KNOB; RECLINING,FRT,SEAT
BUCKET SEAT W/RECLINING(S3B) GRAY 		8-97152-912-0 01 1 0108- ● ●
27 16.718 REST; HD,FRT SEAT
4X2 SINGLE CAB(TFB*S*) BUCKET SEAT W/RECLINING(S3B),BENCH SEAT W/HEAD REST MOQUETTE FABRIC(6SC) GRAY 		8-97152-911-1 02 1 0108- ●
27 16.718 REST; HD,FRT SEAT
4X2 CREW CAB(TFB5WF) 4X4 SPACE CAB(TFS5CF) 4X4 SINGLE CAB LONG(TFS5SF) 4X4 CREW CAB(TFS5WF) BUCKET SEAT W/RECLINING(S3B) GRAY 		8-97152-911-1 02 1 0108- ●
27 16.718 REST; HD,FRT SEAT
BUCKET SEAT W/RECLINING(S3B) GRAY 		8-97152-911-1 02 1 0108- ●
27 16.718 REST; HD,FRT SEAT
4X2 CREW CAB(TFB*W*) BENCH SEAT W/HEAD REST MOQUETTE FABRIC(6SC) GRAY 		8-97155-404-0 02 1 0108- ●
28 16.718 HOLDER; GUIDE,HD REST
4X2 CREW CAB(TFB*W*) BUCKET SEAT W/RECLINING(S3B),BENCH SEAT W/HEAD REST MOQUETTE FABRIC(6SC) (A) GRAY 		8-97152-906-1 04 1 0108- ●
28 16.718 HOLDER; GUIDE,HD REST
4X4 CREW CAB(TFS*W*) BUCKET SEAT W/RECLINING(S3B) (A) GRAY 		8-97152-906-1 04 1 0108- ●
28 16.718 HOLDER; GUIDE,HD REST
CREW CAB(TF**W*) BUCKET SEAT W/RECLINING(S3B) (A) GRAY 		8-97152-906-1 04 1 0108- ●
28 16.718 HOLDER; GUIDE,HD REST
4X2 CREW CAB(TFB*W*) BUCKET SEAT W/RECLINING(S3B),BENCH SEAT W/HEAD REST MOQUETTE FABRIC(6SC) (B) GRAY 		8-97152-907-1 04 1 0108- ●
28 16.718 HOLDER; GUIDE,HD REST
4X4 CREW CAB(TFS*W*) BUCKET SEAT W/RECLINING(S3B) (B) GRAY 		8-97152-907-1 04 1 0108- ●
28 16.718 HOLDER; GUIDE,HD REST
CREW CAB(TF**W*) BUCKET SEAT W/RECLINING(S3B) (B) GRAY 		8-97152-907-1 04 1 0108- ●
28 16.718 HOLDER; GUIDE,HD REST
4X2 SINGLE CAB(TFB*S*) BUCKET SEAT W/RECLINING(S3B),BENCH SEAT W/HEAD REST MOQUETTE FABRIC(6SC) (A) GRAY 		8-97152-906-1 02 1 0108-0208 ● ●
28 16.718 HOLDER; GUIDE,HD REST
4X4 SPACE CAB(TFS5CF) 4X4 SINGLE CAB LONG(TFS5SF) (A) GRAY 		8-97152-906-1 02 1 0108-0208 ● ●
28 16.718 HOLDER; GUIDE,HD REST
4X2 SINGLE CAB(TFB*S*) BENCH SEAT W/HEAD REST MOQUETTE FABRIC(6SC) (A) GRAY 		8-97152-906-1 02 1 0108-0208 ●
28 16.718 HOLDER; GUIDE,HD REST
4X2 SINGLE CAB(TFB*S*) BUCKET SEAT W/RECLINING(S3B),BENCH SEAT W/HEAD REST MOQUETTE FABRIC(6SC) GRAY 		8-97152-906-1 02 1 0209- ● ●
28 16.718 HOLDER; GUIDE,HD REST
4X4 SPACE CAB(TFS5CF) 4X4 SINGLE CAB LONG(TFS5SF) GRAY 		8-97152-906-1 02 1 0209- ● ●
28 16.718 HOLDER; GUIDE,HD REST
4X2 SINGLE CAB(TFB*S*) BUCKET SEAT W/RECLINING(S3B),BENCH SEAT W/HEAD REST MOQUETTE FABRIC(6SC) (B) GRAY 		8-97152-907-1 02 1 0108-0208 ● ●
28 16.718 HOLDER; GUIDE,HD REST
4X4 SPACE CAB(TFS5CF) 4X4 SINGLE CAB LONG(TFS5SF) (B) GRAY 		8-97152-907-1 02 1 0108-0208 ● ●
28 16.718 HOLDER; GUIDE,HD REST
4X2 SINGLE CAB(TFB*S*) BENCH SEAT W/HEAD REST MOQUETTE FABRIC(6SC) (B) GRAY 		8-97152-907-1 02 1 0108-0208 ●
28 16.718 HOLDER; GUIDE,HD REST
4X2 SINGLE CAB(TFB*S*) BUCKET SEAT W/RECLINING(S3B),BENCH SEAT W/HEAD REST MOQUETTE FABRIC(6SC) GRAY 		8-97152-907-1 02 1 0209- ● ●
28 16.718 HOLDER; GUIDE,HD REST
4X4 SPACE CAB(TFS5CF) 4X4 SINGLE CAB LONG(TFS5SF) GRAY 		8-97152-907-1 02 1 0209- ● ●
63 16.682 ADJUSTER; SEAT SLIDE
SPACE CAB(TF**C*) (B) 		8-97127-471-1 01 1 0108- ● ●
63 16.682 ADJUSTER; SEAT SLIDE
SPACE CAB(TF**C*) (A) 		8-97127-472-1 01 1 0108- ● ●
63 16.682 ADJUSTER; SEAT SLIDE
SPACE CAB(TF**C*) (B) 		8-97127-470-1 01 1 0108- ● ●
63 16.682 ADJUSTER; SEAT SLIDE
SPACE CAB(TF**C*) (A) 		8-97127-473-1 01 1 0108- ● ●
63 16.682 ADJUSTER; SEAT SLIDE
4X2(TFB***) BENCH SEAT W/HEAD REST MOQUETTE FABRIC(6SC) (B) 		8-97130-689-0 01 1 0108-0208 ●
63 16.682 ADJUSTER; SEAT SLIDE
4X2(TFB***) BENCH SEAT W/HEAD REST MOQUETTE FABRIC(6SC) 		8-97130-689-0 01 1 0209- ●
63 16.682 ADJUSTER; SEAT SLIDE
4X2(TFB***) BENCH SEAT W/HEAD REST MOQUETTE FABRIC(6SC) (A) 		8-97130-691-0 01 1 0108-0208 ●
63 16.682 ADJUSTER; SEAT SLIDE
4X2(TFB***) BENCH SEAT W/HEAD REST MOQUETTE FABRIC(6SC) 		8-97130-691-0 01 1 0209- ●
63 16.682 ADJUSTER; SEAT SLIDE
4X2 SINGLE CAB LONG(TFB5SF) 4X2 CREW CAB(TFB5WF) 4X4 SINGLE CAB LONG(TFS5SF) 4X4 CREW CAB(TFS5WF) BUCKET SEAT W/RECLINING(S3B) (B) 		8-97128-280-0 01 1 0108- ● ●
63 16.682 ADJUSTER; SEAT SLIDE
4X2 SINGLE CAB LONG(TFB5SF) 4X2 CREW CAB(TFB5WF) 4X4 SINGLE CAB LONG(TFS5SF) 4X4 CREW CAB(TFS5WF) BUCKET SEAT W/RECLINING(S3B) (A) 		8-97128-282-0 01 1 0108- ● ●
63 16.682 ADJUSTER; SEAT SLIDE
4X2 SINGLE CAB LONG(TFB5SF) 4X2 CREW CAB(TFB5WF) 4X4 SINGLE CAB LONG(TFS5SF) 4X4 CREW CAB(TFS5WF) BUCKET SEAT W/RECLINING(S3B) (B) 		8-97128-279-0 01 1 0108- ● ●
63 16.682 ADJUSTER; SEAT SLIDE
4X2 SINGLE CAB LONG(TFB5SF) 4X2 CREW CAB(TFB5WF) 4X4 SINGLE CAB LONG(TFS5SF) 4X4 CREW CAB(TFS5WF) BUCKET SEAT W/RECLINING(S3B) (A) 		8-97128-281-0 01 1 0108- ● ●
67 16.682 BOLT; FRT SEAT TO BODY
BUCKET SEAT W/RECLINING(S3B) M10X19 		8-94427-095-2 08 1 0108- ● ●
67 16.682 BOLT; FRT SEAT TO BODY
4X2(TFB***) EXC. BUCKET SEAT W/RECLINING(S3B) M10X19 		8-94427-095-2 04 1 0108- ● ●
71 16.682 BOLT; ADJ TO SEAT
BUCKET SEAT W/RECLINING(S3B) 11.377 M8X22 W/LK WASHER 		8-94171-739-0 08 1 0108- ● ●
71 16.682 BOLT; ADJ TO SEAT
4X2(TFB***) BENCH SEAT W/HEAD REST MOQUETTE FABRIC(6SC) 11.377 M8X22 W/LK WASHER 		8-94171-739-0 04 1 0108- ●
90 16.682 COVER; SEAT ADJ BRKT
4X2 CREW CAB(TFB*W*) BUCKET SEAT W/RECLINING(S3B) 16.714 GRAY 		8-97150-709-2 04 1 0108- ● ●
90 16.682 COVER; SEAT ADJ BRKT
4X4 SPACE CAB(TFS5CF) 4X4 CREW CAB(TFS5WF) 16.714 GRAY 		8-97150-709-2 04 1 0108- ● ●
90 16.682 COVER; SEAT ADJ BRKT
4X2 CREW CAB(TFB*W*) EXC. BUCKET SEAT W/RECLINING(S3B) 16.714 GRAY 		8-97150-709-2 02 1 0108- ● ●
95 16.682 WIRE; EXT,SEAT ADJ
BUCKET SEAT W/RECLINING(S3B) (A) 		8-94473-502-0 02 1 0108- ● ●
95 16.682 WIRE; EXT,SEAT ADJ
SPACE CAB(TF**C*) (B) 		8-97041-949-0 01 1 0108- ● ●
95 16.682 WIRE; EXT,SEAT ADJ
SPACE CAB(TF**C*) (B) 		8-97041-948-0 01 1 0108- ● ●
95 16.682 WIRE; EXT,SEAT ADJ
4X2(TFB***) BENCH SEAT W/HEAD REST MOQUETTE FABRIC(6SC) (C) 		8-94473-469-2 01 1 0108- ●
96 16.716 NUT; LK,HINGE
BUCKET SEAT W/RECLINING(S3B) 11.377 M8 FLANGE 		8-94152-886-0 02 1 0108- ● ●
98 16.716 WASHER; HINGE
BUCKET SEAT W/RECLINING(S3B) 11.377 ID=8.4 OD=20 		8-94408-413-0 02 1 0108- ● ●
99 16.716 BUSHING; SEAT BACK
BUCKET SEAT W/RECLINING(S3B) 11.377 		8-94408-414-0 02 1 0108- ● ●
100 16.686 COVER; HINGE
BUCKET SEAT W/RECLINING(S3B) GRAY 		8-97152-914-1 02 1 0108- ● ●
100 16.686 COVER; HINGE
4X2(TFB***) BENCH SEAT W/HEAD REST MOQUETTE FABRIC(6SC) GRAY 		8-97156-062-1 01 1 0108-0208 ●
100 16.686 COVER; HINGE
4X2(TFB***) BENCH SEAT W/HEAD REST MOQUETTE FABRIC(6SC) GRAY 		8-97156-062-1 01 1 0209- ●
100 16.686 COVER; HINGE
4X2(TFB***) BENCH SEAT W/HEAD REST MOQUETTE FABRIC(6SC) GRAY 		8-97156-061-1 01 1 0108-0208 ●
100 16.686 COVER; HINGE
4X2(TFB***) BENCH SEAT W/HEAD REST MOQUETTE FABRIC(6SC) GRAY 		8-97156-061-1 01 1 0209- ●
214 16.682 SCREW; SIDE COVER
BUCKET SEAT W/RECLINING(S3B) 16.802 (A) M5X16 TAPPING W/PL WASHER 		0-74310-516-0 04 1 0108- ● ●
214 16.682 SCREW; SIDE COVER
BUCKET SEAT W/RECLINING(S3B) (B) 		8-94478-733-0 02 1 0108- ● ●
257 16.682 BOLT; RECLINING DEVICE
BUCKET SEAT W/RECLINING(S3B) M10X20 W/LK WASHER 		8-94317-654-0 08 1 0108- ● ●

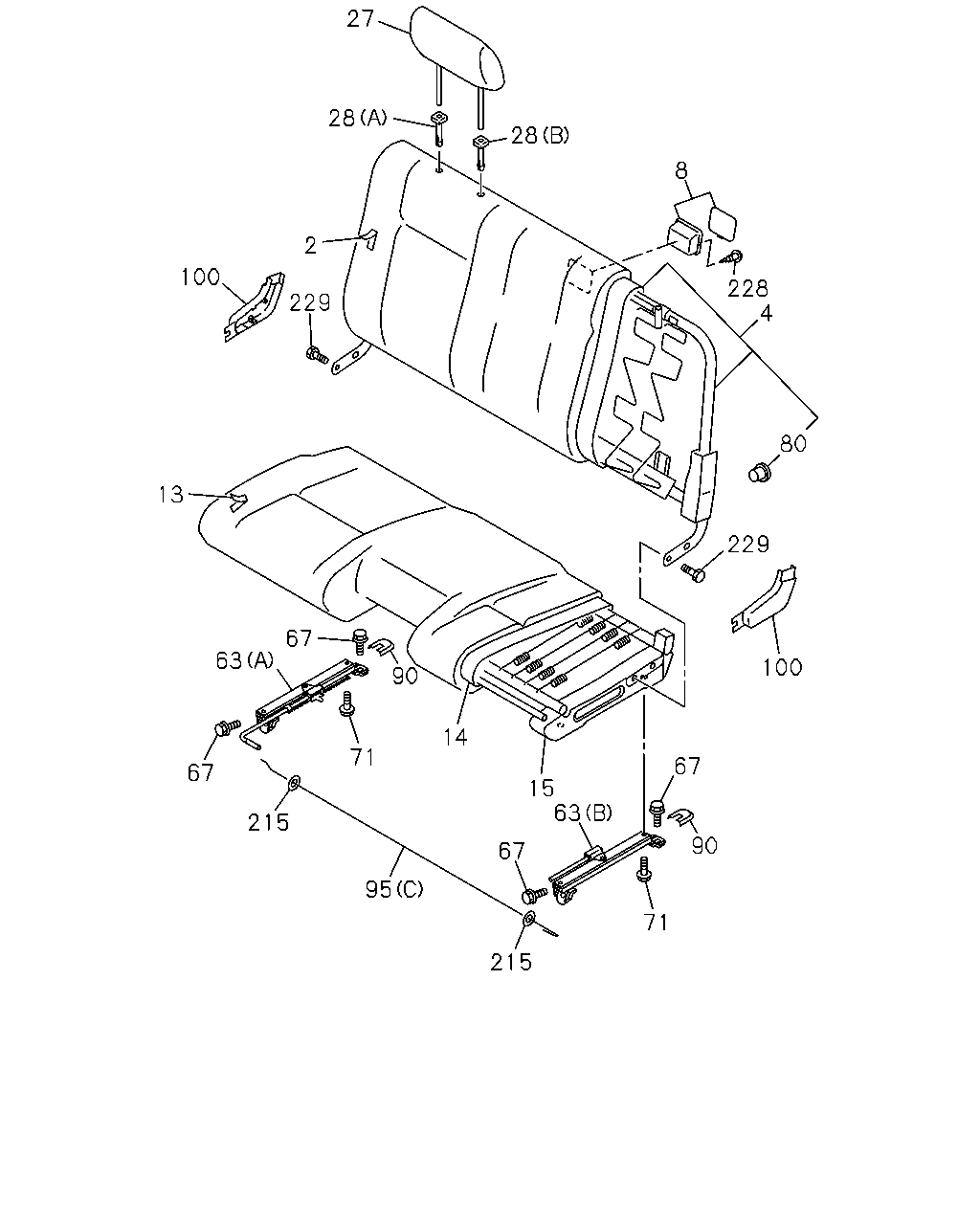

çizim 53203
27 28 28 8 2 100 228 4 229 80 13 229 67 63 100 90 14 71 67 67 15 63 215 90 67 95 71 215
BalonParca AdiParca NoAdetTipApplied Date A B
2 16.724 COVER; TRIM,FRT SEAT,BACK
BUCKET SEAT W/RECLINING(S3B) GRAY 		8-97297-095-2 01 1 0108- ● ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
CREW CAB(TF**W*) BUCKET SEAT W/RECLINING(S3B) GRAY 		8-97297-096-2 01 1 0108- ● ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
4X2 SINGLE CAB(TFB*S*) BENCH SEAT W/HEAD REST MOQUETTE FABRIC(6SC) GRAY 		8-97297-093-1 01 1 0108- ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
4X2 CREW CAB(TFB*W*) BENCH SEAT W/HEAD REST MOQUETTE FABRIC(6SC) GRAY 		8-97297-099-1 01 1 0108- ● ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
4X2 SINGLE CAB LONG(TFB5SF) 4X4 SPACE CAB(TFS5CF) 4X4 SINGLE CAB LONG(TFS5SF) BUCKET SEAT W/RECLINING(S3B) GRAY 		8-97297-094-2 01 1 0108- ● ●
4 16.720 FRAME ASM; FRT SEAT
BUCKET SEAT W/RECLINING(S3B) 		8-94317-775-1 01 1 0108- ● ●
4 16.720 FRAME ASM; FRT SEAT
BUCKET SEAT W/RECLINING(S3B) 		8-94317-774-1 01 1 0108- ● ●
4 16.720 FRAME ASM; FRT SEAT
4X2 SINGLE CAB(TFB*S*) BENCH SEAT W/HEAD REST MOQUETTE FABRIC(6SC) 		8-94441-860-5 01 1 0108- ●
4 16.720 FRAME ASM; FRT SEAT
4X2 CREW CAB(TFB*W*) BENCH SEAT W/HEAD REST MOQUETTE FABRIC(6SC) 		8-97137-726-1 01 1 0108- ● ●
8 16.120 TRAY ASM; ASH,FRT SEAT
4X2 CREW CAB(TFB*W*) BENCH SEAT W/HEAD REST MOQUETTE FABRIC(6SC) GRAY 		8-97150-683-1 01 1 0108- ● ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
BUCKET SEAT W/RECLINING(S3B) GRAY 		8-97297-087-1 01 1 0108- ● ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
BUCKET SEAT W/RECLINING(S3B) GRAY 		8-97297-086-1 01 1 0108- ● ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
4X2 SINGLE CAB(TFB*S*) BENCH SEAT W/HEAD REST MOQUETTE FABRIC(6SC) GRAY 		8-97297-084-1 01 1 0108- ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
4X2 CREW CAB(TFB*W*) BENCH SEAT W/HEAD REST MOQUETTE FABRIC(6SC) GRAY 		8-97297-090-1 01 1 0108- ● ●
14 16.716 PAD; FRT SEAT CUSHION
BUCKET SEAT W/RECLINING(S3B) 		8-94473-493-4 02 1 0108- ● ●
14 16.716 PAD; FRT SEAT CUSHION
4X2(TFB***) BENCH SEAT W/HEAD REST MOQUETTE FABRIC(6SC) 		8-97137-927-0 01 1 0108- ●
15 16.716 FRAME; CUSHION,FRT SEAT
BUCKET SEAT W/RECLINING(S3B) 		8-94441-871-2 01 1 0108- ● ●
15 16.716 FRAME; CUSHION,FRT SEAT
BUCKET SEAT W/RECLINING(S3B) 		8-94441-872-2 01 1 0108- ● ●
15 16.716 FRAME; CUSHION,FRT SEAT
4X2 SINGLE CAB(TFB*S*) BENCH SEAT W/HEAD REST MOQUETTE FABRIC(6SC) 		8-97039-159-1 01 1 0108- ●
15 16.716 FRAME; CUSHION,FRT SEAT
4X2 CREW CAB(TFB*W*) BENCH SEAT W/HEAD REST MOQUETTE FABRIC(6SC) 		8-97039-162-1 01 1 0108- ● ●
27 16.718 REST; HD,FRT SEAT
4X2 SINGLE CAB(TFB*S*) BUCKET SEAT W/RECLINING(S3B),BENCH SEAT W/HEAD REST MOQUETTE FABRIC(6SC) GRAY 		8-97152-911-1 02 1 0108- ●
27 16.718 REST; HD,FRT SEAT
4X2 CREW CAB(TFB5WF) 4X4 SPACE CAB(TFS5CF) 4X4 SINGLE CAB LONG(TFS5SF) 4X4 CREW CAB(TFS5WF) BUCKET SEAT W/RECLINING(S3B) GRAY 		8-97152-911-1 02 1 0108- ●
27 16.718 REST; HD,FRT SEAT
BUCKET SEAT W/RECLINING(S3B) GRAY 		8-97152-911-1 02 1 0108- ●
27 16.718 REST; HD,FRT SEAT
4X2 CREW CAB(TFB*W*) BENCH SEAT W/HEAD REST MOQUETTE FABRIC(6SC) GRAY 		8-97155-404-0 02 1 0108- ●
28 16.718 HOLDER; GUIDE,HD REST
4X2 CREW CAB(TFB*W*) BUCKET SEAT W/RECLINING(S3B),BENCH SEAT W/HEAD REST MOQUETTE FABRIC(6SC) (A) GRAY 		8-97152-906-1 04 1 0108- ●
28 16.718 HOLDER; GUIDE,HD REST
4X4 CREW CAB(TFS*W*) BUCKET SEAT W/RECLINING(S3B) (A) GRAY 		8-97152-906-1 04 1 0108- ●
28 16.718 HOLDER; GUIDE,HD REST
CREW CAB(TF**W*) BUCKET SEAT W/RECLINING(S3B) (A) GRAY 		8-97152-906-1 04 1 0108- ●
28 16.718 HOLDER; GUIDE,HD REST
4X2 CREW CAB(TFB*W*) BUCKET SEAT W/RECLINING(S3B),BENCH SEAT W/HEAD REST MOQUETTE FABRIC(6SC) (B) GRAY 		8-97152-907-1 04 1 0108- ●
28 16.718 HOLDER; GUIDE,HD REST
4X4 CREW CAB(TFS*W*) BUCKET SEAT W/RECLINING(S3B) (B) GRAY 		8-97152-907-1 04 1 0108- ●
28 16.718 HOLDER; GUIDE,HD REST
CREW CAB(TF**W*) BUCKET SEAT W/RECLINING(S3B) (B) GRAY 		8-97152-907-1 04 1 0108- ●
28 16.718 HOLDER; GUIDE,HD REST
4X2 SINGLE CAB(TFB*S*) BUCKET SEAT W/RECLINING(S3B),BENCH SEAT W/HEAD REST MOQUETTE FABRIC(6SC) (A) GRAY 		8-97152-906-1 02 1 0108-0208 ● ●
28 16.718 HOLDER; GUIDE,HD REST
4X4 SPACE CAB(TFS5CF) 4X4 SINGLE CAB LONG(TFS5SF) (A) GRAY 		8-97152-906-1 02 1 0108-0208 ● ●
28 16.718 HOLDER; GUIDE,HD REST
4X2 SINGLE CAB(TFB*S*) BENCH SEAT W/HEAD REST MOQUETTE FABRIC(6SC) (A) GRAY 		8-97152-906-1 02 1 0108-0208 ●
28 16.718 HOLDER; GUIDE,HD REST
4X2 SINGLE CAB(TFB*S*) BUCKET SEAT W/RECLINING(S3B),BENCH SEAT W/HEAD REST MOQUETTE FABRIC(6SC) GRAY 		8-97152-906-1 02 1 0209- ● ●
28 16.718 HOLDER; GUIDE,HD REST
4X4 SPACE CAB(TFS5CF) 4X4 SINGLE CAB LONG(TFS5SF) GRAY 		8-97152-906-1 02 1 0209- ● ●
28 16.718 HOLDER; GUIDE,HD REST
4X2 SINGLE CAB(TFB*S*) BUCKET SEAT W/RECLINING(S3B),BENCH SEAT W/HEAD REST MOQUETTE FABRIC(6SC) (B) GRAY 		8-97152-907-1 02 1 0108-0208 ● ●
28 16.718 HOLDER; GUIDE,HD REST
4X4 SPACE CAB(TFS5CF) 4X4 SINGLE CAB LONG(TFS5SF) (B) GRAY 		8-97152-907-1 02 1 0108-0208 ● ●
28 16.718 HOLDER; GUIDE,HD REST
4X2 SINGLE CAB(TFB*S*) BENCH SEAT W/HEAD REST MOQUETTE FABRIC(6SC) (B) GRAY 		8-97152-907-1 02 1 0108-0208 ●
28 16.718 HOLDER; GUIDE,HD REST
4X2 SINGLE CAB(TFB*S*) BUCKET SEAT W/RECLINING(S3B),BENCH SEAT W/HEAD REST MOQUETTE FABRIC(6SC) GRAY 		8-97152-907-1 02 1 0209- ● ●
28 16.718 HOLDER; GUIDE,HD REST
4X4 SPACE CAB(TFS5CF) 4X4 SINGLE CAB LONG(TFS5SF) GRAY 		8-97152-907-1 02 1 0209- ● ●
63 16.682 ADJUSTER; SEAT SLIDE
SPACE CAB(TF**C*) (B) 		8-97127-471-1 01 1 0108- ● ●
63 16.682 ADJUSTER; SEAT SLIDE
SPACE CAB(TF**C*) (A) 		8-97127-472-1 01 1 0108- ● ●
63 16.682 ADJUSTER; SEAT SLIDE
SPACE CAB(TF**C*) (B) 		8-97127-470-1 01 1 0108- ● ●
63 16.682 ADJUSTER; SEAT SLIDE
SPACE CAB(TF**C*) (A) 		8-97127-473-1 01 1 0108- ● ●
63 16.682 ADJUSTER; SEAT SLIDE
4X2(TFB***) BENCH SEAT W/HEAD REST MOQUETTE FABRIC(6SC) (B) 		8-97130-689-0 01 1 0108-0208 ●
63 16.682 ADJUSTER; SEAT SLIDE
4X2(TFB***) BENCH SEAT W/HEAD REST MOQUETTE FABRIC(6SC) 		8-97130-689-0 01 1 0209- ●
63 16.682 ADJUSTER; SEAT SLIDE
4X2(TFB***) BENCH SEAT W/HEAD REST MOQUETTE FABRIC(6SC) (A) 		8-97130-691-0 01 1 0108-0208 ●
63 16.682 ADJUSTER; SEAT SLIDE
4X2(TFB***) BENCH SEAT W/HEAD REST MOQUETTE FABRIC(6SC) 		8-97130-691-0 01 1 0209- ●
63 16.682 ADJUSTER; SEAT SLIDE
4X2 SINGLE CAB LONG(TFB5SF) 4X2 CREW CAB(TFB5WF) 4X4 SINGLE CAB LONG(TFS5SF) 4X4 CREW CAB(TFS5WF) BUCKET SEAT W/RECLINING(S3B) (B) 		8-97128-280-0 01 1 0108- ● ●
63 16.682 ADJUSTER; SEAT SLIDE
4X2 SINGLE CAB LONG(TFB5SF) 4X2 CREW CAB(TFB5WF) 4X4 SINGLE CAB LONG(TFS5SF) 4X4 CREW CAB(TFS5WF) BUCKET SEAT W/RECLINING(S3B) (A) 		8-97128-282-0 01 1 0108- ● ●
63 16.682 ADJUSTER; SEAT SLIDE
4X2 SINGLE CAB LONG(TFB5SF) 4X2 CREW CAB(TFB5WF) 4X4 SINGLE CAB LONG(TFS5SF) 4X4 CREW CAB(TFS5WF) BUCKET SEAT W/RECLINING(S3B) (B) 		8-97128-279-0 01 1 0108- ● ●
63 16.682 ADJUSTER; SEAT SLIDE
4X2 SINGLE CAB LONG(TFB5SF) 4X2 CREW CAB(TFB5WF) 4X4 SINGLE CAB LONG(TFS5SF) 4X4 CREW CAB(TFS5WF) BUCKET SEAT W/RECLINING(S3B) (A) 		8-97128-281-0 01 1 0108- ● ●
67 16.682 BOLT; FRT SEAT TO BODY
BUCKET SEAT W/RECLINING(S3B) M10X19 		8-94427-095-2 08 1 0108- ● ●
67 16.682 BOLT; FRT SEAT TO BODY
4X2(TFB***) EXC. BUCKET SEAT W/RECLINING(S3B) M10X19 		8-94427-095-2 04 1 0108- ● ●
71 16.682 BOLT; ADJ TO SEAT
BUCKET SEAT W/RECLINING(S3B) 11.377 M8X22 W/LK WASHER 		8-94171-739-0 08 1 0108- ● ●
71 16.682 BOLT; ADJ TO SEAT
4X2(TFB***) BENCH SEAT W/HEAD REST MOQUETTE FABRIC(6SC) 11.377 M8X22 W/LK WASHER 		8-94171-739-0 04 1 0108- ●
80 16.686 RUBBER; STOPPER
4X2 SINGLE CAB(TFB*S*) BENCH SEAT W/HEAD REST MOQUETTE FABRIC(6SC) 16.715 		8-94388-310-0 02 1 0108- ●
90 16.682 COVER; SEAT ADJ BRKT
4X2 CREW CAB(TFB*W*) BUCKET SEAT W/RECLINING(S3B) 16.714 GRAY 		8-97150-709-2 04 1 0108- ● ●
90 16.682 COVER; SEAT ADJ BRKT
4X4 SPACE CAB(TFS5CF) 4X4 CREW CAB(TFS5WF) 16.714 GRAY 		8-97150-709-2 04 1 0108- ● ●
90 16.682 COVER; SEAT ADJ BRKT
4X2 CREW CAB(TFB*W*) EXC. BUCKET SEAT W/RECLINING(S3B) 16.714 GRAY 		8-97150-709-2 02 1 0108- ● ●
95 16.682 WIRE; EXT,SEAT ADJ
BUCKET SEAT W/RECLINING(S3B) (A) 		8-94473-502-0 02 1 0108- ● ●
95 16.682 WIRE; EXT,SEAT ADJ
SPACE CAB(TF**C*) (B) 		8-97041-949-0 01 1 0108- ● ●
95 16.682 WIRE; EXT,SEAT ADJ
SPACE CAB(TF**C*) (B) 		8-97041-948-0 01 1 0108- ● ●
95 16.682 WIRE; EXT,SEAT ADJ
4X2(TFB***) BENCH SEAT W/HEAD REST MOQUETTE FABRIC(6SC) (C) 		8-94473-469-2 01 1 0108- ●
100 16.686 COVER; HINGE
BUCKET SEAT W/RECLINING(S3B) GRAY 		8-97152-914-1 02 1 0108- ● ●
100 16.686 COVER; HINGE
4X2(TFB***) BENCH SEAT W/HEAD REST MOQUETTE FABRIC(6SC) GRAY 		8-97156-062-1 01 1 0108-0208 ●
100 16.686 COVER; HINGE
4X2(TFB***) BENCH SEAT W/HEAD REST MOQUETTE FABRIC(6SC) GRAY 		8-97156-062-1 01 1 0209- ●
100 16.686 COVER; HINGE
4X2(TFB***) BENCH SEAT W/HEAD REST MOQUETTE FABRIC(6SC) GRAY 		8-97156-061-1 01 1 0108-0208 ●
100 16.686 COVER; HINGE
4X2(TFB***) BENCH SEAT W/HEAD REST MOQUETTE FABRIC(6SC) GRAY 		8-97156-061-1 01 1 0209- ●
215 16.682 WASHER; PL,CONT CABLE
4X2(TFB***) BENCH SEAT W/HEAD REST MOQUETTE FABRIC(6SC) 04.930 ID=4.3 OD=10 		9-09160-604-0 02 1 0108- ●
228 16.714 SCREW; KNOB
4X2 CREW CAB(TFB*W*) BENCH SEAT W/HEAD REST MOQUETTE FABRIC(6SC) 08.977 M4X16 TAPPING OVAL-HEAD 		0-70580-416-0 02 1 0108- ● ●
229 16.716 BOLT; HINGE,FRT SEAT
4X2 SINGLE CAB(TFB*S*) BENCH SEAT W/HEAD REST MOQUETTE FABRIC(6SC) M10X26 		8-94473-683-0 02 1 0108- ●
229 16.716 BOLT; HINGE,FRT SEAT
4X2 CREW CAB(TFB*W*) BENCH SEAT W/HEAD REST MOQUETTE FABRIC(6SC) M10X26 		8-94473-683-0 04 1 0108- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
