7-45 — CONSOLE BOX (#21004) — 101 parça

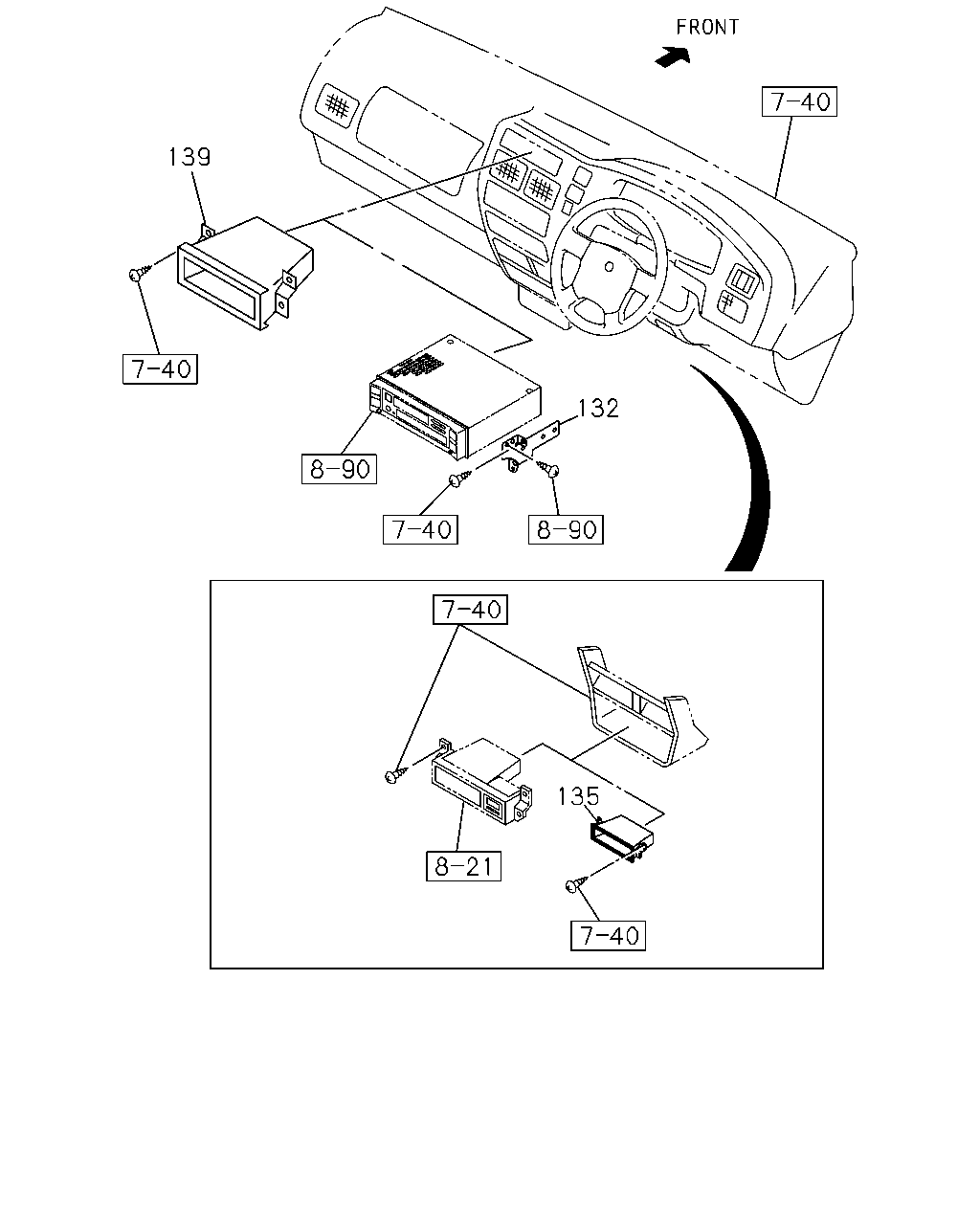

çizim 10074
139 132 135
BalonParca AdiParca NoAdetTipApplied Date A B
132 16.650 BRACKET; AUDIO BOX
AM/FM W/CASSETTE 4 SPEAKERS(UM6),AM/FM ETR 3IN1 W/CASSETTE 4 SPEAKERS(UX4),RADIO AM ASIA/OCEANIA BAND(7AQ),AM/FM W/CASSETTE ALL AREA BAND 2SPEAKERS(7ND) 		8-97107-583-2 01 1 0108- ● ●
132 16.650 BRACKET; AUDIO BOX
AM/FM W/CASSETTE 4 SPEAKERS(UM6),AM/FM ETR 3IN1 W/CASSETTE 4 SPEAKERS(UX4),RADIO AM ASIA/OCEANIA BAND(7AQ),AM/FM W/CASSETTE ALL AREA BAND 2SPEAKERS(7ND) 		8-97107-582-2 01 1 0108- ● ●
135 16.650 BOX; CONSOLE,LWR
4X2 SINGLE CAB LONG(TFB5SF) 4X2 CREW CAB(TFB5WF) 4X4 SINGLE CAB LONG(TFS5SF) 4X4 CREW CAB(TFS5WF) EXC. DIGITAL CLOCK<UE8> 		8-97114-757-0 01 1 0108- ● ●
135 16.650 BOX; CONSOLE,LWR
SPACE CAB(TF**C*) 4JG2 ENG(RJC) EXC. DIGITAL CLOCK<UE8> 		8-97114-757-0 01 1 0108- ● ●
139 16.650 BOX; CONSOLE,UPR
EXC. AM/FM W/CASSETTE 4 SPEAKERS(UM6), AM/FM ETR 3IN1 W/CASSETTE 4 SPEAKERS(UX4), RADIO AM ASIA/OCEANIA BAND(7AQ),AM/FM W/CAS SETTE ALL AREA BAND 2SPEAKERS(7ND),INST PANEL FOR DIN E SIZE AUDIO(7QL) 		8-97114-757-0 01 1 0108- ● ●

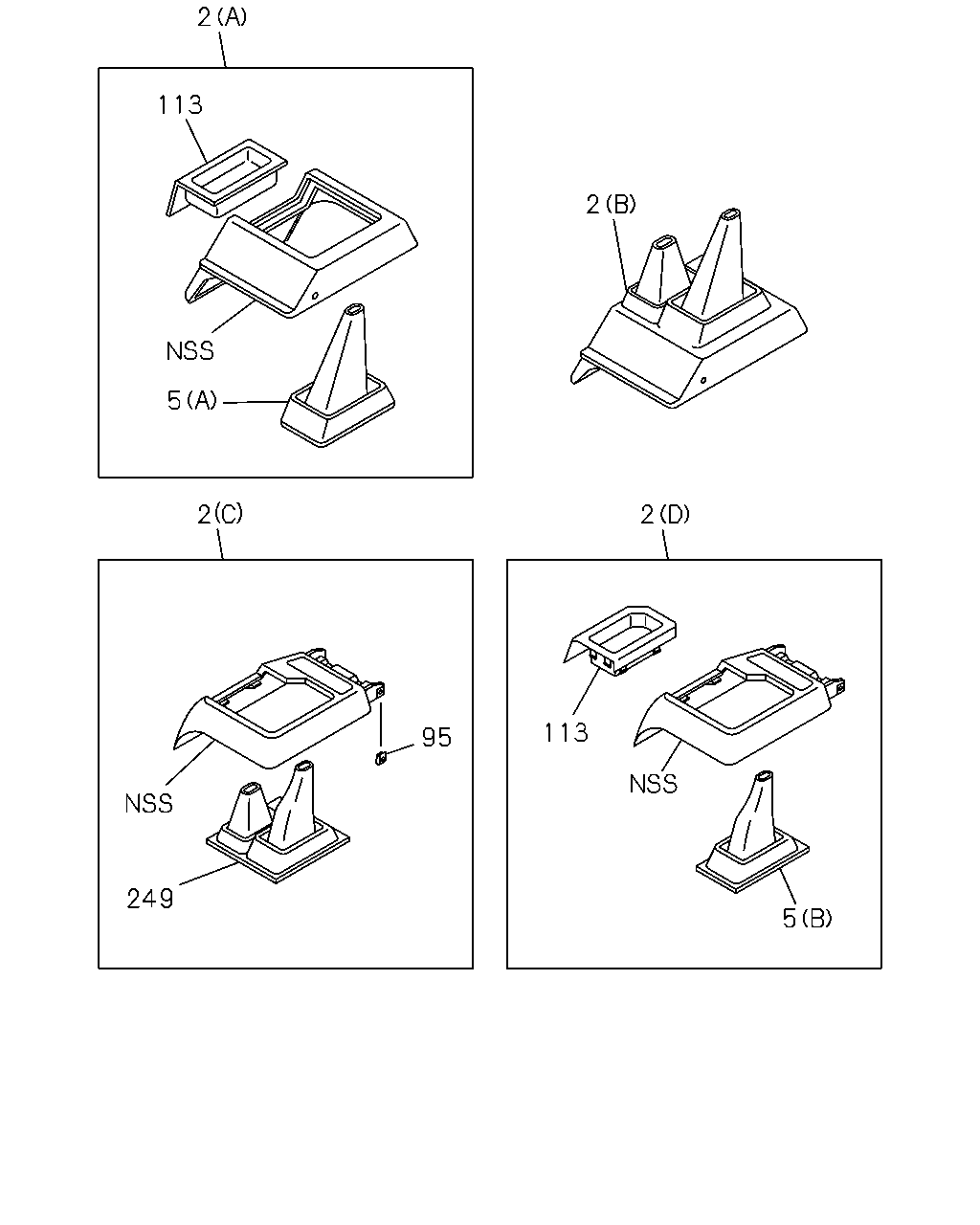

çizim 52872
2 113 2 5 2 2 113 95 249 5
BalonParca AdiParca NoAdetTipApplied Date A B
2 16.081 CONSOLE; CENTER
4X2(TFB***) FLOOR CONSOLE ONE PIECE TYPE<7WG> (D) GRAY 		8-97158-517-0 01 1 0108- ● ●
2 16.081 CONSOLE; CENTER
4X2(TFB***) FRONT CONSOLE<D55>,FLOOR CONSOLE SEPARATETYPE<7WF> (A) GRAY 		8-97156-743-0 01 1 0108- ● ●
2 16.081 CONSOLE; CENTER
4X4(TFS***) FLOOR CONSOLE ONE PIECE TYPE<7WG> (C) GRAY 		8-97155-554-1 01 1 0108- ● ●
2 16.081 CONSOLE; CENTER
4X4(TFS***) FLOOR CONSOLE SEPARATE TYPE<7WF> (B) GRAY 		8-97156-745-0 01 1 0108- ● ●
5 16.650 COVER; SHIFT LEVER
4X2(TFB***) FLOOR CONSOLE ONE PIECE TYPE<7WG> (B) 		8-97162-353-0 01 1 0108- ● ●
5 16.650 COVER; SHIFT LEVER
4X2(TFB***) FRONT CONSOLE<D55>,FLOOR CONSOLE SEPARATETYPE<7WF> (A) 		8-97147-044-0 01 1 0108- ● ●
95 16.650 NUT; SPIRE,RR PNL TO CONSOLE
4X4(TFS***) FLOOR CONSOLE ONE PIECE TYPE<7WG> 09.262 M5 SPIRE NUT 		8-94217-271-0 02 1 0108- ● ●
113 04.015 BOX; CONSOLE
4X2(TFB***) FLOOR CONSOLE ONE PIECE TYPE<7WG> BLACK 		8-97097-007-1 01 1 0108- ● ●
113 04.015 BOX; CONSOLE
4X2(TFB***) FRONT CONSOLE<D55>,FLOOR CONSOLE SEPARATETYPE<7WF> BLACK 		8-94373-417-2 01 1 0108- ● ●
249 16.674 COVER
4X4(TFS***) FLOOR CONSOLE ONE PIECE TYPE<7WG> BLACK 		8-97155-555-1 01 1 0108- ● ●

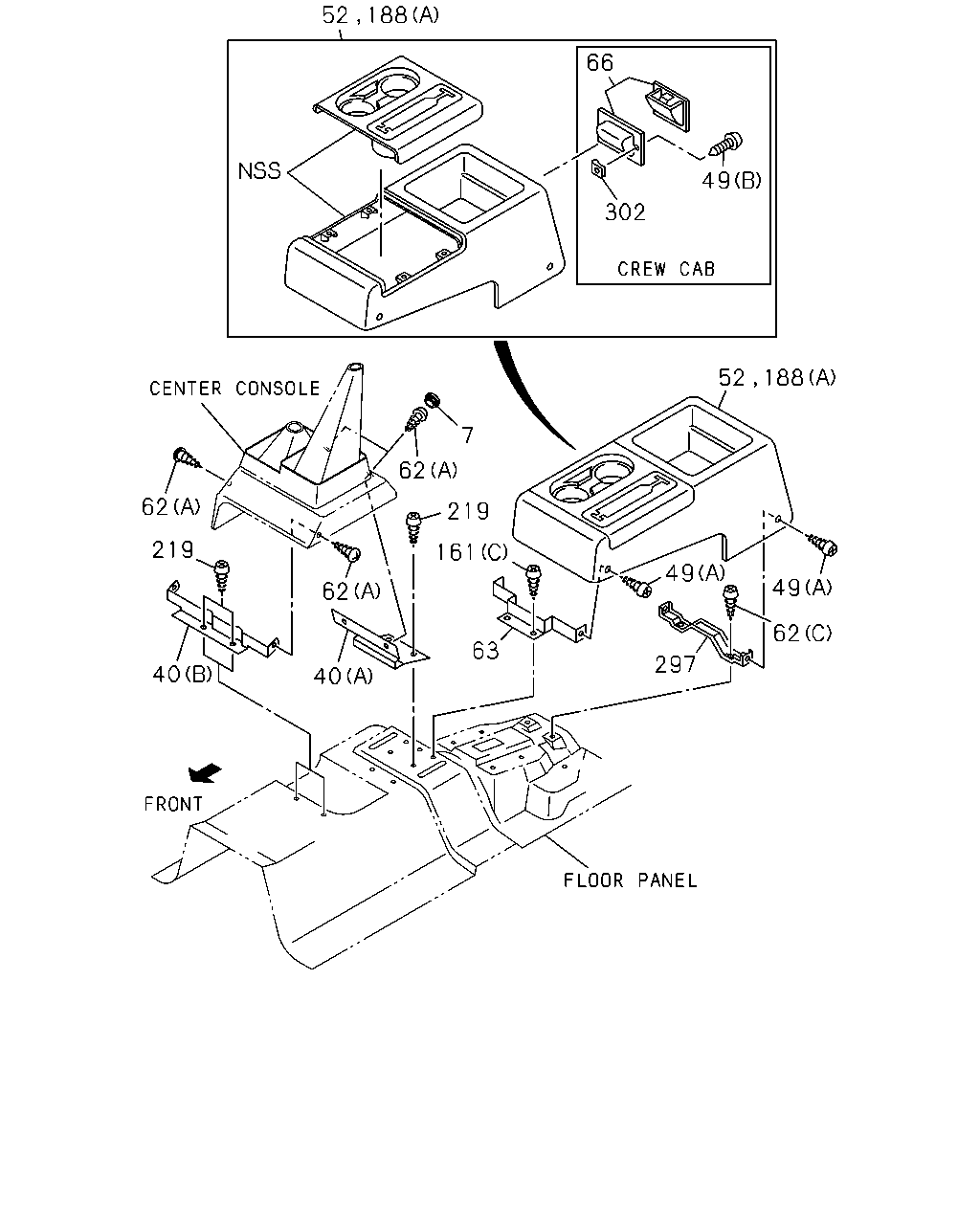

çizim 53202
52 66 49 302 188 7 62 62 219 219 161 49 49 62 62 63 297 40 40 188 52
BalonParca AdiParca NoAdetTipApplied Date A B
7 16.650 COVER; HOLE,FLOOR CONSOLE
4X2(TFB***) FRONT CONSOLE<D55>,FLOOR CONSOLE SEPARATETYPE<7WF> GRAY 		8-97150-582-1 02 1 0108- ● ●
7 16.650 COVER; HOLE,FLOOR CONSOLE
4X4(TFS***) FLOOR CONSOLE SEPARATE TYPE<7WF> GRAY 		8-97150-582-1 02 1 0108- ● ●
40 16.650 BRACKET; SUPPORT,CENTER CONSOLE
FLOOR CONSOLE ONE PIECE TYPE<7WG> (C) 		8-97072-944-1 01 1 0108- ● ●
40 16.650 BRACKET; SUPPORT,CENTER CONSOLE
4X2(TFB***) FRONT CONSOLE<D55>,FLOOR CONSOLE SEPARATETYPE<7WF> (A) 		8-94463-384-1 01 1 0108- ● ●
40 16.650 BRACKET; SUPPORT,CENTER CONSOLE
4X4(TFS***) FLOOR CONSOLE SEPARATE TYPE<7WF> (A) 		8-94463-384-1 01 1 0108- ● ●
40 16.650 BRACKET; SUPPORT,CENTER CONSOLE
4X2(TFB***) FRONT CONSOLE<D55>,FLOOR CONSOLE SEPARATETYPE<7WF> (B) 		8-94479-072-2 01 1 0108- ● ●
40 16.650 BRACKET; SUPPORT,CENTER CONSOLE
4X4(TFS***) FLOOR CONSOLE SEPARATE TYPE<7WF> (B) 		8-94479-072-2 01 1 0108- ● ●
49 04.017 SCREW; CONSOLE
FLOOR CONSOLE SEPARATE TYPE<7WF>,FLOOR CONSOLE ONE PIECE TYPE<7WG> 16.085 (A) M5X16 TAPPING 		9-09829-323-1 04 1 0108- ● ●
49 04.017 SCREW; CONSOLE
CREW CAB(TF**W*) FLOOR CONSOLE SEPARATE TYPE<7WF> PARKING BRAKE FLOOR<7XW> 16.850 (B) M4X16 TAPPING OVAL-HEAD 		9-07037-416-0 02 1 0108- ● ●
52 16.650 CONSOLE; FRT
4X2 SINGLE CAB LONG(TFB5SF) 4X4 SPACE CAB(TFS5CF) 4X4 SINGLE CAB LONG(TFS5SF) FLOOR CONSOLE SEPARATE TYPE<7WF> PARKING BRAKE FLOOR<7XW> GRAY 		8-97154-599-3 01 1 0108- ● ●
62 16.650 SCREW; BRKT
FLOOR CONSOLE ONE PIECE TYPE<7WG> (B) M8X14 		9-03900-814-0 02 1 0108- ● ●
62 16.650 SCREW; BRKT
FLOOR CONSOLE SEPARATE TYPE<7WF>,FLOOR CONSOLE ONE PIECE TYPE<7WG> 15.222 (C) M5X16 TAPPING W/PL WASHER 		0-74315-516-0 02 1 0108- ● ●
62 16.650 SCREW; BRKT
4X2(TFB***) FRONT CONSOLE<D55>,FLOOR CONSOLE SEPARATETYPE<7WF> 16.085 (A) M5X16 TAPPING 		9-09829-323-1 04 1 0108- ● ●
62 16.650 SCREW; BRKT
4X4(TFS***) FLOOR CONSOLE SEPARATE TYPE<7WF> 16.085 (A) M5X16 TAPPING 		9-09829-323-1 04 1 0108- ● ●
63 16.650 BRACKET; FRT CONSOLE
FLOOR CONSOLE SEPARATE TYPE<7WF> 		8-97115-115-0 01 1 0108- ● ●
66 16.120 TRAY ASM; ASH
CREW CAB(TF**W*) FLOOR CONSOLE SEPARATE TYPE<7WF>,FLOOR CONSOLE ONE PIECE TYPE<7WG> PARKING BRAKE FLOOR<7XW> GRAY 		8-97150-683-1 01 1 0108- ● ●
66 16.120 TRAY ASM; ASH
4X2 CREW CAB(TFB*W*) FLOOR CONSOLE ONE PIECE TYPE<7WG> EXC. PARKING BRAKE FLOOR<7XW> GRAY 		8-97150-683-1 01 1 0108- ●
161 16.650 SCREW; RR CONSOLE
FLOOR CONSOLE ONE PIECE TYPE<7WG> (A) 		0-70080-031-0 04 1 0108- ● ●
161 16.650 SCREW; RR CONSOLE
FLOOR CONSOLE ONE PIECE TYPE<7WG> 16.085 (B) M5X16 TAPPING 		9-09829-323-1 02 1 0108- ● ●
161 16.650 SCREW; RR CONSOLE
FLOOR CONSOLE SEPARATE TYPE<7WF> 15.222 (C) M5X16 TAPPING W/PL WASHER 		0-74315-516-0 02 1 0108- ● ●
188 16.650 CONSOLE; RR
CREW CAB(TF**W*) FLOOR CONSOLE ONE PIECE TYPE<7WG> PARKING BRAKE FLOOR<7XW> (B) GRAY 		8-97159-987-1 01 1 0108- ● ●
188 16.650 CONSOLE; RR
CREW CAB(TF**W*) FLOOR CONSOLE SEPARATE TYPE<7WF> PARKING BRAKE FLOOR<7XW> (A) GRAY 		8-97154-602-3 01 1 0108- ● ●
188 16.650 CONSOLE; RR
4X2 SINGLE CAB(TFB*S*) FLOOR CONSOLE ONE PIECE TYPE<7WG> EXC. PARKING BRAKE FLOOR<7XW> (B) GRAY 		8-97159-992-1 01 1 0108- ● ●
188 16.650 CONSOLE; RR
4X2 CREW CAB(TFB*W*) FLOOR CONSOLE ONE PIECE TYPE<7WG> EXC. PARKING BRAKE FLOOR<7XW> (B) GRAY 		8-97159-991-1 01 1 0108- ● ●
188 16.650 CONSOLE; RR
4X2 SINGLE CAB LONG(TFB5SF) 4X4 SPACE CAB(TFS5CF) 4X4 SINGLE CAB LONG(TFS5SF) FLOOR CONSOLE ONE PIECE TYPE<7WG> PARKING BRAKE FLOOR<7XW> (B) GRAY 		8-97159-989-1 01 1 0108- ● ●
219 16.650 SCREW; BRKT TO CONSOLE
FLOOR CONSOLE ONE PIECE TYPE<7WG> M8X14 		9-03900-814-0 02 1 0108- ● ●
219 16.650 SCREW; BRKT TO CONSOLE
4X2(TFB***) FRONT CONSOLE<D55>,FLOOR CONSOLE SEPARATETYPE<7WF> M8X14 		9-03900-814-0 04 1 0108- ● ●
219 16.650 SCREW; BRKT TO CONSOLE
4X4(TFS***) FLOOR CONSOLE SEPARATE TYPE<7WF> M8X14 		9-03900-814-0 04 1 0108- ● ●
297 16.650 BRACKET; RR CONSOLE
FLOOR CONSOLE SEPARATE TYPE<7WF>,FLOOR CONSOLE ONE PIECE TYPE<7WG> 		8-97069-670-2 01 1 0108- ● ●
302 16.650 RETAINER; ASH TRAY
CREW CAB(TF**W*) FLOOR CONSOLE SEPARATE TYPE<7WF>,FLOOR CONSOLE ONE PIECE TYPE<7WG> PARKING BRAKE FLOOR<7XW> 		8-94123-300-5 02 1 0108- ● ●
302 16.650 RETAINER; ASH TRAY
4X2 CREW CAB(TFB*W*) FLOOR CONSOLE ONE PIECE TYPE<7WG> EXC. PARKING BRAKE FLOOR<7XW> 		8-94123-300-5 02 1 0108- ●

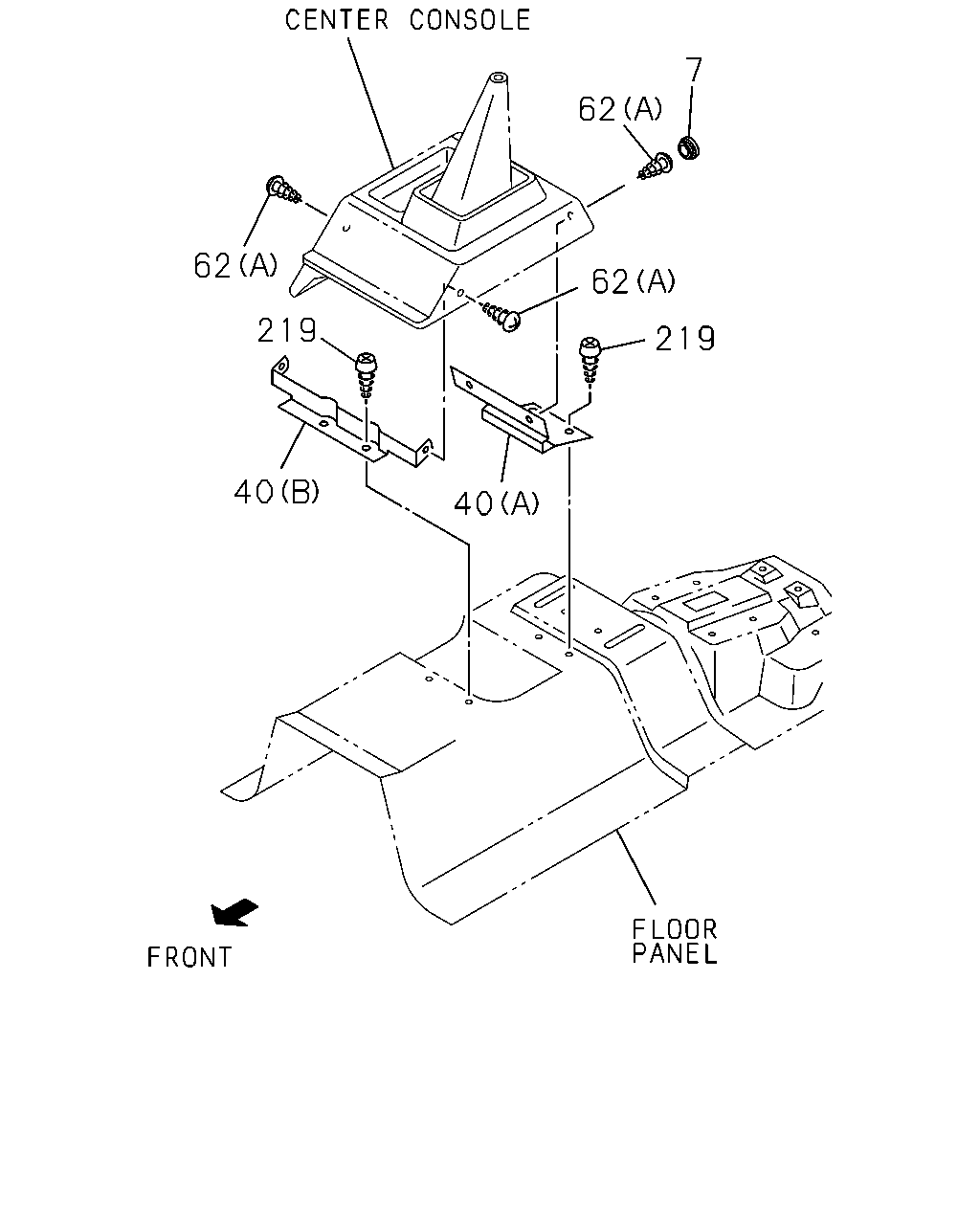

çizim 53265
7 62 62 62 219 219 40 40
BalonParca AdiParca NoAdetTipApplied Date A B
7 16.650 COVER; HOLE,FLOOR CONSOLE
4X2(TFB***) FRONT CONSOLE<D55>,FLOOR CONSOLE SEPARATETYPE<7WF> GRAY 		8-97150-582-1 02 1 0108- ● ●
7 16.650 COVER; HOLE,FLOOR CONSOLE
4X4(TFS***) FLOOR CONSOLE SEPARATE TYPE<7WF> GRAY 		8-97150-582-1 02 1 0108- ● ●
40 16.650 BRACKET; SUPPORT,CENTER CONSOLE
FLOOR CONSOLE ONE PIECE TYPE<7WG> (C) 		8-97072-944-1 01 1 0108- ● ●
40 16.650 BRACKET; SUPPORT,CENTER CONSOLE
4X2(TFB***) FRONT CONSOLE<D55>,FLOOR CONSOLE SEPARATETYPE<7WF> (A) 		8-94463-384-1 01 1 0108- ● ●
40 16.650 BRACKET; SUPPORT,CENTER CONSOLE
4X4(TFS***) FLOOR CONSOLE SEPARATE TYPE<7WF> (A) 		8-94463-384-1 01 1 0108- ● ●
40 16.650 BRACKET; SUPPORT,CENTER CONSOLE
4X2(TFB***) FRONT CONSOLE<D55>,FLOOR CONSOLE SEPARATETYPE<7WF> (B) 		8-94479-072-2 01 1 0108- ● ●
40 16.650 BRACKET; SUPPORT,CENTER CONSOLE
4X4(TFS***) FLOOR CONSOLE SEPARATE TYPE<7WF> (B) 		8-94479-072-2 01 1 0108- ● ●
62 16.650 SCREW; BRKT
FLOOR CONSOLE ONE PIECE TYPE<7WG> (B) M8X14 		9-03900-814-0 02 1 0108- ● ●
62 16.650 SCREW; BRKT
FLOOR CONSOLE SEPARATE TYPE<7WF>,FLOOR CONSOLE ONE PIECE TYPE<7WG> 15.222 (C) M5X16 TAPPING W/PL WASHER 		0-74315-516-0 02 1 0108- ● ●
62 16.650 SCREW; BRKT
4X2(TFB***) FRONT CONSOLE<D55>,FLOOR CONSOLE SEPARATETYPE<7WF> 16.085 (A) M5X16 TAPPING 		9-09829-323-1 04 1 0108- ● ●
62 16.650 SCREW; BRKT
4X4(TFS***) FLOOR CONSOLE SEPARATE TYPE<7WF> 16.085 (A) M5X16 TAPPING 		9-09829-323-1 04 1 0108- ● ●
219 16.650 SCREW; BRKT TO CONSOLE
FLOOR CONSOLE ONE PIECE TYPE<7WG> M8X14 		9-03900-814-0 02 1 0108- ● ●
219 16.650 SCREW; BRKT TO CONSOLE
4X2(TFB***) FRONT CONSOLE<D55>,FLOOR CONSOLE SEPARATETYPE<7WF> M8X14 		9-03900-814-0 04 1 0108- ● ●
219 16.650 SCREW; BRKT TO CONSOLE
4X4(TFS***) FLOOR CONSOLE SEPARATE TYPE<7WF> M8X14 		9-03900-814-0 04 1 0108- ● ●

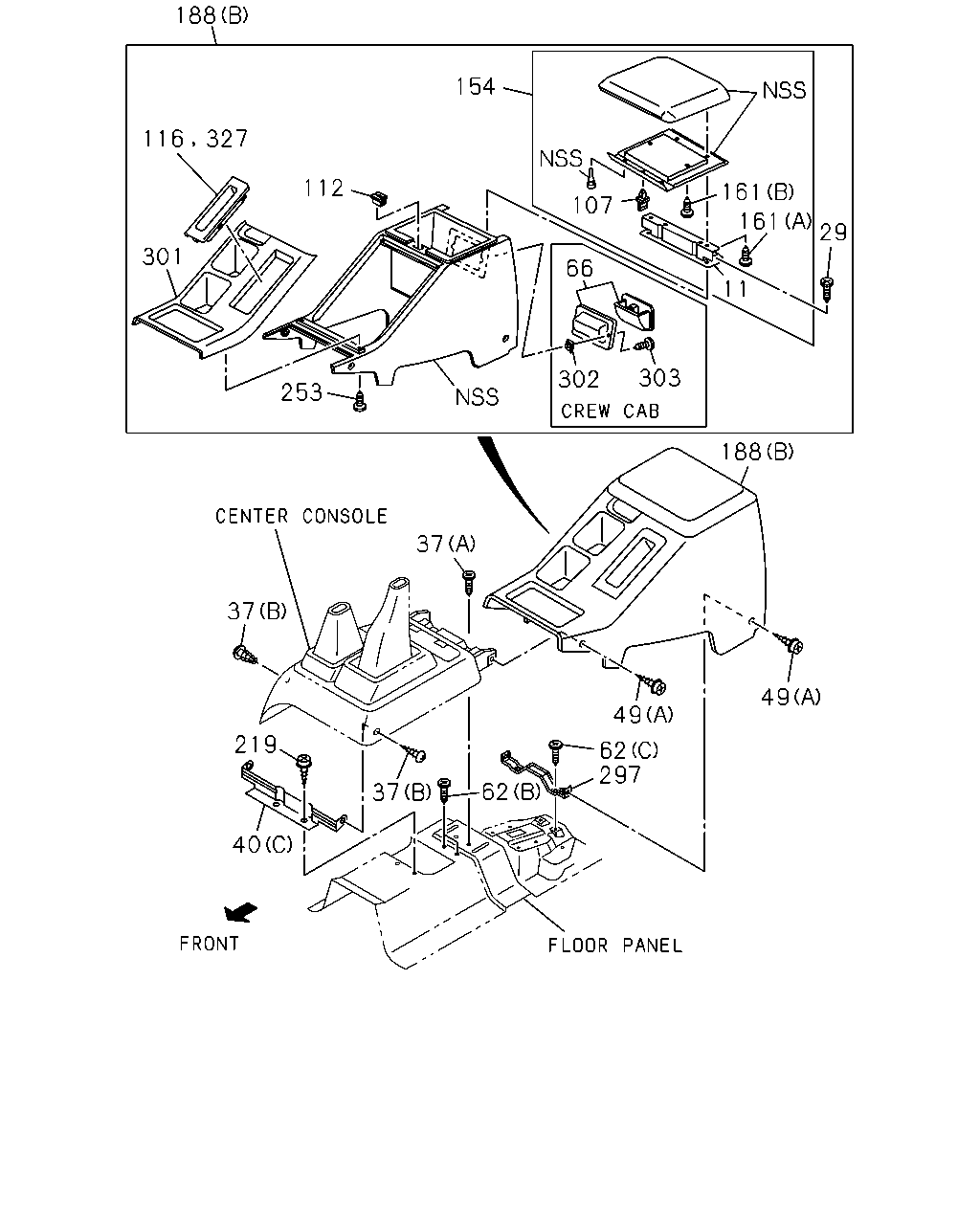

çizim 53525
188 154 116 112 161 107 161 29 301 66 11 303 302 253 188 37 37 49 49 219 62 297 37 62 40 327
BalonParca AdiParca NoAdetTipApplied Date A B
11 16.650 HINGE; CONSOLE LID
FLOOR CONSOLE ONE PIECE TYPE<7WG> 		8-97069-668-1 01 1 0108- ● ●
29 16.650 SCREW; HINGE
FLOOR CONSOLE ONE PIECE TYPE<7WG> 16.085 M5X16 TAPPING 		9-09829-323-1 02 1 0108- ● ●
37 16.650 SCREW; CONSOLE
FLOOR CONSOLE ONE PIECE TYPE<7WG> 15.222 (A) M5X16 TAPPING W/PL WASHER 		0-74315-516-0 02 1 0108- ● ●
37 16.650 SCREW; CONSOLE
FLOOR CONSOLE ONE PIECE TYPE<7WG> 16.085 (B) M5X16 TAPPING 		9-09829-323-1 02 1 0108- ● ●
40 16.650 BRACKET; SUPPORT,CENTER CONSOLE
FLOOR CONSOLE ONE PIECE TYPE<7WG> (C) 		8-97072-944-1 01 1 0108- ● ●
40 16.650 BRACKET; SUPPORT,CENTER CONSOLE
4X2(TFB***) FRONT CONSOLE<D55>,FLOOR CONSOLE SEPARATETYPE<7WF> (A) 		8-94463-384-1 01 1 0108- ● ●
40 16.650 BRACKET; SUPPORT,CENTER CONSOLE
4X4(TFS***) FLOOR CONSOLE SEPARATE TYPE<7WF> (A) 		8-94463-384-1 01 1 0108- ● ●
40 16.650 BRACKET; SUPPORT,CENTER CONSOLE
4X2(TFB***) FRONT CONSOLE<D55>,FLOOR CONSOLE SEPARATETYPE<7WF> (B) 		8-94479-072-2 01 1 0108- ● ●
40 16.650 BRACKET; SUPPORT,CENTER CONSOLE
4X4(TFS***) FLOOR CONSOLE SEPARATE TYPE<7WF> (B) 		8-94479-072-2 01 1 0108- ● ●
49 04.017 SCREW; CONSOLE
FLOOR CONSOLE SEPARATE TYPE<7WF>,FLOOR CONSOLE ONE PIECE TYPE<7WG> 16.085 (A) M5X16 TAPPING 		9-09829-323-1 04 1 0108- ● ●
49 04.017 SCREW; CONSOLE
CREW CAB(TF**W*) FLOOR CONSOLE SEPARATE TYPE<7WF> PARKING BRAKE FLOOR<7XW> 16.850 (B) M4X16 TAPPING OVAL-HEAD 		9-07037-416-0 02 1 0108- ● ●
62 16.650 SCREW; BRKT
FLOOR CONSOLE ONE PIECE TYPE<7WG> (B) M8X14 		9-03900-814-0 02 1 0108- ● ●
62 16.650 SCREW; BRKT
FLOOR CONSOLE SEPARATE TYPE<7WF>,FLOOR CONSOLE ONE PIECE TYPE<7WG> 15.222 (C) M5X16 TAPPING W/PL WASHER 		0-74315-516-0 02 1 0108- ● ●
62 16.650 SCREW; BRKT
4X2(TFB***) FRONT CONSOLE<D55>,FLOOR CONSOLE SEPARATETYPE<7WF> 16.085 (A) M5X16 TAPPING 		9-09829-323-1 04 1 0108- ● ●
62 16.650 SCREW; BRKT
4X4(TFS***) FLOOR CONSOLE SEPARATE TYPE<7WF> 16.085 (A) M5X16 TAPPING 		9-09829-323-1 04 1 0108- ● ●
66 16.120 TRAY ASM; ASH
CREW CAB(TF**W*) FLOOR CONSOLE SEPARATE TYPE<7WF>,FLOOR CONSOLE ONE PIECE TYPE<7WG> PARKING BRAKE FLOOR<7XW> GRAY 		8-97150-683-1 01 1 0108- ● ●
66 16.120 TRAY ASM; ASH
4X2 CREW CAB(TFB*W*) FLOOR CONSOLE ONE PIECE TYPE<7WG> EXC. PARKING BRAKE FLOOR<7XW> GRAY 		8-97150-683-1 01 1 0108- ●
107 16.650 LOCK; LID,RR CONSOLE
FLOOR CONSOLE ONE PIECE TYPE<7WG> 		8-94110-961-1 01 1 0108- ● ●
112 16.650 LOCK; HOLE,RR CONSOLE
FLOOR CONSOLE ONE PIECE TYPE<7WG> 		8-94110-962-1 01 1 0108- ● ●
116 16.650 COVER; HOLE,CONSOLE,RR
4X2(TFB***) FLOOR CONSOLE ONE PIECE TYPE<7WG> EXC. PARKING BRAKE FLOOR<7XW> GRAY 		8-97199-099-0 01 1 0108- ● ●
154 16.650 LID ASM; RR CONSOLE
FLOOR CONSOLE ONE PIECE TYPE<7WG> GRAY 		8-97152-895-1 01 1 0108- ● ●
161 16.650 SCREW; RR CONSOLE
FLOOR CONSOLE ONE PIECE TYPE<7WG> (A) 		0-70080-031-0 04 1 0108- ● ●
161 16.650 SCREW; RR CONSOLE
FLOOR CONSOLE ONE PIECE TYPE<7WG> 16.085 (B) M5X16 TAPPING 		9-09829-323-1 02 1 0108- ● ●
161 16.650 SCREW; RR CONSOLE
FLOOR CONSOLE SEPARATE TYPE<7WF> 15.222 (C) M5X16 TAPPING W/PL WASHER 		0-74315-516-0 02 1 0108- ● ●
188 16.650 CONSOLE; RR
CREW CAB(TF**W*) FLOOR CONSOLE ONE PIECE TYPE<7WG> PARKING BRAKE FLOOR<7XW> (B) GRAY 		8-97159-987-1 01 1 0108- ● ●
188 16.650 CONSOLE; RR
CREW CAB(TF**W*) FLOOR CONSOLE SEPARATE TYPE<7WF> PARKING BRAKE FLOOR<7XW> (A) GRAY 		8-97154-602-3 01 1 0108- ● ●
188 16.650 CONSOLE; RR
4X2 SINGLE CAB(TFB*S*) FLOOR CONSOLE ONE PIECE TYPE<7WG> EXC. PARKING BRAKE FLOOR<7XW> (B) GRAY 		8-97159-992-1 01 1 0108- ● ●
188 16.650 CONSOLE; RR
4X2 CREW CAB(TFB*W*) FLOOR CONSOLE ONE PIECE TYPE<7WG> EXC. PARKING BRAKE FLOOR<7XW> (B) GRAY 		8-97159-991-1 01 1 0108- ● ●
188 16.650 CONSOLE; RR
4X2 SINGLE CAB LONG(TFB5SF) 4X4 SPACE CAB(TFS5CF) 4X4 SINGLE CAB LONG(TFS5SF) FLOOR CONSOLE ONE PIECE TYPE<7WG> PARKING BRAKE FLOOR<7XW> (B) GRAY 		8-97159-989-1 01 1 0108- ● ●
219 16.650 SCREW; BRKT TO CONSOLE
FLOOR CONSOLE ONE PIECE TYPE<7WG> M8X14 		9-03900-814-0 02 1 0108- ● ●
219 16.650 SCREW; BRKT TO CONSOLE
4X2(TFB***) FRONT CONSOLE<D55>,FLOOR CONSOLE SEPARATETYPE<7WF> M8X14 		9-03900-814-0 04 1 0108- ● ●
219 16.650 SCREW; BRKT TO CONSOLE
4X4(TFS***) FLOOR CONSOLE SEPARATE TYPE<7WF> M8X14 		9-03900-814-0 04 1 0108- ● ●
253 09.744 SCREW; BEZEL
FLOOR CONSOLE ONE PIECE TYPE<7WG> 16.085 M5X16 TAPPING 		9-09829-323-1 04 1 0108- ● ●
297 16.650 BRACKET; RR CONSOLE
FLOOR CONSOLE SEPARATE TYPE<7WF>,FLOOR CONSOLE ONE PIECE TYPE<7WG> 		8-97069-670-2 01 1 0108- ● ●
301 16.650 BEZEL; CONSOLE
FLOOR CONSOLE ONE PIECE TYPE<7WG> PARKING BRAKE FLOOR<7XW> GRAY 		8-97199-097-0 01 1 0108- ● ●
301 16.650 BEZEL; CONSOLE
CREW CAB(TF**W*) FLOOR CONSOLE SEPARATE TYPE<7WF> PARKING BRAKE FLOOR<7XW> GRAY 		8-97156-547-3 01 1 0108- ● ●
301 16.650 BEZEL; CONSOLE
4X2(TFB***) FLOOR CONSOLE ONE PIECE TYPE<7WG> EXC. PARKING BRAKE FLOOR<7XW> GRAY 		8-97199-098-0 01 1 0108- ● ●
302 16.650 RETAINER; ASH TRAY
CREW CAB(TF**W*) FLOOR CONSOLE SEPARATE TYPE<7WF>,FLOOR CONSOLE ONE PIECE TYPE<7WG> PARKING BRAKE FLOOR<7XW> 		8-94123-300-5 02 1 0108- ● ●
302 16.650 RETAINER; ASH TRAY
4X2 CREW CAB(TFB*W*) FLOOR CONSOLE ONE PIECE TYPE<7WG> EXC. PARKING BRAKE FLOOR<7XW> 		8-94123-300-5 02 1 0108- ●
303 16.650 SCREW; ASH TRAY
CREW CAB(TF**W*) FLOOR CONSOLE ONE PIECE TYPE<7WG> 16.850 M4X16 TAPPING OVAL-HEAD 		9-07037-416-0 02 1 0108- ● ●
327 16.650 STRIPE; HAND BRAKE
FLOOR CONSOLE ONE PIECE TYPE<7WG> PARKING BRAKE FLOOR<7XW> 		8-97069-669-1 01 1 0108- ● ●
