◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50920 - TFR/TFS(EUROPE)-RHD ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-43 - SUN VISOR AND ASSIST GRIP ▶
7-43 — SUN VISOR AND ASSIST GRIP (#21003) — 9 parça

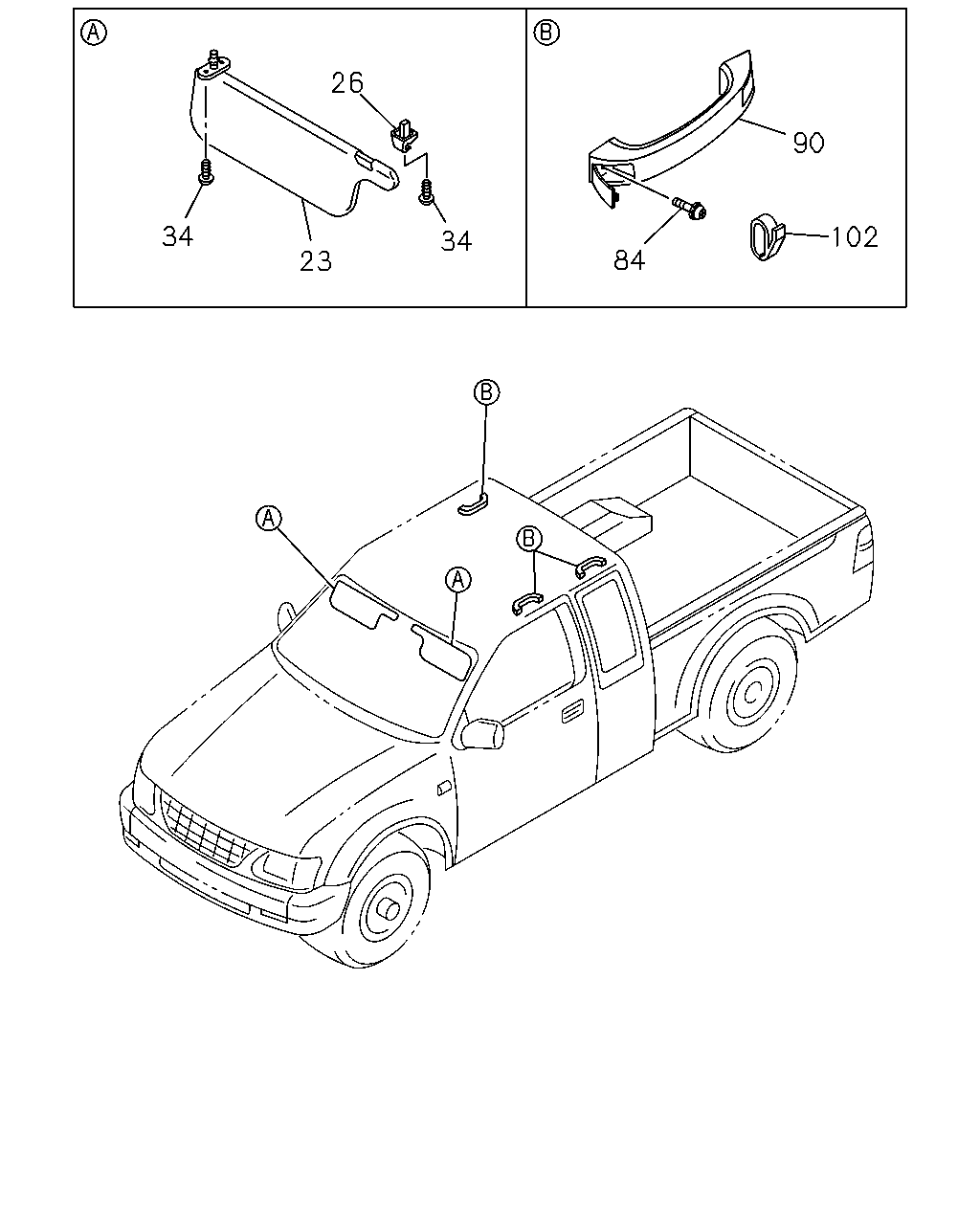

çizim 47489
26 90 34 102 34 84 23
BalonParca AdiParca NoAdetTipApplied Date A B
23 16.070 SUN VISOR
LIGHT GRAY 		8-97199-845-0 01 1 0108- ● ●
23 16.070 SUN VISOR
LIGHT GRAY 		8-97199-831-0 01 1 0108- ● ●
26 16.070 HOLDER; SUN VISOR
LIGHT GRAY 		8-97153-244-2 02 1 0108- ● ●
34 16.070 SCREW; SUN VISOR
08.977 M4X16 TAPPING OVAL-HEAD 		0-70580-416-0 06 1 0108- ● ●
84 16.450 SCREW; ASSIST GRIP
ASSIST GRIP PASSENGER<EG5> M6X32 		8-97811-323-0 02 1 0108- ● ●
84 16.450 SCREW; ASSIST GRIP
CREW CAB(TF**W*) ASSIST GRIP PASSENGER<EG5> M6X32 		8-97811-323-0 04 1 0108- ● ●
90 16.450 GRIP; ASSIST,ROOF
ASSIST GRIP PASSENGER<EG5> GRAY 		8-97152-650-2 01 1 0108- ● ●
90 16.450 GRIP; ASSIST,ROOF
CREW CAB(TF**W*) ASSIST GRIP PASSENGER<EG5> GRAY 		8-97152-650-2 02 1 0108- ● ●
102 16.450 HOOK; COAT HANGER
CREW CAB(TF**W*) ASSIST GRIP PASSENGER<EG5> GRAY 		8-97150-620-1 01 1 0108- ● ●
