7-42 — ASH TRAY (#21002) — 9 parça

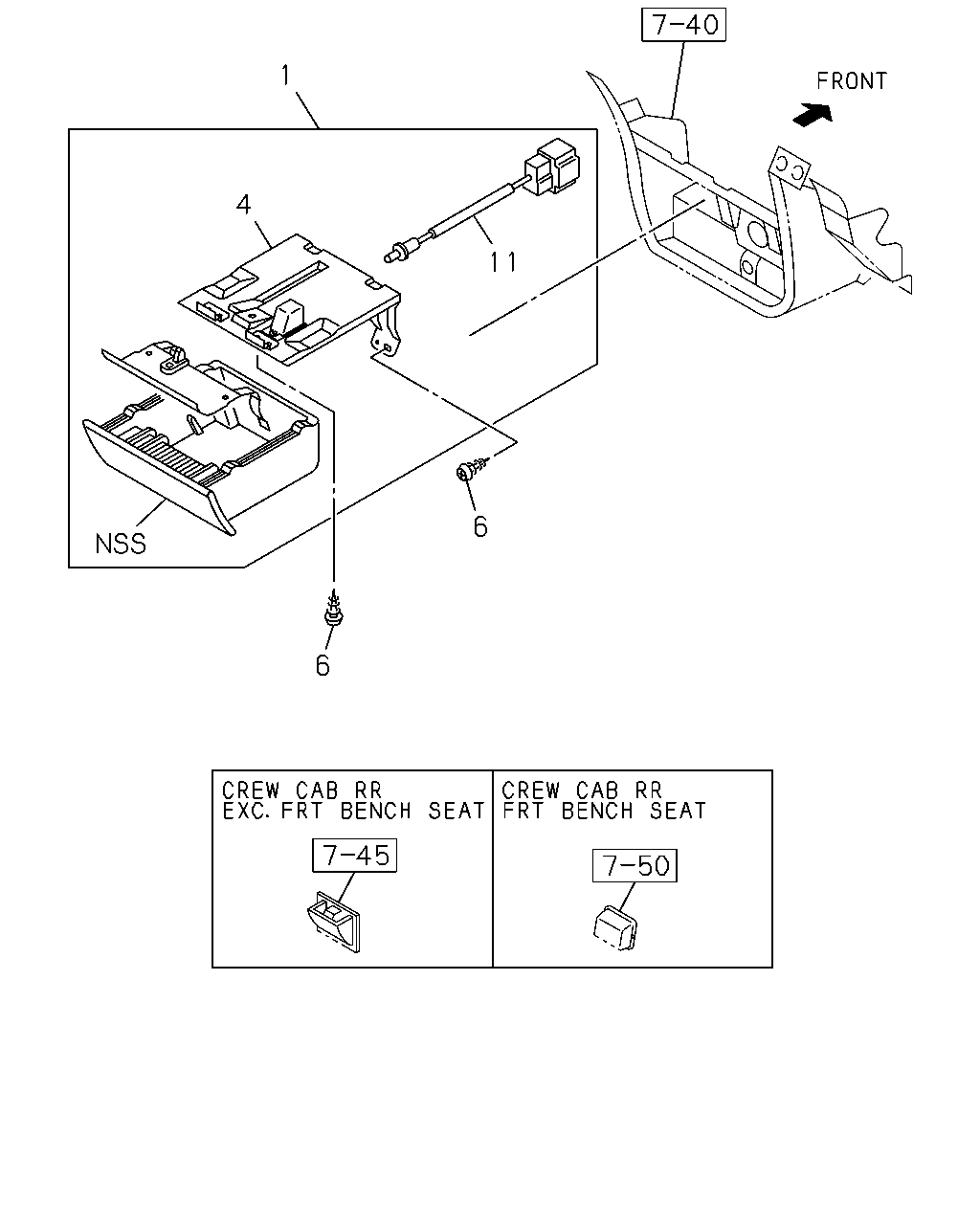

çizim 10186
1 4 11 6 6
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 16.120 TRAY; ASH,INST PNL
GRADE LS(RBD) BLACK 		8-97154-845-0 01 1 0108-0203 ● ● ● ● ●
1 16.120 TRAY; ASH,INST PNL
GRADE S(RBA) BLACK 		8-97154-844-0 01 1 0108-0203 ● ● ● ● ●
1 16.120 TRAY; ASH,INST PNL
BLACK 		8-97154-844-0 01 1 0204- ● ● ● ● ●
4 16.120 CASE ASM; ASH TRAY OUTER
GRADE LS(RBD) 		8-97131-633-0 01 1 0108-0203 ● ● ● ● ●
4 16.120 CASE ASM; ASH TRAY OUTER
GRADE S(RBA) 		8-97131-634-0 01 1 0108-0203 ● ● ● ● ●
4 16.120 CASE ASM; ASH TRAY OUTER 8-97131-634-0 01 1 0204- ● ● ● ● ●
6 16.120 SCREW; ASH TRAY
16.115 M5X16 		8-94279-312-0 03 1 0108-0211 ● ● ● ● ●
6 16.120 SCREW; ASH TRAY
16.085 M5X16 TAPPING 		9-09829-323-1 03 1 0212- ● ● ● ● ●
11 08.991 BULB; ASH TRAY
GRADE LS(RBD) 14V-1.4W 		8-94449-914-1 01 1 0108-0203 ● ● ● ● ●
