◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50920 - TFR/TFS(EUROPE)-RHD ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-30 - LOCK CYLINDER SET ▶
7-30 — LOCK CYLINDER SET (#21000) — 70 parça

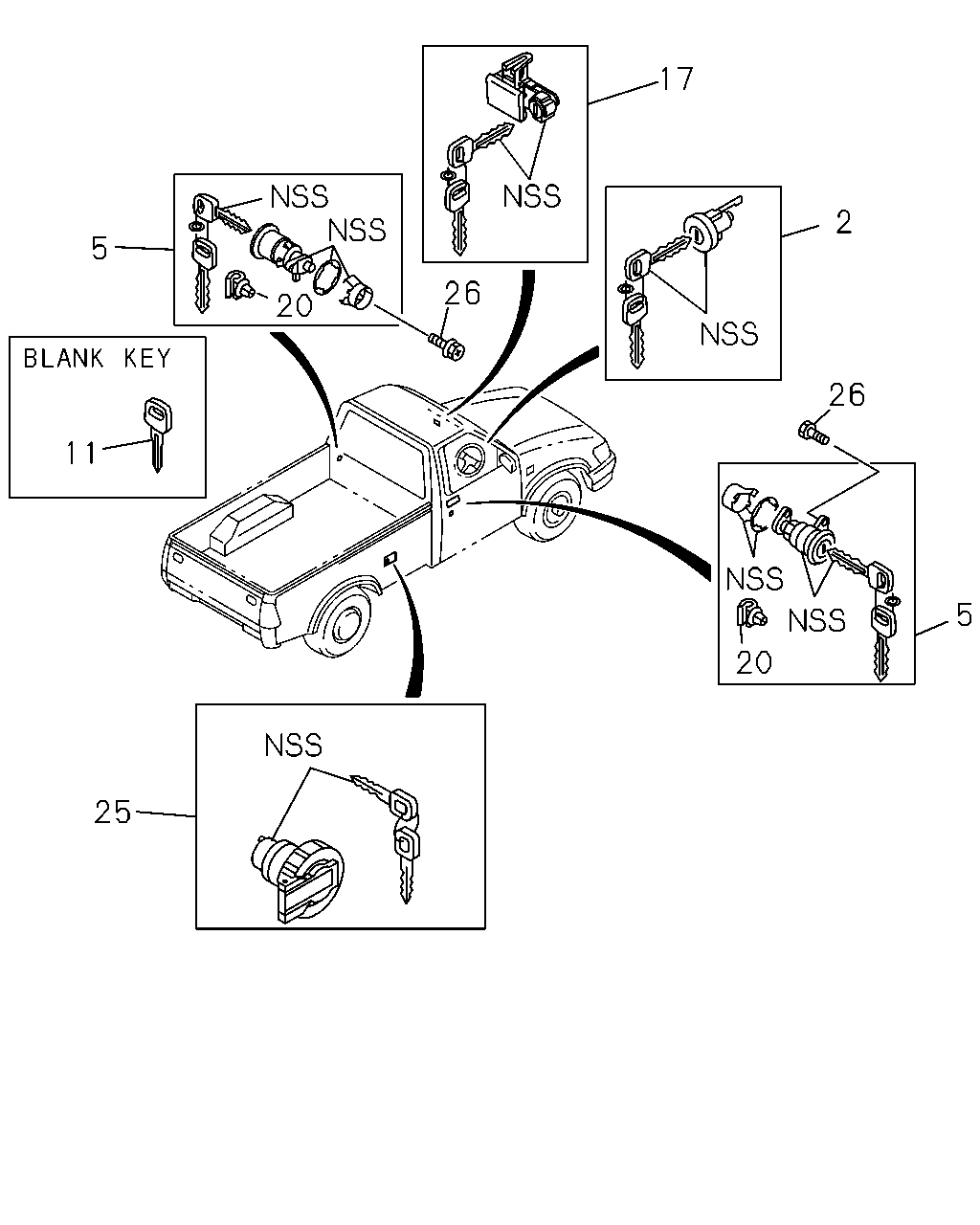

çizim 12263
17 2 5 20 26 26 11 5 20 25
BalonParca AdiParca NoAdetTipApplied Date A B C D E
2 02.188 BARREL ASM; W/KEY,STRG LOCK
CHARGE AIR COOLER<6PL> IMMOBILIZER SYSTEM<7KC> 		8-97300-969-1 01 1 0108- ● ● ● ●
2 02.188 BARREL ASM; W/KEY,STRG LOCK
CHEVROLET BRAND<RWE> EXC. IMMOBILIZER SYSTEM<7KC> 		8-97123-116-0 01 1 0108-0301 ● ● ● ●
2 02.188 BARREL ASM; W/KEY,STRG LOCK
CHEVROLET BRAND<RWE> EXC. IMMOBILIZER SYSTEM<7KC> 		8-97360-382-0 01 1 0302- ● ● ● ●
2 02.188 BARREL ASM; W/KEY,STRG LOCK
EXC. CHEVROLET BRAND<RWE>,IMMOBILIZER SYSTEM<7KC>,VAUXHALL BRAND<8DT> 		8-97110-657-0 01 1 0108-0201 ● ● ● ●
2 02.188 BARREL ASM; W/KEY,STRG LOCK
EXC. CHEVROLET BRAND<RWE>,IMMOBILIZER SYSTEM<7KC> 		8-97110-657-2 01 1 0202- ● ● ● ●
2 02.188 BARREL ASM; W/KEY,STRG LOCK
IMMOBILIZER SYSTEM<7KC> EXC. CHARGE AIR COOLER<6PL> 		8-97254-666-1 01 1 0108- ● ● ● ●
2 02.188 BARREL ASM; W/KEY,STRG LOCK 8-97254-666-1 01 1 0108- ●
5 16.328 CYLINDER ASM; DOOR LOCK
CHARGE AIR COOLER<6PL> IMMOBILIZER SYSTEM<7KC> 		8-97300-967-1 01 1 0108- ● ● ● ●
5 16.328 CYLINDER ASM; DOOR LOCK
CHARGE AIR COOLER<6PL> IMMOBILIZER SYSTEM<7KC> 		8-97300-966-1 01 1 0108- ● ● ● ●
5 16.328 CYLINDER ASM; DOOR LOCK
CHEVROLET BRAND<RWE> EXC. IMMOBILIZER SYSTEM<7KC> 		8-97040-781-1 01 1 0108- ● ● ● ●
5 16.328 CYLINDER ASM; DOOR LOCK
CHEVROLET BRAND<RWE> EXC. IMMOBILIZER SYSTEM<7KC> 		8-97040-780-1 01 1 0108- ● ● ● ●
5 16.328 CYLINDER ASM; DOOR LOCK
EXC. CHEVROLET BRAND<RWE>,IMMOBILIZER SYSTEM<7KC>,VAUXHALL BRAND<8DT> 		8-97115-852-0 01 1 0108-0201 ● ● ● ●
5 16.328 CYLINDER ASM; DOOR LOCK
EXC. CHEVROLET BRAND<RWE>,IMMOBILIZER SYSTEM<7KC> 		8-97115-852-1 01 1 0202- ● ● ● ●
5 16.328 CYLINDER ASM; DOOR LOCK
EXC. CHEVROLET BRAND<RWE>,IMMOBILIZER SYSTEM<7KC>,VAUXHALL BRAND<8DT> 		8-97115-851-0 01 1 0108-0201 ● ● ● ●
5 16.328 CYLINDER ASM; DOOR LOCK
EXC. CHEVROLET BRAND<RWE>,IMMOBILIZER SYSTEM<7KC> 		8-97115-851-1 01 1 0202- ● ● ● ●
5 16.328 CYLINDER ASM; DOOR LOCK
IMMOBILIZER SYSTEM<7KC> EXC. CHARGE AIR COOLER<6PL> 		8-97254-664-1 01 1 0108- ● ● ● ●
5 16.328 CYLINDER ASM; DOOR LOCK 8-97254-664-1 01 1 0108- ●
5 16.328 CYLINDER ASM; DOOR LOCK
IMMOBILIZER SYSTEM<7KC> EXC. CHARGE AIR COOLER<6PL> 		8-97254-663-1 01 1 0108- ● ● ● ●
5 16.328 CYLINDER ASM; DOOR LOCK 8-97254-663-1 01 1 0108- ●
11 02.187 KEY; BLANK
CHARGE AIR COOLER<6PL> IMMOBILIZER SYSTEM<7KC> 		8-97300-164-0 AR 1 0108- ● ● ● ●
11 02.187 KEY; BLANK
CHEVROLET BRAND<RWE> EXC. IMMOBILIZER SYSTEM<7KC> WO/NOTCH 		8-97045-966-0 AR 1 0108- ● ● ● ●
11 02.187 KEY; BLANK
CHEVROLET BRAND<RWE> EXC. IMMOBILIZER SYSTEM<7KC> W/NOTCH 		8-97045-967-0 AR 1 0108- ● ● ● ●
11 02.187 KEY; BLANK
EXC. CHEVROLET BRAND<RWE>,IMMOBILIZER SYSTEM<7KC>,VAUXHALL BRAND<8DT> WO/NOTCH 		8-94320-972-0 AR 1 0108-0201 ● ● ● ●
11 02.187 KEY; BLANK
EXC. CHEVROLET BRAND<RWE>,IMMOBILIZER SYSTEM<7KC> WO/NOTCH 		8-94320-972-0 AR 1 0202- ● ● ● ●
11 02.187 KEY; BLANK
EXC. CHEVROLET BRAND<RWE>,IMMOBILIZER SYSTEM<7KC>,VAUXHALL BRAND<8DT> W/NOTCH 		8-94320-973-0 AR 1 0108-0201 ● ● ● ●
11 02.187 KEY; BLANK
EXC. CHEVROLET BRAND<RWE>,IMMOBILIZER SYSTEM<7KC> W/NOTCH 		8-94320-973-0 AR 1 0202- ● ● ● ●
11 02.187 KEY; BLANK
IMMOBILIZER SYSTEM<7KC> EXC. CHARGE AIR COOLER<6PL> WO/NOTCH 		8-97170-680-0 AR 1 0108- ● ● ● ●
11 02.187 KEY; BLANK
WO/NOTCH 		8-97170-680-0 AR 1 0108- ●
17 16.110 CYLINDER ASM; W/KEY,GLOVE BOX LO
CHARGE AIR COOLER<6PL> IMMOBILIZER SYSTEM<7KC> 		5-87410-788-1 01 1 0108- ● ● ● ●
17 16.110 CYLINDER ASM; W/KEY,GLOVE BOX LO
CHEVROLET BRAND<RWE> EXC. IMMOBILIZER SYSTEM<7KC> 		5-87410-587-1 01 1 0108- ● ● ● ●
17 16.110 CYLINDER ASM; W/KEY,GLOVE BOX LO
EXC. CHEVROLET BRAND<RWE>,IMMOBILIZER SYSTEM<7KC>,VAUXHALL BRAND<8DT> 		5-87410-585-0 01 1 0108-0201 ● ● ● ●
17 16.110 CYLINDER ASM; W/KEY,GLOVE BOX LO
EXC. CHEVROLET BRAND<RWE>,IMMOBILIZER SYSTEM<7KC> 		5-87410-585-1 01 1 0202- ● ● ● ●
17 16.110 CYLINDER ASM; W/KEY,GLOVE BOX LO
IMMOBILIZER SYSTEM<7KC> EXC. CHARGE AIR COOLER<6PL> 		5-87410-725-1 01 1 0108- ● ● ● ●
17 16.110 CYLINDER ASM; W/KEY,GLOVE BOX LO 5-87410-725-1 01 1 0108- ●
20 16.328 SNAP; DOOR LOCK CYL
IMMOBILIZER SYSTEM<7KC> 10.474 YELLOW 		8-97040-452-0 01 1 0108-0201 ● ● ● ●
20 16.328 SNAP; DOOR LOCK CYL
EXC. IMMOBILIZER SYSTEM<7KC>,VAUXHALL BRAND<8DT> 10.474 YELLOW 		8-97040-452-0 01 1 0108-0201 ● ● ● ●
20 16.328 SNAP; DOOR LOCK CYL
10.474 YELLOW 		8-97040-452-0 01 1 0108-0201 ●
20 16.328 SNAP; DOOR LOCK CYL
10.474 YELLOW 		8-97040-452-0 01 1 0202- ● ● ● ● ●
20 16.328 SNAP; DOOR LOCK CYL
IMMOBILIZER SYSTEM<7KC> 10.474 BROWN 		8-97040-453-0 01 1 0108-0201 ● ● ● ●
20 16.328 SNAP; DOOR LOCK CYL
EXC. IMMOBILIZER SYSTEM<7KC>,VAUXHALL BRAND<8DT> 10.474 BROWN 		8-97040-453-0 01 1 0108-0201 ● ● ● ●
20 16.328 SNAP; DOOR LOCK CYL
10.474 BROWN 		8-97040-453-0 01 1 0108-0201 ●
20 16.328 SNAP; DOOR LOCK CYL
10.474 BROWN 		8-97040-453-0 01 1 0202- ● ● ● ● ●
25 03.028 CAP; FUEL TANK,W/KEY
IMMOBILIZER SYSTEM<7KC> EXC. RR BODY DBL WALL CTR PULL(6MW), CHARGE AIR COOLER<6PL> 12.945 		8-97261-895-1 01 1 0108- ● ● ● ●
25 03.028 CAP; FUEL TANK,W/KEY
CHARGE AIR COOLER<6PL> IMMOBILIZER SYSTEM<7KC> EXC. RR BODY DBL WALL CTR PULL(6MW) 		8-97300-971-1 01 1 0108- ● ● ● ●
25 03.028 CAP; FUEL TANK,W/KEY
CHEVROLET BRAND<RWE> EXC. RR BODY DBL WALL CTR PULL(6MW), IMMOBILIZER SYSTEM<7KC> 		8-97042-991-0 01 1 0108-0301 ● ● ● ●
25 03.028 CAP; FUEL TANK,W/KEY
CHEVROLET BRAND<RWE> EXC. RR BODY DBL WALL CTR PULL(6MW), IMMOBILIZER SYSTEM<7KC> 		8-97360-378-0 01 1 0302- ● ● ● ●
25 03.028 CAP; FUEL TANK,W/KEY
EXC. CHEVROLET BRAND<RWE>,RR BODY DBL WALL CTR PULL(6MW),IMMOBILIZER SYSTEM<7KC>,VAUXHALL BRAND<8DT> 		8-97115-855-1 01 1 0108-0201 ● ● ● ●
25 03.028 CAP; FUEL TANK,W/KEY
EXC. CHEVROLET BRAND<RWE>,RR BODY DBL WALL CTR PULL(6MW),IMMOBILIZER SYSTEM<7KC> 		8-97115-855-1 01 1 0202- ● ● ● ●
26 16.328 BOLT; KEY CYL,DOOR
M6X8 FLANGE 		8-97175-668-0 02 1 0108- ● ● ● ● ●

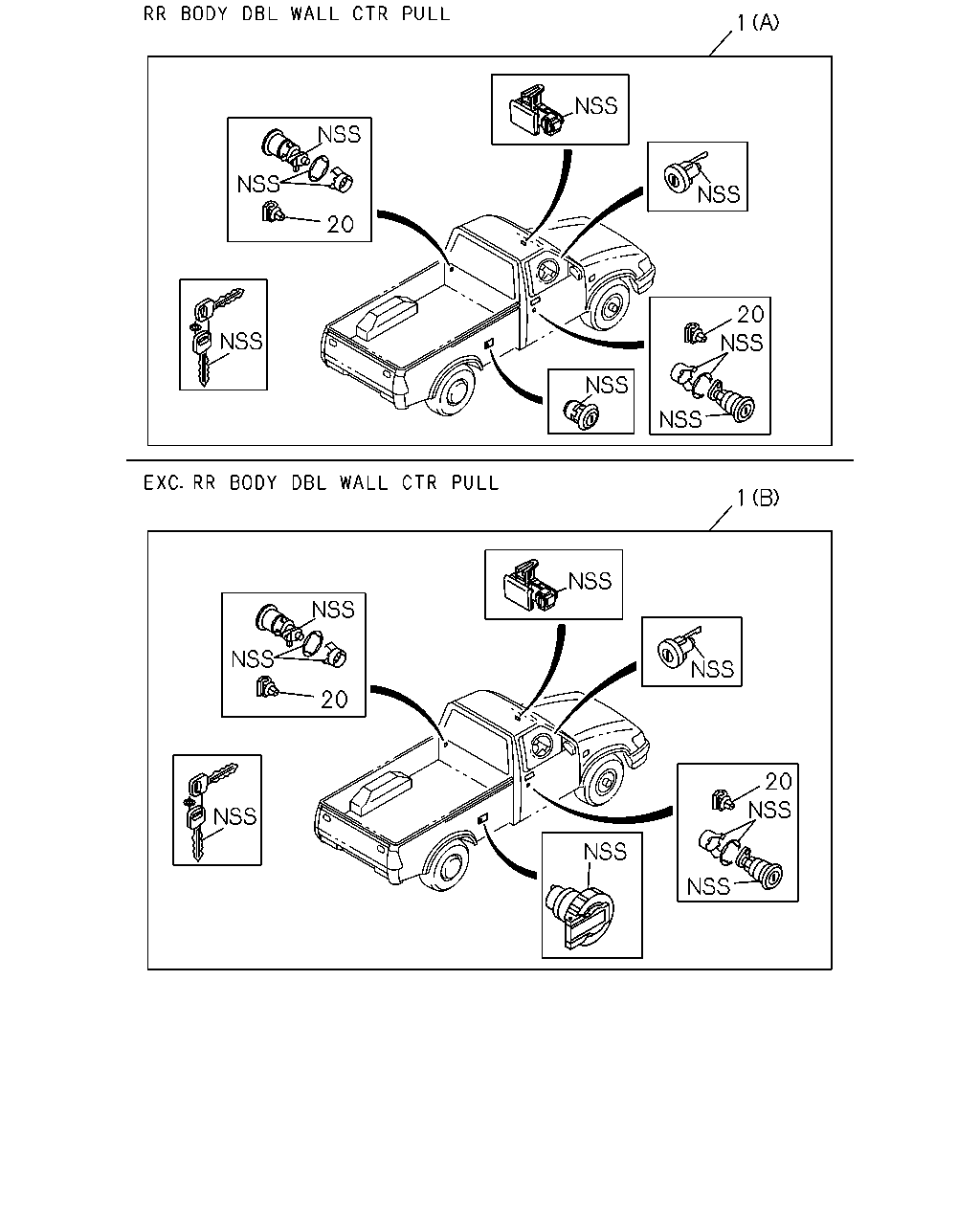

çizim 51756
1 20 20 1 20 20
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 02.188 CYLINDER SET; CAR LOCK
CHARGE AIR COOLER<6PL> IMMOBILIZER SYSTEM<7KC> EXC. RR BODY DBL WALL CTR PULL(6MW) (B) GRAY 		8-97298-092-1 01 1 0108- ● ● ● ●
1 02.188 CYLINDER SET; CAR LOCK
CHEVROLET BRAND<RWE> RR BODY DBL WALL CTR PULL(6MW) EXC. IMMOBILIZER SYSTEM<7KC> (A) GRAY 		8-97199-794-0 01 1 0108-0301 ● ● ● ●
1 02.188 CYLINDER SET; CAR LOCK
CHEVROLET BRAND<RWE> RR BODY DBL WALL CTR PULL(6MW) EXC. IMMOBILIZER SYSTEM<7KC> (A) GRAY 		8-97396-117-0 01 1 0302- ● ● ● ●
1 02.188 CYLINDER SET; CAR LOCK
CHEVROLET BRAND<RWE> EXC. RR BODY DBL WALL CTR PULL(6MW), IMMOBILIZER SYSTEM<7KC> (B) GRAY 		8-97154-722-0 01 1 0108-0301 ● ● ● ●
1 02.188 CYLINDER SET; CAR LOCK
CHEVROLET BRAND<RWE> EXC. RR BODY DBL WALL CTR PULL(6MW), IMMOBILIZER SYSTEM<7KC> (B) GRAY 		8-97396-116-0 01 1 0302- ● ● ● ●
1 02.188 CYLINDER SET; CAR LOCK
EXC. CHEVROLET BRAND<RWE>,RR BODY DBL WALL CTR PULL(6MW),IMMOBILIZER SYSTEM<7KC>,VAUXHALL BRAND<8DT> (B) GRAY 		8-97154-716-2 01 1 0108-0201 ● ● ● ●
1 02.188 CYLINDER SET; CAR LOCK
EXC. CHEVROLET BRAND<RWE>,RR BODY DBL WALL CTR PULL(6MW),IMMOBILIZER SYSTEM<7KC> (B) GRAY 		8-97154-716-2 01 1 0202- ● ● ● ●
1 02.188 CYLINDER SET; CAR LOCK
IMMOBILIZER SYSTEM<7KC> EXC. RR BODY DBL WALL CTR PULL(6MW), CHARGE AIR COOLER<6PL> (B) GRAY 		8-97296-662-1 01 1 0108- ● ● ● ●
1 02.188 CYLINDER SET; CAR LOCK
RR BODY DBL WALL CTR PULL(6MW) CHARGE AIR COOLER<6PL> IMMOBILIZER SYSTEM<7KC> (A) GRAY 		8-97298-090-1 01 1 0108- ● ● ● ●
1 02.188 CYLINDER SET; CAR LOCK
RR BODY DBL WALL CTR PULL(6MW) EXC. CHEVROLET BRAND<RWE>,IMMOBILIZER SYSTEM<7KC>,VAUXHALL BRAND<8DT> (A) GRAY 		8-97199-792-0 01 1 0108-0201 ● ● ● ●
1 02.188 CYLINDER SET; CAR LOCK
RR BODY DBL WALL CTR PULL(6MW) EXC. CHEVROLET BRAND<RWE>,IMMOBILIZER SYSTEM<7KC> (A) GRAY 		8-97199-792-1 01 1 0202- ● ● ● ●
1 02.188 CYLINDER SET; CAR LOCK
RR BODY DBL WALL CTR PULL(6MW) IMMOBILIZER SYSTEM<7KC> EXC. CHARGE AIR COOLER<6PL> (A) GRAY 		8-97292-587-2 01 1 0108- ● ● ● ●
1 02.188 CYLINDER SET; CAR LOCK
(A) GRAY 		8-97292-587-2 01 1 0108- ●
20 16.328 SNAP; DOOR LOCK CYL
IMMOBILIZER SYSTEM<7KC> 10.474 YELLOW 		8-97040-452-0 01 1 0108-0201 ● ● ● ●
20 16.328 SNAP; DOOR LOCK CYL
EXC. IMMOBILIZER SYSTEM<7KC>,VAUXHALL BRAND<8DT> 10.474 YELLOW 		8-97040-452-0 01 1 0108-0201 ● ● ● ●
20 16.328 SNAP; DOOR LOCK CYL
10.474 YELLOW 		8-97040-452-0 01 1 0108-0201 ●
20 16.328 SNAP; DOOR LOCK CYL
10.474 YELLOW 		8-97040-452-0 01 1 0202- ● ● ● ● ●
20 16.328 SNAP; DOOR LOCK CYL
IMMOBILIZER SYSTEM<7KC> 10.474 BROWN 		8-97040-453-0 01 1 0108-0201 ● ● ● ●
20 16.328 SNAP; DOOR LOCK CYL
EXC. IMMOBILIZER SYSTEM<7KC>,VAUXHALL BRAND<8DT> 10.474 BROWN 		8-97040-453-0 01 1 0108-0201 ● ● ● ●
20 16.328 SNAP; DOOR LOCK CYL
10.474 BROWN 		8-97040-453-0 01 1 0108-0201 ●
20 16.328 SNAP; DOOR LOCK CYL
10.474 BROWN 		8-97040-453-0 01 1 0202- ● ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
