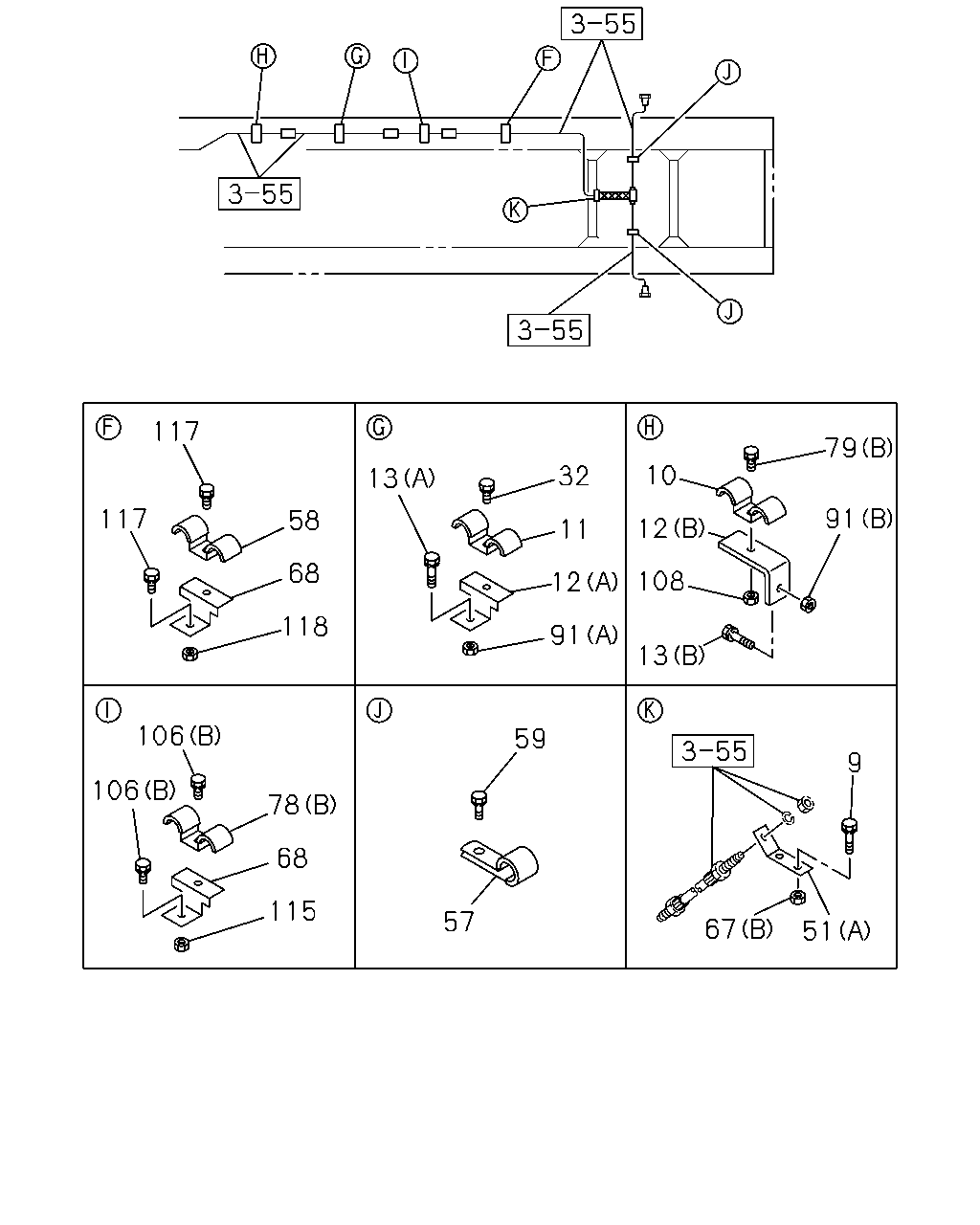

3-58 — FIXING PARTS; OIL PIPING (#2100) — 61 parça

117 79 10 32 13 91 117 58 12 11 68 108 12 118 91 13 106 59 9 106 78 68 115 57 67 51

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
9	BOLT; BRKT BRAKE SYSTEM AIR DUAL CIRCUIT(Z04) M8X20 W/LK WASHER	0-50040-820-0	02	1	9001-9204
10	CLIP; OIL PIPE BRAKE SYSTEM AIR DUAL CIRCUIT(Z04) ID=11 & 7 L=15 & 15	1-09700-071-0	01	1	9001-9204
11	CLIP; OIL PIPE BRAKE SYSTEM AIR DUAL CIRCUIT(Z04) ID=11 & 7 L=15 & 15	1-09700-071-0	05	1	9001-9204
12	BRACKET; OIL PIPE BRAKE SYSTEM AIR DUAL CIRCUIT(Z04) (A)	1-47465-168-1	05	1	9001-9204
12	BRACKET; OIL PIPE BRAKE SYSTEM AIR DUAL CIRCUIT(Z04) (B)	9-47465-152-0	01	1	9001-9204
13	BOLT; BRKT,OIL PIPE BRAKE SYSTEM AIR DUAL CIRCUIT(Z04) (A) M6X20 W/LK WASHER	9-01900-620-0	06	1	9001-9204
13	BOLT; BRKT,OIL PIPE BRAKE SYSTEM AIR DUAL CIRCUIT(Z04) (B) M8X22	9-01900-822-0	01	1	9001-9204
32	BOLT; CLIP,OIL PIPE BRAKE SYSTEM AIR DUAL CIRCUIT(Z04) M6X12 W/LK WASHER	9-01900-612-0	07	1	9001-9204
51	BRACKET; OIL PIPE BRAKE SYSTEM AIR DUAL CIRCUIT(Z04) (A)	1-47465-036-0	01	1	9001-9204
51	BRACKET; OIL PIPE BRAKE SYSTEM AIR DUAL CIRCUIT(Z04) (B)	1-47465-572-1	01	1	9001-9204
57	CLIP; BRK PIPE,RR AXLE BRAKE SYSTEM AIR DUAL CIRCUIT(Z04) ID=14.5	9-09917-208-0	04	1	9001-9204
58	CLIP; OIL PIPE BRAKE SYSTEM AIR DUAL CIRCUIT(Z04) ID=11 & 7 L=15 & 15	1-09700-071-0	06	1	9001-9204
59	BOLT; BRK PIPE,RR AXLE BRAKE SYSTEM AIR DUAL CIRCUIT(Z04) M6X12 W/LK WASHER	9-01900-612-0	04	1	9001-9010
59	BOLT; BRK PIPE,RR AXLE BRAKE SYSTEM AIR DUAL CIRCUIT(Z04) M6X12 W/LK WASHER	0-50040-612-0	04	1	9011-9204
67	NUT; BRKT BRAKE SYSTEM AIR DUAL CIRCUIT(Z04) (A) M6	9-09110-406-0	01	1	9001-9204
67	NUT; BRKT BRAKE SYSTEM AIR DUAL CIRCUIT(Z04) (B) M8	9-09110-408-0	02	1	9001-9204
68	BRACKET; CLIP BRAKE SYSTEM AIR DUAL CIRCUIT(Z04)	1-47465-168-1	06	1	9001-9204
68	BRACKET; CLIP WHEEL BASE 6800MM(68W) BRAKE SYSTEM AIR DUAL CIRCUIT(Z04)	1-47465-168-1	02	1	9001-9204
78	CLIP; OIL PIPE BRAKE SYSTEM AIR DUAL CIRCUIT(Z04) (A) ID=7 & 7 L=15 & 15	1-09700-059-0	01	1	9001-9204
78	CLIP; OIL PIPE WHEEL BASE 6800MM(68W) BRAKE SYSTEM AIR DUAL CIRCUIT(Z04) (B) ID=11 & 7 L=15 & 15	1-09700-071-0	02	1	9001-9204
79	BOLT; CLIP,OIL PIPE BRAKE SYSTEM AIR DUAL CIRCUIT(Z04) (A) M6X12 W/LK WASHER	9-01900-612-0	01	1	9001-9204
79	BOLT; CLIP,OIL PIPE BRAKE SYSTEM AIR DUAL CIRCUIT(Z04) (B) M6X16 W/LK WASHER	9-01910-616-0	01	1	9001-9005
79	BOLT; CLIP,OIL PIPE BRAKE SYSTEM AIR DUAL CIRCUIT(Z04) (B) M6X16 W/LK WASHER	0-50040-616-0	01	1	9006-9204
91	NUT; BRKT,OIL PIPE BRAKE SYSTEM AIR DUAL CIRCUIT(Z04) (A) M6	9-09110-406-0	06	1	9001-9204
91	NUT; BRKT,OIL PIPE BRAKE SYSTEM AIR DUAL CIRCUIT(Z04) (B) M8	9-09110-408-0	01	1	9001-9204
106	BOLT; CLIP,OIL PIPE BRAKE SYSTEM AIR DUAL CIRCUIT(Z04) (A) M6X12 W/LK WASHER	9-01900-612-0	01	1	9001-9204
106	BOLT; CLIP,OIL PIPE WHEEL BASE 6800MM(68W) BRAKE SYSTEM AIR DUAL CIRCUIT(Z04) (B) M6X20 W/LK WASHER	9-01900-620-0	04	1	9001-9204
108	NUT; CLIP,AIR PIPE BRAKE SYSTEM AIR DUAL CIRCUIT(Z04) M6	9-09110-406-0	01	1	9001-9204
115	NUT; CLIP,OIL PIPE WHEEL BASE 6800MM(68W) BRAKE SYSTEM AIR DUAL CIRCUIT(Z04) M6	9-09110-406-0	04	1	9001-9204
117	BOLT; CLIP,OIL PIPE BRAKE SYSTEM AIR DUAL CIRCUIT(Z04) M6X20 W/LK WASHER	9-01900-620-0	12	1	9001-9204
118	NUT; CLIP,OIL PIPE BRAKE SYSTEM AIR DUAL CIRCUIT(Z04) M6	9-09110-406-0	06	1	9001-9204

73 78 79 76 72 4 77 67 28 32 73 72 73 76 82 74 80 74 77 51 81 106 90 89 30 74

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
4	BOLT; BRKT BRAKE SYSTEM AIR DUAL CIRCUIT(Z04) M6X20 W/LK WASHER	9-01900-620-0	01	1	9001-9204
28	WASHER; PL,PIPE CLIP BRAKE SYSTEM AIR DUAL CIRCUIT(Z04) ID=6.4	9-09160-506-0	01	1	9001-9204
30	CLIP; OIL PIPE BRAKE SYSTEM AIR DUAL CIRCUIT(Z04) ID=7 & 7 L=15 & 15	1-09700-059-0	01	1	9001-9204
32	BOLT; CLIP,OIL PIPE BRAKE SYSTEM AIR DUAL CIRCUIT(Z04) M6X12 W/LK WASHER	9-01900-612-0	07	1	9001-9204
51	BRACKET; OIL PIPE BRAKE SYSTEM AIR DUAL CIRCUIT(Z04) (A)	1-47465-036-0	01	1	9001-9204
51	BRACKET; OIL PIPE BRAKE SYSTEM AIR DUAL CIRCUIT(Z04) (B)	1-47465-572-1	01	1	9001-9204
67	NUT; BRKT BRAKE SYSTEM AIR DUAL CIRCUIT(Z04) (A) M6	9-09110-406-0	01	1	9001-9204
67	NUT; BRKT BRAKE SYSTEM AIR DUAL CIRCUIT(Z04) (B) M8	9-09110-408-0	02	1	9001-9204
72	CLIP; OIL PIPE BRAKE SYSTEM AIR DUAL CIRCUIT(Z04) (A) ID=7 & 7 L=15 & 15	1-09700-059-0	02	1	9001-9204
72	CLIP; OIL PIPE BRAKE SYSTEM AIR DUAL CIRCUIT(Z04) (B) ID=7 L=20	9-09524-632-0	01	1	9001-9204
73	BOLT; CLIP,OIL PIPE BRAKE SYSTEM AIR DUAL CIRCUIT(Z04) (A) M6X12 W/LK WASHER	9-01900-612-0	02	1	9001-9204
73	BOLT; CLIP,OIL PIPE BRAKE SYSTEM AIR DUAL CIRCUIT(Z04) (B) M6X20 W/LK WASHER	9-01900-620-0	02	1	9001-9204
74	NUT; CLIP,OIL PIPE BRAKE SYSTEM AIR DUAL CIRCUIT(Z04) M6	9-09110-406-0	06	1	9001-9204
76	BOLT; BRKT,OIL PIPE BRAKE SYSTEM AIR DUAL CIRCUIT(Z04) (A) M6X20 W/LK WASHER	9-01900-620-0	01	1	9001-9204
76	BOLT; BRKT,OIL PIPE BRAKE SYSTEM AIR DUAL CIRCUIT(Z04) (B) M8X20 W/LK WASHER	9-01900-820-0	01	1	9001-9204
77	NUT; BRKT,OIL PIPE BRAKE SYSTEM AIR DUAL CIRCUIT(Z04) (A) M6	9-09110-406-0	01	1	9001-9204
77	NUT; BRKT,OIL PIPE BRAKE SYSTEM AIR DUAL CIRCUIT(Z04) (B) M8	9-09110-408-0	01	1	9001-9204
78	CLIP; OIL PIPE BRAKE SYSTEM AIR DUAL CIRCUIT(Z04) (A) ID=7 & 7 L=15 & 15	1-09700-059-0	01	1	9001-9204
78	CLIP; OIL PIPE WHEEL BASE 6800MM(68W) BRAKE SYSTEM AIR DUAL CIRCUIT(Z04) (B) ID=11 & 7 L=15 & 15	1-09700-071-0	02	1	9001-9204
79	BOLT; CLIP,OIL PIPE BRAKE SYSTEM AIR DUAL CIRCUIT(Z04) (A) M6X12 W/LK WASHER	9-01900-612-0	01	1	9001-9204
79	BOLT; CLIP,OIL PIPE BRAKE SYSTEM AIR DUAL CIRCUIT(Z04) (B) M6X16 W/LK WASHER	9-01910-616-0	01	1	9001-9005
79	BOLT; CLIP,OIL PIPE BRAKE SYSTEM AIR DUAL CIRCUIT(Z04) (B) M6X16 W/LK WASHER	0-50040-616-0	01	1	9006-9204
80	BRACKET; CLIP,OIL PIPE BRAKE SYSTEM AIR DUAL CIRCUIT(Z04)	1-47465-168-1	01	1	9001-9204
81	BOLT; BRKT,OIL PIPE BRAKE SYSTEM AIR DUAL CIRCUIT(Z04) M8X25 W/LK WASHER	9-01910-825-0	03	1	9001-9005
81	BOLT; BRKT,OIL PIPE BRAKE SYSTEM AIR DUAL CIRCUIT(Z04) M8X25 W/LK WASHER	0-50040-825-0	03	1	9006-9204
82	CLIP; OIL PIPE BRAKE SYSTEM AIR DUAL CIRCUIT(Z04) ID=11 & 7 L=15 & 15	1-09700-071-0	02	1	9001-9204
89	CLIP; OIL PIPE BRAKE SYSTEM AIR DUAL CIRCUIT(Z04) ID=7 & 7 L=15 & 15	1-09700-059-0	04	1	9001-9204
90	BOLT; CLIP,OIL PIPE BRAKE SYSTEM AIR DUAL CIRCUIT(Z04) M6X12 W/LK WASHER	9-01900-612-0	04	1	9001-9204
106	BOLT; CLIP,OIL PIPE BRAKE SYSTEM AIR DUAL CIRCUIT(Z04) (A) M6X12 W/LK WASHER	9-01900-612-0	01	1	9001-9204
106	BOLT; CLIP,OIL PIPE WHEEL BASE 6800MM(68W) BRAKE SYSTEM AIR DUAL CIRCUIT(Z04) (B) M6X20 W/LK WASHER	9-01900-620-0	04	1	9001-9204
