3-77 — BRAKE PIPING; AIR,REAR (#210) — 152 parça
çizim 27513
27 29 144 28 31 31 159 28 31 15 29 27 28 30 159 31 31
BalonParca AdiParca NoAdetTipApplied Date
15 BOLT; PIPE UNION
M6X16 W/LK&PL WASHER 		1-09980-458-0 01 1 9212-
27 PIPE; AIR,UNION TO FLEX HOSE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=1457 SERVICED BY L=1550 		1-47426-390-0 01 1 9212-
27 PIPE; AIR,UNION TO FLEX HOSE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=1701 SERVICED BY L=1800 		1-47434-413-0 01 1 9212-9212
27 PIPE; AIR,UNION TO FLEX HOSE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=1701 SERVICED BY L=1800 		1-47426-392-0 01 1 9301-
28 PIPE; AIR,FLEX HOSE TO UNION
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=1728 SERVICED BY L=1950 		1-47434-414-0 01 1 9212-9212
28 PIPE; AIR,FLEX HOSE TO UNION
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=1728 SERVICED BY L=1950 		1-47426-393-0 01 1 9301-
29 PIPE; AIR,UNION TO UNION
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=1262 SERVICED BY L=1400 		1-47434-411-0 01 1 9212-9212
29 PIPE; AIR,UNION TO UNION
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=1262 SERVICED BY L=1400 		1-47426-389-0 01 1 9301-
29 PIPE; AIR,UNION TO UNION
WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. EXHAUST BRAKE<NF8>,PTO CONTROL<SV6>,BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=2376 SERVICED BY L=2700 		1-47434-415-0 01 1 9212-9212
29 PIPE; AIR,UNION TO UNION
WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. EXHAUST BRAKE<NF8>,PTO CONTROL<SV6>,BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=2376 SERVICED BY L=2700 		1-47426-396-0 01 1 9301-
29 PIPE; AIR,UNION TO UNION
WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXHAUST BRAKE<NF8> EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=2253 SERVICED BY L=2400 		1-47437-959-0 01 1 9212-9212
29 PIPE; AIR,UNION TO UNION
WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) PTO CONTROL<SV6> EXC. EXHAUST BRAKE<NF8>,BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=2253 SERVICED BY L=2400 		1-47437-959-0 01 1 9212-9212
29 PIPE; AIR,UNION TO UNION
WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXHAUST BRAKE<NF8> EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=2253 SERVICED BY L=2400 		1-47426-395-0 01 1 9301-9504
29 PIPE; AIR,UNION TO UNION
WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) PTO CONTROL<SV6> EXC. EXHAUST BRAKE<NF8>,BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=2253 SERVICED BY L=2400 		1-47426-395-0 01 1 9301-9504
29 PIPE; AIR,UNION TO UNION
WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXHAUST BRAKE<NF8> EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=2258 SERVICED BY L=2400 		1-47426-395-0 01 1 9505-
29 PIPE; AIR,UNION TO UNION
WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) PTO CONTROL<SV6> EXC. EXHAUST BRAKE<NF8>,BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=2258 SERVICED BY L=2400 		1-47426-395-0 01 1 9505-
30 PIPE; AIR,AIR TANK TO JOINT
WHEEL BASE 3700MM(37W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=2887 SERVICED BY L=3000 		1-47437-960-0 01 1 9212-9212
30 PIPE; AIR,AIR TANK TO JOINT
WHEEL BASE 3700MM(37W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=2887 SERVICED BY L=3000 		1-47426-397-0 01 1 9301-9504
30 PIPE; AIR,AIR TANK TO JOINT
WHEEL BASE 3700MM(37W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=2893 SERVICED BY L=3000 		1-47426-397-0 01 1 9505-
30 PIPE; AIR,AIR TANK TO JOINT
WHEEL BASE 4200MM(42W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=1029 SERVICED BY L=1100 		1-47434-409-0 01 1 9212-9212
30 PIPE; AIR,AIR TANK TO JOINT
WHEEL BASE 4200MM(42W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=1029 SERVICED BY L=1100 		1-47426-387-0 01 1 9301-
30 PIPE; AIR,AIR TANK TO JOINT
WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=1629 SERVICED BY L=1800 		1-47434-413-0 01 1 9212-9212
30 PIPE; AIR,AIR TANK TO JOINT
WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=1629 SERVICED BY L=1800 		1-47426-392-0 01 1 9301-
31 PIPE; AIR,UNION TO UNION
WHEEL BASE 3700MM(37W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (C) L=2457 SERVICED BY L=2700 		1-47434-415-0 01 1 9212-9212
31 PIPE; AIR,UNION TO UNION
WHEEL BASE 3700MM(37W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (C) L=2457 SERVICED BY L=2700 		1-47426-396-0 01 1 9301-
31 PIPE; AIR,UNION TO UNION
WHEEL BASE 3700MM(37W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (C) L=2470 SERVICED BY L=2700 		1-47434-415-0 01 1 9212-9212
31 PIPE; AIR,UNION TO UNION
WHEEL BASE 3700MM(37W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (C) L=2470 SERVICED BY L=2700 		1-47426-396-0 01 1 9301-
31 PIPE; AIR,UNION TO UNION
WHEEL BASE 4200MM(42W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (A) L=1203 SERVICED BY L=1250 		1-47434-410-0 01 1 9212-9212
31 PIPE; AIR,UNION TO UNION
WHEEL BASE 4200MM(42W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (A) L=1203 SERVICED BY L=1250 		1-47426-388-0 01 1 9301-
31 PIPE; AIR,UNION TO UNION
WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (A) L=1106 SERVICED BY L=1250 		1-47434-410-0 01 1 9212-9212
31 PIPE; AIR,UNION TO UNION
WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (A) L=1106 SERVICED BY L=1100 		1-47426-387-0 01 1 9301-9303
31 PIPE; AIR,UNION TO UNION
WHEEL BASE 4200MM(42W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (A) L=1106 SERVICED BY L=1100 		1-47426-387-0 01 1 9304-
31 PIPE; AIR,UNION TO UNION
WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (B) L=1566 SERVICED BY L=1700 		1-47434-412-0 01 1 9212-9212
31 PIPE; AIR,UNION TO UNION
WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (B) L=1566 SERVICED BY L=1700 		1-47426-391-0 01 1 9301-
31 PIPE; AIR,UNION TO UNION
WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (B) L=1670 SERVICED BY L=1800 		1-47434-413-0 01 1 9212-9212
31 PIPE; AIR,UNION TO UNION
WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (B) L=1700 SERVICED BY L=1800 		1-47426-392-0 01 1 9301-
31 PIPE; AIR,UNION TO UNION
WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (A) L=1803 SERVICED BY L=1950 		1-47434-414-0 01 1 9212-9212
31 PIPE; AIR,UNION TO UNION
WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (A) L=1803 SERVICED BY L=1950 		1-47426-393-0 01 1 9301-
31 PIPE; AIR,UNION TO UNION
WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (A) L=1691 SERVICED BY L=1700 		1-47426-391-0 01 1 9304-
144 PIPE; AIR,UNION TO UNION
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=1430 SERVICED BY L=1550 		1-47437-957-0 01 1 9212-9212
144 PIPE; AIR,UNION TO UNION
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=1430 SERVICED BY L=1550 		1-47426-390-0 01 1 9301-
159 PIPE; AIR,UNION TO FLEX HOSE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK<RD2> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=1862 SERVICED BY L=2150 		1-47437-958-0 01 1 9212-9212
159 PIPE; AIR,UNION TO FLEX HOSE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK<RD2> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=1862 SERVICED BY L=2150 		1-47426-394-0 01 1 9301-
159 PIPE; AIR,UNION TO FLEX HOSE
WHEEL BASE 3700MM(37W),WHEEL BASE 4200MM(42W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=1861 SERVICED BY L=1950 		1-47434-414-0 01 1 9212-9212
159 PIPE; AIR,UNION TO FLEX HOSE
WHEEL BASE 3700MM(37W),WHEEL BASE 4200MM(42W) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. HEAVY DUTY PACKAGE TRUCK<RD2> L=1861 SERVICED BY L=1950 		1-47434-414-0 01 1 9212-9212
159 PIPE; AIR,UNION TO FLEX HOSE
WHEEL BASE 3700MM(37W),WHEEL BASE 4200MM(42W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=1861 SERVICED BY L=1950 		1-47426-393-0 01 1 9301-9304
159 PIPE; AIR,UNION TO FLEX HOSE
WHEEL BASE 3700MM(37W),WHEEL BASE 4200MM(42W) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. HEAVY DUTY PACKAGE TRUCK<RD2> L=1861 SERVICED BY L=1950 		1-47426-393-0 01 1 9301-9304
159 PIPE; AIR,UNION TO FLEX HOSE
WHEEL BASE 3700MM(37W),WHEEL BASE 4200MM(42W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=1861 SERVICED BY L=1950 		1-47426-393-0 01 1 9305-
159 PIPE; AIR,UNION TO FLEX HOSE
WHEEL BASE 3700MM(37W),WHEEL BASE 4200MM(42W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. HEAVY DUTY PACKAGE TRUCK<RD2> L=1861 SERVICED BY L=1950 		1-47426-393-0 01 1 9305-
159 PIPE; AIR,UNION TO FLEX HOSE
WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=1790 SERVICED BY L=1950 		1-47434-414-0 01 1 9212-9212
159 PIPE; AIR,UNION TO FLEX HOSE
WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. HEAVY DUTY PACKAGE TRUCK<RD2> L=1790 SERVICED BY L=1950 		1-47434-414-0 01 1 9212-9212
159 PIPE; AIR,UNION TO FLEX HOSE
WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=1790 SERVICED BY L=1950 		1-47426-393-0 01 1 9301-
159 PIPE; AIR,UNION TO FLEX HOSE
WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. HEAVY DUTY PACKAGE TRUCK<RD2> L=1790 SERVICED BY L=1950 		1-47426-393-0 01 1 9301-
çizim 92184
16 201 59 13 101 4 16 201 13 59 4 101 7 6 15 15 14 14 8 8 207 207 6 7
BalonParca AdiParca NoAdetTipApplied Date
4 PIPE; AIR,UNION TO BRK VLV
DUAL AIR GAUGE<UG2> L=294 SERVICED BY L=300 		1-47426-402-0 01 1 9212-9212
4 PIPE; AIR,UNION TO BRK VLV
DUAL AIR GAUGE<UG2> L=294 SERVICED BY L=550 		1-47426-407-0 01 1 9301-
4 PIPE; AIR,UNION TO BRK VLV
EXC. DUAL AIR GAUGE<UG2> L=318 SERVICED BY L=350 		1-47426-403-0 01 1 9212-9212
4 PIPE; AIR,UNION TO BRK VLV
EXC. DUAL AIR GAUGE<UG2> L=318 SERVICED BY L=550 		1-47426-407-0 01 1 9301-
6 WASHER; LK,FLEX HOSE
ID=16.2 		9-09150-516-0 04 1 9212-
7 NUT; FLEX HOSE
M16 		9-99111-416-0 04 1 9212-
8 HOSE; FLEX,AIR,CAB SIDE
L=630 		0-07424-630-0 02 1 9212-
13 PIPE; AIR,BRK VLV TO UNION
L=261 SERVICED BY L=300 		1-47426-402-0 01 1 9212-9212
13 PIPE; AIR,BRK VLV TO UNION
L=261 SERVICED BY L=550 		1-47426-407-0 01 1 9301-
14 UNION; AIR PIPE
DUAL AIR GAUGE<UG2> 		1-47470-219-1 01 1 9212-
14 UNION; AIR PIPE
EXC. DUAL AIR GAUGE<UG2> 		1-47470-196-1 01 1 9212-
15 BOLT; PIPE UNION
M6X16 W/LK&PL WASHER 		1-09980-458-0 01 1 9212-
16 PIPE; AIR,UNION TO FLEX HOSE
L=954 SERVICED BY L=1000 		1-47434-476-0 01 1 9212-9212
16 PIPE; AIR,UNION TO FLEX HOSE
L=954 SERVICED BY L=1100 		1-47426-415-0 01 1 9301-
59 PIPE; AIR,UNION TO FLEX HOSE
L=2823 SERVICED BY L=3300 		1-47437-975-0 01 1 9212-9212
59 PIPE; AIR,UNION TO FLEX HOSE
L=2823 SERVICED BY L=3300 		1-47426-426-0 01 1 9301-
101 PIPE; AIR,FLEX HOSE TO UNION
L=2906 SERVICED BY L=3300 		1-47437-975-0 01 1 9212-9212
101 PIPE; AIR,FLEX HOSE TO UNION
L=2906 SERVICED BY L=3300 		1-47426-426-0 01 1 9301-
201 PIPE; AIR,FLEX HOSE TO UNION
L=805 SERVICED BY L=900 		1-47426-413-0 01 1 9212-9212
201 PIPE; AIR,FLEX HOSE TO UNION
L=805 		1-47497-058-0 01 1 9301-
207 SEAL; PLATE,UNION 1-79998-233-0 01 1 9212-

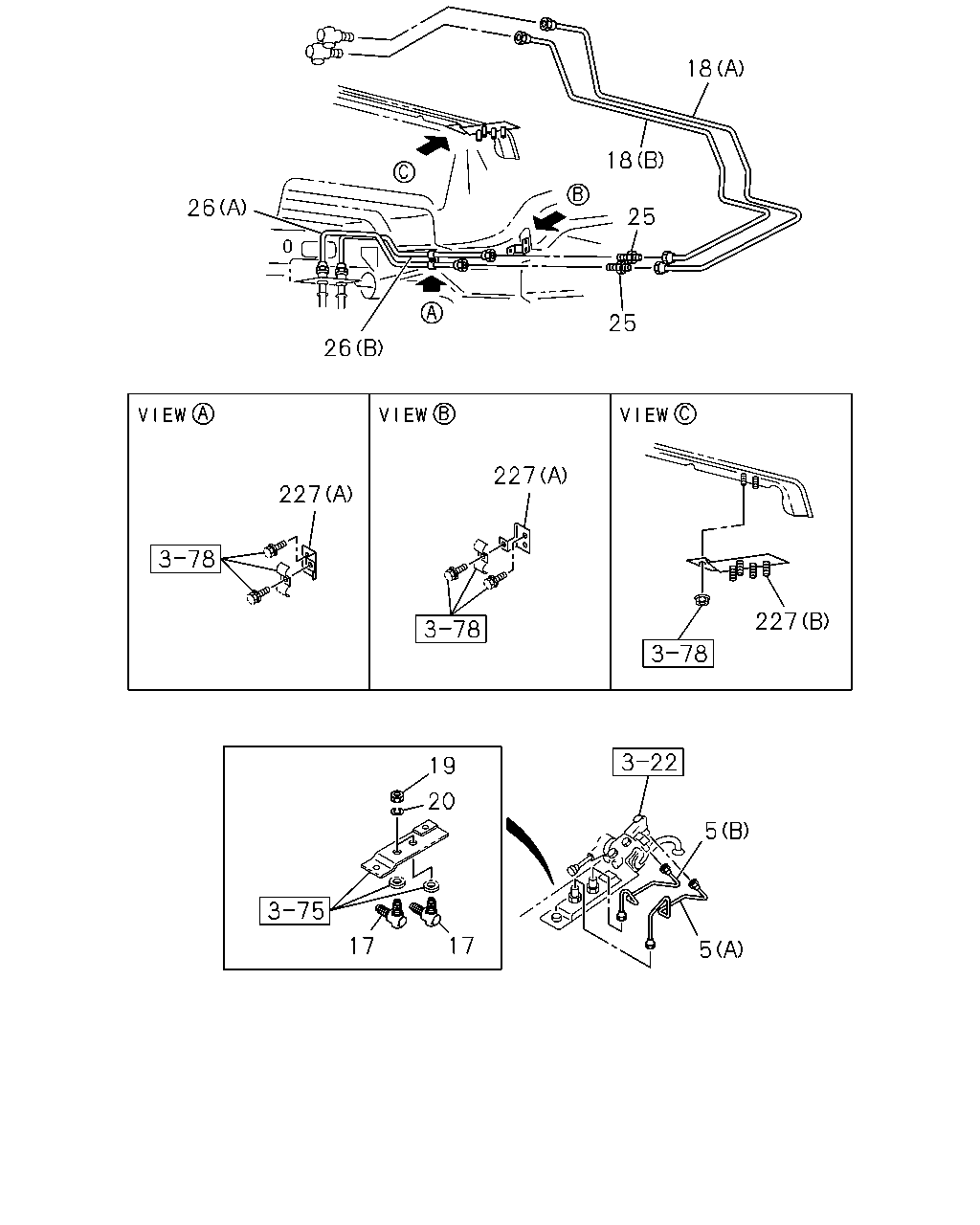

çizim 92251
18 18 26 25 25 26 227 227 227 19 20 5 17 17 5
BalonParca AdiParca NoAdetTipApplied Date
5 PIPE; AIR,UNION TO PARKING VLV
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) L=688 		1-47482-988-0 01 1 9212-9212
5 PIPE; AIR,UNION TO PARKING VLV
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) L=688 		1-47497-612-0 01 1 9301-
5 PIPE; AIR,UNION TO PARKING VLV
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=759 		1-47482-989-0 01 1 9212-9212
5 PIPE; AIR,UNION TO PARKING VLV
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=759 		1-47497-613-0 01 1 9301-
17 UNION; AIR PIPE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M14 		9-09225-208-1 02 1 9212-
18 PIPE; AIR,UNION TO UNION
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) L=1034 SERVICED BY L=1100 		1-47434-409-0 01 1 9212-9212
18 PIPE; AIR,UNION TO UNION
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) L=1034 SERVICED BY L=1100 		1-47426-387-0 01 1 9301-
18 PIPE; AIR,UNION TO UNION
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=952 SERVICED BY L=1000 		1-47437-956-0 01 1 9212-9212
18 PIPE; AIR,UNION TO UNION
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=952 SERVICED BY L=1000 		1-47426-386-0 01 1 9301-
19 NUT; PIPE UNION
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M14 		9-99110-414-0 01 1 9212-
19 NUT; PIPE UNION
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M12 		9-99111-412-0 01 1 9212-
19 NUT; PIPE UNION
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M14 		9-99111-414-0 04 1 9212-
20 WASHER; LK,PIPE UNION
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=14.2 		9-09150-514-0 02 1 9212-
25 UNION; AIR PIPE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M14 STRAIGHT 		9-09223-008-1 02 1 9212-
26 PIPE; AIR,FLEX HOSE TO UNION
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=776 		1-47483-117-0 01 1 9212-9212
26 PIPE; AIR,FLEX HOSE TO UNION
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=776 		1-47497-113-0 01 1 9301-
26 PIPE; AIR,FLEX HOSE TO UNION
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) L=620 		1-47483-335-0 01 1 9212-9212
26 PIPE; AIR,FLEX HOSE TO UNION
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) L=620 		1-47497-690-0 01 1 9301-
227 BRACKET ASM; AIR PIPE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) 		1-71998-376-1 01 1 9212-
227 BRACKET ASM; AIR PIPE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) 		1-71998-421-0 02 1 9212-
çizim 94619
87 118 101 103 93 59 118 87 101 103 93 59
BalonParca AdiParca NoAdetTipApplied Date
59 PIPE; AIR,UNION TO FLEX HOSE
L=2823 SERVICED BY L=3300 		1-47437-975-0 01 1 9212-9212
59 PIPE; AIR,UNION TO FLEX HOSE
L=2823 SERVICED BY L=3300 		1-47426-426-0 01 1 9301-
87 PIPE; AIR,AIR TANK TO UNION
BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=1142 		1-47496-345-0 01 1 9212-9212
87 PIPE; AIR,AIR TANK TO UNION
BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=1142 SERVICED BY L=1250 		1-47426-416-0 01 1 9301-
87 PIPE; AIR,AIR TANK TO UNION
EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=573 		1-47487-676-0 01 1 9212-9212
87 PIPE; AIR,AIR TANK TO UNION
EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=574 		1-47497-135-0 01 1 9301-
93 PIPE; AIR,UNION TO UNION
BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. HEAVY DUTY PACKAGE TRUCK<RD2> L=2466 SERVICED BY L=2900 		1-47437-974-0 01 1 9212-9212
93 PIPE; AIR,UNION TO UNION
BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. HEAVY DUTY PACKAGE TRUCK<RD2> L=2466 SERVICED BY L=2900 		1-47426-425-0 01 1 9301-
93 PIPE; AIR,UNION TO UNION
EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=2573 SERVICED BY L=2900 		1-47437-974-0 01 1 9212-9212
93 PIPE; AIR,UNION TO UNION
EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=2573 SERVICED BY L=2900 		1-47426-425-0 01 1 9301-
93 PIPE; AIR,UNION TO UNION
EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=2573 SERVICED BY L=2600 		1-47426-424-0 01 1 9301-
93 PIPE; AIR,UNION TO UNION
HEAVY DUTY PACKAGE TRUCK<RD2> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=2478 SERVICED BY L=2600 		1-47437-973-0 01 1 9212-9212
93 PIPE; AIR,UNION TO UNION
HEAVY DUTY PACKAGE TRUCK<RD2> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=2477 SERVICED BY L=2600 		1-47426-424-0 01 1 9301-
101 PIPE; AIR,FLEX HOSE TO UNION
L=2906 SERVICED BY L=3300 		1-47437-975-0 01 1 9212-9212
101 PIPE; AIR,FLEX HOSE TO UNION
L=2906 SERVICED BY L=3300 		1-47426-426-0 01 1 9301-
103 PIPE; AIR,UNION TO UNION
BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. HEAVY DUTY PACKAGE TRUCK<RD2> L=2501 SERVICED BY L=2900 		1-47437-974-0 01 1 9212-9212
103 PIPE; AIR,UNION TO UNION
BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. HEAVY DUTY PACKAGE TRUCK<RD2> L=2501 SERVICED BY L=2900 		1-47426-425-0 01 1 9301-9307
103 PIPE; AIR,UNION TO UNION
BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. HEAVY DUTY PACKAGE TRUCK<RD2> L=2509 SERVICED BY L=2600 		1-47426-424-0 01 1 9308-
103 PIPE; AIR,UNION TO UNION
EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=2416 SERVICED BY L=2600 		1-47437-973-0 01 1 9212-9212
103 PIPE; AIR,UNION TO UNION
EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=2416 SERVICED BY L=2600 		1-47426-424-0 01 1 9301-
103 PIPE; AIR,UNION TO UNION
HEAVY DUTY PACKAGE TRUCK<RD2> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=2433 SERVICED BY L=2600 		1-47437-973-0 01 1 9212-9212
103 PIPE; AIR,UNION TO UNION
HEAVY DUTY PACKAGE TRUCK<RD2> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=2433 SERVICED BY L=2600 		1-47426-424-0 01 1 9301-
118 PIPE; AIR,UNION TO AIR MASTER
BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=465 SERVICED BY L=500 		1-47426-406-0 01 1 9212-9212
118 PIPE; AIR,UNION TO AIR MASTER
BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=465 SERVICED BY L=600 		1-47426-408-0 01 1 9301-
118 PIPE; AIR,UNION TO AIR MASTER
EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=732 		1-47487-684-0 01 1 9212-9212
118 PIPE; AIR,UNION TO AIR MASTER
EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=732 		1-47497-144-0 01 1 9301-
çizim 94658
162 21 163 19 79 21 21 161 64 79 228 24 19 141 21 67 163 67 46 37 46 61 88 19 91 97 37 88 97 61 60 91
BalonParca AdiParca NoAdetTipApplied Date
19 NUT; PIPE UNION
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M14 		9-99110-414-0 01 1 9212-
19 NUT; PIPE UNION
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M12 		9-99111-412-0 01 1 9212-
19 NUT; PIPE UNION
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M14 		9-99111-414-0 04 1 9212-
21 WASHER; LK,UNION
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=14.2 		9-09150-514-0 02 1 9212-
21 WASHER; LK,UNION
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=14.2 		9-09150-514-0 03 1 9212-9312
24 HOSE; FLEX,PARKING BRK
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=380 		0-07402-380-0 02 1 9212-
37 UNION; AIR PIPE
(A) M16 L=42 		9-09233-010-0 01 1 9212-
37 UNION; AIR PIPE
BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. HEAVY DUTY PACKAGE TRUCK<RD2> (A) M16 L=42 		9-09233-010-0 01 1 9212-
37 UNION; AIR PIPE
EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (A) M16 L=42 		9-09233-010-0 01 1 9212-
37 UNION; AIR PIPE
(B) M16 L=74 		9-09233-310-1 02 1 9212-
46 NIPPLE; AIR PIPE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M12 & M14 & PT1/4 3WAY 		1-09656-286-2 01 1 9212-
46 NIPPLE; AIR PIPE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M14 STRAIGHT 		9-09223-008-1 01 1 9212-
46 NIPPLE; AIR PIPE
WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M14 STRAIGHT 		9-09223-008-1 01 1 9212-
60 NUT; NIPPLE,AIR PIPE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M12 		9-99111-412-0 01 1 9212-
61 WASHER; LK,NIPPLE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=12.2 		9-09150-512-0 01 1 9212-9312
61 WASHER; LK,NIPPLE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) ID=12.2 		9-09150-512-0 01 1 9212-9312
64 GASKET; FLEX HOSE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=11 OD=18 		9-09572-510-0 01 1 9212-
67 NUT; HOSE BRKT
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 		9-09110-408-0 04 1 9212-
79 BOLT; HOSE BRKT
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X20 FLANGE 		0-28080-820-0 04 1 9212-
88 WASHER; LK,PIPE UNION
ID=16.2 		9-09150-516-0 02 1 9212-9312
91 NUT; PIPE UNION
M16 		9-99111-416-0 02 1 9212-
97 UNION; AIR PIPE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M14 STRAIGHT 		9-09223-008-1 01 1 9212-
97 UNION; AIR PIPE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (A) M14 STRAIGHT 		9-09223-008-1 01 1 9212-
97 UNION; AIR PIPE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (B) M14 2WAY 		1-09654-176-2 01 1 9212-
141 NUT; PIPE BRKT
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M14 		9-99110-414-0 01 1 9212-
161 HOSE; FLEX,QUICK RELEASE VLV
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=580 		0-07462-580-1 01 1 9212-
161 HOSE; FLEX,QUICK RELEASE VLV
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. HEAVY DUTY PACKAGE TRUCK<RD2> L=580 		0-07462-580-1 01 1 9212-
161 HOSE; FLEX,QUICK RELEASE VLV
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK<RD2> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=670 		0-07462-670-1 01 1 9212-
162 NUT; FLEX HOSE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M14 		9-99111-414-0 01 1 9212-
163 BRACKET; FLEX HOSE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) 		1-47475-464-0 01 1 9212-
163 BRACKET; FLEX HOSE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) 		1-47475-725-0 01 1 9212-
228 BRACKET; FLEX HOSE JOINT
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-79738-098-3 01 1 9212-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
