7-20 — MIRROR AND MIRROR STAY (#20999) — 20 parça

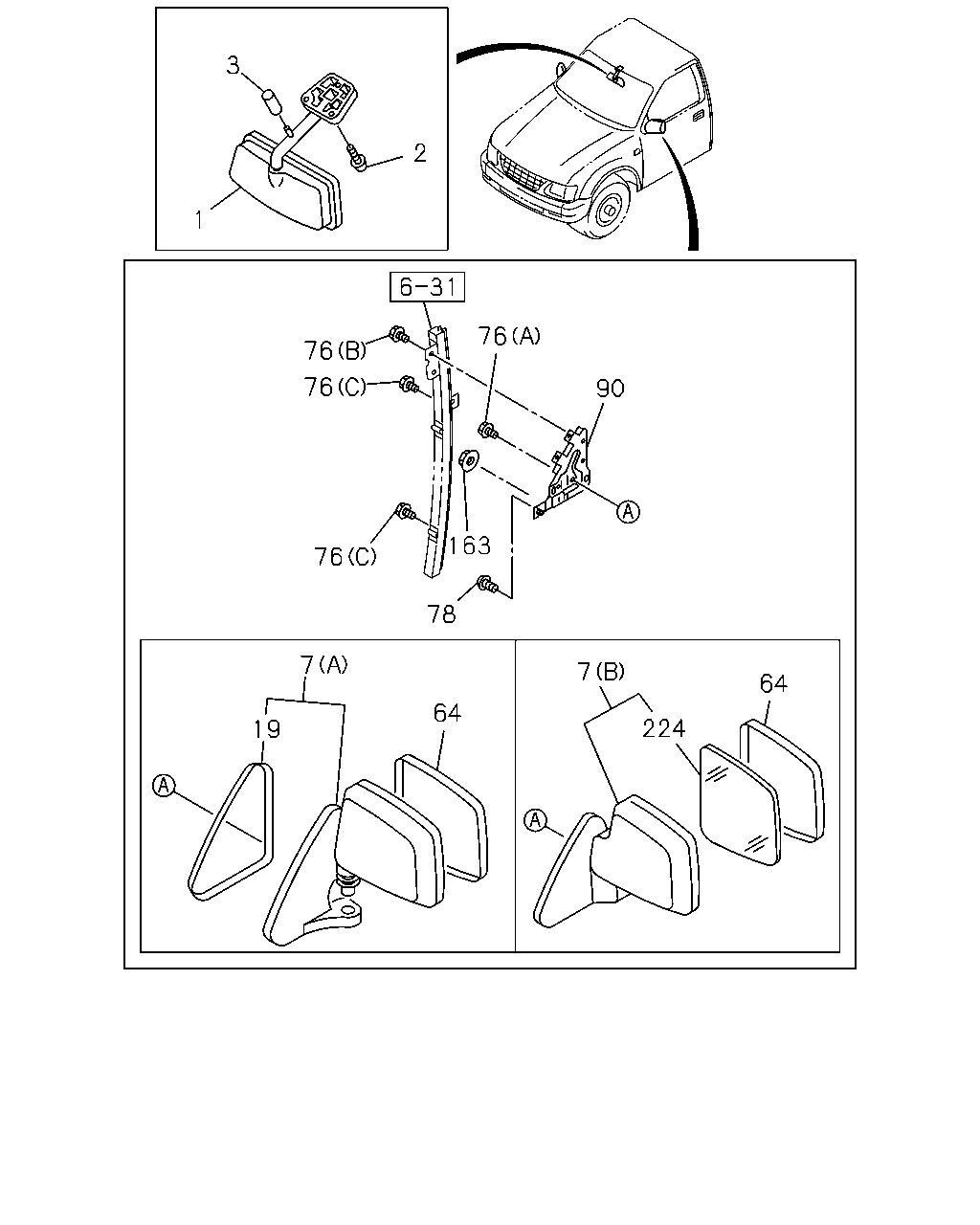

çizim 53140
3 2 1 76 76 76 90 163 76 78 7 7 64 64 224 19
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 16.068 MIRROR; ROOM
GRAY 		8-97158-659-0 01 1 0108- ● ● ● ● ●
2 16.069 SCREW; MIRROR TO BODY
08.977 M4X16 TAPPING OVAL-HEAD 		0-70580-416-0 03 1 0108- ● ● ● ● ●
3 16.069 STOPPER; RR VIEW MIRROR 8-94239-390-0 01 1 0108- ● ● ● ● ●
7 16.068 MIRROR ASM; DOOR
DOOR MIRROR ELECTRIC CONT BRIGHT<7HX> (B) 		8-97314-031-1 01 1 0108- ● ● ● ● ●
7 16.068 MIRROR ASM; DOOR
DOOR MIRROR ELECTRIC CONT BRIGHT<7HX> (B) 		8-97314-032-1 01 1 0108- ● ● ● ● ●
7 16.068 MIRROR ASM; DOOR
DOOR MIRROR<RT9> (A) 		8-97112-266-0 01 1 0108- ● ● ● ● ●
7 16.068 MIRROR ASM; DOOR
DOOR MIRROR<RT9> (A) 		8-97115-700-0 01 1 0108- ● ● ● ● ●
19 10.186 GASKET; MIRROR
DOOR MIRROR<RT9> 		8-97165-412-0 01 1 0108- ● ● ● ● ●
19 10.186 GASKET; MIRROR
DOOR MIRROR<RT9> 		8-97165-411-0 01 1 0108- ● ● ● ● ●
64 16.069 SEAL; MIRROR 8-97085-132-1 02 1 0108- ● ● ● ● ●
76 16.069 BOLT; STAY BRKT
10.701 (B) M6X8 		8-94155-893-0 04 1 0108- ● ● ● ● ●
76 16.069 BOLT; STAY BRKT
16.585 (A) M6X14 FLANGE 		8-94327-380-0 06 1 0108- ● ● ● ● ●
76 16.069 BOLT; STAY BRKT
07.833 (C) M6X14 W/LK&PL WASHER 		8-94382-066-1 04 1 0108- ● ● ● ● ●
78 16.069 SCREW; BRKT FIX
16.175 M6X14 		8-94113-240-1 02 1 0108- ● ● ● ● ●
78 16.069 SCREW; BRKT FIX
16.173 M4X12 OVAL-HEAD 		9-93297-412-0 04 1 0108- ● ● ● ● ●
90 16.069 BRACKET; MIRROR STAY 8-97081-415-3 01 1 0108-0504 ● ● ● ● ●
90 16.069 BRACKET; MIRROR STAY 8-97081-414-3 01 1 0108-0504 ● ● ● ● ●
163 06.069 NUT; MIRROR BRKT
07.829 M6 FLANGE 		5-09440-004-0 02 1 0108- ● ● ● ● ●
224 16.068 MIRROR; DOOR
DOOR MIRROR ELECTRIC CONT BRIGHT<7HX> 		8-97228-243-0 01 1 0108- ● ● ● ● ●
224 16.068 MIRROR; DOOR
DOOR MIRROR ELECTRIC CONT BRIGHT<7HX> 		8-97228-244-0 01 1 0108- ● ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
