◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50920 - TFR/TFS(EUROPE)-RHD ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-01 - EMBLEM AND NAME PLATE ▶
7-01 — EMBLEM AND NAME PLATE (#20997) — 46 parça

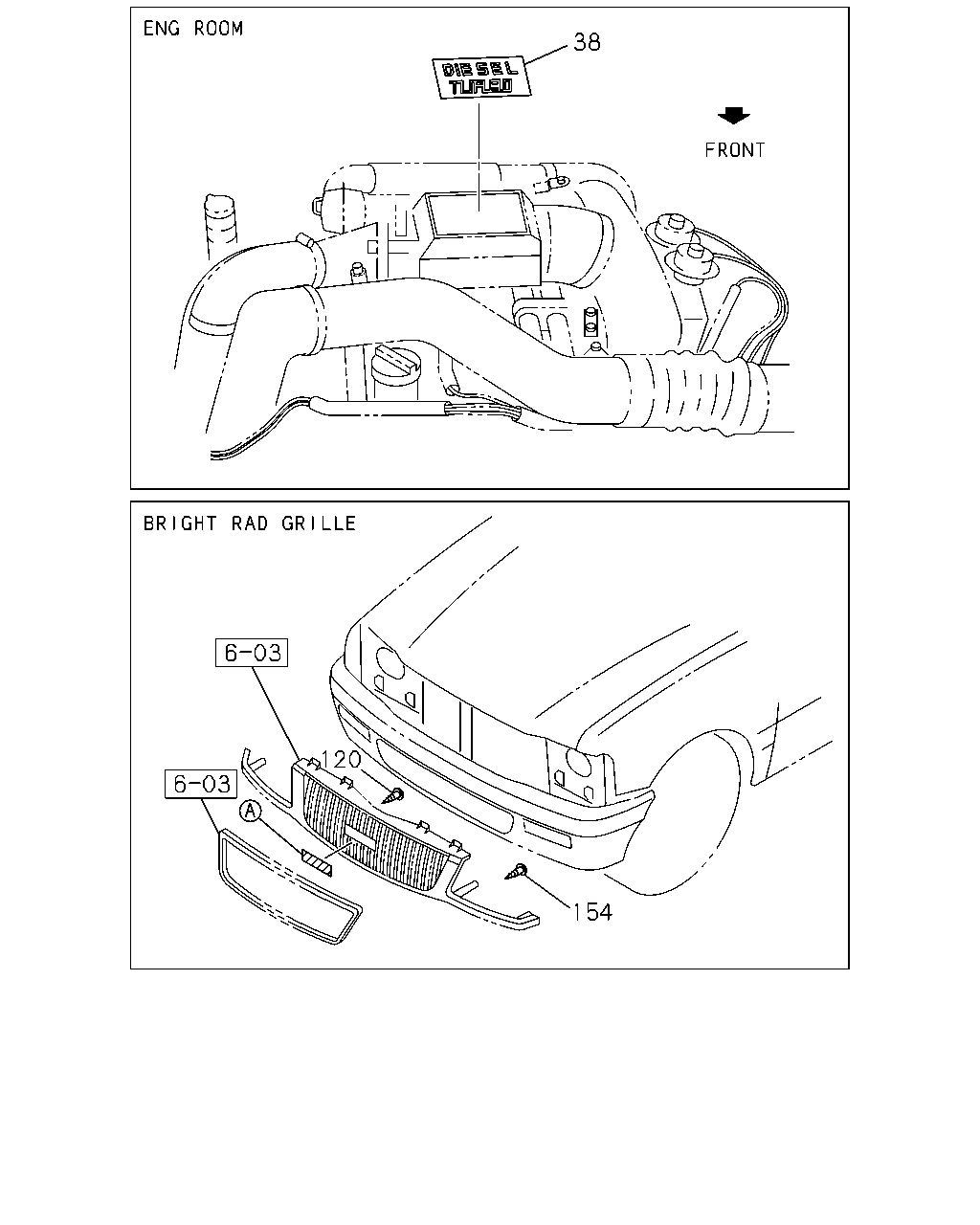

çizim 12092
38 120 154
BalonParca AdiParca NoAdetTipApplied Date A B C D E
38 01.303 PLATE; NAME
4JG2 ENG(RJC) 		8-97115-470-0 01 1 0108- ● ● ● ●
38 01.303 PLATE; NAME 8-97115-470-0 01 1 0108- ●
120 01.303 SCREW; MARK
BRIGHT RAD GRILLE<V22> 08.900 M5X16 		8-94380-268-0 02 1 0108- ● ● ● ●
120 01.303 SCREW; MARK
EXC. BRIGHT RAD GRILLE<V22> 08.900 M5X16 		8-94380-268-0 04 1 0108- ● ● ● ●
120 01.303 SCREW; MARK
08.900 M5X16 		8-94380-268-0 04 1 0108- ●
154 01.303 SCREW
BRIGHT RAD GRILLE<V22> 02.587 M4X14 TAPPING 		9-07066-414-0 13 1 0108- ● ● ● ●

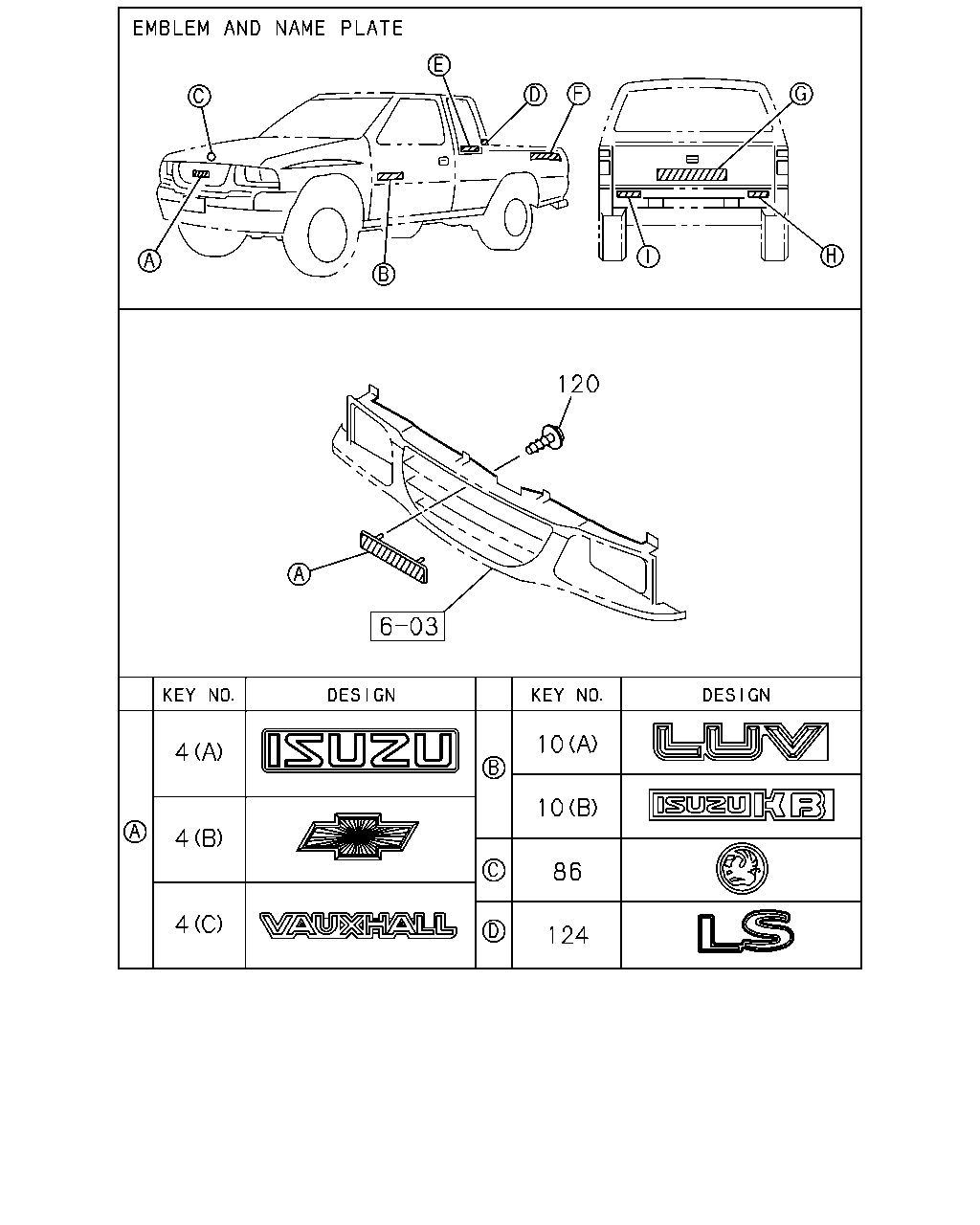

çizim 50358
120 10 4 10 4 86 4 124
BalonParca AdiParca NoAdetTipApplied Date A B C D E
4 01.303 EMBLEM; RAD GRILLE
CHEVROLET BRAND<RWE> EXC. BRIGHT RAD GRILLE<V22> (B) 		8-97177-255-1 01 1 0108- ● ● ● ● ●
4 01.303 EMBLEM; RAD GRILLE
EXC. CHEVROLET BRAND<RWE>,BRIGHT RAD GRILLE<V22>,VAUXHALL BRAND<8DT> (A) 		8-97203-475-2 01 1 0108-0201 ● ● ● ● ●
4 01.303 EMBLEM; RAD GRILLE
EXC. CHEVROLET BRAND<RWE>,BRIGHT RAD GRILLE<V22> (A) 		8-97203-475-2 01 1 0202- ● ● ● ● ●
4 01.303 EMBLEM; RAD GRILLE
BRIGHT RAD GRILLE<V22> EXC. CHEVROLET BRAND<RWE>,VAUXHALL BRAND<8DT> (A) 		8-97110-163-0 01 1 0108-0201 ● ● ● ●
4 01.303 EMBLEM; RAD GRILLE
BRIGHT RAD GRILLE<V22> EXC. CHEVROLET BRAND<RWE> (A) 		8-97110-163-0 01 1 0202-0304 ● ● ● ●
4 01.303 EMBLEM; RAD GRILLE
BRIGHT RAD GRILLE<V22> EXC. CHEVROLET BRAND<RWE> (A) 		8-97910-948-0 01 1 0305- ● ● ● ●
4 01.303 EMBLEM; RAD GRILLE
VAUXHALL BRAND<8DT> EXC. BRIGHT RAD GRILLE<V22> (C) 		8-97147-754-3 01 1 0108-0201 ● ● ● ●
10 01.303 EMBLEM; DOOR
CHEVROLET BRAND<RWE> 08.147 (A) 		8-94233-256-2 02 1 0108- ● ● ● ● ●
10 01.303 EMBLEM; DOOR
NAME PLATE ISUZU KB<6PU> (B) 		8-97022-693-1 02 1 0108- ● ● ● ● ●
86 08.808 EMBLEM; SYMBOL,BODY FRT
VAUXHALL BRAND<8DT> 		8-97147-801-0 01 1 0108-0201 ● ● ● ●
120 01.303 SCREW; MARK
BRIGHT RAD GRILLE<V22> 08.900 M5X16 		8-94380-268-0 02 1 0108- ● ● ● ●
120 01.303 SCREW; MARK
EXC. BRIGHT RAD GRILLE<V22> 08.900 M5X16 		8-94380-268-0 04 1 0108- ● ● ● ●
120 01.303 SCREW; MARK
08.900 M5X16 		8-94380-268-0 04 1 0108- ●
124 08.147 PLATE; NAME
GRADE LS(RBD) EXC. VAUXHALL BRAND<8DT> 16.507 		8-97805-215-2 02 1 0108-0201 ● ● ● ● ●
124 08.147 PLATE; NAME
GRADE LS(RBD) 16.507 		8-97805-215-2 02 1 0202-0202 ● ● ● ● ●
124 08.147 PLATE; NAME
GRADE LS(RBD) HONG KONG EQUIPMENT(PQ1),CYPRUS EQUIPMENT(R4G),SINGAPORE EQUIPMENT(S9Y) 16.507 		8-97805-215-2 02 1 0203- ● ● ● ● ●

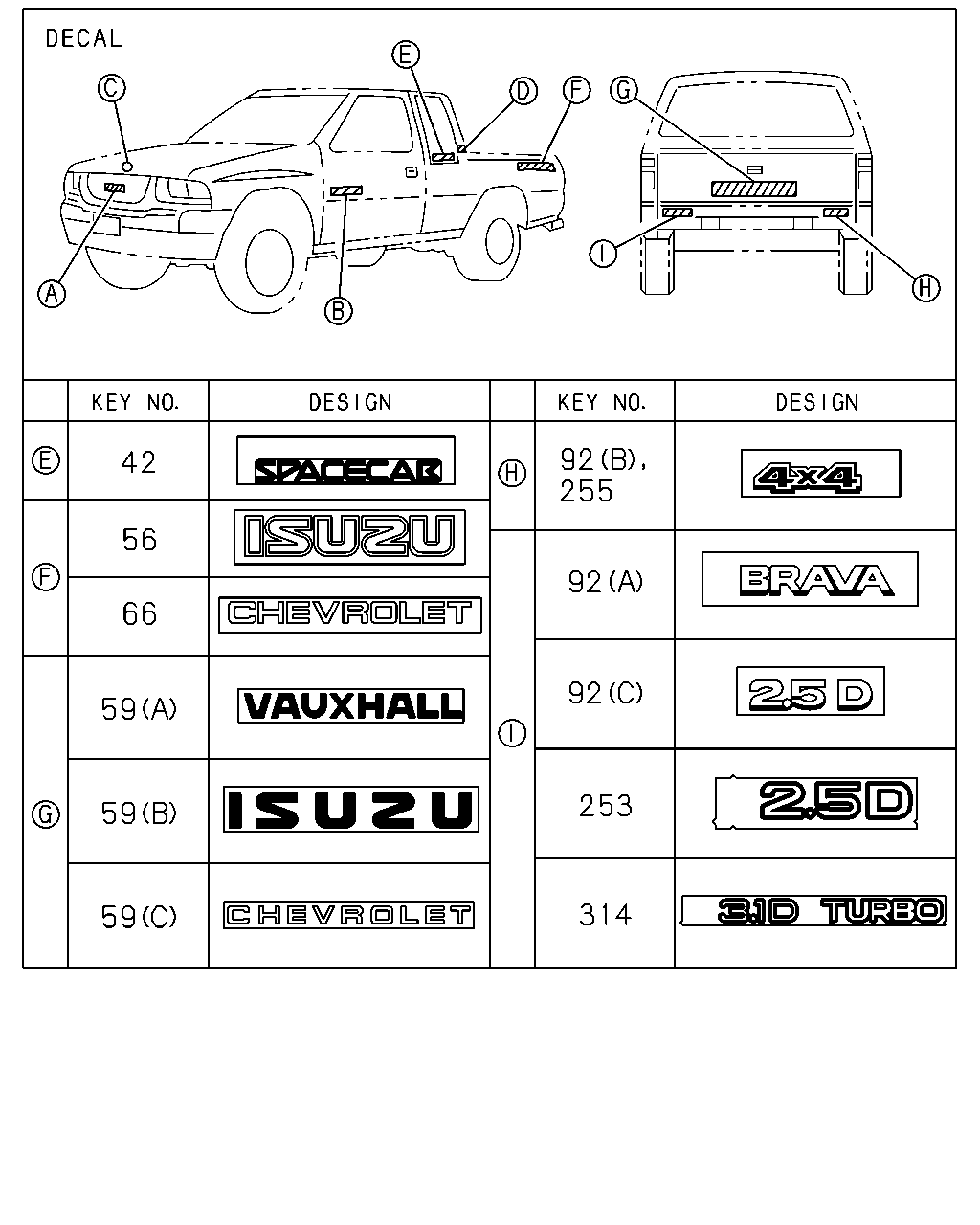

çizim 51753
92 255 42 56 92 66 92 59 253 59 314 59
BalonParca AdiParca NoAdetTipApplied Date A B C D E
42 16.507 DECAL; RR QUARTER 8-97135-089-0 02 1 0108- ●
56 08.147 DECAL; BODY SIDE
LETTERING ISUZU RED(6FS) RED ISUZU 		8-97022-699-0 02 1 0108- ● ● ● ● ●
56 08.147 DECAL; BODY SIDE
LETTERING ISUZU WHITE(S5N) WHITE ISUZU 		8-97022-698-0 02 1 0108- ● ● ● ● ●
59 01.303 DECAL; TAIL GATE
BODY COLOR CAPE BLUE MET(612),BODY COLOR CAPE BLUE MET/KAISER SILVER MET(614),BODY COLOR RADIANT RED(756),BODY COL OR RADIANT RED/LT.SILVER MET(779), BODYCOLOR KAISER SILVER MET(878) DECAL-CHEVROLET TAIL GATE(X82) (C) LIGHT SILVER 		8-94476-922-0 01 1 0108- ● ● ● ● ●
59 01.303 DECAL; TAIL GATE
BODY COLOR CAPE BLUE MET(612),BODY COLOR CAPE BLUE MET/KAISER SILVER MET(614),BODY COLOR RADIANT RED(756),BODY COL OR RADIANT RED/LT.SILVER MET(779), BODYCOLOR KAISER SILVER MET(878) DECAL-ISUZU TAIL GATE(EX9) (B) LIGHT SILVER 		8-97001-857-1 01 1 0108- ● ● ● ● ●
59 01.303 DECAL; TAIL GATE
BODY COLOR CYPRESS GREEN MICA(611), BODY COLOR SATIN GOLD MET(613),BODY COLORCYPRESS GREEN MICA/LT.SILVER MET(615) ,BODY COLOR SATIN GOLD MET/LIGHT SILVER MET(616),BODY COLOR ASTRAL SILVER ME T(718),BODY COLOR ALPINE WHITE/LT.SILVER MET(740),BODY COLOR ASTRAL SILVER/KAISER SILVER MET(778),BODY COLOR ALPIN E WHITE(877) DECAL-CHEVROLET TAIL GATE(X82) (C) DARK SILVER 		8-94476-923-0 01 1 0108- ● ● ● ● ●
59 01.303 DECAL; TAIL GATE
BODY COLOR CYPRESS GREEN MICA(611), BODY COLOR SATIN GOLD MET(613),BODY COLORCYPRESS GREEN MICA/LT.SILVER MET(615) ,BODY COLOR SATIN GOLD MET/LIGHT SILVER MET(616),BODY COLOR ASTRAL SILVER ME T(718),BODY COLOR ALPINE WHITE/LT.SILVER MET(740),BODY COLOR ASTRAL SILVER/KAISER SILVER MET(778),BODY COLOR ALPIN E WHITE(877) DECAL-ISUZU TAIL GATE(EX9) (B) DARK SILVER 		8-97001-858-1 01 1 0108- ● ● ● ● ●
59 01.303 DECAL; TAIL GATE
BODY COLOR CAPE BLUE MET(612),BODY COLOR CAPE BLUE MET/KAISER SILVER MET(614),BODY COLOR RADIANT RED(756),BODY COL OR RADIANT RED/LT.SILVER MET(779), BODYCOLOR KAISER SILVER MET(878) VAUXHALL BRAND<8DT> (A) GRAY 		8-97082-224-0 01 1 0108-0201 ● ● ● ●
59 01.303 DECAL; TAIL GATE
BODY COLOR CYPRESS GREEN MICA(611), BODY COLOR SATIN GOLD MET(613),BODY COLORCYPRESS GREEN MICA/LT.SILVER MET(615) ,BODY COLOR SATIN GOLD MET/LIGHT SILVER MET(616),BODY COLOR ASTRAL SILVER ME T(718),BODY COLOR ALPINE WHITE/LT.SILVER MET(740),BODY COLOR ASTRAL SILVER/KAISER SILVER MET(778),BODY COLOR ALPIN E WHITE(877) VAUXHALL BRAND<8DT> (A) DARK SILVER 		8-97082-225-0 01 1 0108-0201 ● ● ● ●
66 17.505 DECAL; SIDE PANEL
LETTERING CHEVROLET WHITE(S7E) 		8-94318-467-0 02 1 0108- ● ● ● ● ●
92 08.147 DECAL; RR END
4JA1 ENG(RLE) RR BODY DBL WALL CTR PULL(6MW) VAUXHALL BRAND<8DT> (A) 		8-97149-382-1 01 1 0108-0201 ● ● ● ●
92 08.147 DECAL; RR END
4JA1 ENG(RLE) EXC. RR BODY DBL WALL CTR PULL(6MW), VAUXHALL BRAND<8DT> 01.303 (C) 		8-97139-234-1 01 1 0108-0201 ● ● ● ●
92 08.147 DECAL; RR END
4JA1 ENG(RLE) EXC. RR BODY DBL WALL CTR PULL(6MW) 01.303 (C) 		8-97139-234-1 01 1 0202- ● ● ● ●
92 08.147 DECAL; RR END
VAUXHALL BRAND<8DT> 01.303 (B) 		8-97141-969-0 01 1 0108-0201 ● ●
92 08.147 DECAL; RR END
EXC. RR BODY DBL WALL CTR PULL(6MW), VAUXHALL BRAND<8DT> 01.303 (B) 		8-97141-969-0 01 1 0108-0201 ● ●
92 08.147 DECAL; RR END
EXC. RR BODY DBL WALL CTR PULL(6MW) 01.303 (B) 		8-97141-969-0 01 1 0202- ● ●
253 01.303 DECAL; 2.5D
4JA1 ENG(RLE) RR BODY DBL WALL CTR PULL(6MW) EXC. VAUXHALL BRAND<8DT> 		8-97139-234-1 01 1 0108-0201 ● ● ● ●
253 01.303 DECAL; 2.5D
4JA1 ENG(RLE) RR BODY DBL WALL CTR PULL(6MW) 		8-97139-234-1 01 1 0202- ● ● ● ●
255 01.303 DECAL; "4X4" 8-97141-969-0 01 1 0108-0201 ●
255 01.303 DECAL; "4X4"
RR BODY DBL WALL CTR PULL(6MW) EXC. VAUXHALL BRAND<8DT> 		8-97141-969-0 01 1 0108-0201 ● ●
255 01.303 DECAL; "4X4" 8-97141-969-0 01 1 0202- ●
255 01.303 DECAL; "4X4"
RR BODY DBL WALL CTR PULL(6MW) 		8-97141-969-0 01 1 0202- ● ●
314 01.303 DECAL; "3.1D TURBO"
4JG2 ENG(RJC) EXC. VAUXHALL BRAND<8DT> 		8-97216-837-0 01 1 0108-0201 ● ● ● ● ●
314 01.303 DECAL; "3.1D TURBO"
4JG2 ENG(RJC) 		8-97216-837-0 01 1 0202- ● ● ● ● ●
