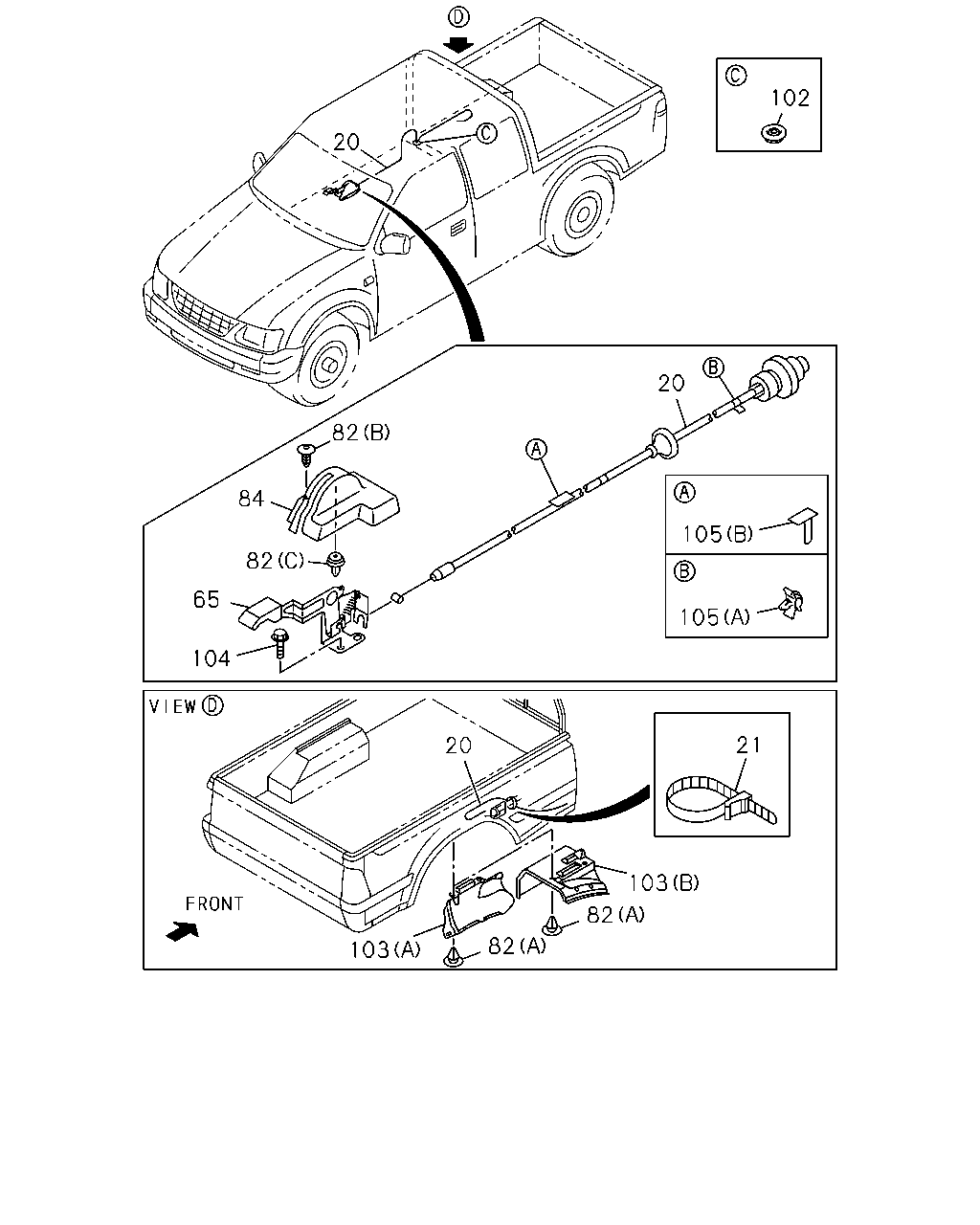

6-86 — TRUNK OPENER AND FUEL LID (#20995) — 29 parça

102 20 20 82 84 105 82 65 105 104 21 20 103 82 82 103

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
20	17.505 CABLE; TRUNK LID & FUEL FILLER RR BODY DBL WALL CTR PULL(6MW)	8-97260-604-2	01	1	0108-	●	●
20	17.505 CABLE; TRUNK LID & FUEL FILLER RR BODY DBL WALL CTR PULL(6MW)	8-97217-262-2	01	1	0108-			●	●
20	17.505 CABLE; TRUNK LID & FUEL FILLER	8-97260-606-1	01	1	0108-					●
21	17.090 CLIP; CABLE,TAIL GATE RR BODY DBL WALL CTR PULL(6MW) 03.008 L=330	5-09709-118-0	01	1	0108-0209	●	●
21	17.090 CLIP; CABLE,TAIL GATE 03.008 L=330	5-09709-118-0	01	1	0108-0209					●
21	17.090 CLIP; CABLE,TAIL GATE RR BODY DBL WALL CTR PULL(6MW) 03.008 L=330	5-09709-118-0	01	1	0210-	●	●	●	●
21	17.090 CLIP; CABLE,TAIL GATE 03.008 L=330	5-09709-118-0	01	1	0210-					●
21	17.090 CLIP; CABLE,TAIL GATE RR BODY DBL WALL CTR PULL(6MW) 02.559 L=250	5-09707-030-1	01	1	0108-0209			●	●
65	17.505 KNOB; FUEL FILLER DOOR RR BODY DBL WALL CTR PULL(6MW)	8-94351-222-1	01	1	0108-	●	●	●	●
65	17.505 KNOB; FUEL FILLER DOOR	8-94351-222-1	01	1	0108-					●
82	16.345 CLIP; COVER RR BODY DBL WALL CTR PULL(6MW) 08.155 (B) OD=16 L=11	1-76378-155-0	01	1	0108-	●	●	●	●
82	16.345 CLIP; COVER 08.155 (B) OD=16 L=11	1-76378-155-0	01	1	0108-					●
82	16.345 CLIP; COVER RR BODY DBL WALL CTR PULL(6MW) 14.683 (C) H=19.1	8-94385-553-0	01	1	0108-	●	●	●	●
82	16.345 CLIP; COVER 14.683 (C) H=19.1	8-94385-553-0	01	1	0108-					●
82	16.345 CLIP; COVER RR BODY DBL WALL CTR PULL(6MW) (A)	1-09987-203-0	05	1	0108-	●	●
82	16.345 CLIP; COVER (A)	1-09987-203-0	05	1	0108-					●
82	16.345 CLIP; COVER RR BODY DBL WALL CTR PULL(6MW) (A)	1-09987-203-0	03	1	0108-			●	●
84	17.185 COVER; BRKT RR BODY DBL WALL CTR PULL(6MW) GRAY	8-97152-721-2	01	1	0108-	●	●	●	●
84	17.185 COVER; BRKT GRAY	8-97152-721-2	01	1	0108-					●
102	17.505 GROMMET EXC. RR BODY DBL WALL CTR PULL(6MW) 12.491 OD=24	8-94119-796-0	01	1	0108-	●	●	●	●
103	17.505 COVER; CABLE,FUEL LID OPENER RR BODY DBL WALL CTR PULL(6MW) (B)	8-97260-602-0	01	1	0108-	●	●
103	17.505 COVER; CABLE,FUEL LID OPENER (B)	8-97260-602-0	01	1	0108-					●
103	17.505 COVER; CABLE,FUEL LID OPENER RR BODY DBL WALL CTR PULL(6MW) (A)	8-97221-217-3	01	1	0108-			●	●
104	17.505 BOLT; KNOB RR BODY DBL WALL CTR PULL(6MW) 01.428 M6X12 FLANGE	0-28080-612-0	02	1	0108-	●	●	●	●
104	17.505 BOLT; KNOB 01.428 M6X12 FLANGE	0-28080-612-0	02	1	0108-					●
105	17.505 CLIP; CABLE,FUEL LID OPENER RR BODY DBL WALL CTR PULL(6MW) 09.647 (A) ID=4.8	8-94128-483-0	03	1	0108-	●	●
105	17.505 CLIP; CABLE,FUEL LID OPENER 09.647 (A) ID=4.8	8-94128-483-0	03	1	0108-					●
105	17.505 CLIP; CABLE,FUEL LID OPENER RR BODY DBL WALL CTR PULL(6MW) 09.647 (A) ID=4.8	8-94128-483-0	01	1	0108-			●	●
105	17.505 CLIP; CABLE,FUEL LID OPENER RR BODY DBL WALL CTR PULL(6MW) 02.480 (B)	8-94138-987-0	02	1	0108-			●	●
