◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50920 - TFR/TFS(EUROPE)-RHD ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-84 - BACK TRIM ▶
6-84 — BACK TRIM (#20994) — 20 parça

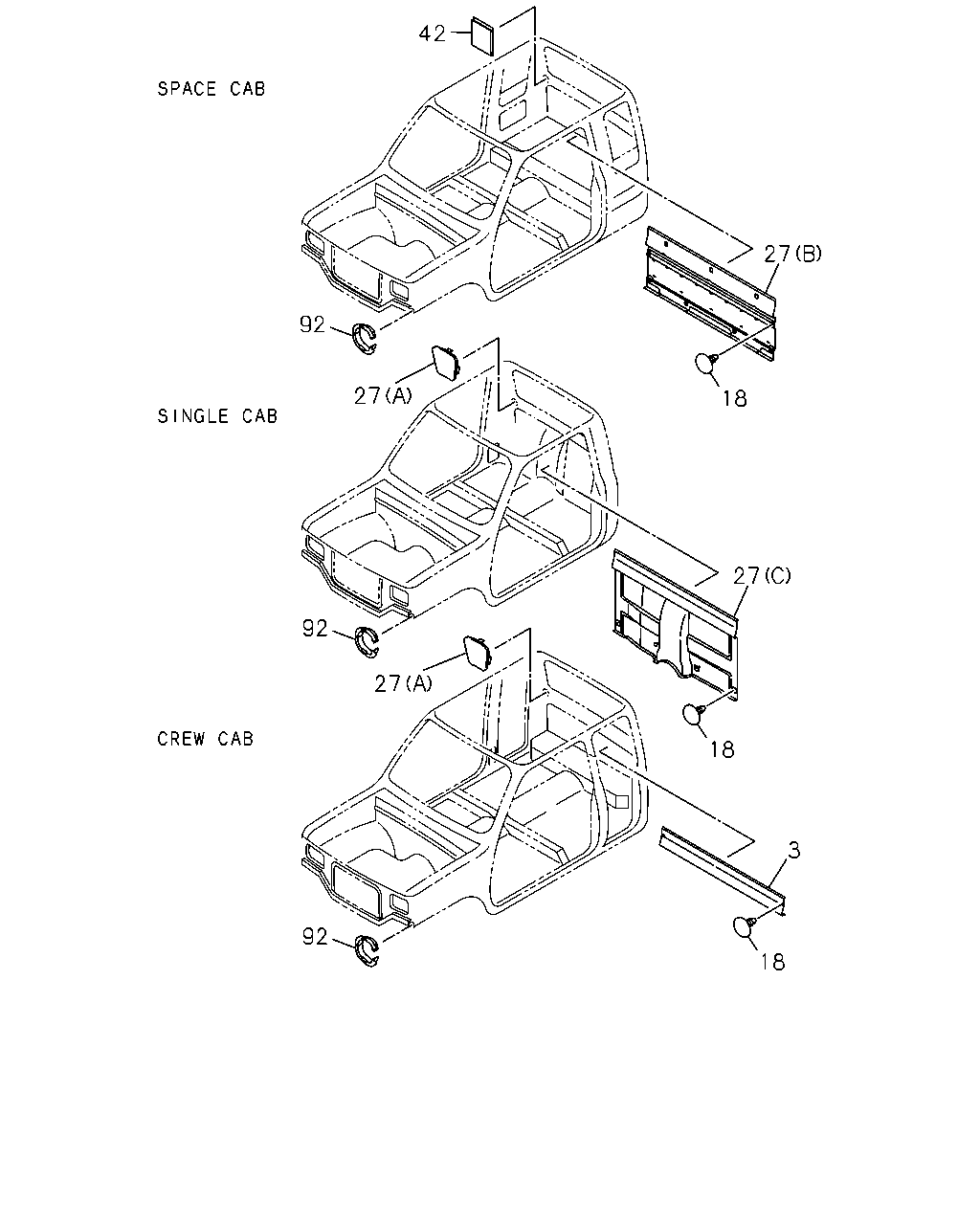

çizim 51790
42 27 92 27 18 27 92 27 18 3 92 18
BalonParca AdiParca NoAdetTipApplied Date A B
3 16.578 TRIM; FULL,BACK UPR
CREW CAB(TF**W*) GRAY 		8-97155-657-0 01 1 0108- ●
18 16.587 CLIP; TRIM COVER,CAB BACK
SINGLE CAB(TF**S*) NOISE INSULATION PACK 2<7MW> GRAY 		8-97153-648-0 09 1 0108- ●
18 16.587 CLIP; TRIM COVER,CAB BACK
SINGLE CAB(TF**S*) GRAY 		8-97153-648-0 09 1 0108- ●
18 16.587 CLIP; TRIM COVER,CAB BACK
SPACE CAB(TF**C*) GRAY 		8-97153-648-0 05 1 0108- ● ●
18 16.587 CLIP; TRIM COVER,CAB BACK
CREW CAB(TF**W*) GRAY 		8-97153-648-0 02 1 0108- ● ●
18 16.587 CLIP; TRIM COVER,CAB BACK
CREW CAB(TF**W*) GRAY 		8-97153-648-0 03 1 0108- ●
27 16.587 COVER; TRIM,BACK
SPACE CAB(TF**C*) JUMP SEAT<AJ2> NOISE INSULATION PACK 2<7MW> (B) GRAY 		8-97156-050-0 01 1 0108- ● ●
27 16.587 COVER; TRIM,BACK
SPACE CAB(TF**C*) JUMP SEAT<AJ2> EXC. NOISE INSULATION PACK 2<7MW> (B) GRAY 		8-97154-635-4 01 1 0108- ● ●
27 16.587 COVER; TRIM,BACK
SPACE CAB(TF**C*) EXC. JUMP SEAT<AJ2>,NOISE INSULATION PACK2<7MW> (B) GRAY 		8-97154-636-4 01 1 0108- ● ●
27 16.587 COVER; TRIM,BACK
SPACE CAB(TF**C*) NOISE INSULATION PACK 2<7MW> EXC. JUMP SEAT<AJ2> (B) GRAY 		8-97156-051-0 01 1 0108- ● ●
27 16.587 COVER; TRIM,BACK
CREW CAB(TF**W*) NOISE INSULATION PACK 2<7MW> EXC. REAR DEFOGGER<C49> 16.165 (A) 		8-97042-361-1 01 1 0108- ● ●
27 16.587 COVER; TRIM,BACK
SINGLE CAB(TF**S*) 16.165 (A) 		8-97042-361-1 01 1 0108- ●
27 16.587 COVER; TRIM,BACK
SINGLE CAB(TF**S*) NOISE INSULATION PACK 2<7MW> 16.165 (A) 		8-97042-361-1 01 1 0108- ●
27 16.587 COVER; TRIM,BACK
CREW CAB(TF**W*) NOISE INSULATION PACK 2<7MW> EXC. REAR DEFOGGER<C49> 16.165 (A) 		8-97049-460-2 01 1 0108- ● ●
27 16.587 COVER; TRIM,BACK
SINGLE CAB(TF**S*) 16.165 (A) 		8-97049-460-2 01 1 0108- ●
27 16.587 COVER; TRIM,BACK
SINGLE CAB(TF**S*) NOISE INSULATION PACK 2<7MW> 16.165 (A) 		8-97049-460-2 01 1 0108- ●
27 16.587 COVER; TRIM,BACK
SINGLE CAB(TF**S*) NOISE INSULATION PACK 2<7MW> (C) GRAY 		8-97156-049-1 01 1 0108- ●
27 16.587 COVER; TRIM,BACK
SINGLE CAB(TF**S*) EXC. NOISE INSULATION PACK 2<7MW> (C) GRAY 		8-97154-637-3 01 1 0108- ●
42 16.592 SEAL; BACK OUTER PANEL
SPACE CAB(TF**C*) NOISE INSULATION PACK 2<7MW> 		8-94239-526-0 02 1 0108- ● ●
92 16.445 PROTECTOR; BACK DOOR EDGE
13.090 		8-94340-075-0 02 1 0108- ● ●
