6-75 — MAT AND CARPET (#20990) — 78 parça

222 221

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
	221	16.800 DAMPER; FLOOR CREW CAB(TF*W) 16.545	8-97139-100-1	01	1	0108-	●	●
	222	16.800 BOLT; DAMPER CREW CAB(TF*W) 16.549 M8X29.5 W/LK+PL WASHER	8-94279-218-0	02	1	0108-	●	●

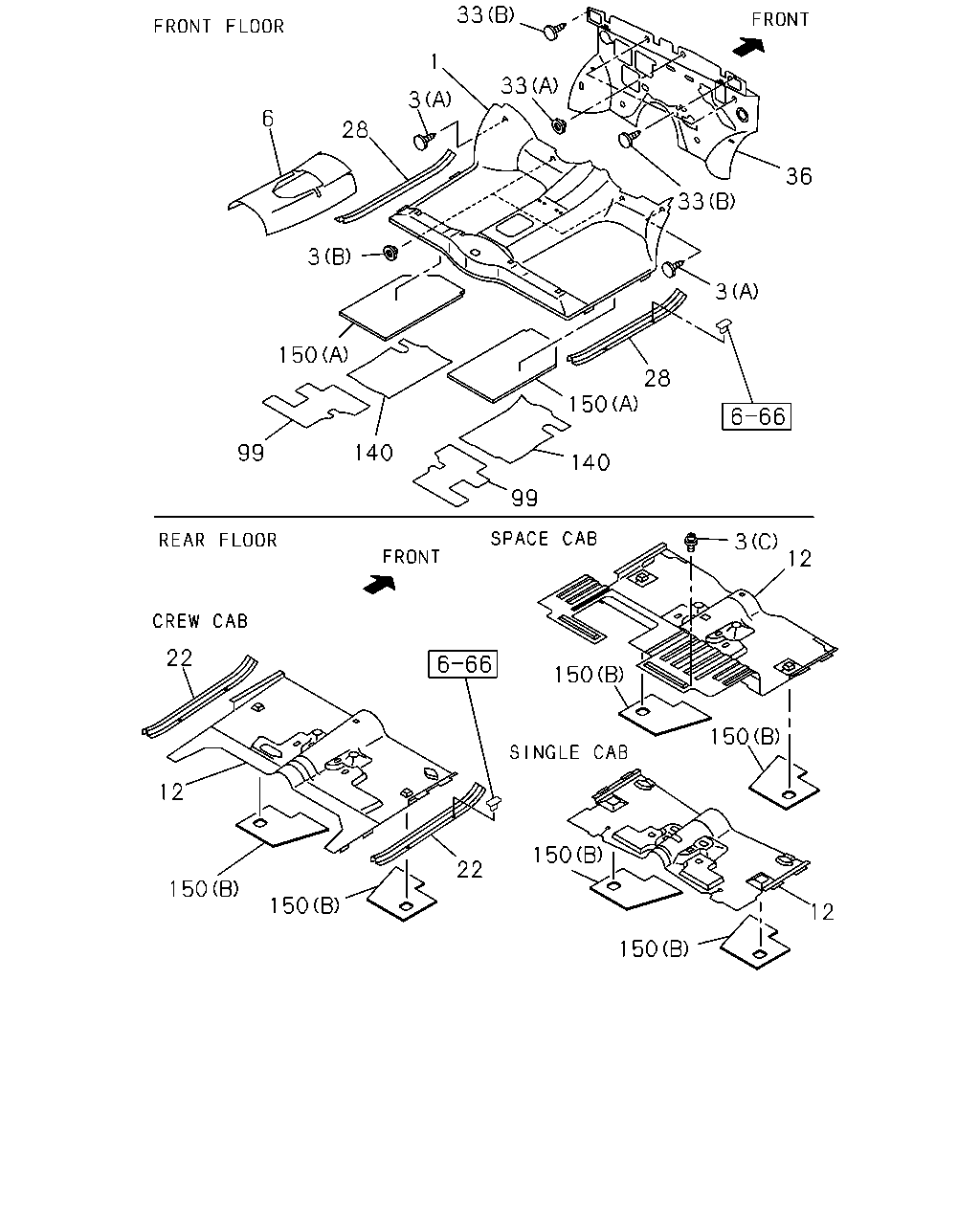

33 1 33 3 6 28 36 33 3 3 150 28 150 99 140 140 99 3 12 22 150 150 12 150 22 150 150 12 150

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	16.850 CARPET; FLOOR,FRT AIR BAG DRIVER(AJ3) FLOOR CARPET<B30> FLOOR CONSOLE ONE PIECE TYPE<7WG> DARK GRAY	8-97199-751-0	01	1	0108-	●	●
1	16.850 CARPET; FLOOR,FRT AIR BAG DRIVER(AJ3) FLOOR CARPET<B30> FLOOR CONSOLE SEPARATE TYPE<7WF> DARK GRAY	8-97199-750-0	01	1	0108-	●	●
1	16.850 CARPET; FLOOR,FRT FLOOR CARPET<B30> FLOOR CONSOLE ONE PIECE TYPE<7WG> EXC. AIR BAG DRIVER(AJ3) DARK GRAY	8-97154-553-2	01	1	0108-	●	●
1	16.850 CARPET; FLOOR,FRT FLOOR CARPET<B30> FLOOR CONSOLE SEPARATE TYPE<7WF> EXC. AIR BAG DRIVER(AJ3) DARK GRAY	8-97155-367-3	01	1	0108-	●	●
1	16.850 CARPET; FLOOR,FRT 4X2(TFB***) FLOOR CARPET<B30> FRONT CONSOLE<D55> BUCKET SEAT W/RECLINING(S3B) DARK GRAY	8-97154-560-2	01	1	0108-	●	●
1	16.850 CARPET; FLOOR,FRT 4X2(TFB***) FLOOR CARPET<B30> FRONT CONSOLE<D55> EXC. BUCKET SEAT W/RECLINING(S3B) DARK GRAY	8-97154-557-2	01	1	0108-	●	●
3	16.800 CLIP; CARPET FIX 16.550 (B) H=10.5	8-94441-810-0	02	1	0108-	●	●
3	16.800 CLIP; CARPET FIX (A) DARK GRAY	8-97152-683-0	02	1	0108-	●	●
3	16.800 CLIP; CARPET FIX SPACE CAB(TF*C) 16.850 (C)	8-94321-035-0	03	1	0108-	●	●
6	16.110 DEADENER; FLOOR GEAR BOX FRT	8-97140-381-1	01	1	0108-	●	●
12	16.850 CARPET; FLOOR,RR SPACE CAB(TF*C) FLOOR CARPET<B30> FLOOR CONSOLE SEPARATE TYPE<7WF>,FLOOR CONSOLE ONE PIECE TYPE<7WG> EXC. JUMP SEAT<AJ2>,NOISE INSULATION PACK2<7MW> DARK GRAY	8-97292-449-1	01	1	0108-	●	●
12	16.850 CARPET; FLOOR,RR SPACE CAB(TF*C) FLOOR CARPET<B30> NOISE INSULATION PACK 2<7MW> FLOOR CONSOLE SEPARATE TYPE<7WF>,FLOOR CONSOLE ONE PIECE TYPE<7WG> EXC. JUMP SEAT<AJ2> DARK GRAY	8-97292-451-1	01	1	0108-	●	●
12	16.850 CARPET; FLOOR,RR SPACE CAB(TF*C) JUMP SEAT<AJ2> FLOOR CARPET<B30> FLOOR CONSOLE SEPARATE TYPE<7WF>,FLOOR CONSOLE ONE PIECE TYPE<7WG> DARK GRAY	8-97296-947-1	01	1	0108-	●	●
12	16.850 CARPET; FLOOR,RR SPACE CAB(TF*C) JUMP SEAT<AJ2> FLOOR CARPET<B30> EXC. FLOOR CONSOLE SEPARATE TYPE<7WF>, FLOOR CONSOLE ONE PIECE TYPE<7WG> DARK GRAY	8-97296-949-1	01	1	0108-	●	●
12	16.850 CARPET; FLOOR,RR SINGLE CAB(TF*S) FLOOR CARPET<B30> BUCKET SEAT W/RECLINING(S3B) FLOOR CONSOLE SEPARATE TYPE<7WF>,FLOOR CONSOLE ONE PIECE TYPE<7WG> PARKING BRAKE FLOOR<7XW> EXC. RR BODY DBL WALL CTR PULL(6MW) DARK GRAY	8-97154-582-0	01	1	0108-	●	●
12	16.850 CARPET; FLOOR,RR SINGLE CAB(TF*S) FLOOR CARPET<B30> BUCKET SEAT W/RECLINING(S3B) RR BODY DBL WALL CTR PULL(6MW) FLOOR CONSOLE SEPARATE TYPE<7WF>,FLOOR CONSOLE ONE PIECE TYPE<7WG> PARKING BRAKE FLOOR<7XW> DARK GRAY	8-97296-945-0	01	1	0108-	●	●
12	16.850 CARPET; FLOOR,RR CREW CAB(TF*W) FLOOR CARPET<B30> BUCKET SEAT W/RECLINING(S3B) FLOOR CONSOLE SEPARATE TYPE<7WF>,FLOOR CONSOLE ONE PIECE TYPE<7WG> PARKING BRAKE FLOOR<7XW> EXC. RR BODY DBL WALL CTR PULL(6MW) DARK GRAY	8-97153-625-2	01	1	0108-	●	●
12	16.850 CARPET; FLOOR,RR CREW CAB(TF*W) FLOOR CARPET<B30> BUCKET SEAT W/RECLINING(S3B) RR BODY DBL WALL CTR PULL(6MW) FLOOR CONSOLE SEPARATE TYPE<7WF>,FLOOR CONSOLE ONE PIECE TYPE<7WG> PARKING BRAKE FLOOR<7XW> DARK GRAY	8-97199-775-1	01	1	0108-	●	●
12	16.850 CARPET; FLOOR,RR 4X2 SINGLE CAB(TFBS) FLOOR CARPET<B30> BUCKET SEAT W/RECLINING(S3B) FLOOR CONSOLE SEPARATE TYPE<7WF>,FLOOR CONSOLE ONE PIECE TYPE<7WG> EXC. RR BODY DBL WALL CTR PULL(6MW), PARKING BRAKE FLOOR<7XW> DARK GRAY	8-97159-982-0	01	1	0108-	●	●
12	16.850 CARPET; FLOOR,RR 4X2 SINGLE CAB(TFBS) FLOOR CARPET<B30> BUCKET SEAT W/RECLINING(S3B) RR BODY DBL WALL CTR PULL(6MW) EXC. FLOOR CONSOLE SEPARATE TYPE<7WF>, FLOOR CONSOLE ONE PIECE TYPE<7WG>,PARKING BR AKE FLOOR<7XW> DARK GRAY	8-97296-950-0	01	1	0108-	●	●
12	16.850 CARPET; FLOOR,RR 4X2 SINGLE CAB(TFBS) FLOOR CARPET<B30> BUCKET SEAT W/RECLINING(S3B) RR BODY DBL WALL CTR PULL(6MW) FLOOR CONSOLE SEPARATE TYPE<7WF>,FLOOR CONSOLE ONE PIECE TYPE<7WG> EXC. PARKING BRAKE FLOOR<7XW> DARK GRAY	8-97296-954-0	01	1	0108-	●	●
12	16.850 CARPET; FLOOR,RR 4X2 SINGLE CAB(TFBS) FLOOR CARPET<B30> BUCKET SEAT W/RECLINING(S3B) EXC. RR BODY DBL WALL CTR PULL(6MW), FLOORCONSOLE SEPARATE TYPE<7WF>,FLOOR CONSOLE ONE PIECE TYPE<7WG>,PARKING BRAKE FLOOR<7XW> DARK GRAY	8-97155-151-1	01	1	0108-	●	●
12	16.850 CARPET; FLOOR,RR 4X2 SINGLE CAB(TFBS) FLOOR CARPET<B30> EXC. BUCKET SEAT W/RECLINING(S3B),RR BODYDBL WALL CTR PULL(6MW) DARK GRAY	8-97155-150-1	01	1	0108-	●	●
12	16.850 CARPET; FLOOR,RR 4X2 SINGLE CAB(TFBS) FLOOR CARPET<B30> RR BODY DBL WALL CTR PULL(6MW) EXC. BUCKET SEAT W/RECLINING(S3B) DARK GRAY	8-97292-450-1	01	1	0108-	●	●
12	16.850 CARPET; FLOOR,RR 4X2 CREW CAB(TFBW) FLOOR CARPET<B30> BUCKET SEAT W/RECLINING(S3B) FLOOR CONSOLE SEPARATE TYPE<7WF>,FLOOR CONSOLE ONE PIECE TYPE<7WG> EXC. RR BODY DBL WALL CTR PULL(6MW), PARKING BRAKE FLOOR<7XW> DARK GRAY	8-97159-983-1	01	1	0108-	●	●
12	16.850 CARPET; FLOOR,RR 4X2 CREW CAB(TFBW) FLOOR CARPET<B30> BUCKET SEAT W/RECLINING(S3B) RR BODY DBL WALL CTR PULL(6MW) EXC. FLOOR CONSOLE SEPARATE TYPE<7WF>, FLOOR CONSOLE ONE PIECE TYPE<7WG>,PARKING BR AKE FLOOR<7XW> DARK GRAY	8-97199-773-2	01	1	0108-	●	●
12	16.850 CARPET; FLOOR,RR 4X2 CREW CAB(TFBW) FLOOR CARPET<B30> BUCKET SEAT W/RECLINING(S3B) RR BODY DBL WALL CTR PULL(6MW) FLOOR CONSOLE SEPARATE TYPE<7WF>,FLOOR CONSOLE ONE PIECE TYPE<7WG> EXC. PARKING BRAKE FLOOR<7XW> DARK GRAY	8-97199-774-1	01	1	0108-	●	●
12	16.850 CARPET; FLOOR,RR 4X2 CREW CAB(TFBW) FLOOR CARPET<B30> BUCKET SEAT W/RECLINING(S3B) EXC. RR BODY DBL WALL CTR PULL(6MW), FLOORCONSOLE SEPARATE TYPE<7WF>,FLOOR CONSOLE ONE PIECE TYPE<7WG>,PARKING BRAKE FLOOR<7XW> DARK GRAY	8-97195-765-3	01	1	0108-	●	●
12	16.850 CARPET; FLOOR,RR 4X2 CREW CAB(TFBW) FLOOR CARPET<B30> EXC. BUCKET SEAT W/RECLINING(S3B),RR BODYDBL WALL CTR PULL(6MW) DARK GRAY	8-97154-588-3	01	1	0108-	●	●
12	16.850 CARPET; FLOOR,RR 4X2 CREW CAB(TFBW) FLOOR CARPET<B30> RR BODY DBL WALL CTR PULL(6MW) EXC. BUCKET SEAT W/RECLINING(S3B) DARK GRAY	8-97199-772-2	01	1	0108-	●	●
22	16.870 PLATE; SILL,RR CREW CAB(TF*W) GRAY	8-97153-630-0	02	1	0108-	●	●
28	16.870 PLATE; SILL,FRT GRAY	8-97152-689-2	01	1	0108-	●	●
28	16.870 PLATE; SILL,FRT GRAY	8-97152-688-2	01	1	0108-	●	●
33	16.550 CLIP; INSULATION (A) H=10.5	8-94441-810-0	03	1	0108-	●	●
33	16.550 CLIP; INSULATION (B) BROWN	8-94476-811-0	02	1	0108-	●	●
36	16.550 INSULATION; PAD,DASH INNER 4JA1 ENG(RLE)	8-97311-549-0	01	1	0108-	●	●
36	16.550 INSULATION; PAD,DASH INNER 4JG2 ENG(RJC)	8-97111-431-1	01	1	0108-	●	●
99	16.110 DEADENER; FLOOR NOISE INSULATION PACK 2<7MW>	8-97111-457-1	02	1	0108-	●	●
140	16.570 DEADENER; DASH LWR PANEL	8-97115-876-0	02	1	0108-	●	●
150	16.585 INSULATION; HEAT,FLOOR NOISE INSULATION PACK 2<7MW> 16.545 (A)	8-97141-928-1	02	1	0108-	●	●
150	16.585 INSULATION; HEAT,FLOOR CREW CAB(TF*W) 4JA1 ENG(RLE) NOISE INSULATION PACK 2<7MW> 16.545 (A)	8-97141-928-1	02	1	0108-	●	●
150	16.585 INSULATION; HEAT,FLOOR NOISE INSULATION PACK 2<7MW> (B)	8-97141-929-2	02	1	0108-	●	●

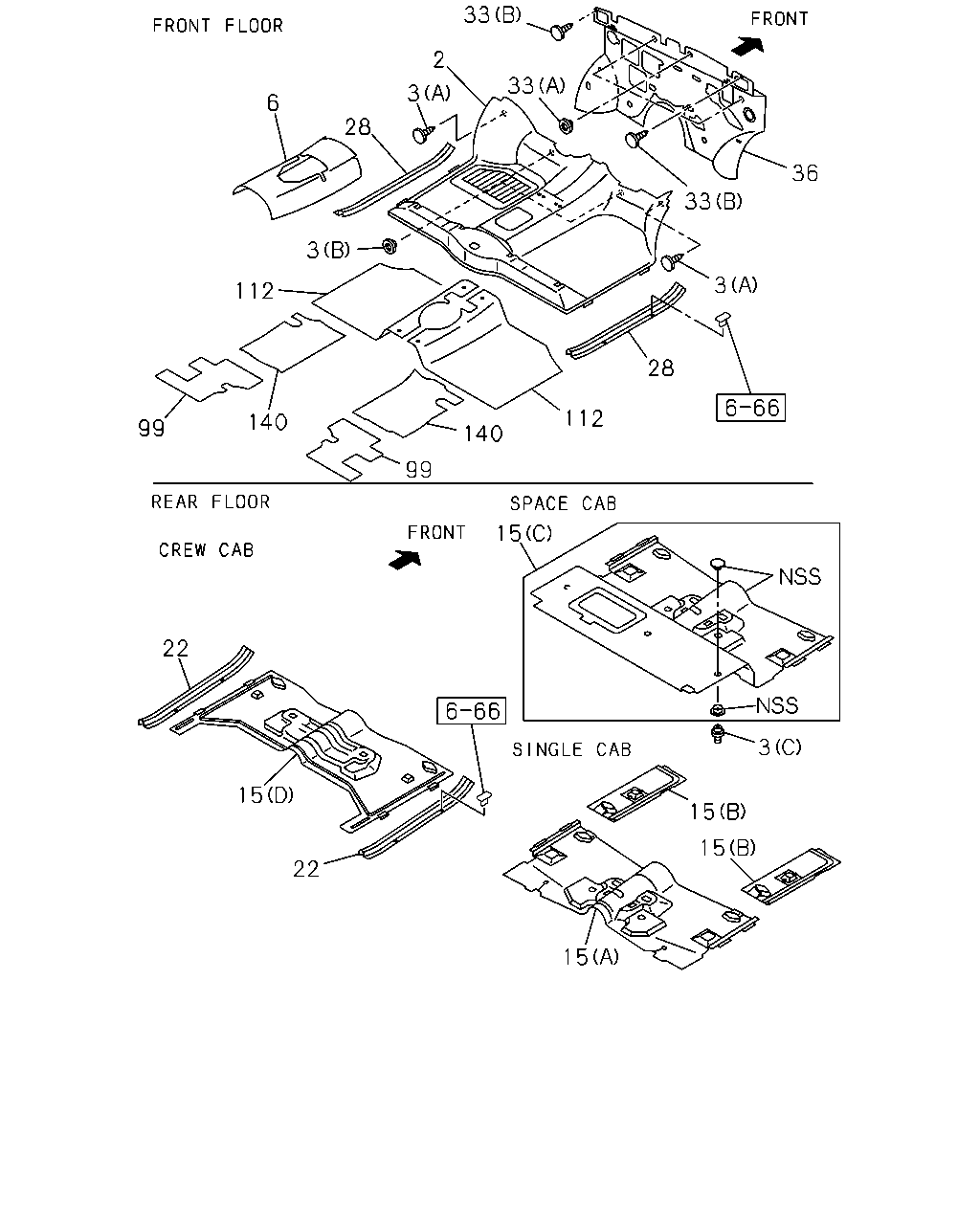

33 2 33 3 6 28 36 33 3 3 112 28 112 140 99 140 99 15 22 3 15 15 15 22 15

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	16.800 MAT; FLOOR AIR BAG DRIVER(AJ3) FLOOR CONSOLE ONE PIECE TYPE<7WG> EXC. FLOOR CARPET<B30> DARK GRAY	8-97199-758-0	01	1	0108-	●	●
2	16.800 MAT; FLOOR AIR BAG DRIVER(AJ3) FLOOR CONSOLE SEPARATE TYPE<7WF> EXC. FLOOR CARPET<B30> DARK GRAY	8-97199-757-0	01	1	0108-	●	●
2	16.800 MAT; FLOOR FLOOR CONSOLE ONE PIECE TYPE<7WG> EXC. AIR BAG DRIVER(AJ3),FLOOR CARPET<B30> DARK GRAY	8-97198-841-2	01	1	0108-	●	●
2	16.800 MAT; FLOOR FLOOR CONSOLE SEPARATE TYPE<7WF> EXC. AIR BAG DRIVER(AJ3),FLOOR CARPET<B30> DARK GRAY	8-97155-372-2	01	1	0108-	●	●
2	16.800 MAT; FLOOR 4X2(TFB***) FRONT CONSOLE<D55> BUCKET SEAT W/RECLINING(S3B) EXC. FLOOR CARPET<B30> DARK GRAY	8-97154-569-2	01	1	0108-	●	●
2	16.800 MAT; FLOOR 4X2(TFB***) FRONT CONSOLE<D55> EXC. FLOOR CARPET<B30>,BUCKET SEAT W/RECLINING(S3B) DARK GRAY	8-97154-568-2	01	1	0108-	●	●
3	16.800 CLIP; CARPET FIX 16.550 (B) H=10.5	8-94441-810-0	02	1	0108-	●	●
3	16.800 CLIP; CARPET FIX (A) DARK GRAY	8-97152-683-0	02	1	0108-	●	●
3	16.800 CLIP; CARPET FIX SPACE CAB(TF*C) 16.850 (C)	8-94321-035-0	03	1	0108-	●	●
6	16.110 DEADENER; FLOOR GEAR BOX FRT	8-97140-381-1	01	1	0108-	●	●
15	16.800 MAT; FLOOR REAR SPACE CAB(TF*C) FLOOR CONSOLE SEPARATE TYPE<7WF>,FLOOR CONSOLE ONE PIECE TYPE<7WG> EXC. JUMP SEAT<AJ2>,FLOOR CARPET<B30> (C) DARK GRAY	8-97298-370-0	01	1	0108-	●	●
15	16.800 MAT; FLOOR REAR SPACE CAB(TF*C) JUMP SEAT<AJ2> FLOOR CONSOLE SEPARATE TYPE<7WF>,FLOOR CONSOLE ONE PIECE TYPE<7WG> EXC. FLOOR CARPET<B30> (C) DARK GRAY	8-97298-371-0	01	1	0108-	●	●
15	16.800 MAT; FLOOR REAR SINGLE CAB(TF*S) BUCKET SEAT W/RECLINING(S3B) FLOOR CONSOLE SEPARATE TYPE<7WF>,FLOOR CONSOLE ONE PIECE TYPE<7WG> PARKING BRAKE FLOOR<7XW> EXC. FLOOR CARPET<B30> (A) DARK GRAY	8-97298-369-0	01	1	0108-	●	●
15	16.800 MAT; FLOOR REAR CREW CAB(TF*W) BUCKET SEAT W/RECLINING(S3B) FLOOR CONSOLE SEPARATE TYPE<7WF>,FLOOR CONSOLE ONE PIECE TYPE<7WG> PARKING BRAKE FLOOR<7XW> EXC. FLOOR CARPET<B30> (D) DARK GRAY	8-97298-363-0	01	1	0108-	●	●
15	16.800 MAT; FLOOR REAR 4X2 SINGLE CAB(TFBS) BUCKET SEAT W/RECLINING(S3B) EXC. FLOOR CARPET<B30>,FLOOR CONSOLE SEPARATE TYPE<7WF>,FLOOR CONSOLE ONE PIECE TY PE<7WG>,PARKING BRAKE FLOOR<7XW> (A) DARK GRAY	8-97298-366-0	01	1	0108-	●	●
15	16.800 MAT; FLOOR REAR 4X2 SINGLE CAB(TFBS) BUCKET SEAT W/RECLINING(S3B) FLOOR CONSOLE SEPARATE TYPE<7WF>,FLOOR CONSOLE ONE PIECE TYPE<7WG> EXC. FLOOR CARPET<B30>,PARKING BRAKE FLOOR<7XW> (A) DARK GRAY	8-97298-372-0	01	1	0108-	●	●
15	16.800 MAT; FLOOR REAR 4X2 SINGLE CAB(TFBS) EXC. FLOOR CARPET<B30>,BUCKET SEAT W/RECLINING(S3B) (B) DARK GRAY	8-97298-365-0	01	1	0108-	●	●
15	16.800 MAT; FLOOR REAR 4X2 SINGLE CAB(TFBS) EXC. FLOOR CARPET<B30>,BUCKET SEAT W/RECLINING(S3B) (B) DARK GRAY	8-97298-364-0	01	1	0108-	●	●
15	16.800 MAT; FLOOR REAR 4X2 CREW CAB(TFBW) BUCKET SEAT W/RECLINING(S3B) EXC. FLOOR CARPET<B30>,FLOOR CONSOLE SEPARATE TYPE<7WF>,FLOOR CONSOLE ONE PIECE TY PE<7WG>,PARKING BRAKE FLOOR<7XW> (D) DARK GRAY	8-97298-362-0	01	1	0108-	●	●
15	16.800 MAT; FLOOR REAR 4X2 CREW CAB(TFBW) BUCKET SEAT W/RECLINING(S3B) FLOOR CONSOLE SEPARATE TYPE<7WF>,FLOOR CONSOLE ONE PIECE TYPE<7WG> EXC. FLOOR CARPET<B30>,PARKING BRAKE FLOOR<7XW> (D) DARK GRAY	8-97298-373-0	01	1	0108-	●	●
15	16.800 MAT; FLOOR REAR 4X2 CREW CAB(TFBW) EXC. FLOOR CARPET<B30>,BUCKET SEAT W/RECLINING(S3B) (D) DARK GRAY	8-97298-361-0	01	1	0108-	●	●
22	16.870 PLATE; SILL,RR CREW CAB(TF*W) GRAY	8-97153-630-0	02	1	0108-	●	●
28	16.870 PLATE; SILL,FRT GRAY	8-97152-689-2	01	1	0108-	●	●
28	16.870 PLATE; SILL,FRT GRAY	8-97152-688-2	01	1	0108-	●	●
33	16.550 CLIP; INSULATION (A) H=10.5	8-94441-810-0	03	1	0108-	●	●
33	16.550 CLIP; INSULATION (B) BROWN	8-94476-811-0	02	1	0108-	●	●
36	16.550 INSULATION; PAD,DASH INNER 4JA1 ENG(RLE)	8-97311-549-0	01	1	0108-	●	●
36	16.550 INSULATION; PAD,DASH INNER 4JG2 ENG(RJC)	8-97111-431-1	01	1	0108-	●	●
99	16.110 DEADENER; FLOOR NOISE INSULATION PACK 2<7MW>	8-97111-457-1	02	1	0108-	●	●
112	16.575 INSULATION; PAD,FRT FLOOR PARKING BRAKE FLOOR<7XW> EXC. FLOOR CARPET<B30>	8-97216-453-0	01	1	0108-	●	●
112	16.575 INSULATION; PAD,FRT FLOOR PARKING BRAKE FLOOR<7XW> EXC. FLOOR CARPET<B30>	8-97216-452-0	01	1	0108-	●	●
112	16.575 INSULATION; PAD,FRT FLOOR 4X2(TFB***) EXC. FLOOR CARPET<B30>,PARKING BRAKE FLOOR<7XW> BLACK	8-97124-459-0	01	1	0108-	●	●
112	16.575 INSULATION; PAD,FRT FLOOR 4X2(TFB***) EXC. FLOOR CARPET<B30>,PARKING BRAKE FLOOR<7XW> BLACK	8-97124-456-0	01	1	0108-	●	●
140	16.570 DEADENER; DASH LWR PANEL	8-97115-876-0	02	1	0108-	●	●
