◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50920 - TFR/TFS(EUROPE)-RHD ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-70 - FLOOR PANEL ▶
6-70 — FLOOR PANEL (#20989) — 104 parça

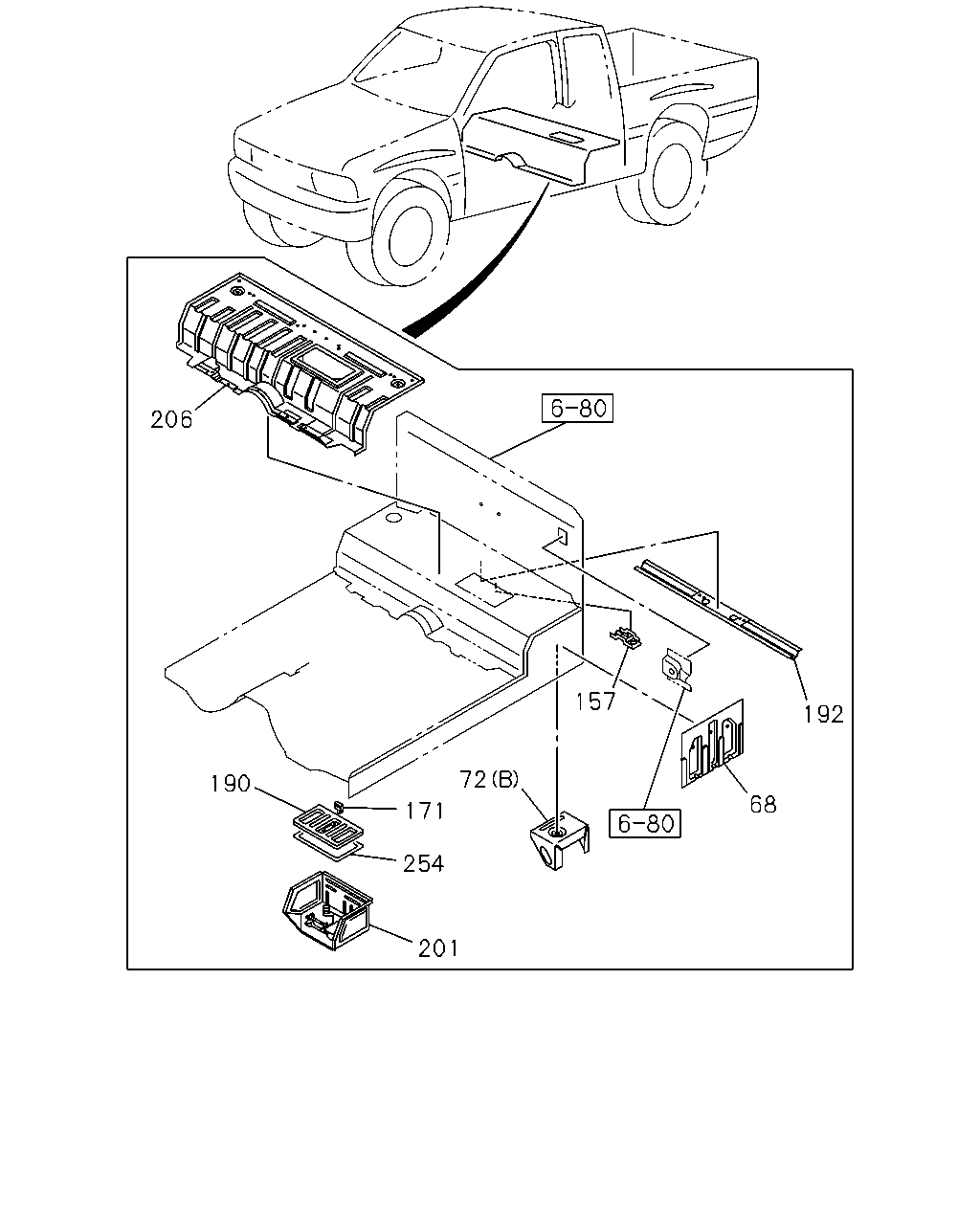

çizim 12547
206 157 192 72 190 68 171 254 201
BalonParca AdiParca NoAdetTipApplied Date A B C D E
68 16.570 PANEL; ROCKER INNER,CENTER
16.545 		8-94454-358-1 01 1 0108- ● ●
68 16.570 PANEL; ROCKER INNER,CENTER
16.545 		8-94454-357-1 01 1 0108- ● ●
68 16.570 PANEL; ROCKER INNER,CENTER
16.545 		8-94454-055-3 02 1 0108- ●
72 16.545 BRACKET; CAB MTG,RR
(A) 		8-97803-497-0 01 1 0108- ● ● ● ● ●
72 16.545 BRACKET; CAB MTG,RR
(A) 		8-97803-496-0 01 1 0108- ● ● ● ● ●
72 16.545 BRACKET; CAB MTG,RR
(B) 		8-94454-047-0 01 1 0108- ●
72 16.545 BRACKET; CAB MTG,RR
(B) 		8-94454-046-0 01 1 0108- ●
157 16.520 BRACKET; TOOL BOX LID 8-94455-757-0 01 1 0108- ●
171 16.520 FASTENER; TOOL BOX LID 8-94328-345-0 03 1 0108- ●
190 16.520 LID; TOOL BOX 8-94455-755-1 01 1 0108- ●
192 16.545 MEMBER; RR FLOOR PANEL 8-97318-704-0 01 1 0108- ● ●
192 16.545 MEMBER; RR FLOOR PANEL 8-94454-041-0 01 1 0108- ●
201 16.520 PANEL ASM; TOOL BOX 8-94454-049-2 01 1 0108- ●
206 16.545 PANEL; FLOOR BOARD RR 8-97258-906-0 01 1 0108- ●
254 16.520 SEAL; TOOL BOX LID 8-94456-785-1 01 1 0108- ●

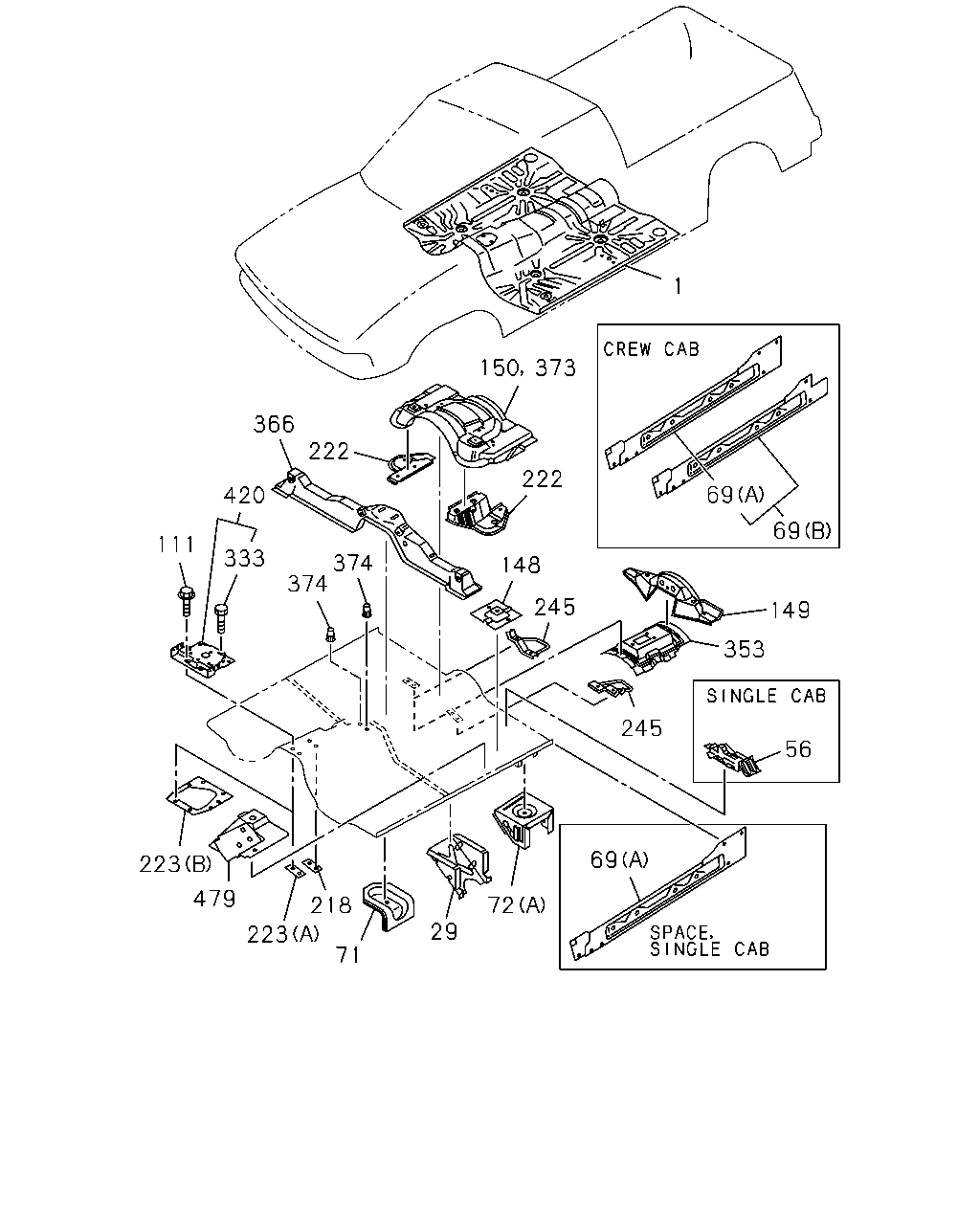

çizim 51885
1 150 373 366 222 222 69 420 69 111 333 374 374 148 245 149 353 245 56 69 223 479 72 218 29 223 71
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 16.545 PANEL; FLOOR
EXC. AIR BAG DRIVER(AJ3),HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(S9Y) 		8-97300-837-2 01 1 0108- ● ●
1 16.545 PANEL; FLOOR
GRADE S(RBA) SINGAPORE EQUIPMENT(S9Y) 		8-97300-837-2 01 1 0108- ● ●
1 16.545 PANEL; FLOOR
GRADE LS(RBD) SINGAPORE EQUIPMENT(S9Y) 		8-97300-839-1 01 1 0108- ● ●
1 16.545 PANEL; FLOOR
AIR BAG DRIVER(AJ3) 		8-97300-839-1 01 1 0108- ● ●
1 16.545 PANEL; FLOOR
HONG KONG EQUIPMENT(PQ1) EXC. AIR BAG DRIVER(AJ3) 		8-97300-839-1 01 1 0108- ● ●
1 16.545 PANEL; FLOOR 8-97300-839-1 01 1 0108- ● ● ●
29 16.545 GUSSET 8-94359-305-0 02 1 0108- ● ● ● ● ●
56 08.820 BRACKET; JACK 8-94473-876-1 01 1 0108- ● ●
69 16.545 PANEL; ROCKER INNER
(A) 		8-94455-733-4 01 1 0108- ● ● ● ● ●
69 16.545 PANEL; ROCKER INNER
(A) 		8-94455-732-4 01 1 0108- ● ● ● ● ●
69 16.545 PANEL; ROCKER INNER
(B) 		8-94343-385-0 01 1 0108- ● ●
69 16.545 PANEL; ROCKER INNER
(B) 		8-94343-384-0 01 1 0108- ● ●
71 16.545 BRACKET; CAB MTG,CENTER 8-97167-614-1 01 1 0108- ● ● ● ● ●
71 16.545 BRACKET; CAB MTG,CENTER 8-97167-613-1 01 1 0108- ● ● ● ● ●
72 16.545 BRACKET; CAB MTG,RR
(A) 		8-97803-497-0 01 1 0108- ● ● ● ● ●
72 16.545 BRACKET; CAB MTG,RR
(A) 		8-97803-496-0 01 1 0108- ● ● ● ● ●
72 16.545 BRACKET; CAB MTG,RR
(B) 		8-94454-047-0 01 1 0108- ●
72 16.545 BRACKET; CAB MTG,RR
(B) 		8-94454-046-0 01 1 0108- ●
111 16.549 BOLT; PANEL
GRADE LS(RBD) SINGAPORE EQUIPMENT(S9Y) 16.505 M6X12 FLANGE 		0-28480-612-0 06 1 0108- ● ●
111 16.549 BOLT; PANEL
AIR BAG DRIVER(AJ3) 16.505 M6X12 FLANGE 		0-28480-612-0 06 1 0108- ● ●
111 16.549 BOLT; PANEL
HONG KONG EQUIPMENT(PQ1) EXC. AIR BAG DRIVER(AJ3) 16.505 M6X12 FLANGE 		0-28480-612-0 06 1 0108- ● ●
111 16.549 BOLT; PANEL
16.505 M6X12 FLANGE 		0-28480-612-0 06 1 0108- ● ● ●
148 16.674 BRACKET; SEAT 8-94435-642-0 02 1 0108- ● ● ● ● ●
149 16.545 BRACKET; SEAT BELT ROD
GRADE LS(RBD) SINGAPORE EQUIPMENT(S9Y) 		8-97112-416-2 01 1 0108- ● ●
149 16.545 BRACKET; SEAT BELT ROD
AIR BAG DRIVER(AJ3) 		8-97112-416-2 01 1 0108- ● ●
149 16.545 BRACKET; SEAT BELT ROD
HONG KONG EQUIPMENT(PQ1) EXC. AIR BAG DRIVER(AJ3) 		8-97112-416-2 01 1 0108- ● ●
149 16.545 BRACKET; SEAT BELT ROD 8-97112-416-2 01 1 0108- ● ● ●
150 16.545 BRACKET; SEAT BELT,ANCHOR
EXC. AIR BAG DRIVER(AJ3),HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(S9Y) 		8-97013-535-1 01 1 0108- ● ●
150 16.545 BRACKET; SEAT BELT,ANCHOR
GRADE S(RBA) SINGAPORE EQUIPMENT(S9Y) 		8-97013-535-1 01 1 0108- ● ●
218 04.008 PATCH; A/T CONT LEVER
EXC. AIR BAG DRIVER(AJ3),HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(S9Y) 		8-97800-803-1 01 1 0108- ● ●
218 04.008 PATCH; A/T CONT LEVER
GRADE S(RBA) SINGAPORE EQUIPMENT(S9Y) 		8-97800-803-1 01 1 0108- ● ●
222 16.545 PATCH; BRKT
GRADE LS(RBD) SINGAPORE EQUIPMENT(S9Y) 		8-94199-260-2 01 1 0108- ● ●
222 16.545 PATCH; BRKT
AIR BAG DRIVER(AJ3) 		8-94199-260-2 01 1 0108- ● ●
222 16.545 PATCH; BRKT
HONG KONG EQUIPMENT(PQ1) EXC. AIR BAG DRIVER(AJ3) 		8-94199-260-2 01 1 0108- ● ●
222 16.545 PATCH; BRKT 8-94199-260-2 01 1 0108- ● ● ●
222 16.545 PATCH; BRKT
GRADE LS(RBD) SINGAPORE EQUIPMENT(S9Y) 		8-94199-259-2 01 1 0108- ● ●
222 16.545 PATCH; BRKT
AIR BAG DRIVER(AJ3) 		8-94199-259-2 01 1 0108- ● ●
222 16.545 PATCH; BRKT
HONG KONG EQUIPMENT(PQ1) EXC. AIR BAG DRIVER(AJ3) 		8-94199-259-2 01 1 0108- ● ●
222 16.545 PATCH; BRKT 8-94199-259-2 01 1 0108- ● ● ●
223 16.650 PATCH; CONSOLE BOX
EXC. AIR BAG DRIVER(AJ3),HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(S9Y) (A) 		8-94447-561-0 01 1 0108- ● ●
223 16.650 PATCH; CONSOLE BOX
GRADE S(RBA) SINGAPORE EQUIPMENT(S9Y) (A) 		8-94447-561-0 01 1 0108- ● ●
223 16.650 PATCH; CONSOLE BOX
GRADE LS(RBD) SINGAPORE EQUIPMENT(S9Y) (B) 		8-94197-591-1 01 1 0108- ● ●
223 16.650 PATCH; CONSOLE BOX
AIR BAG DRIVER(AJ3) (B) 		8-94197-591-1 01 1 0108- ● ●
223 16.650 PATCH; CONSOLE BOX
HONG KONG EQUIPMENT(PQ1) EXC. AIR BAG DRIVER(AJ3) (B) 		8-94197-591-1 01 1 0108- ● ●
223 16.650 PATCH; CONSOLE BOX
(B) 		8-94197-591-1 01 1 0108- ● ● ●
245 16.545 ROD; FRT SEAT BELT,ANCHOR
EXC. AIR BAG DRIVER(AJ3),HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(S9Y) 		8-94471-128-3 01 1 0108- ● ●
245 16.545 ROD; FRT SEAT BELT,ANCHOR
GRADE S(RBA) SINGAPORE EQUIPMENT(S9Y) 		8-94471-128-3 01 1 0108- ● ●
245 16.545 ROD; FRT SEAT BELT,ANCHOR
EXC. AIR BAG DRIVER(AJ3),HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(S9Y) 		8-94471-127-1 01 1 0108- ● ●
245 16.545 ROD; FRT SEAT BELT,ANCHOR
GRADE S(RBA) SINGAPORE EQUIPMENT(S9Y) 		8-94471-127-1 01 1 0108- ● ●
333 16.545 BOLT; BRKT
GRADE LS(RBD) SINGAPORE EQUIPMENT(S9Y) 02.500 M6X10 FLANGE 		0-28080-610-0 04 1 0108- ● ●
333 16.545 BOLT; BRKT
AIR BAG DRIVER(AJ3) 02.500 M6X10 FLANGE 		0-28080-610-0 04 1 0108- ● ●
333 16.545 BOLT; BRKT
HONG KONG EQUIPMENT(PQ1) EXC. AIR BAG DRIVER(AJ3) 02.500 M6X10 FLANGE 		0-28080-610-0 04 1 0108- ● ●
333 16.545 BOLT; BRKT
02.500 M6X10 FLANGE 		0-28080-610-0 04 1 0108- ● ● ●
353 16.545 REINFORCEMENT; HAND BRAKE
GRADE LS(RBD) SINGAPORE EQUIPMENT(S9Y) 		8-97801-237-2 01 1 0108- ● ●
353 16.545 REINFORCEMENT; HAND BRAKE
AIR BAG DRIVER(AJ3) 		8-97801-237-2 01 1 0108- ● ●
353 16.545 REINFORCEMENT; HAND BRAKE
HONG KONG EQUIPMENT(PQ1) EXC. AIR BAG DRIVER(AJ3) 		8-97801-237-2 01 1 0108- ● ●
353 16.545 REINFORCEMENT; HAND BRAKE 8-97801-237-2 01 1 0108- ● ● ●
366 16.674 BAR ASM; FRT SEAT MTG 8-97079-422-0 01 1 0108- ● ● ● ● ●
373 16.545 REINFORCEMENT; SEAT BELT
GRADE LS(RBD) SINGAPORE EQUIPMENT(S9Y) 		8-97112-251-2 01 1 0108- ● ●
373 16.545 REINFORCEMENT; SEAT BELT
AIR BAG DRIVER(AJ3) 		8-97112-251-2 01 1 0108- ● ●
373 16.545 REINFORCEMENT; SEAT BELT
HONG KONG EQUIPMENT(PQ1) EXC. AIR BAG DRIVER(AJ3) 		8-97112-251-2 01 1 0108- ● ●
373 16.545 REINFORCEMENT; SEAT BELT 8-97112-251-2 01 1 0108- ● ● ●
374 16.545 NUT; FLOOR
16.570 M8 POP NUT 		8-94279-538-0 02 1 0108- ● ● ● ● ●
420 16.545 BRACKET; SENSOR,SIR
GRADE LS(RBD) SINGAPORE EQUIPMENT(S9Y) 		8-97209-628-1 01 1 0108- ● ●
420 16.545 BRACKET; SENSOR,SIR
AIR BAG DRIVER(AJ3) 		8-97209-628-1 01 1 0108- ● ●
420 16.545 BRACKET; SENSOR,SIR
HONG KONG EQUIPMENT(PQ1) EXC. AIR BAG DRIVER(AJ3) 		8-97209-628-1 01 1 0108- ● ●
420 16.545 BRACKET; SENSOR,SIR 8-97209-628-1 01 1 0108- ● ● ●
479 16.545 BRACKET; FLOOR,OPENER 8-97216-738-0 01 1 0108- ● ● ● ● ●
479 16.545 BRACKET; FLOOR,OPENER 8-94199-329-0 01 1 0108- ● ● ● ● ●

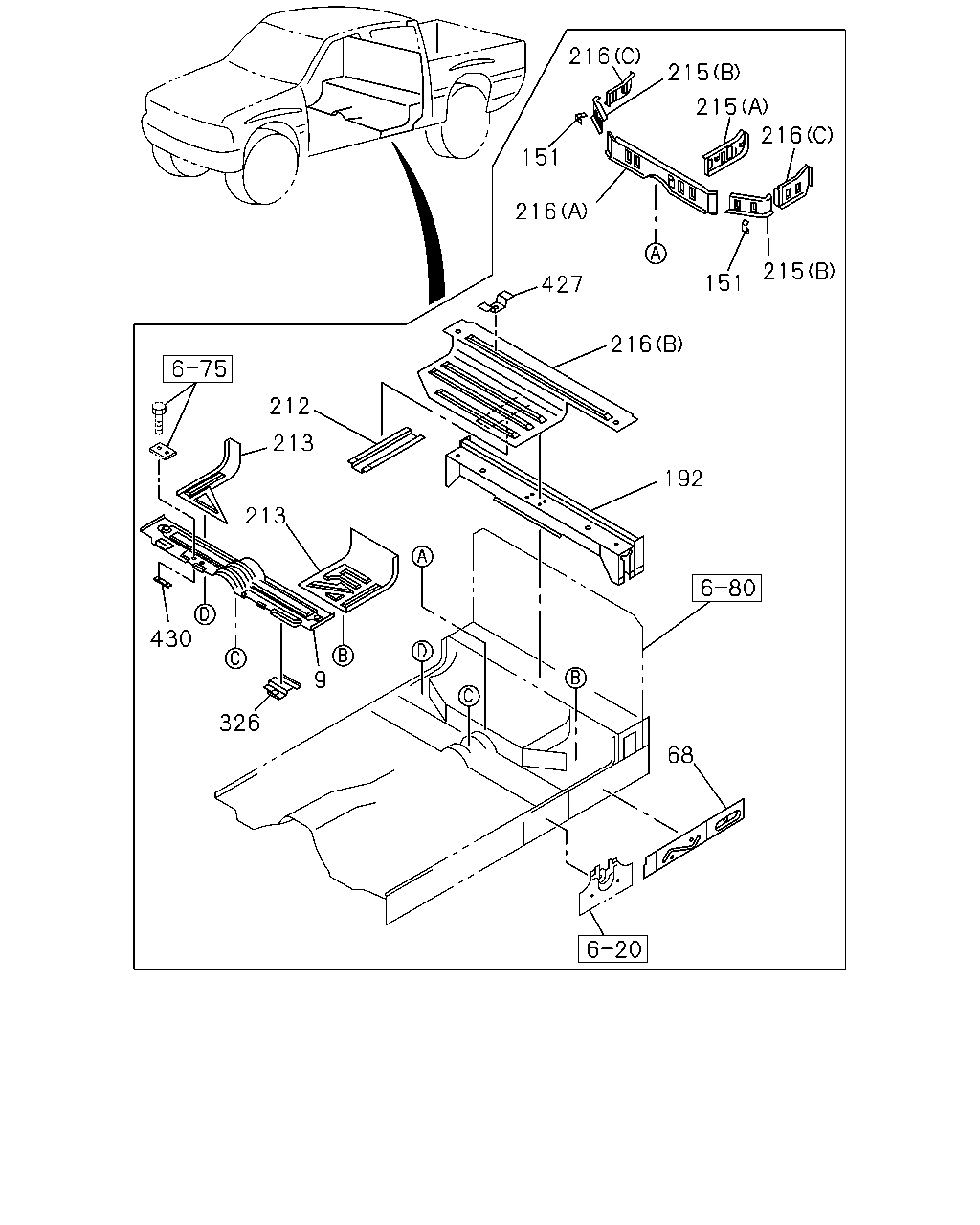

çizim 53322
216 215 215 216 151 216 215 151 427 216 212 213 192 213 430 9 326 68
BalonParca AdiParca NoAdetTipApplied Date A B C D E
9 16.545 PANEL; RR FLOOR,FRT 8-97286-937-0 01 1 0108- ● ●
68 16.570 PANEL; ROCKER INNER,CENTER
16.545 		8-94454-358-1 01 1 0108- ● ●
68 16.570 PANEL; ROCKER INNER,CENTER
16.545 		8-94454-357-1 01 1 0108- ● ●
68 16.570 PANEL; ROCKER INNER,CENTER
16.545 		8-94454-055-3 02 1 0108- ●
151 16.670 BRACKET; SEAT CUSHION STOPPER 8-94454-355-0 02 1 0108- ● ●
192 16.545 MEMBER; RR FLOOR PANEL 8-97318-704-0 01 1 0108- ● ●
192 16.545 MEMBER; RR FLOOR PANEL 8-94454-041-0 01 1 0108- ●
212 16.670 PANEL; REINF,SEAT RISER UPR 8-94473-966-0 01 1 0108- ● ●
213 16.545 PANEL; RR FLOOR SIDE 8-97227-382-0 01 1 0108- ● ●
213 16.545 PANEL; RR FLOOR SIDE 8-94454-325-0 01 1 0108- ● ●
215 16.670 PANEL; SEAT RISER,CENTER
(A) 		8-97070-581-1 01 1 0108- ● ●
215 16.670 PANEL; SEAT RISER,CENTER
(B) 		8-97070-585-0 01 1 0108- ● ●
215 16.670 PANEL; SEAT RISER,CENTER
(B) 		8-97070-584-0 01 1 0108- ● ●
216 16.670 PANEL; SEAT RISER
(A) 		8-94454-332-0 01 1 0108- ● ●
216 16.670 PANEL; SEAT RISER
(B) 		8-97216-703-1 01 1 0108- ● ●
216 16.670 PANEL; SEAT RISER
(C) 		8-97257-872-0 01 1 0108- ● ●
216 16.670 PANEL; SEAT RISER
(C) 		8-97257-870-0 01 1 0108- ● ●
326 16.545 PATCH; RR FLOOR 8-97226-254-0 01 1 0108- ● ●
427 16.545 BRACKET; CABLE 8-97212-925-0 01 1 0108- ● ●
430 16.545 PATCH; DUMPER 8-97139-101-0 01 1 0108- ● ●
