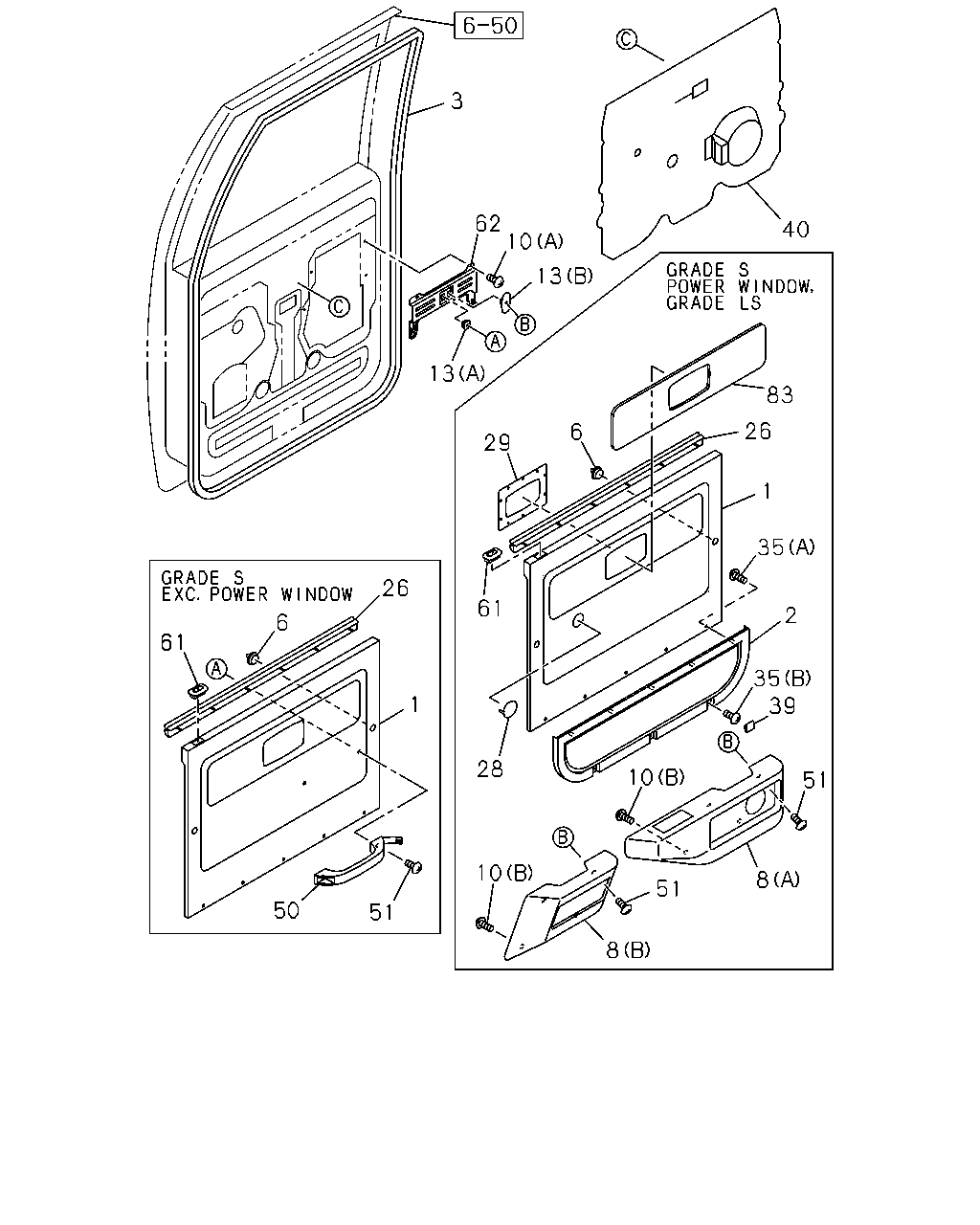

6-55 — REAR DOOR TRIM (#20986) — 37 parça

3 62 10 40 13 13 83 26 6 29 1 35 26 61 6 61 35 39 1 28 10 51 10 8 51 50 51 8 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	16.165 PAD; TRIM,RR DOOR CREW CAB(TF*W) EXC. POWER WINDOW<A30> GRAY	8-97155-089-0	01	1	0108-	●
1	16.165 PAD; TRIM,RR DOOR CREW CAB(TF*W) EXC. POWER WINDOW<A30> GRAY	8-97155-088-0	01	1	0108-	●
1	16.165 PAD; TRIM,RR DOOR CREW CAB(TF*W) POWER WINDOW<A30> GRAY	8-97155-653-3	01	1	0108-	●	●
1	16.165 PAD; TRIM,RR DOOR CREW CAB(TF*W) POWER WINDOW<A30> GRAY	8-97155-652-3	01	1	0108-	●	●
1	16.165 PAD; TRIM,RR DOOR CREW CAB(TF*W) EXC. POWER WINDOW<A30> GRAY	8-97155-651-3	01	1	0108-		●
1	16.165 PAD; TRIM,RR DOOR CREW CAB(TF*W) EXC. POWER WINDOW<A30> GRAY	8-97155-650-3	01	1	0108-		●
2	16.165 PLATE; RR DOOR LWR CREW CAB(TF*W) POWER WINDOW<A30> GRAY	8-97154-026-2	02	1	0108-	●	●
3	16.225 WEATHERSTRIP; RR DOOR CREW CAB(TF*W)	8-94449-880-4	01	1	0108-	●	●
3	16.225 WEATHERSTRIP; RR DOOR CREW CAB(TF*W)	8-94449-879-4	01	1	0108-	●	●
6	16.165 CLIP; DOOR PAD CREW CAB(TF*W) 14.683 H=16	8-94318-803-1	16	1	0108-	●	●
8	16.155 REST; ARM,RR DOOR CREW CAB(TF*W) POWER WINDOW<A30> (A) GRAY	8-97154-677-3	01	1	0108-	●	●
8	16.155 REST; ARM,RR DOOR CREW CAB(TF*W) POWER WINDOW<A30> (A) GRAY	8-97154-676-3	01	1	0108-	●	●
8	16.155 REST; ARM,RR DOOR CREW CAB(TF*W) EXC. POWER WINDOW<A30> (B) GRAY	8-97153-659-5	01	1	0108-		●
8	16.155 REST; ARM,RR DOOR CREW CAB(TF*W) EXC. POWER WINDOW<A30> (B) GRAY	8-97153-658-5	01	1	0108-		●
10	16.155 SCREW; ARM REST CREW CAB(TF*W) 08.913 (A) M5X12	8-94120-094-0	08	1	0108-	●	●
10	16.155 SCREW; ARM REST CREW CAB(TF*W) POWER WINDOW<A30> 16.165 (B) M4X14	8-94318-550-0	12	1	0108-	●	●
10	16.155 SCREW; ARM REST CREW CAB(TF*W) EXC. POWER WINDOW<A30> 16.165 (B) M4X14	8-94318-550-0	08	1	0108-		●
13	16.165 GROMMET; SCREW,ARM REST CREW CAB(TF*W) EXC. POWER WINDOW<A30> 16.450 (A)	5-09470-001-0	04	1	0108-	●
13	16.165 GROMMET; SCREW,ARM REST CREW CAB(TF*W) POWER WINDOW<A30> 14.686 (B) SCREW GROMMET	8-06698-938-1	04	1	0108-	●	●
26	16.165 SEAL; WAIST,RR DOOR INNER CREW CAB(TF*W)	8-97160-986-1	02	1	0108-	●	●
28	16.165 CAP; DOOR TRIM PAD CREW CAB(TF*W) EXC. POWER WINDOW<A30>	8-94457-752-2	02	1	0108-		●
29	16.165 REINFORCEMENT; DOOR PAD CREW CAB(TF*W) POWER WINDOW<A30>	8-94447-731-1	02	1	0108-	●	●
35	16.166 SCREW; TRIM PAD CREW CAB(TF*W) POWER WINDOW<A30> 16.165 (A) M4X8	8-94363-204-0	10	1	0108-	●	●
35	16.166 SCREW; TRIM PAD CREW CAB(TF*W) POWER WINDOW<A30> 16.165 (B) M4X13 TAPPING	8-97104-883-0	06	1	0108-	●	●
39	16.165 COVER; DOOR TRIM CREW CAB(TF*W) POWER WINDOW<A30> GRAY	8-97152-745-3	06	1	0108-	●	●
40	16.165 SHEET; WATER PROOF,RR DOOR CREW CAB(TF*W) POWER WINDOW<A30>	8-97161-055-2	01	1	0108-	●	●
40	16.165 SHEET; WATER PROOF,RR DOOR CREW CAB(TF*W) POWER WINDOW<A30>	8-97112-388-3	01	1	0108-	●	●
40	16.165 SHEET; WATER PROOF,RR DOOR CREW CAB(TF*W) EXC. POWER WINDOW<A30>	8-97118-492-0	02	1	0108-	●	●
50	16.450 GRIP; ASSIST,RR DOOR TRIM CREW CAB(TF*W) EXC. POWER WINDOW<A30> GRAY	8-97152-650-2	02	1	0108-	●
51	16.450 SCREW; ASSIST GRIP,RR DOOR TRIM CREW CAB(TF*W) M6X30	8-94361-891-0	04	1	0108-	●	●
61	16.165 GUIDE; HOLE CREW CAB(TF*W) GRAY	8-97152-748-3	02	1	0108-	●	●
62	16.165 BRACKET CREW CAB(TF*W)	8-97176-379-0	01	1	0108-	●	●
62	16.165 BRACKET CREW CAB(TF*W)	8-97176-378-0	01	1	0108-	●	●
83	16.165 TRIM; CENTER CLOTH CREW CAB(TF*W) POWER WINDOW<A30> GRAY	8-97196-083-1	02	1	0108-	●
83	16.165 TRIM; CENTER CLOTH CREW CAB(TF*W) GRAY	8-97296-768-1	02	1	0108-		●

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
	45	16.183 FINISHER; RR DOOR CREW CAB(TF*W) ANTI WIND NOISE<7MD> GRAY	8-97293-032-0	02	1	0108-	●	●
	45	16.183 FINISHER; RR DOOR CREW CAB(TF*W) EXC. ANTI WIND NOISE<7MD> GRAY	8-97153-685-0	02	1	0108-	●	●
