◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50920 - TFR/TFS(EUROPE)-RHD ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-52 - REAR DOOR LOCK AND HANDLE ▶
6-52 — REAR DOOR LOCK AND HANDLE (#20985) — 37 parça

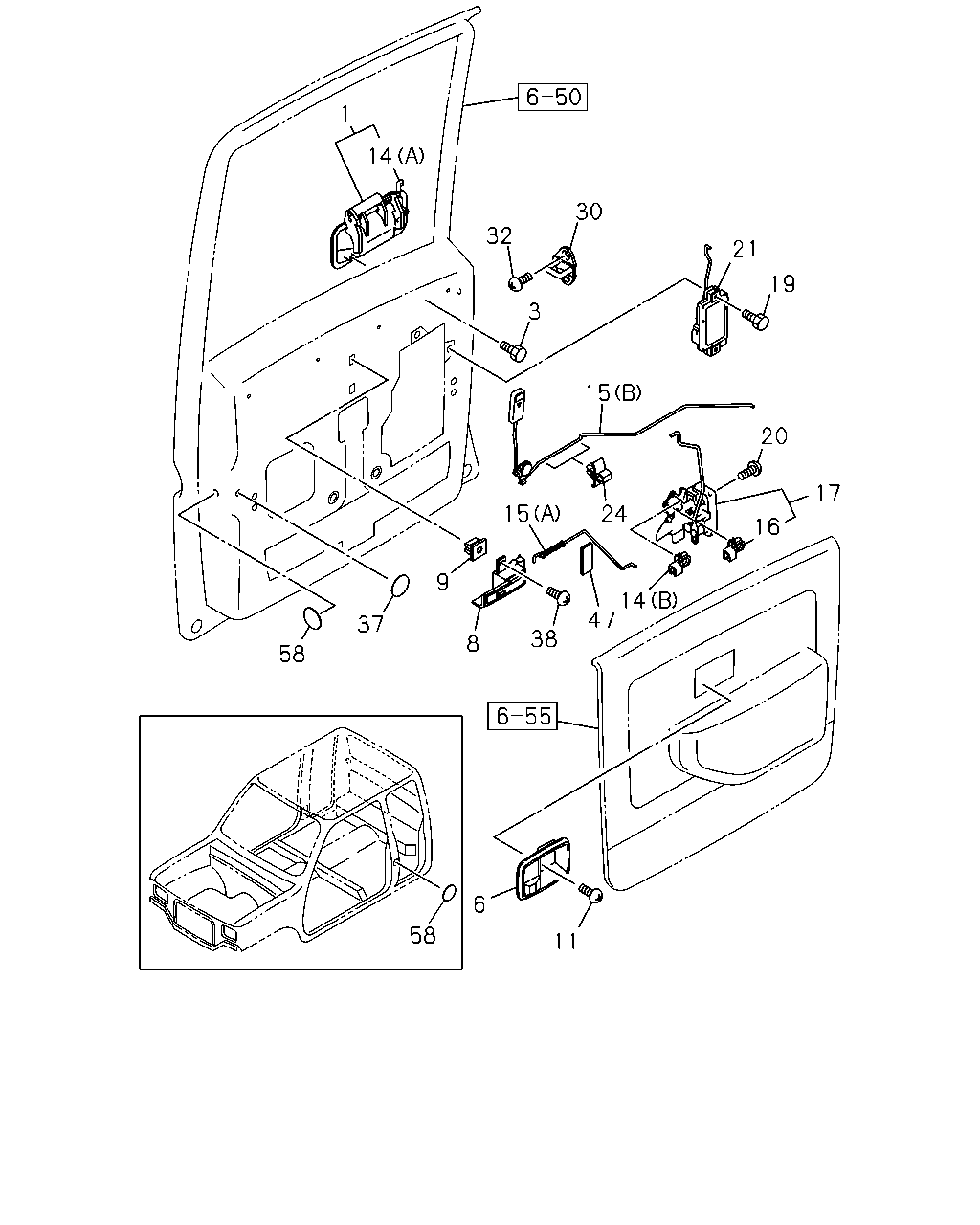

çizim 51892
1 14 30 32 21 19 3 15 20 17 15 24 16 9 14 47 37 38 8 58 6 58 11
BalonParca AdiParca NoAdetTipApplied Date A B
1 16.360 HANDLE; OUTSIDE,RR DOOR
OUTSIDE HANDLE BRIGHT<7WM> 		8-94474-033-3 01 1 0108- ● ●
1 16.360 HANDLE; OUTSIDE,RR DOOR
OUTSIDE HANDLE BRIGHT<7WM> 		8-94474-032-3 01 1 0108- ● ●
1 16.360 HANDLE; OUTSIDE,RR DOOR
EXC. OUTSIDE HANDLE BRIGHT<7WM> 		8-94449-862-1 01 1 0108- ● ●
1 16.360 HANDLE; OUTSIDE,RR DOOR
EXC. OUTSIDE HANDLE BRIGHT<7WM> 		8-94449-861-1 01 1 0108- ● ●
3 16.350 BOLT; DOOR OUTSIDE HANDLE
10.701 M6X8 		8-94155-893-0 04 1 0108- ● ●
6 16.345 BEZEL; INSIDE HANDLE,DOOR LOCK
GRAY 		8-97150-649-2 01 1 0108- ● ●
6 16.345 BEZEL; INSIDE HANDLE,DOOR LOCK
GRAY 		8-97150-648-2 01 1 0108- ● ●
8 16.345 HANDLE; INSIDE,RR DOOR
GRAY 		8-97150-647-3 01 1 0108- ● ●
8 16.345 HANDLE; INSIDE,RR DOOR
GRAY 		8-97150-646-3 01 1 0108- ● ●
9 16.345 GROMMET; SCREW,INSIDE HANDLE
16.450 		5-09470-001-0 04 1 0108- ● ●
11 16.345 SCREW; INSIDE HANDLE
M4X10 TAPPING OVAL-HEAD 		0-70680-410-0 02 1 0108- ● ●
14 16.330 HOLDER; DOOR LK ROD
AUTO DOOR LOCK<AU4> 10.527 (B) GREEN 		8-94123-004-1 01 1 0108- ● ●
14 16.330 HOLDER; DOOR LK ROD
AUTO DOOR LOCK<AU4> 10.527 (B) WHITE 		8-94123-005-1 01 1 0108- ● ●
14 16.330 HOLDER; DOOR LK ROD
OUTSIDE HANDLE BRIGHT<7WM> 16.350 (A) 		8-97102-756-0 01 1 0108- ● ●
14 16.330 HOLDER; DOOR LK ROD
OUTSIDE HANDLE BRIGHT<7WM> 16.350 (A) 		8-97102-755-0 01 1 0108- ● ●
14 16.330 HOLDER; DOOR LK ROD
EXC. OUTSIDE HANDLE BRIGHT<7WM> (A) 		8-97134-591-0 01 1 0108- ● ●
14 16.330 HOLDER; DOOR LK ROD
EXC. OUTSIDE HANDLE BRIGHT<7WM> (A) 		8-97134-588-0 01 1 0108- ● ●
15 16.341 LINK; RR DOOR LK
(B) GRAY 		8-97154-669-0 01 1 0108- ● ●
15 16.341 LINK; RR DOOR LK
(A) 		8-97224-400-0 01 1 0108- ● ●
15 16.341 LINK; RR DOOR LK
(B) GRAY 		8-97154-668-0 01 1 0108- ● ●
15 16.341 LINK; RR DOOR LK
(A) 		8-97224-399-0 01 1 0108- ● ●
16 16.345 CLIP; DOOR LK LINK
10.527 GREEN 		8-94123-004-1 01 1 0108- ● ●
16 16.345 CLIP; DOOR LK LINK
10.527 WHITE 		8-94123-005-1 01 1 0108- ● ●
17 16.330 LOCK; DOOR,RR DOOR 8-97206-920-2 01 1 0108- ● ●
17 16.330 LOCK; DOOR,RR DOOR 8-97206-919-2 01 1 0108- ● ●
19 16.345 BOLT; RR DOOR LOCK
AUTO DOOR LOCK<AU4> 10.701 M6X8 		8-94155-893-0 04 1 0108- ● ●
20 16.330 SCREW; DOOR LK
M6X16 CK-HD 		8-97113-761-0 06 1 0108- ● ●
21 16.345 ACTUATOR; RR DOOR LOCK
AUTO DOOR LOCK<AU4> 		8-97112-228-1 01 1 0108- ● ●
21 16.345 ACTUATOR; RR DOOR LOCK
AUTO DOOR LOCK<AU4> 		8-97112-227-1 01 1 0108- ● ●
24 16.345 ANTIRATTLER; DOOR INSIDE HANDLE
16.341 ID=3.8 WHITE 		8-94217-699-0 04 1 0108- ● ●
30 16.335 STRIKER; RR DOOR
10.569 		8-94115-959-0 02 1 0108- ● ●
32 16.335 SCREW; DOOR STRIKER
10.570 M8X20 		9-03097-820-0 04 1 0108- ● ●
37 16.157 GROMMET; RR DOOR
EXC. POWER WINDOW<A30> 16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 02 1 0108- ● ●
38 16.345 SCREW; INSIDE LEVER,RR DOOR LK
10.512 M6X16 		9-09829-197-0 04 1 0108- ● ●
47 16.335 SEAL 8-97132-038-1 02 1 0108- ● ●
58 16.345 COVER; HOLE
EXC. POWER WINDOW<A30> 16.165 OD=50 T=0.08 BLACK 		8-94111-754-0 04 1 0108-0109 ● ●
58 16.345 COVER; HOLE
EXC. POWER WINDOW<A30> 16.547 OD=45 BLACK 		1-76798-017-0 04 1 0110- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
