◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50920 - TFR/TFS(EUROPE)-RHD ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-51 - REAR DOOR GLASS AND REGULATOR ▶
6-51 — REAR DOOR GLASS AND REGULATOR (#20984) — 23 parça

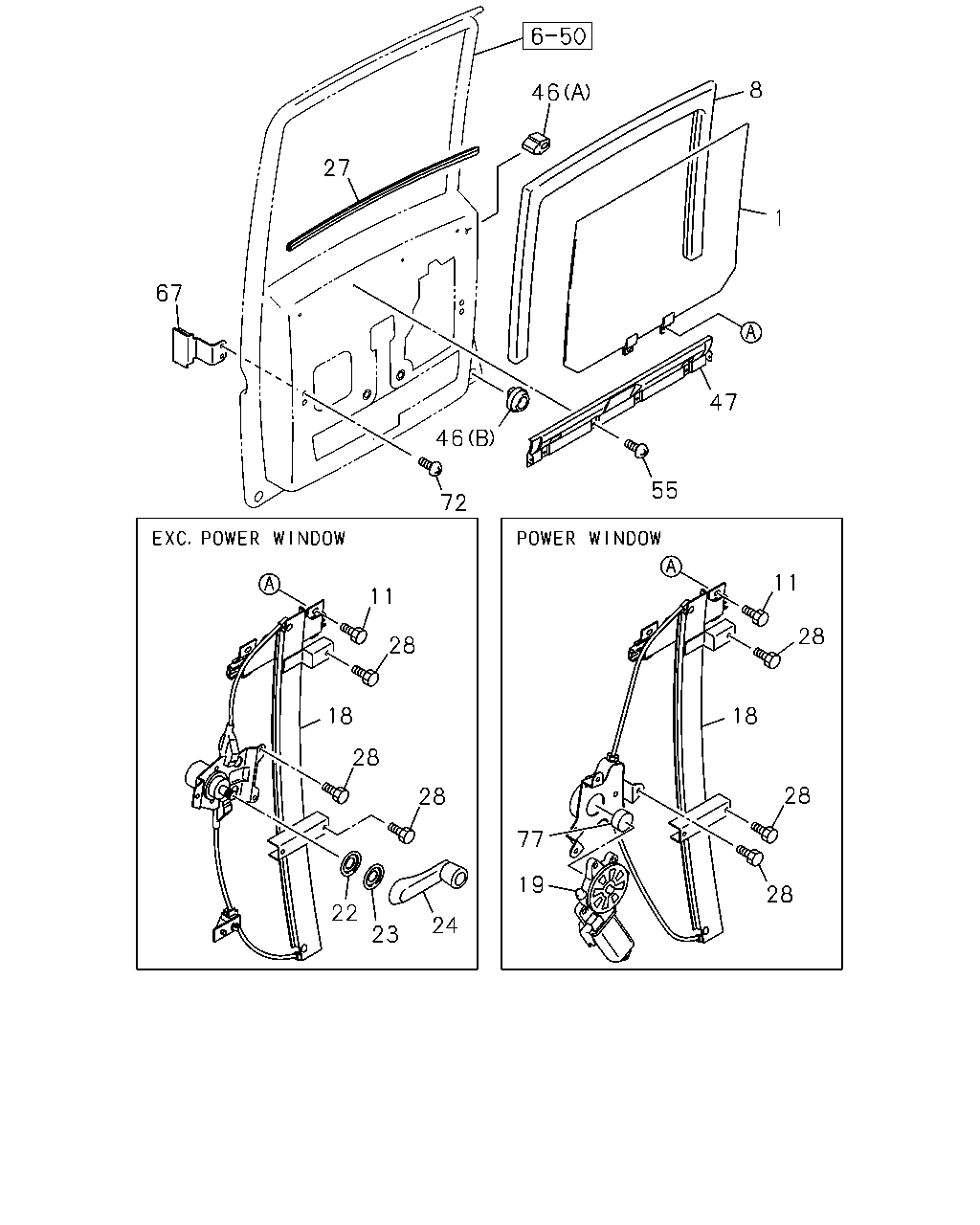

çizim 51996
8 46 27 1 67 47 46 55 72 11 11 28 28 18 18 28 28 28 77 19 28 22 24 23
BalonParca AdiParca NoAdetTipApplied Date A B
1 16.180 GLASS; RR DOOR 8-97123-210-1 01 1 0108- ● ●
1 16.180 GLASS; RR DOOR 8-97123-209-1 01 1 0108- ● ●
8 16.190 RUN; GLASS,RR DOOR 8-94449-882-3 01 1 0108- ● ●
8 16.190 RUN; GLASS,RR DOOR 8-94449-881-3 01 1 0108- ● ●
11 16.183 BOLT; GLASS
10.701 M6X8 		8-94155-893-0 04 1 0108- ● ●
18 16.260 REGULATOR; WINDOW,RR DOOR
POWER WINDOW<A30> 		8-97165-893-3 01 1 0108- ● ●
18 16.260 REGULATOR; WINDOW,RR DOOR
POWER WINDOW<A30> 		8-97165-892-3 01 1 0108- ● ●
18 16.260 REGULATOR; WINDOW,RR DOOR
EXC. POWER WINDOW<A30> 		8-94455-701-8 01 1 0108- ● ●
18 16.260 REGULATOR; WINDOW,RR DOOR
EXC. POWER WINDOW<A30> 		8-94455-700-8 01 1 0108- ● ●
19 16.263 MOTOR; POWER WINDOW REG,RR DOOR
POWER WINDOW<A30> 		8-97165-895-0 01 1 0108- ● ●
19 16.263 MOTOR; POWER WINDOW REG,RR DOOR
POWER WINDOW<A30> 		8-97165-894-0 01 1 0108- ● ●
22 16.270 GASKET; DUST SEAL,WINDOW REG
EXC. POWER WINDOW<A30> 10.783 		8-94106-830-1 02 1 0108- ● ●
23 16.270 ESCUTCHEON; HANDLE,WINDOW REG
EXC. POWER WINDOW<A30> 10.805 		8-94220-668-1 02 1 0108- ● ●
24 16.270 HANDLE; WINDOW REG,RR DOOR
EXC. POWER WINDOW<A30> GRAY 		8-97150-650-0 02 1 0108- ● ●
27 16.183 SEAL; WAIST,RR DOOR 8-94449-883-2 02 1 0108- ● ●
28 16.181 BOLT; WINDOW REG
10.701 M6X8 		8-94155-893-0 12 1 0108- ● ●
46 16.400 BUFFER; RR DOOR
10.587 (A) 		8-03468-771-1 02 1 0108- ● ●
46 16.400 BUFFER; RR DOOR
(B) 		8-97014-688-0 02 1 0108- ● ●
47 16.190 GARNISH; RR DOOR 8-94454-743-1 02 1 0108- ● ●
55 16.270 SCREW; REG HANDLE
08.913 M5X12 		8-94120-094-0 12 1 0108- ● ●
67 16.261 STABILIZER; RR DOOR 8-97073-005-1 04 1 0108- ● ●
72 16.261 SCREW; STABILIZER
16.175 M6X14 		8-94113-240-1 08 1 0108- ● ●
77 16.270 DAMPER; WINDOW REGULATOR
POWER WINDOW<A30> 16.260 		1-74417-074-0 02 1 0108- ● ●
