◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50920 - TFR/TFS(EUROPE)-RHD ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-47 - MUD GUARD AND INSULATOR ▶
6-47 — MUD GUARD AND INSULATOR (#20982) — 33 parça

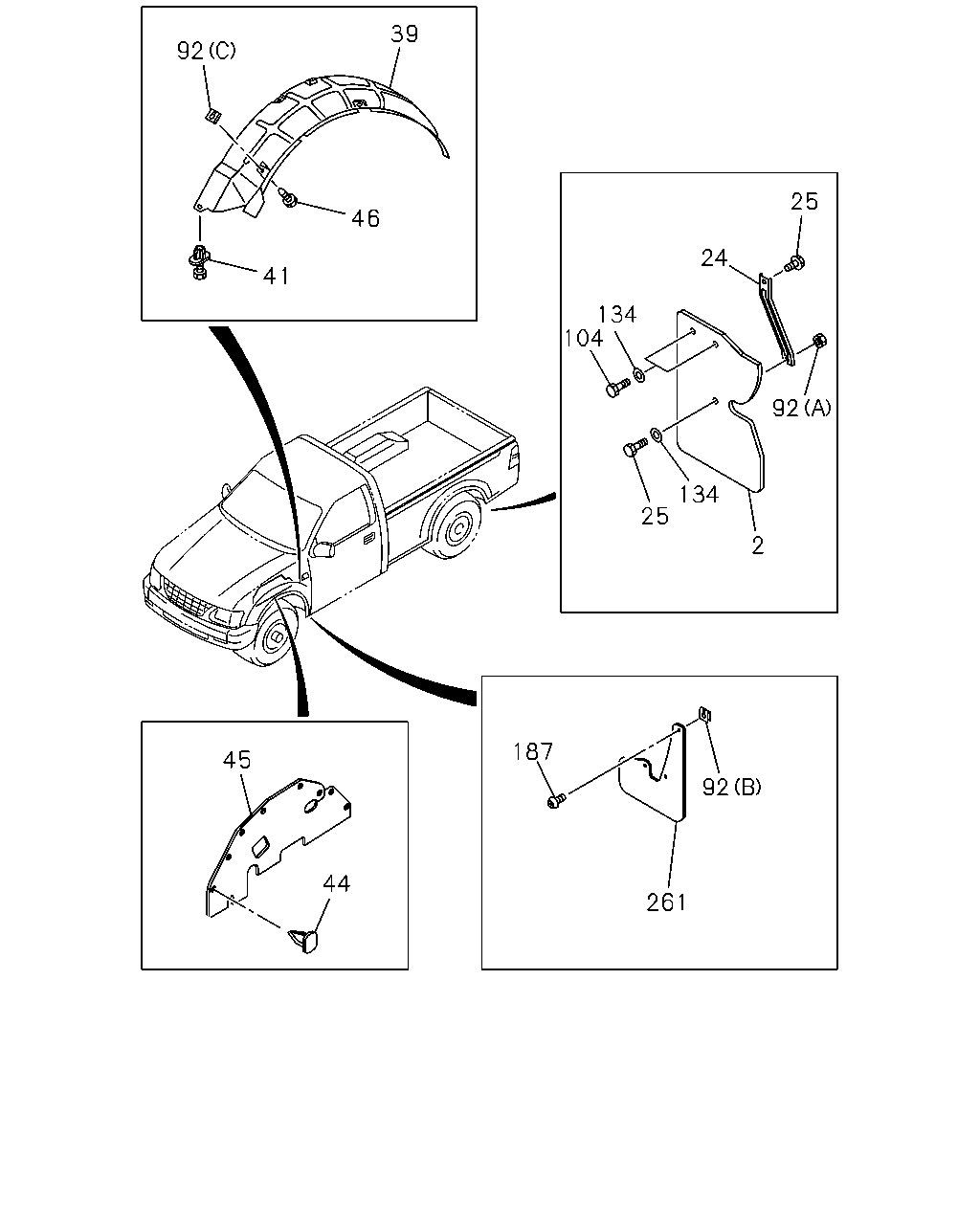

çizim 51814
39 92 25 46 24 41 134 104 92 134 25 2 187 45 92 44 261
BalonParca AdiParca NoAdetTipApplied Date A B C D E
2 08.154 COVER; MUD,TIRE RR
CHEVROLET BRAND<RWE>,VAUXHALL BRAND<8DT> RR BODY DBL WALL CTR PULL(6MW) MUD FLAP<VH4> 		8-97142-531-1 02 1 0108-0201 ● ●
2 08.154 COVER; MUD,TIRE RR
CHEVROLET BRAND<RWE> RR BODY DBL WALL CTR PULL(6MW) MUD FLAP<VH4> 		8-97142-531-1 02 1 0202- ● ●
2 08.154 COVER; MUD,TIRE RR
RR BODY DBL WALL CTR PULL(6MW) MUD FLAP<VH4> EXC. CHEVROLET BRAND<RWE>,VAUXHALL BRAND<8DT> 		8-97142-514-1 01 1 0108-0201 ● ●
2 08.154 COVER; MUD,TIRE RR
RR BODY DBL WALL CTR PULL(6MW) MUD FLAP<VH4> EXC. CHEVROLET BRAND<RWE> 		8-97142-514-1 01 1 0202- ● ●
2 08.154 COVER; MUD,TIRE RR
RR BODY DBL WALL CTR PULL(6MW) MUD FLAP<VH4> EXC. CHEVROLET BRAND<RWE>,VAUXHALL BRAND<8DT> 		8-97142-513-1 01 1 0108-0201 ● ●
2 08.154 COVER; MUD,TIRE RR
RR BODY DBL WALL CTR PULL(6MW) MUD FLAP<VH4> EXC. CHEVROLET BRAND<RWE> 		8-97142-513-1 01 1 0202- ● ●
2 08.154 COVER; MUD,TIRE RR
CHEVROLET BRAND<RWE>,VAUXHALL BRAND<8DT> RR BODY DBL WALL CTR PULL(6MW) MUD FLAP<VH4> 		8-97142-530-1 02 1 0108-0201 ● ● ●
2 08.154 COVER; MUD,TIRE RR
CHEVROLET BRAND<RWE> RR BODY DBL WALL CTR PULL(6MW) MUD FLAP<VH4> 		8-97142-530-1 02 1 0202- ● ● ●
2 08.154 COVER; MUD,TIRE RR
RR BODY DBL WALL CTR PULL(6MW) MUD FLAP<VH4> EXC. CHEVROLET BRAND<RWE>,VAUXHALL BRAND<8DT> 		8-97142-516-1 01 1 0108-0201 ● ● ●
2 08.154 COVER; MUD,TIRE RR
RR BODY DBL WALL CTR PULL(6MW) MUD FLAP<VH4> EXC. CHEVROLET BRAND<RWE> 		8-97142-516-1 01 1 0202- ● ● ●
2 08.154 COVER; MUD,TIRE RR
RR BODY DBL WALL CTR PULL(6MW) MUD FLAP<VH4> EXC. CHEVROLET BRAND<RWE>,VAUXHALL BRAND<8DT> 		8-97142-515-1 01 1 0108-0201 ● ● ●
2 08.154 COVER; MUD,TIRE RR
RR BODY DBL WALL CTR PULL(6MW) MUD FLAP<VH4> EXC. CHEVROLET BRAND<RWE> 		8-97142-515-1 01 1 0202- ● ● ●
24 08.155 PLATE; MUD COVER
RR BODY DBL WALL CTR PULL(6MW) MUD FLAP<VH4> 16.100 		8-94328-186-0 01 1 0108- ● ● ● ● ●
24 08.155 PLATE; MUD COVER
RR BODY DBL WALL CTR PULL(6MW) MUD FLAP<VH4> 		8-94328-185-0 01 1 0108- ● ● ● ● ●
25 08.155 BOLT; PLATE TO MUD COVER
RR BODY DBL WALL CTR PULL(6MW) MUD FLAP<VH4> 17.507 M8X22 		8-97104-889-0 04 1 0108- ● ● ● ● ●
39 08.131 LINER; FENDER 8-97302-173-0 01 1 0108- ● ● ● ● ●
39 08.131 LINER; FENDER 8-97302-172-0 01 1 0108- ● ● ● ● ●
41 08.155 RIVET; INNER LINER
MUD FLAP<VH4> 08.154 		8-94221-150-0 12 1 0108- ● ● ● ● ●
41 08.155 RIVET; INNER LINER
EXC. MUD FLAP<VH4> 08.154 		8-94221-150-0 18 1 0108- ● ● ● ● ●
44 08.154 CLIP; ANCHOR 8-94215-211-0 14 1 0108- ● ● ● ● ●
45 08.153 COVER; MUD,FENDER SKIRT 8-97256-537-0 01 1 0108- ● ● ● ● ●
45 08.153 COVER; MUD,FENDER SKIRT 8-97256-538-0 01 1 0108- ● ● ● ● ●
46 08.155 SCREW; INNER LINER
M6X20 W/PL WASHER TAPPING 		8-94321-767-1 04 1 0108- ● ● ● ● ●
92 08.155 NUT; MUD COVER
(C) ID=5.2 H=10 		8-97032-135-0 04 1 0108- ● ● ● ● ●
92 08.155 NUT; MUD COVER
MUD FLAP<VH4> (B) ID=5.2 H=10 		8-97032-135-0 06 1 0108- ● ● ● ● ●
92 08.155 NUT; MUD COVER
RR BODY DBL WALL CTR PULL(6MW) MUD FLAP<VH4> 07.633 (A) M8 FLANGE 		0-91150-108-0 02 1 0108- ● ● ● ● ●
104 08.214 BOLT; BRKT
RR BODY DBL WALL CTR PULL(6MW) MUD FLAP<VH4> 17.507 M8X22 		8-97104-889-0 04 1 0108- ● ● ● ● ●
134 08.155 WASHER; PL
RR BODY DBL WALL CTR PULL(6MW) MUD FLAP<VH4> 07.633 ID=8.4 OD=22 		9-09164-708-0 06 1 0108- ● ● ● ● ●
187 08.155 SCREW; FENDER COVER
MUD FLAP<VH4> M6X20 W/PL WASHER TAPPING 		8-94321-767-1 06 1 0108- ● ● ● ● ●
261 08.155 RUBBER; FRT,MUD GUARD
MUD FLAP<VH4> 		8-97202-848-1 01 1 0108- ● ●
261 08.155 RUBBER; FRT,MUD GUARD
MUD FLAP<VH4> 		8-97202-850-1 01 1 0108- ● ●
261 08.155 RUBBER; FRT,MUD GUARD
MUD FLAP<VH4> 		8-97202-847-1 01 1 0108- ● ● ●
261 08.155 RUBBER; FRT,MUD GUARD
MUD FLAP<VH4> 		8-97202-849-1 01 1 0108- ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
