◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50920 - TFR/TFS(EUROPE)-RHD ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-41 - SIDE WINDOW GLASS AND WEATHERSTRIP ▶
6-41 — SIDE WINDOW GLASS AND WEATHERSTRIP (#20979) — 14 parça

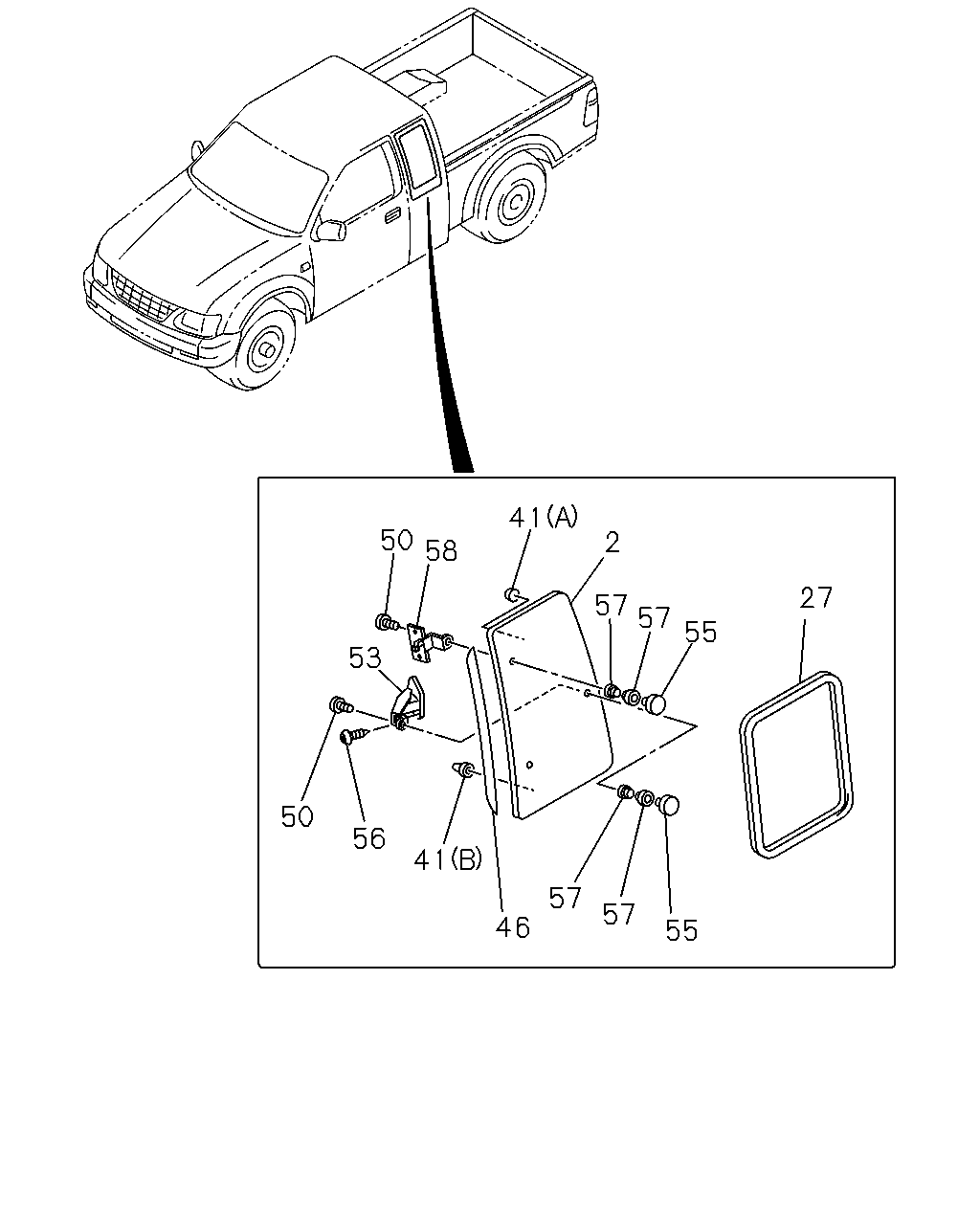

çizim 53178
41 50 58 2 27 57 57 55 53 50 56 41 57 57 46 55
BalonParca AdiParca NoAdetTipApplied Date
2 16.460 GLASS; RR QUARTER 8-97132-249-1 01 1 0108-0212
2 16.460 GLASS; RR QUARTER 8-97359-583-0 01 1 0301-
2 16.460 GLASS; RR QUARTER 8-97132-248-1 01 1 0108-0212
2 16.460 GLASS; RR QUARTER 8-97359-582-0 01 1 0301-
27 16.470 WEATHERSTRIP; RR QUARTER 8-94450-130-4 02 1 0108-
41 16.183 BUFFER; RR QUARTER GLASS
12.945 (A) 		8-94203-098-1 02 1 0108-
41 16.183 BUFFER; RR QUARTER GLASS
(B) 		8-94314-317-0 04 1 0108-
46 16.460 TAPE; RR QUARTER GLASS 8-94480-686-0 02 1 0108-
50 16.155 SCREW; HINGE
11.010 M5X10 		9-03810-510-0 06 1 0108-
53 16.190 FASTENER; RR QUARTER 8-97061-616-0 02 1 0108-
55 16.152 NUT; SPECIAL,HINGE
11.010 		8-94224-270-0 06 1 0108-
56 16.475 SCREW; BACKLIGHT GLASS
16.085 M5X16 TAPPING 		9-09829-323-1 14 1 0108-
57 16.152 GROMMET; HINGE 8-94480-192-0 10 1 0108-
58 16.152 HINGE; RR QUARTER WINDOW 8-97184-433-0 04 1 0108-
