◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50920 - TFR/TFS(EUROPE)-RHD ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-35 - FRONT DOOR TRIM ▶
6-35 — FRONT DOOR TRIM (#20978) — 57 parça

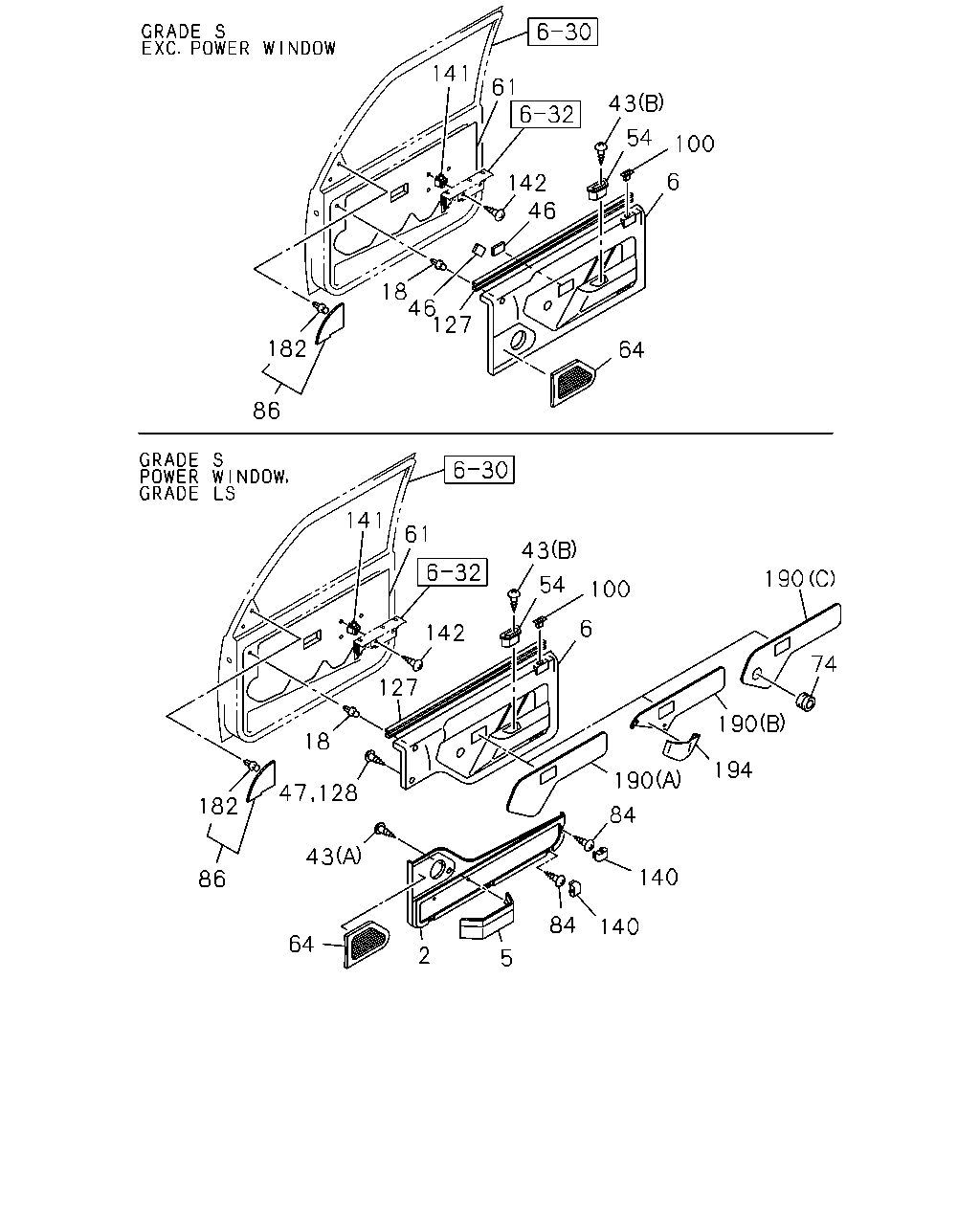

çizim 11121
141 61 43 54 100 6 142 46 18 46 127 182 64 86 141 61 43 190 54 100 6 142 74 127 190 18 194 190 47 182 84 43 140 86 84 140 64 2 5 128
BalonParca AdiParca NoAdetTipApplied Date A B
2 16.165 TRIM; DOOR,LWR
POWER WINDOW<A30> GRAY 		8-97155-085-1 01 1 0108- ●
2 16.165 TRIM; DOOR,LWR
GRAY 		8-97155-085-1 01 1 0108- ●
2 16.165 TRIM; DOOR,LWR
POWER WINDOW<A30> GRAY 		8-97155-084-1 01 1 0108- ●
2 16.165 TRIM; DOOR,LWR
GRAY 		8-97155-084-1 01 1 0108- ●
5 16.165 POCKET; DOOR
POWER WINDOW<A30> GRAY 		8-97150-665-1 02 1 0108- ●
5 16.165 POCKET; DOOR
GRAY 		8-97150-665-1 02 1 0108- ●
6 16.165 TRIM; DOOR,UPR
EXC. POWER WINDOW<A30> GRAY 		8-97155-071-3 01 1 0108- ●
6 16.165 TRIM; DOOR,UPR
EXC. POWER WINDOW<A30> GRAY 		8-97155-070-3 01 1 0108- ●
6 16.165 TRIM; DOOR,UPR
POWER WINDOW<A30> GRAY 		8-97155-637-4 01 1 0108- ● ●
6 16.165 TRIM; DOOR,UPR
CREW CAB(TF**W*) POWER WINDOW<A30> GRAY 		8-97155-638-4 01 1 0108- ● ●
6 16.165 TRIM; DOOR,UPR
4X2 SINGLE CAB LONG(TFB5SF) 4X4 SPACE CAB(TFS5CF) 4X4 SINGLE CAB LONG(TFS5SF) POWER WINDOW<A30> GRAY 		8-97155-636-4 01 1 0108- ● ●
6 16.165 TRIM; DOOR,UPR
EXC. POWER WINDOW<A30> GRAY 		8-97155-635-4 01 1 0108- ●
6 16.165 TRIM; DOOR,UPR
EXC. POWER WINDOW<A30> GRAY 		8-97155-634-4 01 1 0108- ●
18 16.165 CLIP; DOOR PAD
EXC. POWER WINDOW<A30> 		8-97074-005-0 22 1 0108- ●
18 16.165 CLIP; DOOR PAD
POWER WINDOW<A30> 14.683 H=16 		8-94318-803-1 11 1 0108- ● ●
18 16.165 CLIP; DOOR PAD
POWER WINDOW<A30> 14.683 H=16 		8-94318-803-1 11 1 0108- ● ●
18 16.165 CLIP; DOOR PAD
EXC. POWER WINDOW<A30> 14.683 H=16 		8-94318-803-1 22 1 0108- ●
43 16.165 SCREW; DOOR POCKET
POWER WINDOW<A30> (A) 		8-97136-100-0 08 1 0108- ●
43 16.165 SCREW; DOOR POCKET
(A) 		8-97136-100-0 08 1 0108- ●
43 16.165 SCREW; DOOR POCKET
(B) M6X14 SELF TAPPING 		9-09629-040-0 04 1 0108- ● ●
46 16.165 CUSHION; TRIM PAD,FRT DOOR
EXC. POWER WINDOW<A30> 		8-97094-785-0 04 1 0108- ●
47 16.165 SCREW
CREW CAB(TF**W*) POWER WINDOW<A30> 		8-97123-889-0 08 1 0108- ● ●
54 16.165 BOX; FRT DOOR
GRAY 		8-97154-666-3 02 1 0108- ● ●
61 16.165 SEAL; WATER,DOOR PAD
EXC. POWER WINDOW<A30> 		8-97101-945-2 02 1 0108- ●
61 16.165 SEAL; WATER,DOOR PAD
POWER WINDOW<A30> 		8-97101-946-2 02 1 0108- ● ●
64 09.650 GRILLE
GRAY 		8-97153-441-0 01 1 0108- ● ●
64 09.650 GRILLE
GRAY 		8-97153-440-0 01 1 0108- ● ●
74 16.165 CAP; DOOR TRIM
EXC. POWER WINDOW<A30> GRAY 		8-97150-937-2 02 1 0108- ●
84 16.165 SCREW; BOX BRKT
POWER WINDOW<A30> M4X13 TAPPING 		8-97104-883-0 08 1 0108- ●
84 16.165 SCREW; BOX BRKT
M4X13 TAPPING 		8-97104-883-0 08 1 0108- ●
86 16.155 COVER ASM; DOOR POCKET 8-97093-746-1 01 1 0108- ● ●
86 16.155 COVER ASM; DOOR POCKET 8-97093-747-1 01 1 0108- ● ●
100 16.165 GUIDE; HOLE,DOOR LOCK KNOB
EXC. POWER WINDOW<A30> GRAY 		8-97152-748-3 02 1 0108- ●
100 16.165 GUIDE; HOLE,DOOR LOCK KNOB
POWER WINDOW<A30> GRAY 		8-97152-748-3 01 1 0108- ● ●
100 16.165 GUIDE; HOLE,DOOR LOCK KNOB
POWER WINDOW<A30> GRAY 		8-97152-748-3 01 1 0108- ● ●
127 16.183 SEAL; DOOR INNER 8-97160-985-1 01 1 0108- ● ●
127 16.183 SEAL; DOOR INNER 8-97160-984-1 01 1 0108- ● ●
128 16.165 SCREW; TAP
POWER WINDOW<A30> 		8-97123-889-0 10 1 0108- ● ●
128 16.165 SCREW; TAP
POWER WINDOW<A30> 		8-97123-889-0 10 1 0108- ● ●
128 16.165 SCREW; TAP
EXC. POWER WINDOW<A30> 		8-97123-889-0 20 1 0108- ●
140 16.165 COVER; LWR PLATE,DOOR
POWER WINDOW<A30> GRAY 		8-97152-745-3 08 1 0108- ●
140 16.165 COVER; LWR PLATE,DOOR
GRAY 		8-97152-745-3 08 1 0108- ●
141 16.165 GROMMET; SCREW,LWR COVER
16.450 		5-09470-001-0 06 1 0108- ● ●
142 16.165 SCREW; LWR COVER,DOOR TRIM
10.512 M6X16 		9-09829-197-0 06 1 0108- ● ●
182 16.165 CLIP; COVER
16.166 		8-97019-200-0 02 1 0108- ● ●
190 16.165 TRIM; CTR CLOTH
POWER WINDOW<A30> (A) GRAY 		8-97196-076-1 01 1 0108- ●
190 16.165 TRIM; CTR CLOTH
CREW CAB(TF**W*) POWER WINDOW<A30> (B) GRAY 		8-97196-077-1 01 1 0108- ●
190 16.165 TRIM; CTR CLOTH
4X2 SINGLE CAB LONG(TFB5SF) 4X4 SPACE CAB(TFS5CF) 4X4 SINGLE CAB LONG(TFS5SF) POWER WINDOW<A30> (A) GRAY 		8-97196-075-1 01 1 0108- ●
190 16.165 TRIM; CTR CLOTH
POWER WINDOW<A30> (A) GRAY 		8-97296-759-1 01 1 0108- ●
190 16.165 TRIM; CTR CLOTH
EXC. POWER WINDOW<A30> (C) GRAY 		8-97296-753-1 01 1 0108- ●
190 16.165 TRIM; CTR CLOTH
EXC. POWER WINDOW<A30> (C) GRAY 		8-97296-750-1 01 1 0108- ●
190 16.165 TRIM; CTR CLOTH
CREW CAB(TF**W*) POWER WINDOW<A30> (B) GRAY 		8-97296-762-1 01 1 0108- ●
190 16.165 TRIM; CTR CLOTH
4X2 SINGLE CAB LONG(TFB5SF) 4X4 SPACE CAB(TFS5CF) 4X4 SINGLE CAB LONG(TFS5SF) POWER WINDOW<A30> (A) GRAY 		8-97296-756-1 01 1 0108- ●
194 16.155 TRIM; SW BOX
CREW CAB(TF**W*) POWER WINDOW<A30> GRAY 		8-97155-086-1 01 1 0108- ● ●

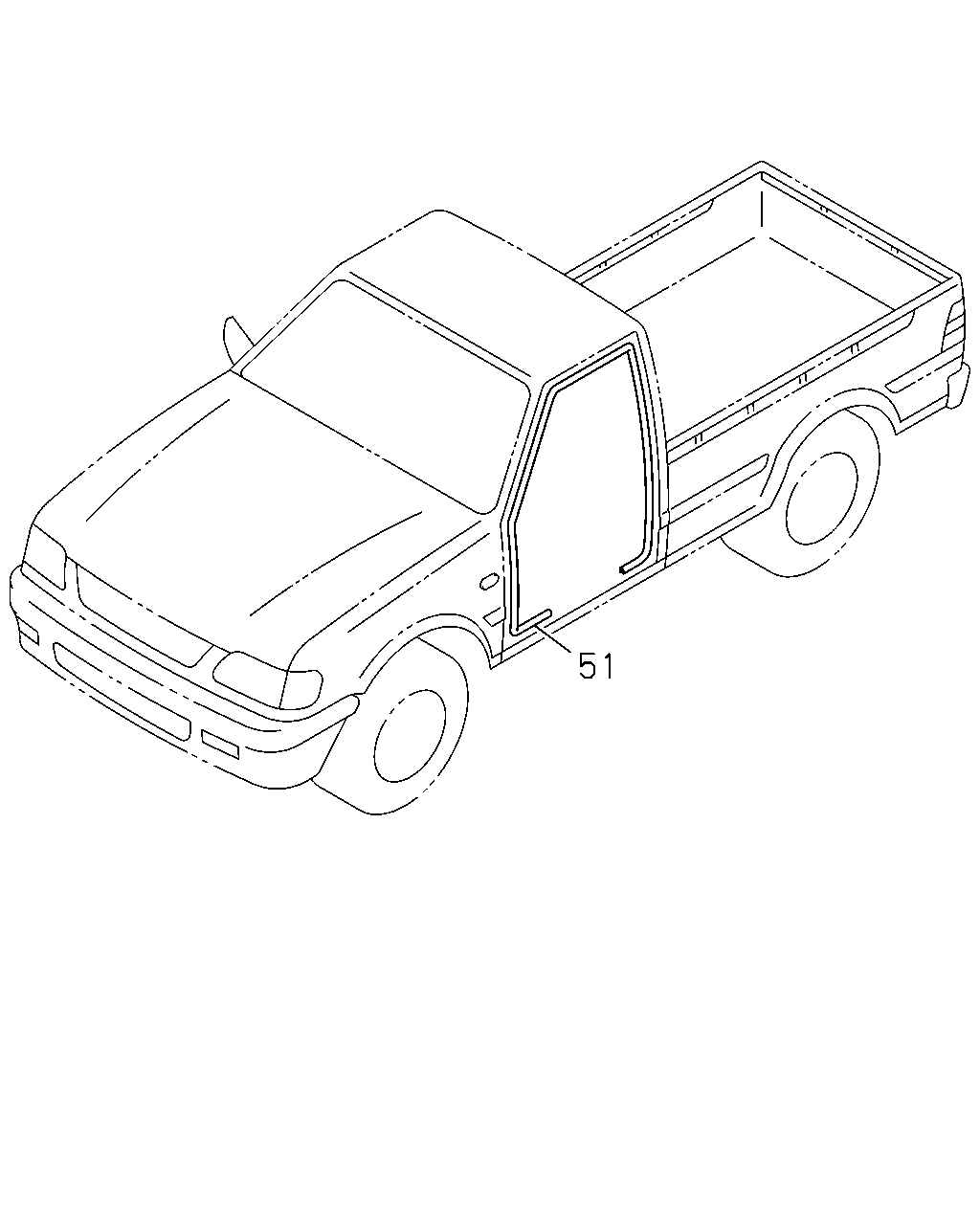

çizim 12060
51
BalonParca AdiParca NoAdetTipApplied Date A B
51 16.225 WEATHERSTRIP; FRONT DOOR
ANTI WIND NOISE<7MD> GRAY 		8-97293-030-0 01 1 0108- ● ●
51 16.225 WEATHERSTRIP; FRONT DOOR
ANTI WIND NOISE<7MD> GRAY 		8-97293-033-0 01 1 0108- ● ●
51 16.225 WEATHERSTRIP; FRONT DOOR
EXC. ANTI WIND NOISE<7MD> GRAY 		8-97154-667-0 02 1 0108- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
