◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50920 - TFR/TFS(EUROPE)-RHD ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-32 - FRONT DOOR LOCK AND HANDLE ▶
6-32 — FRONT DOOR LOCK AND HANDLE (#20977) — 31 parça

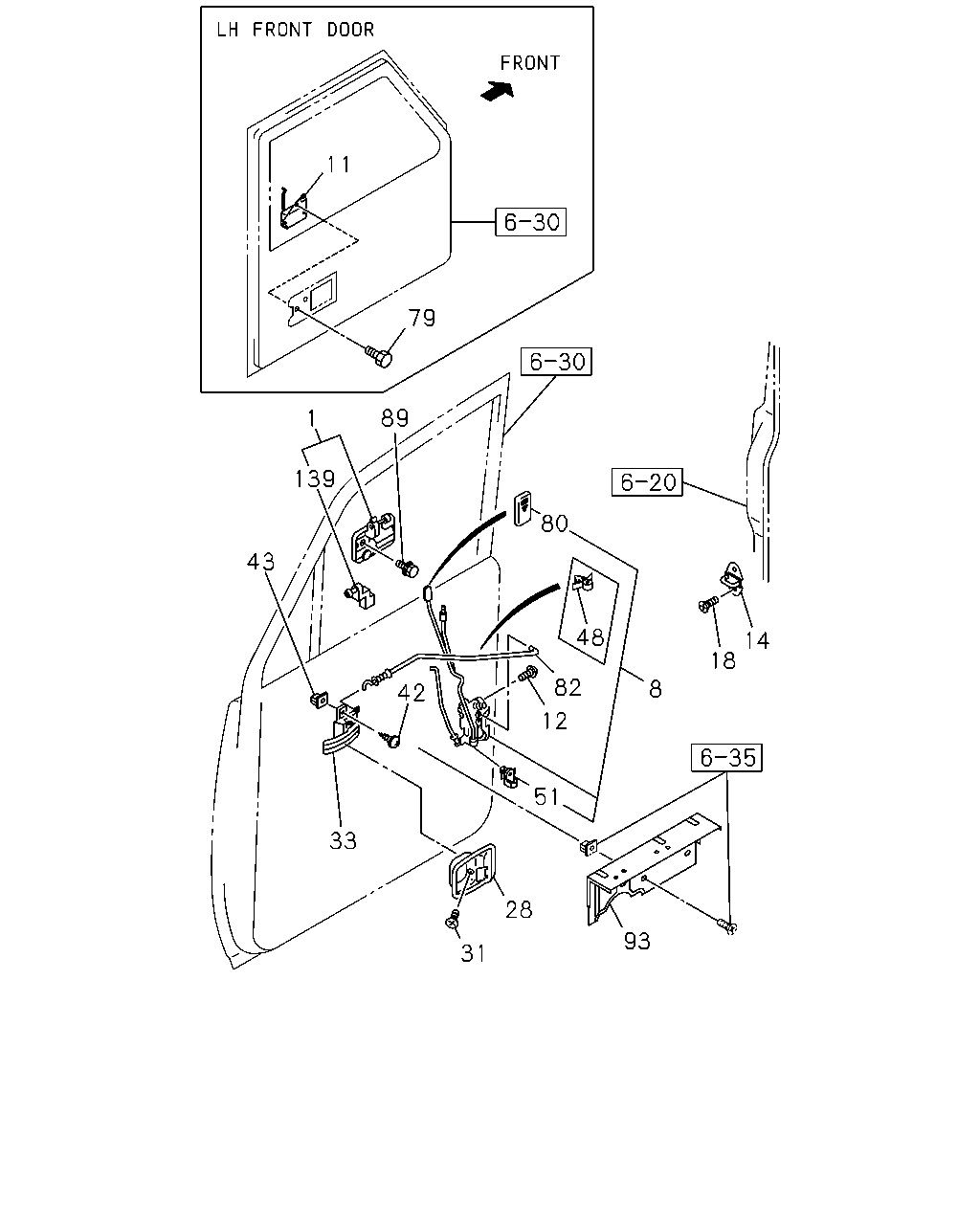

çizim 51717
11 79 89 1 139 80 43 48 14 18 82 8 42 12 51 33 28 93 31
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 16.350 HANDLE; OUTSIDE,FRT DOOR
OUTSIDE HANDLE BRIGHT<7WM> 		8-94474-031-3 01 1 0108- ● ● ● ● ●
1 16.350 HANDLE; OUTSIDE,FRT DOOR
OUTSIDE HANDLE BRIGHT<7WM> 		8-94474-030-3 01 1 0108- ● ● ● ● ●
1 16.350 HANDLE; OUTSIDE,FRT DOOR
EXC. OUTSIDE HANDLE BRIGHT<7WM> 		8-94434-974-1 01 1 0108- ● ● ● ● ●
1 16.350 HANDLE; OUTSIDE,FRT DOOR
EXC. OUTSIDE HANDLE BRIGHT<7WM> 		8-94434-973-1 01 1 0108- ● ● ● ● ●
8 16.330 LOCK; DOOR,FRT DOOR
GRAY 		8-97150-641-3 01 1 0108- ● ● ● ● ●
8 16.330 LOCK; DOOR,FRT DOOR
GRAY 		8-97150-640-3 01 1 0108- ● ● ● ● ●
11 16.263 ACTUATOR; DOOR LK,FRT
AUTO DOOR LOCK<AU4> 		8-97141-949-0 01 1 0108- ● ● ● ● ●
12 16.330 SCREW; DOOR LK
M6X16 CK-HD 		8-97113-761-0 06 1 0108- ● ● ● ● ●
14 16.335 STRIKER; FRT DOOR
10.569 		8-94115-959-0 02 1 0108- ● ● ● ● ●
18 16.335 SCREW; DOOR STRIKER
10.570 M8X20 		9-03097-820-0 04 1 0108- ● ● ● ● ●
28 16.345 BEZEL; INSIDE LEVER,FRT DOOR
GRAY 		8-97150-649-2 01 1 0108- ● ● ● ● ●
28 16.345 BEZEL; INSIDE LEVER,FRT DOOR
GRAY 		8-97150-648-2 01 1 0108- ● ● ● ● ●
31 16.345 SCREW; BEZEL,INSIDE LEVER
M4X10 TAPPING OVAL-HEAD 		0-70680-410-0 02 1 0108- ● ● ● ● ●
33 16.345 LEVER ASM; INSIDE,FRT DOOR
GRAY 		8-97150-647-3 01 1 0108- ● ● ● ● ●
33 16.345 LEVER ASM; INSIDE,FRT DOOR
GRAY 		8-97150-646-3 01 1 0108- ● ● ● ● ●
42 16.345 SCREW; TAPPING,INSIDE LEVER
10.512 M6X16 		9-09829-197-0 04 1 0108- ● ● ● ● ●
43 16.345 GROMMET; SCREW,INSIDE LEVER,DOOR
16.450 		5-09470-001-0 04 1 0108- ● ● ● ● ●
48 16.345 ANTIRATTLER; DOOR LINK
16.341 ID=3.8 WHITE 		8-94217-699-0 02 1 0108- ● ● ● ● ●
51 16.335 SNAP; FRT DOOR LOCK CONT ROD 8-97041-585-0 03 1 0108- ● ● ● ● ●
51 16.335 SNAP; FRT DOOR LOCK CONT ROD
10.470 		8-97041-586-0 03 1 0108- ● ● ● ● ●
79 16.263 BOLT; DOOR LK ACTUATOR
AUTO DOOR LOCK<AU4> 10.701 M6X8 		8-94155-893-0 02 1 0108- ● ● ● ● ●
80 16.157 KNOB; DOOR LOCK
16.345 GRAY 		8-97152-890-0 02 1 0108- ● ● ● ● ●
82 16.341 LINK; DOOR INSIDE 8-97081-276-1 01 1 0108- ● ● ● ● ●
82 16.341 LINK; DOOR INSIDE 8-97081-275-1 01 1 0108- ● ● ● ● ●
89 16.350 BOLT; DOOR OUTSIDE HANDLE
10.701 M6X8 		8-94155-893-0 04 1 0108- ● ● ● ● ●
93 16.165 BRACKET; BOX,DOOR 8-97146-542-0 01 1 0108- ● ● ● ● ●
93 16.165 BRACKET; BOX,DOOR 8-97146-541-0 01 1 0108- ● ● ● ● ●
139 16.350 HOLDER; ROD,DOOR HANDLE
OUTSIDE HANDLE BRIGHT<7WM> 		8-97102-756-0 01 1 0108- ● ● ● ● ●
139 16.350 HOLDER; ROD,DOOR HANDLE
OUTSIDE HANDLE BRIGHT<7WM> 		8-97102-755-0 01 1 0108- ● ● ● ● ●
139 16.350 HOLDER; ROD,DOOR HANDLE
EXC. OUTSIDE HANDLE BRIGHT<7WM> 16.330 		8-97134-591-0 01 1 0108- ● ● ● ● ●
139 16.350 HOLDER; ROD,DOOR HANDLE
EXC. OUTSIDE HANDLE BRIGHT<7WM> 16.330 		8-97134-588-0 01 1 0108- ● ● ● ● ●
