◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50920 - TFR/TFS(EUROPE)-RHD ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-20 - SIDE PANEL AND STEP ▶
6-20 — SIDE PANEL AND STEP (#20974) — 93 parça

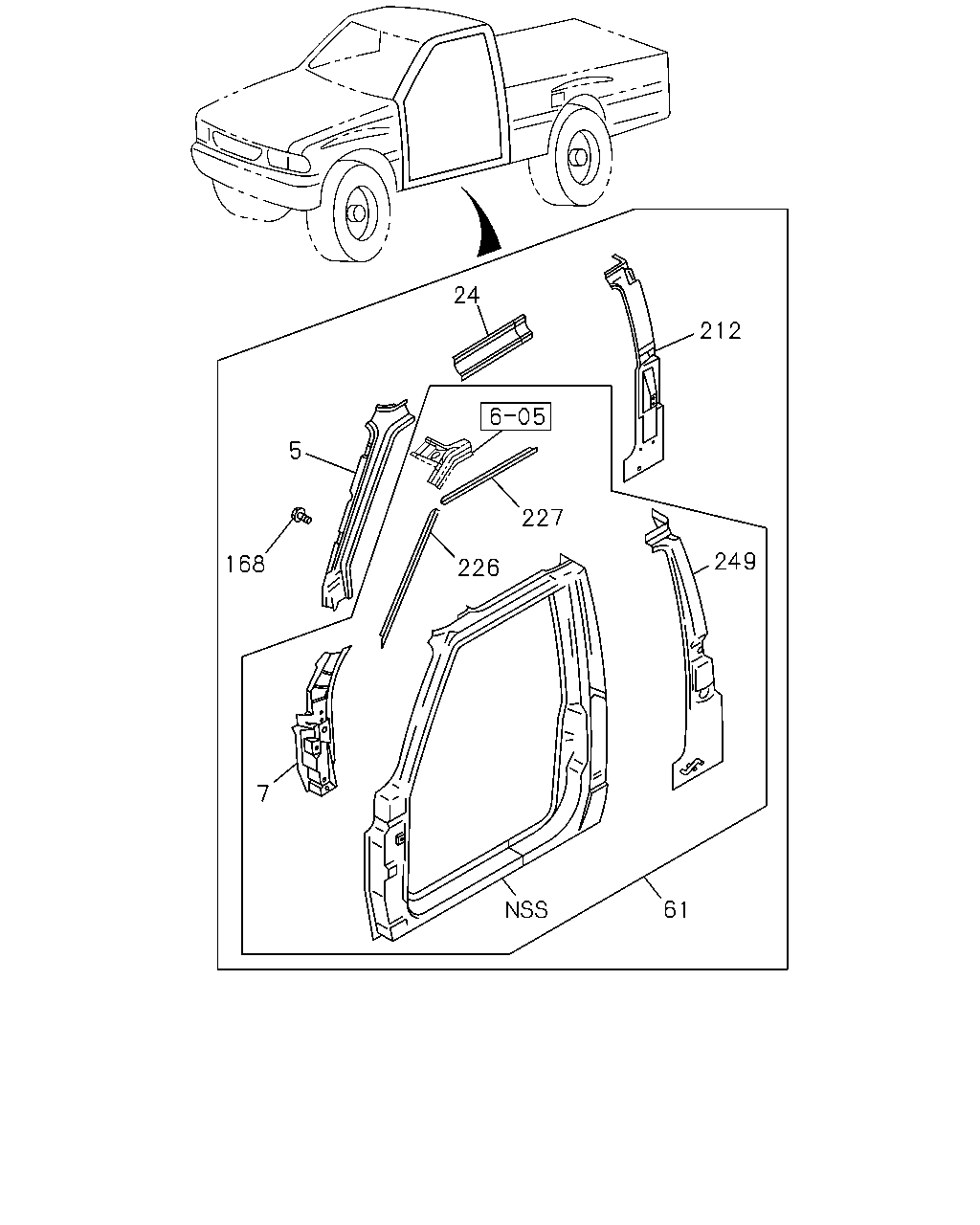

çizim 11405
24 212 5 227 249 168 226 7 61
BalonParca AdiParca NoAdetTipApplied Date A B C D E
5 16.507 CLOSING ASM; A-POST 8-97103-536-0 01 1 0108- ● ● ● ● ●
5 16.507 CLOSING ASM; A-POST 8-97103-533-0 01 1 0108- ● ● ● ● ●
7 16.570 REINFORCEMENT; HINGE 8-97179-649-0 01 1 0108- ● ● ● ● ●
7 16.570 REINFORCEMENT; HINGE 8-97179-648-0 01 1 0108- ● ● ● ● ●
24 16.585 CLOSING; ROOF RAIL SIDE 8-94435-618-0 01 1 0108- ● ● ● ● ●
24 16.585 CLOSING; ROOF RAIL SIDE 8-94435-617-0 01 1 0108- ● ● ● ● ●
61 16.570 PANEL; SIDE OUTER 8-97013-006-1 01 1 0108- ● ●
61 16.570 PANEL; SIDE OUTER 8-97013-005-1 01 1 0108- ● ●
61 16.570 PANEL; SIDE OUTER
(A) 		8-94471-151-1 01 1 0108- ● ●
61 16.570 PANEL; SIDE OUTER
(B) 		8-97013-386-0 01 1 0108- ● ●
61 16.570 PANEL; SIDE OUTER
(C) 		8-97112-405-1 01 1 0108- ● ●
61 16.570 PANEL; SIDE OUTER
(A) 		8-94471-150-1 01 1 0108- ● ●
61 16.570 PANEL; SIDE OUTER
(B) 		8-97013-385-0 01 1 0108- ● ●
61 16.570 PANEL; SIDE OUTER
(C) 		8-97112-404-1 01 1 0108- ● ●
61 16.570 PANEL; SIDE OUTER 8-94471-142-1 01 1 0108- ●
61 16.570 PANEL; SIDE OUTER 8-94471-141-1 01 1 0108- ●
168 16.570 BOLT; BODY SIDE PANEL
16.545 M6X20 W/PL WASHER 		8-97808-622-0 06 1 0108- ● ●
168 16.570 BOLT; BODY SIDE PANEL
16.545 M6X20 W/PL WASHER 		8-97808-622-0 04 1 0108- ● ● ●
212 16.588 CLOSING; PILLAR 8-97038-147-1 01 1 0108- ● ●
212 16.588 CLOSING; PILLAR 8-97038-148-1 01 1 0108- ● ●
212 16.588 CLOSING; PILLAR
(B) LOWER 		8-94471-170-1 01 1 0108- ● ●
212 16.588 CLOSING; PILLAR
(B) LOWER 		8-94471-169-1 01 1 0108- ● ●
212 16.588 CLOSING; PILLAR
HEAD LINING FOR KD<6PJ> (A) UPPER 		8-94471-166-1 01 1 0108- ● ●
212 16.588 CLOSING; PILLAR
HEAD LINING FOR KD<6PJ> (A) UPPER 		8-94471-165-1 01 1 0108- ● ●
212 16.588 CLOSING; PILLAR
EXC. HEAD LINING FOR KD<6PJ> (A) UPPER 		8-94471-168-1 01 1 0108- ● ●
212 16.588 CLOSING; PILLAR
EXC. HEAD LINING FOR KD<6PJ> (A) UPPER 		8-94471-167-1 01 1 0108- ● ●
226 16.585 RAIL; DRIP,FRT PILLAR 8-94435-595-3 01 1 0108- ● ● ● ● ●
226 16.585 RAIL; DRIP,FRT PILLAR 8-94435-594-3 01 1 0108- ● ● ● ● ●
227 16.585 RAIL; DRIP,ROOF SIDE FRT 8-94435-593-1 01 1 0108- ● ● ● ● ●
227 16.585 RAIL; DRIP,ROOF SIDE FRT 8-94435-592-1 01 1 0108- ● ● ● ● ●
249 16.674 REINFORCEMENT; RR PILLAR 8-97013-538-2 01 1 0108- ● ●
249 16.674 REINFORCEMENT; RR PILLAR 8-97013-537-2 01 1 0108- ● ●

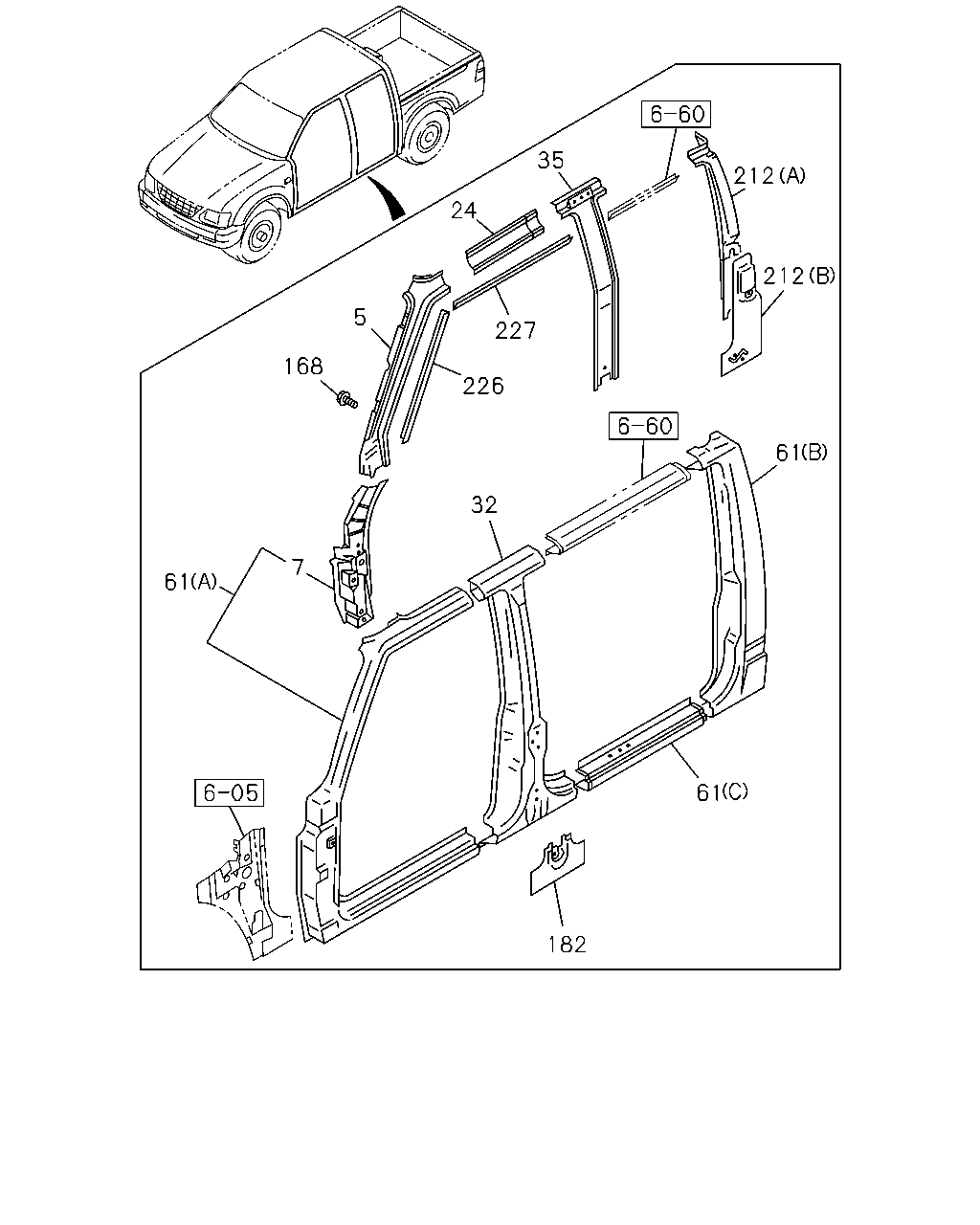

çizim 50280
35 212 24 212 5 227 168 226 32 7 61 182 61 61
BalonParca AdiParca NoAdetTipApplied Date A B C D E
5 16.507 CLOSING ASM; A-POST 8-97103-536-0 01 1 0108- ● ● ● ● ●
5 16.507 CLOSING ASM; A-POST 8-97103-533-0 01 1 0108- ● ● ● ● ●
7 16.570 REINFORCEMENT; HINGE 8-97179-649-0 01 1 0108- ● ● ● ● ●
7 16.570 REINFORCEMENT; HINGE 8-97179-648-0 01 1 0108- ● ● ● ● ●
24 16.585 CLOSING; ROOF RAIL SIDE 8-94435-618-0 01 1 0108- ● ● ● ● ●
24 16.585 CLOSING; ROOF RAIL SIDE 8-94435-617-0 01 1 0108- ● ● ● ● ●
32 16.570 PANEL; BC-POST 8-97112-407-2 01 1 0108- ● ●
32 16.570 PANEL; BC-POST 8-97112-406-2 01 1 0108- ● ●
35 16.570 PANEL; CENTER PILLAR,INNER 8-94454-391-0 01 1 0108- ● ●
35 16.570 PANEL; CENTER PILLAR,INNER 8-94454-390-0 01 1 0108- ● ●
61 16.570 PANEL; SIDE OUTER 8-97013-006-1 01 1 0108- ● ●
61 16.570 PANEL; SIDE OUTER 8-97013-005-1 01 1 0108- ● ●
61 16.570 PANEL; SIDE OUTER
(A) 		8-94471-151-1 01 1 0108- ● ●
61 16.570 PANEL; SIDE OUTER
(B) 		8-97013-386-0 01 1 0108- ● ●
61 16.570 PANEL; SIDE OUTER
(C) 		8-97112-405-1 01 1 0108- ● ●
61 16.570 PANEL; SIDE OUTER
(A) 		8-94471-150-1 01 1 0108- ● ●
61 16.570 PANEL; SIDE OUTER
(B) 		8-97013-385-0 01 1 0108- ● ●
61 16.570 PANEL; SIDE OUTER
(C) 		8-97112-404-1 01 1 0108- ● ●
61 16.570 PANEL; SIDE OUTER 8-94471-142-1 01 1 0108- ●
61 16.570 PANEL; SIDE OUTER 8-94471-141-1 01 1 0108- ●
168 16.570 BOLT; BODY SIDE PANEL
16.545 M6X20 W/PL WASHER 		8-97808-622-0 06 1 0108- ● ●
168 16.570 BOLT; BODY SIDE PANEL
16.545 M6X20 W/PL WASHER 		8-97808-622-0 04 1 0108- ● ● ●
182 16.570 PANEL; CLOSING,CTR PILLAR LWR 8-97116-321-1 01 1 0108- ● ●
182 16.570 PANEL; CLOSING,CTR PILLAR LWR 8-97116-320-1 01 1 0108- ● ●
212 16.588 CLOSING; PILLAR 8-97038-147-1 01 1 0108- ● ●
212 16.588 CLOSING; PILLAR 8-97038-148-1 01 1 0108- ● ●
212 16.588 CLOSING; PILLAR
(B) LOWER 		8-94471-170-1 01 1 0108- ● ●
212 16.588 CLOSING; PILLAR
(B) LOWER 		8-94471-169-1 01 1 0108- ● ●
212 16.588 CLOSING; PILLAR
HEAD LINING FOR KD<6PJ> (A) UPPER 		8-94471-166-1 01 1 0108- ● ●
212 16.588 CLOSING; PILLAR
HEAD LINING FOR KD<6PJ> (A) UPPER 		8-94471-165-1 01 1 0108- ● ●
212 16.588 CLOSING; PILLAR
EXC. HEAD LINING FOR KD<6PJ> (A) UPPER 		8-94471-168-1 01 1 0108- ● ●
212 16.588 CLOSING; PILLAR
EXC. HEAD LINING FOR KD<6PJ> (A) UPPER 		8-94471-167-1 01 1 0108- ● ●
226 16.585 RAIL; DRIP,FRT PILLAR 8-94435-595-3 01 1 0108- ● ● ● ● ●
226 16.585 RAIL; DRIP,FRT PILLAR 8-94435-594-3 01 1 0108- ● ● ● ● ●
227 16.585 RAIL; DRIP,ROOF SIDE FRT 8-94435-593-1 01 1 0108- ● ● ● ● ●
227 16.585 RAIL; DRIP,ROOF SIDE FRT 8-94435-592-1 01 1 0108- ● ● ● ● ●

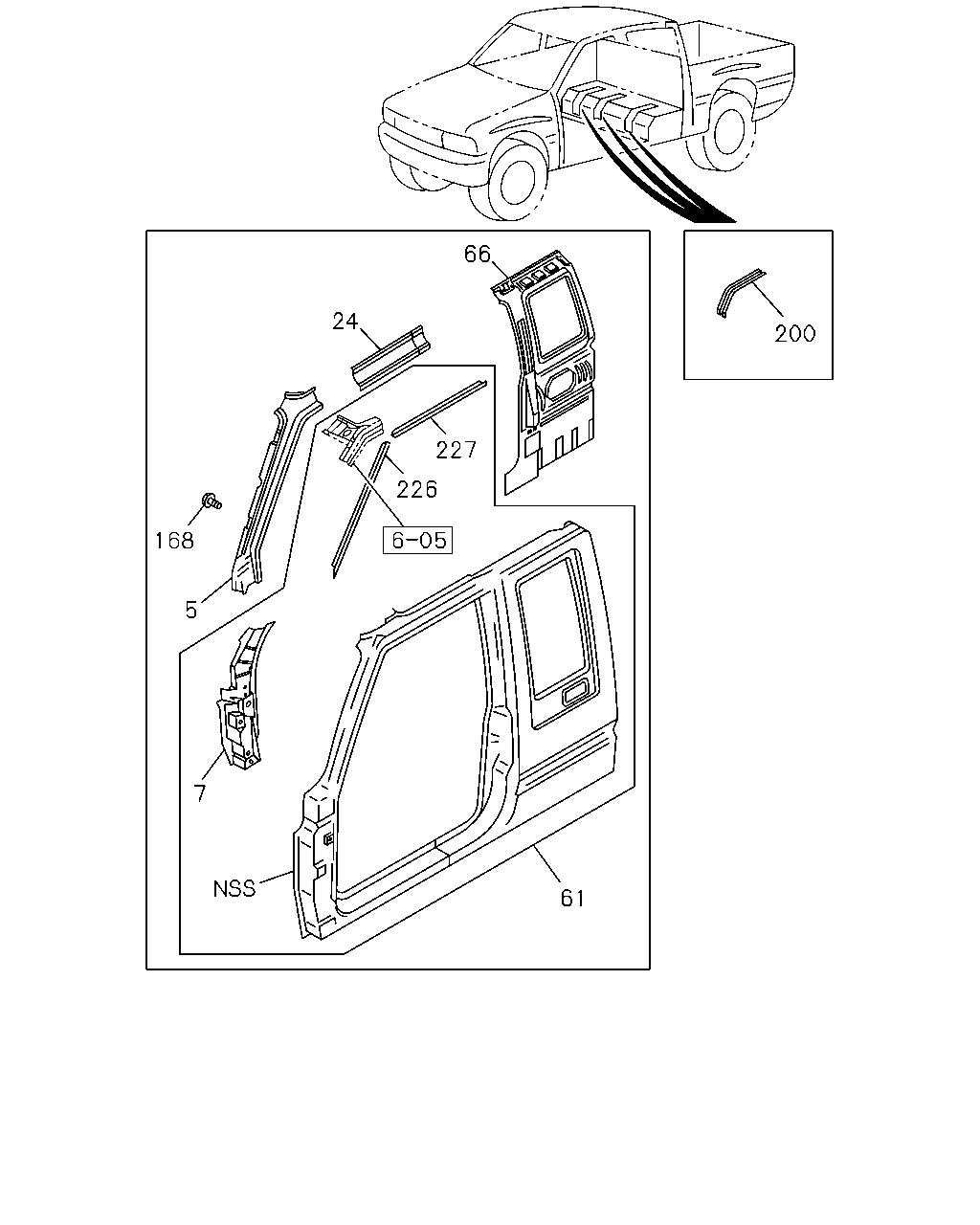

çizim 51710
66 24 200 227 226 168 5 7 61
BalonParca AdiParca NoAdetTipApplied Date A B C D E
5 16.507 CLOSING ASM; A-POST 8-97103-536-0 01 1 0108- ● ● ● ● ●
5 16.507 CLOSING ASM; A-POST 8-97103-533-0 01 1 0108- ● ● ● ● ●
7 16.570 REINFORCEMENT; HINGE 8-97179-649-0 01 1 0108- ● ● ● ● ●
7 16.570 REINFORCEMENT; HINGE 8-97179-648-0 01 1 0108- ● ● ● ● ●
24 16.585 CLOSING; ROOF RAIL SIDE 8-94435-618-0 01 1 0108- ● ● ● ● ●
24 16.585 CLOSING; ROOF RAIL SIDE 8-94435-617-0 01 1 0108- ● ● ● ● ●
61 16.570 PANEL; SIDE OUTER 8-97013-006-1 01 1 0108- ● ●
61 16.570 PANEL; SIDE OUTER 8-97013-005-1 01 1 0108- ● ●
61 16.570 PANEL; SIDE OUTER
(A) 		8-94471-151-1 01 1 0108- ● ●
61 16.570 PANEL; SIDE OUTER
(B) 		8-97013-386-0 01 1 0108- ● ●
61 16.570 PANEL; SIDE OUTER
(C) 		8-97112-405-1 01 1 0108- ● ●
61 16.570 PANEL; SIDE OUTER
(A) 		8-94471-150-1 01 1 0108- ● ●
61 16.570 PANEL; SIDE OUTER
(B) 		8-97013-385-0 01 1 0108- ● ●
61 16.570 PANEL; SIDE OUTER
(C) 		8-97112-404-1 01 1 0108- ● ●
61 16.570 PANEL; SIDE OUTER 8-94471-142-1 01 1 0108- ●
61 16.570 PANEL; SIDE OUTER 8-94471-141-1 01 1 0108- ●
66 16.592 PANEL; BACK SIDE INNER 8-97038-151-1 01 1 0108- ●
66 16.592 PANEL; BACK SIDE INNER 8-97038-150-1 01 1 0108- ●
168 16.570 BOLT; BODY SIDE PANEL
16.545 M6X20 W/PL WASHER 		8-97808-622-0 06 1 0108- ● ●
168 16.570 BOLT; BODY SIDE PANEL
16.545 M6X20 W/PL WASHER 		8-97808-622-0 04 1 0108- ● ● ●
200 16.545 REINFORCEMENT; RR FLOOR SIDE 8-94454-045-0 03 1 0108- ●
226 16.585 RAIL; DRIP,FRT PILLAR 8-94435-595-3 01 1 0108- ● ● ● ● ●
226 16.585 RAIL; DRIP,FRT PILLAR 8-94435-594-3 01 1 0108- ● ● ● ● ●
227 16.585 RAIL; DRIP,ROOF SIDE FRT 8-94435-593-1 01 1 0108- ● ● ● ● ●
227 16.585 RAIL; DRIP,ROOF SIDE FRT 8-94435-592-1 01 1 0108- ● ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
