6-03 — RADIATOR GRILLE (#20969) — 66 parça

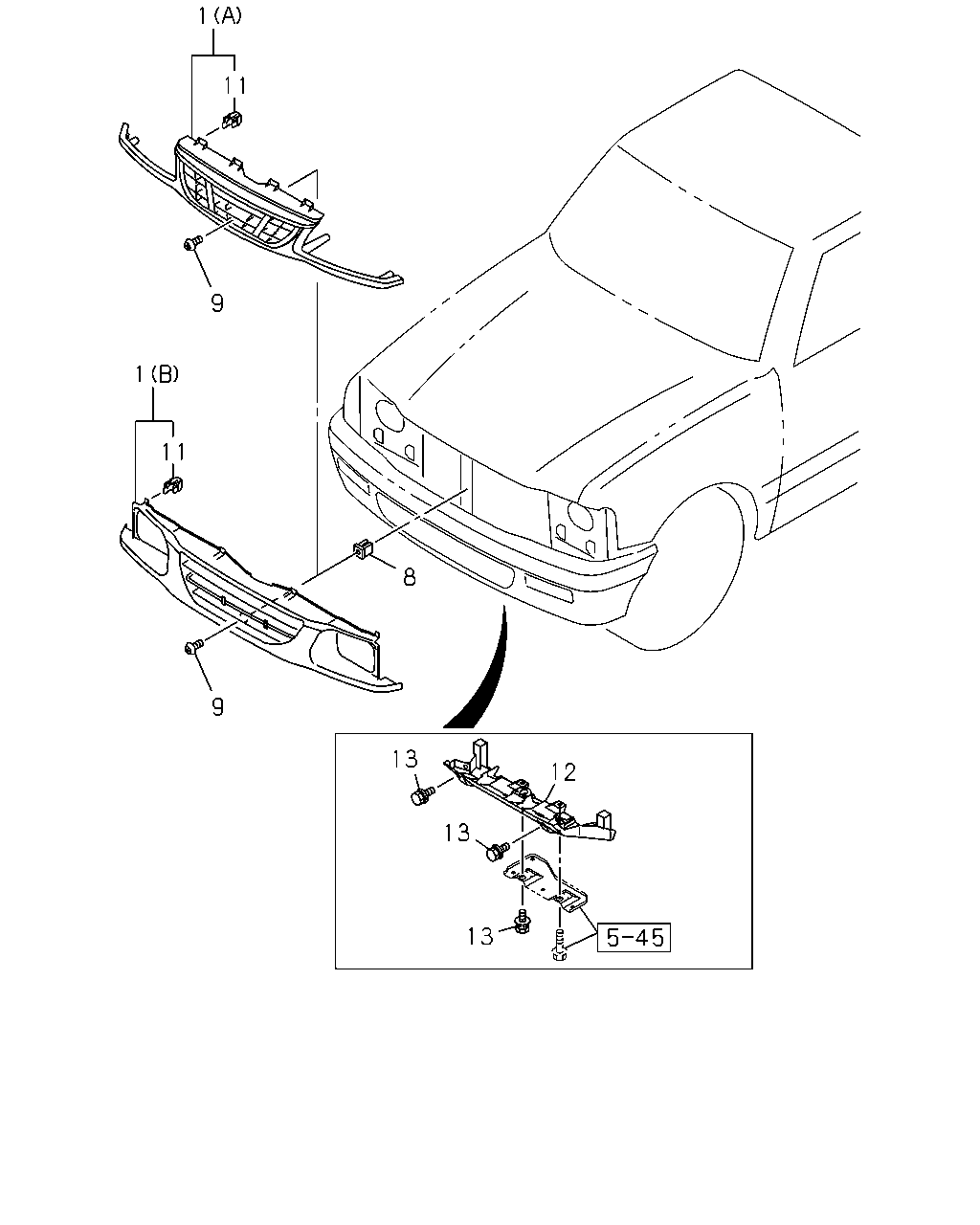

çizim 12242
1 11 9 1 11 8 9 13 12 13 13
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 01.266 GRILLE; RAD
BODY COLOR ALPINE WHITE/LT.SILVER MET(740),BODY COLOR ALPINE WHITE(877) BODY COLOR KEYED RAD GRILLE<TL1> EXC. HALOGEN HEAD LAMPS MULTI REFLECTO R<7YW> (B) WHITE 		8-97195-391-1 01 1 0108- ● ● ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR ASTRAL SILVER MET(718), BODYCOLOR ASTRAL SILVER/KAISER SILVER MET (778) BODY COLOR KEYED RAD GRILLE<TL1> EXC. HALOGEN HEAD LAMPS MULTI REFLECTO R<7YW> (B) LIGHT SILVER 		8-97195-394-1 01 1 0108- ● ● ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR CAPE BLUE MET(612),BODY COLOR CAPE BLUE MET/KAISER SILVER MET(614) BODY COLOR KEYED RAD GRILLE<TL1> EXC. HALOGEN HEAD LAMPS MULTI REFLECTO R<7YW> (B) BLUE 		8-97296-686-1 01 1 0108- ● ● ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR CYPRESS GREEN MICA(611), BODY COLOR CYPRESS GREEN MICA/LT.SILVER M ET(615) BODY COLOR KEYED RAD GRILLE<TL1> EXC. HALOGEN HEAD LAMPS MULTI REFLECTO R<7YW> (B) DARK GREEN 		8-97296-688-1 01 1 0108- ● ● ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR KAISER SILVER MET(878) BODY COLOR KEYED RAD GRILLE<TL1> EXC. HALOGEN HEAD LAMPS MULTI REFLECTO R<7YW> (B) SILVER 		8-97195-395-1 01 1 0108- ● ● ● ● ●
1 01.266 GRILLE; RAD
EXC. BODY COLOR KEYED RAD GRILLE<TL1>, BRIGHT HEAVY DUTY RAD GRILLE<6QR>, HALOGEN HEAD LAMPS MULTI REFLECTOR<7YW> (B) 		8-97203-646-1 01 1 0108- ● ● ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR RADIANT RED(756),BODY COLORRADIANT RED/LT.SILVER MET(779) BODY COLOR KEYED RAD GRILLE<TL1> EXC. HALOGEN HEAD LAMPS MULTI REFLECTO R<7YW> (B) RED 		8-97195-392-1 01 1 0108- ● ● ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR SATIN GOLD MET(613),BODY COLOR SATIN GOLD MET/LIGHT SILVER MET(616) BODY COLOR KEYED RAD GRILLE<TL1> EXC. HALOGEN HEAD LAMPS MULTI REFLECTO R<7YW> (B) GOLD 		8-97296-687-1 01 1 0108- ● ● ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR ALPINE WHITE/LT.SILVER MET(740),BODY COLOR ALPINE WHITE(877) BODY COLOR KEYED RAD GRILLE<TL1> HALOGEN HEAD LAMPS MULTI REFLECTOR<7YW> (A) WHITE 		8-97297-549-0 01 1 0108- ● ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR ALPINE WHITE/LT.SILVER MET(740),BODY COLOR ALPINE WHITE(877) BRIGHT RAD GRILLE<V22> (C) WHITE 		8-97296-692-0 01 1 0108- ● ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR ASTRAL SILVER MET(718), BODYCOLOR ASTRAL SILVER/KAISER SILVER MET (778) BRIGHT RAD GRILLE<V22> (C) LIGHT SILVER 		8-97296-695-0 01 1 0108- ● ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR ASTRAL SILVER MET(718), BODYCOLOR ASTRAL SILVER/KAISER SILVER MET (778) BODY COLOR KEYED RAD GRILLE<TL1> HALOGEN HEAD LAMPS MULTI REFLECTOR<7YW> (A) LIGHT SILVER 		8-97297-551-0 01 1 0108- ● ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR CAPE BLUE MET(612),BODY COLOR CAPE BLUE MET/KAISER SILVER MET(614) BODY COLOR KEYED RAD GRILLE<TL1> HALOGEN HEAD LAMPS MULTI REFLECTOR<7YW> (A) BLUE 		8-97297-553-0 01 1 0108- ● ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR CAPE BLUE MET(612),BODY COLOR CAPE BLUE MET/KAISER SILVER MET(614) BRIGHT RAD GRILLE<V22> (C) BLUE 		8-97296-694-0 01 1 0108- ● ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR CYPRESS GREEN MICA(611), BODY COLOR CYPRESS GREEN MICA/LT.SILVER M ET(615) BRIGHT RAD GRILLE<V22> (C) DARK GREEN 		8-97296-698-0 01 1 0108- ● ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR CYPRESS GREEN MICA(611), BODY COLOR CYPRESS GREEN MICA/LT.SILVER M ET(615) BODY COLOR KEYED RAD GRILLE<TL1> HALOGEN HEAD LAMPS MULTI REFLECTOR<7YW> (A) DARK GREEN 		8-97297-555-0 01 1 0108- ● ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR KAISER SILVER MET(878) BODY COLOR KEYED RAD GRILLE<TL1> HALOGEN HEAD LAMPS MULTI REFLECTOR<7YW> (A) SILVER 		8-97297-552-0 01 1 0108- ● ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR KAISER SILVER MET(878) BRIGHT RAD GRILLE<V22> (C) SILVER 		8-97296-696-0 01 1 0108- ● ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR RADIANT RED(756),BODY COLORRADIANT RED/LT.SILVER MET(779) BODY COLOR KEYED RAD GRILLE<TL1> HALOGEN HEAD LAMPS MULTI REFLECTOR<7YW> (A) RED 		8-97297-550-0 01 1 0108- ● ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR RADIANT RED(756),BODY COLORRADIANT RED/LT.SILVER MET(779) BRIGHT RAD GRILLE<V22> (C) RED 		8-97296-693-0 01 1 0108- ● ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR SATIN GOLD MET(613),BODY COLOR SATIN GOLD MET/LIGHT SILVER MET(616) BODY COLOR KEYED RAD GRILLE<TL1> HALOGEN HEAD LAMPS MULTI REFLECTOR<7YW> (A) GOLD 		8-97297-554-0 01 1 0108- ● ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR SATIN GOLD MET(613),BODY COLOR SATIN GOLD MET/LIGHT SILVER MET(616) BRIGHT RAD GRILLE<V22> (C) GOLD 		8-97296-697-0 01 1 0108- ● ● ● ●
1 01.266 GRILLE; RAD
BRIGHT HEAVY DUTY RAD GRILLE<6QR> HALOGEN HEAD LAMPS MULTI REFLECTOR<7YW> (A) 		8-97177-946-4 01 1 0108- ● ● ● ●
1 01.266 GRILLE; RAD
BRIGHT HEAVY DUTY RAD GRILLE<6QR> EXC. HALOGEN HEAD LAMPS MULTI REFLECTO R<7YW> (B) 		8-97180-144-1 01 1 0108- ● ● ● ●
1 01.266 GRILLE; RAD
HALOGEN HEAD LAMPS MULTI REFLECTOR<7YW> EXC. BODY COLOR KEYED RAD GRILLE<TL1>, BRIGHT RAD GRILLE<V22>,BRIGHT HEAVY DUTY RAD GRILLE<6QR> (A) 		8-97177-216-4 01 1 0108- ● ● ● ●
8 01.269 GROMMET; SCREW,RAD GRILLE
EXC. BRIGHT RAD GRILLE<V22> 02.726 		8-94291-927-0 01 1 0108- ● ● ● ●
8 01.269 GROMMET; SCREW,RAD GRILLE
02.726 		8-94291-927-0 01 1 0108- ●
9 01.269 SCREW; RAD GRILLE
08.900 M5X16 		8-94380-268-0 01 1 0108- ● ● ● ● ●
11 01.269 CLIP; RAD GRILLE
BLACK 		8-94218-027-0 08 1 0108- ● ● ● ● ●
12 01.274 PLATE; SKID,RAD 8-97223-858-2 01 1 0108- ●
12 01.274 PLATE; SKID,RAD
SKID PLATE<7WE> 		8-97223-858-2 01 1 0108- ● ●
13 01.267 BOLT; RAD SKID PLATE
03.690 M10X28 W/LK&PL WASHER 		8-97104-788-1 03 1 0108- ●
13 01.267 BOLT; RAD SKID PLATE
SKID PLATE<7WE> 03.690 M10X28 W/LK&PL WASHER 		8-97104-788-1 03 1 0108- ● ●

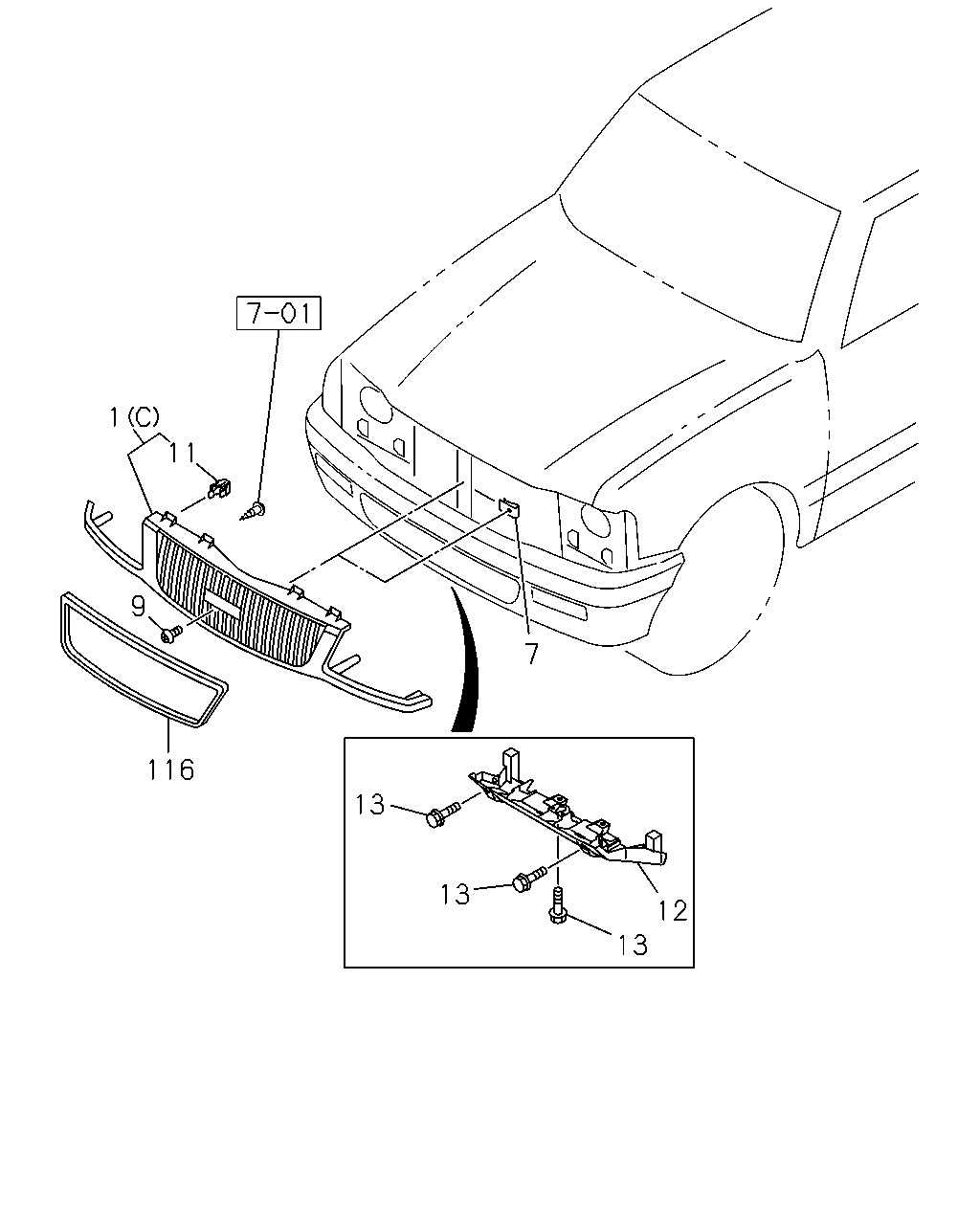

çizim 47959
1 11 9 7 116 13 13 12 13
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 01.266 GRILLE; RAD
BODY COLOR ALPINE WHITE/LT.SILVER MET(740),BODY COLOR ALPINE WHITE(877) BODY COLOR KEYED RAD GRILLE<TL1> EXC. HALOGEN HEAD LAMPS MULTI REFLECTO R<7YW> (B) WHITE 		8-97195-391-1 01 1 0108- ● ● ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR ASTRAL SILVER MET(718), BODYCOLOR ASTRAL SILVER/KAISER SILVER MET (778) BODY COLOR KEYED RAD GRILLE<TL1> EXC. HALOGEN HEAD LAMPS MULTI REFLECTO R<7YW> (B) LIGHT SILVER 		8-97195-394-1 01 1 0108- ● ● ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR CAPE BLUE MET(612),BODY COLOR CAPE BLUE MET/KAISER SILVER MET(614) BODY COLOR KEYED RAD GRILLE<TL1> EXC. HALOGEN HEAD LAMPS MULTI REFLECTO R<7YW> (B) BLUE 		8-97296-686-1 01 1 0108- ● ● ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR CYPRESS GREEN MICA(611), BODY COLOR CYPRESS GREEN MICA/LT.SILVER M ET(615) BODY COLOR KEYED RAD GRILLE<TL1> EXC. HALOGEN HEAD LAMPS MULTI REFLECTO R<7YW> (B) DARK GREEN 		8-97296-688-1 01 1 0108- ● ● ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR KAISER SILVER MET(878) BODY COLOR KEYED RAD GRILLE<TL1> EXC. HALOGEN HEAD LAMPS MULTI REFLECTO R<7YW> (B) SILVER 		8-97195-395-1 01 1 0108- ● ● ● ● ●
1 01.266 GRILLE; RAD
EXC. BODY COLOR KEYED RAD GRILLE<TL1>, BRIGHT HEAVY DUTY RAD GRILLE<6QR>, HALOGEN HEAD LAMPS MULTI REFLECTOR<7YW> (B) 		8-97203-646-1 01 1 0108- ● ● ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR RADIANT RED(756),BODY COLORRADIANT RED/LT.SILVER MET(779) BODY COLOR KEYED RAD GRILLE<TL1> EXC. HALOGEN HEAD LAMPS MULTI REFLECTO R<7YW> (B) RED 		8-97195-392-1 01 1 0108- ● ● ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR SATIN GOLD MET(613),BODY COLOR SATIN GOLD MET/LIGHT SILVER MET(616) BODY COLOR KEYED RAD GRILLE<TL1> EXC. HALOGEN HEAD LAMPS MULTI REFLECTO R<7YW> (B) GOLD 		8-97296-687-1 01 1 0108- ● ● ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR ALPINE WHITE/LT.SILVER MET(740),BODY COLOR ALPINE WHITE(877) BODY COLOR KEYED RAD GRILLE<TL1> HALOGEN HEAD LAMPS MULTI REFLECTOR<7YW> (A) WHITE 		8-97297-549-0 01 1 0108- ● ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR ALPINE WHITE/LT.SILVER MET(740),BODY COLOR ALPINE WHITE(877) BRIGHT RAD GRILLE<V22> (C) WHITE 		8-97296-692-0 01 1 0108- ● ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR ASTRAL SILVER MET(718), BODYCOLOR ASTRAL SILVER/KAISER SILVER MET (778) BRIGHT RAD GRILLE<V22> (C) LIGHT SILVER 		8-97296-695-0 01 1 0108- ● ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR ASTRAL SILVER MET(718), BODYCOLOR ASTRAL SILVER/KAISER SILVER MET (778) BODY COLOR KEYED RAD GRILLE<TL1> HALOGEN HEAD LAMPS MULTI REFLECTOR<7YW> (A) LIGHT SILVER 		8-97297-551-0 01 1 0108- ● ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR CAPE BLUE MET(612),BODY COLOR CAPE BLUE MET/KAISER SILVER MET(614) BODY COLOR KEYED RAD GRILLE<TL1> HALOGEN HEAD LAMPS MULTI REFLECTOR<7YW> (A) BLUE 		8-97297-553-0 01 1 0108- ● ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR CAPE BLUE MET(612),BODY COLOR CAPE BLUE MET/KAISER SILVER MET(614) BRIGHT RAD GRILLE<V22> (C) BLUE 		8-97296-694-0 01 1 0108- ● ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR CYPRESS GREEN MICA(611), BODY COLOR CYPRESS GREEN MICA/LT.SILVER M ET(615) BRIGHT RAD GRILLE<V22> (C) DARK GREEN 		8-97296-698-0 01 1 0108- ● ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR CYPRESS GREEN MICA(611), BODY COLOR CYPRESS GREEN MICA/LT.SILVER M ET(615) BODY COLOR KEYED RAD GRILLE<TL1> HALOGEN HEAD LAMPS MULTI REFLECTOR<7YW> (A) DARK GREEN 		8-97297-555-0 01 1 0108- ● ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR KAISER SILVER MET(878) BODY COLOR KEYED RAD GRILLE<TL1> HALOGEN HEAD LAMPS MULTI REFLECTOR<7YW> (A) SILVER 		8-97297-552-0 01 1 0108- ● ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR KAISER SILVER MET(878) BRIGHT RAD GRILLE<V22> (C) SILVER 		8-97296-696-0 01 1 0108- ● ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR RADIANT RED(756),BODY COLORRADIANT RED/LT.SILVER MET(779) BODY COLOR KEYED RAD GRILLE<TL1> HALOGEN HEAD LAMPS MULTI REFLECTOR<7YW> (A) RED 		8-97297-550-0 01 1 0108- ● ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR RADIANT RED(756),BODY COLORRADIANT RED/LT.SILVER MET(779) BRIGHT RAD GRILLE<V22> (C) RED 		8-97296-693-0 01 1 0108- ● ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR SATIN GOLD MET(613),BODY COLOR SATIN GOLD MET/LIGHT SILVER MET(616) BODY COLOR KEYED RAD GRILLE<TL1> HALOGEN HEAD LAMPS MULTI REFLECTOR<7YW> (A) GOLD 		8-97297-554-0 01 1 0108- ● ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR SATIN GOLD MET(613),BODY COLOR SATIN GOLD MET/LIGHT SILVER MET(616) BRIGHT RAD GRILLE<V22> (C) GOLD 		8-97296-697-0 01 1 0108- ● ● ● ●
1 01.266 GRILLE; RAD
BRIGHT HEAVY DUTY RAD GRILLE<6QR> HALOGEN HEAD LAMPS MULTI REFLECTOR<7YW> (A) 		8-97177-946-4 01 1 0108- ● ● ● ●
1 01.266 GRILLE; RAD
BRIGHT HEAVY DUTY RAD GRILLE<6QR> EXC. HALOGEN HEAD LAMPS MULTI REFLECTO R<7YW> (B) 		8-97180-144-1 01 1 0108- ● ● ● ●
1 01.266 GRILLE; RAD
HALOGEN HEAD LAMPS MULTI REFLECTOR<7YW> EXC. BODY COLOR KEYED RAD GRILLE<TL1>, BRIGHT RAD GRILLE<V22>,BRIGHT HEAVY DUTY RAD GRILLE<6QR> (A) 		8-97177-216-4 01 1 0108- ● ● ● ●
7 01.269 NUT; SPIRE,RAD GRILLE
BRIGHT RAD GRILLE<V22> M5 SPIRE 		8-94146-492-1 01 1 0108- ● ● ● ●
9 01.269 SCREW; RAD GRILLE
08.900 M5X16 		8-94380-268-0 01 1 0108- ● ● ● ● ●
11 01.269 CLIP; RAD GRILLE
BLACK 		8-94218-027-0 08 1 0108- ● ● ● ● ●
12 01.274 PLATE; SKID,RAD 8-97223-858-2 01 1 0108- ●
12 01.274 PLATE; SKID,RAD
SKID PLATE<7WE> 		8-97223-858-2 01 1 0108- ● ●
13 01.267 BOLT; RAD SKID PLATE
03.690 M10X28 W/LK&PL WASHER 		8-97104-788-1 03 1 0108- ●
13 01.267 BOLT; RAD SKID PLATE
SKID PLATE<7WE> 03.690 M10X28 W/LK&PL WASHER 		8-97104-788-1 03 1 0108- ● ●
116 01.266 MOLDING; ORNAMENT GRILLE
BRIGHT RAD GRILLE<V22> 01.303 		8-97940-909-0 01 1 0108- ● ● ● ●
